Plots List
Plots
This endpoint handles manipulation of Plotly plot files.
Reference
Authorization
Any user with or without a Plotly account may view public plots. For private plots, see authentication.
Actions
list
Listing all public plots can be done via a GET request to this endpoint.
By default, plots will be listed in order of date created. The order_by
query parameter is accepted at this endpoint. Currently, only ordering by
views is supported. It is possible to filter the plots by quality
with min_quality or max_quality as query parameter.
Example:
// GET https://api.plotly.com/v2/plots/ ---> 200
// GET https://api.plotly.com/v2/plots/?order_by=-views ---> 200
// GET https://api.plotly.com/v2/plots/?min_quality=5 ---> 200
// GET https://api.plotly.com/v2/plots/?max_quality=5 ---> 200
feed
Listing all handpicked feed plots can be done via a GET request to this endpoint. By default, plots will be listed in a random order.
Example:
// GET https://api.plotly.com/v2/plots/feed ---> 200
create
You can create new plot resources here. The only required field is 'figure'. Currently, the figure is restricted to only contain references to grid data. That is, this will fail if raw data arrays are passed in. To create and manipulate underlying grids for plots, see the grids endpoint.
Example:
// This fails because a figure field is required.
// POST https://api.plotly.com/v2/plots ---> 400 Bad Request
{}
// This fails because the figure has raw data
//POST https://api.plotly.com/v2/plots ---> 400 Bad Request
{
"figure": {"data": [{"y": ['this', 'is', 'raw', 'data']}]}
}
// This succeeds because the figure has src keys, not raw data.
//POST https://api.plotly.com/v2/plots ---> 200 OK
{
"figure": {"data": [{"ysrc": "sven:88:u8nd62"}]}
}
When creating a grid, you can optionally specify a source_fid to specify where a plot has come from:
- source_fid: the fid of a plot that was copied (and presumably edited) to produce this one
detail
There is a lot of meta information stored about plot files including filename, title, share_url, and content_url to name a few.
This information can only be reached with a GET to this endpoint.
Example:
// GET https://api.plotly.com/v2/plots/iheartgraphs:90
content
The contents of a plot can be downloaded via the content resource. The plot
content contains referenced grid/column data by default. If you wish to
return the raw grid/column data, the inline_data=true query must be included
in the request url. The Content-Type header will be appropriately set for the
response body.
Alternatively, you can set ?map_data=unreadable to append a mapping of
sources to data that belongs to grids which are unreadable for the
requestor. This is useful when you have read access to another users plot,
but that plot contains grid references which you don't have access to.
Examples:
// Returns referenced grid/column data
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content ---> 200 OK
// Returns full grid/column data
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content?inline_data=true ---> 200 OK
// Returns full grid/column data when requestor doesn't have permission
// to read the referenced grid.
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content?map_data=unreadable ---> 200 OK
GET /v2/plots?cursor=cj0xJnA9MjAyNC0wNC0wMSsxNSUzQTM2JTNBNTEuNjk3OTk2JTJCMDAlM0EwMA%3D%3D&format=api

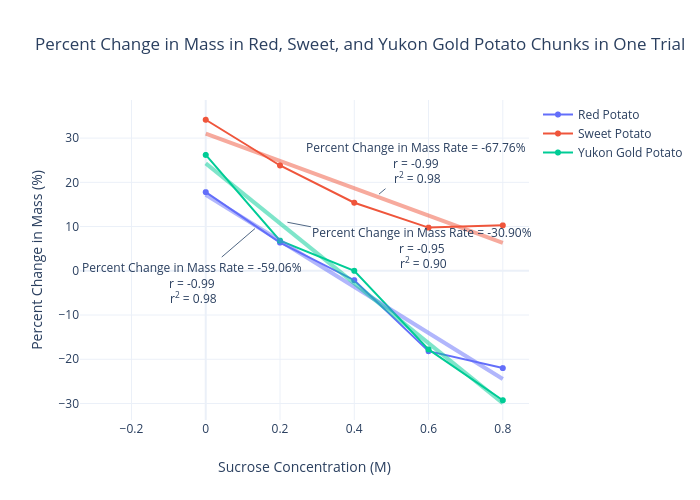

{ "next": "https://api.plot.ly/v2/plots?cursor=cD0yMDI0LTA0LTAxKzE1JTNBNDElM0ExMy40MjM3NzIlMkIwMCUzQTAw&format=api", "previous": "https://api.plot.ly/v2/plots?cursor=cj0xJnA9MjAyNC0wNC0wMSsxNiUzQTM3JTNBMDYuOTQ3MzMyJTJCMDAlM0EwMA%3D%3D&format=api", "results": [ { "creation_time": "2024-04-01T16:37:06.947332Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~555150/56.embed", "fid": "555150:56", "filename": "Plot of Percent Change in Mass of Red, Sweet, and Yukon Gold Potato Chunks of One Trial", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/555150:56/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/555150:56/image?image_name=default", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/555150/56/8_KE3C4QIVGM8FWPOF44GGEBL7OPXWS9.png", "list-thumb": "https://api.plotly.com/v2/files/555150:56/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/555150:56", "plots": "https://api.plotly.com/v2/plots/555150:56", "parent": "https://api.plotly.com/v2/folders/home?user=555150" }, "owner": "555150", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 1, "web_url": "https://chart-studio.plotly.com/~555150/56/", "world_readable": true, "date_modified": "2024-06-03T08:13:30.488Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~555150/56/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "2129cd", "meta": { "columnNames": { "x": "A", "y": "B" } }, "mode": "markers+lines", "name": "Red Potato", "type": "scatter", "xsrc": "555150:55:4d27a0", "ysrc": "555150:55:e402c3", "visible": true }, { "uid": "2a3ea3", "meta": { "columnNames": { "x": "A", "y": "C" } }, "mode": "markers+lines", "name": "Sweet Potato", "type": "scatter", "xsrc": "555150:55:4d27a0", "ysrc": "555150:55:6bb413", "stackgroup": null }, { "uid": "6c68bd", "meta": { "columnNames": { "x": "A", "y": "D" } }, "mode": "markers+lines", "name": "Yukon Gold Potato", "type": "scatter", "xsrc": "555150:55:4d27a0", "ysrc": "555150:55:ec1209", "stackgroup": null }, { "uid": "ded934", "showlegend": false, "transforms": [ { "rms": "", "type": "fit", "inputUid": "2129cd", "regressor": "x", "parameters": [ { "hold": false, "name": "m", "error": 4.645800971486685, "value": -52.05999999999996 }, { "hold": false, "name": "b", "error": 2.2759683653337603, "value": 17.193999999999985 } ], "regressand": "y", "correlation": "", "fitfunction": "m*x + b", "inputxrange": [], "outputxrange": [], "interpolation": 50 } ] }, { "uid": "1bbb6a", "showlegend": false, "transforms": [ { "rms": "", "type": "fit", "inputUid": "2a3ea3", "regressor": "x", "parameters": [ { "hold": false, "name": "m", "error": 6.103872404739005, "value": -30.904999999998132 }, { "hold": false, "name": "b", "error": 2.9902745693328403, "value": 31.03799999999918 } ], "regressand": "y", "correlation": "", "fitfunction": "m*x + b", "inputxrange": [], "outputxrange": [], "interpolation": 50 } ] }, { "uid": "fd3265", "showlegend": false, "transforms": [ { "rms": "", "type": "fit", "inputUid": "6c68bd", "regressor": "x", "parameters": [ { "hold": false, "name": "m", "error": 4.941190814638015, "value": -67.76000000000019 }, { "hold": false, "name": "b", "error": 2.420679243518274, "value": 24.296000000000074 } ], "regressand": "y", "correlation": "", "fitfunction": "m*x + b", "inputxrange": [], "outputxrange": [], "interpolation": 50 } ] } ], "frames": [], "layout": { "title": { "text": "Percent Change in Mass in Red, Sweet, and Yukon Gold Potato Chunks in One Trial" }, "xaxis": { "type": "linear", "range": [ -0.1335425068758402, 0.8551379484712819 ], "title": { "text": "Sucrose Concentration (M)" }, "autorange": true }, "yaxis": { "type": "linear", "range": [ -33.508295454545454, 38.38829545454546 ], "title": { "text": "Percent Change in Mass (%)" }, "autorange": true }, "shapes": [], "autosize": true, "dragmode": "zoom", "template": { "data": { "bar": [ { "type": "bar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatter": [ { "type": "scatter", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "histogram": [ { "type": "histogram", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "white", "showlakes": true, "subunitcolor": "#C8D4E3" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "white", "radialaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" }, "angularaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "yaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "zaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "baxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "caxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "bgcolor": "white" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#19d3f3", "#e763fa", "#fecb52", "#ffa15a", "#ff6692", "#b6e880" ], "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ], "sequentialminus": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ] }, "plot_bgcolor": "white", "paper_bgcolor": "white", "shapedefaults": { "line": { "width": 0 }, "opacity": 0.4, "fillcolor": "#506784" }, "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#506784", "arrowwidth": 1 } }, "themeRef": "PLOTLY_WHITE" }, "annotations": [ { "x": 0.13264069264069264, "y": 9.54986547085202, "ax": -63, "ay": 54, "text": "Percent Change in Mass Rate = -59.06%<br>r = -0.99<br>\nr<sup>2</sup> = 0.98" }, { "x": 0.21991341991341992, "y": 10.971838565022423, "ax": 135, "ay": 26, "text": "Percent Change in Mass Rate = -30.90%<br>r = -0.95<br>\nr<sup>2</sup> = 0.90" }, { "x": 0.4664935064935065, "y": 17.323318385650225, "ax": 37, "ay": -31, "text": "Percent Change in Mass Rate = -67.76%<br>r = -0.99<br>\nr<sup>2</sup> = 0.98" } ] } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~555150", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/84.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-3.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2021-10-07 16:49:08", "mapbox_access_tokens": null, "has_password": null, "username": "555150", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2024-04-01T16:32:20.356811Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~physics1d/39.embed", "fid": "physics1d:39", "filename": "Plot 39", "filetype": "plot", "img_url": "https://storage.googleapis.com/plotly-prod-images/physics1d/39/9_JTXGJ2EX020LKAUMF16GL76R6LI9CJ.png", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/physics1d/39/2_G9XOGBNKJC6C7GS0YW7N03JC06KNV7.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/physics1d/39/8_9UXGK9E2D631F03LYDPM8X28Y0T1YH.png", "list-thumb": "https://storage.googleapis.com/plotly-prod-images/physics1d/39/9_JTXGJ2EX020LKAUMF16GL76R6LI9CJ.png" }, "api_urls": { "files": "https://api.plotly.com/v2/files/physics1d:39", "plots": "https://api.plotly.com/v2/plots/physics1d:39", "parent": "https://api.plotly.com/v2/folders/home?user=physics1d" }, "owner": "physics1d", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 1, "web_url": "https://chart-studio.plotly.com/~physics1d/39/", "world_readable": true, "date_modified": "2024-04-01T16:32:20.369Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~physics1d/39/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "meta": { "columnNames": { "labels": "A", "values": "B" } }, "mode": "markers", "type": "pie", "domain": { "x": [ 0, 1 ], "y": [ 0, 1 ] }, "labelssrc": "physics1d:38:878c45", "valuessrc": "physics1d:38:51b515" } ], "frames": [], "layout": { "title": { "text": "" }, "xaxis": { "range": [ -1, 6 ], "autorange": true }, "yaxis": { "range": [ -1, 4 ], "autorange": true }, "autosize": true, "template": { "data": { "bar": [ { "type": "bar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatter": [ { "type": "scatter", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "histogram": [ { "type": "histogram", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "white", "showlakes": true, "subunitcolor": "#C8D4E3" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "white", "radialaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" }, "angularaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "yaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "zaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "baxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "caxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "bgcolor": "white" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#19d3f3", "#e763fa", "#fecb52", "#ffa15a", "#ff6692", "#b6e880" ], "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ], "sequentialminus": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ] }, "plot_bgcolor": "white", "paper_bgcolor": "white", "shapedefaults": { "line": { "width": 0 }, "opacity": 0.4, "fillcolor": "#506784" }, "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#506784", "arrowwidth": 1 } }, "themeRef": "PLOTLY_WHITE" }, "annotations": [] } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~physics1d", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/62.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-6.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2021-10-07 18:54:49", "mapbox_access_tokens": null, "has_password": null, "username": "physics1d", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2024-04-01T16:27:39.668094Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~lmalves/311.embed", "fid": "lmalves:311", "filename": "MeD- Gráfico 4.1.3 - Nordeste", "filetype": "plot", "img_url": "https://storage.googleapis.com/plotly-prod-images/lmalves/311/9_9ACVFRT0SGAD3VSP367GP82FLI2L9W.png", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/lmalves/311/2_KVI85G0ASEGY9BPNAWC4J3WK43DNAI.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/lmalves/311/8_FLYYPJ9AP6XIP3QWE51Z10V3A4E6DF.png", "list-thumb": "https://storage.googleapis.com/plotly-prod-images/lmalves/311/9_9ACVFRT0SGAD3VSP367GP82FLI2L9W.png" }, "api_urls": { "files": "https://api.plotly.com/v2/files/lmalves:311", "plots": "https://api.plotly.com/v2/plots/lmalves:311", "parent": "https://api.plotly.com/v2/folders/home?user=lmalves" }, "owner": "lmalves", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 130, "web_url": "https://chart-studio.plotly.com/~lmalves/311/", "world_readable": true, "date_modified": "2024-05-15T18:05:49.737Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~lmalves/311/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": false, "caption": "", "figure": { "data": [ { "line": { "width": 3 }, "meta": { "columnNames": { "r": "B", "text": "C", "theta": "A" } }, "name": "Mestres", "rsrc": "lmalves:310:07026e", "type": "scatterpolar", "marker": { "size": 8, "color": "rgb(2, 149, 100)", "symbol": "circle" }, "textsrc": "lmalves:310:1fcdef", "thetasrc": "lmalves:310:84b236", "hoverinfo": "text", "hoverlabel": { "align": "left" }, "showlegend": true }, { "fill": "none", "line": { "color": "rgb(111, 45, 141)", "width": 3 }, "meta": { "columnNames": { "r": "F", "text": "G", "theta": "A" } }, "name": "Doutores", "rsrc": "lmalves:310:886e40", "type": "scatterpolar", "marker": { "size": 8, "color": "rgb(111, 45, 141)", "symbol": "square" }, "subplot": "polar2", "textsrc": "lmalves:310:80eb76", "thetasrc": "lmalves:310:84b236", "hoverinfo": "text", "thetaunit": "degrees", "cliponaxis": false, "hoverlabel": { "align": "left" } } ], "frames": [], "layout": { "font": { "size": 13, "family": "Roboto" }, "polar": { "domain": { "x": [ 0, 0.35 ], "y": [ 0, 1 ] }, "radialaxis": { "type": "linear", "range": [ 0, 2 ], "title": { "font": { "size": 13 }, "text": "<br>" }, "ticklen": 5, "autorange": false, "direction": "clockwise", "tickangle": 45, "ticksuffix": "", "minexponent": 3, "separatethousands": false }, "angularaxis": { "type": "category", "dtick": 1, "range": [ 1, 4 ], "nticks": 0, "ticklen": 5, "showgrid": true, "showline": true, "tickmode": "linear", "autorange": false, "direction": "clockwise", "gridwidth": 1, "linewidth": 1, "tickangle": "auto", "tickwidth": 1, "ticksuffix": "", "showticklabels": true } }, "title": { "x": 0.5, "font": { "size": 13 }, "text": "" }, "width": 800, "xaxis": { "range": [ -1, 6 ], "autorange": true }, "yaxis": { "range": [ -1, 4 ], "autorange": true }, "bargap": 0.9995, "height": 400, "legend": { "x": 0.5, "y": -0.25, "font": { "size": 12.9 }, "valign": "middle", "xanchor": "center", "yanchor": "bottom", "traceorder": "normal", "borderwidth": 0, "orientation": "h" }, "margin": { "b": 25, "l": 100, "r": 100, "t": 50, "pad": 0 }, "polar2": { "domain": { "x": [ 0.65, 1 ], "y": [ 0, 1 ] }, "radialaxis": { "type": "linear", "angle": 0, "range": [ 0, 2 ], "title": { "text": "" }, "tickmode": 45, "autorange": false, "direction": "clockwise", "tickangle": 45 }, "angularaxis": { "type": "category", "dtick": 1, "range": [ 1, 4 ], "tick0": 0, "nticks": 0, "rotation": 90.11199850425879, "showline": true, "tickmode": "auto", "autorange": false, "direction": "clockwise", "gridwidth": 1, "linewidth": 1, "tickangle": "auto" } }, "autosize": false, "dragmode": "lasso", "hovermode": "closest", "hoverlabel": { "font": { "family": "Roboto" } }, "separators": ",.", "showlegend": true, "uniformtext": { "mode": false } } }, "height": 400, "width": 800, "user": { "profile_url": "https://chart-studio.plotly.com/~lmalves", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/69.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-1.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-11-28 13:10:38", "mapbox_access_tokens": null, "has_password": null, "username": "lmalves", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2024-04-01T16:27:24.923113Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~lmalves/309.embed", "fid": "lmalves:309", "filename": "MeD- Gráfico 4.1.3 - Centro-Oeste", "filetype": "plot", "img_url": "https://storage.googleapis.com/plotly-prod-images/lmalves/309/9_JRCG0OGOY5IHRUXIFS33IWQ9C1BYLK.png", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/lmalves/309/2_NH7WXNHN153TQZ2APCK9ZKTIFQ6644.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/lmalves/309/8_9U6DTUXADMX5SB5ZHR1NV6GEFWQ6H5.png", "list-thumb": "https://storage.googleapis.com/plotly-prod-images/lmalves/309/9_JRCG0OGOY5IHRUXIFS33IWQ9C1BYLK.png" }, "api_urls": { "files": "https://api.plotly.com/v2/files/lmalves:309", "plots": "https://api.plotly.com/v2/plots/lmalves:309", "parent": "https://api.plotly.com/v2/folders/home?user=lmalves" }, "owner": "lmalves", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 130, "web_url": "https://chart-studio.plotly.com/~lmalves/309/", "world_readable": true, "date_modified": "2024-05-15T18:05:46.349Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~lmalves/309/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": false, "caption": "", "figure": { "data": [ { "line": { "width": 3 }, "meta": { "columnNames": { "r": "B", "text": "C", "theta": "A" } }, "name": "Mestres", "rsrc": "lmalves:308:07026e", "type": "scatterpolar", "marker": { "size": 8, "color": "rgb(2, 149, 100)", "symbol": "circle" }, "textsrc": "lmalves:308:1fcdef", "thetasrc": "lmalves:308:84b236", "hoverinfo": "text", "hoverlabel": { "align": "left" }, "showlegend": true }, { "fill": "none", "line": { "color": "rgb(111, 45, 141)", "width": 3 }, "meta": { "columnNames": { "r": "F", "text": "G", "theta": "A" } }, "name": "Doutores", "rsrc": "lmalves:308:886e40", "type": "scatterpolar", "marker": { "size": 8, "color": "rgb(111, 45, 141)", "symbol": "square" }, "subplot": "polar2", "textsrc": "lmalves:308:80eb76", "thetasrc": "lmalves:308:84b236", "hoverinfo": "text", "thetaunit": "degrees", "cliponaxis": false, "hoverlabel": { "align": "left" } } ], "frames": [], "layout": { "font": { "size": 13, "family": "Roboto" }, "polar": { "domain": { "x": [ 0, 0.35 ], "y": [ 0, 1 ] }, "radialaxis": { "type": "linear", "range": [ 0, 2 ], "title": { "font": { "size": 13 }, "text": "<br>" }, "ticklen": 5, "autorange": false, "direction": "clockwise", "tickangle": 45, "ticksuffix": "", "minexponent": 3, "separatethousands": false }, "angularaxis": { "type": "category", "dtick": 1, "range": [ 1, 4 ], "nticks": 0, "ticklen": 5, "showgrid": true, "showline": true, "tickmode": "linear", "autorange": false, "direction": "clockwise", "gridwidth": 1, "linewidth": 1, "tickangle": "auto", "tickwidth": 1, "ticksuffix": "", "showticklabels": true } }, "title": { "x": 0.5, "font": { "size": 13 }, "text": "" }, "width": 800, "xaxis": { "range": [ -1, 6 ], "autorange": true }, "yaxis": { "range": [ -1, 4 ], "autorange": true }, "bargap": 0.9995, "height": 400, "legend": { "x": 0.5, "y": -0.25, "font": { "size": 12.9 }, "valign": "middle", "xanchor": "center", "yanchor": "bottom", "traceorder": "normal", "borderwidth": 0, "orientation": "h" }, "margin": { "b": 25, "l": 100, "r": 100, "t": 50, "pad": 0 }, "polar2": { "domain": { "x": [ 0.65, 1 ], "y": [ 0, 1 ] }, "radialaxis": { "type": "linear", "angle": 0, "range": [ 0, 2 ], "title": { "text": "" }, "tickmode": 45, "autorange": false, "direction": "clockwise", "tickangle": 45 }, "angularaxis": { "type": "category", "dtick": 1, "range": [ 1, 4 ], "tick0": 0, "nticks": 0, "rotation": 90.11199850425879, "showline": true, "tickmode": "auto", "autorange": false, "direction": "clockwise", "gridwidth": 1, "linewidth": 1, "tickangle": "auto" } }, "autosize": false, "dragmode": "lasso", "hovermode": "closest", "hoverlabel": { "font": { "family": "Roboto" } }, "separators": ",.", "showlegend": true, "uniformtext": { "mode": false } } }, "height": 400, "width": 800, "user": { "profile_url": "https://chart-studio.plotly.com/~lmalves", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/69.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-1.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-11-28 13:10:38", "mapbox_access_tokens": null, "has_password": null, "username": "lmalves", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2024-04-01T16:27:10.400614Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~lmalves/307.embed", "fid": "lmalves:307", "filename": "MeD- Gráfico 4.1.3 - Sudeste", "filetype": "plot", "img_url": "https://storage.googleapis.com/plotly-prod-images/lmalves/307/9_E3Q29P79I6LAU4XYMVJF9GQRC3FAYO.png", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/lmalves/307/2_0SDWA0WZ4OSIX6ECEJV3829R4D1WLV.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/lmalves/307/8_XNZ11SJAM3MFIZN8DZ04EA1H61NAXR.png", "list-thumb": "https://storage.googleapis.com/plotly-prod-images/lmalves/307/9_E3Q29P79I6LAU4XYMVJF9GQRC3FAYO.png" }, "api_urls": { "files": "https://api.plotly.com/v2/files/lmalves:307", "plots": "https://api.plotly.com/v2/plots/lmalves:307", "parent": "https://api.plotly.com/v2/folders/home?user=lmalves" }, "owner": "lmalves", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 130, "web_url": "https://chart-studio.plotly.com/~lmalves/307/", "world_readable": true, "date_modified": "2024-05-15T18:05:38.938Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~lmalves/307/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": false, "caption": "", "figure": { "data": [ { "line": { "width": 3 }, "meta": { "columnNames": { "r": "B", "text": "C", "theta": "A" } }, "name": "Mestres", "rsrc": "lmalves:306:07026e", "type": "scatterpolar", "marker": { "size": 8, "color": "rgb(2, 149, 100)", "symbol": "circle" }, "textsrc": "lmalves:306:1fcdef", "thetasrc": "lmalves:306:84b236", "hoverinfo": "text", "hoverlabel": { "align": "left" }, "showlegend": true }, { "fill": "none", "line": { "color": "rgb(111, 45, 141)", "width": 3 }, "meta": { "columnNames": { "r": "F", "text": "G", "theta": "A" } }, "name": "Doutores", "rsrc": "lmalves:306:886e40", "type": "scatterpolar", "marker": { "size": 8, "color": "rgb(111, 45, 141)", "symbol": "square" }, "subplot": "polar2", "textsrc": "lmalves:306:80eb76", "thetasrc": "lmalves:306:84b236", "hoverinfo": "text", "thetaunit": "degrees", "cliponaxis": false, "hoverlabel": { "align": "left" } } ], "frames": [], "layout": { "font": { "size": 13, "family": "Roboto" }, "polar": { "domain": { "x": [ 0, 0.35 ], "y": [ 0, 1 ] }, "radialaxis": { "type": "linear", "range": [ 0, 2 ], "title": { "font": { "size": 13 }, "text": "<br>" }, "ticklen": 5, "autorange": false, "direction": "clockwise", "tickangle": 45, "ticksuffix": "", "minexponent": 3, "separatethousands": false }, "angularaxis": { "type": "category", "dtick": 1, "range": [ 1, 4 ], "nticks": 0, "ticklen": 5, "showgrid": true, "showline": true, "tickmode": "linear", "autorange": false, "direction": "clockwise", "gridwidth": 1, "linewidth": 1, "tickangle": "auto", "tickwidth": 1, "ticksuffix": "", "showticklabels": true } }, "title": { "x": 0.5, "font": { "size": 13 }, "text": "" }, "width": 800, "xaxis": { "range": [ -1, 6 ], "autorange": true }, "yaxis": { "range": [ -1, 4 ], "autorange": true }, "bargap": 0.9995, "height": 400, "legend": { "x": 0.5, "y": -0.25, "font": { "size": 12.9 }, "valign": "middle", "xanchor": "center", "yanchor": "bottom", "traceorder": "normal", "borderwidth": 0, "orientation": "h" }, "margin": { "b": 25, "l": 100, "r": 100, "t": 50, "pad": 0 }, "polar2": { "domain": { "x": [ 0.65, 1 ], "y": [ 0, 1 ] }, "radialaxis": { "type": "linear", "angle": 0, "range": [ 0, 2 ], "title": { "text": "" }, "tickmode": 45, "autorange": false, "direction": "clockwise", "tickangle": 45 }, "angularaxis": { "type": "category", "dtick": 1, "range": [ 1, 4 ], "tick0": 0, "nticks": 0, "rotation": 90.11199850425879, "showline": true, "tickmode": "auto", "autorange": false, "direction": "clockwise", "gridwidth": 1, "linewidth": 1, "tickangle": "auto" } }, "autosize": false, "dragmode": "lasso", "hovermode": "closest", "hoverlabel": { "font": { "family": "Roboto" } }, "separators": ",.", "showlegend": true, "uniformtext": { "mode": false } } }, "height": 400, "width": 800, "user": { "profile_url": "https://chart-studio.plotly.com/~lmalves", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/69.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-1.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-11-28 13:10:38", "mapbox_access_tokens": null, "has_password": null, "username": "lmalves", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2024-04-01T16:09:39.386569Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~dominatorPLO/19.embed", "fid": "dominatorPLO:19", "filename": "New Actions", "filetype": "plot", "img_url": "https://storage.googleapis.com/plotly-prod-images/dominatorPLO/19/9_82TCSI6EATX7BASITJVQY8QIRKHRLE.png", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/dominatorPLO/19/2_P9AH1X1TMHGIVC0PLX22OP6GZEB7MJ.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/dominatorPLO/19/8_GZJ22QZSPUXMEF2055PAK0JXTUUQ6W.png", "list-thumb": "https://storage.googleapis.com/plotly-prod-images/dominatorPLO/19/9_82TCSI6EATX7BASITJVQY8QIRKHRLE.png" }, "api_urls": { "files": "https://api.plotly.com/v2/files/dominatorPLO:19", "plots": "https://api.plotly.com/v2/plots/dominatorPLO:19", "parent": "https://api.plotly.com/v2/folders/home?user=dominatorPLO" }, "owner": "dominatorPLO", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 7, "web_url": "https://chart-studio.plotly.com/~dominatorPLO/19/", "world_readable": true, "date_modified": "2024-04-01T23:38:48.126Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~dominatorPLO/19/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "box": { "line": { "color": "rgb(14, 64, 149)", "width": 1 }, "width": 0.25, "visible": true }, "line": { "width": 0 }, "meta": { "columnNames": { "x": "Disass tool", "y": "Diass", "marker": { "size": "Reass" } } }, "mode": "markers", "name": "Disassembly", "side": "negative", "type": "violin", "xsrc": "dominatorPLO:18:9f818e", "ysrc": "dominatorPLO:18:770fdd", "xaxis": "x", "yaxis": "y2", "jitter": 0.12, "marker": { "line": { "color": "rgb(197, 197, 197)", "width": 0 }, "meta": { "columnNames": { "size": "Reass" } }, "color": "rgb(13, 118, 191)", "opacity": 0.55, "sizeref": 0.013218271604938272, "sizesrc": "dominatorPLO:18:c09f83", "sizemode": "area" }, "points": false, "visible": true, "meanline": { "color": "rgb(255, 255, 255)", "width": 1, "visible": true }, "pointpos": -0.5999999999999999, "spanmode": "soft", "bandwidth": 1, "boxpoints": false, "hoverinfo": "x+y+name", "scalemode": "width", "hoverlabel": { "namelength": 15 }, "showlegend": true, "orientation": "v", "hovertemplate": "", "selectedpoints": [] }, { "box": { "line": { "color": "rgb(168, 78, 33)", "width": 1 }, "width": 0.25, "visible": true }, "line": { "color": "rgb(215, 126, 81)", "width": 0 }, "meta": { "columnNames": { "x": "reass tool", "y": "Reass" } }, "mode": "markers", "name": "Reassembly", "side": "positive", "type": "violin", "xsrc": "dominatorPLO:18:2660e9", "ysrc": "dominatorPLO:18:c09f83", "xaxis": "x", "yaxis": "y2", "jitter": 0, "marker": { "color": "rgb(220, 132, 96)", "opacity": 1 }, "points": false, "hoveron": "violins", "visible": true, "meanline": { "color": "rgb(253, 216, 199)", "width": 1, "visible": true }, "pointpos": -1.2, "spanmode": "manual", "bandwidth": 1, "boxpoints": false, "fillcolor": "rgba(238, 137, 87, 0.5)", "hoverinfo": "x+y+name", "scalemode": "width", "scalegroup": "", "orientation": "v", "selectedpoints": [] } ], "frames": [], "layout": { "scene": { "aspectmode": "auto", "aspectratio": { "x": 1, "y": 1, "z": 1 } }, "title": { "x": 0.5, "font": { "size": 30 }, "text": "<b>Disassembly vs Reassembly distribution for unscrew actions</b>" }, "xaxis": { "side": "bottom", "type": "category", "range": [ -0.675154726729434, 9.470144418569712 ], "ticks": "", "title": { "font": { "size": 25 }, "text": "<b>Tool</b>" }, "anchor": "y2", "domain": [ 0, 1 ], "nticks": 0, "showgrid": false, "showline": true, "tickfont": { "size": 20, "family": "Overpass" }, "autorange": false, "linecolor": "rgb(156, 222, 195)", "linewidth": 2, "tickangle": "auto", "automargin": false, "showspikes": true, "ticksuffix": "", "showticklabels": true }, "legend": { "x": 0.016971404674249124, "y": 1.066357785509386, "font": { "size": 25, "color": "rgb(128, 102, 110)", "family": "Arial" }, "title": { "font": { "size": 12 }, "text": "<br>" }, "borderwidth": 0, "orientation": "h" }, "margin": { "r": 80, "t": 100, "pad": 0 }, "shapes": [], "yaxis2": { "side": "left", "type": "linear", "range": [ -1.8501010829013147, 30.32259593745786 ], "title": { "font": { "size": 25 }, "text": "<b>Time (s)</b>" }, "domain": [ 0, 1 ], "tickfont": { "size": 20 }, "autorange": false, "showspikes": true }, "modebar": { "orientation": "h" }, "autosize": true, "dragmode": "zoom", "template": { "data": { "bar": [ { "type": "bar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatter": [ { "type": "scatter", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "histogram": [ { "type": "histogram", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "white", "showlakes": true, "subunitcolor": "#C8D4E3" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "white", "radialaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" }, "angularaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "yaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "zaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "baxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "caxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "bgcolor": "white" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#19d3f3", "#e763fa", "#fecb52", "#ffa15a", "#ff6692", "#b6e880" ], "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ], "sequentialminus": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ] }, "plot_bgcolor": "white", "paper_bgcolor": "white", "shapedefaults": { "line": { "width": 0 }, "opacity": 0.4, "fillcolor": "#506784" }, "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#506784", "arrowwidth": 1 } }, "themeRef": "PLOTLY_WHITE" }, "clickmode": "event", "hovermode": "closest", "violingap": 0, "showlegend": true, "violinmode": "overlay", "violingroupgap": 0 } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~dominatorPLO", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/86.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-2.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2023-08-21 16:50:45", "mapbox_access_tokens": null, "has_password": null, "username": "dominatorPLO", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2024-04-01T16:07:36.202662Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~l2736247360/1.embed", "fid": "l2736247360:1", "filename": "Plot 1", "filetype": "plot", "img_url": "https://storage.googleapis.com/plotly-prod-images/l2736247360/1/9_WPC83COUXUTK77SSGVS939BSMQ1KBJ.png", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/l2736247360/1/2_UD61L4IPKFWPM1BDGYMZ0PGTMVBKW2.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/l2736247360/1/8_UT8CIGFXAO82IYDHFDYZNQY7FWGBVE.png", "list-thumb": "https://storage.googleapis.com/plotly-prod-images/l2736247360/1/9_WPC83COUXUTK77SSGVS939BSMQ1KBJ.png" }, "api_urls": { "files": "https://api.plotly.com/v2/files/l2736247360:1", "plots": "https://api.plotly.com/v2/plots/l2736247360:1", "parent": "https://api.plotly.com/v2/folders/home?user=l2736247360" }, "owner": "l2736247360", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 1, "web_url": "https://chart-studio.plotly.com/~l2736247360/1/", "world_readable": true, "date_modified": "2024-04-01T16:17:50.207Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~l2736247360/1/", "current_user_permission": "read", "is_theme": null, "is_template": true, "autosize": true, "caption": "", "figure": { "data": [ { "meta": { "columnNames": { "x": "A", "y": "B", "z": "C - D - E - F" } }, "mode": "markers", "type": "heatmap", "xsrc": "l2736247360:0:5f2936", "ysrc": "l2736247360:0:4dd8c2", "zsrc": "l2736247360:0:9fd054,aa7342,35d7ec,e10886", "transpose": true, "colorscale": [ [ 0, "#f7fcf0" ], [ 0.125, "#e0f3db" ], [ 0.25, "#ccebc5" ], [ 0.375, "#a8ddb5" ], [ 0.5, "#7bccc4" ], [ 0.625, "#4eb3d3" ], [ 0.75, "#2b8cbe" ], [ 0.875, "#0868ac" ], [ 1, "#084081" ] ], "autocolorscale": false } ], "frames": [], "layout": { "xaxis": { "type": "category", "range": [ 1.1662817551963052, 2.0230946882217093 ], "autorange": false }, "yaxis": { "type": "category", "range": [ -0.5, 3.5 ], "autorange": true }, "autosize": true, "colorway": [ "#AA0DFE", "#3283FE", "#85660D", "#782AB6", "#565656", "#1C8356", "#16FF32", "#F7E1A0", "#E2E2E2", "#1CBE4F", "#C4451C", "#DEA0FD", "#FE00FA", "#325A9B", "#FEAF16", "#F8A19F", "#90AD1C", "#F6222E", "#1CFFCE", "#2ED9FF", "#B10DA1", "#C075A6", "#FC1CBF", "#B00068", "#FBE426", "#FA0087" ], "template": { "data": { "bar": [ { "type": "bar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatter": [ { "type": "scatter", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "histogram": [ { "type": "histogram", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "white", "showlakes": true, "subunitcolor": "#C8D4E3" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "white", "radialaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" }, "angularaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "yaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "zaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "baxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "caxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "bgcolor": "white" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#19d3f3", "#e763fa", "#fecb52", "#ffa15a", "#ff6692", "#b6e880" ], "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ], "sequentialminus": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ] }, "plot_bgcolor": "white", "paper_bgcolor": "white", "shapedefaults": { "line": { "width": 0 }, "opacity": 0.4, "fillcolor": "#506784" }, "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#506784", "arrowwidth": 1 } }, "themeRef": "PLOTLY_WHITE" }, "colorscale": { "diverging": [ [ 0, "#a50026" ], [ 0.1, "#d73027" ], [ 0.2, "#f46d43" ], [ 0.3, "#fdae61" ], [ 0.4, "#fee08b" ], [ 0.5, "#ffffbf" ], [ 0.6, "#d9ef8b" ], [ 0.7, "#a6d96a" ], [ 0.8, "#66bd63" ], [ 0.9, "#1a9850" ], [ 1, "#006837" ] ], "sequentialminus": [ [ 0, "#0508b8" ], [ 0.08333333333333333, "#1910d8" ], [ 0.16666666666666666, "#3c19f0" ], [ 0.25, "#6b1cfb" ], [ 0.3333333333333333, "#981cfd" ], [ 0.4166666666666667, "#bf1cfd" ], [ 0.5, "#dd2bfd" ], [ 0.5833333333333334, "#f246fe" ], [ 0.6666666666666666, "#fc67fd" ], [ 0.75, "#fe88fc" ], [ 0.8333333333333334, "#fea5fd" ], [ 0.9166666666666666, "#febefe" ], [ 1, "#fec3fe" ] ] } } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~l2736247360", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/55.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-10.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2024-04-01 16:06:32", "mapbox_access_tokens": null, "has_password": null, "username": "l2736247360", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2024-04-01T15:51:45.757834Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~kubix448/55.embed", "fid": "kubix448:55", "filename": "PredLenghtSimplePlot", "filetype": "plot", "img_url": "https://storage.googleapis.com/plotly-prod-images/kubix448/55/9_NZQUE4Y9N8JX2BTDBSL6JQ9LU735KY.png", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/kubix448/55/2_FN8XMVQJFK9OQQ4VJV2H8Z0RETSI54.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/kubix448/55/8_GEAKH3LQ0F4OLI137J9IECWKD80MAE.png", "list-thumb": "https://storage.googleapis.com/plotly-prod-images/kubix448/55/9_NZQUE4Y9N8JX2BTDBSL6JQ9LU735KY.png" }, "api_urls": { "files": "https://api.plotly.com/v2/files/kubix448:55", "plots": "https://api.plotly.com/v2/plots/kubix448:55", "parent": "https://api.plotly.com/v2/folders/home?user=kubix448" }, "owner": "kubix448", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 1, "web_url": "https://chart-studio.plotly.com/~kubix448/55/", "world_readable": true, "date_modified": "2024-04-01T15:51:45.768Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~kubix448/55/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "meta": { "columnNames": { "x": "B", "y": "C" } }, "name": "Lineární Regrese", "type": "box", "xsrc": "kubix448:53:0b3752", "ysrc": "kubix448:53:bb8aef", "boxpoints": false }, { "meta": { "columnNames": { "x": "B", "y": "D" } }, "name": "Klouzavý průměr", "type": "box", "xsrc": "kubix448:53:0b3752", "ysrc": "kubix448:53:cc6b54", "boxpoints": false } ], "frames": [], "layout": { "title": { "font": { "size": 24 }, "text": "Vliv délky predikce" }, "xaxis": { "type": "category", "range": [ 0.5, 6.5 ], "title": { "font": { "size": 20 }, "text": "Délka predikce" }, "showgrid": true, "showline": true, "tickfont": { "size": 18 }, "autorange": true, "gridcolor": "rgb(179, 188, 199)", "linecolor": "rgb(179, 188, 199)" }, "yaxis": { "type": "linear", "range": [ 0, 220 ], "title": { "font": { "size": 20 }, "text": "Naměřená chyba MAPE (%)" }, "showline": true, "tickfont": { "size": 18 }, "autorange": false, "gridcolor": "rgb(179, 188, 199)", "linecolor": "rgb(179, 188, 199)" }, "legend": { "font": { "size": 18 } }, "boxmode": "group", "autosize": true, "template": { "data": { "bar": [ { "type": "bar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatter": [ { "type": "scatter", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "histogram": [ { "type": "histogram", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "white", "showlakes": true, "subunitcolor": "#C8D4E3" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "white", "radialaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" }, "angularaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "yaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "zaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "baxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "caxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "bgcolor": "white" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#19d3f3", "#e763fa", "#fecb52", "#ffa15a", "#ff6692", "#b6e880" ], "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ], "sequentialminus": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ] }, "plot_bgcolor": "white", "paper_bgcolor": "white", "shapedefaults": { "line": { "width": 0 }, "opacity": 0.4, "fillcolor": "#506784" }, "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#506784", "arrowwidth": 1 } }, "themeRef": "PLOTLY_WHITE" } } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~kubix448", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/25.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-9.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2024-03-02 14:31:02", "mapbox_access_tokens": null, "has_password": null, "username": "kubix448", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2024-04-01T15:42:36.935611Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~vks_s/1.embed", "fid": "vks_s:1", "filename": "Plot 1", "filetype": "plot", "img_url": "https://storage.googleapis.com/plotly-prod-images/vks_s/1/9_F4KWMUL1SF3TFZHGYVF7OXG3NDOZTS.png", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/vks_s/1/2_1H2F9FC6HE3E3899P7JG92BCJQOJ1T.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/vks_s/1/8_M79I1IHVSIOB95H2FJBM7TXED3KTH8.png", "list-thumb": "https://storage.googleapis.com/plotly-prod-images/vks_s/1/9_F4KWMUL1SF3TFZHGYVF7OXG3NDOZTS.png" }, "api_urls": { "files": "https://api.plotly.com/v2/files/vks_s:1", "plots": "https://api.plotly.com/v2/plots/vks_s:1", "parent": "https://api.plotly.com/v2/folders/home?user=vks_s" }, "owner": "vks_s", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 1, "web_url": "https://chart-studio.plotly.com/~vks_s/1/", "world_readable": true, "date_modified": "2024-04-01T15:42:36.950Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~vks_s/1/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "meta": { "columnNames": { "x": "A", "y": "B", "marker": { "color": "B" } } }, "mode": "markers", "type": "bar", "xsrc": "vks_s:0:1de9ee", "ysrc": "vks_s:0:a117a3", "marker": { "cmax": 200, "cmin": 0, "line": { "width": 1 }, "meta": { "columnNames": { "color": "B" } }, "cauto": false, "opacity": 1, "colorsrc": "vks_s:0:a117a3", "showscale": true, "colorscale": [ [ 0, "#543005" ], [ 0.1, "#8c510a" ], [ 0.2, "#bf812d" ], [ 0.3, "#dfc27d" ], [ 0.4, "#f6e8c3" ], [ 0.5, "#f5f5f5" ], [ 0.6, "#c7eae5" ], [ 0.7, "#80cdc1" ], [ 0.8, "#35978f" ], [ 0.9, "#01665e" ], [ 1, "#003c30" ] ] }, "orientation": "v", "autocolorscale": false } ], "frames": [], "layout": { "xaxis": { "side": "bottom", "type": "category", "range": [ -0.5, 44.5 ], "ticks": "", "title": { "text": "Month" }, "autorange": true, "rangeslider": { "range": [ -3.4975006822506316, 46.112099192079114 ], "yaxis": {}, "visible": false, "autorange": true } }, "yaxis": { "side": "left", "type": "linear", "range": [ -2.4184489492281784, 339.7920773665613 ], "title": { "text": "Rainfall anomaly (% of average)" }, "autorange": false }, "bargap": 0.32999999999999996, "barmode": "overlay", "barnorm": "percent", "autosize": true, "template": { "data": { "bar": [ { "type": "bar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "white", "linecolor": "white", "endlinecolor": "#2a3f5f", "minorgridcolor": "white", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "white", "linecolor": "white", "endlinecolor": "#2a3f5f", "minorgridcolor": "white", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatter": [ { "type": "scatter", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "histogram": [ { "type": "histogram", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "#E5ECF6", "showlakes": true, "subunitcolor": "white" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "#E5ECF6", "radialaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "angularaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "white", "gridwidth": 2, "linecolor": "white", "zerolinecolor": "white", "showbackground": true, "backgroundcolor": "#E5ECF6" }, "yaxis": { "ticks": "", "gridcolor": "white", "gridwidth": 2, "linecolor": "white", "zerolinecolor": "white", "showbackground": true, "backgroundcolor": "#E5ECF6" }, "zaxis": { "ticks": "", "gridcolor": "white", "gridwidth": 2, "linecolor": "white", "zerolinecolor": "white", "showbackground": true, "backgroundcolor": "#E5ECF6" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white", "automargin": true, "zerolinecolor": "white", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white", "automargin": true, "zerolinecolor": "white", "zerolinewidth": 2 }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "baxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "caxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "bgcolor": "#E5ECF6" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#19d3f3", "#e763fa", "#fecb52", "#ffa15a", "#ff6692", "#b6e880" ], "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ], "sequentialminus": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ] }, "plot_bgcolor": "#E5ECF6", "paper_bgcolor": "white", "shapedefaults": { "line": { "width": 0 }, "opacity": 0.4, "fillcolor": "#506784" }, "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#506784", "arrowwidth": 1 } }, "themeRef": "PLOTLY_GRAY" }, "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequentialminus": [ [ 0, "#0508b8" ], [ 0.08333333333333333, "#1910d8" ], [ 0.16666666666666666, "#3c19f0" ], [ 0.25, "#6b1cfb" ], [ 0.3333333333333333, "#981cfd" ], [ 0.4166666666666667, "#bf1cfd" ], [ 0.5, "#dd2bfd" ], [ 0.5833333333333334, "#f246fe" ], [ 0.6666666666666666, "#fc67fd" ], [ 0.75, "#fe88fc" ], [ 0.8333333333333334, "#fea5fd" ], [ 0.9166666666666666, "#febefe" ], [ 1, "#fec3fe" ] ] }, "bargroupgap": 0.07, "plot_bgcolor": "rgb(230, 240, 252)", "paper_bgcolor": "rgb(255, 255, 255)" } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~vks_s", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/75.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-7.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2024-04-01 15:42:23", "mapbox_access_tokens": null, "has_password": null, "username": "vks_s", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2024-04-01T15:41:13.423772Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~kubix448/54.embed", "fid": "kubix448:54", "filename": "PredLengthGlobalPlot", "filetype": "plot", "img_url": "https://storage.googleapis.com/plotly-prod-images/kubix448/54/9_5T52NNXPMIDC7D9LU68FBPG1UYEJDE.png", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/kubix448/54/2_DIXDXR9BFQ9ZEWQOEIMRZQJ6W1WUGC.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/kubix448/54/8_XDHWEI6GWHA580DOX5VJA1PWG2GD55.png", "list-thumb": "https://storage.googleapis.com/plotly-prod-images/kubix448/54/9_5T52NNXPMIDC7D9LU68FBPG1UYEJDE.png" }, "api_urls": { "files": "https://api.plotly.com/v2/files/kubix448:54", "plots": "https://api.plotly.com/v2/plots/kubix448:54", "parent": "https://api.plotly.com/v2/folders/home?user=kubix448" }, "owner": "kubix448", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 1, "web_url": "https://chart-studio.plotly.com/~kubix448/54/", "world_readable": true, "date_modified": "2024-04-03T10:34:23.678Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~kubix448/54/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "meta": { "columnNames": { "x": "B", "y": "E" } }, "name": "SSA", "type": "box", "xsrc": "kubix448:53:0b3752", "ysrc": "kubix448:53:7a773a", "boxpoints": false, "transforms": [ { "meta": { "columnNames": { "target": "B" } }, "type": "filter", "value": [ "Hodnota", "2 Hodnoty", "3 Hodnoty" ], "operation": "}{", "targetsrc": "kubix448:53:0b3752" } ] }, { "meta": { "columnNames": { "x": "B", "y": "F" } }, "name": "ARIMA", "type": "box", "xsrc": "kubix448:53:0b3752", "ysrc": "kubix448:53:b9964a", "boxpoints": false, "transforms": [ { "meta": { "columnNames": { "target": "B" } }, "type": "filter", "value": [ "Hodnota", "2 Hodnoty", "3 Hodnoty" ], "operation": "}{", "targetsrc": "kubix448:53:0b3752" } ] }, { "meta": { "columnNames": { "x": "B", "y": "G" } }, "name": "Holt-Winters", "type": "box", "xsrc": "kubix448:53:0b3752", "ysrc": "kubix448:53:7e7cda", "boxpoints": false, "transforms": [ { "meta": { "columnNames": { "target": "B" } }, "type": "filter", "value": [ "Hodnota", "2 Hodnoty", "3 Hodnoty" ], "operation": "}{", "targetsrc": "kubix448:53:0b3752" } ] } ], "frames": [], "layout": { "title": { "font": { "size": 24 }, "text": "Vliv délky predikce" }, "xaxis": { "type": "category", "range": [ 0.5, 3.5 ], "title": { "font": { "size": 20 }, "text": "Délka predikce" }, "showgrid": true, "showline": true, "tickfont": { "size": 18 }, "autorange": true, "gridcolor": "rgb(179, 188, 199)", "linecolor": "rgb(179, 188, 199)" }, "yaxis": { "type": "linear", "range": [ 0, 150 ], "title": { "font": { "size": 20 }, "text": "Naměřená chyba MAPE (%)" }, "showline": true, "tickfont": { "size": 18 }, "autorange": false, "gridcolor": "rgb(179, 188, 199)", "linecolor": "rgb(179, 188, 199)" }, "legend": { "font": { "size": 18 } }, "boxmode": "group", "autosize": true, "template": { "data": { "bar": [ { "type": "bar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatter": [ { "type": "scatter", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "histogram": [ { "type": "histogram", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "white", "showlakes": true, "subunitcolor": "#C8D4E3" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "white", "radialaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" }, "angularaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "yaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "zaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "baxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "caxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "bgcolor": "white" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#19d3f3", "#e763fa", "#fecb52", "#ffa15a", "#ff6692", "#b6e880" ], "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ], "sequentialminus": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ] }, "plot_bgcolor": "white", "paper_bgcolor": "white", "shapedefaults": { "line": { "width": 0 }, "opacity": 0.4, "fillcolor": "#506784" }, "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#506784", "arrowwidth": 1 } }, "themeRef": "PLOTLY_WHITE" } } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~kubix448", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/25.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-9.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2024-03-02 14:31:02", "mapbox_access_tokens": null, "has_password": null, "username": "kubix448", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } } ] }
