Plots
This endpoint handles manipulation of Plotly plot files.
Reference
Authorization
Any user with or without a Plotly account may view public plots. For private plots, see authentication.
Actions
list
Listing all public plots can be done via a GET request to this endpoint.
By default, plots will be listed in order of date created. The order_by
query parameter is accepted at this endpoint. Currently, only ordering by
views is supported. It is possible to filter the plots by quality
with min_quality or max_quality as query parameter.
Example:
// GET https://api.plotly.com/v2/plots/ ---> 200
// GET https://api.plotly.com/v2/plots/?order_by=-views ---> 200
// GET https://api.plotly.com/v2/plots/?min_quality=5 ---> 200
// GET https://api.plotly.com/v2/plots/?max_quality=5 ---> 200
feed
Listing all handpicked feed plots can be done via a GET request to this endpoint. By default, plots will be listed in a random order.
Example:
// GET https://api.plotly.com/v2/plots/feed ---> 200
create
You can create new plot resources here. The only required field is 'figure'. Currently, the figure is restricted to only contain references to grid data. That is, this will fail if raw data arrays are passed in. To create and manipulate underlying grids for plots, see the grids endpoint.
Example:
// This fails because a figure field is required.
// POST https://api.plotly.com/v2/plots ---> 400 Bad Request
{}
// This fails because the figure has raw data
//POST https://api.plotly.com/v2/plots ---> 400 Bad Request
{
"figure": {"data": [{"y": ['this', 'is', 'raw', 'data']}]}
}
// This succeeds because the figure has src keys, not raw data.
//POST https://api.plotly.com/v2/plots ---> 200 OK
{
"figure": {"data": [{"ysrc": "sven:88:u8nd62"}]}
}
When creating a grid, you can optionally specify a source_fid to specify where a plot has come from:
- source_fid: the fid of a plot that was copied (and presumably edited) to produce this one
detail
There is a lot of meta information stored about plot files including filename, title, share_url, and content_url to name a few.
This information can only be reached with a GET to this endpoint.
Example:
// GET https://api.plotly.com/v2/plots/iheartgraphs:90
content
The contents of a plot can be downloaded via the content resource. The plot
content contains referenced grid/column data by default. If you wish to
return the raw grid/column data, the inline_data=true query must be included
in the request url. The Content-Type header will be appropriately set for the
response body.
Alternatively, you can set ?map_data=unreadable to append a mapping of
sources to data that belongs to grids which are unreadable for the
requestor. This is useful when you have read access to another users plot,
but that plot contains grid references which you don't have access to.
Examples:
// Returns referenced grid/column data
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content ---> 200 OK
// Returns full grid/column data
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content?inline_data=true ---> 200 OK
// Returns full grid/column data when requestor doesn't have permission
// to read the referenced grid.
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content?map_data=unreadable ---> 200 OK
GET /v2/plots?cursor=cj0xJnA9MjAyNC0wMy0yOSswOSUzQTI5JTNBNTEuNDg3MDk4JTJCMDAlM0EwMA%3D%3D&format=api

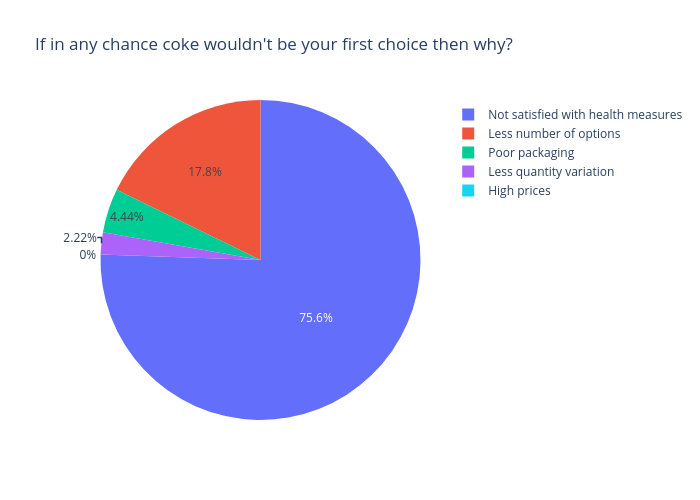

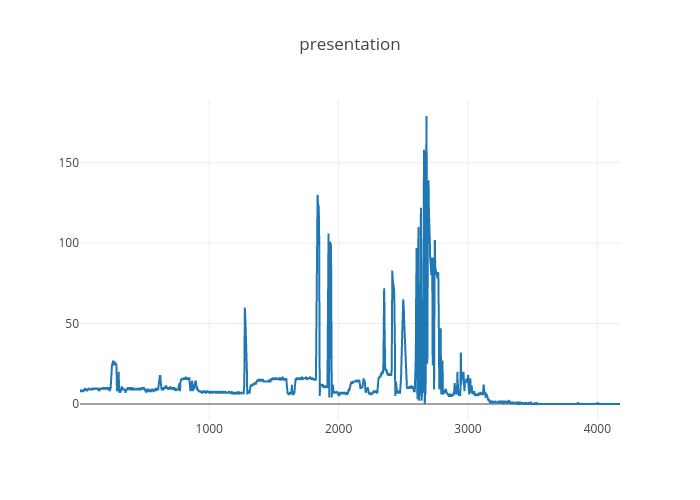

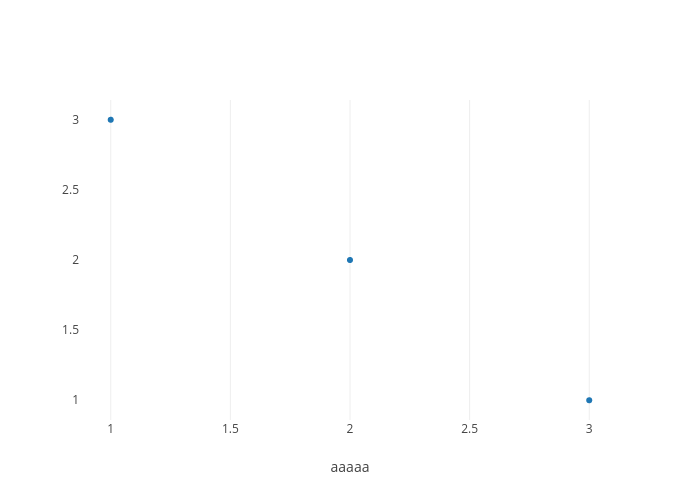

{ "next": "https://api.plot.ly/v2/plots?cursor=cD0yMDI0LTAzLTI5KzA5JTNBMjklM0E1NS4yMjYzODElMkIwMCUzQTAw&format=api", "previous": "https://api.plot.ly/v2/plots?cursor=cj0xJnA9MjAyNC0wMy0yOSsxMCUzQTUzJTNBMTguOTgyNTA5JTJCMDAlM0EwMA%3D%3D&format=api", "results": [ { "creation_time": "2024-03-29T10:53:18.982509Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~ggayu771/33.embed", "fid": "ggayu771:33", "filename": "Plot 33", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/ggayu771:33/image?image_name=list-thumb", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/ggayu771/33/2_0JRBFRTAQ4C98B1O2X8HAX2PQGVFG0.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/ggayu771/33/8_1OR10QSFPO9GW5NA70F96IMNVR6W3Y.png", "list-thumb": "https://api.plotly.com/v2/files/ggayu771:33/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/ggayu771:33", "plots": "https://api.plotly.com/v2/plots/ggayu771:33", "parent": "https://api.plotly.com/v2/folders/home?user=ggayu771" }, "owner": "ggayu771", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~ggayu771/33/", "world_readable": true, "date_modified": "2024-04-03T13:16:02.817Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~ggayu771/33/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "line": { "color": "rgb(82, 10, 154)" }, "meta": { "columnNames": { "x": "A", "y": "B" } }, "mode": "lines", "name": "<b>TLSGAN</b>", "type": "scatter", "xsrc": "ggayu771:32:c948ec", "ysrc": "ggayu771:32:fc327b" }, { "line": { "color": "rgb(158, 76, 5)" }, "meta": { "columnNames": { "x": "A", "y": "C" } }, "mode": "lines", "name": "<b>DAE</b>", "type": "scatter", "xsrc": "ggayu771:32:c948ec", "ysrc": "ggayu771:32:e96aae", "stackgroup": null }, { "line": { "color": "rgb(3, 235, 227)" }, "meta": { "columnNames": { "x": "A", "y": "D" } }, "mode": "lines", "name": "<b>EDCNN</b>", "type": "scatter", "xsrc": "ggayu771:32:c948ec", "ysrc": "ggayu771:32:838c98", "stackgroup": null }, { "line": { "color": "rgb(107, 96, 3)" }, "meta": { "columnNames": { "x": "A", "y": "E" } }, "mode": "lines", "name": "<b>Proposed</b>", "type": "scatter", "xsrc": "ggayu771:32:c948ec", "ysrc": "ggayu771:32:8cba30", "stackgroup": null } ], "frames": [], "layout": { "title": { "font": { "size": 25, "family": "Times New Roman" }, "text": "<b>AUC-ROC curve</b>" }, "xaxis": { "type": "linear", "range": [ 0.2, 1 ], "title": { "font": { "size": 25, "family": "Times New Roman" }, "text": "<b>Flase positive rate</b>" }, "autorange": true }, "yaxis": { "type": "linear", "range": [ 0.0711111111111111, 1.048888888888889 ], "title": { "font": { "size": 25, "family": "Times New Roman" }, "text": "<b>True positive rate</b>" }, "autorange": true }, "autosize": true } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~ggayu771", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/51.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-1.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2024-03-09 04:12:14", "mapbox_access_tokens": null, "has_password": null, "username": "ggayu771", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2024-03-29T10:51:35.616033Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~marcobusellato/1.embed", "fid": "marcobusellato:1", "filename": "Plot 1", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/marcobusellato:1/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/marcobusellato:1/image?image_name=default", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/marcobusellato/1/8_AOREDTHZP85YS2RHRG6L4ELLQLTA29.png", "list-thumb": "https://api.plotly.com/v2/files/marcobusellato:1/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/marcobusellato:1", "plots": "https://api.plotly.com/v2/plots/marcobusellato:1", "parent": "https://api.plotly.com/v2/folders/home?user=marcobusellato" }, "owner": "marcobusellato", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~marcobusellato/1/", "world_readable": true, "date_modified": "2024-03-29T10:51:35.627Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~marcobusellato/1/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "meta": { "columnNames": { "x": "A", "y": "B" } }, "mode": "markers", "type": "scatter", "xsrc": "marcobusellato:0:94fb6b", "ysrc": "marcobusellato:0:c47a49" } ], "frames": [], "layout": { "xaxis": { "type": "linear", "range": [ 0.882974948548719, 3.117025051451281 ], "title": { "text": "aaaaa" }, "autorange": true }, "yaxis": { "type": "linear", "range": [ 0.8742766964755392, 3.125723303524461 ], "showgrid": false, "autorange": true }, "autosize": true } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~marcobusellato", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/59.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-5.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2024-03-29 10:25:23", "mapbox_access_tokens": null, "has_password": null, "username": "marcobusellato", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2024-03-29T10:46:59.455428Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~vickywane/0.embed", "fid": "vickywane:0", "filename": "date-axes", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/vickywane:0/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/vickywane:0/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/vickywane:0/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/vickywane:0/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/vickywane:0", "plots": "https://api.plotly.com/v2/plots/vickywane:0", "parent": "https://api.plotly.com/v2/folders/home?user=vickywane" }, "owner": "vickywane", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "Synthetic Data and Predictions for Student M00958495", "views": 0, "web_url": "https://chart-studio.plotly.com/~vickywane/0/synthetic-data-and-predictions-for-student-m00958495/", "world_readable": true, "date_modified": "2024-04-13T10:36:43.417Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~vickywane/0/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "mode": "line", "name": "M00958495", "type": "scatter", "xsrc": "vickywane:1:d7e29e", "ysrc": "vickywane:1:74fe17", "marker": { "size": 12, "color": "rgb(219, 64, 82)" } }, { "mode": "line", "name": "Mean", "type": "scatter", "xsrc": "vickywane:1:239f25", "ysrc": "vickywane:1:ddcb9e", "marker": { "size": 12, "color": "rgb(64, 82, 219)" } }, { "mode": "line", "name": "Quantiles[0.1]", "type": "scatter", "xsrc": "vickywane:1:239f25", "ysrc": "vickywane:1:bc5652", "marker": { "size": 12, "color": "red" } }, { "mode": "line", "name": "Quantiles[0.9]", "type": "scatter", "xsrc": "vickywane:1:239f25", "ysrc": "vickywane:1:019423", "marker": { "size": 12, "color": "orange" } } ], "layout": { "font": { "size": 25 }, "title": "Synthetic Data and Predictions for Student M00958495", "xaxis": { "title": "Time (hours)" }, "yaxis": { "title": "Value" } } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~vickywane", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/1.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-1.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2024-03-29 10:30:01", "mapbox_access_tokens": null, "has_password": null, "username": "vickywane", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2024-03-29T10:46:12.977004Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~Aditi_padmakumar/2.embed", "fid": "Aditi_padmakumar:2", "filename": "Plot 2", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/Aditi_padmakumar:2/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/Aditi_padmakumar:2/image?image_name=default", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/Aditi_padmakumar/2/8_PSJFV3HVBPVZBVMB5SCS8JODVZA41Q.png", "list-thumb": "https://api.plotly.com/v2/files/Aditi_padmakumar:2/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/Aditi_padmakumar:2", "plots": "https://api.plotly.com/v2/plots/Aditi_padmakumar:2", "parent": "https://api.plotly.com/v2/folders/home?user=Aditi_padmakumar" }, "owner": "Aditi_padmakumar", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~Aditi_padmakumar/2/", "world_readable": true, "date_modified": "2024-03-29T10:46:12.987Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~Aditi_padmakumar/2/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "meta": { "columnNames": { "x": "A", "y": "B", "labels": "A", "values": "B" } }, "mode": "markers", "type": "pie", "xsrc": "Aditi_padmakumar:0:10d8ee", "ysrc": "Aditi_padmakumar:0:d5634d", "labelssrc": "Aditi_padmakumar:0:10d8ee", "valuessrc": "Aditi_padmakumar:0:d5634d", "legendgroup": "", "orientation": "v" } ], "frames": [], "layout": { "title": { "text": "If in any chance coke wouldn't be your first choice then why? " }, "xaxis": { "type": "category", "range": [ -0.5, 4.5 ], "title": { "text": "" }, "autorange": true }, "yaxis": { "type": "linear", "range": [ 0, 35.78947368421053 ], "title": { "text": "" }, "autorange": true }, "autosize": true, "template": { "data": { "bar": [ { "type": "bar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatter": [ { "type": "scatter", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "histogram": [ { "type": "histogram", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "white", "showlakes": true, "subunitcolor": "#C8D4E3" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "white", "radialaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" }, "angularaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "yaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "zaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "baxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "caxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "bgcolor": "white" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#19d3f3", "#e763fa", "#fecb52", "#ffa15a", "#ff6692", "#b6e880" ], "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ], "sequentialminus": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ] }, "plot_bgcolor": "white", "paper_bgcolor": "white", "shapedefaults": { "line": { "width": 0 }, "opacity": 0.4, "fillcolor": "#506784" }, "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#506784", "arrowwidth": 1 } }, "themeRef": "PLOTLY_WHITE" } } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~Aditi_padmakumar", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/27.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-0.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2024-03-29 10:44:47", "mapbox_access_tokens": null, "has_password": null, "username": "Aditi_padmakumar", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2024-03-29T10:46:12.565093Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~Aditi_padmakumar/1.embed", "fid": "Aditi_padmakumar:1", "filename": "Plot 1", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/Aditi_padmakumar:1/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/Aditi_padmakumar:1/image?image_name=default", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/Aditi_padmakumar/1/8_KNYBJEBN6R80RKENH9BBH9DG5G2O5D.png", "list-thumb": "https://api.plotly.com/v2/files/Aditi_padmakumar:1/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/Aditi_padmakumar:1", "plots": "https://api.plotly.com/v2/plots/Aditi_padmakumar:1", "parent": "https://api.plotly.com/v2/folders/home?user=Aditi_padmakumar" }, "owner": "Aditi_padmakumar", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~Aditi_padmakumar/1/", "world_readable": true, "date_modified": "2024-03-29T10:46:12.576Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~Aditi_padmakumar/1/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "meta": { "columnNames": { "x": "A", "y": "B", "labels": "A", "values": "B" } }, "mode": "markers", "type": "pie", "xsrc": "Aditi_padmakumar:0:10d8ee", "ysrc": "Aditi_padmakumar:0:d5634d", "labelssrc": "Aditi_padmakumar:0:10d8ee", "valuessrc": "Aditi_padmakumar:0:d5634d", "legendgroup": "", "orientation": "v" } ], "frames": [], "layout": { "title": { "text": "If in any chance coke wouldn't be your first choice then why? " }, "xaxis": { "type": "category", "range": [ -0.5, 4.5 ], "title": { "text": "" }, "autorange": true }, "yaxis": { "type": "linear", "range": [ 0, 35.78947368421053 ], "title": { "text": "" }, "autorange": true }, "autosize": true, "template": { "data": { "bar": [ { "type": "bar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatter": [ { "type": "scatter", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "histogram": [ { "type": "histogram", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "white", "showlakes": true, "subunitcolor": "#C8D4E3" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "white", "radialaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" }, "angularaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "yaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "zaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "baxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "caxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "bgcolor": "white" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#19d3f3", "#e763fa", "#fecb52", "#ffa15a", "#ff6692", "#b6e880" ], "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ], "sequentialminus": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ] }, "plot_bgcolor": "white", "paper_bgcolor": "white", "shapedefaults": { "line": { "width": 0 }, "opacity": 0.4, "fillcolor": "#506784" }, "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#506784", "arrowwidth": 1 } }, "themeRef": "PLOTLY_WHITE" } } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~Aditi_padmakumar", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/27.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-0.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2024-03-29 10:44:47", "mapbox_access_tokens": null, "has_password": null, "username": "Aditi_padmakumar", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2024-03-29T10:37:21.982618Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~cryptorox048/1.embed", "fid": "cryptorox048:1", "filename": "Plot 1", "filetype": "plot", "img_url": "https://storage.googleapis.com/plotly-prod-images/cryptorox048/1/9_VZQ53EK2MYYQRZ19CQASKFRJSQF3FC.png", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/cryptorox048/1/2_0DH91BZNDRM3TSFTN5VTI54N472HOV.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/cryptorox048/1/8_5VPW0DYE6QQHFM629FK69329VKIF1W.png", "list-thumb": "https://storage.googleapis.com/plotly-prod-images/cryptorox048/1/9_VZQ53EK2MYYQRZ19CQASKFRJSQF3FC.png" }, "api_urls": { "files": "https://api.plotly.com/v2/files/cryptorox048:1", "plots": "https://api.plotly.com/v2/plots/cryptorox048:1", "parent": "https://api.plotly.com/v2/folders/home?user=cryptorox048" }, "owner": "cryptorox048", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 1, "web_url": "https://chart-studio.plotly.com/~cryptorox048/1/", "world_readable": true, "date_modified": "2024-03-29T10:37:21.993Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~cryptorox048/1/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "meta": { "columnNames": { "x": "A", "y": "B" } }, "mode": "lines", "name": "Hydrocarbon Industry", "type": "scatter", "xsrc": "cryptorox048:0:cd3dc3", "ysrc": "cryptorox048:0:dc244a", "stackgroup": 1, "orientation": "v" }, { "meta": { "columnNames": { "x": "A", "y": "D" } }, "mode": "lines", "name": "Total", "type": "scatter", "xsrc": "cryptorox048:0:cd3dc3", "ysrc": "cryptorox048:0:673222", "visible": true, "stackgroup": 1 } ], "frames": [], "layout": { "title": { "text": "Worldwide Carbon Emmisions" }, "xaxis": { "type": "linear", "range": [ 1850, 2022 ], "title": { "text": "Year" }, "autorange": true }, "yaxis": { "type": "linear", "range": [ 0, 82818653684.21053 ], "title": { "text": "MT CO2 Emitted" }, "autorange": true }, "shapes": [ { "x0": 1945, "x1": 1950, "y0": 1, "y1": 0, "line": { "color": "#444444" }, "yref": "paper", "opacity": 0.52, "fillcolor": "rgb(64, 166, 141)" } ], "autosize": true, "template": { "data": { "bar": [ { "type": "bar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatter": [ { "type": "scatter", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "histogram": [ { "type": "histogram", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "white", "showlakes": true, "subunitcolor": "#C8D4E3" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "white", "radialaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" }, "angularaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "yaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "zaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "baxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "caxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "bgcolor": "white" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#19d3f3", "#e763fa", "#fecb52", "#ffa15a", "#ff6692", "#b6e880" ], "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ], "sequentialminus": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ] }, "plot_bgcolor": "white", "paper_bgcolor": "white", "shapedefaults": { "line": { "width": 0 }, "opacity": 0.4, "fillcolor": "#506784" }, "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#506784", "arrowwidth": 1 } }, "themeRef": "PLOTLY_WHITE" }, "annotations": [ { "x": 1947.7785795454545, "y": 53237403405.372475, "ax": 84, "ay": -27, "text": "Industrialization<br>Era Starts" } ] } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~cryptorox048", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/11.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-1.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2024-03-29 10:36:52", "mapbox_access_tokens": null, "has_password": null, "username": "cryptorox048", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2024-03-29T10:24:35.141950Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~qqcarolyn/4.embed", "fid": "qqcarolyn:4", "filename": "Plot 4", "filetype": "plot", "img_url": "https://storage.googleapis.com/plotly-prod-images/qqcarolyn/4/9_CL7YLTF5HQVHMNARFRS4XGS1OJXP2F.png", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/qqcarolyn/4/2_TFLB2UU8641FZI8AMEK9PRBFMZO6XR.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/qqcarolyn/4/8_6YWPA75LW43KB6WWIZQ1CYEZU1RA1N.png", "list-thumb": "https://storage.googleapis.com/plotly-prod-images/qqcarolyn/4/9_CL7YLTF5HQVHMNARFRS4XGS1OJXP2F.png" }, "api_urls": { "files": "https://api.plotly.com/v2/files/qqcarolyn:4", "plots": "https://api.plotly.com/v2/plots/qqcarolyn:4", "parent": "https://api.plotly.com/v2/folders/home?user=qqcarolyn" }, "owner": "qqcarolyn", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 1, "web_url": "https://chart-studio.plotly.com/~qqcarolyn/4/", "world_readable": true, "date_modified": "2024-03-29T11:01:13.868Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~qqcarolyn/4/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "line": { "width": 1 }, "meta": { "columnNames": { "x": "", "y": "Intralipid group", "text": "Intralipid group" } }, "mode": "markers", "name": "Intralipid group", "type": "box", "ysrc": "qqcarolyn:3:63a654", "jitter": 1, "marker": { "size": 2 }, "textsrc": "qqcarolyn:3:63a654", "pointpos": 0, "boxpoints": "all", "orientation": "v" }, { "line": { "width": 1 }, "meta": { "columnNames": { "y": "SMOF group" } }, "name": "SMOF group", "type": "box", "ysrc": "qqcarolyn:3:6040c7", "jitter": 1, "marker": { "size": 2, "color": "rgb(253, 153, 59)" }, "pointpos": 0, "boxpoints": "all", "whiskerwidth": 0.5 } ], "frames": [], "layout": { "font": { "size": 12, "color": "rgb(7, 7, 7)", "family": "Times New Roman" }, "xaxis": { "type": "category", "dtick": 1, "range": [ -0.5, 1.5 ], "domain": [ 0, 1 ], "showgrid": false, "showline": false, "tickfont": { "size": 12 }, "tickmode": "linear", "zeroline": false, "autorange": true, "fixedrange": false, "showspikes": false, "rangeslider": { "range": [ -0.5, 1.5 ], "yaxis": {}, "visible": false, "autorange": true } }, "yaxis": { "side": "left", "type": "linear", "dtick": 20, "range": [ -6.08888888888889, 187.6888888888889 ], "title": { "text": "\n Peak DB\n (µmol/L)" }, "domain": [ 0, 1 ], "showgrid": false, "showline": true, "tickfont": { "size": 9 }, "tickmode": "linear", "autorange": true }, "boxgap": 0.15000000000000002, "legend": { "x": 0.7553846153846154, "y": 1, "font": { "size": 11 } }, "margin": { "b": 30, "l": 150, "r": 600, "t": 70 }, "shapes": [ { "x0": 0, "x1": 1, "y0": 17, "y1": 17, "line": { "color": "rgb(250, 8, 8)", "width": 1 }, "type": "line", "xref": "paper", "opacity": 0.68, "fillcolor": "rgb(252, 8, 8)" } ], "autosize": true, "boxgroupgap": 0.3 } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~qqcarolyn", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/46.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-1.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2024-03-29 09:13:44", "mapbox_access_tokens": null, "has_password": null, "username": "qqcarolyn", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2024-03-29T09:51:41.452206Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~wzleon121/3.embed", "fid": "wzleon121:3", "filename": "The comparison of lexicon score and ml score copy", "filetype": "plot", "img_url": "https://storage.googleapis.com/plotly-prod-images/wzleon121/3/9_7IV1KY3S5KWQX8ER5J4F0BV29AMCXY.png", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/wzleon121/3/2_0C0UW8FZR4Y9TSVBGAW2TTH0K0EUPE.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/wzleon121/3/8_NL2Y3OOT4L1CFRMFYILRHTORZP0RRO.png", "list-thumb": "https://storage.googleapis.com/plotly-prod-images/wzleon121/3/9_7IV1KY3S5KWQX8ER5J4F0BV29AMCXY.png" }, "api_urls": { "files": "https://api.plotly.com/v2/files/wzleon121:3", "plots": "https://api.plotly.com/v2/plots/wzleon121:3", "parent": "https://api.plotly.com/v2/folders/home?user=wzleon121" }, "owner": "wzleon121", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 13, "web_url": "https://chart-studio.plotly.com/~wzleon121/3/", "world_readable": true, "date_modified": "2024-04-08T18:21:02.169Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~wzleon121/3/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "name": "negative", "type": "bar", "xsrc": "wzleon121:2:831800", "ysrc": "wzleon121:2:c92dc0", "xaxis": "x", "yaxis": "y", "marker": { "color": "#636efa", "pattern": { "shape": "" } }, "showlegend": true, "legendgroup": "negative", "offsetgroup": "negative", "orientation": "v", "textposition": "auto", "hovertemplate": "ml_ss=negative<br>lexicon_ss=%{x}<br>value=%{y}<extra></extra>", "alignmentgroup": "True" }, { "name": "neutral", "type": "bar", "xsrc": "wzleon121:2:233bc1", "ysrc": "wzleon121:2:ac8ae4", "xaxis": "x", "yaxis": "y", "marker": { "color": "#EF553B", "pattern": { "shape": "" } }, "showlegend": true, "legendgroup": "neutral", "offsetgroup": "neutral", "orientation": "v", "textposition": "auto", "hovertemplate": "ml_ss=neutral<br>lexicon_ss=%{x}<br>value=%{y}<extra></extra>", "alignmentgroup": "True" }, { "name": "positive", "type": "bar", "xsrc": "wzleon121:2:9b1ee5", "ysrc": "wzleon121:2:22e1b6", "xaxis": "x", "yaxis": "y", "marker": { "color": "#00cc96", "pattern": { "shape": "" } }, "showlegend": true, "legendgroup": "positive", "offsetgroup": "positive", "orientation": "v", "textposition": "auto", "hovertemplate": "ml_ss=positive<br>lexicon_ss=%{x}<br>value=%{y}<extra></extra>", "alignmentgroup": "True" } ], "layout": { "title": { "text": "The comparison of lexicon score and ml score" }, "xaxis": { "title": { "text": "lexicon_ss" }, "anchor": "y", "domain": [ 0.0, 1.0 ] }, "yaxis": { "title": { "text": "value" }, "anchor": "x", "domain": [ 0.0, 1.0 ] }, "legend": { "title": { "text": "ml_ss" }, "tracegroupgap": 0 }, "barmode": "relative", "template": { "data": { "bar": [ { "type": "bar", "marker": { "line": { "color": "#E5ECF6", "width": 0.5 }, "pattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } }, "error_x": { "color": "#2a3f5f" }, "error_y": { "color": "#2a3f5f" } } ], "pie": [ { "type": "pie", "automargin": true } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "white", "linecolor": "white", "endlinecolor": "#2a3f5f", "minorgridcolor": "white", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "white", "linecolor": "white", "endlinecolor": "#2a3f5f", "minorgridcolor": "white", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "scatter": [ { "type": "scatter", "fillpattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "barpolar": [ { "type": "barpolar", "marker": { "line": { "color": "#E5ECF6", "width": 0.5 }, "pattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "histogram": [ { "type": "histogram", "marker": { "pattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "#E5ECF6", "showlakes": true, "subunitcolor": "white" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "#E5ECF6", "radialaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "angularaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "white", "gridwidth": 2, "linecolor": "white", "zerolinecolor": "white", "showbackground": true, "backgroundcolor": "#E5ECF6" }, "yaxis": { "ticks": "", "gridcolor": "white", "gridwidth": 2, "linecolor": "white", "zerolinecolor": "white", "showbackground": true, "backgroundcolor": "#E5ECF6" }, "zaxis": { "ticks": "", "gridcolor": "white", "gridwidth": 2, "linecolor": "white", "zerolinecolor": "white", "showbackground": true, "backgroundcolor": "#E5ECF6" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "title": { "standoff": 15 }, "gridcolor": "white", "linecolor": "white", "automargin": true, "zerolinecolor": "white", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "title": { "standoff": 15 }, "gridcolor": "white", "linecolor": "white", "automargin": true, "zerolinecolor": "white", "zerolinewidth": 2 }, "mapbox": { "style": "light" }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "baxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "caxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "bgcolor": "#E5ECF6" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#FFA15A", "#19d3f3", "#FF6692", "#B6E880", "#FF97FF", "#FECB52" ], "coloraxis": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ], "sequentialminus": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] }, "hoverlabel": { "align": "left" }, "plot_bgcolor": "#E5ECF6", "paper_bgcolor": "white", "shapedefaults": { "line": { "color": "#2a3f5f" } }, "autotypenumbers": "strict", "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#2a3f5f", "arrowwidth": 1 } } } } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~wzleon121", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/48.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-2.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2024-03-29 08:26:59", "mapbox_access_tokens": null, "has_password": null, "username": "wzleon121", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2024-03-29T09:39:34.273946Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~dgorea/1.embed", "fid": "dgorea:1", "filename": "Plot 1", "filetype": "plot", "img_url": "https://storage.googleapis.com/plotly-prod-images/dgorea/1/9_9AI9NP6HB79FJEU3UNEN83ZO278XNW.png", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/dgorea/1/2_J24CAI2VPC7VC8E4KYREB1LKAP4UF9.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/dgorea/1/8_UQ16L0PRL3DR6IXF2JDPU4QJ0YMTFJ.png", "list-thumb": "https://storage.googleapis.com/plotly-prod-images/dgorea/1/9_9AI9NP6HB79FJEU3UNEN83ZO278XNW.png" }, "api_urls": { "files": "https://api.plotly.com/v2/files/dgorea:1", "plots": "https://api.plotly.com/v2/plots/dgorea:1", "parent": "https://api.plotly.com/v2/folders/home?user=dgorea" }, "owner": "dgorea", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 1, "web_url": "https://chart-studio.plotly.com/~dgorea/1/", "world_readable": true, "date_modified": "2024-03-29T09:39:34.284Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~dgorea/1/", "current_user_permission": "read", "is_theme": null, "is_template": true, "autosize": false, "caption": "", "figure": { "data": [ { "uid": "c6cbae", "line": { "color": "rgb(214, 39, 40)", "shape": "spline", "width": 6 }, "meta": { "columnNames": { "x": "Source & Data: <a href="http://tinyurl.com/qy36opl">Pg. 126, FCC Report: Netflix vs. Comcast & TWC</a>", "y": "# of Calls" } }, "mode": "lines", "name": "# of Calls", "type": "scatter", "xsrc": "dgorea:0:2a3d2e", "ysrc": "dgorea:0:13376a", "error_x": {}, "error_y": {}, "textfont": {} } ], "frames": [], "layout": { "font": { "size": 12, "color": "#444", "family": "\"Open sans\", verdana, arial, sans-serif" }, "smith": false, "title": { "font": { "size": 0, "color": "", "family": "" }, "text": "Slow Comcast Speeds Were Costing Netflix Customers<br><br>Calls to Netflix: Rebuffering/Slow Loading (20% Sample)" }, "width": 800, "xaxis": { "type": "date", "dtick": "M2", "range": [ 1343793600000, 1401595200000 ], "tick0": 946702800000, "ticks": "", "title": { "font": { "size": 0, "color": "", "family": "" }, "text": "Source & Data: <a href=\"http://tinyurl.com/qy36opl\">Pg. 126, FCC Report: Netflix vs. Comcast & TWC</a>" }, "anchor": "y", "domain": [ 0, 1 ], "mirror": false, "nticks": 11, "ticklen": 5, "position": 0, "showgrid": true, "showline": false, "tickfont": { "size": 0, "color": "", "family": "" }, "tickmode": "auto", "zeroline": true, "autorange": false, "gridcolor": "rgb(255, 255, 255)", "gridwidth": 1, "linecolor": "#444", "linewidth": 1, "rangemode": "normal", "tickangle": "auto", "tickcolor": "#444", "tickwidth": 1, "overlaying": false, "showexponent": "all", "zerolinecolor": "#444", "zerolinewidth": 1, "exponentformat": "B", "showticklabels": true }, "yaxis": { "type": "linear", "dtick": 500, "range": [ -413.591461690698, 4159.662708510037 ], "tick0": 0, "ticks": "", "title": { "font": { "size": 0, "color": "", "family": "" }, "text": "# of Calls" }, "anchor": "x", "domain": [ 0, 1 ], "mirror": false, "nticks": 0, "ticklen": 5, "position": 0, "showgrid": true, "showline": false, "tickfont": { "size": 0, "color": "", "family": "" }, "tickmode": "auto", "zeroline": true, "autorange": true, "gridcolor": "rgb(255, 255, 255)", "gridwidth": 1, "linecolor": "#444", "linewidth": 1, "rangemode": "normal", "tickangle": "auto", "tickcolor": "#444", "tickwidth": 1, "overlaying": false, "showexponent": "all", "zerolinecolor": "#444", "zerolinewidth": 1, "exponentformat": "B", "showticklabels": true }, "bargap": 0.2, "boxgap": 0.3, "height": 600, "legend": { "x": 0.053125, "y": 0.9404761904761905, "font": { "size": 0, "color": "", "family": "" }, "bgcolor": "#fff", "xanchor": "left", "yanchor": "top", "traceorder": "normal", "bordercolor": "#444", "borderwidth": 0 }, "margin": { "b": 80, "l": 80, "r": 80, "t": 100, "pad": 0, "autoexpand": true }, "barmode": "group", "boxmode": "overlay", "autosize": false, "dragmode": "zoom", "hovermode": "x", "separators": ".,", "showlegend": false, "annotations": [ { "x": "2014-03-10 08:48:31.05", "y": -348.2592592592589, "ax": -1, "ay": -420.5, "tag": "", "font": { "size": 0, "color": "", "family": "" }, "text": " ", "xref": "x", "yref": "y", "align": "center", "bgcolor": "rgba(0, 0, 0, 0)", "opacity": 1, "xanchor": "auto", "yanchor": "auto", "arrowhead": 0, "arrowsize": 1, "borderpad": 1, "showarrow": true, "textangle": 0, "arrowcolor": "", "arrowwidth": 0, "bordercolor": "", "borderwidth": 1.5 }, { "x": 1389492990000, "y": 933.5000000000001, "ax": -137, "ay": 71.5, "tag": "", "font": { "size": 0, "color": "", "family": "" }, "text": "Feb., 2014: Netflix reluctantly agrees to pay Comcast<br>to directly connect to its network", "xref": "x", "yref": "y", "align": "center", "bgcolor": "rgba(0, 0, 0, 0)", "opacity": 1, "xanchor": "auto", "yanchor": "auto", "arrowhead": 5, "arrowsize": 0.8, "borderpad": 1, "showarrow": true, "textangle": 0, "arrowcolor": "", "arrowwidth": 0, "bordercolor": "", "borderwidth": 0.6 } ], "bargroupgap": 0, "boxgroupgap": 0.3, "hidesources": false, "plot_bgcolor": "rgba(217, 217, 217, 0.4)", "paper_bgcolor": "#fff" } }, "height": 600, "width": 800, "user": { "profile_url": "https://chart-studio.plotly.com/~dgorea", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/65.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-8.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2024-03-29 09:29:55", "mapbox_access_tokens": null, "has_password": null, "username": "dgorea", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2024-03-29T09:29:55.226381Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~elijaheaton/1.embed", "fid": "elijaheaton:1", "filename": "Plot 1", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/elijaheaton:1/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/elijaheaton:1/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/elijaheaton:1/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/elijaheaton:1/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/elijaheaton:1", "plots": "https://api.plotly.com/v2/plots/elijaheaton:1", "parent": "https://api.plotly.com/v2/folders/home?user=elijaheaton" }, "owner": "elijaheaton", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~elijaheaton/1/", "world_readable": true, "date_modified": "2024-03-29T09:29:55.236Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~elijaheaton/1/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "meta": { "columnNames": { "x": "x", "y": "y" } }, "mode": "lines", "type": "scatter", "xsrc": "elijaheaton:0:0c05e5", "ysrc": "elijaheaton:0:d3620a" } ], "frames": [], "layout": { "title": { "text": "presentation" }, "xaxis": { "type": "linear", "range": [ 1, 4175 ], "autorange": true }, "yaxis": { "type": "linear", "range": [ -9.944444444444445, 188.94444444444446 ], "autorange": true }, "autosize": true } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~elijaheaton", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/11.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-11.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2024-03-29 06:05:21", "mapbox_access_tokens": null, "has_password": null, "username": "elijaheaton", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } } ] }
