Plots List
Plots
This endpoint handles manipulation of Plotly plot files.
Reference
Authorization
Any user with or without a Plotly account may view public plots. For private plots, see authentication.
Actions
list
Listing all public plots can be done via a GET request to this endpoint.
By default, plots will be listed in order of date created. The order_by
query parameter is accepted at this endpoint. Currently, only ordering by
views is supported. It is possible to filter the plots by quality
with min_quality or max_quality as query parameter.
Example:
// GET https://api.plotly.com/v2/plots/ ---> 200
// GET https://api.plotly.com/v2/plots/?order_by=-views ---> 200
// GET https://api.plotly.com/v2/plots/?min_quality=5 ---> 200
// GET https://api.plotly.com/v2/plots/?max_quality=5 ---> 200
feed
Listing all handpicked feed plots can be done via a GET request to this endpoint. By default, plots will be listed in a random order.
Example:
// GET https://api.plotly.com/v2/plots/feed ---> 200
create
You can create new plot resources here. The only required field is 'figure'. Currently, the figure is restricted to only contain references to grid data. That is, this will fail if raw data arrays are passed in. To create and manipulate underlying grids for plots, see the grids endpoint.
Example:
// This fails because a figure field is required.
// POST https://api.plotly.com/v2/plots ---> 400 Bad Request
{}
// This fails because the figure has raw data
//POST https://api.plotly.com/v2/plots ---> 400 Bad Request
{
"figure": {"data": [{"y": ['this', 'is', 'raw', 'data']}]}
}
// This succeeds because the figure has src keys, not raw data.
//POST https://api.plotly.com/v2/plots ---> 200 OK
{
"figure": {"data": [{"ysrc": "sven:88:u8nd62"}]}
}
When creating a grid, you can optionally specify a source_fid to specify where a plot has come from:
- source_fid: the fid of a plot that was copied (and presumably edited) to produce this one
detail
There is a lot of meta information stored about plot files including filename, title, share_url, and content_url to name a few.
This information can only be reached with a GET to this endpoint.
Example:
// GET https://api.plotly.com/v2/plots/iheartgraphs:90
content
The contents of a plot can be downloaded via the content resource. The plot
content contains referenced grid/column data by default. If you wish to
return the raw grid/column data, the inline_data=true query must be included
in the request url. The Content-Type header will be appropriately set for the
response body.
Alternatively, you can set ?map_data=unreadable to append a mapping of
sources to data that belongs to grids which are unreadable for the
requestor. This is useful when you have read access to another users plot,
but that plot contains grid references which you don't have access to.
Examples:
// Returns referenced grid/column data
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content ---> 200 OK
// Returns full grid/column data
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content?inline_data=true ---> 200 OK
// Returns full grid/column data when requestor doesn't have permission
// to read the referenced grid.
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content?map_data=unreadable ---> 200 OK
GET /v2/plots?cursor=cD0yMDE5LTAzLTIwKzIzJTNBNTElM0ExNi42ODYwMTclMkIwMCUzQTAw&format=api

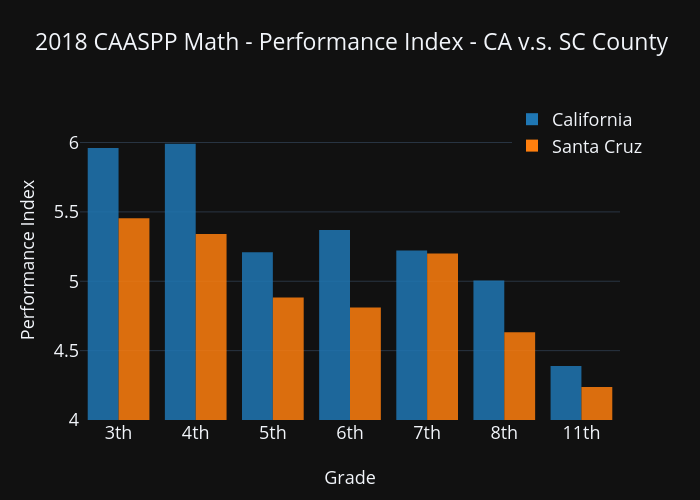

{ "next": "https://api.plot.ly/v2/plots?cursor=cD0yMDE5LTAzLTIwKzIzJTNBNDclM0ExMy40MDE4MDklMkIwMCUzQTAw&format=api", "previous": "https://api.plot.ly/v2/plots?cursor=cj0xJnA9MjAxOS0wMy0yMCsyMyUzQTUxJTNBMTQuNzQ2MjIyJTJCMDAlM0EwMA%3D%3D&format=api", "results": [ { "creation_time": "2019-03-20T23:51:14.746222Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~migroch/10.embed", "fid": "migroch:10", "filename": "CAASPP Math - 2018 CA v.s. SC - PI", "filetype": "plot", "img_url": "https://storage.googleapis.com/plotly-prod-images/migroch/10/9_JS2V0JPYOEWO7QOGT7L3THWCE2M4WS.png", "image_urls": { "default": "https://api.plotly.com/v2/files/migroch:10/image?image_name=default", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/migroch/10/8_KH8690EGDJY2B66EG9I7OLVDJSCEC7.png", "list-thumb": "https://storage.googleapis.com/plotly-prod-images/migroch/10/9_JS2V0JPYOEWO7QOGT7L3THWCE2M4WS.png" }, "api_urls": { "files": "https://api.plotly.com/v2/files/migroch:10", "plots": "https://api.plotly.com/v2/plots/migroch:10", "parent": "https://api.plotly.com/v2/folders/home?user=migroch" }, "owner": "migroch", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~migroch/10/", "world_readable": true, "date_modified": "2019-03-24T21:00:27.881Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~migroch/10/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "mode": "markers", "name": "California", "type": "bar", "xsrc": "migroch:11:94a8f4", "ysrc": "migroch:11:17b0a2", "marker": { "color": "#1f77b4", "opacity": 0.85 }, "visible": true, "hoverinfo": "y+name", "orientation": "v", "hovertemplate": "" }, { "name": "Santa Cruz", "type": "bar", "xsrc": "migroch:11:94a8f4", "ysrc": "migroch:11:483dc6", "marker": { "color": "#ff7f0e", "opacity": 0.85 }, "visible": true, "hoverinfo": "y+name", "orientation": "v", "hovertemplate": "" } ], "frames": [], "layout": { "polar": { "radialaxis": { "range": [ 0, 1 ], "autorange": true }, "angularaxis": {} }, "title": { "font": { "size": 23 }, "text": "2018 CAASPP Math - Performance Index - CA v.s. SC County" }, "xaxis": { "type": "category", "range": [ -0.5, 6.5 ], "ticks": "", "title": { "font": { "size": 18 }, "text": "Grade" }, "tickfont": { "size": 18 }, "autorange": false, "fixedrange": true, "ticksuffix": "th", "rangeslider": { "range": [ -0.5, 6.5 ], "yaxis": {}, "visible": false, "autorange": true } }, "yaxis": { "type": "linear", "range": [ 4, 6.306315789473684 ], "ticks": "", "title": { "font": { "size": 18 }, "text": "Performance Index" }, "tickfont": { "size": 18 }, "autorange": false, "ticksuffix": "" }, "legend": { "x": 0.8, "y": 0.8, "font": { "size": 18 }, "valign": "top", "xanchor": "left", "yanchor": "bottom", "orientation": "v" }, "margin": { "l": 80, "r": 80, "pad": 0 }, "barmode": "group", "autosize": true, "colorway": [ "#1f77b4", "#ff7f0e", "#2ca02c", "#d62728", "#9467bd", "#8c564b", "#e377c2", "#7f7f7f", "#bcbd22", "#17becf" ], "template": { "data": { "bar": [ { "type": "bar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#506784" }, "line": { "color": "rgb(17,17,17)" } }, "header": { "fill": { "color": "#2a3f5f" }, "line": { "color": "rgb(17,17,17)" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "#506784", "linecolor": "#506784", "endlinecolor": "#A2B1C6", "minorgridcolor": "#506784", "startlinecolor": "#A2B1C6" }, "baxis": { "gridcolor": "#506784", "linecolor": "#506784", "endlinecolor": "#A2B1C6", "minorgridcolor": "#506784", "startlinecolor": "#A2B1C6" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatter": [ { "type": "scatter", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "histogram": [ { "type": "histogram", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ] }, "layout": { "geo": { "bgcolor": "rgb(17,17,17)", "showland": true, "lakecolor": "rgb(17,17,17)", "landcolor": "rgb(17,17,17)", "showlakes": true, "subunitcolor": "#506784" }, "font": { "color": "#f2f5fa" }, "polar": { "bgcolor": "rgb(17,17,17)", "radialaxis": { "ticks": "", "gridcolor": "#506784", "linecolor": "#506784" }, "angularaxis": { "ticks": "", "gridcolor": "#506784", "linecolor": "#506784" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "#506784", "gridwidth": 2, "linecolor": "#506784", "zerolinecolor": "#C8D4E3", "showbackground": true, "backgroundcolor": "rgb(17,17,17)" }, "yaxis": { "ticks": "", "gridcolor": "#506784", "gridwidth": 2, "linecolor": "#506784", "zerolinecolor": "#C8D4E3", "showbackground": true, "backgroundcolor": "rgb(17,17,17)" }, "zaxis": { "ticks": "", "gridcolor": "#506784", "gridwidth": 2, "linecolor": "#506784", "zerolinecolor": "#C8D4E3", "showbackground": true, "backgroundcolor": "rgb(17,17,17)" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "gridcolor": "#283442", "linecolor": "#506784", "automargin": true, "zerolinecolor": "#283442", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "gridcolor": "#283442", "linecolor": "#506784", "automargin": true, "zerolinecolor": "#283442", "zerolinewidth": 2 }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "#506784", "linecolor": "#506784" }, "baxis": { "ticks": "", "gridcolor": "#506784", "linecolor": "#506784" }, "caxis": { "ticks": "", "gridcolor": "#506784", "linecolor": "#506784" }, "bgcolor": "rgb(17,17,17)" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#19d3f3", "#e763fa", "#fecb52", "#ffa15a", "#ff6692", "#b6e880" ], "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ], "sequentialminus": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ] }, "plot_bgcolor": "rgb(17,17,17)", "paper_bgcolor": "rgb(17,17,17)", "shapedefaults": { "line": { "width": 0 }, "opacity": 0.4, "fillcolor": "#f2f5fa" }, "sliderdefaults": { "bgcolor": "#C8D4E3", "tickwidth": 0, "bordercolor": "rgb(17,17,17)", "borderwidth": 1 }, "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#f2f5fa", "arrowwidth": 1 }, "updatemenudefaults": { "bgcolor": "#506784", "borderwidth": 0 } }, "themeRef": "PLOTLY_DARK" }, "hoverlabel": { "font": { "size": 18 } } } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~migroch", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/42.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-11.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-02-11 23:06:31", "mapbox_access_tokens": null, "has_password": null, "username": "migroch", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T23:49:38.562138Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~thomas.curran/50.embed", "fid": "thomas.curran:50", "filename": "plot from API (24)", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/thomas.curran:50/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/thomas.curran:50/image?image_name=default", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/thomas.curran/50/8_5KYJZKD2QR9QSJRL6N38AKOIFEISUF.png", "list-thumb": "https://api.plotly.com/v2/files/thomas.curran:50/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/thomas.curran:50", "plots": "https://api.plotly.com/v2/plots/thomas.curran:50", "parent": "https://api.plotly.com/v2/folders/home?user=thomas.curran" }, "owner": "thomas.curran", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~thomas.curran/50/", "world_readable": true, "date_modified": "2019-03-20T23:49:39.020Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~thomas.curran/50/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "9a2211f1-8dde-45fd-864e-7973b3573cd3", "line": { "color": "#1f77b4", "width": 1 }, "type": "scatter3d", "xsrc": "thomas.curran:51:b6e853", "ysrc": "thomas.curran:51:ab0385", "zsrc": "thomas.curran:51:a6d25e", "marker": { "size": 4, "color": 64, "colorscale": "Viridis" } } ], "layout": {} }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~thomas.curran", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/89.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-4.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-01-03 19:48:38", "mapbox_access_tokens": null, "has_password": null, "username": "thomas.curran", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T23:48:56.816577Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~amper/61575.embed", "fid": "amper:61575", "filename": "03-20-19_ds-1569_alg-5421_param-1218_showamps-True-state_res-SEC", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/amper:61575/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/amper:61575/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/amper:61575/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/amper:61575/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/amper:61575", "plots": "https://api.plotly.com/v2/plots/amper:61575", "parent": "https://api.plotly.com/v2/folders/home?user=amper" }, "owner": "amper", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "03-20-19_ds-1569_alg-5421_param-1218_showamps-True-state_res-SEC", "views": 0, "web_url": "https://chart-studio.plotly.com/~amper/61575/_03-20-19-ds-1569-alg-5421-param-1218-showamps-true-state-res-sec/", "world_readable": true, "date_modified": "2019-03-20T23:48:57.918Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~amper/61575/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "32942402-b850-4156-a3c8-bf5fa3cfdd34", "mode": "lines", "name": "Idle", "type": "scattergl", "xsrc": "amper:61576:e8c053", "ysrc": "amper:61576:25d48c", "marker": { "line": { "color": "rgb(255, 205, 0)", "width": 1 }, "size": 1, "color": "rgb(255, 205, 0)" }, "connectgaps": false }, { "uid": "7108585d-afdb-45ea-829f-54350f395225", "mode": "lines", "name": "Production", "type": "scattergl", "xsrc": "amper:61576:e8c053", "ysrc": "amper:61576:1aceb2", "marker": { "line": { "color": "rgb(0, 166, 73)", "width": 1 }, "size": 1, "color": "rgb(0, 166, 73)" }, "connectgaps": false } ], "layout": { "title": "03-20-19_ds-1569_alg-5421_param-1218_showamps-True-state_res-SEC" } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~amper", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/99.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-1.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2017-03-17 16:47:16", "mapbox_access_tokens": null, "has_password": null, "username": "amper", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T23:48:46.493668Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~thomas.curran/48.embed", "fid": "thomas.curran:48", "filename": "plot from API (23)", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/thomas.curran:48/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/thomas.curran:48/image?image_name=default", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/thomas.curran/48/8_OQZPNC9YQ7FHB3G7ZYCDGGOL7B20R0.png", "list-thumb": "https://api.plotly.com/v2/files/thomas.curran:48/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/thomas.curran:48", "plots": "https://api.plotly.com/v2/plots/thomas.curran:48", "parent": "https://api.plotly.com/v2/folders/home?user=thomas.curran" }, "owner": "thomas.curran", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~thomas.curran/48/", "world_readable": true, "date_modified": "2019-03-20T23:48:47.002Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~thomas.curran/48/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "e735856e-2a14-4a97-807f-30ab889a36a4", "line": { "color": "#1f77b4", "width": 1 }, "type": "scatter3d", "xsrc": "thomas.curran:49:d4b1d6", "ysrc": "thomas.curran:49:cacf2a", "zsrc": "thomas.curran:49:8c882c", "marker": { "size": 4, "color": 64, "colorscale": "Viridis" } } ], "layout": {} }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~thomas.curran", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/89.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-4.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-01-03 19:48:38", "mapbox_access_tokens": null, "has_password": null, "username": "thomas.curran", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T23:48:24.421952Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~migroch/8.embed", "fid": "migroch:8", "filename": "CAASPP Math - 2018 CA v.s. SC Percentage Above Standard", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/migroch:8/image?image_name=list-thumb", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/migroch/8/2_KGBOUVQI9WXO9EDEEBJS8TDMY4T0GG.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/migroch/8/8_0LX5FV9VB8EMZP2NIZACNCFJ7MAI1R.png", "list-thumb": "https://api.plotly.com/v2/files/migroch:8/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/migroch:8", "plots": "https://api.plotly.com/v2/plots/migroch:8", "parent": "https://api.plotly.com/v2/folders/home?user=migroch" }, "owner": "migroch", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 2, "web_url": "https://chart-studio.plotly.com/~migroch/8/", "world_readable": true, "date_modified": "2019-03-24T23:42:40.916Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~migroch/8/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "mode": "markers", "name": "California", "type": "bar", "xsrc": "migroch:7:0117d7", "ysrc": "migroch:7:df3bc9", "marker": { "color": "#1f77b4", "opacity": 0.85 }, "visible": true, "hoverinfo": "y+name", "orientation": "v", "hovertemplate": "" }, { "name": "Santa Cruz", "type": "bar", "xsrc": "migroch:7:0117d7", "ysrc": "migroch:7:8241e8", "marker": { "color": "#ff7f0e", "opacity": 0.85 }, "visible": true, "hoverinfo": "y+name", "orientation": "v", "hovertemplate": "" } ], "frames": [], "layout": { "polar": { "radialaxis": { "range": [ 0, 1 ], "autorange": true }, "angularaxis": {} }, "title": { "font": { "size": 23 }, "text": "2018 CAASPP Math - CA v.s. SC County<br>Percentage at or above standard" }, "xaxis": { "type": "category", "range": [ -0.5, 6.5 ], "ticks": "", "title": { "font": { "size": 18 }, "text": "Grade" }, "tickfont": { "size": 18 }, "autorange": false, "fixedrange": true, "ticksuffix": "th", "rangeslider": { "range": [ -0.5, 6.5 ], "yaxis": {}, "visible": false, "autorange": true } }, "yaxis": { "type": "linear", "range": [ 25, 50.50526315789474 ], "ticks": "", "title": { "font": { "size": 18 }, "text": "<br>" }, "tickfont": { "size": 18 }, "autorange": false, "ticksuffix": "%" }, "legend": { "x": 0.8, "y": 0.8, "font": { "size": 18 }, "valign": "top", "xanchor": "left", "yanchor": "bottom", "orientation": "v" }, "margin": { "l": 80, "r": 80, "pad": 0 }, "barmode": "group", "autosize": true, "colorway": [ "#1f77b4", "#ff7f0e", "#2ca02c", "#d62728", "#9467bd", "#8c564b", "#e377c2", "#7f7f7f", "#bcbd22", "#17becf" ], "template": { "data": { "bar": [ { "type": "bar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#506784" }, "line": { "color": "rgb(17,17,17)" } }, "header": { "fill": { "color": "#2a3f5f" }, "line": { "color": "rgb(17,17,17)" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "#506784", "linecolor": "#506784", "endlinecolor": "#A2B1C6", "minorgridcolor": "#506784", "startlinecolor": "#A2B1C6" }, "baxis": { "gridcolor": "#506784", "linecolor": "#506784", "endlinecolor": "#A2B1C6", "minorgridcolor": "#506784", "startlinecolor": "#A2B1C6" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatter": [ { "type": "scatter", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "histogram": [ { "type": "histogram", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ] }, "layout": { "geo": { "bgcolor": "rgb(17,17,17)", "showland": true, "lakecolor": "rgb(17,17,17)", "landcolor": "rgb(17,17,17)", "showlakes": true, "subunitcolor": "#506784" }, "font": { "color": "#f2f5fa" }, "polar": { "bgcolor": "rgb(17,17,17)", "radialaxis": { "ticks": "", "gridcolor": "#506784", "linecolor": "#506784" }, "angularaxis": { "ticks": "", "gridcolor": "#506784", "linecolor": "#506784" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "#506784", "gridwidth": 2, "linecolor": "#506784", "zerolinecolor": "#C8D4E3", "showbackground": true, "backgroundcolor": "rgb(17,17,17)" }, "yaxis": { "ticks": "", "gridcolor": "#506784", "gridwidth": 2, "linecolor": "#506784", "zerolinecolor": "#C8D4E3", "showbackground": true, "backgroundcolor": "rgb(17,17,17)" }, "zaxis": { "ticks": "", "gridcolor": "#506784", "gridwidth": 2, "linecolor": "#506784", "zerolinecolor": "#C8D4E3", "showbackground": true, "backgroundcolor": "rgb(17,17,17)" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "gridcolor": "#283442", "linecolor": "#506784", "automargin": true, "zerolinecolor": "#283442", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "gridcolor": "#283442", "linecolor": "#506784", "automargin": true, "zerolinecolor": "#283442", "zerolinewidth": 2 }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "#506784", "linecolor": "#506784" }, "baxis": { "ticks": "", "gridcolor": "#506784", "linecolor": "#506784" }, "caxis": { "ticks": "", "gridcolor": "#506784", "linecolor": "#506784" }, "bgcolor": "rgb(17,17,17)" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#19d3f3", "#e763fa", "#fecb52", "#ffa15a", "#ff6692", "#b6e880" ], "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ], "sequentialminus": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ] }, "plot_bgcolor": "rgb(17,17,17)", "paper_bgcolor": "rgb(17,17,17)", "shapedefaults": { "line": { "width": 0 }, "opacity": 0.4, "fillcolor": "#f2f5fa" }, "sliderdefaults": { "bgcolor": "#C8D4E3", "tickwidth": 0, "bordercolor": "rgb(17,17,17)", "borderwidth": 1 }, "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#f2f5fa", "arrowwidth": 1 }, "updatemenudefaults": { "bgcolor": "#506784", "borderwidth": 0 } }, "themeRef": "PLOTLY_DARK" }, "hoverlabel": { "font": { "size": 18 } } } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~migroch", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/42.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-11.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-02-11 23:06:31", "mapbox_access_tokens": null, "has_password": null, "username": "migroch", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T23:48:17.185068Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~thomas.curran/46.embed", "fid": "thomas.curran:46", "filename": "plot from API (22)", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/thomas.curran:46/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/thomas.curran:46/image?image_name=default", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/thomas.curran/46/8_8JWH95DU531QAD1VH4QYO31BW1ALKA.png", "list-thumb": "https://api.plotly.com/v2/files/thomas.curran:46/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/thomas.curran:46", "plots": "https://api.plotly.com/v2/plots/thomas.curran:46", "parent": "https://api.plotly.com/v2/folders/home?user=thomas.curran" }, "owner": "thomas.curran", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~thomas.curran/46/", "world_readable": true, "date_modified": "2019-03-20T23:48:17.616Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~thomas.curran/46/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "25600e92-0b81-4795-bed0-23829da1d2e2", "line": { "color": "#1f77b4", "width": 1 }, "type": "scatter3d", "xsrc": "thomas.curran:47:74a11d", "ysrc": "thomas.curran:47:ec2d83", "zsrc": "thomas.curran:47:301044", "marker": { "size": 4, "color": 64, "colorscale": "Viridis" } } ], "layout": {} }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~thomas.curran", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/89.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-4.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-01-03 19:48:38", "mapbox_access_tokens": null, "has_password": null, "username": "thomas.curran", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T23:48:10.303570Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~amper/61573.embed", "fid": "amper:61573", "filename": "03-20-19_ds-1568_alg-5421_param-1217_showamps-True-state_res-SEC", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/amper:61573/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/amper:61573/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/amper:61573/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/amper:61573/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/amper:61573", "plots": "https://api.plotly.com/v2/plots/amper:61573", "parent": "https://api.plotly.com/v2/folders/home?user=amper" }, "owner": "amper", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "03-20-19_ds-1568_alg-5421_param-1217_showamps-True-state_res-SEC", "views": 0, "web_url": "https://chart-studio.plotly.com/~amper/61573/_03-20-19-ds-1568-alg-5421-param-1217-showamps-true-state-res-sec/", "world_readable": true, "date_modified": "2019-03-20T23:48:11.694Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~amper/61573/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "316c0de8-ab58-4f5d-814e-cb39605c773b", "mode": "lines", "name": "Idle", "type": "scattergl", "xsrc": "amper:61574:f27c22", "ysrc": "amper:61574:2a885b", "marker": { "line": { "color": "rgb(255, 205, 0)", "width": 1 }, "size": 1, "color": "rgb(255, 205, 0)" }, "connectgaps": false }, { "uid": "3e2fd0f2-e3f4-4192-b17a-d638815d3c9e", "mode": "lines", "name": "Production", "type": "scattergl", "xsrc": "amper:61574:f27c22", "ysrc": "amper:61574:b32d52", "marker": { "line": { "color": "rgb(0, 166, 73)", "width": 1 }, "size": 1, "color": "rgb(0, 166, 73)" }, "connectgaps": false } ], "layout": { "title": "03-20-19_ds-1568_alg-5421_param-1217_showamps-True-state_res-SEC" } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~amper", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/99.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-1.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2017-03-17 16:47:16", "mapbox_access_tokens": null, "has_password": null, "username": "amper", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T23:47:56.166954Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~thomas.curran/44.embed", "fid": "thomas.curran:44", "filename": "plot from API (21)", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/thomas.curran:44/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/thomas.curran:44/image?image_name=default", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/thomas.curran/44/8_PBOPZ82PMEDLZUYN183TMLLWCX20G5.png", "list-thumb": "https://api.plotly.com/v2/files/thomas.curran:44/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/thomas.curran:44", "plots": "https://api.plotly.com/v2/plots/thomas.curran:44", "parent": "https://api.plotly.com/v2/folders/home?user=thomas.curran" }, "owner": "thomas.curran", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "Iris dataset", "views": 0, "web_url": "https://chart-studio.plotly.com/~thomas.curran/44/iris-dataset/", "world_readable": true, "date_modified": "2019-03-20T23:47:56.582Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~thomas.curran/44/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": false, "caption": "", "figure": { "data": [ { "uid": "1a01e746-720e-449c-9a44-79fe0ae5fc7a", "line": { "color": "#1f77b4", "width": 1 }, "type": "scatter3d", "xsrc": "thomas.curran:45:53e28d", "ysrc": "thomas.curran:45:4fb928", "zsrc": "thomas.curran:45:c47127", "marker": { "size": 4, "color": 64, "colorscale": "Viridis" } } ], "layout": { "title": "Iris dataset", "width": 800, "height": 700, "autosize": false } }, "height": 700, "width": 800, "user": { "profile_url": "https://chart-studio.plotly.com/~thomas.curran", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/89.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-4.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-01-03 19:48:38", "mapbox_access_tokens": null, "has_password": null, "username": "thomas.curran", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T23:47:51.232703Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~s11108049/1.embed", "fid": "s11108049:1", "filename": "Plot 1", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/s11108049:1/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/s11108049:1/image?image_name=default", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/s11108049/1/8_R1JYO99O2V8TCY13A67HN7GF4IK25T.png", "list-thumb": "https://api.plotly.com/v2/files/s11108049:1/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/s11108049:1", "plots": "https://api.plotly.com/v2/plots/s11108049:1", "parent": "https://api.plotly.com/v2/folders/home?user=s11108049" }, "owner": "s11108049", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~s11108049/1/", "world_readable": true, "date_modified": "2019-03-20T23:48:07.671Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~s11108049/1/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "mode": "markers", "type": "scatter", "xsrc": "s11108049:0:1643a8", "ysrc": "s11108049:0:b0b099", "orientation": "v" } ], "frames": [], "layout": { "xaxis": { "type": "linear", "range": [ 1872.0748966942149, 2021.9251033057851 ], "autorange": true }, "yaxis": { "type": "linear", "range": [ -54.84615384615385, 82.84615384615385 ], "autorange": true }, "autosize": true, "template": { "data": { "bar": [ { "type": "bar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatter": [ { "type": "scatter", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "histogram": [ { "type": "histogram", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "white", "showlakes": true, "subunitcolor": "#C8D4E3" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "white", "radialaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" }, "angularaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "yaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "zaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "baxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "caxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "bgcolor": "white" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#19d3f3", "#e763fa", "#fecb52", "#ffa15a", "#ff6692", "#b6e880" ], "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ], "sequentialminus": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ] }, "plot_bgcolor": "white", "paper_bgcolor": "white", "shapedefaults": { "line": { "width": 0 }, "opacity": 0.4, "fillcolor": "#506784" }, "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#506784", "arrowwidth": 1 } }, "themeRef": "PLOTLY_WHITE" } } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~s11108049", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/74.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-9.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-03-19 04:35:10", "mapbox_access_tokens": null, "has_password": null, "username": "s11108049", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T23:47:13.401809Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~nthuy/20.embed", "fid": "nthuy:20", "filename": "plot from API (6)", "filetype": "plot", "img_url": "https://storage.googleapis.com/plotly-prod-images/nthuy/20/9_SD01YS91Z3GRL3KU2EM2YOEXZIO94R.png", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/nthuy/20/2_HH96USBJEYMHGF9OBAL3O0DG52ZSTZ.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/nthuy/20/8_7VT5BXT4VUZGIYDVQ7IT6HFNBJO5OR.png", "list-thumb": "https://storage.googleapis.com/plotly-prod-images/nthuy/20/9_SD01YS91Z3GRL3KU2EM2YOEXZIO94R.png" }, "api_urls": { "files": "https://api.plotly.com/v2/files/nthuy:20", "plots": "https://api.plotly.com/v2/plots/nthuy:20", "parent": "https://api.plotly.com/v2/folders/home?user=nthuy" }, "owner": "nthuy", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 3, "web_url": "https://chart-studio.plotly.com/~nthuy/20/", "world_readable": true, "date_modified": "2019-03-20T23:47:14.185Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~nthuy/20/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "7e9aac1e-d639-4536-9935-78abf66d8a37", "mode": "markers", "type": "scatter3d", "xsrc": "nthuy:21:496a29", "ysrc": "nthuy:21:cf5701", "zsrc": "nthuy:21:5904ae", "marker": { "size": 12, "opacity": 0.8, "colorsrc": "nthuy:21:f23cd1", "colorscale": "Viridis" } } ], "layout": { "margin": { "b": 0, "l": 0, "r": 0, "t": 0 } } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~nthuy", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/84.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-11.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-03-07 20:36:47", "mapbox_access_tokens": null, "has_password": null, "username": "nthuy", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } } ] }
