Plots List
Plots
This endpoint handles manipulation of Plotly plot files.
Reference
Authorization
Any user with or without a Plotly account may view public plots. For private plots, see authentication.
Actions
list
Listing all public plots can be done via a GET request to this endpoint.
By default, plots will be listed in order of date created. The order_by
query parameter is accepted at this endpoint. Currently, only ordering by
views is supported. It is possible to filter the plots by quality
with min_quality or max_quality as query parameter.
Example:
// GET https://api.plotly.com/v2/plots/ ---> 200
// GET https://api.plotly.com/v2/plots/?order_by=-views ---> 200
// GET https://api.plotly.com/v2/plots/?min_quality=5 ---> 200
// GET https://api.plotly.com/v2/plots/?max_quality=5 ---> 200
feed
Listing all handpicked feed plots can be done via a GET request to this endpoint. By default, plots will be listed in a random order.
Example:
// GET https://api.plotly.com/v2/plots/feed ---> 200
create
You can create new plot resources here. The only required field is 'figure'. Currently, the figure is restricted to only contain references to grid data. That is, this will fail if raw data arrays are passed in. To create and manipulate underlying grids for plots, see the grids endpoint.
Example:
// This fails because a figure field is required.
// POST https://api.plotly.com/v2/plots ---> 400 Bad Request
{}
// This fails because the figure has raw data
//POST https://api.plotly.com/v2/plots ---> 400 Bad Request
{
"figure": {"data": [{"y": ['this', 'is', 'raw', 'data']}]}
}
// This succeeds because the figure has src keys, not raw data.
//POST https://api.plotly.com/v2/plots ---> 200 OK
{
"figure": {"data": [{"ysrc": "sven:88:u8nd62"}]}
}
When creating a grid, you can optionally specify a source_fid to specify where a plot has come from:
- source_fid: the fid of a plot that was copied (and presumably edited) to produce this one
detail
There is a lot of meta information stored about plot files including filename, title, share_url, and content_url to name a few.
This information can only be reached with a GET to this endpoint.
Example:
// GET https://api.plotly.com/v2/plots/iheartgraphs:90
content
The contents of a plot can be downloaded via the content resource. The plot
content contains referenced grid/column data by default. If you wish to
return the raw grid/column data, the inline_data=true query must be included
in the request url. The Content-Type header will be appropriately set for the
response body.
Alternatively, you can set ?map_data=unreadable to append a mapping of
sources to data that belongs to grids which are unreadable for the
requestor. This is useful when you have read access to another users plot,
but that plot contains grid references which you don't have access to.
Examples:
// Returns referenced grid/column data
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content ---> 200 OK
// Returns full grid/column data
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content?inline_data=true ---> 200 OK
// Returns full grid/column data when requestor doesn't have permission
// to read the referenced grid.
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content?map_data=unreadable ---> 200 OK
GET /v2/plots?cursor=cD0yMDE5LTAzLTIwKzIyJTNBNDIlM0E1Ni44NjA5NjclMkIwMCUzQTAw&format=api

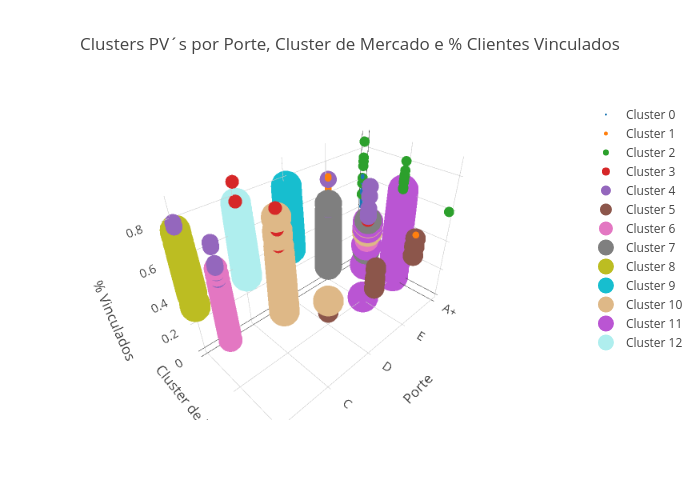

{ "next": "https://api.plot.ly/v2/plots?cursor=cD0yMDE5LTAzLTIwKzIyJTNBMzklM0ExNS4zNDg1MTklMkIwMCUzQTAw&format=api", "previous": "https://api.plot.ly/v2/plots?cursor=cj0xJnA9MjAxOS0wMy0yMCsyMiUzQTQyJTNBMzguNDc1MTc0JTJCMDAlM0EwMA%3D%3D&format=api", "results": [ { "creation_time": "2019-03-20T22:42:38.475174Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~racouto/24.embed", "fid": "racouto:24", "filename": "Clusters_PV_13c_model", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/racouto:24/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/racouto:24/image?image_name=default", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/racouto/24/8_PSWYNN5GCL8KVJH72LBUWIRRQLV574.png", "list-thumb": "https://api.plotly.com/v2/files/racouto:24/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/racouto:24", "plots": "https://api.plotly.com/v2/plots/racouto:24", "parent": "https://api.plotly.com/v2/folders/home?user=racouto" }, "owner": "racouto", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "Clusters PV´s por Porte, Cluster de Mercado e % Clientes Vinculados", "views": 4, "web_url": "https://chart-studio.plotly.com/~racouto/24/clusters-pv-s-por-porte-cluster-de-mercado-e-clientes-vinculados/", "world_readable": true, "date_modified": "2019-03-20T22:42:39.023Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~racouto/24/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "mode": "markers", "name": "Cluster 0", "type": "scatter3d", "xsrc": "racouto:25:2eabc3", "ysrc": "racouto:25:547a51", "zsrc": "racouto:25:d80b32", "marker": { "size": 2, "color": "#1f77b4" } }, { "mode": "markers", "name": "Cluster 1", "type": "scatter3d", "xsrc": "racouto:25:6da73b", "ysrc": "racouto:25:68effb", "zsrc": "racouto:25:c3f5db", "marker": { "size": 4, "color": "#ff7f0e" } }, { "mode": "markers", "name": "Cluster 2", "type": "scatter3d", "xsrc": "racouto:25:3aa8e6", "ysrc": "racouto:25:0ba6c2", "zsrc": "racouto:25:02b626", "marker": { "size": 6, "color": "#2ca02c" } }, { "mode": "markers", "name": "Cluster 3", "type": "scatter3d", "xsrc": "racouto:25:6ec655", "ysrc": "racouto:25:31bc96", "zsrc": "racouto:25:ffe071", "marker": { "size": 8, "color": "#d62728" } }, { "mode": "markers", "name": "Cluster 4", "type": "scatter3d", "xsrc": "racouto:25:d7720d", "ysrc": "racouto:25:55b07c", "zsrc": "racouto:25:9df99f", "marker": { "size": 10, "color": "#9467bd" } }, { "mode": "markers", "name": "Cluster 5", "type": "scatter3d", "xsrc": "racouto:25:947879", "ysrc": "racouto:25:ae8045", "zsrc": "racouto:25:c72b94", "marker": { "size": 12, "color": "#8c564b" } }, { "mode": "markers", "name": "Cluster 6", "type": "scatter3d", "xsrc": "racouto:25:9a68a5", "ysrc": "racouto:25:53888e", "zsrc": "racouto:25:312046", "marker": { "size": 14, "color": "#e377c2" } }, { "mode": "markers", "name": "Cluster 7", "type": "scatter3d", "xsrc": "racouto:25:741ef3", "ysrc": "racouto:25:cb85e3", "zsrc": "racouto:25:89de79", "marker": { "size": 16, "color": "#7f7f7f" } }, { "mode": "markers", "name": "Cluster 8", "type": "scatter3d", "xsrc": "racouto:25:b04737", "ysrc": "racouto:25:9faf66", "zsrc": "racouto:25:4eb3a7", "marker": { "size": 18, "color": "#bcbd22" } }, { "mode": "markers", "name": "Cluster 9", "type": "scatter3d", "xsrc": "racouto:25:40335d", "ysrc": "racouto:25:62bf5c", "zsrc": "racouto:25:22ed3e", "marker": { "size": 18, "color": "#17becf" } }, { "mode": "markers", "name": "Cluster 10", "type": "scatter3d", "xsrc": "racouto:25:118589", "ysrc": "racouto:25:485d3c", "zsrc": "racouto:25:2c1863", "marker": { "size": 18, "color": "burlywood" } }, { "mode": "markers", "name": "Cluster 11", "type": "scatter3d", "xsrc": "racouto:25:50d313", "ysrc": "racouto:25:3a9bea", "zsrc": "racouto:25:8fe37b", "marker": { "size": 18, "color": "mediumorchid" } }, { "mode": "markers", "name": "Cluster 12", "type": "scatter3d", "xsrc": "racouto:25:0e0c98", "ysrc": "racouto:25:dd2df5", "zsrc": "racouto:25:ff7b9e", "marker": { "size": 18, "color": "paleturquoise" } } ], "layout": { "scene": { "xaxis": { "title": "Porte", "zeroline": true }, "yaxis": { "title": "Cluster de Mercado", "zeroline": true, "showticklabels": false }, "zaxis": { "title": "% Vinculados", "zeroline": true } }, "title": "Clusters PV´s por Porte, Cluster de Mercado e % Clientes Vinculados" } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~racouto", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/84.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-9.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2018-05-30 20:55:43", "mapbox_access_tokens": null, "has_password": null, "username": "racouto", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T22:42:25.645219Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~amper/61561.embed", "fid": "amper:61561", "filename": "03-19-19_ds-1620_alg-5421_param-1203_showamps-True-state_res-SEC", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/amper:61561/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/amper:61561/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/amper:61561/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/amper:61561/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/amper:61561", "plots": "https://api.plotly.com/v2/plots/amper:61561", "parent": "https://api.plotly.com/v2/folders/home?user=amper" }, "owner": "amper", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "03-19-19_ds-1620_alg-5421_param-1203_showamps-True-state_res-SEC", "views": 0, "web_url": "https://chart-studio.plotly.com/~amper/61561/_03-19-19-ds-1620-alg-5421-param-1203-showamps-true-state-res-sec/", "world_readable": true, "date_modified": "2019-03-20T22:42:26.827Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~amper/61561/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "fe6c1ae2-f6fa-4ff1-a66f-a284acc6cbb5", "mode": "lines", "name": "Off", "type": "scattergl", "xsrc": "amper:61562:5a90d7", "ysrc": "amper:61562:d07d57", "marker": { "line": { "color": "rgb(248, 19, 0)", "width": 1 }, "size": 1, "color": "rgb(248, 19, 0)" } }, { "uid": "8d1bad56-840d-4524-8c9a-d420f7b461ed", "mode": "lines", "name": "Idle", "type": "scattergl", "xsrc": "amper:61562:5a90d7", "ysrc": "amper:61562:c91779", "marker": { "line": { "color": "rgb(255, 205, 0)", "width": 1 }, "size": 1, "color": "rgb(255, 205, 0)" }, "connectgaps": false }, { "uid": "1670c51b-7794-4f08-b722-8d476ea33cfc", "mode": "lines", "name": "Production", "type": "scattergl", "xsrc": "amper:61562:5a90d7", "ysrc": "amper:61562:e5c411", "marker": { "line": { "color": "rgb(0, 166, 73)", "width": 1 }, "size": 1, "color": "rgb(0, 166, 73)" }, "connectgaps": false }, { "uid": "7946aac8-137f-46ec-a4e8-d40e3ae3f71a", "mode": "lines", "name": "Other", "type": "scattergl", "xsrc": "amper:61562:5a90d7", "ysrc": "amper:61562:02c1bc", "marker": { "line": { "color": "rgb(169,169,169)", "width": 1 }, "size": 1, "color": "rgb(169,169,169)" } } ], "layout": { "title": "03-19-19_ds-1620_alg-5421_param-1203_showamps-True-state_res-SEC" } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~amper", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/99.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-1.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2017-03-17 16:47:16", "mapbox_access_tokens": null, "has_password": null, "username": "amper", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T22:41:51.431645Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~43715291/4.embed", "fid": "43715291:4", "filename": "box_heatmap2", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/43715291:4/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/43715291:4/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/43715291:4/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/43715291:4/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/43715291:4", "plots": "https://api.plotly.com/v2/plots/43715291:4", "parent": "https://api.plotly.com/v2/folders/home?user=43715291" }, "owner": "43715291", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~43715291/4/", "world_readable": true, "date_modified": "2019-03-21T19:20:33.709Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~43715291/4/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "c7d7fbfb-1937-4050-b7e0-9f6880b30d98", "type": "heatmap", "zsrc": "43715291:5:", "showscale": false, "colorscale": "RdBu", "reversescale": false } ], "layout": { "xaxis": { "side": "top", "ticks": "", "gridcolor": "rgb(0, 0, 0)", "showticklabels": false }, "yaxis": { "ticks": "", "ticksuffix": " ", "showticklabels": false }, "annotations": [ { "x": 0, "y": 0, "font": { "color": "#FFFFFF" }, "text": "25.01", "xref": "x", "yref": "y", "showarrow": false }, { "x": 1, "y": 0, "font": { "color": "#FFFFFF" }, "text": "43.65", "xref": "x", "yref": "y", "showarrow": false }, { "x": 2, "y": 0, "font": { "color": "#000000" }, "text": "47.51", "xref": "x", "yref": "y", "showarrow": false }, { "x": 3, "y": 0, "font": { "color": "#000000" }, "text": "47.18", "xref": "x", "yref": "y", "showarrow": false }, { "x": 4, "y": 0, "font": { "color": "#000000" }, "text": "46.41", "xref": "x", "yref": "y", "showarrow": false }, { "x": 5, "y": 0, "font": { "color": "#000000" }, "text": "46.28", "xref": "x", "yref": "y", "showarrow": false }, { "x": 6, "y": 0, "font": { "color": "#000000" }, "text": "45.55", "xref": "x", "yref": "y", "showarrow": false }, { "x": 7, "y": 0, "font": { "color": "#FFFFFF" }, "text": "44.44", "xref": "x", "yref": "y", "showarrow": false }, { "x": 8, "y": 0, "font": { "color": "#FFFFFF" }, "text": "43.4", "xref": "x", "yref": "y", "showarrow": false }, { "x": 9, "y": 0, "font": { "color": "#FFFFFF" }, "text": "42.75", "xref": "x", "yref": "y", "showarrow": false }, { "x": 10, "y": 0, "font": { "color": "#FFFFFF" }, "text": "41.69", "xref": "x", "yref": "y", "showarrow": false }, { "x": 11, "y": 0, "font": { "color": "#FFFFFF" }, "text": "35.72", "xref": "x", "yref": "y", "showarrow": false }, { "x": 0, "y": 1, "font": { "color": "#FFFFFF" }, "text": "28.76", "xref": "x", "yref": "y", "showarrow": false }, { "x": 1, "y": 1, "font": { "color": "#FFFFFF" }, "text": "44.52", "xref": "x", "yref": "y", "showarrow": false }, { "x": 2, "y": 1, "font": { "color": "#000000" }, "text": "48.39", "xref": "x", "yref": "y", "showarrow": false }, { "x": 3, "y": 1, "font": { "color": "#000000" }, "text": "50.27", "xref": "x", "yref": "y", "showarrow": false }, { "x": 4, "y": 1, "font": { "color": "#000000" }, "text": "49.12", "xref": "x", "yref": "y", "showarrow": false }, { "x": 5, "y": 1, "font": { "color": "#000000" }, "text": "49.31", "xref": "x", "yref": "y", "showarrow": false }, { "x": 6, "y": 1, "font": { "color": "#000000" }, "text": "48.86", "xref": "x", "yref": "y", "showarrow": false }, { "x": 7, "y": 1, "font": { "color": "#000000" }, "text": "47.54", "xref": "x", "yref": "y", "showarrow": false }, { "x": 8, "y": 1, "font": { "color": "#000000" }, "text": "46.45", "xref": "x", "yref": "y", "showarrow": false }, { "x": 9, "y": 1, "font": { "color": "#000000" }, "text": "45.76", "xref": "x", "yref": "y", "showarrow": false }, { "x": 10, "y": 1, "font": { "color": "#FFFFFF" }, "text": "44.65", "xref": "x", "yref": "y", "showarrow": false }, { "x": 11, "y": 1, "font": { "color": "#FFFFFF" }, "text": "44.25", "xref": "x", "yref": "y", "showarrow": false }, { "x": 0, "y": 2, "font": { "color": "#FFFFFF" }, "text": "34.75", "xref": "x", "yref": "y", "showarrow": false }, { "x": 1, "y": 2, "font": { "color": "#000000" }, "text": "47.31", "xref": "x", "yref": "y", "showarrow": false }, { "x": 2, "y": 2, "font": { "color": "#000000" }, "text": "50.58", "xref": "x", "yref": "y", "showarrow": false }, { "x": 3, "y": 2, "font": { "color": "#000000" }, "text": "51.72", "xref": "x", "yref": "y", "showarrow": false }, { "x": 4, "y": 2, "font": { "color": "#000000" }, "text": "51.26", "xref": "x", "yref": "y", "showarrow": false }, { "x": 5, "y": 2, "font": { "color": "#000000" }, "text": "51.28", "xref": "x", "yref": "y", "showarrow": false }, { "x": 6, "y": 2, "font": { "color": "#000000" }, "text": "50.91", "xref": "x", "yref": "y", "showarrow": false }, { "x": 7, "y": 2, "font": { "color": "#000000" }, "text": "49.31", "xref": "x", "yref": "y", "showarrow": false }, { "x": 8, "y": 2, "font": { "color": "#000000" }, "text": "48.23", "xref": "x", "yref": "y", "showarrow": false }, { "x": 9, "y": 2, "font": { "color": "#000000" }, "text": "47.47", "xref": "x", "yref": "y", "showarrow": false }, { "x": 10, "y": 2, "font": { "color": "#000000" }, "text": "46.53", "xref": "x", "yref": "y", "showarrow": false }, { "x": 11, "y": 2, "font": { "color": "#000000" }, "text": "45.34", "xref": "x", "yref": "y", "showarrow": false }, { "x": 0, "y": 3, "font": { "color": "#FFFFFF" }, "text": "40.93", "xref": "x", "yref": "y", "showarrow": false }, { "x": 1, "y": 3, "font": { "color": "#000000" }, "text": "50.64", "xref": "x", "yref": "y", "showarrow": false }, { "x": 2, "y": 3, "font": { "color": "#000000" }, "text": "52.75", "xref": "x", "yref": "y", "showarrow": false }, { "x": 3, "y": 3, "font": { "color": "#000000" }, "text": "53.23", "xref": "x", "yref": "y", "showarrow": false }, { "x": 4, "y": 3, "font": { "color": "#000000" }, "text": "53.18", "xref": "x", "yref": "y", "showarrow": false }, { "x": 5, "y": 3, "font": { "color": "#000000" }, "text": "53.04", "xref": "x", "yref": "y", "showarrow": false }, { "x": 6, "y": 3, "font": { "color": "#000000" }, "text": "52.57", "xref": "x", "yref": "y", "showarrow": false }, { "x": 7, "y": 3, "font": { "color": "#000000" }, "text": "50.83", "xref": "x", "yref": "y", "showarrow": false }, { "x": 8, "y": 3, "font": { "color": "#000000" }, "text": "49.71", "xref": "x", "yref": "y", "showarrow": false }, { "x": 9, "y": 3, "font": { "color": "#000000" }, "text": "48.79", "xref": "x", "yref": "y", "showarrow": false }, { "x": 10, "y": 3, "font": { "color": "#000000" }, "text": "48.03", "xref": "x", "yref": "y", "showarrow": false }, { "x": 11, "y": 3, "font": { "color": "#000000" }, "text": "47.39", "xref": "x", "yref": "y", "showarrow": false }, { "x": 0, "y": 4, "font": { "color": "#000000" }, "text": "46.18", "xref": "x", "yref": "y", "showarrow": false }, { "x": 1, "y": 4, "font": { "color": "#000000" }, "text": "53.21", "xref": "x", "yref": "y", "showarrow": false }, { "x": 2, "y": 4, "font": { "color": "#000000" }, "text": "54.21", "xref": "x", "yref": "y", "showarrow": false }, { "x": 3, "y": 4, "font": { "color": "#000000" }, "text": "54.83", "xref": "x", "yref": "y", "showarrow": false }, { "x": 4, "y": 4, "font": { "color": "#000000" }, "text": "54.82", "xref": "x", "yref": "y", "showarrow": false }, { "x": 5, "y": 4, "font": { "color": "#000000" }, "text": "54.64", "xref": "x", "yref": "y", "showarrow": false }, { "x": 6, "y": 4, "font": { "color": "#000000" }, "text": "54.05", "xref": "x", "yref": "y", "showarrow": false }, { "x": 7, "y": 4, "font": { "color": "#000000" }, "text": "52.27", "xref": "x", "yref": "y", "showarrow": false }, { "x": 8, "y": 4, "font": { "color": "#000000" }, "text": "51.03", "xref": "x", "yref": "y", "showarrow": false }, { "x": 9, "y": 4, "font": { "color": "#000000" }, "text": "49.97", "xref": "x", "yref": "y", "showarrow": false }, { "x": 10, "y": 4, "font": { "color": "#000000" }, "text": "49.32", "xref": "x", "yref": "y", "showarrow": false }, { "x": 11, "y": 4, "font": { "color": "#000000" }, "text": "49.25", "xref": "x", "yref": "y", "showarrow": false }, { "x": 0, "y": 5, "font": { "color": "#000000" }, "text": "58.06", "xref": "x", "yref": "y", "showarrow": false }, { "x": 1, "y": 5, "font": { "color": "#000000" }, "text": "60.23", "xref": "x", "yref": "y", "showarrow": false }, { "x": 2, "y": 5, "font": { "color": "#000000" }, "text": "60.14", "xref": "x", "yref": "y", "showarrow": false }, { "x": 3, "y": 5, "font": { "color": "#000000" }, "text": "59.57", "xref": "x", "yref": "y", "showarrow": false }, { "x": 4, "y": 5, "font": { "color": "#000000" }, "text": "59.12", "xref": "x", "yref": "y", "showarrow": false }, { "x": 5, "y": 5, "font": { "color": "#000000" }, "text": "58.38", "xref": "x", "yref": "y", "showarrow": false }, { "x": 6, "y": 5, "font": { "color": "#000000" }, "text": "57.46", "xref": "x", "yref": "y", "showarrow": false }, { "x": 7, "y": 5, "font": { "color": "#000000" }, "text": "55.14", "xref": "x", "yref": "y", "showarrow": false }, { "x": 8, "y": 5, "font": { "color": "#000000" }, "text": "53.38", "xref": "x", "yref": "y", "showarrow": false }, { "x": 9, "y": 5, "font": { "color": "#000000" }, "text": "52.25", "xref": "x", "yref": "y", "showarrow": false }, { "x": 10, "y": 5, "font": { "color": "#000000" }, "text": "51.5", "xref": "x", "yref": "y", "showarrow": false }, { "x": 11, "y": 5, "font": { "color": "#000000" }, "text": "51.66", "xref": "x", "yref": "y", "showarrow": false }, { "x": 0, "y": 6, "font": { "color": "#000000" }, "text": "61.87", "xref": "x", "yref": "y", "showarrow": false }, { "x": 1, "y": 6, "font": { "color": "#000000" }, "text": "62.64", "xref": "x", "yref": "y", "showarrow": false }, { "x": 2, "y": 6, "font": { "color": "#000000" }, "text": "62.61", "xref": "x", "yref": "y", "showarrow": false }, { "x": 3, "y": 6, "font": { "color": "#000000" }, "text": "62.12", "xref": "x", "yref": "y", "showarrow": false }, { "x": 4, "y": 6, "font": { "color": "#000000" }, "text": "61.7", "xref": "x", "yref": "y", "showarrow": false }, { "x": 5, "y": 6, "font": { "color": "#000000" }, "text": "60.62", "xref": "x", "yref": "y", "showarrow": false }, { "x": 6, "y": 6, "font": { "color": "#000000" }, "text": "59.43", "xref": "x", "yref": "y", "showarrow": false }, { "x": 7, "y": 6, "font": { "color": "#000000" }, "text": "56.95", "xref": "x", "yref": "y", "showarrow": false }, { "x": 8, "y": 6, "font": { "color": "#000000" }, "text": "55.0", "xref": "x", "yref": "y", "showarrow": false }, { "x": 9, "y": 6, "font": { "color": "#000000" }, "text": "53.96", "xref": "x", "yref": "y", "showarrow": false }, { "x": 10, "y": 6, "font": { "color": "#000000" }, "text": "53.27", "xref": "x", "yref": "y", "showarrow": false }, { "x": 11, "y": 6, "font": { "color": "#000000" }, "text": "52.29", "xref": "x", "yref": "y", "showarrow": false }, { "x": 0, "y": 7, "font": { "color": "#000000" }, "text": "63.74", "xref": "x", "yref": "y", "showarrow": false }, { "x": 1, "y": 7, "font": { "color": "#000000" }, "text": "64.14", "xref": "x", "yref": "y", "showarrow": false }, { "x": 2, "y": 7, "font": { "color": "#000000" }, "text": "64.04", "xref": "x", "yref": "y", "showarrow": false }, { "x": 3, "y": 7, "font": { "color": "#000000" }, "text": "63.7", "xref": "x", "yref": "y", "showarrow": false }, { "x": 4, "y": 7, "font": { "color": "#000000" }, "text": "63.31", "xref": "x", "yref": "y", "showarrow": false }, { "x": 5, "y": 7, "font": { "color": "#000000" }, "text": "62.13", "xref": "x", "yref": "y", "showarrow": false }, { "x": 6, "y": 7, "font": { "color": "#000000" }, "text": "60.67", "xref": "x", "yref": "y", "showarrow": false }, { "x": 7, "y": 7, "font": { "color": "#000000" }, "text": "58.01", "xref": "x", "yref": "y", "showarrow": false }, { "x": 8, "y": 7, "font": { "color": "#000000" }, "text": "55.85", "xref": "x", "yref": "y", "showarrow": false }, { "x": 9, "y": 7, "font": { "color": "#000000" }, "text": "54.85", "xref": "x", "yref": "y", "showarrow": false }, { "x": 10, "y": 7, "font": { "color": "#000000" }, "text": "54.33", "xref": "x", "yref": "y", "showarrow": false }, { "x": 11, "y": 7, "font": { "color": "#000000" }, "text": "51.77", "xref": "x", "yref": "y", "showarrow": false }, { "x": 0, "y": 8, "font": { "color": "#000000" }, "text": "64.55", "xref": "x", "yref": "y", "showarrow": false }, { "x": 1, "y": 8, "font": { "color": "#000000" }, "text": "65.01", "xref": "x", "yref": "y", "showarrow": false }, { "x": 2, "y": 8, "font": { "color": "#000000" }, "text": "64.84", "xref": "x", "yref": "y", "showarrow": false }, { "x": 3, "y": 8, "font": { "color": "#000000" }, "text": "64.4", "xref": "x", "yref": "y", "showarrow": false }, { "x": 4, "y": 8, "font": { "color": "#000000" }, "text": "63.99", "xref": "x", "yref": "y", "showarrow": false }, { "x": 5, "y": 8, "font": { "color": "#000000" }, "text": "62.82", "xref": "x", "yref": "y", "showarrow": false }, { "x": 6, "y": 8, "font": { "color": "#000000" }, "text": "61.17", "xref": "x", "yref": "y", "showarrow": false }, { "x": 7, "y": 8, "font": { "color": "#000000" }, "text": "58.3", "xref": "x", "yref": "y", "showarrow": false }, { "x": 8, "y": 8, "font": { "color": "#000000" }, "text": "55.99", "xref": "x", "yref": "y", "showarrow": false }, { "x": 9, "y": 8, "font": { "color": "#000000" }, "text": "55.04", "xref": "x", "yref": "y", "showarrow": false }, { "x": 10, "y": 8, "font": { "color": "#000000" }, "text": "54.72", "xref": "x", "yref": "y", "showarrow": false }, { "x": 11, "y": 8, "font": { "color": "#000000" }, "text": "52.55", "xref": "x", "yref": "y", "showarrow": false }, { "x": 0, "y": 9, "font": { "color": "#000000" }, "text": "65.18", "xref": "x", "yref": "y", "showarrow": false }, { "x": 1, "y": 9, "font": { "color": "#000000" }, "text": "65.25", "xref": "x", "yref": "y", "showarrow": false }, { "x": 2, "y": 9, "font": { "color": "#000000" }, "text": "64.87", "xref": "x", "yref": "y", "showarrow": false }, { "x": 3, "y": 9, "font": { "color": "#000000" }, "text": "64.44", "xref": "x", "yref": "y", "showarrow": false }, { "x": 4, "y": 9, "font": { "color": "#000000" }, "text": "64.04", "xref": "x", "yref": "y", "showarrow": false }, { "x": 5, "y": 9, "font": { "color": "#000000" }, "text": "62.87", "xref": "x", "yref": "y", "showarrow": false }, { "x": 6, "y": 9, "font": { "color": "#000000" }, "text": "61.0", "xref": "x", "yref": "y", "showarrow": false }, { "x": 7, "y": 9, "font": { "color": "#000000" }, "text": "57.86", "xref": "x", "yref": "y", "showarrow": false }, { "x": 8, "y": 9, "font": { "color": "#000000" }, "text": "55.59", "xref": "x", "yref": "y", "showarrow": false }, { "x": 9, "y": 9, "font": { "color": "#000000" }, "text": "54.75", "xref": "x", "yref": "y", "showarrow": false }, { "x": 10, "y": 9, "font": { "color": "#000000" }, "text": "54.57", "xref": "x", "yref": "y", "showarrow": false }, { "x": 11, "y": 9, "font": { "color": "#000000" }, "text": "51.5", "xref": "x", "yref": "y", "showarrow": false }, { "x": 0, "y": 10, "font": { "color": "#000000" }, "text": "64.29", "xref": "x", "yref": "y", "showarrow": false }, { "x": 1, "y": 10, "font": { "color": "#000000" }, "text": "64.11", "xref": "x", "yref": "y", "showarrow": false }, { "x": 2, "y": 10, "font": { "color": "#000000" }, "text": "63.68", "xref": "x", "yref": "y", "showarrow": false }, { "x": 3, "y": 10, "font": { "color": "#000000" }, "text": "63.17", "xref": "x", "yref": "y", "showarrow": false }, { "x": 4, "y": 10, "font": { "color": "#000000" }, "text": "62.94", "xref": "x", "yref": "y", "showarrow": false }, { "x": 5, "y": 10, "font": { "color": "#000000" }, "text": "61.86", "xref": "x", "yref": "y", "showarrow": false }, { "x": 6, "y": 10, "font": { "color": "#000000" }, "text": "59.83", "xref": "x", "yref": "y", "showarrow": false }, { "x": 7, "y": 10, "font": { "color": "#000000" }, "text": "56.39", "xref": "x", "yref": "y", "showarrow": false }, { "x": 8, "y": 10, "font": { "color": "#000000" }, "text": "54.38", "xref": "x", "yref": "y", "showarrow": false }, { "x": 9, "y": 10, "font": { "color": "#000000" }, "text": "53.66", "xref": "x", "yref": "y", "showarrow": false }, { "x": 10, "y": 10, "font": { "color": "#000000" }, "text": "53.51", "xref": "x", "yref": "y", "showarrow": false }, { "x": 11, "y": 10, "font": { "color": "#000000" }, "text": "49.42", "xref": "x", "yref": "y", "showarrow": false }, { "x": 0, "y": 11, "font": { "color": "#000000" }, "text": "55.53", "xref": "x", "yref": "y", "showarrow": false }, { "x": 1, "y": 11, "font": { "color": "#000000" }, "text": "55.37", "xref": "x", "yref": "y", "showarrow": false }, { "x": 2, "y": 11, "font": { "color": "#000000" }, "text": "55.0", "xref": "x", "yref": "y", "showarrow": false }, { "x": 3, "y": 11, "font": { "color": "#000000" }, "text": "54.55", "xref": "x", "yref": "y", "showarrow": false }, { "x": 4, "y": 11, "font": { "color": "#000000" }, "text": "54.35", "xref": "x", "yref": "y", "showarrow": false }, { "x": 5, "y": 11, "font": { "color": "#000000" }, "text": "53.42", "xref": "x", "yref": "y", "showarrow": false }, { "x": 6, "y": 11, "font": { "color": "#000000" }, "text": "51.67", "xref": "x", "yref": "y", "showarrow": false }, { "x": 7, "y": 11, "font": { "color": "#000000" }, "text": "50.1", "xref": "x", "yref": "y", "showarrow": false }, { "x": 8, "y": 11, "font": { "color": "#000000" }, "text": "49.07", "xref": "x", "yref": "y", "showarrow": false }, { "x": 9, "y": 11, "font": { "color": "#000000" }, "text": "48.76", "xref": "x", "yref": "y", "showarrow": false }, { "x": 10, "y": 11, "font": { "color": "#000000" }, "text": "48.85", "xref": "x", "yref": "y", "showarrow": false }, { "x": 11, "y": 11, "font": { "color": "#FFFFFF" }, "text": "45.1", "xref": "x", "yref": "y", "showarrow": false }, { "x": 0, "y": 12, "font": { "color": "#000000" }, "text": "49.06", "xref": "x", "yref": "y", "showarrow": false }, { "x": 1, "y": 12, "font": { "color": "#000000" }, "text": "49.35", "xref": "x", "yref": "y", "showarrow": false }, { "x": 2, "y": 12, "font": { "color": "#000000" }, "text": "49.24", "xref": "x", "yref": "y", "showarrow": false }, { "x": 3, "y": 12, "font": { "color": "#000000" }, "text": "48.78", "xref": "x", "yref": "y", "showarrow": false }, { "x": 4, "y": 12, "font": { "color": "#000000" }, "text": "48.57", "xref": "x", "yref": "y", "showarrow": false }, { "x": 5, "y": 12, "font": { "color": "#000000" }, "text": "48.18", "xref": "x", "yref": "y", "showarrow": false }, { "x": 6, "y": 12, "font": { "color": "#000000" }, "text": "47.42", "xref": "x", "yref": "y", "showarrow": false }, { "x": 7, "y": 12, "font": { "color": "#000000" }, "text": "47.1", "xref": "x", "yref": "y", "showarrow": false }, { "x": 8, "y": 12, "font": { "color": "#000000" }, "text": "46.73", "xref": "x", "yref": "y", "showarrow": false }, { "x": 9, "y": 12, "font": { "color": "#000000" }, "text": "46.76", "xref": "x", "yref": "y", "showarrow": false }, { "x": 10, "y": 12, "font": { "color": "#000000" }, "text": "46.88", "xref": "x", "yref": "y", "showarrow": false }, { "x": 11, "y": 12, "font": { "color": "#FFFFFF" }, "text": "44.44", "xref": "x", "yref": "y", "showarrow": false } ] } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~43715291", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/67.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-14.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-03-19 18:20:50", "mapbox_access_tokens": null, "has_password": null, "username": "43715291", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T22:41:46.199428Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~henryqpeng/40.embed", "fid": "henryqpeng:40", "filename": "Plotly Playground 2019-03-20 15:41:45", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/henryqpeng:40/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/henryqpeng:40/image?image_name=default", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/henryqpeng/40/8_K4OB6E6DP76Q84ROZ30K7WEQPMMYBV.png", "list-thumb": "https://api.plotly.com/v2/files/henryqpeng:40/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/henryqpeng:40", "plots": "https://api.plotly.com/v2/plots/henryqpeng:40", "parent": "https://api.plotly.com/v2/folders/home?user=henryqpeng" }, "owner": "henryqpeng", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "{'font': {'color': '#4D5663'}}", "views": 0, "web_url": "https://chart-studio.plotly.com/~henryqpeng/40/font-color-4d5663/", "world_readable": true, "date_modified": "2019-03-20T22:41:46.685Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~henryqpeng/40/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "db2f8db0-f36c-4c1e-b31e-4c4d817c8491", "line": { "dash": "solid", "color": "rgba(255, 153, 51, 1.0)", "shape": "linear", "width": 1.3 }, "mode": "lines", "name": "ds", "text": "", "type": "scatter", "xsrc": "henryqpeng:41:7a3957", "ysrc": "henryqpeng:41:f0b651" }, { "uid": "cb87ff0b-f244-4d49-8aa3-985b85eecd54", "line": { "dash": "solid", "color": "rgba(55, 128, 191, 1.0)", "shape": "linear", "width": 1.3 }, "mode": "lines", "name": "y", "text": "", "type": "scatter", "xsrc": "henryqpeng:41:7a3957", "ysrc": "henryqpeng:41:02cb94" } ], "layout": { "title": { "font": { "color": "#4D5663" } }, "xaxis": { "title": { "font": { "color": "#4D5663" }, "text": "" }, "showgrid": true, "tickfont": { "color": "#4D5663" }, "gridcolor": "#E1E5ED", "zerolinecolor": "#E1E5ED" }, "yaxis": { "title": { "font": { "color": "#4D5663" }, "text": "" }, "showgrid": true, "tickfont": { "color": "#4D5663" }, "gridcolor": "#E1E5ED", "zerolinecolor": "#E1E5ED" }, "legend": { "font": { "color": "#4D5663" }, "bgcolor": "#F5F6F9" }, "plot_bgcolor": "#F5F6F9", "paper_bgcolor": "#F5F6F9" } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~henryqpeng", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/1.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-10.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-03-14 00:01:41", "mapbox_access_tokens": null, "has_password": null, "username": "henryqpeng", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T22:41:00.213210Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~smileandsaydl/353.embed", "fid": "smileandsaydl:353", "filename": "plot from API (17)", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/smileandsaydl:353/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/smileandsaydl:353/image?image_name=default", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/smileandsaydl/353/8_32A7C8Y2TOQOS54MWGDBSIBWX71EFE.png", "list-thumb": "https://api.plotly.com/v2/files/smileandsaydl:353/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/smileandsaydl:353", "plots": "https://api.plotly.com/v2/plots/smileandsaydl:353", "parent": "https://api.plotly.com/v2/folders/home?user=smileandsaydl" }, "owner": "smileandsaydl", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "Log-marginal-likelihood", "views": 0, "web_url": "https://chart-studio.plotly.com/~smileandsaydl/353/log-marginal-likelihood/", "world_readable": true, "date_modified": "2019-03-20T22:41:00.705Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~smileandsaydl/353/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "300dbb62-4b61-11e9-b728-408d5c757ebb", "type": "contour", "xsrc": "smileandsaydl:354:a63151", "ysrc": "smileandsaydl:354:d2cf16", "zsrc": "smileandsaydl:354:-a63151,d2cf16", "contours": { "coloring": "lines" }, "ncontours": 50 } ], "layout": { "title": "Log-marginal-likelihood", "xaxis": { "type": "log", "title": "Length-scale", "showgrid": false }, "yaxis": { "type": "log", "title": "Noise-level", "showgrid": false } } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~smileandsaydl", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/55.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-12.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-02-24 14:45:44", "mapbox_access_tokens": null, "has_password": null, "username": "smileandsaydl", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T22:40:43.333706Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~amper/61559.embed", "fid": "amper:61559", "filename": "03-19-19_ds-1625_alg-5421_param-1205_showamps-True-state_res-SEC", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/amper:61559/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/amper:61559/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/amper:61559/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/amper:61559/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/amper:61559", "plots": "https://api.plotly.com/v2/plots/amper:61559", "parent": "https://api.plotly.com/v2/folders/home?user=amper" }, "owner": "amper", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "03-19-19_ds-1625_alg-5421_param-1205_showamps-True-state_res-SEC", "views": 0, "web_url": "https://chart-studio.plotly.com/~amper/61559/_03-19-19-ds-1625-alg-5421-param-1205-showamps-true-state-res-sec/", "world_readable": true, "date_modified": "2019-03-20T22:40:45.066Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~amper/61559/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "d5bba979-6f41-4751-bd29-67787cfe8b40", "mode": "lines", "name": "Off", "type": "scattergl", "xsrc": "amper:61560:d47492", "ysrc": "amper:61560:51f823", "marker": { "line": { "color": "rgb(248, 19, 0)", "width": 1 }, "size": 1, "color": "rgb(248, 19, 0)" } }, { "uid": "5059b8c7-04a3-40ae-aa34-e386bbe0a505", "mode": "lines", "name": "Idle", "type": "scattergl", "xsrc": "amper:61560:d47492", "ysrc": "amper:61560:3ae1f7", "marker": { "line": { "color": "rgb(255, 205, 0)", "width": 1 }, "size": 1, "color": "rgb(255, 205, 0)" }, "connectgaps": false }, { "uid": "6bff303a-806e-4632-8fa9-b2037a871e4e", "mode": "lines", "name": "Production", "type": "scattergl", "xsrc": "amper:61560:d47492", "ysrc": "amper:61560:b8d14f", "marker": { "line": { "color": "rgb(0, 166, 73)", "width": 1 }, "size": 1, "color": "rgb(0, 166, 73)" }, "connectgaps": false }, { "uid": "20f93276-dee5-4c7b-9b0a-aea50a5e1471", "mode": "lines", "name": "Other", "type": "scattergl", "xsrc": "amper:61560:d47492", "ysrc": "amper:61560:71ef9e", "marker": { "line": { "color": "rgb(169,169,169)", "width": 1 }, "size": 1, "color": "rgb(169,169,169)" } } ], "layout": { "title": "03-19-19_ds-1625_alg-5421_param-1205_showamps-True-state_res-SEC" } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~amper", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/99.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-1.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2017-03-17 16:47:16", "mapbox_access_tokens": null, "has_password": null, "username": "amper", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T22:40:24.471982Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~ZXJTABNU/213.embed", "fid": "ZXJTABNU:213", "filename": "spider_all", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/ZXJTABNU:213/image?image_name=list-thumb", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/ZXJTABNU/213/2_3YOJTDDLMHO72GV7K64DU1H5TVAKWO.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/ZXJTABNU/213/8_PHRPV7JZJOCH6NSWBT903QCO5L93HA.png", "list-thumb": "https://api.plotly.com/v2/files/ZXJTABNU:213/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/ZXJTABNU:213", "plots": "https://api.plotly.com/v2/plots/ZXJTABNU:213", "parent": "https://api.plotly.com/v2/folders/home?user=ZXJTABNU" }, "owner": "ZXJTABNU", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "Radar Chart Clusters - Minoristas ", "views": 0, "web_url": "https://chart-studio.plotly.com/~ZXJTABNU/213/radar-chart-clusters-minoristas/", "world_readable": true, "date_modified": "2019-04-27T16:43:15.466Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~ZXJTABNU/213/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "7f26fa48-d774-4c36-b1e4-3dfd9681c90d", "fill": "none", "line": { "color": "red" }, "name": "cluster 0", "rsrc": "ZXJTABNU:214:05e0cc", "type": "scatterpolar", "thetasrc": "ZXJTABNU:214:53abb8" }, { "uid": "3d13307d-522d-4065-ab40-89df065bc81b", "fill": "none", "line": { "color": "yellow" }, "name": "cluster 1", "rsrc": "ZXJTABNU:214:605a46", "type": "scatterpolar", "thetasrc": "ZXJTABNU:214:53abb8" }, { "uid": "95a17623-b13e-460b-bd44-174c916344b3", "fill": "none", "line": { "color": "lime" }, "name": "cluster 2", "rsrc": "ZXJTABNU:214:de60e4", "type": "scatterpolar", "thetasrc": "ZXJTABNU:214:53abb8" }, { "uid": "c1edca64-2830-4bcf-9475-00ffb55d9dc1", "fill": "none", "line": { "color": "cyan" }, "name": "cluster 3", "rsrc": "ZXJTABNU:214:00dfa5", "type": "scatterpolar", "thetasrc": "ZXJTABNU:214:53abb8" }, { "uid": "7d3da337-3d52-420d-bcb7-2efc4e4a9d5f", "fill": "none", "line": { "color": "darkblue" }, "name": "cluster 4", "rsrc": "ZXJTABNU:214:5e3a1e", "type": "scatterpolar", "thetasrc": "ZXJTABNU:214:53abb8" }, { "uid": "b7f52e65-b9a6-4e75-bb20-672cb2413a1d", "fill": "none", "line": { "color": "magenta" }, "name": "cluster 5", "rsrc": "ZXJTABNU:214:1f1357", "type": "scatterpolar", "thetasrc": "ZXJTABNU:214:53abb8" } ], "layout": { "polar": { "radialaxis": { "range": [ 0, 1 ], "visible": true } }, "title": { "text": "Radar Chart Clusters - Minoristas " }, "showlegend": true } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~ZXJTABNU", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/67.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-6.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2018-03-07 19:40:34", "mapbox_access_tokens": null, "has_password": null, "username": "ZXJTABNU", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T22:39:50.462861Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~amper/61557.embed", "fid": "amper:61557", "filename": "03-20-19_ds-1635_alg-5421_param-1206_showamps-True-state_res-SEC", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/amper:61557/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/amper:61557/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/amper:61557/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/amper:61557/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/amper:61557", "plots": "https://api.plotly.com/v2/plots/amper:61557", "parent": "https://api.plotly.com/v2/folders/home?user=amper" }, "owner": "amper", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "03-20-19_ds-1635_alg-5421_param-1206_showamps-True-state_res-SEC", "views": 0, "web_url": "https://chart-studio.plotly.com/~amper/61557/_03-20-19-ds-1635-alg-5421-param-1206-showamps-true-state-res-sec/", "world_readable": true, "date_modified": "2019-03-20T22:39:51.604Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~amper/61557/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "9f2978a8-06c1-4503-9895-80ba9f99195a", "mode": "lines", "name": "Off", "type": "scattergl", "xsrc": "amper:61558:9e0c23", "ysrc": "amper:61558:e35621", "marker": { "line": { "color": "rgb(248, 19, 0)", "width": 1 }, "size": 1, "color": "rgb(248, 19, 0)" } }, { "uid": "af2a8b18-6547-43e8-b991-566ce0a14e84", "mode": "lines", "name": "Idle", "type": "scattergl", "xsrc": "amper:61558:9e0c23", "ysrc": "amper:61558:70d115", "marker": { "line": { "color": "rgb(255, 205, 0)", "width": 1 }, "size": 1, "color": "rgb(255, 205, 0)" }, "connectgaps": false }, { "uid": "48038bf8-dcfb-4219-8fe0-1f97ddf848f8", "mode": "lines", "name": "Production", "type": "scattergl", "xsrc": "amper:61558:9e0c23", "ysrc": "amper:61558:2a8285", "marker": { "line": { "color": "rgb(0, 166, 73)", "width": 1 }, "size": 1, "color": "rgb(0, 166, 73)" }, "connectgaps": false }, { "uid": "e398d0e5-3a4c-447d-a9c4-f9b55e49b61f", "mode": "lines", "name": "Other", "type": "scattergl", "xsrc": "amper:61558:9e0c23", "ysrc": "amper:61558:dc2730", "marker": { "line": { "color": "rgb(169,169,169)", "width": 1 }, "size": 1, "color": "rgb(169,169,169)" } } ], "layout": { "title": "03-20-19_ds-1635_alg-5421_param-1206_showamps-True-state_res-SEC" } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~amper", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/99.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-1.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2017-03-17 16:47:16", "mapbox_access_tokens": null, "has_password": null, "username": "amper", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T22:39:16.868112Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~mchenbombora/1847.embed", "fid": "mchenbombora:1847", "filename": "Distribution: ti_surge_state__count", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/mchenbombora:1847/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/mchenbombora:1847/image?image_name=default", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/mchenbombora/1847/8_FAY4JNBQM6NXLXFWJVSPIJM6YTD33E.png", "list-thumb": "https://api.plotly.com/v2/files/mchenbombora:1847/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/mchenbombora:1847", "plots": "https://api.plotly.com/v2/plots/mchenbombora:1847", "parent": "https://api.plotly.com/v2/folders/home?user=mchenbombora" }, "owner": "mchenbombora", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "Distribution: ti_surge_state__count", "views": 0, "web_url": "https://chart-studio.plotly.com/~mchenbombora/1847/distribution-ti-surge-state-count/", "world_readable": true, "date_modified": "2019-03-20T22:39:17.331Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~mchenbombora/1847/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "fde2e58c-4b60-11e9-9abe-8a0060b14201", "line": { "width": 1.3 }, "name": "Control", "type": "box", "ysrc": "mchenbombora:1848:dcf898", "marker": { "color": "rgba(255, 153, 51, 1.0)" }, "boxpoints": false, "orientation": "v" }, { "uid": "fde2e6f6-4b60-11e9-8092-8a0060b14201", "line": { "width": 1.3 }, "name": "Target", "type": "box", "ysrc": "mchenbombora:1848:1bef1b", "marker": { "color": "rgba(55, 128, 191, 1.0)" }, "boxpoints": false, "orientation": "v" } ], "layout": { "title": "Distribution: ti_surge_state__count", "xaxis": { "title": "domain state", "showgrid": true, "tickfont": { "color": "#4D5663" }, "gridcolor": "#E1E5ED", "titlefont": { "color": "#4D5663" }, "zerolinecolor": "#E1E5ED" }, "yaxis": { "title": "", "showgrid": true, "tickfont": { "color": "#4D5663" }, "gridcolor": "#E1E5ED", "titlefont": { "color": "#4D5663" }, "zerolinecolor": "#E1E5ED" }, "legend": { "font": { "color": "#4D5663" }, "bgcolor": "#F5F6F9" }, "titlefont": { "color": "#4D5663" }, "showlegend": false, "plot_bgcolor": "#F5F6F9", "paper_bgcolor": "#F5F6F9" } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~mchenbombora", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/5.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-12.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2017-10-13 19:54:18", "mapbox_access_tokens": null, "has_password": null, "username": "mchenbombora", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T22:39:15.348519Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~mchenbombora/1845.embed", "fid": "mchenbombora:1845", "filename": "Distribution: ti_state_ratio", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/mchenbombora:1845/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/mchenbombora:1845/image?image_name=default", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/mchenbombora/1845/8_RYJ1YRIGXCKU7L4GDQZJ8FVVMGALI2.png", "list-thumb": "https://api.plotly.com/v2/files/mchenbombora:1845/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/mchenbombora:1845", "plots": "https://api.plotly.com/v2/plots/mchenbombora:1845", "parent": "https://api.plotly.com/v2/folders/home?user=mchenbombora" }, "owner": "mchenbombora", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "Distribution: ti_state_ratio", "views": 0, "web_url": "https://chart-studio.plotly.com/~mchenbombora/1845/distribution-ti-state-ratio/", "world_readable": true, "date_modified": "2019-03-20T22:39:15.810Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~mchenbombora/1845/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "fcf4960c-4b60-11e9-98d0-8a0060b14201", "line": { "width": 1.3 }, "name": "Control", "type": "box", "ysrc": "mchenbombora:1846:d1d9c5", "marker": { "color": "rgba(255, 153, 51, 1.0)" }, "boxpoints": false, "orientation": "v" }, { "uid": "fcf4976c-4b60-11e9-80d9-8a0060b14201", "line": { "width": 1.3 }, "name": "Target", "type": "box", "ysrc": "mchenbombora:1846:b988e4", "marker": { "color": "rgba(55, 128, 191, 1.0)" }, "boxpoints": false, "orientation": "v" } ], "layout": { "title": "Distribution: ti_state_ratio", "xaxis": { "title": "domain state", "showgrid": true, "tickfont": { "color": "#4D5663" }, "gridcolor": "#E1E5ED", "titlefont": { "color": "#4D5663" }, "zerolinecolor": "#E1E5ED" }, "yaxis": { "title": "", "showgrid": true, "tickfont": { "color": "#4D5663" }, "gridcolor": "#E1E5ED", "titlefont": { "color": "#4D5663" }, "zerolinecolor": "#E1E5ED" }, "legend": { "font": { "color": "#4D5663" }, "bgcolor": "#F5F6F9" }, "titlefont": { "color": "#4D5663" }, "showlegend": false, "plot_bgcolor": "#F5F6F9", "paper_bgcolor": "#F5F6F9" } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~mchenbombora", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/5.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-12.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2017-10-13 19:54:18", "mapbox_access_tokens": null, "has_password": null, "username": "mchenbombora", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } } ] }
