Plots List
Plots
This endpoint handles manipulation of Plotly plot files.
Reference
Authorization
Any user with or without a Plotly account may view public plots. For private plots, see authentication.
Actions
list
Listing all public plots can be done via a GET request to this endpoint.
By default, plots will be listed in order of date created. The order_by
query parameter is accepted at this endpoint. Currently, only ordering by
views is supported. It is possible to filter the plots by quality
with min_quality or max_quality as query parameter.
Example:
// GET https://api.plotly.com/v2/plots/ ---> 200
// GET https://api.plotly.com/v2/plots/?order_by=-views ---> 200
// GET https://api.plotly.com/v2/plots/?min_quality=5 ---> 200
// GET https://api.plotly.com/v2/plots/?max_quality=5 ---> 200
feed
Listing all handpicked feed plots can be done via a GET request to this endpoint. By default, plots will be listed in a random order.
Example:
// GET https://api.plotly.com/v2/plots/feed ---> 200
create
You can create new plot resources here. The only required field is 'figure'. Currently, the figure is restricted to only contain references to grid data. That is, this will fail if raw data arrays are passed in. To create and manipulate underlying grids for plots, see the grids endpoint.
Example:
// This fails because a figure field is required.
// POST https://api.plotly.com/v2/plots ---> 400 Bad Request
{}
// This fails because the figure has raw data
//POST https://api.plotly.com/v2/plots ---> 400 Bad Request
{
"figure": {"data": [{"y": ['this', 'is', 'raw', 'data']}]}
}
// This succeeds because the figure has src keys, not raw data.
//POST https://api.plotly.com/v2/plots ---> 200 OK
{
"figure": {"data": [{"ysrc": "sven:88:u8nd62"}]}
}
When creating a grid, you can optionally specify a source_fid to specify where a plot has come from:
- source_fid: the fid of a plot that was copied (and presumably edited) to produce this one
detail
There is a lot of meta information stored about plot files including filename, title, share_url, and content_url to name a few.
This information can only be reached with a GET to this endpoint.
Example:
// GET https://api.plotly.com/v2/plots/iheartgraphs:90
content
The contents of a plot can be downloaded via the content resource. The plot
content contains referenced grid/column data by default. If you wish to
return the raw grid/column data, the inline_data=true query must be included
in the request url. The Content-Type header will be appropriately set for the
response body.
Alternatively, you can set ?map_data=unreadable to append a mapping of
sources to data that belongs to grids which are unreadable for the
requestor. This is useful when you have read access to another users plot,
but that plot contains grid references which you don't have access to.
Examples:
// Returns referenced grid/column data
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content ---> 200 OK
// Returns full grid/column data
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content?inline_data=true ---> 200 OK
// Returns full grid/column data when requestor doesn't have permission
// to read the referenced grid.
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content?map_data=unreadable ---> 200 OK
GET /v2/plots?cursor=cD0yMDE5LTAzLTIwKzIyJTNBMzklM0ExNS4zNDg1MTklMkIwMCUzQTAw&format=api

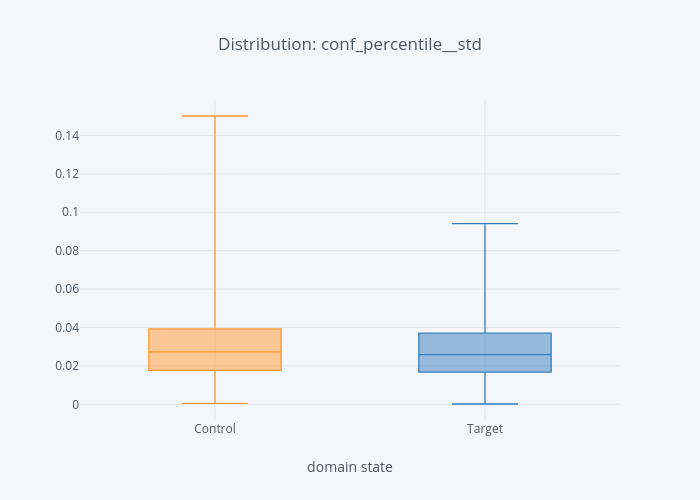

{ "next": "https://api.plot.ly/v2/plots?cursor=cD0yMDE5LTAzLTIwKzIyJTNBMzQlM0ExMi4xNzE1MzElMkIwMCUzQTAw&format=api", "previous": "https://api.plot.ly/v2/plots?cursor=cj0xJnA9MjAxOS0wMy0yMCsyMiUzQTM5JTNBMTMuODAzODE1JTJCMDAlM0EwMA%3D%3D&format=api", "results": [ { "creation_time": "2019-03-20T22:39:13.803815Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~mchenbombora/1843.embed", "fid": "mchenbombora:1843", "filename": "Distribution: conf_percentile__std", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/mchenbombora:1843/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/mchenbombora:1843/image?image_name=default", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/mchenbombora/1843/8_D8PVLKG1ZDGSQ1I4HCLK0Y3B1F6Q5O.png", "list-thumb": "https://api.plotly.com/v2/files/mchenbombora:1843/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/mchenbombora:1843", "plots": "https://api.plotly.com/v2/plots/mchenbombora:1843", "parent": "https://api.plotly.com/v2/folders/home?user=mchenbombora" }, "owner": "mchenbombora", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "Distribution: conf_percentile__std", "views": 0, "web_url": "https://chart-studio.plotly.com/~mchenbombora/1843/distribution-conf-percentile-std/", "world_readable": true, "date_modified": "2019-03-20T22:39:14.266Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~mchenbombora/1843/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "fc083e94-4b60-11e9-8d95-8a0060b14201", "line": { "width": 1.3 }, "name": "Control", "type": "box", "ysrc": "mchenbombora:1844:573154", "marker": { "color": "rgba(255, 153, 51, 1.0)" }, "boxpoints": false, "orientation": "v" }, { "uid": "fc083fe8-4b60-11e9-b61b-8a0060b14201", "line": { "width": 1.3 }, "name": "Target", "type": "box", "ysrc": "mchenbombora:1844:ffa4a4", "marker": { "color": "rgba(55, 128, 191, 1.0)" }, "boxpoints": false, "orientation": "v" } ], "layout": { "title": "Distribution: conf_percentile__std", "xaxis": { "title": "domain state", "showgrid": true, "tickfont": { "color": "#4D5663" }, "gridcolor": "#E1E5ED", "titlefont": { "color": "#4D5663" }, "zerolinecolor": "#E1E5ED" }, "yaxis": { "title": "", "showgrid": true, "tickfont": { "color": "#4D5663" }, "gridcolor": "#E1E5ED", "titlefont": { "color": "#4D5663" }, "zerolinecolor": "#E1E5ED" }, "legend": { "font": { "color": "#4D5663" }, "bgcolor": "#F5F6F9" }, "titlefont": { "color": "#4D5663" }, "showlegend": false, "plot_bgcolor": "#F5F6F9", "paper_bgcolor": "#F5F6F9" } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~mchenbombora", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/5.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-12.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2017-10-13 19:54:18", "mapbox_access_tokens": null, "has_password": null, "username": "mchenbombora", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T22:39:12.164706Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~mchenbombora/1841.embed", "fid": "mchenbombora:1841", "filename": "Distribution: conf_percentile__mean", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/mchenbombora:1841/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/mchenbombora:1841/image?image_name=default", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/mchenbombora/1841/8_EQAP65I6LG1I75QQ6OF341OHDZAKGM.png", "list-thumb": "https://api.plotly.com/v2/files/mchenbombora:1841/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/mchenbombora:1841", "plots": "https://api.plotly.com/v2/plots/mchenbombora:1841", "parent": "https://api.plotly.com/v2/folders/home?user=mchenbombora" }, "owner": "mchenbombora", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "Distribution: conf_percentile__mean", "views": 0, "web_url": "https://chart-studio.plotly.com/~mchenbombora/1841/distribution-conf-percentile-mean/", "world_readable": true, "date_modified": "2019-03-20T22:39:12.693Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~mchenbombora/1841/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "fb0bd230-4b60-11e9-b787-8a0060b14201", "line": { "width": 1.3 }, "name": "Control", "type": "box", "ysrc": "mchenbombora:1842:68698a", "marker": { "color": "rgba(255, 153, 51, 1.0)" }, "boxpoints": false, "orientation": "v" }, { "uid": "fb0bd3a2-4b60-11e9-975c-8a0060b14201", "line": { "width": 1.3 }, "name": "Target", "type": "box", "ysrc": "mchenbombora:1842:456796", "marker": { "color": "rgba(55, 128, 191, 1.0)" }, "boxpoints": false, "orientation": "v" } ], "layout": { "title": "Distribution: conf_percentile__mean", "xaxis": { "title": "domain state", "showgrid": true, "tickfont": { "color": "#4D5663" }, "gridcolor": "#E1E5ED", "titlefont": { "color": "#4D5663" }, "zerolinecolor": "#E1E5ED" }, "yaxis": { "title": "", "showgrid": true, "tickfont": { "color": "#4D5663" }, "gridcolor": "#E1E5ED", "titlefont": { "color": "#4D5663" }, "zerolinecolor": "#E1E5ED" }, "legend": { "font": { "color": "#4D5663" }, "bgcolor": "#F5F6F9" }, "titlefont": { "color": "#4D5663" }, "showlegend": false, "plot_bgcolor": "#F5F6F9", "paper_bgcolor": "#F5F6F9" } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~mchenbombora", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/5.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-12.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2017-10-13 19:54:18", "mapbox_access_tokens": null, "has_password": null, "username": "mchenbombora", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T22:39:10.583087Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~mchenbombora/1839.embed", "fid": "mchenbombora:1839", "filename": "Distribution: ti_score__std", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/mchenbombora:1839/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/mchenbombora:1839/image?image_name=default", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/mchenbombora/1839/8_LYIZUQNFLIVNB4II23F4D4M2UOND4W.png", "list-thumb": "https://api.plotly.com/v2/files/mchenbombora:1839/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/mchenbombora:1839", "plots": "https://api.plotly.com/v2/plots/mchenbombora:1839", "parent": "https://api.plotly.com/v2/folders/home?user=mchenbombora" }, "owner": "mchenbombora", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "Distribution: ti_score__std", "views": 0, "web_url": "https://chart-studio.plotly.com/~mchenbombora/1839/distribution-ti-score-std/", "world_readable": true, "date_modified": "2019-03-20T22:39:11.079Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~mchenbombora/1839/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "fa1aa414-4b60-11e9-9a89-8a0060b14201", "line": { "width": 1.3 }, "name": "Control", "type": "box", "ysrc": "mchenbombora:1840:11299e", "marker": { "color": "rgba(255, 153, 51, 1.0)" }, "boxpoints": false, "orientation": "v" }, { "uid": "fa1aa574-4b60-11e9-9757-8a0060b14201", "line": { "width": 1.3 }, "name": "Target", "type": "box", "ysrc": "mchenbombora:1840:3a06fa", "marker": { "color": "rgba(55, 128, 191, 1.0)" }, "boxpoints": false, "orientation": "v" } ], "layout": { "title": "Distribution: ti_score__std", "xaxis": { "title": "domain state", "showgrid": true, "tickfont": { "color": "#4D5663" }, "gridcolor": "#E1E5ED", "titlefont": { "color": "#4D5663" }, "zerolinecolor": "#E1E5ED" }, "yaxis": { "title": "", "showgrid": true, "tickfont": { "color": "#4D5663" }, "gridcolor": "#E1E5ED", "titlefont": { "color": "#4D5663" }, "zerolinecolor": "#E1E5ED" }, "legend": { "font": { "color": "#4D5663" }, "bgcolor": "#F5F6F9" }, "titlefont": { "color": "#4D5663" }, "showlegend": false, "plot_bgcolor": "#F5F6F9", "paper_bgcolor": "#F5F6F9" } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~mchenbombora", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/5.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-12.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2017-10-13 19:54:18", "mapbox_access_tokens": null, "has_password": null, "username": "mchenbombora", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T22:39:08.977649Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~mchenbombora/1837.embed", "fid": "mchenbombora:1837", "filename": "Distribution: ti_score__mean", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/mchenbombora:1837/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/mchenbombora:1837/image?image_name=default", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/mchenbombora/1837/8_SLCG0NJF9X3IUEZD19QCE572AB65QB.png", "list-thumb": "https://api.plotly.com/v2/files/mchenbombora:1837/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/mchenbombora:1837", "plots": "https://api.plotly.com/v2/plots/mchenbombora:1837", "parent": "https://api.plotly.com/v2/folders/home?user=mchenbombora" }, "owner": "mchenbombora", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "Distribution: ti_score__mean", "views": 0, "web_url": "https://chart-studio.plotly.com/~mchenbombora/1837/distribution-ti-score-mean/", "world_readable": true, "date_modified": "2019-03-20T22:39:09.436Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~mchenbombora/1837/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "f91b5b62-4b60-11e9-938a-8a0060b14201", "line": { "width": 1.3 }, "name": "Control", "type": "box", "ysrc": "mchenbombora:1838:cf1966", "marker": { "color": "rgba(255, 153, 51, 1.0)" }, "boxpoints": false, "orientation": "v" }, { "uid": "f91b5cca-4b60-11e9-bea5-8a0060b14201", "line": { "width": 1.3 }, "name": "Target", "type": "box", "ysrc": "mchenbombora:1838:1db6de", "marker": { "color": "rgba(55, 128, 191, 1.0)" }, "boxpoints": false, "orientation": "v" } ], "layout": { "title": "Distribution: ti_score__mean", "xaxis": { "title": "domain state", "showgrid": true, "tickfont": { "color": "#4D5663" }, "gridcolor": "#E1E5ED", "titlefont": { "color": "#4D5663" }, "zerolinecolor": "#E1E5ED" }, "yaxis": { "title": "", "showgrid": true, "tickfont": { "color": "#4D5663" }, "gridcolor": "#E1E5ED", "titlefont": { "color": "#4D5663" }, "zerolinecolor": "#E1E5ED" }, "legend": { "font": { "color": "#4D5663" }, "bgcolor": "#F5F6F9" }, "titlefont": { "color": "#4D5663" }, "showlegend": false, "plot_bgcolor": "#F5F6F9", "paper_bgcolor": "#F5F6F9" } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~mchenbombora", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/5.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-12.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2017-10-13 19:54:18", "mapbox_access_tokens": null, "has_password": null, "username": "mchenbombora", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T22:38:58.947276Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~amper/61555.embed", "fid": "amper:61555", "filename": "03-20-19_ds-1625_alg-5421_param-1205_showamps-True-state_res-SEC", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/amper:61555/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/amper:61555/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/amper:61555/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/amper:61555/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/amper:61555", "plots": "https://api.plotly.com/v2/plots/amper:61555", "parent": "https://api.plotly.com/v2/folders/home?user=amper" }, "owner": "amper", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "03-20-19_ds-1625_alg-5421_param-1205_showamps-True-state_res-SEC", "views": 0, "web_url": "https://chart-studio.plotly.com/~amper/61555/_03-20-19-ds-1625-alg-5421-param-1205-showamps-true-state-res-sec/", "world_readable": true, "date_modified": "2019-03-20T22:39:00.577Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~amper/61555/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "d2719ae5-d43e-40a6-869e-83bf05537394", "mode": "lines", "name": "Off", "type": "scattergl", "xsrc": "amper:61556:f4279e", "ysrc": "amper:61556:f5181d", "marker": { "line": { "color": "rgb(248, 19, 0)", "width": 1 }, "size": 1, "color": "rgb(248, 19, 0)" } }, { "uid": "b2d4715f-e24a-40ae-87c1-edcb50d36e50", "mode": "lines", "name": "Idle", "type": "scattergl", "xsrc": "amper:61556:f4279e", "ysrc": "amper:61556:c32515", "marker": { "line": { "color": "rgb(255, 205, 0)", "width": 1 }, "size": 1, "color": "rgb(255, 205, 0)" }, "connectgaps": false }, { "uid": "2e3eef4e-d2ed-41b8-aaf8-8be00fc29385", "mode": "lines", "name": "Production", "type": "scattergl", "xsrc": "amper:61556:f4279e", "ysrc": "amper:61556:f68fcd", "marker": { "line": { "color": "rgb(0, 166, 73)", "width": 1 }, "size": 1, "color": "rgb(0, 166, 73)" }, "connectgaps": false }, { "uid": "e36877ac-279e-4590-ba90-df8e3ec7942d", "mode": "lines", "name": "Other", "type": "scattergl", "xsrc": "amper:61556:f4279e", "ysrc": "amper:61556:b4cdc9", "marker": { "line": { "color": "rgb(169,169,169)", "width": 1 }, "size": 1, "color": "rgb(169,169,169)" } } ], "layout": { "title": "03-20-19_ds-1625_alg-5421_param-1205_showamps-True-state_res-SEC" } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~amper", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/99.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-1.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2017-03-17 16:47:16", "mapbox_access_tokens": null, "has_password": null, "username": "amper", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T22:38:09.324540Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~amper/61553.embed", "fid": "amper:61553", "filename": "03-20-19_ds-1620_alg-5421_param-1203_showamps-True-state_res-SEC", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/amper:61553/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/amper:61553/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/amper:61553/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/amper:61553/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/amper:61553", "plots": "https://api.plotly.com/v2/plots/amper:61553", "parent": "https://api.plotly.com/v2/folders/home?user=amper" }, "owner": "amper", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "03-20-19_ds-1620_alg-5421_param-1203_showamps-True-state_res-SEC", "views": 0, "web_url": "https://chart-studio.plotly.com/~amper/61553/_03-20-19-ds-1620-alg-5421-param-1203-showamps-true-state-res-sec/", "world_readable": true, "date_modified": "2019-03-20T22:38:10.429Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~amper/61553/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "37be1ff6-e3dc-4de8-8a68-01f8e1a6fd46", "mode": "lines", "name": "Off", "type": "scattergl", "xsrc": "amper:61554:09614c", "ysrc": "amper:61554:afed30", "marker": { "line": { "color": "rgb(248, 19, 0)", "width": 1 }, "size": 1, "color": "rgb(248, 19, 0)" } }, { "uid": "3d3b5bb9-2c9b-40a5-87a4-450e386000fc", "mode": "lines", "name": "Idle", "type": "scattergl", "xsrc": "amper:61554:09614c", "ysrc": "amper:61554:e4a05d", "marker": { "line": { "color": "rgb(255, 205, 0)", "width": 1 }, "size": 1, "color": "rgb(255, 205, 0)" }, "connectgaps": false }, { "uid": "41d19336-db6b-48d4-9851-a4588fe4763c", "mode": "lines", "name": "Production", "type": "scattergl", "xsrc": "amper:61554:09614c", "ysrc": "amper:61554:1eea9d", "marker": { "line": { "color": "rgb(0, 166, 73)", "width": 1 }, "size": 1, "color": "rgb(0, 166, 73)" }, "connectgaps": false } ], "layout": { "title": "03-20-19_ds-1620_alg-5421_param-1203_showamps-True-state_res-SEC" } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~amper", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/99.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-1.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2017-03-17 16:47:16", "mapbox_access_tokens": null, "has_password": null, "username": "amper", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T22:37:49.752769Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~smileandsaydl/351.embed", "fid": "smileandsaydl:351", "filename": "plot from API (16)", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/smileandsaydl:351/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/smileandsaydl:351/image?image_name=default", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/smileandsaydl/351/8_084ZCWC9BK9LUDZ36X3THL0U097JW1.png", "list-thumb": "https://api.plotly.com/v2/files/smileandsaydl:351/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/smileandsaydl:351", "plots": "https://api.plotly.com/v2/plots/smileandsaydl:351", "parent": "https://api.plotly.com/v2/folders/home?user=smileandsaydl" }, "owner": "smileandsaydl", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "Log-marginal-likelihood", "views": 0, "web_url": "https://chart-studio.plotly.com/~smileandsaydl/351/log-marginal-likelihood/", "world_readable": true, "date_modified": "2019-03-20T22:37:50.267Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~smileandsaydl/351/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "bdc34f1e-4b60-11e9-a3ef-408d5c757ebb", "type": "contour", "xsrc": "smileandsaydl:352:7d6091", "ysrc": "smileandsaydl:352:933d2e", "zsrc": "smileandsaydl:352:-7d6091,933d2e", "contours": { "coloring": "lines" }, "ncontours": 21 } ], "layout": { "title": "Log-marginal-likelihood", "xaxis": { "type": "log", "title": "Length-scale", "showgrid": false }, "yaxis": { "type": "log", "title": "Noise-level", "showgrid": false } } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~smileandsaydl", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/55.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-12.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-02-24 14:45:44", "mapbox_access_tokens": null, "has_password": null, "username": "smileandsaydl", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T22:37:26.468081Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~smileandsaydl/349.embed", "fid": "smileandsaydl:349", "filename": "plot from API (15)", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/smileandsaydl:349/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/smileandsaydl:349/image?image_name=default", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/smileandsaydl/349/8_QI3CTILH1Q320XOWJ6NCMG44CV373O.png", "list-thumb": "https://api.plotly.com/v2/files/smileandsaydl:349/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/smileandsaydl:349", "plots": "https://api.plotly.com/v2/plots/smileandsaydl:349", "parent": "https://api.plotly.com/v2/folders/home?user=smileandsaydl" }, "owner": "smileandsaydl", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "Log-marginal-likelihood", "views": 0, "web_url": "https://chart-studio.plotly.com/~smileandsaydl/349/log-marginal-likelihood/", "world_readable": true, "date_modified": "2019-03-20T22:37:26.936Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~smileandsaydl/349/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "af434db0-4b60-11e9-8250-408d5c757ebb", "type": "contour", "xsrc": "smileandsaydl:350:f7dcde", "ysrc": "smileandsaydl:350:b6e6e7", "zsrc": "smileandsaydl:350:-f7dcde,b6e6e7", "contours": { "coloring": "lines" }, "ncontours": 1 } ], "layout": { "title": "Log-marginal-likelihood", "xaxis": { "type": "log", "title": "Length-scale", "showgrid": false }, "yaxis": { "type": "log", "title": "Noise-level", "showgrid": false } } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~smileandsaydl", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/55.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-12.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-02-24 14:45:44", "mapbox_access_tokens": null, "has_password": null, "username": "smileandsaydl", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T22:35:16.779232Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~sereno/2.embed", "fid": "sereno:2", "filename": "UMAP_plotly_test.html", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/sereno:2/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/sereno:2/image?image_name=default", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/sereno/2/8_10RB9F0V4NUBTW6O71I8UC4U2Y5HA7.png", "list-thumb": "https://api.plotly.com/v2/files/sereno:2/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/sereno:2", "plots": "https://api.plotly.com/v2/plots/sereno:2", "parent": "https://api.plotly.com/v2/folders/home?user=sereno" }, "owner": "sereno", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~sereno/2/", "world_readable": true, "date_modified": "2019-03-20T22:37:38.565Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~sereno/2/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "e43a1d01-ad53-4f51-8f19-7df8543e50a8", "mode": "markers", "type": "scatter3d", "xsrc": "sereno:3:3c0864", "ysrc": "sereno:3:521cf2", "zsrc": "sereno:3:2502b1", "marker": { "size": 2, "opacity": 0.8, "colorsrc": "sereno:3:82c74c", "colorscale": "Viridis" } } ], "layout": { "scene": { "xaxis": { "range": [ 0, 2 ] }, "yaxis": { "range": [ 0, 2 ] }, "zaxis": { "range": [ 0, 2 ] } }, "margin": { "b": 0, "l": 0, "r": 0, "t": 0 } } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~sereno", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/29.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-12.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-03-20 22:23:28", "mapbox_access_tokens": null, "has_password": null, "username": "sereno", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T22:34:12.171531Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~oadesanya/0.embed", "fid": "oadesanya:0", "filename": "line-mode", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/oadesanya:0/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/oadesanya:0/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/oadesanya:0/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/oadesanya:0/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/oadesanya:0", "plots": "https://api.plotly.com/v2/plots/oadesanya:0", "parent": "https://api.plotly.com/v2/folders/home?user=oadesanya" }, "owner": "oadesanya", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "lines", "views": 0, "web_url": "https://chart-studio.plotly.com/~oadesanya/0/lines/", "world_readable": true, "date_modified": "2019-03-20T22:48:31.910Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~oadesanya/0/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "ff1e15a3-600b-434a-9255-d4f78c72a3ab", "mode": "lines", "name": "lines", "type": "scatter", "xsrc": "oadesanya:1:f4db1c", "ysrc": "oadesanya:1:98b66c" } ], "layout": {} }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~oadesanya", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/9.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-0.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-03-20 22:02:43", "mapbox_access_tokens": null, "has_password": null, "username": "oadesanya", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } } ] }
