Plots
This endpoint handles manipulation of Plotly plot files.
Reference
Authorization
Any user with or without a Plotly account may view public plots. For private plots, see authentication.
Actions
list
Listing all public plots can be done via a GET request to this endpoint.
By default, plots will be listed in order of date created. The order_by
query parameter is accepted at this endpoint. Currently, only ordering by
views is supported. It is possible to filter the plots by quality
with min_quality or max_quality as query parameter.
Example:
// GET https://api.plotly.com/v2/plots/ ---> 200
// GET https://api.plotly.com/v2/plots/?order_by=-views ---> 200
// GET https://api.plotly.com/v2/plots/?min_quality=5 ---> 200
// GET https://api.plotly.com/v2/plots/?max_quality=5 ---> 200
feed
Listing all handpicked feed plots can be done via a GET request to this endpoint. By default, plots will be listed in a random order.
Example:
// GET https://api.plotly.com/v2/plots/feed ---> 200
create
You can create new plot resources here. The only required field is 'figure'. Currently, the figure is restricted to only contain references to grid data. That is, this will fail if raw data arrays are passed in. To create and manipulate underlying grids for plots, see the grids endpoint.
Example:
// This fails because a figure field is required.
// POST https://api.plotly.com/v2/plots ---> 400 Bad Request
{}
// This fails because the figure has raw data
//POST https://api.plotly.com/v2/plots ---> 400 Bad Request
{
"figure": {"data": [{"y": ['this', 'is', 'raw', 'data']}]}
}
// This succeeds because the figure has src keys, not raw data.
//POST https://api.plotly.com/v2/plots ---> 200 OK
{
"figure": {"data": [{"ysrc": "sven:88:u8nd62"}]}
}
When creating a grid, you can optionally specify a source_fid to specify where a plot has come from:
- source_fid: the fid of a plot that was copied (and presumably edited) to produce this one
detail
There is a lot of meta information stored about plot files including filename, title, share_url, and content_url to name a few.
This information can only be reached with a GET to this endpoint.
Example:
// GET https://api.plotly.com/v2/plots/iheartgraphs:90
content
The contents of a plot can be downloaded via the content resource. The plot
content contains referenced grid/column data by default. If you wish to
return the raw grid/column data, the inline_data=true query must be included
in the request url. The Content-Type header will be appropriately set for the
response body.
Alternatively, you can set ?map_data=unreadable to append a mapping of
sources to data that belongs to grids which are unreadable for the
requestor. This is useful when you have read access to another users plot,
but that plot contains grid references which you don't have access to.
Examples:
// Returns referenced grid/column data
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content ---> 200 OK
// Returns full grid/column data
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content?inline_data=true ---> 200 OK
// Returns full grid/column data when requestor doesn't have permission
// to read the referenced grid.
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content?map_data=unreadable ---> 200 OK
GET /v2/plots?cursor=cD0yMDE5LTAzLTIwKzIxJTNBMzAlM0E0Mi43NDIwMDMlMkIwMCUzQTAw&format=api

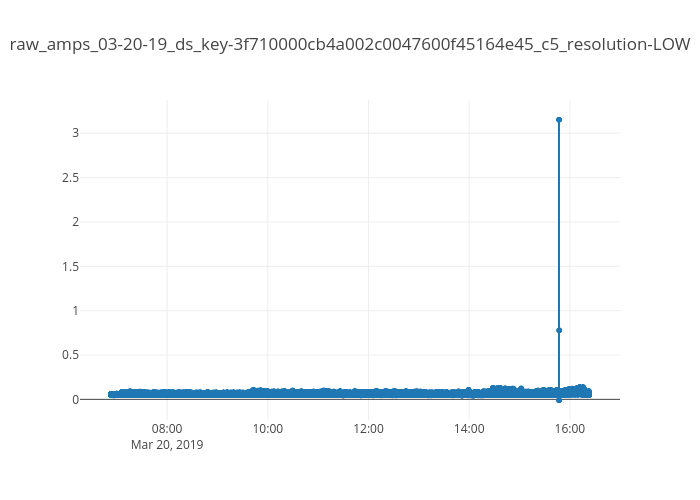

{ "next": "https://api.plot.ly/v2/plots?cursor=cD0yMDE5LTAzLTIwKzIxJTNBMjIlM0EzMy45OTU5NzQlMkIwMCUzQTAw&format=api", "previous": "https://api.plot.ly/v2/plots?cursor=cj0xJnA9MjAxOS0wMy0yMCsyMSUzQTI5JTNBMTQuNjA0Mzg2JTJCMDAlM0EwMA%3D%3D&format=api", "results": [ { "creation_time": "2019-03-20T21:29:14.604386Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~amper/61529.embed", "fid": "amper:61529", "filename": "raw_amps_03-20-19_ds_key-3f710000cb4a002c0047600f45164e45_c5_resolution-LOW", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/amper:61529/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/amper:61529/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/amper:61529/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/amper:61529/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/amper:61529", "plots": "https://api.plotly.com/v2/plots/amper:61529", "parent": "https://api.plotly.com/v2/folders/home?user=amper" }, "owner": "amper", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "raw_amps_03-20-19_ds_key-3f710000cb4a002c0047600f45164e45_c5_resolution-LOW", "views": 0, "web_url": "https://chart-studio.plotly.com/~amper/61529/raw-amps-03-20-19-ds-key-3f710000cb4a002c0047600f45164e45-c5-resolution-low/", "world_readable": true, "date_modified": "2019-03-20T22:23:19.690Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~amper/61529/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "mode": "lines+markers", "name": "raw_amps", "type": "scattergl", "xsrc": "amper:61530:e62bf5", "ysrc": "amper:61530:6067e6" } ], "layout": { "title": "raw_amps_03-20-19_ds_key-3f710000cb4a002c0047600f45164e45_c5_resolution-LOW" } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~amper", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/99.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-1.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2017-03-17 16:47:16", "mapbox_access_tokens": null, "has_password": null, "username": "amper", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T21:28:37.678092Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~MenggeZhang/2.embed", "fid": "MenggeZhang:2", "filename": "Complete_Distplot_of_Age", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/MenggeZhang:2/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/MenggeZhang:2/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/MenggeZhang:2/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/MenggeZhang:2/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/MenggeZhang:2", "plots": "https://api.plotly.com/v2/plots/MenggeZhang:2", "parent": "https://api.plotly.com/v2/folders/home?user=MenggeZhang" }, "owner": "MenggeZhang", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "Age Distribution of Complete Datasets", "views": 0, "web_url": "https://chart-studio.plotly.com/~MenggeZhang/2/age-distribution-of-complete-datasets/", "world_readable": true, "date_modified": "2019-05-06T22:52:16.395Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~MenggeZhang/2/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "e850f660-acff-4102-9cd7-8ea42497dfea", "name": "Cancer_CompleteData", "type": "histogram", "xsrc": "MenggeZhang:3:3125d8", "xaxis": "x", "xbins": { "end": 90.0, "size": 1.3, "start": 31.0 }, "yaxis": "y", "marker": { "color": "rgb(255, 0, 0)" }, "opacity": 0.7, "autobinx": false, "histnorm": "probability density", "legendgroup": "Cancer_CompleteData" }, { "uid": "7071b89b-5710-4cbf-8da0-3c25be63cad4", "name": "Normal_CompleteData", "type": "histogram", "xsrc": "MenggeZhang:3:0845cb", "xaxis": "x", "xbins": { "end": 84.0, "size": 1.3, "start": 25.0 }, "yaxis": "y", "marker": { "color": "rgb(13, 13, 13)" }, "opacity": 0.7, "autobinx": false, "histnorm": "probability density", "legendgroup": "Normal_CompleteData" }, { "uid": "1125c3d9-83ee-4a58-94e3-618a522a777b", "mode": "lines", "name": "Cancer_CompleteData", "type": "scatter", "xsrc": "MenggeZhang:3:ac3eec", "ysrc": "MenggeZhang:3:2e7d30", "xaxis": "x", "yaxis": "y", "marker": { "color": "rgb(255, 0, 0)" }, "showlegend": false, "legendgroup": "Cancer_CompleteData" }, { "uid": "3b296b58-c74c-435c-9fd9-9dc89afd8d53", "mode": "lines", "name": "Normal_CompleteData", "type": "scatter", "xsrc": "MenggeZhang:3:c16c3e", "ysrc": "MenggeZhang:3:d5b01c", "xaxis": "x", "yaxis": "y", "marker": { "color": "rgb(13, 13, 13)" }, "showlegend": false, "legendgroup": "Normal_CompleteData" }, { "uid": "8dccd7bc-e528-4451-831d-c488318dd3ba", "mode": "markers", "name": "Cancer_CompleteData", "type": "scatter", "xsrc": "MenggeZhang:3:3125d8", "ysrc": "MenggeZhang:3:893178", "xaxis": "x", "yaxis": "y2", "marker": { "color": "rgb(255, 0, 0)", "symbol": "line-ns-open" }, "showlegend": false, "legendgroup": "Cancer_CompleteData" }, { "uid": "31d97c00-d6f2-49d2-bb0f-c322780263e1", "mode": "markers", "name": "Normal_CompleteData", "type": "scatter", "xsrc": "MenggeZhang:3:0845cb", "ysrc": "MenggeZhang:3:17848c", "xaxis": "x", "yaxis": "y2", "marker": { "color": "rgb(13, 13, 13)", "symbol": "line-ns-open" }, "showlegend": false, "legendgroup": "Normal_CompleteData" } ], "layout": { "title": { "text": "Age Distribution of Complete Datasets" }, "xaxis": { "anchor": "y2", "domain": [ 0.0, 1.0 ], "zeroline": false }, "yaxis": { "anchor": "free", "domain": [ 0.35, 1 ], "position": 0.0 }, "legend": { "traceorder": "reversed" }, "yaxis2": { "dtick": 1, "anchor": "x", "domain": [ 0, 0.25 ], "showticklabels": false }, "barmode": "overlay", "hovermode": "closest" } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~MenggeZhang", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/17.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-13.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-03-20 21:12:38", "mapbox_access_tokens": null, "has_password": null, "username": "MenggeZhang", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T21:27:50.978821Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~ISwordLion/0.embed", "fid": "ISwordLion:0", "filename": "Distplot with Multiple Datasets", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/ISwordLion:0/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/ISwordLion:0/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/ISwordLion:0/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/ISwordLion:0/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/ISwordLion:0", "plots": "https://api.plotly.com/v2/plots/ISwordLion:0", "parent": "https://api.plotly.com/v2/folders/home?user=ISwordLion" }, "owner": "ISwordLion", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "Years With Curr Manager in Percent by Attrition Status", "views": 40, "web_url": "https://chart-studio.plotly.com/~ISwordLion/0/years-with-curr-manager-in-percent-by-attrition-status/", "world_readable": true, "date_modified": "2019-03-21T00:13:03.454Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~ISwordLion/0/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "17381038-4b6e-11e9-8a5f-6a000025aa60", "mode": "lines", "name": "Active Employees", "type": "scatter", "xsrc": "ISwordLion:1:3bedf7", "ysrc": "ISwordLion:1:6fe219", "xaxis": "x", "yaxis": "y", "marker": { "color": "rgb(31, 119, 180)" }, "showlegend": true, "legendgroup": "Active Employees" }, { "uid": "173812cc-4b6e-11e9-939c-6a000025aa60", "mode": "lines", "name": "Ex-Employees", "type": "scatter", "xsrc": "ISwordLion:1:0ac3ac", "ysrc": "ISwordLion:1:462e5e", "xaxis": "x", "yaxis": "y", "marker": { "color": "rgb(255, 127, 14)" }, "showlegend": true, "legendgroup": "Ex-Employees" } ], "layout": { "title": "Years With Curr Manager in Percent by Attrition Status", "xaxis": { "dtick": 1, "range": [ 0, 17 ], "anchor": "y2", "domain": [ 0.0, 1.0 ], "zeroline": false }, "yaxis": { "anchor": "free", "domain": [ 0.0, 1 ], "position": 0.0 }, "legend": { "traceorder": "reversed" }, "barmode": "overlay", "hovermode": "closest" } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~ISwordLion", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/63.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-13.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-03-20 21:16:56", "mapbox_access_tokens": null, "has_password": null, "username": "ISwordLion", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T21:27:09.964031Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~sush962000/864.embed", "fid": "sush962000:864", "filename": "ROC_for_retrained_pyscene_data", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/sush962000:864/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/sush962000:864/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/sush962000:864/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/sush962000:864/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/sush962000:864", "plots": "https://api.plotly.com/v2/plots/sush962000:864", "parent": "https://api.plotly.com/v2/folders/home?user=sush962000" }, "owner": "sush962000", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "TPR vs FPR", "views": 12, "web_url": "https://chart-studio.plotly.com/~sush962000/864/tpr-vs-fpr/", "world_readable": true, "date_modified": "2019-03-20T21:56:53.951Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~sush962000/864/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "line": { "color": "rgb(205, 12, 24)", "width": 4 }, "type": "scatter", "xsrc": "sush962000:865:428953", "ysrc": "sush962000:865:b0084c", "textsrc": "sush962000:865:5350d6" } ], "layout": { "xaxis": { "range": [ 0, 1 ], "title": "FPR" }, "yaxis": { "range": [ 0, 1 ], "title": "TPR" } } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~sush962000", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/9.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-6.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2017-10-19 03:41:19", "mapbox_access_tokens": null, "has_password": null, "username": "sush962000", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T21:26:52.544885Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~LuxF3rre/12.embed", "fid": "LuxF3rre:12", "filename": "plot from API", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/LuxF3rre:12/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/LuxF3rre:12/image?image_name=default", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/LuxF3rre/12/8_1SSUCH1PKHB6T48VIYKT831P623AYM.png", "list-thumb": "https://api.plotly.com/v2/files/LuxF3rre:12/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/LuxF3rre:12", "plots": "https://api.plotly.com/v2/plots/LuxF3rre:12", "parent": "https://api.plotly.com/v2/folders/home?user=LuxF3rre" }, "owner": "LuxF3rre", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "Observed vs Data", "views": 0, "web_url": "https://chart-studio.plotly.com/~LuxF3rre/12/observed-vs-data/", "world_readable": true, "date_modified": "2019-03-20T21:26:53.025Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~LuxF3rre/12/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": false, "caption": "", "figure": { "data": [ { "uid": "1bd00a75-00e3-49cf-927c-143d25234b22", "line": { "dash": "solid", "color": "rgba (31, 119, 180, 1)", "width": 1.5 }, "mode": "lines", "name": "Produkcyjne", "type": "scatter", "xsrc": "LuxF3rre:13:2e5154", "ysrc": "LuxF3rre:13:d290b8", "xaxis": "x", "yaxis": "y" }, { "uid": "d17faf0e-10e2-4006-bb35-99e97ed005ab", "line": { "dash": "solid", "color": "rgba (31, 119, 180, 1)", "width": 1.5 }, "mode": "lines", "name": "Produkcyjne", "type": "scatter", "xsrc": "LuxF3rre:13:2e5154", "ysrc": "LuxF3rre:13:55f134", "xaxis": "x2", "yaxis": "y2" }, { "uid": "2c133d78-eef4-4351-8f5e-fc389e815ac5", "line": { "dash": "solid", "color": "rgba (31, 119, 180, 1)", "width": 1.5 }, "mode": "lines", "name": "Produkcyjne", "type": "scatter", "xsrc": "LuxF3rre:13:2e5154", "ysrc": "LuxF3rre:13:cf882e", "xaxis": "x3", "yaxis": "y3" }, { "uid": "e73b2ca3-d582-4e6d-b09c-7a8890fea4cb", "line": { "dash": "solid", "color": "rgba (31, 119, 180, 1)", "width": 1.5 }, "mode": "lines", "name": "Produkcyjne", "type": "scatter", "xsrc": "LuxF3rre:13:2e5154", "ysrc": "LuxF3rre:13:fe8b67", "xaxis": "x4", "yaxis": "y4" } ], "layout": { "width": 432, "xaxis": { "side": "top", "type": "date", "range": [ "1971-06-22 14:24:00", "1971-08-14 09:36:00" ], "ticks": "inside", "title": { "font": { "size": 10.0, "color": "#000000" }, "text": "Data" }, "anchor": "y", "domain": [ 0.0, 1.0 ], "mirror": "ticks", "nticks": 5, "showgrid": false, "showline": true, "zeroline": false }, "yaxis": { "side": "left", "type": "linear", "range": [ 647.55, 745.45 ], "ticks": "inside", "title": { "font": { "size": 10.0, "color": "#000000" }, "text": "Observed" }, "anchor": "x", "domain": [ 0.8118274701862459, 1.0 ], "mirror": "ticks", "nticks": 4, "showgrid": false, "showline": true, "tickfont": { "size": 10.0 }, "zeroline": false }, "height": 288, "margin": { "b": 41, "l": 60, "r": 14, "t": 14, "pad": 0 }, "xaxis2": { "side": "top", "type": "date", "range": [ "1971-06-22 14:24:00", "1971-08-14 09:36:00" ], "ticks": "inside", "title": { "font": { "size": 10.0, "color": "#000000" }, "text": "Data" }, "anchor": "y2", "domain": [ 0.0, 1.0 ], "mirror": "ticks", "nticks": 5, "showgrid": false, "showline": true, "zeroline": false }, "xaxis3": { "side": "top", "type": "date", "range": [ "1971-06-22 14:24:00", "1971-08-14 09:36:00" ], "ticks": "inside", "title": { "font": { "size": 10.0, "color": "#000000" }, "text": "Data" }, "anchor": "y3", "domain": [ 0.0, 1.0 ], "mirror": "ticks", "nticks": 5, "showgrid": false, "showline": true, "zeroline": false }, "xaxis4": { "side": "bottom", "type": "date", "range": [ "1971-06-22 14:24:00", "1971-08-14 09:36:00" ], "ticks": "inside", "title": { "font": { "size": 10.0, "color": "#000000" }, "text": "Data" }, "anchor": "y4", "domain": [ 0.0, 1.0 ], "mirror": "ticks", "nticks": 5, "showgrid": false, "showline": true, "tickfont": { "size": 10.0 }, "zeroline": false }, "yaxis2": { "side": "left", "type": "linear", "range": [ 691.0666666666666, 740.9333333333333 ], "ticks": "inside", "title": { "font": { "size": 10.0, "color": "#000000" }, "text": "Trend" }, "anchor": "x2", "domain": [ 0.5412183134574973, 0.7293908432712514 ], "mirror": "ticks", "nticks": 4, "showgrid": false, "showline": true, "tickfont": { "size": 10.0 }, "zeroline": false }, "yaxis3": { "side": "left", "type": "linear", "range": [ 0.9788276776928008, 1.0144223996333517 ], "ticks": "inside", "title": { "font": { "size": 10.0, "color": "#000000" }, "text": "Seasonal" }, "anchor": "x3", "domain": [ 0.27060915672874863, 0.45878168654250273 ], "mirror": "ticks", "nticks": 4, "showgrid": false, "showline": true, "tickfont": { "size": 10.0 }, "zeroline": false }, "yaxis4": { "side": "left", "type": "linear", "range": [ 0.9550522606431876, 1.044982611810875 ], "ticks": "inside", "title": { "font": { "size": 10.0, "color": "#000000" }, "text": "Residual" }, "anchor": "x4", "domain": [ 0.0, 0.18817252981375412 ], "mirror": "ticks", "nticks": 5, "showgrid": false, "showline": true, "tickfont": { "size": 10.0 }, "zeroline": false }, "autosize": false, "hovermode": "closest", "showlegend": false } }, "height": 288, "width": 432, "user": { "profile_url": "https://chart-studio.plotly.com/~LuxF3rre", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/28.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-11.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-03-20 20:55:50", "mapbox_access_tokens": null, "has_password": null, "username": "LuxF3rre", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T21:26:50.570255Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~LuxF3rre/10.embed", "fid": "LuxF3rre:10", "filename": "Produkcyjne firmy high-tech 2015--2019", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/LuxF3rre:10/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/LuxF3rre:10/image?image_name=default", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/LuxF3rre/10/8_3EZGJLZIEG0JYHRW9FZKUH9NW04UOY.png", "list-thumb": "https://api.plotly.com/v2/files/LuxF3rre:10/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/LuxF3rre:10", "plots": "https://api.plotly.com/v2/plots/LuxF3rre:10", "parent": "https://api.plotly.com/v2/folders/home?user=LuxF3rre" }, "owner": "LuxF3rre", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "Produkcyjne firmy high-tech 2015--2019", "views": 0, "web_url": "https://chart-studio.plotly.com/~LuxF3rre/10/produkcyjne-firmy-high-tech-2015-2019/", "world_readable": true, "date_modified": "2019-03-20T21:26:51.051Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~LuxF3rre/10/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "46336efe-e3c6-4e92-839a-f5e48da0d3ac", "line": { "dash": "solid", "color": "rgba(255, 153, 51, 1.0)", "shape": "linear", "width": 1.3 }, "mode": "lines", "name": "Produkcyjne", "text": "", "type": "scatter", "xsrc": "LuxF3rre:11:3be0d5", "ysrc": "LuxF3rre:11:2f35cc" } ], "layout": { "title": { "font": { "color": "#4D5663" }, "text": "Produkcyjne firmy high-tech 2015--2019" }, "xaxis": { "title": { "font": { "color": "#4D5663" }, "text": "" }, "showgrid": true, "tickfont": { "color": "#4D5663" }, "gridcolor": "#E1E5ED", "zerolinecolor": "#E1E5ED" }, "yaxis": { "title": { "font": { "color": "#4D5663" }, "text": "" }, "showgrid": true, "tickfont": { "color": "#4D5663" }, "gridcolor": "#E1E5ED", "zerolinecolor": "#E1E5ED" }, "legend": { "font": { "color": "#4D5663" }, "bgcolor": "#F5F6F9" }, "plot_bgcolor": "#F5F6F9", "paper_bgcolor": "#F5F6F9" } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~LuxF3rre", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/28.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-11.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-03-20 20:55:50", "mapbox_access_tokens": null, "has_password": null, "username": "LuxF3rre", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T21:25:27.110389Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~keeganhughes/22.embed", "fid": "keeganhughes:22", "filename": "plot from API (10)", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/keeganhughes:22/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/keeganhughes:22/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/keeganhughes:22/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/keeganhughes:22/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/keeganhughes:22", "plots": "https://api.plotly.com/v2/plots/keeganhughes:22", "parent": "https://api.plotly.com/v2/folders/home?user=keeganhughes" }, "owner": "keeganhughes", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "Scottish Referendum Voters who now want Independence", "views": 0, "web_url": "https://chart-studio.plotly.com/~keeganhughes/22/scottish-referendum-voters-who-now-want-independence/", "world_readable": true, "date_modified": "2019-03-20T21:25:27.625Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~keeganhughes/22/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "link": { "colorsrc": "keeganhughes:23:87e033", "valuesrc": "keeganhughes:23:ba3054", "sourcesrc": "keeganhughes:23:6220d6", "targetsrc": "keeganhughes:23:8dedd3" }, "node": { "pad": 10, "line": { "color": "black", "width": 0 }, "colorsrc": "keeganhughes:23:8e15bd", "labelsrc": "keeganhughes:23:66d5dc", "thickness": 30 }, "type": "sankey", "domain": { "x": [ 0, 1 ], "y": [ 0, 1 ] }, "orientation": "h", "valueformat": ".0f" } ], "layout": { "font": { "size": 10 }, "sort": false, "title": "Scottish Referendum Voters who now want Independence", "height": 772 } }, "height": 772, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~keeganhughes", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/91.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-0.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-02-26 23:51:15", "mapbox_access_tokens": null, "has_password": null, "username": "keeganhughes", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T21:25:14.628970Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~maguilerach/1.embed", "fid": "maguilerach:1", "filename": "sankey-basic", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/maguilerach:1/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/maguilerach:1/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/maguilerach:1/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/maguilerach:1/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/maguilerach:1", "plots": "https://api.plotly.com/v2/plots/maguilerach:1", "parent": "https://api.plotly.com/v2/folders/home?user=maguilerach" }, "owner": "maguilerach", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~maguilerach/1/", "world_readable": true, "date_modified": "2019-03-20T21:41:22.896Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~maguilerach/1/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "link": { "labelsrc": "maguilerach:0:72b286", "valuesrc": "maguilerach:0:7d4a8e", "sourcesrc": "maguilerach:0:9da72b", "targetsrc": "maguilerach:0:e76c84" }, "node": { "pad": 15, "line": { "color": "black", "width": 0.5 }, "colorsrc": "maguilerach:0:1e977c", "labelsrc": "maguilerach:0:217428", "thickness": 15 }, "type": "sankey", "frame": null, "domain": { "x": [ 0, 1 ], "y": [ 0, 1 ] }, "orientation": "h", "valueformat": ".0f", "valuesuffix": "TWh" } ], "layout": { "font": { "size": 10 }, "title": "Energy forecast for 2050<br>Source: Department of Energy & Climate Change, Tom Counsell via <a href='https://bost.ocks.org/mike/sankey/'>Mike Bostock</a>", "xaxis": { "showgrid": false, "zeroline": false }, "yaxis": { "showgrid": false, "zeroline": false }, "margin": { "b": 40, "l": 60, "r": 10, "t": 25 }, "hovermode": "closest", "showlegend": false } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~maguilerach", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/67.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-7.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-03-20 21:12:21", "mapbox_access_tokens": null, "has_password": null, "username": "maguilerach", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T21:25:05.919964Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~martijnvanvlie/36.embed", "fid": "martijnvanvlie:36", "filename": "plot from API (3)", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/martijnvanvlie:36/image?image_name=list-thumb", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/martijnvanvlie/36/2_PQA7F66BWC3L2D9JCOIAFEVEA0SNSX.png", "block-thumb": "https://api.plotly.com/v2/files/martijnvanvlie:36/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/martijnvanvlie:36/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/martijnvanvlie:36", "plots": "https://api.plotly.com/v2/plots/martijnvanvlie:36", "parent": "https://api.plotly.com/v2/folders/home?user=martijnvanvlie" }, "owner": "martijnvanvlie", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "Criticality vs. vulnerability for all road segments per mode of transport", "views": 5, "web_url": "https://chart-studio.plotly.com/~martijnvanvlie/36/criticality-vs-vulnerability-for-all-road-segments-per-mode-of-transport/", "world_readable": true, "date_modified": "2019-03-20T21:25:06.644Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~martijnvanvlie/36/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "7ca7e989-b83e-4bbf-8328-f710dcd01b3f", "mode": "markers", "name": "Heavy Truck", "type": "scatter", "xsrc": "martijnvanvlie:37:ab5348", "ysrc": "martijnvanvlie:37:766030", "marker": { "line": { "width": 2 }, "symbol": "circle", "sizeref": 0.07205231037489102, "sizesrc": "martijnvanvlie:37:dfaaf9", "sizemode": "area" }, "textsrc": "martijnvanvlie:37:0ef0b4" }, { "uid": "eaf196b8-ecf6-49be-bec2-dc75173874ff", "mode": "markers", "name": "Medium Truck", "type": "scatter", "xsrc": "martijnvanvlie:37:ab5348", "ysrc": "martijnvanvlie:37:766030", "marker": { "line": { "width": 2 }, "symbol": "circle", "sizeref": 29.877900000069626, "sizesrc": "martijnvanvlie:37:109f86", "sizemode": "area" }, "textsrc": "martijnvanvlie:37:0ef0b4" }, { "uid": "120ff653-d68c-42dd-bd99-522d354649a1", "mode": "markers", "name": "Small Truck", "type": "scatter", "xsrc": "martijnvanvlie:37:ab5348", "ysrc": "martijnvanvlie:37:766030", "marker": { "line": { "width": 2 }, "symbol": "circle", "sizeref": 33.692100000078526, "sizesrc": "martijnvanvlie:37:283444", "sizemode": "area" }, "textsrc": "martijnvanvlie:37:0ef0b4" }, { "uid": "99d141c4-2755-4b88-a54e-1fbda00b3bba", "mode": "markers", "name": "Large Bus", "type": "scatter", "xsrc": "martijnvanvlie:37:ab5348", "ysrc": "martijnvanvlie:37:766030", "marker": { "line": { "width": 2 }, "symbol": "circle", "sizeref": 0.7549158864159633, "sizesrc": "martijnvanvlie:37:572271", "sizemode": "area" }, "textsrc": "martijnvanvlie:37:0ef0b4" }, { "uid": "c9059407-f110-454e-94a8-4c5aeabb21ec", "mode": "markers", "name": "Medium Bus", "type": "scatter", "xsrc": "martijnvanvlie:37:ab5348", "ysrc": "martijnvanvlie:37:766030", "marker": { "line": { "width": 2 }, "symbol": "circle", "sizeref": 0.25632099496594585, "sizesrc": "martijnvanvlie:37:6d43c8", "sizemode": "area" }, "textsrc": "martijnvanvlie:37:0ef0b4" }, { "uid": "71e6a7b8-f9e0-4048-93c9-6fe59af7f4a0", "mode": "markers", "name": "Micro Bus", "type": "scatter", "xsrc": "martijnvanvlie:37:ab5348", "ysrc": "martijnvanvlie:37:766030", "marker": { "line": { "width": 2 }, "symbol": "circle", "sizeref": 29.242200000068156, "sizesrc": "martijnvanvlie:37:c6df52", "sizemode": "area" }, "textsrc": "martijnvanvlie:37:0ef0b4" }, { "uid": "19024d3e-ab3a-4f86-9ac2-c07ccb4e9840", "mode": "markers", "name": "Utility", "type": "scatter", "xsrc": "martijnvanvlie:37:ab5348", "ysrc": "martijnvanvlie:37:766030", "marker": { "line": { "width": 2 }, "symbol": "circle", "sizeref": 12.07830000002815, "sizesrc": "martijnvanvlie:37:8a5725", "sizemode": "area" }, "textsrc": "martijnvanvlie:37:0ef0b4" }, { "uid": "933ce64c-34d7-4b3e-af6b-d2e8be221eaa", "mode": "markers", "name": "Car", "type": "scatter", "xsrc": "martijnvanvlie:37:ab5348", "ysrc": "martijnvanvlie:37:766030", "marker": { "line": { "width": 2 }, "symbol": "circle", "sizeref": 26.063700000060745, "sizesrc": "martijnvanvlie:37:faafe6", "sizemode": "area" }, "textsrc": "martijnvanvlie:37:0ef0b4" }, { "uid": "1a06d08b-8b02-44e5-aea2-3740ad20bffa", "mode": "markers", "name": "Auto Rickshaw", "type": "scatter", "xsrc": "martijnvanvlie:37:ab5348", "ysrc": "martijnvanvlie:37:766030", "marker": { "line": { "width": 2 }, "symbol": "circle", "sizeref": 617.2647000014387, "sizesrc": "martijnvanvlie:37:da0edb", "sizemode": "area" }, "textsrc": "martijnvanvlie:37:0ef0b4" }, { "uid": "78d12aac-055a-405e-8de9-3739dd44ddc2", "mode": "markers", "name": "Motor Cycle", "type": "scatter", "xsrc": "martijnvanvlie:37:ab5348", "ysrc": "martijnvanvlie:37:766030", "marker": { "line": { "width": 2 }, "symbol": "circle", "sizeref": 482.49630000112467, "sizesrc": "martijnvanvlie:37:900d48", "sizemode": "area" }, "textsrc": "martijnvanvlie:37:0ef0b4" }, { "uid": "dacf333c-045a-4db3-8644-36e6e68ffc6d", "mode": "markers", "name": "Bi-Cycle", "type": "scatter", "xsrc": "martijnvanvlie:37:ab5348", "ysrc": "martijnvanvlie:37:766030", "marker": { "line": { "width": 2 }, "symbol": "circle", "sizeref": 364.89180000085037, "sizesrc": "martijnvanvlie:37:f16f77", "sizemode": "area" }, "textsrc": "martijnvanvlie:37:0ef0b4" }, { "uid": "727f1164-ac93-4c32-8bfc-92dd77ed10f2", "mode": "markers", "name": "Cycle Rickshaw", "type": "scatter", "xsrc": "martijnvanvlie:37:ab5348", "ysrc": "martijnvanvlie:37:766030", "marker": { "line": { "width": 2 }, "symbol": "circle", "sizeref": 480.5892000011201, "sizesrc": "martijnvanvlie:37:13f2fa", "sizemode": "area" }, "textsrc": "martijnvanvlie:37:0ef0b4" }, { "uid": "c7fb72fd-75b9-44c6-bf3d-3d093f65e1a3", "mode": "markers", "name": "Cart", "type": "scatter", "xsrc": "martijnvanvlie:37:ab5348", "ysrc": "martijnvanvlie:37:766030", "marker": { "line": { "width": 2 }, "symbol": "circle", "sizeref": 3.1785000000074084, "sizesrc": "martijnvanvlie:37:05ed32", "sizemode": "area" }, "textsrc": "martijnvanvlie:37:0ef0b4" }, { "uid": "312d503e-d8ac-4ff4-9f9a-c28bcde1273f", "mode": "markers", "name": "Motorized Total", "type": "scatter", "xsrc": "martijnvanvlie:37:ab5348", "ysrc": "martijnvanvlie:37:766030", "marker": { "line": { "width": 2 }, "symbol": "circle", "sizeref": 1230.7152000028682, "sizesrc": "martijnvanvlie:37:c812fa", "sizemode": "area" }, "textsrc": "martijnvanvlie:37:0ef0b4" }, { "uid": "3d34a523-8395-4649-b45c-268fda40d115", "mode": "markers", "name": "Non Motorized Total", "type": "scatter", "xsrc": "martijnvanvlie:37:ab5348", "ysrc": "martijnvanvlie:37:766030", "marker": { "line": { "width": 2 }, "symbol": "circle", "sizeref": 848.6595000019779, "sizesrc": "martijnvanvlie:37:1f703a", "sizemode": "area" }, "textsrc": "martijnvanvlie:37:0ef0b4" }, { "uid": "6f604cbe-a11c-4ff2-bdc7-dfd7fabe5c78", "mode": "markers", "name": "Total_Traffic", "type": "scatter", "xsrc": "martijnvanvlie:37:ab5348", "ysrc": "martijnvanvlie:37:766030", "marker": { "line": { "width": 2 }, "symbol": "circle", "sizeref": 2079.3747000048465, "sizesrc": "martijnvanvlie:37:94fdc1", "sizemode": "area" }, "textsrc": "martijnvanvlie:37:0ef0b4" } ], "layout": { "title": { "text": "Criticality vs. vulnerability for all road segments per mode of transport" }, "xaxis": { "range": [ 0, 1 ], "title": { "text": "Criticality" }, "ticklen": 5, "gridcolor": "rgb(255, 255, 255)", "gridwidth": 2, "zerolinewidth": 1 }, "yaxis": { "range": [ 0, 1 ], "title": { "text": "Vulnerability" }, "ticklen": 5, "gridcolor": "rgb(255, 255, 255)", "gridwidth": 2, "zerolinewidth": 1 }, "hovermode": "closest", "annotations": [ { "x": 1.12, "y": 1.05, "text": "Modes of transport", "xref": "paper", "yref": "paper", "align": "right", "valign": "top", "xanchor": "center", "yanchor": "top", "showarrow": false } ], "plot_bgcolor": "rgb(243, 243, 243)", "paper_bgcolor": "rgb(243, 243, 243)" } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~martijnvanvlie", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/50.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-11.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2018-10-23 11:49:05", "mapbox_access_tokens": null, "has_password": null, "username": "martijnvanvlie", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T21:22:33.995974Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~SofiaCatalan/1.embed", "fid": "SofiaCatalan:1", "filename": "Plot 1", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/SofiaCatalan:1/image?image_name=list-thumb", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/SofiaCatalan/1/2_29FU8L1ZEQDWMD8O0EI0EZMUFODGRG.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/SofiaCatalan/1/8_B16SLBK9I3EI0Z94B6VEIKOY89UZWA.png", "list-thumb": "https://api.plotly.com/v2/files/SofiaCatalan:1/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/SofiaCatalan:1", "plots": "https://api.plotly.com/v2/plots/SofiaCatalan:1", "parent": "https://api.plotly.com/v2/folders/home?user=SofiaCatalan" }, "owner": "SofiaCatalan", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~SofiaCatalan/1/", "world_readable": true, "date_modified": "2019-03-20T21:22:34.012Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~SofiaCatalan/1/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "line": { "color": "rgb(5, 22, 245)", "width": 1 }, "mode": "markers+lines", "name": "3d", "type": "scatter", "xsrc": "SofiaCatalan:0:db571c", "ysrc": "SofiaCatalan:0:ec4708", "xaxis": "x", "marker": { "symbol": "triangle-up" } }, { "line": { "dash": "dashdot", "color": "rgb(59, 239, 62)", "width": 1 }, "mode": "markers+lines", "name": "DP", "type": "scatter", "xsrc": "SofiaCatalan:0:db571c", "ysrc": "SofiaCatalan:0:0f89b5", "marker": { "symbol": "triangle-up" }, "stackgroup": null }, { "line": { "dash": "dashdot", "color": "rgb(204, 0, 43)", "width": 1 }, "mode": "markers+lines", "name": "DP2", "type": "scatter", "xsrc": "SofiaCatalan:0:db571c", "ysrc": "SofiaCatalan:0:e6b9f2", "marker": { "symbol": "triangle-up" }, "stackgroup": null } ], "frames": [], "layout": { "title": { "x": 1 }, "xaxis": { "side": "bottom", "type": "linear", "dtick": 432000000, "range": [ -1.3095489316802946, 42.3095489316803 ], "tick0": 10, "ticks": "inside", "title": { "text": "Tamaño ventana de consulta" }, "nticks": 10, "tickfont": { "family": "Liberation Sans" }, "tickmode": "auto", "zeroline": true, "autorange": true, "tickangle": 45, "automargin": true, "showspikes": true, "tickformat": "", "ticksuffix": "%", "rangeslider": { "range": [ 1, 40 ], "yaxis": {}, "visible": false, "autorange": true }, "showexponent": "all", "showticklabels": true, "showticksuffix": "all", "spikethickness": 1 }, "yaxis": { "side": "left", "type": "linear", "range": [ -0.5072525510204082, 9.819252551020409 ], "title": { "text": "Tiempo Promedio en [s]" }, "autorange": true, "showspikes": false, "spikethickness": 1 }, "legend": { "traceorder": "normal" }, "modebar": { "orientation": "h" }, "autosize": true, "template": { "data": { "bar": [ { "type": "bar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatter": [ { "type": "scatter", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "histogram": [ { "type": "histogram", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "white", "showlakes": true, "subunitcolor": "#C8D4E3" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "white", "radialaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" }, "angularaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "yaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "zaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "baxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "caxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "bgcolor": "white" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#19d3f3", "#e763fa", "#fecb52", "#ffa15a", "#ff6692", "#b6e880" ], "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ], "sequentialminus": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ] }, "plot_bgcolor": "white", "paper_bgcolor": "white", "shapedefaults": { "line": { "width": 0 }, "opacity": 0.4, "fillcolor": "#506784" }, "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#506784", "arrowwidth": 1 } }, "themeRef": "PLOTLY_WHITE" } } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~SofiaCatalan", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/8.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-4.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-03-20 21:20:00", "mapbox_access_tokens": null, "has_password": null, "username": "SofiaCatalan", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } } ] }
