Plots
This endpoint handles manipulation of Plotly plot files.
Reference
Authorization
Any user with or without a Plotly account may view public plots. For private plots, see authentication.
Actions
list
Listing all public plots can be done via a GET request to this endpoint.
By default, plots will be listed in order of date created. The order_by
query parameter is accepted at this endpoint. Currently, only ordering by
views is supported. It is possible to filter the plots by quality
with min_quality or max_quality as query parameter.
Example:
// GET https://api.plotly.com/v2/plots/ ---> 200
// GET https://api.plotly.com/v2/plots/?order_by=-views ---> 200
// GET https://api.plotly.com/v2/plots/?min_quality=5 ---> 200
// GET https://api.plotly.com/v2/plots/?max_quality=5 ---> 200
feed
Listing all handpicked feed plots can be done via a GET request to this endpoint. By default, plots will be listed in a random order.
Example:
// GET https://api.plotly.com/v2/plots/feed ---> 200
create
You can create new plot resources here. The only required field is 'figure'. Currently, the figure is restricted to only contain references to grid data. That is, this will fail if raw data arrays are passed in. To create and manipulate underlying grids for plots, see the grids endpoint.
Example:
// This fails because a figure field is required.
// POST https://api.plotly.com/v2/plots ---> 400 Bad Request
{}
// This fails because the figure has raw data
//POST https://api.plotly.com/v2/plots ---> 400 Bad Request
{
"figure": {"data": [{"y": ['this', 'is', 'raw', 'data']}]}
}
// This succeeds because the figure has src keys, not raw data.
//POST https://api.plotly.com/v2/plots ---> 200 OK
{
"figure": {"data": [{"ysrc": "sven:88:u8nd62"}]}
}
When creating a grid, you can optionally specify a source_fid to specify where a plot has come from:
- source_fid: the fid of a plot that was copied (and presumably edited) to produce this one
detail
There is a lot of meta information stored about plot files including filename, title, share_url, and content_url to name a few.
This information can only be reached with a GET to this endpoint.
Example:
// GET https://api.plotly.com/v2/plots/iheartgraphs:90
content
The contents of a plot can be downloaded via the content resource. The plot
content contains referenced grid/column data by default. If you wish to
return the raw grid/column data, the inline_data=true query must be included
in the request url. The Content-Type header will be appropriately set for the
response body.
Alternatively, you can set ?map_data=unreadable to append a mapping of
sources to data that belongs to grids which are unreadable for the
requestor. This is useful when you have read access to another users plot,
but that plot contains grid references which you don't have access to.
Examples:
// Returns referenced grid/column data
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content ---> 200 OK
// Returns full grid/column data
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content?inline_data=true ---> 200 OK
// Returns full grid/column data when requestor doesn't have permission
// to read the referenced grid.
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content?map_data=unreadable ---> 200 OK
GET /v2/plots?cursor=cD0yMDE5LTAzLTIwKzIwJTNBMzYlM0E0Ni44ODA1OTAlMkIwMCUzQTAw&format=api

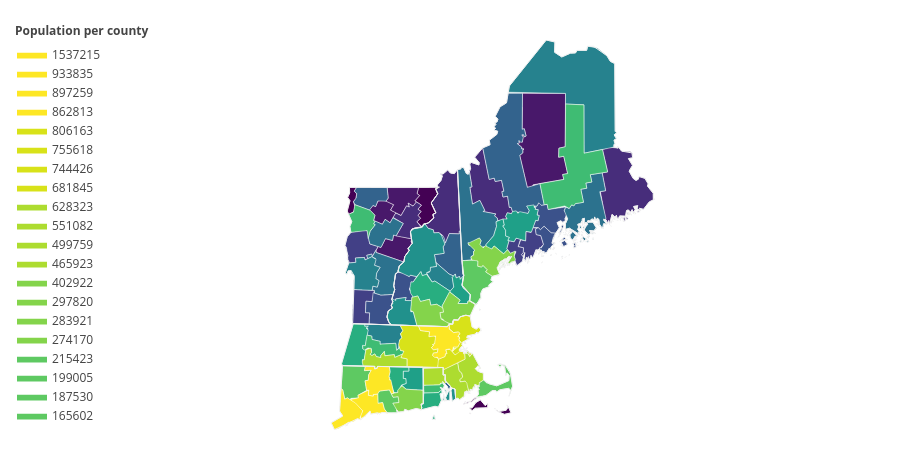

{ "next": "https://api.plot.ly/v2/plots?cursor=cD0yMDE5LTAzLTIwKzIwJTNBMzMlM0ExMy42NDQ1OTIlMkIwMCUzQTAw&format=api", "previous": "https://api.plot.ly/v2/plots?cursor=cj0xJnA9MjAxOS0wMy0yMCsyMCUzQTM2JTNBNDQuNjI5MTY3JTJCMDAlM0EwMA%3D%3D&format=api", "results": [ { "creation_time": "2019-03-20T20:36:44.629167Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~thattanmay/0.embed", "fid": "thattanmay:0", "filename": "choropleth_new_england", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/thattanmay:0/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/thattanmay:0/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/thattanmay:0/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/thattanmay:0/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/thattanmay:0", "plots": "https://api.plotly.com/v2/plots/thattanmay:0", "parent": "https://api.plotly.com/v2/folders/home?user=thattanmay" }, "owner": "thattanmay", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "6226, 6983, 10298, 17041, 17290, 24958, 27109, 28924, 30630, 31121, 32096, 32462, 34180, 35191, 36697, 36745, 38820, 39668, 43074, 43985, 47567, 48214, 49144, 51910, 54558, 56211, 57481, 59465, 60327, 60869, 70868, 71540, 76851, 82036, 89181, 107609, 117599, 121853, 124119, 125946, 130016, 146761, 151539, 153746, 158504, 159795, 164843, 165602, 187530, 199005, 215423, 274170, 283921, 297820, 402922, 465923, 499759, 551082, 628323, 681845, 744426, 755618, 806163, 862813, 897259, 933835, 1537215, US Counties", "views": 0, "web_url": "https://chart-studio.plotly.com/~thattanmay/0/_6226-6983-10298-17041-17290-24958-27109-28924-30630-31121-32096-32462-34180-3519/", "world_readable": true, "date_modified": "2019-03-20T20:39:12.310Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~thattanmay/0/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "53193330-6674-4164-9f23-c5acab7a5ec7", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "6226", "type": "scatter", "xsrc": "thattanmay:1:c27374", "ysrc": "thattanmay:1:ecb957", "fillcolor": "rgb(68, 1, 84)", "hoverinfo": "none" }, { "uid": "e4107c29-05b5-4ed8-abf8-8386bec8ebd4", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "6983", "type": "scatter", "xsrc": "thattanmay:1:5f4eb9", "ysrc": "thattanmay:1:6cfb80", "fillcolor": "rgb(68, 1, 84)", "hoverinfo": "none" }, { "uid": "c70512dc-f132-447c-9690-bc463607137d", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "10298", "type": "scatter", "xsrc": "thattanmay:1:eed915", "ysrc": "thattanmay:1:491068", "fillcolor": "rgb(68, 1, 84)", "hoverinfo": "none" }, { "uid": "3f7b353f-1906-4d44-8f9e-fac588b51c43", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "17041", "type": "scatter", "xsrc": "thattanmay:1:9a13d7", "ysrc": "thattanmay:1:138eee", "fillcolor": "rgb(68, 1, 84)", "hoverinfo": "none" }, { "uid": "3c2df22a-561c-48b1-9db4-29125eebef7d", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "17290", "type": "scatter", "xsrc": "thattanmay:1:7d3523", "ysrc": "thattanmay:1:1c2ed4", "fillcolor": "rgb(72, 24, 106)", "hoverinfo": "none" }, { "uid": "0d2c491c-e20d-46db-a5d1-645b31832daa", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "24958", "type": "scatter", "xsrc": "thattanmay:1:094053", "ysrc": "thattanmay:1:5ea939", "fillcolor": "rgb(72, 24, 106)", "hoverinfo": "none" }, { "uid": "dc4229c7-dd80-4f6a-bc5b-5f50b77f6032", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "27109", "type": "scatter", "xsrc": "thattanmay:1:a7e0f3", "ysrc": "thattanmay:1:68971e", "fillcolor": "rgb(72, 24, 106)", "hoverinfo": "none" }, { "uid": "f3411d29-2fb9-42a9-94c8-f9125327d21c", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "28924", "type": "scatter", "xsrc": "thattanmay:1:8c0548", "ysrc": "thattanmay:1:b11120", "fillcolor": "rgb(72, 24, 106)", "hoverinfo": "none" }, { "uid": "9282b9f6-c369-4aa7-99dc-c86d4fb7b684", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "30630", "type": "scatter", "xsrc": "thattanmay:1:7cc7af", "ysrc": "thattanmay:1:cc8cca", "fillcolor": "rgb(71, 45, 123)", "hoverinfo": "none" }, { "uid": "96da5225-fafb-49a2-acd6-01cd3f4b0f54", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "31121", "type": "scatter", "xsrc": "thattanmay:1:66d195", "ysrc": "thattanmay:1:d65a46", "fillcolor": "rgb(71, 45, 123)", "hoverinfo": "none" }, { "uid": "77b12c1b-ba59-486c-b1f9-f5c2730db696", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "32096", "type": "scatter", "xsrc": "thattanmay:1:e84d9c", "ysrc": "thattanmay:1:1e6422", "fillcolor": "rgb(71, 45, 123)", "hoverinfo": "none" }, { "uid": "05e7ed0a-feda-4b4b-8ec6-ba9dc48726e0", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "32462", "type": "scatter", "xsrc": "thattanmay:1:01444e", "ysrc": "thattanmay:1:e992f6", "fillcolor": "rgb(71, 45, 123)", "hoverinfo": "none" }, { "uid": "dd1079b8-953e-4d43-9afa-b4e390ff5f9b", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "34180", "type": "scatter", "xsrc": "thattanmay:1:a51b7e", "ysrc": "thattanmay:1:45c15c", "fillcolor": "rgb(66, 64, 134)", "hoverinfo": "none" }, { "uid": "1e816bae-0375-418a-99a2-b5310b923d80", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "35191", "type": "scatter", "xsrc": "thattanmay:1:a63cbb", "ysrc": "thattanmay:1:2d6dfc", "fillcolor": "rgb(66, 64, 134)", "hoverinfo": "none" }, { "uid": "8e226c35-0e89-4200-b251-7a87a7259f03", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "36697", "type": "scatter", "xsrc": "thattanmay:1:763005", "ysrc": "thattanmay:1:3be54f", "fillcolor": "rgb(66, 64, 134)", "hoverinfo": "none" }, { "uid": "8d213965-2c38-4dd8-a67f-f81036d15c19", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "36745", "type": "scatter", "xsrc": "thattanmay:1:9d9c39", "ysrc": "thattanmay:1:be2c36", "fillcolor": "rgb(66, 64, 134)", "hoverinfo": "none" }, { "uid": "aecf75f4-4733-4bbf-bbf9-1ecb2c689142", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "38820", "type": "scatter", "xsrc": "thattanmay:1:92f1bb", "ysrc": "thattanmay:1:54da70", "fillcolor": "rgb(59, 82, 139)", "hoverinfo": "none" }, { "uid": "97a374dd-d9b1-47be-b2b5-71d2f4cd8465", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "39668", "type": "scatter", "xsrc": "thattanmay:1:851d26", "ysrc": "thattanmay:1:0d0b09", "fillcolor": "rgb(59, 82, 139)", "hoverinfo": "none" }, { "uid": "12892ac1-6d48-4015-a5c4-1f7bf67641a5", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "43074", "type": "scatter", "xsrc": "thattanmay:1:dc9e6b", "ysrc": "thattanmay:1:8caf51", "fillcolor": "rgb(59, 82, 139)", "hoverinfo": "none" }, { "uid": "6d3a3a89-ee34-4d26-9246-b77a608ec359", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "43985", "type": "scatter", "xsrc": "thattanmay:1:96c8c6", "ysrc": "thattanmay:1:2e862c", "fillcolor": "rgb(59, 82, 139)", "hoverinfo": "none" }, { "uid": "7d03fa77-3fca-40c1-8b22-109a21c59a68", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "47567", "type": "scatter", "xsrc": "thattanmay:1:701d92", "ysrc": "thattanmay:1:4bea48", "fillcolor": "rgb(51, 99, 141)", "hoverinfo": "none" }, { "uid": "dda50712-bbc4-43b1-b968-58a80874595c", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "48214", "type": "scatter", "xsrc": "thattanmay:1:0ba6bf", "ysrc": "thattanmay:1:7b91e3", "fillcolor": "rgb(51, 99, 141)", "hoverinfo": "none" }, { "uid": "2b84d7ab-c2d2-44b6-b2a2-3bd64cd1a6c3", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "49144", "type": "scatter", "xsrc": "thattanmay:1:6ff418", "ysrc": "thattanmay:1:023fe0", "fillcolor": "rgb(51, 99, 141)", "hoverinfo": "none" }, { "uid": "3118a488-751e-4bb8-9bd7-7f6cdcabe6bd", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "51910", "type": "scatter", "xsrc": "thattanmay:1:90aa6b", "ysrc": "thattanmay:1:3277af", "fillcolor": "rgb(51, 99, 141)", "hoverinfo": "none" }, { "uid": "07dc0555-50de-4d70-94f0-f9c7b218da50", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "54558", "type": "scatter", "xsrc": "thattanmay:1:9b346e", "ysrc": "thattanmay:1:60476d", "fillcolor": "rgb(44, 114, 142)", "hoverinfo": "none" }, { "uid": "f442f8ee-03e8-425f-bf97-76ffb009b849", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "56211", "type": "scatter", "xsrc": "thattanmay:1:45ec25", "ysrc": "thattanmay:1:0a3a4a", "fillcolor": "rgb(44, 114, 142)", "hoverinfo": "none" }, { "uid": "8de60ee4-90fb-41c8-9337-1124901de641", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "57481", "type": "scatter", "xsrc": "thattanmay:1:689032", "ysrc": "thattanmay:1:00ab70", "fillcolor": "rgb(44, 114, 142)", "hoverinfo": "none" }, { "uid": "44c2f006-ded6-48db-ba17-231d7f12926e", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "59465", "type": "scatter", "xsrc": "thattanmay:1:f8ccad", "ysrc": "thattanmay:1:256b3b", "fillcolor": "rgb(44, 114, 142)", "hoverinfo": "none" }, { "uid": "6e377390-c0af-44d8-9863-0edf07f12098", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "60327", "type": "scatter", "xsrc": "thattanmay:1:af49b3", "ysrc": "thattanmay:1:68d6c1", "fillcolor": "rgb(38, 130, 142)", "hoverinfo": "none" }, { "uid": "5fde6d42-4d7f-4a35-90f8-e86fe946d277", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "60869", "type": "scatter", "xsrc": "thattanmay:1:f475a5", "ysrc": "thattanmay:1:5e1651", "fillcolor": "rgb(38, 130, 142)", "hoverinfo": "none" }, { "uid": "6568c32b-9c5f-448e-9592-37d4c7cd78bf", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "70868", "type": "scatter", "xsrc": "thattanmay:1:7c035f", "ysrc": "thattanmay:1:5ebb8d", "fillcolor": "rgb(38, 130, 142)", "hoverinfo": "none" }, { "uid": "fecd7a4a-e404-4459-812c-b814f71ee209", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "71540", "type": "scatter", "xsrc": "thattanmay:1:57392d", "ysrc": "thattanmay:1:d970f4", "fillcolor": "rgb(38, 130, 142)", "hoverinfo": "none" }, { "uid": "dbd78d97-e4f5-42fe-854f-69516cd0319e", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "76851", "type": "scatter", "xsrc": "thattanmay:1:5475eb", "ysrc": "thattanmay:1:5df60a", "fillcolor": "rgb(33, 145, 140)", "hoverinfo": "none" }, { "uid": "cdd2f82c-c8d2-41a4-8ed1-54739df5ef90", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "82036", "type": "scatter", "xsrc": "thattanmay:1:b8cc43", "ysrc": "thattanmay:1:1a1cf2", "fillcolor": "rgb(33, 145, 140)", "hoverinfo": "none" }, { "uid": "27950c96-a15b-4cc4-a40b-91c1b8d1eded", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "89181", "type": "scatter", "xsrc": "thattanmay:1:158408", "ysrc": "thattanmay:1:4f155b", "fillcolor": "rgb(33, 145, 140)", "hoverinfo": "none" }, { "uid": "0c06bf38-706c-4aa9-895d-5fcbd2d54c65", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "107609", "type": "scatter", "xsrc": "thattanmay:1:461f24", "ysrc": "thattanmay:1:8c517d", "fillcolor": "rgb(31, 160, 136)", "hoverinfo": "none" }, { "uid": "18250ceb-1436-42bb-8199-3bddfea7c861", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "117599", "type": "scatter", "xsrc": "thattanmay:1:4227de", "ysrc": "thattanmay:1:744e6a", "fillcolor": "rgb(31, 160, 136)", "hoverinfo": "none" }, { "uid": "571607bf-5f1d-4d01-aab8-5266e1fd5e21", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "121853", "type": "scatter", "xsrc": "thattanmay:1:5b1a5d", "ysrc": "thattanmay:1:597a2e", "fillcolor": "rgb(31, 160, 136)", "hoverinfo": "none" }, { "uid": "cdecd588-8e7a-406b-8774-7d548e5323fb", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "124119", "type": "scatter", "xsrc": "thattanmay:1:97dfbd", "ysrc": "thattanmay:1:d059c0", "fillcolor": "rgb(31, 160, 136)", "hoverinfo": "none" }, { "uid": "6197bd4a-8c9c-4d00-8384-b443a0123031", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "125946", "type": "scatter", "xsrc": "thattanmay:1:66305d", "ysrc": "thattanmay:1:d210f5", "fillcolor": "rgb(40, 174, 128)", "hoverinfo": "none" }, { "uid": "9a38ebd1-8a44-413c-8e6b-1faa443d653d", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "130016", "type": "scatter", "xsrc": "thattanmay:1:ba4d4c", "ysrc": "thattanmay:1:def22e", "fillcolor": "rgb(40, 174, 128)", "hoverinfo": "none" }, { "uid": "0c910abd-9f1c-4f3a-9045-9075ba34d7e2", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "146761", "type": "scatter", "xsrc": "thattanmay:1:b452e0", "ysrc": "thattanmay:1:0c9461", "fillcolor": "rgb(40, 174, 128)", "hoverinfo": "none" }, { "uid": "bff6fcd8-8438-422f-b04f-f3caf415337b", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "151539", "type": "scatter", "xsrc": "thattanmay:1:ced574", "ysrc": "thattanmay:1:6bcd92", "fillcolor": "rgb(40, 174, 128)", "hoverinfo": "none" }, { "uid": "14c1d18a-b218-4245-aede-e1f8acad1add", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "153746", "type": "scatter", "xsrc": "thattanmay:1:9fdb8c", "ysrc": "thattanmay:1:dbfb11", "fillcolor": "rgb(63, 188, 115)", "hoverinfo": "none" }, { "uid": "6b73d48c-0931-4681-966a-b89db06f069e", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "158504", "type": "scatter", "xsrc": "thattanmay:1:4af0e0", "ysrc": "thattanmay:1:bfab58", "fillcolor": "rgb(63, 188, 115)", "hoverinfo": "none" }, { "uid": "795a2671-3cd0-4859-8dc2-6b672150815b", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "159795", "type": "scatter", "xsrc": "thattanmay:1:0d6654", "ysrc": "thattanmay:1:d7c358", "fillcolor": "rgb(63, 188, 115)", "hoverinfo": "none" }, { "uid": "b84ecbc5-389e-4b4e-9402-38c4becb78ab", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "164843", "type": "scatter", "xsrc": "thattanmay:1:a43521", "ysrc": "thattanmay:1:9adb5a", "fillcolor": "rgb(63, 188, 115)", "hoverinfo": "none" }, { "uid": "c236d444-accf-4619-a950-aba3931f3aa7", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "165602", "type": "scatter", "xsrc": "thattanmay:1:c7a26f", "ysrc": "thattanmay:1:056861", "fillcolor": "rgb(94, 201, 98)", "hoverinfo": "none" }, { "uid": "f693582c-fa10-4bf0-8906-46f401edfa14", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "187530", "type": "scatter", "xsrc": "thattanmay:1:ab3aed", "ysrc": "thattanmay:1:c681fc", "fillcolor": "rgb(94, 201, 98)", "hoverinfo": "none" }, { "uid": "ac1e7c42-a08f-41d1-97f1-a8d9627145c7", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "199005", "type": "scatter", "xsrc": "thattanmay:1:1240c4", "ysrc": "thattanmay:1:b2576a", "fillcolor": "rgb(94, 201, 98)", "hoverinfo": "none" }, { "uid": "6de94386-e6f2-42f9-9c72-f00b0b0eb72d", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "215423", "type": "scatter", "xsrc": "thattanmay:1:4ba77f", "ysrc": "thattanmay:1:df4eb5", "fillcolor": "rgb(94, 201, 98)", "hoverinfo": "none" }, { "uid": "4bd44f67-4603-4fe9-abf4-71cacf3c84a8", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "274170", "type": "scatter", "xsrc": "thattanmay:1:bc0c1c", "ysrc": "thattanmay:1:7d7ab7", "fillcolor": "rgb(132, 212, 75)", "hoverinfo": "none" }, { "uid": "543d4d51-5fbf-4061-a1f0-d667221bdaa3", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "283921", "type": "scatter", "xsrc": "thattanmay:1:6a02d2", "ysrc": "thattanmay:1:f05f69", "fillcolor": "rgb(132, 212, 75)", "hoverinfo": "none" }, { "uid": "ba138307-be0e-4662-853b-4d844018d996", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "297820", "type": "scatter", "xsrc": "thattanmay:1:223b47", "ysrc": "thattanmay:1:2d3626", "fillcolor": "rgb(132, 212, 75)", "hoverinfo": "none" }, { "uid": "de73f508-0996-45c6-a7e7-187d018ca091", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "402922", "type": "scatter", "xsrc": "thattanmay:1:4670d4", "ysrc": "thattanmay:1:3de350", "fillcolor": "rgb(132, 212, 75)", "hoverinfo": "none" }, { "uid": "20b12125-3455-41a9-9e1f-f0fb1b2a7164", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "465923", "type": "scatter", "xsrc": "thattanmay:1:97f32d", "ysrc": "thattanmay:1:162d8e", "fillcolor": "rgb(173, 220, 48)", "hoverinfo": "none" }, { "uid": "fcdd3fd4-b98e-4743-a489-9e017b39f435", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "499759", "type": "scatter", "xsrc": "thattanmay:1:637a05", "ysrc": "thattanmay:1:0947cc", "fillcolor": "rgb(173, 220, 48)", "hoverinfo": "none" }, { "uid": "e6ca33f5-892e-4427-b8c2-f9ebcf0d53ae", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "551082", "type": "scatter", "xsrc": "thattanmay:1:635df5", "ysrc": "thattanmay:1:30af94", "fillcolor": "rgb(173, 220, 48)", "hoverinfo": "none" }, { "uid": "f10ca04a-66c2-469e-aa93-4003a97d4db4", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "628323", "type": "scatter", "xsrc": "thattanmay:1:b1fa3d", "ysrc": "thattanmay:1:171dca", "fillcolor": "rgb(173, 220, 48)", "hoverinfo": "none" }, { "uid": "26cc92c4-2d58-43aa-b820-102291c8014d", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "681845", "type": "scatter", "xsrc": "thattanmay:1:77bbd2", "ysrc": "thattanmay:1:f56e1d", "fillcolor": "rgb(216, 226, 25)", "hoverinfo": "none" }, { "uid": "46e32f2e-41a4-40e0-8439-a52cf45ed32c", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "744426", "type": "scatter", "xsrc": "thattanmay:1:3e7a10", "ysrc": "thattanmay:1:97406f", "fillcolor": "rgb(216, 226, 25)", "hoverinfo": "none" }, { "uid": "f50db4ad-d926-405f-957f-e1368f442cf1", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "755618", "type": "scatter", "xsrc": "thattanmay:1:436510", "ysrc": "thattanmay:1:5adc85", "fillcolor": "rgb(216, 226, 25)", "hoverinfo": "none" }, { "uid": "a00361b3-c583-44c7-9542-d0cae36b7fea", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "806163", "type": "scatter", "xsrc": "thattanmay:1:e15bf5", "ysrc": "thattanmay:1:6cc324", "fillcolor": "rgb(216, 226, 25)", "hoverinfo": "none" }, { "uid": "1754e7ad-efdd-49a7-9fc5-0484f529be1f", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "862813", "type": "scatter", "xsrc": "thattanmay:1:05b326", "ysrc": "thattanmay:1:88be9e", "fillcolor": "rgb(253, 231, 37)", "hoverinfo": "none" }, { "uid": "9c235500-bdc8-420d-b2c0-ad4b40164a30", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "897259", "type": "scatter", "xsrc": "thattanmay:1:e3760f", "ysrc": "thattanmay:1:032eb6", "fillcolor": "rgb(253, 231, 37)", "hoverinfo": "none" }, { "uid": "2f8279f8-c3f8-42a2-b1bf-8ad8262eba90", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "933835", "type": "scatter", "xsrc": "thattanmay:1:1d4fb9", "ysrc": "thattanmay:1:f84c2e", "fillcolor": "rgb(253, 231, 37)", "hoverinfo": "none" }, { "uid": "6faef426-a8c1-4319-9ab7-0ebe5760f253", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "1537215", "type": "scatter", "xsrc": "thattanmay:1:410fc6", "ysrc": "thattanmay:1:60a836", "fillcolor": "rgb(253, 231, 37)", "hoverinfo": "none" }, { "uid": "aed5ba37-97ce-4bbf-b3ad-5fbf5de5b945", "mode": "markers", "name": "US Counties", "type": "scatter", "xsrc": "thattanmay:1:81a7ea", "ysrc": "thattanmay:1:8f6198", "marker": { "color": "white", "opacity": 0 }, "textsrc": "thattanmay:1:a0004d", "selected": { "marker": { "size": 3, "color": "white", "opacity": 1 } }, "hoverinfo": "text", "showlegend": false, "unselected": { "marker": { "opacity": 0 } }, "legendgroup": "centroids" }, { "uid": "952f0bf2-799b-4b43-8f2d-3ad6363ab6fe", "line": { "color": "rgb(240, 240, 240)", "width": 1 }, "mode": "lines", "type": "scatter", "xsrc": "thattanmay:1:7548e4", "ysrc": "thattanmay:1:1ad1c7", "hoverinfo": "text", "showlegend": false, "legendgroup": "States" } ], "layout": { "width": 900, "xaxis": { "range": [ -78.4382625, -62.239407499999984 ], "showgrid": false, "zeroline": false, "autorange": false, "fixedrange": true, "showticklabels": false }, "yaxis": { "range": [ 40.980143999999996, 47.459686 ], "showgrid": false, "zeroline": false, "autorange": false, "fixedrange": true, "showticklabels": false }, "height": 450, "legend": { "x": 0, "y": 1, "xanchor": "right", "yanchor": "top", "traceorder": "reversed" }, "margin": { "b": 20, "l": 20, "r": 20, "t": 40 }, "dragmode": "select", "hovermode": "closest", "annotations": [ { "x": -0.12, "y": 1.05, "text": "<b>Population per county</b>", "xref": "paper", "yref": "paper", "xanchor": "left", "showarrow": false } ] } }, "height": 450, "width": 900, "user": { "profile_url": "https://chart-studio.plotly.com/~thattanmay", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/40.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-11.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-03-19 21:15:56", "mapbox_access_tokens": null, "has_password": null, "username": "thattanmay", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T20:36:38.758983Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~parka/22.embed", "fid": "parka:22", "filename": "plot from API (10)", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/parka:22/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/parka:22/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/parka:22/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/parka:22/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/parka:22", "plots": "https://api.plotly.com/v2/plots/parka:22", "parent": "https://api.plotly.com/v2/folders/home?user=parka" }, "owner": "parka", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "EMOB Client Product Flow", "views": 1, "web_url": "https://chart-studio.plotly.com/~parka/22/emob-client-product-flow/", "world_readable": true, "date_modified": "2019-03-20T20:36:39.389Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~parka/22/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "link": { "valuesrc": "parka:23:b945c3", "sourcesrc": "parka:23:0021cc", "targetsrc": "parka:23:eda124" }, "node": { "pad": 15, "line": { "color": "pink", "width": 0.5 }, "colorsrc": "parka:23:c9ff96", "labelsrc": "parka:23:9bbfa5", "thickness": 20 }, "type": "sankey", "orientation": "h", "valueformat": ",d", "valuesuffix": "" } ], "layout": { "font": { "size": 10 }, "title": "EMOB Client Product Flow" } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~parka", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/31.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-13.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2018-07-13 15:10:48", "mapbox_access_tokens": null, "has_password": null, "username": "parka", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T20:36:17.315352Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~mccountystat/25.embed", "fid": "mccountystat:25", "filename": "property crime", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/mccountystat:25/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/mccountystat:25/image?image_name=default", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/mccountystat/25/8_G8MLHDJ94GDS5JV1NHHO6EE4NWKWRC.png", "list-thumb": "https://api.plotly.com/v2/files/mccountystat:25/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/mccountystat:25", "plots": "https://api.plotly.com/v2/plots/mccountystat:25", "parent": "https://api.plotly.com/v2/folders/mccountystat:7" }, "owner": "mccountystat", "parent": 7, "preview": "", "referencers": [], "references": [], "title": "", "views": 75, "web_url": "https://chart-studio.plotly.com/~mccountystat/25/", "world_readable": true, "date_modified": "2019-08-06T14:12:42.286Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~mccountystat/25/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "fill": "none", "line": { "dash": "solid", "shape": "linear", "width": 3 }, "mode": "markers+lines", "name": "Crimes Per 100k Residents", "type": "scatter", "xsrc": "mccountystat:18:282005", "ysrc": "mccountystat:18:a8f964", "marker": { "size": 8, "symbol": "circle", "opacity": 1, "maxdisplayed": 0 }, "textsrc": "mccountystat:18:a8f964", "visible": true, "hoverinfo": "x+y", "transforms": [ { "type": "filter", "value": "Property crime rate (per 100,000 population)", "targetsrc": "mccountystat:18:5109c4" }, { "type": "filter", "value": [ "2012", "2017" ], "operation": "[]", "targetsrc": "mccountystat:18:282005" } ], "connectgaps": true, "hovertemplate": "" } ], "frames": [], "layout": { "font": { "size": 16, "color": "rgb(0, 0, 0)", "family": "Overpass" }, "scene": { "aspectmode": "auto", "aspectratio": { "x": 1, "y": 1, "z": 1 } }, "title": { "x": 0, "font": { "size": 13 }, "text": "<br>" }, "xaxis": { "type": "linear", "range": [ 2011.7049205854873, 2017.2950794145127 ], "ticks": "", "title": { "font": { "size": 18, "color": "rgb(0, 0, 0)", "family": "Roboto" }, "text": "<b>Year</b>" }, "nticks": 5, "ticklen": -1, "showgrid": false, "showline": false, "tickfont": { "size": 18, "color": "rgb(92, 94, 105)", "family": "Roboto" }, "tickmode": "linear", "zeroline": false, "autorange": true, "tickwidth": -1, "tickformat": "", "showexponent": "none", "separatethousands": false }, "yaxis": { "type": "linear", "range": [ 0, 1760.2164461247637 ], "ticks": "", "title": { "font": { "size": 18, "family": "Roboto" }, "text": "<b>Crimes Per Capita (100k)</b>" }, "nticks": -1, "ticklen": -1, "tickfont": { "size": 18, "color": "rgb(66, 68, 71)" }, "autorange": false, "tickwidth": -1, "fixedrange": true, "ticksuffix": "" }, "legend": { "x": 0.622720917907474, "y": 0.7969032830523514, "font": { "size": 17, "family": "Roboto" }, "xanchor": "center", "borderwidth": 0 }, "margin": { "b": 0, "t": 20 }, "autosize": true, "colorway": [ "#3366cc", "#dc3912", "#ff9900", "#109618", "#990099", "#0099c6", "#dd4477", "#66aa00", "#b82e2e", "#316395" ], "dragmode": "orbit", "template": { "data": { "bar": [ { "type": "bar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatter": [ { "type": "scatter", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "histogram": [ { "type": "histogram", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "white", "showlakes": true, "subunitcolor": "#C8D4E3" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "white", "radialaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" }, "angularaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "yaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "zaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "baxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "caxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "bgcolor": "white" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#19d3f3", "#e763fa", "#fecb52", "#ffa15a", "#ff6692", "#b6e880" ], "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ], "sequentialminus": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ] }, "plot_bgcolor": "white", "paper_bgcolor": "white", "shapedefaults": { "line": { "width": 0 }, "opacity": 0.4, "fillcolor": "#506784" }, "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#506784", "arrowwidth": 1 } }, "themeRef": "PLOTLY_WHITE" }, "clickmode": "event+select", "colorscale": { "sequentialminus": [ [ 0, "#0508b8" ], [ 0.08333333333333333, "#1910d8" ], [ 0.16666666666666666, "#3c19f0" ], [ 0.25, "#6b1cfb" ], [ 0.3333333333333333, "#981cfd" ], [ 0.4166666666666667, "#bf1cfd" ], [ 0.5, "#dd2bfd" ], [ 0.5833333333333334, "#f246fe" ], [ 0.6666666666666666, "#fc67fd" ], [ 0.75, "#fe88fc" ], [ 0.8333333333333334, "#fea5fd" ], [ 0.9166666666666666, "#febefe" ], [ 1, "#fec3fe" ] ] }, "hoverlabel": { "font": { "size": 11, "color": "#000", "family": "Roboto" }, "bgcolor": "#FFF" }, "showlegend": true, "plot_bgcolor": "rgb(255, 255, 255)" } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~mccountystat", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/79.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-10.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2018-06-15 16:16:53", "mapbox_access_tokens": null, "has_password": null, "username": "mccountystat", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T20:35:28.101975Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~keeganhughes/2.embed", "fid": "keeganhughes:2", "filename": "plot from API", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/keeganhughes:2/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/keeganhughes:2/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/keeganhughes:2/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/keeganhughes:2/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/keeganhughes:2", "plots": "https://api.plotly.com/v2/plots/keeganhughes:2", "parent": "https://api.plotly.com/v2/folders/home?user=keeganhughes" }, "owner": "keeganhughes", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "Scottish Referendum Voters who now want Independence", "views": 0, "web_url": "https://chart-studio.plotly.com/~keeganhughes/2/scottish-referendum-voters-who-now-want-independence/", "world_readable": true, "date_modified": "2019-03-20T20:35:28.528Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~keeganhughes/2/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "link": { "valuesrc": "keeganhughes:3:4d696a", "sourcesrc": "keeganhughes:3:eaf440", "targetsrc": "keeganhughes:3:b6e837" }, "node": { "pad": 10, "line": { "color": "black", "width": 0 }, "colorsrc": "keeganhughes:3:e3a427", "thickness": 30 }, "type": "sankey", "domain": { "x": [ 0, 1 ], "y": [ 0, 1 ] }, "orientation": "h", "valueformat": ".0f" } ], "layout": { "font": { "size": 10 }, "title": "Scottish Referendum Voters who now want Independence", "height": 772 } }, "height": 772, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~keeganhughes", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/91.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-0.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-02-26 23:51:15", "mapbox_access_tokens": null, "has_password": null, "username": "keeganhughes", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T20:35:24.121138Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~chloeocampo/1.embed", "fid": "chloeocampo:1", "filename": "Physics", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/chloeocampo:1/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/chloeocampo:1/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/chloeocampo:1/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/chloeocampo:1/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/chloeocampo:1", "plots": "https://api.plotly.com/v2/plots/chloeocampo:1", "parent": "https://api.plotly.com/v2/folders/home?user=chloeocampo" }, "owner": "chloeocampo", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~chloeocampo/1/", "world_readable": true, "date_modified": "2019-03-20T20:35:24.163Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~chloeocampo/1/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "486743", "mode": "markers", "name": "Ideal Projectile", "type": "scatter", "xsrc": "chloeocampo:0:f2be2a", "ysrc": "chloeocampo:0:ecab87" }, { "uid": "e859f8", "mode": "markers", "name": "Football Punt", "type": "scatter", "xsrc": "chloeocampo:0:4d63d9", "ysrc": "chloeocampo:0:37d4b7", "stackgroup": null }, { "uid": "a1a911", "name": "Fit of Ideal Projectile", "visible": false, "transforms": [ { "rms": "", "type": "fit", "inputUid": "486743", "regressor": "x", "parameters": [ { "hold": false, "name": "a", "error": 1.6434002479787375, "value": -13.764036482931925 }, { "hold": false, "name": "b", "error": 14.86337280540312, "value": 117.28468270543574 }, { "hold": false, "name": "c", "error": 32.9789238939693, "value": -156.85242004697082 } ], "regressand": "y", "correlation": "", "fitfunction": "a*x^2 + b*x + c", "inputxrange": [], "outputxrange": [], "interpolation": 50 } ] }, { "uid": "f737de", "visible": false, "transforms": [ { "rms": 1.3374816216884422, "type": "fit", "xmid": 3.900000000000001, "ymid": 60.318168498988584, "inputUid": "e859f8", "regressor": "x", "parameters": [ { "hold": false, "name": "a", "error": 2.0942099697937686, "value": -13.97110157387612 }, { "hold": false, "name": "b", "error": 16.462470582860835, "value": 101.60152437175105 }, { "hold": false, "name": "c", "error": 31.803824336133438, "value": -123.42732161218471 } ], "regressand": "y", "correlation": 0.9840012988305308, "fitfunction": "a*x^2 + b*x + c", "inputxrange": [], "outputxrange": [], "interpolation": 50 } ] }, { "uid": "729de8", "transforms": [ { "rms": 6.386479199403781, "type": "fit", "xmid": 4.500000000000001, "ymid": 85.69631901840492, "inputUid": "486743", "regressor": "x", "parameters": [ { "hold": false, "name": "a", "error": 1.6434002479787375, "value": -13.764036482931925 }, { "hold": false, "name": "b", "error": 14.86337280540312, "value": 117.28468270543574 }, { "hold": false, "name": "c", "error": 32.9789238939693, "value": -156.85242004697082 } ], "regressand": "y", "correlation": 0.6607889499704125, "fitfunction": "a*x^2 + b*x + c", "inputxrange": [], "outputxrange": [], "interpolation": 50 } ] }, { "uid": "ffeae6", "transforms": [ { "rms": "", "type": "fit", "inputUid": "e859f8", "regressor": "x", "parameters": [ { "hold": false, "name": "a", "error": 2.0942099697937686, "value": -13.97110157387612 }, { "hold": false, "name": "b", "error": 16.462470582860835, "value": 101.60152437175105 }, { "hold": false, "name": "c", "error": 31.803824336133438, "value": -123.42732161218471 } ], "regressand": "y", "correlation": "", "fitfunction": "a*x^2 + b*x + c", "inputxrange": [], "outputxrange": [], "interpolation": 50 } ] } ], "frames": [], "layout": { "title": { "text": "Horizontal Displacement of a Football Punt vs. Ideal Projectile" }, "xaxis": { "type": "linear", "range": [ 2.940746500777605, 5.659253499222395 ], "title": { "text": "Δt (s)" }, "autorange": true }, "yaxis": { "type": "linear", "range": [ 39.96202736053975, 99.01194983006602 ], "title": { "text": "Δdx (m)" }, "autorange": true }, "margin": { "pad": 1 }, "autosize": false, "template": { "data": { "bar": [ { "type": "bar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatter": [ { "type": "scatter", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "histogram": [ { "type": "histogram", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "white", "showlakes": true, "subunitcolor": "#C8D4E3" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "white", "radialaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" }, "angularaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "yaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "zaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "baxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "caxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "bgcolor": "white" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#19d3f3", "#e763fa", "#fecb52", "#ffa15a", "#ff6692", "#b6e880" ], "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ], "sequentialminus": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ] }, "plot_bgcolor": "white", "paper_bgcolor": "white", "shapedefaults": { "line": { "width": 0 }, "opacity": 0.4, "fillcolor": "#506784" }, "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#506784", "arrowwidth": 1 } }, "themeRef": "PLOTLY_WHITE" }, "annotations": [ { "x": 3.5099533437014, "y": 89.53321976149915, "text": "35°", "showarrow": false }, { "x": 3.8396578538102646, "y": 94.16695059625214, "ax": -10, "ay": -30, "text": "40°", "showarrow": false }, { "x": 4.3, "y": 96.11734578744218, "ax": 7, "ay": -30, "text": "45°", "showarrow": false }, { "x": 4.7043545878693624, "y": 94.09112295760549, "text": "50°", "showarrow": false }, { "x": 4.990513219284604, "y": 89.74921689366974, "text": "55°", "showarrow": false }, { "x": 5.307776049766718, "y": 83.0916275956349, "text": "60°", "showarrow": false }, { "x": 5.537947122861586, "y": 73.82889465923863, "text": "65°", "showarrow": false }, { "x": 3.111819595645412, "y": 61.961018084480905, "text": "35°", "showarrow": false }, { "x": 3.503732503888025, "y": 63.6977805100552, "text": "40°", "showarrow": false }, { "x": 3.8023328149300157, "y": 64.85562212710474, "text": "45°", "showarrow": false }, { "x": 4.194245723172628, "y": 62.53993889300567, "text": "50°", "showarrow": false }, { "x": 4.411975116640747, "y": 57.90857242480753, "text": "55°", "showarrow": false }, { "x": 4.617262830482115, "y": 53.27720595660939, "text": "60°", "showarrow": false }, { "x": 4.772783825816485, "y": 46.90907706283695, "ax": 94, "ay": 0, "text": "65°", "showarrow": false } ] } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~chloeocampo", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/76.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-2.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-03-20 20:21:43", "mapbox_access_tokens": null, "has_password": null, "username": "chloeocampo", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T20:35:11.245951Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~sheryc/4.embed", "fid": "sheryc:4", "filename": "Philsophy", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/sheryc:4/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/sheryc:4/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/sheryc:4/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/sheryc:4/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/sheryc:4", "plots": "https://api.plotly.com/v2/plots/sheryc:4", "parent": "https://api.plotly.com/v2/folders/home?user=sheryc" }, "owner": "sheryc", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "Gantt Chart", "views": 0, "web_url": "https://chart-studio.plotly.com/~sheryc/4/gantt-chart/", "world_readable": true, "date_modified": "2019-03-20T20:35:11.719Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~sheryc/4/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "0965bc6e-f4af-4a41-8b32-347206c2314d", "name": "", "type": "scatter", "xsrc": "sheryc:5:a8a4af", "ysrc": "sheryc:5:40aefe", "marker": { "color": "white" } }, { "uid": "2ffedaa3-aae4-409a-995a-197ce82fc8e8", "name": "", "type": "scatter", "xsrc": "sheryc:5:5698f2", "ysrc": "sheryc:5:07dbde", "marker": { "color": "white" } }, { "uid": "5449723f-acd3-4e18-8c3a-ad2f39dd290f", "name": "", "type": "scatter", "xsrc": "sheryc:5:72207d", "ysrc": "sheryc:5:fcd78c", "marker": { "color": "white" } }, { "uid": "951faa38-addd-455c-b9bb-5fb1a319a24b", "name": "", "type": "scatter", "xsrc": "sheryc:5:2ce875", "ysrc": "sheryc:5:1cc630", "marker": { "color": "white" } }, { "uid": "179bd8e8-8fab-4733-b72b-013ef16f0c2c", "name": "", "type": "scatter", "xsrc": "sheryc:5:eceb06", "ysrc": "sheryc:5:96f685", "marker": { "color": "white" } }, { "uid": "daf2016a-8dc2-4b91-994d-83ea9b4a0e35", "name": "", "type": "scatter", "xsrc": "sheryc:5:ccec92", "ysrc": "sheryc:5:1844c7", "marker": { "color": "white" } }, { "uid": "4e0d9e28-98bb-434c-b7e8-7c7446f116c3", "name": "", "type": "scatter", "xsrc": "sheryc:5:6134a8", "ysrc": "sheryc:5:a8e556", "marker": { "color": "white" } }, { "uid": "6862967e-8683-4706-8623-3b7c16ee3418", "name": "", "type": "scatter", "xsrc": "sheryc:5:2a6d0f", "ysrc": "sheryc:5:0fe26f", "marker": { "color": "white" } }, { "uid": "314d8452-5f32-4c9b-b948-ad0a0477a1e5", "name": "", "type": "scatter", "xsrc": "sheryc:5:2a6d0f", "ysrc": "sheryc:5:527b59", "marker": { "color": "white" } }, { "uid": "9a4075be-f672-4e6e-baa8-7fa9ad1cb584", "name": "", "type": "scatter", "xsrc": "sheryc:5:e64a06", "ysrc": "sheryc:5:10db31", "marker": { "color": "white" } }, { "uid": "e29771af-c708-4c15-bb49-9e2b78dd1d62", "name": "", "type": "scatter", "xsrc": "sheryc:5:984805", "ysrc": "sheryc:5:7c5a1a", "marker": { "color": "white" } }, { "uid": "e0d63a6e-8190-4c16-8a32-a69b4e99faf9", "name": "", "type": "scatter", "xsrc": "sheryc:5:8019d6", "ysrc": "sheryc:5:96a786", "marker": { "color": "white" } }, { "uid": "386c5342-1abb-4b1a-aa92-76718c926026", "name": "", "type": "scatter", "xsrc": "sheryc:5:77de29", "ysrc": "sheryc:5:8c688a", "marker": { "color": "white" } }, { "uid": "b48cf565-e631-4e2b-b74a-a7661ca2f20e", "name": "", "type": "scatter", "xsrc": "sheryc:5:395075", "ysrc": "sheryc:5:6d0395", "marker": { "color": "white" } }, { "uid": "b89cc35f-fd64-4371-99f9-796e98f53abf", "name": "", "type": "scatter", "xsrc": "sheryc:5:6caa43", "ysrc": "sheryc:5:760cb1", "marker": { "color": "white" } }, { "uid": "7b21558d-9ac0-4e44-b36c-1cecd6154f80", "name": "", "type": "scatter", "xsrc": "sheryc:5:ad9052", "ysrc": "sheryc:5:b0f674", "marker": { "color": "white" } }, { "uid": "6246c3ce-5554-4cb4-ac48-1ce1ccd09fd6", "name": "", "type": "scatter", "xsrc": "sheryc:5:d87a06", "ysrc": "sheryc:5:93fe48", "marker": { "color": "white" } }, { "uid": "d43860a8-2b6b-44c2-8f9b-6f6b73b9c785", "name": "", "type": "scatter", "xsrc": "sheryc:5:c4fcb9", "ysrc": "sheryc:5:6c39ed", "marker": { "color": "white" } }, { "uid": "b764db5f-f68a-4d40-bf67-7e2314d3bb20", "name": "", "type": "scatter", "xsrc": "sheryc:5:890d53", "ysrc": "sheryc:5:ff8a7a", "marker": { "color": "white" } }, { "uid": "f7deffe6-08a9-4e90-8854-a462a65c3cef", "name": "", "type": "scatter", "xsrc": "sheryc:5:7a2917", "ysrc": "sheryc:5:bd5403", "marker": { "color": "white" } }, { "uid": "4d26afb7-4cef-46b5-80b7-b7beb42dd631", "name": "", "type": "scatter", "xsrc": "sheryc:5:b22ab2", "ysrc": "sheryc:5:237997", "marker": { "color": "white" } }, { "uid": "61f77a36-e401-4b9c-ac30-96a100e55780", "name": "", "type": "scatter", "xsrc": "sheryc:5:12d0f2", "ysrc": "sheryc:5:13b73d", "marker": { "color": "white" } }, { "uid": "26873405-616a-4ad7-a103-920e72fe977f", "name": "", "type": "scatter", "xsrc": "sheryc:5:890d53", "ysrc": "sheryc:5:428d9e", "marker": { "color": "white" } }, { "uid": "ba79a7cf-2b5f-48da-98d6-512d184b2d9e", "name": "", "type": "scatter", "xsrc": "sheryc:5:d49bf4", "ysrc": "sheryc:5:f57674", "marker": { "color": "white" } }, { "uid": "ea7df089-2f3a-4f9e-832b-82f720ae555d", "name": "", "type": "scatter", "xsrc": "sheryc:5:d49bf4", "ysrc": "sheryc:5:b8acec", "marker": { "color": "white" } }, { "uid": "1ed005ca-e468-4753-acd5-c12c8aac5842", "name": "", "type": "scatter", "xsrc": "sheryc:5:4eea09", "ysrc": "sheryc:5:bd0553", "marker": { "color": "white" } }, { "uid": "d0796feb-6320-4162-a0c2-81301c031674", "name": "", "type": "scatter", "xsrc": "sheryc:5:4eea09", "ysrc": "sheryc:5:6b93ef", "marker": { "color": "white" } }, { "uid": "8b5262b4-ba19-4fd6-9f48-bfcb1cd64ea0", "name": "", "type": "scatter", "xsrc": "sheryc:5:689cf0", "ysrc": "sheryc:5:57e414", "marker": { "color": "white" } }, { "uid": "bdcb116f-22f1-4fb3-8278-0cb1bb8f9df0", "name": "", "type": "scatter", "xsrc": "sheryc:5:3768b0", "ysrc": "sheryc:5:7fd246", "marker": { "color": "white" } }, { "uid": "0a62a2f0-dc14-4f23-a47e-c8c5b5d9031b", "name": "", "type": "scatter", "xsrc": "sheryc:5:3768b0", "ysrc": "sheryc:5:81d518", "marker": { "color": "white" } }, { "uid": "4400ace3-1373-4305-8988-77fc3c5cd373", "name": "", "type": "scatter", "xsrc": "sheryc:5:3fc529", "ysrc": "sheryc:5:ba6675", "marker": { "color": "white" } }, { "uid": "cd76236d-c98f-4c85-8044-167d9418a1ed", "name": "", "type": "scatter", "xsrc": "sheryc:5:0c0fad", "ysrc": "sheryc:5:0f9e53", "marker": { "color": "white" } }, { "uid": "8c36297e-5c49-4592-a5f0-998bddcab7a4", "name": "", "type": "scatter", "xsrc": "sheryc:5:3fc529", "ysrc": "sheryc:5:1f81e2", "marker": { "color": "white" } }, { "uid": "263d8321-8e12-4d4b-bfc2-acbb926fbfa7", "name": "", "type": "scatter", "xsrc": "sheryc:5:17b6e8", "ysrc": "sheryc:5:90181f", "marker": { "color": "white" } }, { "uid": "26758ee6-1117-41ae-9764-5d02289eebcd", "name": "", "type": "scatter", "xsrc": "sheryc:5:70dfd2", "ysrc": "sheryc:5:3c2264", "marker": { "color": "white" } }, { "uid": "07c6b390-a808-44e7-b447-7b66adf5e16f", "name": "", "type": "scatter", "xsrc": "sheryc:5:aacce8", "ysrc": "sheryc:5:bc44f9", "marker": { "color": "white" } } ], "layout": { "title": { "text": "Gantt Chart" }, "width": 900, "xaxis": { "type": "date", "showgrid": false, "zeroline": false, "rangeselector": { "buttons": [ { "step": "day", "count": 7, "label": "1w", "stepmode": "backward" }, { "step": "month", "count": 1, "label": "1m", "stepmode": "backward" }, { "step": "month", "count": 6, "label": "6m", "stepmode": "backward" }, { "step": "year", "count": 1, "label": "YTD", "stepmode": "todate" }, { "step": "year", "count": 1, "label": "1y", "stepmode": "backward" }, { "step": "all" } ] } }, "yaxis": { "range": [ -1, 37 ], "showgrid": false, "ticktext": [ 288, 289, 301, 302, 304, 314, 315, 318, 324, 326, 343, 365, 378, 392, 398, 399, 403, 417, 418, 419, 422, 423, 427, 444, 445, 446, 448, 449, 450, 452, 453, 494, 499, 514, 517, 522 ], "tickvals": [ 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35 ], "zeroline": false, "autorange": false }, "height": 600, "shapes": [ { "x0": "2017-11-20", "x1": "2017-11-22", "y0": -0.2, "y1": 0.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(31, 119, 180)" }, { "x0": "2017-11-17", "x1": "2017-11-19", "y0": 0.8, "y1": 1.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(255, 127, 14)" }, { "x0": "2018-02-02", "x1": "2018-02-04", "y0": 1.8, "y1": 2.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(44, 160, 44)" }, { "x0": "2018-02-07", "x1": "2018-02-20", "y0": 2.8, "y1": 3.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(214, 39, 40)" }, { "x0": "2018-02-15", "x1": "2018-02-18", "y0": 3.8, "y1": 4.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(148, 103, 189)" }, { "x0": "2018-03-14", "x1": "2018-03-15", "y0": 4.8, "y1": 5.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(140, 86, 75)" }, { "x0": "2018-03-21", "x1": "2018-04-03", "y0": 5.8, "y1": 6.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(227, 119, 194)" }, { "x0": "2018-03-15", "x1": "2018-03-15", "y0": 6.8, "y1": 7.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(127, 127, 127)" }, { "x0": "2018-03-15", "x1": "2018-03-15", "y0": 7.8, "y1": 8.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(188, 189, 34)" }, { "x0": "2018-03-24", "x1": "2018-03-24", "y0": 8.8, "y1": 9.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(23, 190, 207)" }, { "x0": "2018-04-03", "x1": "2018-04-04", "y0": 9.8, "y1": 10.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(31, 119, 180)" }, { "x0": "2018-05-09", "x1": "2018-05-16", "y0": 10.8, "y1": 11.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(255, 127, 14)" }, { "x0": "2018-06-13", "x1": "2018-06-17", "y0": 11.8, "y1": 12.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(44, 160, 44)" }, { "x0": "2018-06-29", "x1": "2018-07-01", "y0": 12.8, "y1": 13.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(214, 39, 40)" }, { "x0": "2018-07-12", "x1": "2018-07-15", "y0": 13.8, "y1": 14.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(148, 103, 189)" }, { "x0": "2018-07-21", "x1": "2018-07-21", "y0": 14.8, "y1": 15.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(140, 86, 75)" }, { "x0": "2018-07-11", "x1": "2018-07-15", "y0": 15.8, "y1": 16.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(227, 119, 194)" }, { "x0": "2018-07-27", "x1": "2018-07-29", "y0": 16.8, "y1": 17.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(127, 127, 127)" }, { "x0": "2018-08-03", "x1": "2018-08-05", "y0": 17.8, "y1": 18.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(188, 189, 34)" }, { "x0": "2018-08-10", "x1": "2018-08-12", "y0": 18.8, "y1": 19.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(23, 190, 207)" }, { "x0": "2018-08-12", "x1": "2018-08-18", "y0": 19.8, "y1": 20.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(31, 119, 180)" }, { "x0": "2018-08-19", "x1": "2018-08-25", "y0": 20.8, "y1": 21.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(255, 127, 14)" }, { "x0": "2018-08-03", "x1": "2018-08-05", "y0": 21.8, "y1": 22.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(44, 160, 44)" }, { "x0": "2018-09-06", "x1": "2018-09-06", "y0": 22.8, "y1": 23.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(214, 39, 40)" }, { "x0": "2018-09-06", "x1": "2018-09-06", "y0": 23.8, "y1": 24.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(148, 103, 189)" }, { "x0": "2018-09-13", "x1": "2018-09-13", "y0": 24.8, "y1": 25.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(140, 86, 75)" }, { "x0": "2018-09-13", "x1": "2018-09-13", "y0": 25.8, "y1": 26.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(227, 119, 194)" }, { "x0": "2018-09-20", "x1": "2018-09-20", "y0": 26.8, "y1": 27.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(127, 127, 127)" }, { "x0": "2018-09-27", "x1": "2018-09-27", "y0": 27.8, "y1": 28.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(188, 189, 34)" }, { "x0": "2018-09-27", "x1": "2018-09-27", "y0": 28.8, "y1": 29.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(23, 190, 207)" }, { "x0": "2018-10-04", "x1": "2018-10-04", "y0": 29.8, "y1": 30.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(31, 119, 180)" }, { "x0": "2018-09-27", "x1": "2018-09-30", "y0": 30.8, "y1": 31.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(255, 127, 14)" }, { "x0": "2018-10-04", "x1": "2018-10-04", "y0": 31.8, "y1": 32.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(44, 160, 44)" }, { "x0": "2018-10-18", "x1": "2018-10-18", "y0": 32.8, "y1": 33.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(214, 39, 40)" }, { "x0": "2018-11-02", "x1": "2018-11-04", "y0": 33.8, "y1": 34.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(148, 103, 189)" }, { "x0": "2018-11-21", "x1": "2018-11-27", "y0": 34.8, "y1": 35.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(140, 86, 75)" } ], "hovermode": "closest", "showlegend": false } }, "height": 600, "width": 900, "user": { "profile_url": "https://chart-studio.plotly.com/~sheryc", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/61.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-11.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-03-20 19:22:02", "mapbox_access_tokens": null, "has_password": null, "username": "sheryc", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T20:35:02.570932Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~ShivamPanchal/8.embed", "fid": "ShivamPanchal:8", "filename": "angled-text-bar", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/ShivamPanchal:8/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/ShivamPanchal:8/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/ShivamPanchal:8/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/ShivamPanchal:8/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/ShivamPanchal:8", "plots": "https://api.plotly.com/v2/plots/ShivamPanchal:8", "parent": "https://api.plotly.com/v2/folders/home?user=ShivamPanchal" }, "owner": "ShivamPanchal", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "Accuracy, AUC, Precision, Recall", "views": 9, "web_url": "https://chart-studio.plotly.com/~ShivamPanchal/8/accuracy-auc-precision-recall/", "world_readable": true, "date_modified": "2019-03-25T14:17:43.751Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~ShivamPanchal/8/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "608e75f3-ecd3-4be5-b26f-99379bf0c98f", "name": "Accuracy", "type": "bar", "xsrc": "ShivamPanchal:9:f9cde2", "ysrc": "ShivamPanchal:9:f3941c", "marker": { "color": "rgb(49,130,189)" } }, { "uid": "51057c79-81aa-40f1-8996-5b06d9f85b08", "name": "AUC", "type": "bar", "xsrc": "ShivamPanchal:9:f9cde2", "ysrc": "ShivamPanchal:9:4bde64", "marker": { "color": "rgb(204,204,204)" } }, { "uid": "15fe2582-4b21-4243-828f-2b59f28cce51", "name": "Precision", "type": "bar", "xsrc": "ShivamPanchal:9:f9cde2", "ysrc": "ShivamPanchal:9:028b9e", "marker": { "color": "rgba(222,45,38,0.8)" } }, { "uid": "b1b5648a-e4ae-4191-8985-d1bb77c00e8a", "name": "Recall", "type": "bar", "xsrc": "ShivamPanchal:9:f9cde2", "ysrc": "ShivamPanchal:9:422574", "marker": { "color": "rgba(50, 171, 96, 1.0)" } } ], "layout": { "xaxis": { "tickangle": -25 }, "barmode": "group" } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~ShivamPanchal", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/78.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-8.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2018-07-15 10:48:19", "mapbox_access_tokens": null, "has_password": null, "username": "ShivamPanchal", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T20:33:34.660085Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~sheryc/2.embed", "fid": "sheryc:2", "filename": "Steve Madden", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/sheryc:2/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/sheryc:2/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/sheryc:2/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/sheryc:2/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/sheryc:2", "plots": "https://api.plotly.com/v2/plots/sheryc:2", "parent": "https://api.plotly.com/v2/folders/home?user=sheryc" }, "owner": "sheryc", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "Gantt Chart", "views": 0, "web_url": "https://chart-studio.plotly.com/~sheryc/2/gantt-chart/", "world_readable": true, "date_modified": "2019-03-20T20:35:09.855Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~sheryc/2/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "a36a3158-a693-4abb-83cc-c589dfc18650", "name": "", "type": "scatter", "xsrc": "sheryc:3:556cd3", "ysrc": "sheryc:3:5b26a2", "marker": { "color": "white" } }, { "uid": "11896291-efb9-4862-a2f7-435220d4254c", "name": "", "type": "scatter", "xsrc": "sheryc:3:d1a24f", "ysrc": "sheryc:3:b4bd6e", "marker": { "color": "white" } }, { "uid": "c6945fea-278f-4934-9558-4982a7f78166", "name": "", "type": "scatter", "xsrc": "sheryc:3:3bfd8b", "ysrc": "sheryc:3:062451", "marker": { "color": "white" } }, { "uid": "ffc1f3c4-f35d-4d93-8eb8-be03dc13cd56", "name": "", "type": "scatter", "xsrc": "sheryc:3:7f0853", "ysrc": "sheryc:3:769e1f", "marker": { "color": "white" } }, { "uid": "7eef5902-0d50-47d4-9a43-1853f8da6b67", "name": "", "type": "scatter", "xsrc": "sheryc:3:c42625", "ysrc": "sheryc:3:cbe0f3", "marker": { "color": "white" } }, { "uid": "2363b1c2-4541-46cb-be44-3ffeda55de32", "name": "", "type": "scatter", "xsrc": "sheryc:3:130756", "ysrc": "sheryc:3:597ff4", "marker": { "color": "white" } }, { "uid": "6c08b93f-852f-4775-aec3-5e65cea42b31", "name": "", "type": "scatter", "xsrc": "sheryc:3:fc22d9", "ysrc": "sheryc:3:e9492b", "marker": { "color": "white" } }, { "uid": "8c5604bc-5e90-4b78-84b0-3cd3eea22c59", "name": "", "type": "scatter", "xsrc": "sheryc:3:cd22a1", "ysrc": "sheryc:3:b3b965", "marker": { "color": "white" } }, { "uid": "2c47a8a0-0d2a-4327-9c20-8f7b5e4c135e", "name": "", "type": "scatter", "xsrc": "sheryc:3:cd22a1", "ysrc": "sheryc:3:893894", "marker": { "color": "white" } }, { "uid": "f085039b-4e26-442e-907c-8d6cbe11af26", "name": "", "type": "scatter", "xsrc": "sheryc:3:c3aa5e", "ysrc": "sheryc:3:df21be", "marker": { "color": "white" } }, { "uid": "2a324967-6c59-4e22-bbd9-1cd1590ce69c", "name": "", "type": "scatter", "xsrc": "sheryc:3:6dc618", "ysrc": "sheryc:3:02e8f7", "marker": { "color": "white" } }, { "uid": "da660b70-e219-4dbb-b4a2-3491b16bf40f", "name": "", "type": "scatter", "xsrc": "sheryc:3:8b1f53", "ysrc": "sheryc:3:d77afb", "marker": { "color": "white" } }, { "uid": "a5dc8293-9bf0-45eb-9f3d-446d8c40a125", "name": "", "type": "scatter", "xsrc": "sheryc:3:7ad7fe", "ysrc": "sheryc:3:f24bcc", "marker": { "color": "white" } }, { "uid": "ab89f467-ce84-4000-a27e-1730e09d863f", "name": "", "type": "scatter", "xsrc": "sheryc:3:3b4f05", "ysrc": "sheryc:3:ac1432", "marker": { "color": "white" } }, { "uid": "731e12d1-f42b-46ef-8b99-ef8e943ae78d", "name": "", "type": "scatter", "xsrc": "sheryc:3:7bfa07", "ysrc": "sheryc:3:c35362", "marker": { "color": "white" } }, { "uid": "5a0c5d87-95ff-4cfc-84f9-6132dfef1bcb", "name": "", "type": "scatter", "xsrc": "sheryc:3:1a0fdc", "ysrc": "sheryc:3:1cbdbf", "marker": { "color": "white" } }, { "uid": "51b90666-4596-46ce-bcb0-4958e2e4bc22", "name": "", "type": "scatter", "xsrc": "sheryc:3:57cdde", "ysrc": "sheryc:3:41e2d4", "marker": { "color": "white" } }, { "uid": "3d466ef6-4e30-443c-9001-77e5d444eaee", "name": "", "type": "scatter", "xsrc": "sheryc:3:cb4a39", "ysrc": "sheryc:3:932bcc", "marker": { "color": "white" } }, { "uid": "b33f3aeb-ed36-4ef4-8292-c392b3cbed41", "name": "", "type": "scatter", "xsrc": "sheryc:3:be19a5", "ysrc": "sheryc:3:1dd53a", "marker": { "color": "white" } }, { "uid": "3f63c656-5716-4ab2-8a85-52434150990d", "name": "", "type": "scatter", "xsrc": "sheryc:3:ad02e3", "ysrc": "sheryc:3:591eab", "marker": { "color": "white" } }, { "uid": "075f5b0c-a24f-4f75-8c39-fd2a6d9a1496", "name": "", "type": "scatter", "xsrc": "sheryc:3:9c5173", "ysrc": "sheryc:3:4ba5f5", "marker": { "color": "white" } }, { "uid": "5b155d11-8a2d-4e87-ae59-b7ed40f7ca8b", "name": "", "type": "scatter", "xsrc": "sheryc:3:4fc1e4", "ysrc": "sheryc:3:8ff7cd", "marker": { "color": "white" } }, { "uid": "266b672c-2448-4dc3-882e-e452904dca95", "name": "", "type": "scatter", "xsrc": "sheryc:3:be19a5", "ysrc": "sheryc:3:499862", "marker": { "color": "white" } }, { "uid": "00755b6a-eaae-4eb3-83c6-02e84551ee2a", "name": "", "type": "scatter", "xsrc": "sheryc:3:f0985d", "ysrc": "sheryc:3:755817", "marker": { "color": "white" } }, { "uid": "6d91fade-2f6b-4644-8f27-6f3894c1b028", "name": "", "type": "scatter", "xsrc": "sheryc:3:f0985d", "ysrc": "sheryc:3:771044", "marker": { "color": "white" } }, { "uid": "31d1373e-6568-4c0c-95bb-fb0655b08582", "name": "", "type": "scatter", "xsrc": "sheryc:3:4459a8", "ysrc": "sheryc:3:7a5bae", "marker": { "color": "white" } }, { "uid": "928063f9-97cf-41d3-8f6e-f680907ce854", "name": "", "type": "scatter", "xsrc": "sheryc:3:4459a8", "ysrc": "sheryc:3:2ab744", "marker": { "color": "white" } }, { "uid": "f4aec5c6-d508-4930-8c4e-dc6ae72f2f8a", "name": "", "type": "scatter", "xsrc": "sheryc:3:e7fdc6", "ysrc": "sheryc:3:1db245", "marker": { "color": "white" } }, { "uid": "0fcb6a9a-a5be-452a-84e8-3c1a7c0605ef", "name": "", "type": "scatter", "xsrc": "sheryc:3:3609d8", "ysrc": "sheryc:3:a9afcc", "marker": { "color": "white" } }, { "uid": "9d3e1e10-9f99-4d05-8f4c-c90681515641", "name": "", "type": "scatter", "xsrc": "sheryc:3:3609d8", "ysrc": "sheryc:3:860b2f", "marker": { "color": "white" } }, { "uid": "8b4d1d38-c22f-49e3-baab-8bde371ccb25", "name": "", "type": "scatter", "xsrc": "sheryc:3:0ee2a9", "ysrc": "sheryc:3:bc5d9d", "marker": { "color": "white" } }, { "uid": "6f8aa296-e5ee-4da9-bcdf-5974465a9b55", "name": "", "type": "scatter", "xsrc": "sheryc:3:599725", "ysrc": "sheryc:3:89d72a", "marker": { "color": "white" } }, { "uid": "38de6e60-84b8-4347-bf6c-741b168456f7", "name": "", "type": "scatter", "xsrc": "sheryc:3:0ee2a9", "ysrc": "sheryc:3:b3ff55", "marker": { "color": "white" } }, { "uid": "2c4cb1aa-caf3-457d-8932-1f5c7f558868", "name": "", "type": "scatter", "xsrc": "sheryc:3:98c8df", "ysrc": "sheryc:3:c20df6", "marker": { "color": "white" } }, { "uid": "3ad4f5de-4f81-4741-9930-19275c09ba5b", "name": "", "type": "scatter", "xsrc": "sheryc:3:7c5708", "ysrc": "sheryc:3:9f7dad", "marker": { "color": "white" } }, { "uid": "0d83a799-930b-461c-bd9e-e58b2f3b1b02", "name": "", "type": "scatter", "xsrc": "sheryc:3:54f29b", "ysrc": "sheryc:3:98e8a9", "marker": { "color": "white" } } ], "layout": { "title": { "text": "Gantt Chart" }, "width": 900, "xaxis": { "type": "date", "showgrid": false, "zeroline": false, "rangeselector": { "buttons": [ { "step": "day", "count": 7, "label": "1w", "stepmode": "backward" }, { "step": "month", "count": 1, "label": "1m", "stepmode": "backward" }, { "step": "month", "count": 6, "label": "6m", "stepmode": "backward" }, { "step": "year", "count": 1, "label": "YTD", "stepmode": "todate" }, { "step": "year", "count": 1, "label": "1y", "stepmode": "backward" }, { "step": "all" } ] } }, "yaxis": { "range": [ -1, 37 ], "showgrid": false, "ticktext": [ 288, 289, 301, 302, 304, 314, 315, 318, 324, 326, 343, 365, 378, 392, 398, 399, 403, 417, 418, 419, 422, 423, 427, 444, 445, 446, 448, 449, 450, 452, 453, 494, 499, 514, 517, 522 ], "tickvals": [ 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35 ], "zeroline": false, "autorange": false }, "height": 600, "shapes": [ { "x0": "2017-11-20", "x1": "2017-11-22", "y0": -0.2, "y1": 0.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(31, 119, 180)" }, { "x0": "2017-11-17", "x1": "2017-11-19", "y0": 0.8, "y1": 1.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(255, 127, 14)" }, { "x0": "2018-02-02", "x1": "2018-02-04", "y0": 1.8, "y1": 2.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(44, 160, 44)" }, { "x0": "2018-02-07", "x1": "2018-02-20", "y0": 2.8, "y1": 3.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(214, 39, 40)" }, { "x0": "2018-02-15", "x1": "2018-02-18", "y0": 3.8, "y1": 4.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(148, 103, 189)" }, { "x0": "2018-03-14", "x1": "2018-03-15", "y0": 4.8, "y1": 5.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(140, 86, 75)" }, { "x0": "2018-03-21", "x1": "2018-04-03", "y0": 5.8, "y1": 6.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(227, 119, 194)" }, { "x0": "2018-03-15", "x1": "2018-03-15", "y0": 6.8, "y1": 7.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(127, 127, 127)" }, { "x0": "2018-03-15", "x1": "2018-03-15", "y0": 7.8, "y1": 8.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(188, 189, 34)" }, { "x0": "2018-03-24", "x1": "2018-03-24", "y0": 8.8, "y1": 9.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(23, 190, 207)" }, { "x0": "2018-04-03", "x1": "2018-04-04", "y0": 9.8, "y1": 10.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(31, 119, 180)" }, { "x0": "2018-05-09", "x1": "2018-05-16", "y0": 10.8, "y1": 11.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(255, 127, 14)" }, { "x0": "2018-06-13", "x1": "2018-06-17", "y0": 11.8, "y1": 12.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(44, 160, 44)" }, { "x0": "2018-06-29", "x1": "2018-07-01", "y0": 12.8, "y1": 13.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(214, 39, 40)" }, { "x0": "2018-07-12", "x1": "2018-07-15", "y0": 13.8, "y1": 14.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(148, 103, 189)" }, { "x0": "2018-07-21", "x1": "2018-07-21", "y0": 14.8, "y1": 15.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(140, 86, 75)" }, { "x0": "2018-07-11", "x1": "2018-07-15", "y0": 15.8, "y1": 16.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(227, 119, 194)" }, { "x0": "2018-07-27", "x1": "2018-07-29", "y0": 16.8, "y1": 17.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(127, 127, 127)" }, { "x0": "2018-08-03", "x1": "2018-08-05", "y0": 17.8, "y1": 18.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(188, 189, 34)" }, { "x0": "2018-08-10", "x1": "2018-08-12", "y0": 18.8, "y1": 19.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(23, 190, 207)" }, { "x0": "2018-08-12", "x1": "2018-08-18", "y0": 19.8, "y1": 20.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(31, 119, 180)" }, { "x0": "2018-08-19", "x1": "2018-08-25", "y0": 20.8, "y1": 21.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(255, 127, 14)" }, { "x0": "2018-08-03", "x1": "2018-08-05", "y0": 21.8, "y1": 22.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(44, 160, 44)" }, { "x0": "2018-09-06", "x1": "2018-09-06", "y0": 22.8, "y1": 23.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(214, 39, 40)" }, { "x0": "2018-09-06", "x1": "2018-09-06", "y0": 23.8, "y1": 24.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(148, 103, 189)" }, { "x0": "2018-09-13", "x1": "2018-09-13", "y0": 24.8, "y1": 25.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(140, 86, 75)" }, { "x0": "2018-09-13", "x1": "2018-09-13", "y0": 25.8, "y1": 26.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(227, 119, 194)" }, { "x0": "2018-09-20", "x1": "2018-09-20", "y0": 26.8, "y1": 27.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(127, 127, 127)" }, { "x0": "2018-09-27", "x1": "2018-09-27", "y0": 27.8, "y1": 28.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(188, 189, 34)" }, { "x0": "2018-09-27", "x1": "2018-09-27", "y0": 28.8, "y1": 29.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(23, 190, 207)" }, { "x0": "2018-10-04", "x1": "2018-10-04", "y0": 29.8, "y1": 30.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(31, 119, 180)" }, { "x0": "2018-09-27", "x1": "2018-09-30", "y0": 30.8, "y1": 31.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(255, 127, 14)" }, { "x0": "2018-10-04", "x1": "2018-10-04", "y0": 31.8, "y1": 32.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(44, 160, 44)" }, { "x0": "2018-10-18", "x1": "2018-10-18", "y0": 32.8, "y1": 33.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(214, 39, 40)" }, { "x0": "2018-11-02", "x1": "2018-11-04", "y0": 33.8, "y1": 34.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(148, 103, 189)" }, { "x0": "2018-11-21", "x1": "2018-11-27", "y0": 34.8, "y1": 35.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(140, 86, 75)" } ], "hovermode": "closest", "showlegend": false } }, "height": 600, "width": 900, "user": { "profile_url": "https://chart-studio.plotly.com/~sheryc", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/61.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-11.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-03-20 19:22:02", "mapbox_access_tokens": null, "has_password": null, "username": "sheryc", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T20:33:17.466694Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~i.f.student/32.embed", "fid": "i.f.student:32", "filename": "plot from API (15)", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/i.f.student:32/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/i.f.student:32/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/i.f.student:32/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/i.f.student:32/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/i.f.student:32", "plots": "https://api.plotly.com/v2/plots/i.f.student:32", "parent": "https://api.plotly.com/v2/folders/home?user=i.f.student" }, "owner": "i.f.student", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "Top 10 road segments based on Criticalility and Vulnerability", "views": 0, "web_url": "https://chart-studio.plotly.com/~i.f.student/32/top-10-road-segments-based-on-criticalility-and-vulnerability/", "world_readable": true, "date_modified": "2019-03-20T20:33:17.928Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~i.f.student/32/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "b4c8e687-979a-4291-8a1c-26c0b3b9f002", "mode": "markers", "name": "R roads", "type": "scatter", "xsrc": "i.f.student:33:e23240", "ysrc": "i.f.student:33:fc8597", "marker": { "size": 12, "color": "rgb(255,127,14)" }, "textsrc": "i.f.student:33:f26608" }, { "uid": "56923cba-8297-46de-bc02-34712c54f66d", "mode": "markers", "name": "N roads", "type": "scatter", "xsrc": "i.f.student:33:963da9", "ysrc": "i.f.student:33:313180", "marker": { "size": 12, "color": "rgb(31,119,180)" }, "textsrc": "i.f.student:33:ad41a4" } ], "layout": { "title": { "text": "Top 10 road segments based on Criticalility and Vulnerability" }, "xaxis": { "title": { "text": "Vulnerability (normalised)" } }, "yaxis": { "title": { "text": "Criticality (normalised)" } } } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~i.f.student", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/82.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-1.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-03-20 16:46:59", "mapbox_access_tokens": null, "has_password": null, "username": "i.f.student", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T20:33:13.644592Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~IslamEssam/8.embed", "fid": "IslamEssam:8", "filename": "Plot 8", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/IslamEssam:8/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/IslamEssam:8/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/IslamEssam:8/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/IslamEssam:8/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/IslamEssam:8", "plots": "https://api.plotly.com/v2/plots/IslamEssam:8", "parent": "https://api.plotly.com/v2/folders/home?user=IslamEssam" }, "owner": "IslamEssam", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~IslamEssam/8/", "world_readable": true, "date_modified": "2019-03-20T20:33:13.677Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~IslamEssam/8/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "276a17", "fill": "none", "line": { "width": 4.1 }, "mode": "markers", "type": "scatter", "xsrc": "IslamEssam:6:15a25f", "ysrc": "IslamEssam:6:dc50c5", "marker": { "line": { "width": 0 }, "size": 6, "color": "#636efa" }, "hoveron": "points+fills", "textsrc": "IslamEssam:6:dc50c5", "hoverinfo": "x+y+name", "showlegend": false, "hovertemplate": "" }, { "uid": "61f00f", "mode": "lines", "transforms": [ { "rms": "", "type": "fit", "inputUid": "276a17", "regressor": "x", "parameters": [ { "hold": false, "name": "m", "error": 1.1111122702975246e-19, "value": 1 }, { "hold": false, "name": "b", "error": 1.6197105494584622e-18, "value": 0.05999999999999998 } ], "regressand": "y", "correlation": "", "fitfunction": "m*x + b", "inputxrange": [], "outputxrange": [], "interpolation": 50 } ] } ], "frames": [], "layout": { "title": { "text": "Click to enter Plot title" }, "xaxis": { "side": "bottom", "type": "linear", "range": [ -0.12033341159896715, 27.820497769429444 ], "ticks": "outside", "title": { "text": "C(mm)<br>" }, "anchor": "free", "domain": [ 0, 1 ], "nticks": 10, "tickmode": "linear", "autorange": false, "gridwidth": 0, "automargin": true, "showspikes": true, "rangeslider": { "range": [ -1.4704155905142056, 27.820497769429444 ], "yaxis": { "rangemode": "match" }, "visible": true, "autorange": true }, "zerolinewidth": 10, "showticklabels": true }, "yaxis": { "type": "linear", "range": [ 0, 26 ], "ticks": "outside", "title": { "text": "M(mm)" }, "domain": [ 0, 1 ], "nticks": 10, "tickmode": "linear", "autorange": false, "showspikes": true }, "legend": { "x": 0.94, "y": 1, "font": { "size": 11 }, "orientation": "v" }, "autosize": true, "dragmode": "pan", "template": { "data": { "bar": [ { "type": "bar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatter": [ { "type": "scatter", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "histogram": [ { "type": "histogram", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "white", "showlakes": true, "subunitcolor": "#C8D4E3" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "white", "radialaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" }, "angularaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "yaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "zaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "baxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "caxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "bgcolor": "white" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#19d3f3", "#e763fa", "#fecb52", "#ffa15a", "#ff6692", "#b6e880" ], "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ], "sequentialminus": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ] }, "plot_bgcolor": "white", "paper_bgcolor": "white", "shapedefaults": { "line": { "width": 0 }, "opacity": 0.4, "fillcolor": "#506784" }, "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#506784", "arrowwidth": 1 } }, "themeRef": "PLOTLY_WHITE" }, "showlegend": true, "plot_bgcolor": "rgb(247, 252, 255)" } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~IslamEssam", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/58.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-1.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2018-10-22 19:01:40", "mapbox_access_tokens": null, "has_password": null, "username": "IslamEssam", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } } ] }
