Plots List
Plots
This endpoint handles manipulation of Plotly plot files.
Reference
Authorization
Any user with or without a Plotly account may view public plots. For private plots, see authentication.
Actions
list
Listing all public plots can be done via a GET request to this endpoint.
By default, plots will be listed in order of date created. The order_by
query parameter is accepted at this endpoint. Currently, only ordering by
views is supported. It is possible to filter the plots by quality
with min_quality or max_quality as query parameter.
Example:
// GET https://api.plotly.com/v2/plots/ ---> 200
// GET https://api.plotly.com/v2/plots/?order_by=-views ---> 200
// GET https://api.plotly.com/v2/plots/?min_quality=5 ---> 200
// GET https://api.plotly.com/v2/plots/?max_quality=5 ---> 200
feed
Listing all handpicked feed plots can be done via a GET request to this endpoint. By default, plots will be listed in a random order.
Example:
// GET https://api.plotly.com/v2/plots/feed ---> 200
create
You can create new plot resources here. The only required field is 'figure'. Currently, the figure is restricted to only contain references to grid data. That is, this will fail if raw data arrays are passed in. To create and manipulate underlying grids for plots, see the grids endpoint.
Example:
// This fails because a figure field is required.
// POST https://api.plotly.com/v2/plots ---> 400 Bad Request
{}
// This fails because the figure has raw data
//POST https://api.plotly.com/v2/plots ---> 400 Bad Request
{
"figure": {"data": [{"y": ['this', 'is', 'raw', 'data']}]}
}
// This succeeds because the figure has src keys, not raw data.
//POST https://api.plotly.com/v2/plots ---> 200 OK
{
"figure": {"data": [{"ysrc": "sven:88:u8nd62"}]}
}
When creating a grid, you can optionally specify a source_fid to specify where a plot has come from:
- source_fid: the fid of a plot that was copied (and presumably edited) to produce this one
detail
There is a lot of meta information stored about plot files including filename, title, share_url, and content_url to name a few.
This information can only be reached with a GET to this endpoint.
Example:
// GET https://api.plotly.com/v2/plots/iheartgraphs:90
content
The contents of a plot can be downloaded via the content resource. The plot
content contains referenced grid/column data by default. If you wish to
return the raw grid/column data, the inline_data=true query must be included
in the request url. The Content-Type header will be appropriately set for the
response body.
Alternatively, you can set ?map_data=unreadable to append a mapping of
sources to data that belongs to grids which are unreadable for the
requestor. This is useful when you have read access to another users plot,
but that plot contains grid references which you don't have access to.
Examples:
// Returns referenced grid/column data
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content ---> 200 OK
// Returns full grid/column data
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content?inline_data=true ---> 200 OK
// Returns full grid/column data when requestor doesn't have permission
// to read the referenced grid.
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content?map_data=unreadable ---> 200 OK
GET /v2/plots?cursor=cD0yMDE5LTAzLTIwKzIwJTNBMjAlM0EyNC44NTYxNTElMkIwMCUzQTAw&format=api

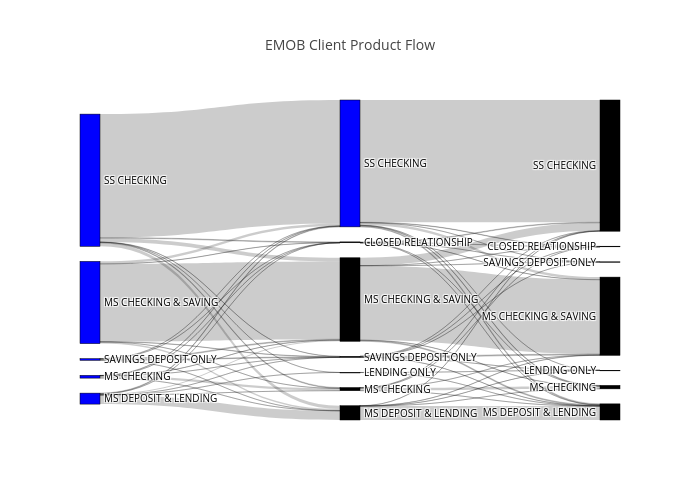

{ "next": "https://api.plot.ly/v2/plots?cursor=cD0yMDE5LTAzLTIwKzIwJTNBMTElM0EyOC4yNzE0MzQlMkIwMCUzQTAw&format=api", "previous": "https://api.plot.ly/v2/plots?cursor=cj0xJnA9MjAxOS0wMy0yMCsyMCUzQTIwJTNBMTIuMDEyMzQ3JTJCMDAlM0EwMA%3D%3D&format=api", "results": [ { "creation_time": "2019-03-20T20:20:12.012347Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~parka/12.embed", "fid": "parka:12", "filename": "plot from API (5)", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/parka:12/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/parka:12/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/parka:12/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/parka:12/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/parka:12", "plots": "https://api.plotly.com/v2/plots/parka:12", "parent": "https://api.plotly.com/v2/folders/home?user=parka" }, "owner": "parka", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "EMOB Client Product Flow", "views": 1, "web_url": "https://chart-studio.plotly.com/~parka/12/emob-client-product-flow/", "world_readable": true, "date_modified": "2019-03-20T20:20:12.477Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~parka/12/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "link": { "valuesrc": "parka:13:7f8ce9", "sourcesrc": "parka:13:6e4fbc", "targetsrc": "parka:13:42241f" }, "node": { "pad": 15, "line": { "color": "black", "width": 0.5 }, "colorsrc": "parka:13:5d269e", "labelsrc": "parka:13:fb4c5a", "thickness": 20 }, "type": "sankey", "orientation": "h", "valueformat": "%,03%ds" } ], "layout": { "font": { "size": 10 }, "title": "EMOB Client Product Flow" } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~parka", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/31.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-13.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2018-07-13 15:10:48", "mapbox_access_tokens": null, "has_password": null, "username": "parka", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T20:18:14.078761Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~parka/10.embed", "fid": "parka:10", "filename": "plot from API (4)", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/parka:10/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/parka:10/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/parka:10/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/parka:10/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/parka:10", "plots": "https://api.plotly.com/v2/plots/parka:10", "parent": "https://api.plotly.com/v2/folders/home?user=parka" }, "owner": "parka", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "EMOB Client Product Flow", "views": 1, "web_url": "https://chart-studio.plotly.com/~parka/10/emob-client-product-flow/", "world_readable": true, "date_modified": "2019-03-20T20:18:14.834Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~parka/10/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "link": { "valuesrc": "parka:11:43c945", "sourcesrc": "parka:11:23444f", "targetsrc": "parka:11:7d5b7b" }, "node": { "pad": 15, "line": { "color": "black", "width": 0.5 }, "colorsrc": "parka:11:ddfb28", "labelsrc": "parka:11:66c68c", "thickness": 20 }, "type": "sankey", "orientation": "h" } ], "layout": { "font": { "size": 10 }, "title": "EMOB Client Product Flow" } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~parka", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/31.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-13.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2018-07-13 15:10:48", "mapbox_access_tokens": null, "has_password": null, "username": "parka", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T20:17:45.960454Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~parka/8.embed", "fid": "parka:8", "filename": "plot from API (3)", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/parka:8/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/parka:8/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/parka:8/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/parka:8/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/parka:8", "plots": "https://api.plotly.com/v2/plots/parka:8", "parent": "https://api.plotly.com/v2/folders/home?user=parka" }, "owner": "parka", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "EMOB Client Product Flow", "views": 1, "web_url": "https://chart-studio.plotly.com/~parka/8/emob-client-product-flow/", "world_readable": true, "date_modified": "2019-03-20T20:17:46.407Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~parka/8/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "link": { "valuesrc": "parka:9:85bae7", "sourcesrc": "parka:9:ceedb4", "targetsrc": "parka:9:3888c9" }, "node": { "pad": 15, "line": { "color": "black", "width": 0.5 }, "colorsrc": "parka:9:7f635e", "labelsrc": "parka:9:e75d17", "thickness": 20 }, "type": "sankey", "orientation": "v" } ], "layout": { "font": { "size": 10 }, "title": "EMOB Client Product Flow" } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~parka", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/31.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-13.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2018-07-13 15:10:48", "mapbox_access_tokens": null, "has_password": null, "username": "parka", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T20:16:58.577493Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~maxvanschendel/0.embed", "fid": "maxvanschendel:0", "filename": "plot from API", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/maxvanschendel:0/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/maxvanschendel:0/image?image_name=default", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/maxvanschendel/0/8_ZYZOPADNBPIS9L3FUGTYPGVNR0E954.png", "list-thumb": "https://api.plotly.com/v2/files/maxvanschendel:0/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/maxvanschendel:0", "plots": "https://api.plotly.com/v2/plots/maxvanschendel:0", "parent": "https://api.plotly.com/v2/folders/home?user=maxvanschendel" }, "owner": "maxvanschendel", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "Energy Plot", "views": 0, "web_url": "https://chart-studio.plotly.com/~maxvanschendel/0/energy-plot/", "world_readable": true, "date_modified": "2019-03-20T20:17:04.850Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~maxvanschendel/0/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "3cfa03e6-1ef2-4014-90ec-6a0331a7eda5", "type": "scattergl", "xsrc": "maxvanschendel:1:df5a11", "ysrc": "maxvanschendel:1:ed6f43" } ], "layout": { "title": { "text": "Energy Plot" }, "xaxis": { "title": { "text": "Date" } }, "yaxis": { "title": { "text": "(kWh)" } } } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~maxvanschendel", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/38.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-2.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-03-20 20:11:26", "mapbox_access_tokens": null, "has_password": null, "username": "maxvanschendel", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T20:16:47.060246Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~i.f.student/26.embed", "fid": "i.f.student:26", "filename": "plot from API (12)", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/i.f.student:26/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/i.f.student:26/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/i.f.student:26/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/i.f.student:26/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/i.f.student:26", "plots": "https://api.plotly.com/v2/plots/i.f.student:26", "parent": "https://api.plotly.com/v2/folders/home?user=i.f.student" }, "owner": "i.f.student", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "Top 10 road segments based on Criticalility and Vulnerability", "views": 0, "web_url": "https://chart-studio.plotly.com/~i.f.student/26/top-10-road-segments-based-on-criticalility-and-vulnerability/", "world_readable": true, "date_modified": "2019-03-20T20:16:47.939Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~i.f.student/26/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "6c30e71a-9299-40cb-a3a2-07004f96780b", "mode": "markers", "name": "R roads", "type": "scatter", "xsrc": "i.f.student:27:10c05b", "ysrc": "i.f.student:27:b12430", "marker": { "size": 12, "color": "orange" }, "textsrc": "i.f.student:27:41da86" }, { "uid": "6e86a39b-9d82-43b5-8fc3-d56a3c66f9d9", "mode": "markers", "name": "N roads", "type": "scatter", "xsrc": "i.f.student:27:22a611", "ysrc": "i.f.student:27:9b8f87", "marker": { "size": 12, "color": "blue" }, "textsrc": "i.f.student:27:ca3d1c" } ], "layout": { "title": { "text": "Top 10 road segments based on Criticalility and Vulnerability" }, "xaxis": { "title": { "text": "Vulnerability (normalised)" } }, "yaxis": { "title": { "text": "Criticality (normalised)" } } } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~i.f.student", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/82.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-1.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-03-20 16:46:59", "mapbox_access_tokens": null, "has_password": null, "username": "i.f.student", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T20:16:14.745863Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~calatooij/1.embed", "fid": "calatooij:1", "filename": "hr_payroll", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/calatooij:1/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/calatooij:1/image?image_name=default", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/calatooij/1/8_4OV735GJWR5IX4ZCK6X7NRT2BKXBYZ.png", "list-thumb": "https://api.plotly.com/v2/files/calatooij:1/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/calatooij:1", "plots": "https://api.plotly.com/v2/plots/calatooij:1", "parent": "https://api.plotly.com/v2/folders/home?user=calatooij" }, "owner": "calatooij", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 73, "web_url": "https://chart-studio.plotly.com/~calatooij/1/", "world_readable": true, "date_modified": "2019-03-21T08:56:37.062Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~calatooij/1/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "line": { "color": "rgba(0, 0, 0, 1)", "fillcolor": "rgba(0, 0, 0, 1)" }, "mode": "lines", "name": "observed", "type": "scatter", "xsrc": "calatooij:3:cdb895", "ysrc": "calatooij:3:0ede56", "xaxis": "x", "yaxis": "y" }, { "fill": "toself", "line": { "color": "rgba(242,242,242,1)", "fillcolor": "rgba(242,242,242,1)" }, "mode": "lines", "name": "95% confidence", "type": "scatter", "xsrc": "calatooij:3:863f86", "ysrc": "calatooij:3:074560", "xaxis": "x", "yaxis": "y", "hoveron": "points" }, { "fill": "toself", "line": { "color": "rgba(204,204,204,1)", "fillcolor": "rgba(204,204,204,1)" }, "mode": "lines", "name": "80% confidence", "type": "scatter", "xsrc": "calatooij:3:863f86", "ysrc": "calatooij:3:b3085f", "xaxis": "x", "yaxis": "y", "hoveron": "points" }, { "line": { "color": "rgba(0,0,255,1)", "fillcolor": "rgba(0,0,255,1)" }, "mode": "lines", "name": "prediction", "type": "scatter", "xsrc": "calatooij:3:70b293", "ysrc": "calatooij:3:cc9388", "xaxis": "x", "yaxis": "y" } ], "frames": [], "layout": { "title": { "text": "Payroll forecast" }, "xaxis": { "type": "category", "dtick": 1, "range": [ 0, 95 ], "tick0": 0, "title": { "font": { "size": 12 }, "text": "Year" }, "domain": [ 0, 1 ], "nticks": 12, "showline": false, "tickfont": { "size": 12 }, "tickmode": "auto", "autorange": false, "showspikes": false, "rangeslider": { "range": [ 0, 95 ], "yaxis": { "rangemode": "match" }, "visible": true, "autorange": true }, "showticklabels": true }, "yaxis": { "type": "linear", "range": [ 459843.4811277777, 10060240.592572222 ], "title": { "font": { "size": 12 }, "text": "Total Employee Salary" }, "domain": [ 0, 1 ], "showline": false, "tickfont": { "size": 12 }, "autorange": true, "tickformat": "" }, "legend": { "x": 1.02, "y": 1, "font": { "size": 9 }, "valign": "middle", "yanchor": "auto", "traceorder": "normal" }, "margin": { "b": 40, "l": 60, "r": 10, "t": 25 }, "modebar": { "orientation": "h" }, "autosize": true, "showlegend": false } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~calatooij", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/52.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-13.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-03-20 19:51:05", "mapbox_access_tokens": null, "has_password": null, "username": "calatooij", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T20:16:06.758251Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~mccountystat/24.embed", "fid": "mccountystat:24", "filename": "Satisfaction with Taxes Paid", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/mccountystat:24/image?image_name=list-thumb", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/mccountystat/24/2_XNWW8S8TCEQ46F9DQP1TPVJMFUEI82.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/mccountystat/24/8_1E3Y0LVRIVNSQCA4GTDMBW0AQKOKRA.png", "list-thumb": "https://api.plotly.com/v2/files/mccountystat:24/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/mccountystat:24", "plots": "https://api.plotly.com/v2/plots/mccountystat:24", "parent": "https://api.plotly.com/v2/folders/mccountystat:7" }, "owner": "mccountystat", "parent": 7, "preview": "", "referencers": [], "references": [], "title": "", "views": 816, "web_url": "https://chart-studio.plotly.com/~mccountystat/24/", "world_readable": true, "date_modified": "2019-08-06T14:12:42.286Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~mccountystat/24/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "line": { "width": 3 }, "mode": "markers+lines", "name": "% Responding \"Good\" or \"Excellent\"", "type": "scatter", "xsrc": "mccountystat:18:282005", "ysrc": "mccountystat:18:624b49", "marker": { "size": 7 }, "visible": true, "transforms": [ { "type": "filter", "value": "Resident satisfaction with value of services for the taxes paid - rated \"Good\" or \"Excellent\"", "targetsrc": "mccountystat:18:5109c4" }, { "type": "filter", "value": [ "2007", "2017" ], "operation": "[]", "targetsrc": "mccountystat:18:282005" } ], "connectgaps": true } ], "frames": [], "layout": { "font": { "size": 15, "color": "rgb(0, 0, 0)", "family": "Overpass" }, "scene": { "aspectmode": "auto", "aspectratio": { "x": 1, "y": 1, "z": 1 } }, "title": { "x": 0, "font": { "size": 14 }, "text": "<br>" }, "xaxis": { "type": "linear", "range": [ 2006.4025509544533, 2017.5974490455467 ], "ticks": "", "title": { "font": { "family": "Roboto" }, "text": "<b>Year</b>" }, "nticks": 7, "ticklen": -1, "showgrid": false, "showline": false, "tickfont": { "size": 17, "color": "rgb(92, 94, 105)", "family": "Roboto" }, "zeroline": false, "autorange": true, "tickwidth": -1, "tickformat": "", "showexponent": "none", "separatethousands": false }, "yaxis": { "range": [ 0, 100 ], "ticks": "", "title": { "font": { "family": "Roboto" }, "text": "<b>% of Respondents</b>" }, "nticks": -1, "ticklen": -1, "tickfont": { "size": 17, "color": "rgb(66, 68, 71)", "family": "Roboto" }, "autorange": false, "tickwidth": -1, "fixedrange": true, "ticksuffix": "%" }, "legend": { "x": 0.7774664193912234, "y": 0.2728852907911185, "font": { "size": 17, "family": "Roboto" }, "xanchor": "auto", "borderwidth": 0 }, "margin": { "b": 20, "t": 20 }, "autosize": true, "colorway": [ "#3366cc", "#dc3912", "#ff9900", "#109618", "#990099", "#0099c6", "#dd4477", "#66aa00", "#b82e2e", "#316395" ], "dragmode": "orbit", "template": { "data": { "bar": [ { "type": "bar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatter": [ { "type": "scatter", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "histogram": [ { "type": "histogram", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "white", "showlakes": true, "subunitcolor": "#C8D4E3" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "white", "radialaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" }, "angularaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "yaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "zaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "baxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "caxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "bgcolor": "white" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#19d3f3", "#e763fa", "#fecb52", "#ffa15a", "#ff6692", "#b6e880" ], "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ], "sequentialminus": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ] }, "plot_bgcolor": "white", "paper_bgcolor": "white", "shapedefaults": { "line": { "width": 0 }, "opacity": 0.4, "fillcolor": "#506784" }, "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#506784", "arrowwidth": 1 } }, "themeRef": "PLOTLY_WHITE" }, "clickmode": "event+select", "colorscale": { "sequentialminus": [ [ 0, "#0508b8" ], [ 0.08333333333333333, "#1910d8" ], [ 0.16666666666666666, "#3c19f0" ], [ 0.25, "#6b1cfb" ], [ 0.3333333333333333, "#981cfd" ], [ 0.4166666666666667, "#bf1cfd" ], [ 0.5, "#dd2bfd" ], [ 0.5833333333333334, "#f246fe" ], [ 0.6666666666666666, "#fc67fd" ], [ 0.75, "#fe88fc" ], [ 0.8333333333333334, "#fea5fd" ], [ 0.9166666666666666, "#febefe" ], [ 1, "#fec3fe" ] ] }, "hoverlabel": { "font": { "size": 11, "color": "#000", "family": "Roboto" }, "bgcolor": "#FFF" }, "showlegend": true, "plot_bgcolor": "rgb(255, 255, 255)" } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~mccountystat", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/79.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-10.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2018-06-15 16:16:53", "mapbox_access_tokens": null, "has_password": null, "username": "mccountystat", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T20:15:36.426920Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~ivobrett/17.embed", "fid": "ivobrett:17", "filename": "basic-scatter", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/ivobrett:17/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/ivobrett:17/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/ivobrett:17/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/ivobrett:17/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/ivobrett:17", "plots": "https://api.plotly.com/v2/plots/ivobrett:17", "parent": "https://api.plotly.com/v2/folders/home?user=ivobrett" }, "owner": "ivobrett", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~ivobrett/17/", "world_readable": true, "date_modified": "2019-03-20T20:15:36.980Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~ivobrett/17/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "mode": "markers", "type": "scatter", "xsrc": "ivobrett:18:f42e68", "ysrc": "ivobrett:18:955431" } ], "layout": {} }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~ivobrett", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/69.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-4.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2015-02-26 07:56:29", "mapbox_access_tokens": null, "has_password": null, "username": "ivobrett", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T20:14:00.100706Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~awais12345/1.embed", "fid": "awais12345:1", "filename": "Plot 1", "filetype": "plot", "img_url": "https://storage.googleapis.com/plotly-prod-images/awais12345/1/9_PQXZWC6UHYLW38HEJKRYNU2KYJG5I7.png", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/awais12345/1/2_MH71ROBKSONL4H8QOSD4F4MI2Q3PVA.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/awais12345/1/8_M3QL9GBQW5TCXIKGMTHSE8CJILEWVR.png", "list-thumb": "https://storage.googleapis.com/plotly-prod-images/awais12345/1/9_PQXZWC6UHYLW38HEJKRYNU2KYJG5I7.png" }, "api_urls": { "files": "https://api.plotly.com/v2/files/awais12345:1", "plots": "https://api.plotly.com/v2/plots/awais12345:1", "parent": "https://api.plotly.com/v2/folders/home?user=awais12345" }, "owner": "awais12345", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~awais12345/1/", "world_readable": true, "date_modified": "2019-03-20T20:18:29.056Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~awais12345/1/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "mode": "lines", "rsrc": "awais12345:0:59c620", "type": "scatterpolar", "xsrc": "awais12345:0:59c620", "ysrc": "awais12345:0:0d9163", "thetasrc": "awais12345:0:0d9163" } ], "frames": [], "layout": { "polar": { "radialaxis": { "type": "linear", "range": [ 0, 103.95617183461285 ], "autorange": true }, "angularaxis": { "type": "linear" } }, "xaxis": { "type": "linear", "range": [ 20.910830436289608, 103.95617183461285 ], "autorange": true }, "yaxis": { "type": "linear", "range": [ -19.70731371921948, 379.6725415094164 ], "autorange": true }, "autosize": true } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~awais12345", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/60.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-3.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-03-20 20:11:28", "mapbox_access_tokens": null, "has_password": null, "username": "awais12345", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T20:11:28.271434Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~hpm7/22.embed", "fid": "hpm7:22", "filename": "r-y_obs", "filetype": "plot", "img_url": "https://storage.googleapis.com/plotly-prod-images/hpm7/22/9_YQJLPEYI1ZAP5XYOT0MVGRCLJFRDYN.png", "image_urls": { "default": "https://api.plotly.com/v2/files/hpm7:22/image?image_name=default", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/hpm7/22/8_6HSLZ0H3D55GR4AALTLIQ9S5CXCNS8.png", "list-thumb": "https://storage.googleapis.com/plotly-prod-images/hpm7/22/9_YQJLPEYI1ZAP5XYOT0MVGRCLJFRDYN.png" }, "api_urls": { "files": "https://api.plotly.com/v2/files/hpm7:22", "plots": "https://api.plotly.com/v2/plots/hpm7:22", "parent": "https://api.plotly.com/v2/folders/home?user=hpm7" }, "owner": "hpm7", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~hpm7/22/", "world_readable": true, "date_modified": "2019-03-20T20:19:28.875Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~hpm7/22/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "mode": "markers", "type": "scatter3d", "xsrc": "hpm7:21:0a95e3", "ysrc": "hpm7:21:f9e9e6", "zsrc": "hpm7:21:c81a2d", "frame": null, "marker": { "line": { "color": "transparent" }, "color": "rgba(31,119,180,1)", "fillcolor": "rgba(31,119,180,1)" } } ], "layout": { "scene": { "xaxis": { "title": "Gestational Age" }, "yaxis": { "title": "Birth Weight" }, "zaxis": { "title": "y_obs" } }, "xaxis": { "type": "category", "domain": [ 0, 1 ], "categoryorder": "array", "categoryarraysrc": "hpm7:21:2d90fc" }, "yaxis": { "type": "category", "domain": [ 0, 1 ], "categoryorder": "array", "categoryarraysrc": "hpm7:21:f8930d" }, "margin": { "b": 40, "l": 60, "r": 10, "t": 25 }, "hovermode": "closest", "showlegend": false } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~hpm7", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/50.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-6.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-03-05 07:41:22", "mapbox_access_tokens": null, "has_password": null, "username": "hpm7", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } } ] }
