Plots List
Plots
This endpoint handles manipulation of Plotly plot files.
Reference
Authorization
Any user with or without a Plotly account may view public plots. For private plots, see authentication.
Actions
list
Listing all public plots can be done via a GET request to this endpoint.
By default, plots will be listed in order of date created. The order_by
query parameter is accepted at this endpoint. Currently, only ordering by
views is supported. It is possible to filter the plots by quality
with min_quality or max_quality as query parameter.
Example:
// GET https://api.plotly.com/v2/plots/ ---> 200
// GET https://api.plotly.com/v2/plots/?order_by=-views ---> 200
// GET https://api.plotly.com/v2/plots/?min_quality=5 ---> 200
// GET https://api.plotly.com/v2/plots/?max_quality=5 ---> 200
feed
Listing all handpicked feed plots can be done via a GET request to this endpoint. By default, plots will be listed in a random order.
Example:
// GET https://api.plotly.com/v2/plots/feed ---> 200
create
You can create new plot resources here. The only required field is 'figure'. Currently, the figure is restricted to only contain references to grid data. That is, this will fail if raw data arrays are passed in. To create and manipulate underlying grids for plots, see the grids endpoint.
Example:
// This fails because a figure field is required.
// POST https://api.plotly.com/v2/plots ---> 400 Bad Request
{}
// This fails because the figure has raw data
//POST https://api.plotly.com/v2/plots ---> 400 Bad Request
{
"figure": {"data": [{"y": ['this', 'is', 'raw', 'data']}]}
}
// This succeeds because the figure has src keys, not raw data.
//POST https://api.plotly.com/v2/plots ---> 200 OK
{
"figure": {"data": [{"ysrc": "sven:88:u8nd62"}]}
}
When creating a grid, you can optionally specify a source_fid to specify where a plot has come from:
- source_fid: the fid of a plot that was copied (and presumably edited) to produce this one
detail
There is a lot of meta information stored about plot files including filename, title, share_url, and content_url to name a few.
This information can only be reached with a GET to this endpoint.
Example:
// GET https://api.plotly.com/v2/plots/iheartgraphs:90
content
The contents of a plot can be downloaded via the content resource. The plot
content contains referenced grid/column data by default. If you wish to
return the raw grid/column data, the inline_data=true query must be included
in the request url. The Content-Type header will be appropriately set for the
response body.
Alternatively, you can set ?map_data=unreadable to append a mapping of
sources to data that belongs to grids which are unreadable for the
requestor. This is useful when you have read access to another users plot,
but that plot contains grid references which you don't have access to.
Examples:
// Returns referenced grid/column data
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content ---> 200 OK
// Returns full grid/column data
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content?inline_data=true ---> 200 OK
// Returns full grid/column data when requestor doesn't have permission
// to read the referenced grid.
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content?map_data=unreadable ---> 200 OK
GET /v2/plots?cursor=cD0yMDE5LTAzLTIwKzIwJTNBMDAlM0E1Ny4xMTA5MjYlMkIwMCUzQTAw&format=api

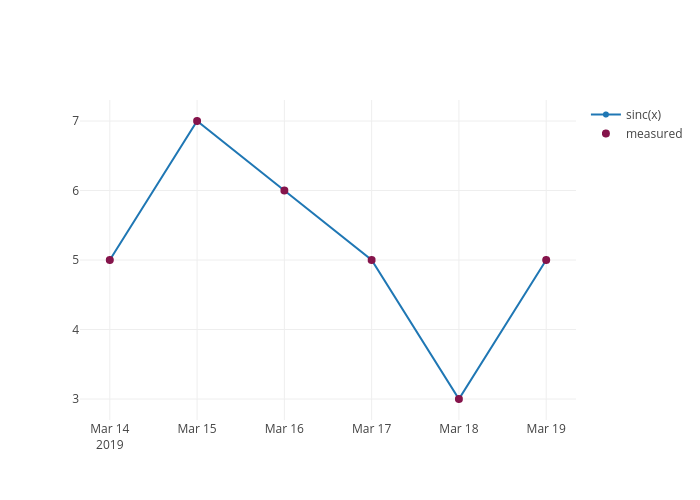

{ "next": "https://api.plot.ly/v2/plots?cursor=cD0yMDE5LTAzLTIwKzE5JTNBNTAlM0EwMy4xNzk0MzklMkIwMCUzQTAw&format=api", "previous": "https://api.plot.ly/v2/plots?cursor=cj0xJnA9MjAxOS0wMy0yMCsxOSUzQTU5JTNBNDcuMTY0ODA0JTJCMDAlM0EwMA%3D%3D&format=api", "results": [ { "creation_time": "2019-03-20T19:59:47.164804Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~nurfedin/171.embed", "fid": "nurfedin:171", "filename": "error-bar-style", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/nurfedin:171/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/nurfedin:171/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/nurfedin:171/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/nurfedin:171/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/nurfedin:171", "plots": "https://api.plotly.com/v2/plots/nurfedin:171", "parent": "https://api.plotly.com/v2/folders/home?user=nurfedin" }, "owner": "nurfedin", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "sinc(x) vs measured", "views": 1, "web_url": "https://chart-studio.plotly.com/~nurfedin/171/sincx-vs-measured/", "world_readable": true, "date_modified": "2019-03-20T19:59:47.764Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~nurfedin/171/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "f675ed4f-ab98-44bc-996f-2c32d3c5eaf5", "name": "sinc(x)", "type": "scatter", "xsrc": "nurfedin:172:5926cc", "ysrc": "nurfedin:172:c885ed" }, { "uid": "36d5ce76-ed16-4c0f-be88-bdcf43d71b7e", "mode": "markers", "name": "measured", "type": "scatter", "xsrc": "nurfedin:172:5926cc", "ysrc": "nurfedin:172:c885ed", "marker": { "size": 8, "color": "#85144B" }, "error_x": { "type": "data", "color": "#85144B", "width": 3, "arraysrc": "nurfedin:172:8d8b39", "thickness": 1.5 } } ], "layout": {} }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~nurfedin", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/72.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-1.jpg", "bio": "N/A", "nickname": "Ten24", "website": "www.zenudstudio.com", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2017-10-24 20:59:21", "mapbox_access_tokens": null, "has_password": null, "username": "nurfedin", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T19:58:57.528788Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~salshehhi4/4.embed", "fid": "salshehhi4:4", "filename": "scatter", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/salshehhi4:4/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/salshehhi4:4/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/salshehhi4:4/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/salshehhi4:4/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/salshehhi4:4", "plots": "https://api.plotly.com/v2/plots/salshehhi4:4", "parent": "https://api.plotly.com/v2/folders/home?user=salshehhi4" }, "owner": "salshehhi4", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~salshehhi4/4/", "world_readable": true, "date_modified": "2019-03-20T20:01:53.138Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~salshehhi4/4/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "a37ea8a8-8daa-4374-8166-378531053f22", "mode": "markers", "type": "scatter", "ysrc": "salshehhi4:5:409a51", "marker": { "size": 8 } } ], "layout": {} }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~salshehhi4", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/81.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-8.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-03-20 19:44:59", "mapbox_access_tokens": null, "has_password": null, "username": "salshehhi4", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T19:58:19.422230Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~Salihimc/109.embed", "fid": "Salihimc:109", "filename": "Plot 109", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/Salihimc:109/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/Salihimc:109/image?image_name=default", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/Salihimc/109/8_VWI0MHUR58VSU9FI9BWPLUPIW5JR2J.png", "list-thumb": "https://api.plotly.com/v2/files/Salihimc:109/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/Salihimc:109", "plots": "https://api.plotly.com/v2/plots/Salihimc:109", "parent": "https://api.plotly.com/v2/folders/home?user=Salihimc" }, "owner": "Salihimc", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 4, "web_url": "https://chart-studio.plotly.com/~Salihimc/109/", "world_readable": true, "date_modified": "2019-06-19T06:46:40.977Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~Salihimc/109/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "76363ea4-4b4a-11e9-aac2-60f677db332c", "name": "Supradyn", "type": "bar", "xsrc": "Salihimc:108:4a0eba", "ysrc": "Salihimc:108:3a5743", "marker": { "line": { "color": "rgb(0, 0, 0)", "width": 1.5 }, "color": "#FAE411" }, "textsrc": "Salihimc:108:0ec826", "textposition": "auto" }, { "uid": "76363ea5-4b4a-11e9-93a8-60f677db332c", "name": "Pharmaton", "type": "bar", "xsrc": "Salihimc:108:4a0eba", "ysrc": "Salihimc:108:ce8a3a", "marker": { "line": { "color": "rgb(0, 0, 0)", "width": 1.5 }, "color": "#581E2D" }, "textsrc": "Salihimc:108:754ff8", "textposition": "auto" } ], "frames": [], "layout": { "title": { "text": "Monthly Sales in 2018" }, "xaxis": { "type": "date", "range": [ "2017-12-18", "2018-12-15" ], "title": { "text": "Months" }, "autorange": true }, "yaxis": { "type": "linear", "range": [ 0, 228495.7894736842 ], "autorange": true }, "barmode": "group", "autosize": true } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~Salihimc", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/38.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-3.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2018-10-28 14:39:59", "mapbox_access_tokens": null, "has_password": null, "username": "Salihimc", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T19:53:14.944467Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~melodyhuang/1.embed", "fid": "melodyhuang:1", "filename": "Plot 1", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/melodyhuang:1/image?image_name=list-thumb", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/melodyhuang/1/2_ZEPWUZB6PSC6DNCV4TILCC3B1WVBP5.png", "block-thumb": "https://api.plotly.com/v2/files/melodyhuang:1/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/melodyhuang:1/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/melodyhuang:1", "plots": "https://api.plotly.com/v2/plots/melodyhuang:1", "parent": "https://api.plotly.com/v2/folders/home?user=melodyhuang" }, "owner": "melodyhuang", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~melodyhuang/1/", "world_readable": true, "date_modified": "2019-03-20T19:53:14.966Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~melodyhuang/1/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "c103c83e-ae64-11e8-bee6-0242ac130002", "mode": "markers", "name": "Asia", "type": "scatter", "xsrc": "melodyhuang:0:ea212b", "ysrc": "melodyhuang:0:d907e1", "marker": { "sizeref": 137362.8225, "sizesrc": "melodyhuang:0:c8bc3a", "sizemode": "area" }, "textsrc": "melodyhuang:0:e8b9af" }, { "uid": "c103cc94-ae64-11e8-bee6-0242ac130002", "mode": "markers", "name": "Europe", "type": "scatter", "xsrc": "melodyhuang:0:360114", "ysrc": "melodyhuang:0:2bf2c2", "marker": { "sizeref": 137362.8225, "sizesrc": "melodyhuang:0:203ea8", "sizemode": "area" }, "textsrc": "melodyhuang:0:79039b" }, { "uid": "c103cf14-ae64-11e8-bee6-0242ac130002", "mode": "markers", "name": "Africa", "type": "scatter", "xsrc": "melodyhuang:0:29f990", "ysrc": "melodyhuang:0:454599", "marker": { "sizeref": 137362.8225, "sizesrc": "melodyhuang:0:fd84c6", "sizemode": "area" }, "textsrc": "melodyhuang:0:fdfc5f" }, { "uid": "c103d2f2-ae64-11e8-bee6-0242ac130002", "mode": "markers", "name": "Americas", "type": "scatter", "xsrc": "melodyhuang:0:0c42ef", "ysrc": "melodyhuang:0:8ad9d6", "marker": { "sizeref": 137362.8225, "sizesrc": "melodyhuang:0:a74355", "sizemode": "area" }, "textsrc": "melodyhuang:0:c46820" }, { "uid": "c103d59a-ae64-11e8-bee6-0242ac130002", "mode": "markers", "name": "Oceania", "type": "scatter", "xsrc": "melodyhuang:0:b9296f", "ysrc": "melodyhuang:0:9bb0f4", "marker": { "sizeref": 137362.8225, "sizesrc": "melodyhuang:0:ec7c42", "sizemode": "area" }, "textsrc": "melodyhuang:0:3b50a3" } ], "frames": [ { "data": [ { "mode": "markers", "name": "Asia", "type": "scatter", "xsrc": "external:0:e51d14", "ysrc": "external:0:21c21c", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:e17883", "sizemode": "area" }, "textsrc": "external:0:b1bc26" }, { "mode": "markers", "name": "Europe", "type": "scatter", "xsrc": "external:0:b17c8a", "ysrc": "external:0:4d8fd0", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:03d2fd", "sizemode": "area" }, "textsrc": "external:0:d05a25" }, { "mode": "markers", "name": "Africa", "type": "scatter", "xsrc": "external:0:e49451", "ysrc": "external:0:e127c0", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:5a193c", "sizemode": "area" }, "textsrc": "external:0:8baca8" }, { "mode": "markers", "name": "Americas", "type": "scatter", "xsrc": "external:0:2d1855", "ysrc": "external:0:8b4a12", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:f705c7", "sizemode": "area" }, "textsrc": "external:0:879b9d" }, { "mode": "markers", "name": "Oceania", "type": "scatter", "xsrc": "external:0:e961ff", "ysrc": "external:0:cbe70b", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:e4679e", "sizemode": "area" }, "textsrc": "external:0:fa1e2d" } ], "name": "1952" }, { "data": [ { "mode": "markers", "name": "Asia", "type": "scatter", "xsrc": "external:0:5e50e8", "ysrc": "external:0:3f40ca", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:2cc754", "sizemode": "area" }, "textsrc": "external:0:b1bc26" }, { "mode": "markers", "name": "Europe", "type": "scatter", "xsrc": "external:0:0b3f33", "ysrc": "external:0:407d18", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:4cb3b9", "sizemode": "area" }, "textsrc": "external:0:d05a25" }, { "mode": "markers", "name": "Africa", "type": "scatter", "xsrc": "external:0:d20349", "ysrc": "external:0:3de8d8", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:f192b7", "sizemode": "area" }, "textsrc": "external:0:8baca8" }, { "mode": "markers", "name": "Americas", "type": "scatter", "xsrc": "external:0:a42591", "ysrc": "external:0:114a10", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:a212f3", "sizemode": "area" }, "textsrc": "external:0:879b9d" }, { "mode": "markers", "name": "Oceania", "type": "scatter", "xsrc": "external:0:b248a8", "ysrc": "external:0:90069e", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:d8ed63", "sizemode": "area" }, "textsrc": "external:0:fa1e2d" } ], "name": "1957" }, { "data": [ { "mode": "markers", "name": "Asia", "type": "scatter", "xsrc": "external:0:aee672", "ysrc": "external:0:10dcb0", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:60cbf7", "sizemode": "area" }, "textsrc": "external:0:b1bc26" }, { "mode": "markers", "name": "Europe", "type": "scatter", "xsrc": "external:0:db3efe", "ysrc": "external:0:821d98", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:be75d9", "sizemode": "area" }, "textsrc": "external:0:d05a25" }, { "mode": "markers", "name": "Africa", "type": "scatter", "xsrc": "external:0:196fe4", "ysrc": "external:0:928102", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:04101d", "sizemode": "area" }, "textsrc": "external:0:8baca8" }, { "mode": "markers", "name": "Americas", "type": "scatter", "xsrc": "external:0:324586", "ysrc": "external:0:4350d6", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:f8e7cb", "sizemode": "area" }, "textsrc": "external:0:879b9d" }, { "mode": "markers", "name": "Oceania", "type": "scatter", "xsrc": "external:0:078b13", "ysrc": "external:0:bbe766", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:d041d8", "sizemode": "area" }, "textsrc": "external:0:fa1e2d" } ], "name": "1962" }, { "data": [ { "mode": "markers", "name": "Asia", "type": "scatter", "xsrc": "external:0:ab19b7", "ysrc": "external:0:b8dfa3", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:76a095", "sizemode": "area" }, "textsrc": "external:0:b1bc26" }, { "mode": "markers", "name": "Europe", "type": "scatter", "xsrc": "external:0:39dcbd", "ysrc": "external:0:e716d7", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:67c793", "sizemode": "area" }, "textsrc": "external:0:d05a25" }, { "mode": "markers", "name": "Africa", "type": "scatter", "xsrc": "external:0:96fa3e", "ysrc": "external:0:8332a7", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:97818a", "sizemode": "area" }, "textsrc": "external:0:8baca8" }, { "mode": "markers", "name": "Americas", "type": "scatter", "xsrc": "external:0:625b3a", "ysrc": "external:0:23f0e3", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:df5da3", "sizemode": "area" }, "textsrc": "external:0:879b9d" }, { "mode": "markers", "name": "Oceania", "type": "scatter", "xsrc": "external:0:f1cc97", "ysrc": "external:0:0063f6", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:a23fd6", "sizemode": "area" }, "textsrc": "external:0:fa1e2d" } ], "name": "1967" }, { "data": [ { "mode": "markers", "name": "Asia", "type": "scatter", "xsrc": "external:0:c67b9d", "ysrc": "external:0:ead1ab", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:a73c98", "sizemode": "area" }, "textsrc": "external:0:b1bc26" }, { "mode": "markers", "name": "Europe", "type": "scatter", "xsrc": "external:0:20afab", "ysrc": "external:0:d02223", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:926134", "sizemode": "area" }, "textsrc": "external:0:d05a25" }, { "mode": "markers", "name": "Africa", "type": "scatter", "xsrc": "external:0:0e98f4", "ysrc": "external:0:39ec11", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:b14e46", "sizemode": "area" }, "textsrc": "external:0:8baca8" }, { "mode": "markers", "name": "Americas", "type": "scatter", "xsrc": "external:0:49128a", "ysrc": "external:0:f5877f", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:5cbb67", "sizemode": "area" }, "textsrc": "external:0:879b9d" }, { "mode": "markers", "name": "Oceania", "type": "scatter", "xsrc": "external:0:f4785e", "ysrc": "external:0:670a54", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:7d49ec", "sizemode": "area" }, "textsrc": "external:0:fa1e2d" } ], "name": "1972" }, { "data": [ { "mode": "markers", "name": "Asia", "type": "scatter", "xsrc": "external:0:63e520", "ysrc": "external:0:2a4869", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:f9274c", "sizemode": "area" }, "textsrc": "external:0:b1bc26" }, { "mode": "markers", "name": "Europe", "type": "scatter", "xsrc": "external:0:5d1392", "ysrc": "external:0:e9ba2f", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:183674", "sizemode": "area" }, "textsrc": "external:0:d05a25" }, { "mode": "markers", "name": "Africa", "type": "scatter", "xsrc": "external:0:968b6e", "ysrc": "external:0:40a12f", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:3ab594", "sizemode": "area" }, "textsrc": "external:0:8baca8" }, { "mode": "markers", "name": "Americas", "type": "scatter", "xsrc": "external:0:c2e294", "ysrc": "external:0:496280", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:ccb45a", "sizemode": "area" }, "textsrc": "external:0:879b9d" }, { "mode": "markers", "name": "Oceania", "type": "scatter", "xsrc": "external:0:4c3c0c", "ysrc": "external:0:32ad8e", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:3ea500", "sizemode": "area" }, "textsrc": "external:0:fa1e2d" } ], "name": "1977" }, { "data": [ { "mode": "markers", "name": "Asia", "type": "scatter", "xsrc": "external:0:232f5b", "ysrc": "external:0:9145a3", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:6f14fe", "sizemode": "area" }, "textsrc": "external:0:b1bc26" }, { "mode": "markers", "name": "Europe", "type": "scatter", "xsrc": "external:0:b97837", "ysrc": "external:0:2d1730", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:a22bf5", "sizemode": "area" }, "textsrc": "external:0:d05a25" }, { "mode": "markers", "name": "Africa", "type": "scatter", "xsrc": "external:0:cd123d", "ysrc": "external:0:b2f1f6", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:c76063", "sizemode": "area" }, "textsrc": "external:0:8baca8" }, { "mode": "markers", "name": "Americas", "type": "scatter", "xsrc": "external:0:af7c1f", "ysrc": "external:0:8148be", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:88dcba", "sizemode": "area" }, "textsrc": "external:0:879b9d" }, { "mode": "markers", "name": "Oceania", "type": "scatter", "xsrc": "external:0:f60d78", "ysrc": "external:0:61afb3", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:dbe79b", "sizemode": "area" }, "textsrc": "external:0:fa1e2d" } ], "name": "1982" }, { "data": [ { "mode": "markers", "name": "Asia", "type": "scatter", "xsrc": "external:0:b7bb88", "ysrc": "external:0:9ea6ce", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:bb22e8", "sizemode": "area" }, "textsrc": "external:0:b1bc26" }, { "mode": "markers", "name": "Europe", "type": "scatter", "xsrc": "external:0:2eb84a", "ysrc": "external:0:b8229a", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:75bf3c", "sizemode": "area" }, "textsrc": "external:0:d05a25" }, { "mode": "markers", "name": "Africa", "type": "scatter", "xsrc": "external:0:1d7fbe", "ysrc": "external:0:0adb61", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:7904b1", "sizemode": "area" }, "textsrc": "external:0:8baca8" }, { "mode": "markers", "name": "Americas", "type": "scatter", "xsrc": "external:0:ffef1a", "ysrc": "external:0:c1f978", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:f4c378", "sizemode": "area" }, "textsrc": "external:0:879b9d" }, { "mode": "markers", "name": "Oceania", "type": "scatter", "xsrc": "external:0:dcef2b", "ysrc": "external:0:06ef7c", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:449d7e", "sizemode": "area" }, "textsrc": "external:0:fa1e2d" } ], "name": "1987" }, { "data": [ { "mode": "markers", "name": "Asia", "type": "scatter", "xsrc": "external:0:8d0fab", "ysrc": "external:0:150a68", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:34cff1", "sizemode": "area" }, "textsrc": "external:0:b1bc26" }, { "mode": "markers", "name": "Europe", "type": "scatter", "xsrc": "external:0:e478d1", "ysrc": "external:0:1b4013", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:6c3379", "sizemode": "area" }, "textsrc": "external:0:d05a25" }, { "mode": "markers", "name": "Africa", "type": "scatter", "xsrc": "external:0:e5d314", "ysrc": "external:0:304ff2", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:2a6d1b", "sizemode": "area" }, "textsrc": "external:0:8baca8" }, { "mode": "markers", "name": "Americas", "type": "scatter", "xsrc": "external:0:fd22c6", "ysrc": "external:0:6436ac", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:a03f2b", "sizemode": "area" }, "textsrc": "external:0:879b9d" }, { "mode": "markers", "name": "Oceania", "type": "scatter", "xsrc": "external:0:02802e", "ysrc": "external:0:36b6c8", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:191f8e", "sizemode": "area" }, "textsrc": "external:0:fa1e2d" } ], "name": "1992" }, { "data": [ { "mode": "markers", "name": "Asia", "type": "scatter", "xsrc": "external:0:3ce0fd", "ysrc": "external:0:594555", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:db8040", "sizemode": "area" }, "textsrc": "external:0:b1bc26" }, { "mode": "markers", "name": "Europe", "type": "scatter", "xsrc": "external:0:2dcb20", "ysrc": "external:0:f92c06", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:9bc3ca", "sizemode": "area" }, "textsrc": "external:0:d05a25" }, { "mode": "markers", "name": "Africa", "type": "scatter", "xsrc": "external:0:1dca68", "ysrc": "external:0:e12592", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:aadf9a", "sizemode": "area" }, "textsrc": "external:0:8baca8" }, { "mode": "markers", "name": "Americas", "type": "scatter", "xsrc": "external:0:297b83", "ysrc": "external:0:31397e", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:5b4654", "sizemode": "area" }, "textsrc": "external:0:879b9d" }, { "mode": "markers", "name": "Oceania", "type": "scatter", "xsrc": "external:0:3e264a", "ysrc": "external:0:f1a8a6", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:88db2a", "sizemode": "area" }, "textsrc": "external:0:fa1e2d" } ], "name": "1997" }, { "data": [ { "mode": "markers", "name": "Asia", "type": "scatter", "xsrc": "external:0:62a075", "ysrc": "external:0:cc9496", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:8f76aa", "sizemode": "area" }, "textsrc": "external:0:b1bc26" }, { "mode": "markers", "name": "Europe", "type": "scatter", "xsrc": "external:0:28a846", "ysrc": "external:0:1cc4c3", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:bdfed7", "sizemode": "area" }, "textsrc": "external:0:d05a25" }, { "mode": "markers", "name": "Africa", "type": "scatter", "xsrc": "external:0:7823f2", "ysrc": "external:0:888ae6", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:9bcfaa", "sizemode": "area" }, "textsrc": "external:0:8baca8" }, { "mode": "markers", "name": "Americas", "type": "scatter", "xsrc": "external:0:68c035", "ysrc": "external:0:db7535", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:cad0b2", "sizemode": "area" }, "textsrc": "external:0:879b9d" }, { "mode": "markers", "name": "Oceania", "type": "scatter", "xsrc": "external:0:1b2234", "ysrc": "external:0:1f6dc6", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:994534", "sizemode": "area" }, "textsrc": "external:0:fa1e2d" } ], "name": "2002" }, { "data": [ { "mode": "markers", "name": "Asia", "type": "scatter", "xsrc": "external:0:507bae", "ysrc": "external:0:67a3ba", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:cd03df", "sizemode": "area" }, "textsrc": "external:0:b1bc26" }, { "mode": "markers", "name": "Europe", "type": "scatter", "xsrc": "external:0:eced30", "ysrc": "external:0:a65895", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:bc125e", "sizemode": "area" }, "textsrc": "external:0:d05a25" }, { "mode": "markers", "name": "Africa", "type": "scatter", "xsrc": "external:0:b5bff8", "ysrc": "external:0:ac3048", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:2d8bda", "sizemode": "area" }, "textsrc": "external:0:8baca8" }, { "mode": "markers", "name": "Americas", "type": "scatter", "xsrc": "external:0:c4f8ac", "ysrc": "external:0:da956d", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:195976", "sizemode": "area" }, "textsrc": "external:0:879b9d" }, { "mode": "markers", "name": "Oceania", "type": "scatter", "xsrc": "external:0:c3dac7", "ysrc": "external:0:29a534", "marker": { "sizeref": 137362.8225, "sizesrc": "external:0:f11d53", "sizemode": "area" }, "textsrc": "external:0:fa1e2d" } ], "name": "2007" } ], "layout": { "title": { "text": "Gapminder Global Indicators" }, "xaxis": { "type": "log", "range": [ 2.31084638206198, 5.257287742561561 ], "title": { "text": "GDP per Capita" }, "autorange": false }, "yaxis": { "type": "linear", "range": [ 16.519299999999998, 115.64419999999998 ], "title": { "text": "Life Expectancy" }, "autorange": false }, "margin": { "b": 50, "t": 50, "pad": 5 }, "sliders": [ { "x": 0.1, "y": 0, "len": 0.9, "pad": { "b": 10, "t": 50 }, "steps": [ { "args": [ [ 1952 ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "1952", "method": "animate" }, { "args": [ [ 1957 ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "1957", "method": "animate" }, { "args": [ [ 1962 ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "1962", "method": "animate" }, { "args": [ [ 1967 ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "1967", "method": "animate" }, { "args": [ [ 1972 ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "1972", "method": "animate" }, { "args": [ [ 1977 ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "1977", "method": "animate" }, { "args": [ [ 1982 ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "1982", "method": "animate" }, { "args": [ [ 1987 ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "1987", "method": "animate" }, { "args": [ [ 1992 ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "1992", "method": "animate" }, { "args": [ [ 1997 ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "1997", "method": "animate" }, { "args": [ [ 2002 ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "2002", "method": "animate" }, { "args": [ [ 2007 ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "2007", "method": "animate" } ], "active": 11, "xanchor": "left", "yanchor": "top", "transition": { "easing": "cubic-in-out", "duration": 300 }, "currentvalue": { "font": { "size": 20 }, "prefix": "Year:", "visible": true, "xanchor": "right" } } ], "autosize": true, "hovermode": "closest", "showlegend": true, "updatemenus": [ { "x": 0.1, "y": 0, "pad": { "r": 10, "t": 87 }, "type": "buttons", "buttons": [ { "args": [ null, { "frame": { "redraw": false, "duration": 500 }, "transition": { "easing": "quadratic-in-out", "duration": 300 }, "fromcurrent": true } ], "label": "Play", "method": "animate" }, { "args": [ [ null ], { "mode": "immediate", "frame": { "redraw": false, "duration": 0 }, "transition": { "duration": 0 } } ], "label": "Pause", "method": "animate" } ], "xanchor": "right", "yanchor": "top", "direction": "left", "showactive": false } ] } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~melodyhuang", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/14.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-0.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-03-20 19:52:54", "mapbox_access_tokens": null, "has_password": null, "username": "melodyhuang", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T19:51:47.390838Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~salshehhi4/2.embed", "fid": "salshehhi4:2", "filename": "scatter-for-dashboard1", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/salshehhi4:2/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/salshehhi4:2/image?image_name=default", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/salshehhi4/2/8_W5V0WGUN2I5VC265N1MJ8RNNKR60M8.png", "list-thumb": "https://api.plotly.com/v2/files/salshehhi4:2/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/salshehhi4:2", "plots": "https://api.plotly.com/v2/plots/salshehhi4:2", "parent": "https://api.plotly.com/v2/folders/home?user=salshehhi4" }, "owner": "salshehhi4", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~salshehhi4/2/", "world_readable": true, "date_modified": "2019-03-20T19:52:57.322Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~salshehhi4/2/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "efc6788c-cd32-429a-a717-85932ff2eb42", "type": "scatter", "ysrc": "salshehhi4:3:8ac218" } ], "layout": {} }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~salshehhi4", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/81.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-8.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-03-20 19:44:59", "mapbox_access_tokens": null, "has_password": null, "username": "salshehhi4", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T19:51:44.662469Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~shuangliu19931013/2.embed", "fid": "shuangliu19931013:2", "filename": "plot from API (1)", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/shuangliu19931013:2/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/shuangliu19931013:2/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/shuangliu19931013:2/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/shuangliu19931013:2/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/shuangliu19931013:2", "plots": "https://api.plotly.com/v2/plots/shuangliu19931013:2", "parent": "https://api.plotly.com/v2/folders/home?user=shuangliu19931013" }, "owner": "shuangliu19931013", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~shuangliu19931013/2/", "world_readable": true, "date_modified": "2019-03-20T19:51:45.258Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~shuangliu19931013/2/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "517915d5-58a7-4a7c-a1c5-7fa189d5ee00", "mode": "markers", "type": "scatter3d", "xsrc": "shuangliu19931013:3:096a5e", "ysrc": "shuangliu19931013:3:90efb0", "zsrc": "shuangliu19931013:3:f3a1fe", "marker": { "size": 5, "color": "rgb(0, 0, 255)", "symbol": "circle", "opacity": 1 } } ], "layout": {} }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~shuangliu19931013", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/23.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-8.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-03-20 19:44:46", "mapbox_access_tokens": null, "has_password": null, "username": "shuangliu19931013", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T19:51:34.730923Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~konradbartczak/2.embed", "fid": "konradbartczak:2", "filename": "Pressuremeter_Ep", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/konradbartczak:2/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/konradbartczak:2/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/konradbartczak:2/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/konradbartczak:2/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/konradbartczak:2", "plots": "https://api.plotly.com/v2/plots/konradbartczak:2", "parent": "https://api.plotly.com/v2/folders/home?user=konradbartczak" }, "owner": "konradbartczak", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "Pressuremeter stiffness modulus as a function of depth", "views": 0, "web_url": "https://chart-studio.plotly.com/~konradbartczak/2/pressuremeter-stiffness-modulus-as-a-function-of-depth/", "world_readable": true, "date_modified": "2019-03-20T20:01:43.381Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~konradbartczak/2/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "1895f988-863c-4eba-8d67-7abe18dbabff", "name": "Pressuremeter stiffness modulus as a function of depth", "type": "scatter", "xsrc": "konradbartczak:3:3475dc", "ysrc": "konradbartczak:3:856228" } ], "layout": { "title": { "text": "Pressuremeter stiffness modulus as a function of depth" }, "showlegend": true, "plot_bgcolor": "rgb(230, 230,230)" } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~konradbartczak", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/36.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-9.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-03-20 19:38:36", "mapbox_access_tokens": null, "has_password": null, "username": "konradbartczak", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T19:51:07.651479Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~shuangliu19931013/0.embed", "fid": "shuangliu19931013:0", "filename": "plot from API", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/shuangliu19931013:0/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/shuangliu19931013:0/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/shuangliu19931013:0/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/shuangliu19931013:0/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/shuangliu19931013:0", "plots": "https://api.plotly.com/v2/plots/shuangliu19931013:0", "parent": "https://api.plotly.com/v2/folders/home?user=shuangliu19931013" }, "owner": "shuangliu19931013", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~shuangliu19931013/0/", "world_readable": true, "date_modified": "2019-03-20T19:51:08.120Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~shuangliu19931013/0/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "d5303df9-a064-44b0-84be-f8f1eea5e8d2", "mode": "markers", "type": "scatter3d", "xsrc": "shuangliu19931013:1:8d6b8b", "ysrc": "shuangliu19931013:1:1b28e0", "zsrc": "shuangliu19931013:1:e06ffc", "marker": { "size": 5, "color": "rgb(0, 0, 255)", "symbol": "circle", "opacity": 1 } } ], "layout": {} }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~shuangliu19931013", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/23.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-8.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-03-20 19:44:46", "mapbox_access_tokens": null, "has_password": null, "username": "shuangliu19931013", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T19:50:17.158796Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~mtamarapalli/40.embed", "fid": "mtamarapalli:40", "filename": "cfp_example1553111411.9427683", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/mtamarapalli:40/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/mtamarapalli:40/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/mtamarapalli:40/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/mtamarapalli:40/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/mtamarapalli:40", "plots": "https://api.plotly.com/v2/plots/mtamarapalli:40", "parent": "https://api.plotly.com/v2/folders/home?user=mtamarapalli" }, "owner": "mtamarapalli", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 2, "web_url": "https://chart-studio.plotly.com/~mtamarapalli/40/", "world_readable": true, "date_modified": "2019-03-20T19:50:17.174Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~mtamarapalli/40/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "mode": "markers", "name": "Africa", "xsrc": "mtamarapalli:37:b87523", "ysrc": "mtamarapalli:37:f04100", "marker": { "color": "rgb(100, 150, 225)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:683aae", "sizemode": "area" }, "textsrc": "mtamarapalli:37:c1e17f" }, { "mode": "markers", "name": "Asia", "xsrc": "mtamarapalli:37:ec27fc", "ysrc": "mtamarapalli:37:b1e9c8", "marker": { "color": "rgb(225, 35, 14)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:8fcbec", "sizemode": "area" }, "textsrc": "mtamarapalli:37:5e7859" }, { "mode": "markers", "name": "Europe", "xsrc": "mtamarapalli:37:36cf99", "ysrc": "mtamarapalli:37:92c901", "marker": { "color": "rgb(225, 200, 162)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:d38e74", "sizemode": "area" }, "textsrc": "mtamarapalli:37:78da67" }, { "mode": "markers", "name": "North America", "xsrc": "mtamarapalli:37:9f0ee6", "ysrc": "mtamarapalli:37:946f49", "marker": { "color": "rgb(225, 145, 65)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:858ef1", "sizemode": "area" }, "textsrc": "mtamarapalli:37:645396" }, { "mode": "markers", "name": "Oceania", "xsrc": "mtamarapalli:37:c7a233", "ysrc": "mtamarapalli:37:d72dea", "marker": { "color": "rgb(128, 0, 128)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:82b966", "sizemode": "area" }, "textsrc": "mtamarapalli:37:2a48d8" }, { "mode": "markers", "name": "South America", "xsrc": "mtamarapalli:37:0c39b0", "ysrc": "mtamarapalli:37:e2d3b7", "marker": { "color": "rgb(49, 55, 255)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:fff664", "sizemode": "area" }, "textsrc": "mtamarapalli:37:97fa0e" } ], "config": { "scrollzoom": true }, "frames": [ { "data": [ { "mode": "markers", "name": "Africa", "xsrc": "mtamarapalli:37:b87523", "ysrc": "mtamarapalli:37:f04100", "marker": { "color": "rgb(100, 150, 225)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:683aae", "sizemode": "area" }, "textsrc": "mtamarapalli:37:c1e17f" }, { "mode": "markers", "name": "Asia", "xsrc": "mtamarapalli:37:ec27fc", "ysrc": "mtamarapalli:37:b1e9c8", "marker": { "color": "rgb(225, 35, 14)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:8fcbec", "sizemode": "area" }, "textsrc": "mtamarapalli:37:5e7859" }, { "mode": "markers", "name": "Europe", "xsrc": "mtamarapalli:37:36cf99", "ysrc": "mtamarapalli:37:92c901", "marker": { "color": "rgb(225, 200, 162)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:d38e74", "sizemode": "area" }, "textsrc": "mtamarapalli:37:78da67" }, { "mode": "markers", "name": "North America", "xsrc": "mtamarapalli:37:9f0ee6", "ysrc": "mtamarapalli:37:946f49", "marker": { "color": "rgb(225, 145, 65)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:858ef1", "sizemode": "area" }, "textsrc": "mtamarapalli:37:645396" }, { "mode": "markers", "name": "Oceania", "xsrc": "mtamarapalli:37:c7a233", "ysrc": "mtamarapalli:37:d72dea", "marker": { "color": "rgb(128, 0, 128)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:82b966", "sizemode": "area" }, "textsrc": "mtamarapalli:37:2a48d8" }, { "mode": "markers", "name": "South America", "xsrc": "mtamarapalli:37:0c39b0", "ysrc": "mtamarapalli:37:e2d3b7", "marker": { "color": "rgb(49, 55, 255)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:fff664", "sizemode": "area" }, "textsrc": "mtamarapalli:37:97fa0e" } ], "name": "1971" }, { "data": [ { "mode": "markers", "name": "Africa", "xsrc": "mtamarapalli:37:8f4e70", "ysrc": "mtamarapalli:37:fb7b94", "marker": { "color": "rgb(100, 150, 225)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:46d321", "sizemode": "area" }, "textsrc": "mtamarapalli:37:cde77e" }, { "mode": "markers", "name": "Asia", "xsrc": "mtamarapalli:37:be7575", "ysrc": "mtamarapalli:37:7ba731", "marker": { "color": "rgb(225, 35, 14)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:87452f", "sizemode": "area" }, "textsrc": "mtamarapalli:37:a0398e" }, { "mode": "markers", "name": "Europe", "xsrc": "mtamarapalli:37:fe5bdf", "ysrc": "mtamarapalli:37:86f64e", "marker": { "color": "rgb(225, 200, 162)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:1d4156", "sizemode": "area" }, "textsrc": "mtamarapalli:37:03b2c1" }, { "mode": "markers", "name": "North America", "xsrc": "mtamarapalli:37:e3e9ef", "ysrc": "mtamarapalli:37:b89f89", "marker": { "color": "rgb(225, 145, 65)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:c8b79a", "sizemode": "area" }, "textsrc": "mtamarapalli:37:7e4468" }, { "mode": "markers", "name": "Oceania", "xsrc": "mtamarapalli:37:ae2705", "ysrc": "mtamarapalli:37:711cd3", "marker": { "color": "rgb(128, 0, 128)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:72fa17", "sizemode": "area" }, "textsrc": "mtamarapalli:37:1d13f8" }, { "mode": "markers", "name": "South America", "xsrc": "mtamarapalli:37:64277a", "ysrc": "mtamarapalli:37:280a1c", "marker": { "color": "rgb(49, 55, 255)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:dc32b7", "sizemode": "area" }, "textsrc": "mtamarapalli:37:d52a9b" } ], "name": "1972" }, { "data": [ { "mode": "markers", "name": "Africa", "xsrc": "mtamarapalli:37:3a4ac1", "ysrc": "mtamarapalli:37:23c292", "marker": { "color": "rgb(100, 150, 225)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:1ca85c", "sizemode": "area" }, "textsrc": "mtamarapalli:37:a96a19" }, { "mode": "markers", "name": "Asia", "xsrc": "mtamarapalli:37:4d1713", "ysrc": "mtamarapalli:37:f50e10", "marker": { "color": "rgb(225, 35, 14)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:c29be6", "sizemode": "area" }, "textsrc": "mtamarapalli:37:998552" }, { "mode": "markers", "name": "Europe", "xsrc": "mtamarapalli:37:912bdc", "ysrc": "mtamarapalli:37:500adc", "marker": { "color": "rgb(225, 200, 162)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:6fe134", "sizemode": "area" }, "textsrc": "mtamarapalli:37:cc2837" }, { "mode": "markers", "name": "North America", "xsrc": "mtamarapalli:37:bec99b", "ysrc": "mtamarapalli:37:eac2df", "marker": { "color": "rgb(225, 145, 65)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:9aef7d", "sizemode": "area" }, "textsrc": "mtamarapalli:37:f820b6" }, { "mode": "markers", "name": "Oceania", "xsrc": "mtamarapalli:37:3675a9", "ysrc": "mtamarapalli:37:a0af1c", "marker": { "color": "rgb(128, 0, 128)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:fb7eb5", "sizemode": "area" }, "textsrc": "mtamarapalli:37:ebb577" }, { "mode": "markers", "name": "South America", "xsrc": "mtamarapalli:37:d1989a", "ysrc": "mtamarapalli:37:7f13f6", "marker": { "color": "rgb(49, 55, 255)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:6c3088", "sizemode": "area" }, "textsrc": "mtamarapalli:37:f8550b" } ], "name": "1973" }, { "data": [ { "mode": "markers", "name": "Africa", "xsrc": "mtamarapalli:37:45ebd0", "ysrc": "mtamarapalli:37:6afbc4", "marker": { "color": "rgb(100, 150, 225)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:f44264", "sizemode": "area" }, "textsrc": "mtamarapalli:37:e6173c" }, { "mode": "markers", "name": "Asia", "xsrc": "mtamarapalli:37:198c0e", "ysrc": "mtamarapalli:37:5f08fc", "marker": { "color": "rgb(225, 35, 14)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:dbf02d", "sizemode": "area" }, "textsrc": "mtamarapalli:37:b6ad1e" }, { "mode": "markers", "name": "Europe", "xsrc": "mtamarapalli:37:52b22f", "ysrc": "mtamarapalli:37:4aa60b", "marker": { "color": "rgb(225, 200, 162)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:1b1071", "sizemode": "area" }, "textsrc": "mtamarapalli:37:4dfbc7" }, { "mode": "markers", "name": "North America", "xsrc": "mtamarapalli:37:718634", "ysrc": "mtamarapalli:37:c4d32b", "marker": { "color": "rgb(225, 145, 65)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:d9bffa", "sizemode": "area" }, "textsrc": "mtamarapalli:37:33c3db" }, { "mode": "markers", "name": "Oceania", "xsrc": "mtamarapalli:37:67153c", "ysrc": "mtamarapalli:37:cc25d0", "marker": { "color": "rgb(128, 0, 128)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:1cb1c8", "sizemode": "area" }, "textsrc": "mtamarapalli:37:a60f1d" }, { "mode": "markers", "name": "South America", "xsrc": "mtamarapalli:37:57f5d6", "ysrc": "mtamarapalli:37:e4274b", "marker": { "color": "rgb(49, 55, 255)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:0b8f82", "sizemode": "area" }, "textsrc": "mtamarapalli:37:9d0126" } ], "name": "1974" }, { "data": [ { "mode": "markers", "name": "Africa", "xsrc": "mtamarapalli:37:efff09", "ysrc": "mtamarapalli:37:3151d3", "marker": { "color": "rgb(100, 150, 225)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:1823cd", "sizemode": "area" }, "textsrc": "mtamarapalli:37:ae4d6d" }, { "mode": "markers", "name": "Asia", "xsrc": "mtamarapalli:37:44e6d5", "ysrc": "mtamarapalli:37:5c3449", "marker": { "color": "rgb(225, 35, 14)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:6f77d3", "sizemode": "area" }, "textsrc": "mtamarapalli:37:22988b" }, { "mode": "markers", "name": "Europe", "xsrc": "mtamarapalli:37:f4814b", "ysrc": "mtamarapalli:37:fa6bd9", "marker": { "color": "rgb(225, 200, 162)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:d4376f", "sizemode": "area" }, "textsrc": "mtamarapalli:37:fa6c2b" }, { "mode": "markers", "name": "North America", "xsrc": "mtamarapalli:37:77b85b", "ysrc": "mtamarapalli:37:cdefb1", "marker": { "color": "rgb(225, 145, 65)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:225410", "sizemode": "area" }, "textsrc": "mtamarapalli:37:8e4ce7" }, { "mode": "markers", "name": "Oceania", "xsrc": "mtamarapalli:37:ff5025", "ysrc": "mtamarapalli:37:15ee03", "marker": { "color": "rgb(128, 0, 128)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:673da7", "sizemode": "area" }, "textsrc": "mtamarapalli:37:67a490" }, { "mode": "markers", "name": "South America", "xsrc": "mtamarapalli:37:d2eec8", "ysrc": "mtamarapalli:37:768bfa", "marker": { "color": "rgb(49, 55, 255)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:f923d3", "sizemode": "area" }, "textsrc": "mtamarapalli:37:f40400" } ], "name": "1975" }, { "data": [ { "mode": "markers", "name": "Africa", "xsrc": "mtamarapalli:37:9d530b", "ysrc": "mtamarapalli:37:15e361", "marker": { "color": "rgb(100, 150, 225)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:d5d05c", "sizemode": "area" }, "textsrc": "mtamarapalli:37:96cf7c" }, { "mode": "markers", "name": "Asia", "xsrc": "mtamarapalli:37:b0e563", "ysrc": "mtamarapalli:37:22cc66", "marker": { "color": "rgb(225, 35, 14)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:31362a", "sizemode": "area" }, "textsrc": "mtamarapalli:37:23888e" }, { "mode": "markers", "name": "Europe", "xsrc": "mtamarapalli:37:fc7aed", "ysrc": "mtamarapalli:37:67cfa2", "marker": { "color": "rgb(225, 200, 162)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:4e04c4", "sizemode": "area" }, "textsrc": "mtamarapalli:37:9d6faa" }, { "mode": "markers", "name": "North America", "xsrc": "mtamarapalli:37:eeb324", "ysrc": "mtamarapalli:37:70cec0", "marker": { "color": "rgb(225, 145, 65)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:300615", "sizemode": "area" }, "textsrc": "mtamarapalli:37:1f6361" }, { "mode": "markers", "name": "Oceania", "xsrc": "mtamarapalli:37:b26c74", "ysrc": "mtamarapalli:37:9aaf62", "marker": { "color": "rgb(128, 0, 128)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:1d0b9e", "sizemode": "area" }, "textsrc": "mtamarapalli:37:2a0a31" }, { "mode": "markers", "name": "South America", "xsrc": "mtamarapalli:37:c5f949", "ysrc": "mtamarapalli:37:4c4639", "marker": { "color": "rgb(49, 55, 255)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:5b23b8", "sizemode": "area" }, "textsrc": "mtamarapalli:37:b785d5" } ], "name": "1976" }, { "data": [ { "mode": "markers", "name": "Africa", "xsrc": "mtamarapalli:37:d89a71", "ysrc": "mtamarapalli:37:9afd48", "marker": { "color": "rgb(100, 150, 225)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:acda54", "sizemode": "area" }, "textsrc": "mtamarapalli:37:f0533d" }, { "mode": "markers", "name": "Asia", "xsrc": "mtamarapalli:37:d68874", "ysrc": "mtamarapalli:37:a07eec", "marker": { "color": "rgb(225, 35, 14)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:5968ff", "sizemode": "area" }, "textsrc": "mtamarapalli:37:0ad1c2" }, { "mode": "markers", "name": "Europe", "xsrc": "mtamarapalli:37:c027e1", "ysrc": "mtamarapalli:37:26ded0", "marker": { "color": "rgb(225, 200, 162)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:b2c7c2", "sizemode": "area" }, "textsrc": "mtamarapalli:37:b4458f" }, { "mode": "markers", "name": "North America", "xsrc": "mtamarapalli:37:292e08", "ysrc": "mtamarapalli:37:930faa", "marker": { "color": "rgb(225, 145, 65)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:617fe1", "sizemode": "area" }, "textsrc": "mtamarapalli:37:556375" }, { "mode": "markers", "name": "Oceania", "xsrc": "mtamarapalli:37:b6ba15", "ysrc": "mtamarapalli:37:26e303", "marker": { "color": "rgb(128, 0, 128)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:1fd3b1", "sizemode": "area" }, "textsrc": "mtamarapalli:37:9566f2" }, { "mode": "markers", "name": "South America", "xsrc": "mtamarapalli:37:c14d8b", "ysrc": "mtamarapalli:37:1de598", "marker": { "color": "rgb(49, 55, 255)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:99eeb2", "sizemode": "area" }, "textsrc": "mtamarapalli:37:3b7453" } ], "name": "1977" }, { "data": [ { "mode": "markers", "name": "Africa", "xsrc": "mtamarapalli:37:c3196c", "ysrc": "mtamarapalli:37:47b081", "marker": { "color": "rgb(100, 150, 225)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:981589", "sizemode": "area" }, "textsrc": "mtamarapalli:37:661f50" }, { "mode": "markers", "name": "Asia", "xsrc": "mtamarapalli:37:5bf684", "ysrc": "mtamarapalli:37:90bbe1", "marker": { "color": "rgb(225, 35, 14)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:bbb9b3", "sizemode": "area" }, "textsrc": "mtamarapalli:37:5298b9" }, { "mode": "markers", "name": "Europe", "xsrc": "mtamarapalli:37:929d3c", "ysrc": "mtamarapalli:37:58f1ff", "marker": { "color": "rgb(225, 200, 162)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:863b29", "sizemode": "area" }, "textsrc": "mtamarapalli:37:44771f" }, { "mode": "markers", "name": "North America", "xsrc": "mtamarapalli:37:ba233e", "ysrc": "mtamarapalli:37:f983b3", "marker": { "color": "rgb(225, 145, 65)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:602021", "sizemode": "area" }, "textsrc": "mtamarapalli:37:bda7cb" }, { "mode": "markers", "name": "Oceania", "xsrc": "mtamarapalli:37:cf6a39", "ysrc": "mtamarapalli:37:163413", "marker": { "color": "rgb(128, 0, 128)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:d83fa9", "sizemode": "area" }, "textsrc": "mtamarapalli:37:99f2d1" }, { "mode": "markers", "name": "South America", "xsrc": "mtamarapalli:37:706dee", "ysrc": "mtamarapalli:37:c70cd5", "marker": { "color": "rgb(49, 55, 255)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:8f3577", "sizemode": "area" }, "textsrc": "mtamarapalli:37:c26a3a" } ], "name": "1978" }, { "data": [ { "mode": "markers", "name": "Africa", "xsrc": "mtamarapalli:37:3ec0f8", "ysrc": "mtamarapalli:37:477fb1", "marker": { "color": "rgb(100, 150, 225)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:289b41", "sizemode": "area" }, "textsrc": "mtamarapalli:37:b7b4c1" }, { "mode": "markers", "name": "Asia", "xsrc": "mtamarapalli:37:f4fc02", "ysrc": "mtamarapalli:37:3905dc", "marker": { "color": "rgb(225, 35, 14)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:ad2335", "sizemode": "area" }, "textsrc": "mtamarapalli:37:6b71a8" }, { "mode": "markers", "name": "Europe", "xsrc": "mtamarapalli:37:1e8f8d", "ysrc": "mtamarapalli:37:260018", "marker": { "color": "rgb(225, 200, 162)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:53ee57", "sizemode": "area" }, "textsrc": "mtamarapalli:37:3000c7" }, { "mode": "markers", "name": "North America", "xsrc": "mtamarapalli:37:a39d59", "ysrc": "mtamarapalli:37:7f33e3", "marker": { "color": "rgb(225, 145, 65)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:7883e7", "sizemode": "area" }, "textsrc": "mtamarapalli:37:565206" }, { "mode": "markers", "name": "Oceania", "xsrc": "mtamarapalli:37:cd2fc5", "ysrc": "mtamarapalli:37:ebdc4b", "marker": { "color": "rgb(128, 0, 128)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:dae3f2", "sizemode": "area" }, "textsrc": "mtamarapalli:37:fe30bd" }, { "mode": "markers", "name": "South America", "xsrc": "mtamarapalli:37:8aeed3", "ysrc": "mtamarapalli:37:1181b8", "marker": { "color": "rgb(49, 55, 255)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:e19c34", "sizemode": "area" }, "textsrc": "mtamarapalli:37:f043a4" } ], "name": "1979" }, { "data": [ { "mode": "markers", "name": "Africa", "xsrc": "mtamarapalli:37:5266e8", "ysrc": "mtamarapalli:37:a992e2", "marker": { "color": "rgb(100, 150, 225)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:b1096f", "sizemode": "area" }, "textsrc": "mtamarapalli:37:059283" }, { "mode": "markers", "name": "Asia", "xsrc": "mtamarapalli:37:5b1a44", "ysrc": "mtamarapalli:37:903193", "marker": { "color": "rgb(225, 35, 14)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:3e44f6", "sizemode": "area" }, "textsrc": "mtamarapalli:37:ad6d0a" }, { "mode": "markers", "name": "Europe", "xsrc": "mtamarapalli:37:4d33ba", "ysrc": "mtamarapalli:37:4fccdd", "marker": { "color": "rgb(225, 200, 162)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:64450b", "sizemode": "area" }, "textsrc": "mtamarapalli:37:1a2b46" }, { "mode": "markers", "name": "North America", "xsrc": "mtamarapalli:37:a6c00e", "ysrc": "mtamarapalli:37:dd1421", "marker": { "color": "rgb(225, 145, 65)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:dd3d0d", "sizemode": "area" }, "textsrc": "mtamarapalli:37:154eaf" }, { "mode": "markers", "name": "Oceania", "xsrc": "mtamarapalli:37:99587f", "ysrc": "mtamarapalli:37:f126ec", "marker": { "color": "rgb(128, 0, 128)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:1baa77", "sizemode": "area" }, "textsrc": "mtamarapalli:37:26ec95" }, { "mode": "markers", "name": "South America", "xsrc": "mtamarapalli:37:6a7250", "ysrc": "mtamarapalli:37:9fee5e", "marker": { "color": "rgb(49, 55, 255)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:f045ec", "sizemode": "area" }, "textsrc": "mtamarapalli:37:7dc779" } ], "name": "1980" }, { "data": [ { "mode": "markers", "name": "Africa", "xsrc": "mtamarapalli:37:a477c4", "ysrc": "mtamarapalli:37:de058e", "marker": { "color": "rgb(100, 150, 225)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:4584fa", "sizemode": "area" }, "textsrc": "mtamarapalli:37:cbb961" }, { "mode": "markers", "name": "Asia", "xsrc": "mtamarapalli:37:ca4a22", "ysrc": "mtamarapalli:37:556f92", "marker": { "color": "rgb(225, 35, 14)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:0b0478", "sizemode": "area" }, "textsrc": "mtamarapalli:37:48ae80" }, { "mode": "markers", "name": "Europe", "xsrc": "mtamarapalli:37:e3bf8b", "ysrc": "mtamarapalli:37:e4d292", "marker": { "color": "rgb(225, 200, 162)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:accccf", "sizemode": "area" }, "textsrc": "mtamarapalli:37:a05ce1" }, { "mode": "markers", "name": "North America", "xsrc": "mtamarapalli:37:542a84", "ysrc": "mtamarapalli:37:c85445", "marker": { "color": "rgb(225, 145, 65)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:dcfa35", "sizemode": "area" }, "textsrc": "mtamarapalli:37:65b72a" }, { "mode": "markers", "name": "Oceania", "xsrc": "mtamarapalli:37:06c6e7", "ysrc": "mtamarapalli:37:03ff36", "marker": { "color": "rgb(128, 0, 128)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:921995", "sizemode": "area" }, "textsrc": "mtamarapalli:37:b95373" }, { "mode": "markers", "name": "South America", "xsrc": "mtamarapalli:37:30f4df", "ysrc": "mtamarapalli:37:892d67", "marker": { "color": "rgb(49, 55, 255)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:0fefc7", "sizemode": "area" }, "textsrc": "mtamarapalli:37:92e989" } ], "name": "1981" }, { "data": [ { "mode": "markers", "name": "Africa", "xsrc": "mtamarapalli:37:c19614", "ysrc": "mtamarapalli:37:4f0b6d", "marker": { "color": "rgb(100, 150, 225)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:b3fd34", "sizemode": "area" }, "textsrc": "mtamarapalli:37:7b9cba" }, { "mode": "markers", "name": "Asia", "xsrc": "mtamarapalli:37:0ab01c", "ysrc": "mtamarapalli:37:d83217", "marker": { "color": "rgb(225, 35, 14)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:330f1c", "sizemode": "area" }, "textsrc": "mtamarapalli:37:96726b" }, { "mode": "markers", "name": "Europe", "xsrc": "mtamarapalli:37:1a0bff", "ysrc": "mtamarapalli:37:507c7e", "marker": { "color": "rgb(225, 200, 162)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:f13c98", "sizemode": "area" }, "textsrc": "mtamarapalli:37:7951cf" }, { "mode": "markers", "name": "North America", "xsrc": "mtamarapalli:37:c7e3fd", "ysrc": "mtamarapalli:37:34869b", "marker": { "color": "rgb(225, 145, 65)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:39f8ae", "sizemode": "area" }, "textsrc": "mtamarapalli:37:db7dbb" }, { "mode": "markers", "name": "Oceania", "xsrc": "mtamarapalli:37:79cc71", "ysrc": "mtamarapalli:37:a45f1b", "marker": { "color": "rgb(128, 0, 128)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:a21d1a", "sizemode": "area" }, "textsrc": "mtamarapalli:37:e9fc77" }, { "mode": "markers", "name": "South America", "xsrc": "mtamarapalli:37:fcd8c2", "ysrc": "mtamarapalli:37:35443b", "marker": { "color": "rgb(49, 55, 255)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:7235e5", "sizemode": "area" }, "textsrc": "mtamarapalli:37:8fff17" } ], "name": "1982" }, { "data": [ { "mode": "markers", "name": "Africa", "xsrc": "mtamarapalli:37:72da39", "ysrc": "mtamarapalli:37:6d2de9", "marker": { "color": "rgb(100, 150, 225)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:de79cf", "sizemode": "area" }, "textsrc": "mtamarapalli:37:a6ecb9" }, { "mode": "markers", "name": "Asia", "xsrc": "mtamarapalli:37:972bcd", "ysrc": "mtamarapalli:37:ec4756", "marker": { "color": "rgb(225, 35, 14)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:10dbd3", "sizemode": "area" }, "textsrc": "mtamarapalli:37:1141bc" }, { "mode": "markers", "name": "Europe", "xsrc": "mtamarapalli:37:2ea371", "ysrc": "mtamarapalli:37:c6d4d9", "marker": { "color": "rgb(225, 200, 162)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:01ec33", "sizemode": "area" }, "textsrc": "mtamarapalli:37:846454" }, { "mode": "markers", "name": "North America", "xsrc": "mtamarapalli:37:831b60", "ysrc": "mtamarapalli:37:ae3cdc", "marker": { "color": "rgb(225, 145, 65)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:162d61", "sizemode": "area" }, "textsrc": "mtamarapalli:37:99e6c0" }, { "mode": "markers", "name": "Oceania", "xsrc": "mtamarapalli:37:0c49cd", "ysrc": "mtamarapalli:37:b76a06", "marker": { "color": "rgb(128, 0, 128)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:82d217", "sizemode": "area" }, "textsrc": "mtamarapalli:37:312d0f" }, { "mode": "markers", "name": "South America", "xsrc": "mtamarapalli:37:7c5081", "ysrc": "mtamarapalli:37:c0397c", "marker": { "color": "rgb(49, 55, 255)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:28ea67", "sizemode": "area" }, "textsrc": "mtamarapalli:37:797f44" } ], "name": "1983" }, { "data": [ { "mode": "markers", "name": "Africa", "xsrc": "mtamarapalli:37:19580b", "ysrc": "mtamarapalli:37:ce2bbd", "marker": { "color": "rgb(100, 150, 225)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:bbc2fc", "sizemode": "area" }, "textsrc": "mtamarapalli:37:57889e" }, { "mode": "markers", "name": "Asia", "xsrc": "mtamarapalli:37:8b1ada", "ysrc": "mtamarapalli:37:532993", "marker": { "color": "rgb(225, 35, 14)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:f7c48a", "sizemode": "area" }, "textsrc": "mtamarapalli:37:24ae53" }, { "mode": "markers", "name": "Europe", "xsrc": "mtamarapalli:37:f1dcee", "ysrc": "mtamarapalli:37:d9fb6d", "marker": { "color": "rgb(225, 200, 162)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:eee3e1", "sizemode": "area" }, "textsrc": "mtamarapalli:37:13ed38" }, { "mode": "markers", "name": "North America", "xsrc": "mtamarapalli:37:1eb712", "ysrc": "mtamarapalli:37:54b36a", "marker": { "color": "rgb(225, 145, 65)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:d68ad3", "sizemode": "area" }, "textsrc": "mtamarapalli:37:04423c" }, { "mode": "markers", "name": "Oceania", "xsrc": "mtamarapalli:37:88701e", "ysrc": "mtamarapalli:37:cdd6c4", "marker": { "color": "rgb(128, 0, 128)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:f5a4ba", "sizemode": "area" }, "textsrc": "mtamarapalli:37:34d0d5" }, { "mode": "markers", "name": "South America", "xsrc": "mtamarapalli:37:051cd2", "ysrc": "mtamarapalli:37:b1f056", "marker": { "color": "rgb(49, 55, 255)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:33c565", "sizemode": "area" }, "textsrc": "mtamarapalli:37:84ce9f" } ], "name": "1984" }, { "data": [ { "mode": "markers", "name": "Africa", "xsrc": "mtamarapalli:37:8738f2", "ysrc": "mtamarapalli:37:136b70", "marker": { "color": "rgb(100, 150, 225)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:32e449", "sizemode": "area" }, "textsrc": "mtamarapalli:37:80d2bf" }, { "mode": "markers", "name": "Asia", "xsrc": "mtamarapalli:37:959727", "ysrc": "mtamarapalli:37:be89c1", "marker": { "color": "rgb(225, 35, 14)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:ba8b33", "sizemode": "area" }, "textsrc": "mtamarapalli:37:b269b8" }, { "mode": "markers", "name": "Europe", "xsrc": "mtamarapalli:37:586b85", "ysrc": "mtamarapalli:37:6d861f", "marker": { "color": "rgb(225, 200, 162)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:fc48d4", "sizemode": "area" }, "textsrc": "mtamarapalli:37:079437" }, { "mode": "markers", "name": "North America", "xsrc": "mtamarapalli:37:e87fbc", "ysrc": "mtamarapalli:37:dfea4e", "marker": { "color": "rgb(225, 145, 65)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:9fcf6f", "sizemode": "area" }, "textsrc": "mtamarapalli:37:61c8af" }, { "mode": "markers", "name": "Oceania", "xsrc": "mtamarapalli:37:a35d56", "ysrc": "mtamarapalli:37:c1672a", "marker": { "color": "rgb(128, 0, 128)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:65527f", "sizemode": "area" }, "textsrc": "mtamarapalli:37:c68bde" }, { "mode": "markers", "name": "South America", "xsrc": "mtamarapalli:37:1e1222", "ysrc": "mtamarapalli:37:bb47df", "marker": { "color": "rgb(49, 55, 255)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:d719c4", "sizemode": "area" }, "textsrc": "mtamarapalli:37:7637b8" } ], "name": "1985" }, { "data": [ { "mode": "markers", "name": "Africa", "xsrc": "mtamarapalli:37:bb0179", "ysrc": "mtamarapalli:37:f48bb1", "marker": { "color": "rgb(100, 150, 225)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:ec265d", "sizemode": "area" }, "textsrc": "mtamarapalli:37:935cd6" }, { "mode": "markers", "name": "Asia", "xsrc": "mtamarapalli:37:da6486", "ysrc": "mtamarapalli:37:146092", "marker": { "color": "rgb(225, 35, 14)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:9f83df", "sizemode": "area" }, "textsrc": "mtamarapalli:37:dd069c" }, { "mode": "markers", "name": "Europe", "xsrc": "mtamarapalli:37:b6c0e6", "ysrc": "mtamarapalli:37:3f2b41", "marker": { "color": "rgb(225, 200, 162)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:d76bb3", "sizemode": "area" }, "textsrc": "mtamarapalli:37:c99056" }, { "mode": "markers", "name": "North America", "xsrc": "mtamarapalli:37:fabaa2", "ysrc": "mtamarapalli:37:87cec9", "marker": { "color": "rgb(225, 145, 65)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:efbb41", "sizemode": "area" }, "textsrc": "mtamarapalli:37:80d77f" }, { "mode": "markers", "name": "Oceania", "xsrc": "mtamarapalli:37:d623c6", "ysrc": "mtamarapalli:37:2a63e1", "marker": { "color": "rgb(128, 0, 128)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:476eef", "sizemode": "area" }, "textsrc": "mtamarapalli:37:65978f" }, { "mode": "markers", "name": "South America", "xsrc": "mtamarapalli:37:443eea", "ysrc": "mtamarapalli:37:b8be1c", "marker": { "color": "rgb(49, 55, 255)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:33f250", "sizemode": "area" }, "textsrc": "mtamarapalli:37:a2f152" } ], "name": "1986" }, { "data": [ { "mode": "markers", "name": "Africa", "xsrc": "mtamarapalli:37:48ebce", "ysrc": "mtamarapalli:37:67dd0f", "marker": { "color": "rgb(100, 150, 225)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:f90867", "sizemode": "area" }, "textsrc": "mtamarapalli:37:a7bdeb" }, { "mode": "markers", "name": "Asia", "xsrc": "mtamarapalli:37:1f70a6", "ysrc": "mtamarapalli:37:69a54c", "marker": { "color": "rgb(225, 35, 14)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:644eff", "sizemode": "area" }, "textsrc": "mtamarapalli:37:3acdeb" }, { "mode": "markers", "name": "Europe", "xsrc": "mtamarapalli:37:7c27d4", "ysrc": "mtamarapalli:37:7ea1c4", "marker": { "color": "rgb(225, 200, 162)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:296684", "sizemode": "area" }, "textsrc": "mtamarapalli:37:45ef28" }, { "mode": "markers", "name": "North America", "xsrc": "mtamarapalli:37:7f579e", "ysrc": "mtamarapalli:37:4a90b4", "marker": { "color": "rgb(225, 145, 65)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:c711b5", "sizemode": "area" }, "textsrc": "mtamarapalli:37:458096" }, { "mode": "markers", "name": "Oceania", "xsrc": "mtamarapalli:37:085a4e", "ysrc": "mtamarapalli:37:a375da", "marker": { "color": "rgb(128, 0, 128)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:5fd842", "sizemode": "area" }, "textsrc": "mtamarapalli:37:bf043a" }, { "mode": "markers", "name": "South America", "xsrc": "mtamarapalli:37:989f21", "ysrc": "mtamarapalli:37:eb8898", "marker": { "color": "rgb(49, 55, 255)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:e1677d", "sizemode": "area" }, "textsrc": "mtamarapalli:37:fc5452" } ], "name": "1987" }, { "data": [ { "mode": "markers", "name": "Africa", "xsrc": "mtamarapalli:37:49e709", "ysrc": "mtamarapalli:37:c357f4", "marker": { "color": "rgb(100, 150, 225)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:86fb7f", "sizemode": "area" }, "textsrc": "mtamarapalli:37:7c36e1" }, { "mode": "markers", "name": "Asia", "xsrc": "mtamarapalli:37:c478f7", "ysrc": "mtamarapalli:37:ca2582", "marker": { "color": "rgb(225, 35, 14)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:0d8fd5", "sizemode": "area" }, "textsrc": "mtamarapalli:37:5d49ef" }, { "mode": "markers", "name": "Europe", "xsrc": "mtamarapalli:37:4d9268", "ysrc": "mtamarapalli:37:49d8ed", "marker": { "color": "rgb(225, 200, 162)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:349351", "sizemode": "area" }, "textsrc": "mtamarapalli:37:0748c5" }, { "mode": "markers", "name": "North America", "xsrc": "mtamarapalli:37:d1bf2f", "ysrc": "mtamarapalli:37:927a47", "marker": { "color": "rgb(225, 145, 65)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:54719c", "sizemode": "area" }, "textsrc": "mtamarapalli:37:6dd36f" }, { "mode": "markers", "name": "Oceania", "xsrc": "mtamarapalli:37:30660f", "ysrc": "mtamarapalli:37:ccd902", "marker": { "color": "rgb(128, 0, 128)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:1d963c", "sizemode": "area" }, "textsrc": "mtamarapalli:37:9ad8d7" }, { "mode": "markers", "name": "South America", "xsrc": "mtamarapalli:37:3ea3ae", "ysrc": "mtamarapalli:37:29b537", "marker": { "color": "rgb(49, 55, 255)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:e3f3c9", "sizemode": "area" }, "textsrc": "mtamarapalli:37:bc7f9f" } ], "name": "1988" }, { "data": [ { "mode": "markers", "name": "Africa", "xsrc": "mtamarapalli:37:0ebd22", "ysrc": "mtamarapalli:37:6f6022", "marker": { "color": "rgb(100, 150, 225)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:a48218", "sizemode": "area" }, "textsrc": "mtamarapalli:37:5432f2" }, { "mode": "markers", "name": "Asia", "xsrc": "mtamarapalli:37:f4be01", "ysrc": "mtamarapalli:37:1328d8", "marker": { "color": "rgb(225, 35, 14)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:1722ad", "sizemode": "area" }, "textsrc": "mtamarapalli:37:ac561b" }, { "mode": "markers", "name": "Europe", "xsrc": "mtamarapalli:37:5e3c4e", "ysrc": "mtamarapalli:37:5b219d", "marker": { "color": "rgb(225, 200, 162)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:02ef9b", "sizemode": "area" }, "textsrc": "mtamarapalli:37:76e021" }, { "mode": "markers", "name": "North America", "xsrc": "mtamarapalli:37:9822fe", "ysrc": "mtamarapalli:37:fd5b7c", "marker": { "color": "rgb(225, 145, 65)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:131303", "sizemode": "area" }, "textsrc": "mtamarapalli:37:4f3c52" }, { "mode": "markers", "name": "Oceania", "xsrc": "mtamarapalli:37:ad3091", "ysrc": "mtamarapalli:37:a3d3fe", "marker": { "color": "rgb(128, 0, 128)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:900cb7", "sizemode": "area" }, "textsrc": "mtamarapalli:37:1a9671" }, { "mode": "markers", "name": "South America", "xsrc": "mtamarapalli:37:1357ad", "ysrc": "mtamarapalli:37:03f123", "marker": { "color": "rgb(49, 55, 255)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:847461", "sizemode": "area" }, "textsrc": "mtamarapalli:37:fed1ca" } ], "name": "1989" }, { "data": [ { "mode": "markers", "name": "Africa", "xsrc": "mtamarapalli:37:ffcd70", "ysrc": "mtamarapalli:37:c99dc2", "marker": { "color": "rgb(100, 150, 225)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:47cc77", "sizemode": "area" }, "textsrc": "mtamarapalli:37:c18416" }, { "mode": "markers", "name": "Asia", "xsrc": "mtamarapalli:37:bc478a", "ysrc": "mtamarapalli:37:7f8e2a", "marker": { "color": "rgb(225, 35, 14)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:00548f", "sizemode": "area" }, "textsrc": "mtamarapalli:37:c8a951" }, { "mode": "markers", "name": "Europe", "xsrc": "mtamarapalli:37:1b1004", "ysrc": "mtamarapalli:37:d2c3fd", "marker": { "color": "rgb(225, 200, 162)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:fd7781", "sizemode": "area" }, "textsrc": "mtamarapalli:37:4bf10e" }, { "mode": "markers", "name": "North America", "xsrc": "mtamarapalli:37:1b47ed", "ysrc": "mtamarapalli:37:6aabfc", "marker": { "color": "rgb(225, 145, 65)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:10daf0", "sizemode": "area" }, "textsrc": "mtamarapalli:37:8ee516" }, { "mode": "markers", "name": "Oceania", "xsrc": "mtamarapalli:37:413cdb", "ysrc": "mtamarapalli:37:e25583", "marker": { "color": "rgb(128, 0, 128)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:0febd9", "sizemode": "area" }, "textsrc": "mtamarapalli:37:781ff6" }, { "mode": "markers", "name": "South America", "xsrc": "mtamarapalli:37:98f91f", "ysrc": "mtamarapalli:37:b9e7e8", "marker": { "color": "rgb(49, 55, 255)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:629dd1", "sizemode": "area" }, "textsrc": "mtamarapalli:37:c9a18e" } ], "name": "1990" }, { "data": [ { "mode": "markers", "name": "Africa", "xsrc": "mtamarapalli:37:702048", "ysrc": "mtamarapalli:37:bab4b2", "marker": { "color": "rgb(100, 150, 225)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:7933c1", "sizemode": "area" }, "textsrc": "mtamarapalli:37:fb348c" }, { "mode": "markers", "name": "Asia", "xsrc": "mtamarapalli:37:c07edd", "ysrc": "mtamarapalli:37:d19819", "marker": { "color": "rgb(225, 35, 14)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:61d587", "sizemode": "area" }, "textsrc": "mtamarapalli:37:07d435" }, { "mode": "markers", "name": "Europe", "xsrc": "mtamarapalli:37:7a31e5", "ysrc": "mtamarapalli:37:acadc6", "marker": { "color": "rgb(225, 200, 162)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:e2b4ab", "sizemode": "area" }, "textsrc": "mtamarapalli:37:046324" }, { "mode": "markers", "name": "North America", "xsrc": "mtamarapalli:37:dfa9bc", "ysrc": "mtamarapalli:37:6355aa", "marker": { "color": "rgb(225, 145, 65)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:af0ab6", "sizemode": "area" }, "textsrc": "mtamarapalli:37:60789b" }, { "mode": "markers", "name": "Oceania", "xsrc": "mtamarapalli:37:ee27a6", "ysrc": "mtamarapalli:37:23e5e9", "marker": { "color": "rgb(128, 0, 128)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:30ce17", "sizemode": "area" }, "textsrc": "mtamarapalli:37:552193" }, { "mode": "markers", "name": "South America", "xsrc": "mtamarapalli:37:da7b90", "ysrc": "mtamarapalli:37:442317", "marker": { "color": "rgb(49, 55, 255)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:9af443", "sizemode": "area" }, "textsrc": "mtamarapalli:37:25ef4c" } ], "name": "1991" }, { "data": [ { "mode": "markers", "name": "Africa", "xsrc": "mtamarapalli:37:47303b", "ysrc": "mtamarapalli:37:f05611", "marker": { "color": "rgb(100, 150, 225)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:114694", "sizemode": "area" }, "textsrc": "mtamarapalli:37:2ebc82" }, { "mode": "markers", "name": "Asia", "xsrc": "mtamarapalli:37:095619", "ysrc": "mtamarapalli:37:28cb6a", "marker": { "color": "rgb(225, 35, 14)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:6a177c", "sizemode": "area" }, "textsrc": "mtamarapalli:37:f0c605" }, { "mode": "markers", "name": "Europe", "xsrc": "mtamarapalli:37:ee22a4", "ysrc": "mtamarapalli:37:b5ca95", "marker": { "color": "rgb(225, 200, 162)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:9f0950", "sizemode": "area" }, "textsrc": "mtamarapalli:37:81e4a3" }, { "mode": "markers", "name": "North America", "xsrc": "mtamarapalli:37:80b82c", "ysrc": "mtamarapalli:37:2731ca", "marker": { "color": "rgb(225, 145, 65)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:364721", "sizemode": "area" }, "textsrc": "mtamarapalli:37:96832a" }, { "mode": "markers", "name": "Oceania", "xsrc": "mtamarapalli:37:d5c39b", "ysrc": "mtamarapalli:37:6f6e61", "marker": { "color": "rgb(128, 0, 128)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:790199", "sizemode": "area" }, "textsrc": "mtamarapalli:37:3090bb" }, { "mode": "markers", "name": "South America", "xsrc": "mtamarapalli:37:936924", "ysrc": "mtamarapalli:37:3b3cdc", "marker": { "color": "rgb(49, 55, 255)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:37ed0d", "sizemode": "area" }, "textsrc": "mtamarapalli:37:74da52" } ], "name": "1992" }, { "data": [ { "mode": "markers", "name": "Africa", "xsrc": "mtamarapalli:37:2789ee", "ysrc": "mtamarapalli:37:e3a3b5", "marker": { "color": "rgb(100, 150, 225)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:453bdc", "sizemode": "area" }, "textsrc": "mtamarapalli:37:bbbe5f" }, { "mode": "markers", "name": "Asia", "xsrc": "mtamarapalli:37:e5a19a", "ysrc": "mtamarapalli:37:666b09", "marker": { "color": "rgb(225, 35, 14)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:a996f0", "sizemode": "area" }, "textsrc": "mtamarapalli:37:5e4a5c" }, { "mode": "markers", "name": "Europe", "xsrc": "mtamarapalli:37:f1e173", "ysrc": "mtamarapalli:37:40ca7f", "marker": { "color": "rgb(225, 200, 162)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:7f0e2c", "sizemode": "area" }, "textsrc": "mtamarapalli:37:12b0fa" }, { "mode": "markers", "name": "North America", "xsrc": "mtamarapalli:37:cc59b9", "ysrc": "mtamarapalli:37:ffc4e0", "marker": { "color": "rgb(225, 145, 65)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:0d122b", "sizemode": "area" }, "textsrc": "mtamarapalli:37:55cf71" }, { "mode": "markers", "name": "Oceania", "xsrc": "mtamarapalli:37:b99138", "ysrc": "mtamarapalli:37:be6df4", "marker": { "color": "rgb(128, 0, 128)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:656d8d", "sizemode": "area" }, "textsrc": "mtamarapalli:37:d2c198" }, { "mode": "markers", "name": "South America", "xsrc": "mtamarapalli:37:079eb4", "ysrc": "mtamarapalli:37:405b8f", "marker": { "color": "rgb(49, 55, 255)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:9c4fcb", "sizemode": "area" }, "textsrc": "mtamarapalli:37:c878de" } ], "name": "1993" }, { "data": [ { "mode": "markers", "name": "Africa", "xsrc": "mtamarapalli:37:34209e", "ysrc": "mtamarapalli:37:e45ff4", "marker": { "color": "rgb(100, 150, 225)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:061bb0", "sizemode": "area" }, "textsrc": "mtamarapalli:37:e1eb26" }, { "mode": "markers", "name": "Asia", "xsrc": "mtamarapalli:37:078ad0", "ysrc": "mtamarapalli:37:fadb5f", "marker": { "color": "rgb(225, 35, 14)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:dc4614", "sizemode": "area" }, "textsrc": "mtamarapalli:37:2f0d4f" }, { "mode": "markers", "name": "Europe", "xsrc": "mtamarapalli:37:b9f967", "ysrc": "mtamarapalli:37:5a1b0c", "marker": { "color": "rgb(225, 200, 162)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:7c9e8f", "sizemode": "area" }, "textsrc": "mtamarapalli:37:01cf52" }, { "mode": "markers", "name": "North America", "xsrc": "mtamarapalli:37:fe22d8", "ysrc": "mtamarapalli:37:bf42a0", "marker": { "color": "rgb(225, 145, 65)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:af4c7a", "sizemode": "area" }, "textsrc": "mtamarapalli:37:a97539" }, { "mode": "markers", "name": "Oceania", "xsrc": "mtamarapalli:37:5ed6b7", "ysrc": "mtamarapalli:37:a3e31d", "marker": { "color": "rgb(128, 0, 128)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:bbb74a", "sizemode": "area" }, "textsrc": "mtamarapalli:37:fe657e" }, { "mode": "markers", "name": "South America", "xsrc": "mtamarapalli:37:103d47", "ysrc": "mtamarapalli:37:46dcf3", "marker": { "color": "rgb(49, 55, 255)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:54ea04", "sizemode": "area" }, "textsrc": "mtamarapalli:37:9267c2" } ], "name": "1994" }, { "data": [ { "mode": "markers", "name": "Africa", "xsrc": "mtamarapalli:37:9ea640", "ysrc": "mtamarapalli:37:37f08b", "marker": { "color": "rgb(100, 150, 225)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:faba30", "sizemode": "area" }, "textsrc": "mtamarapalli:37:f10e60" }, { "mode": "markers", "name": "Asia", "xsrc": "mtamarapalli:37:7c62e7", "ysrc": "mtamarapalli:37:2e3c71", "marker": { "color": "rgb(225, 35, 14)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:20c875", "sizemode": "area" }, "textsrc": "mtamarapalli:37:861c5b" }, { "mode": "markers", "name": "Europe", "xsrc": "mtamarapalli:37:bc79af", "ysrc": "mtamarapalli:37:990433", "marker": { "color": "rgb(225, 200, 162)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:cb731b", "sizemode": "area" }, "textsrc": "mtamarapalli:37:349aad" }, { "mode": "markers", "name": "North America", "xsrc": "mtamarapalli:37:8f4ea9", "ysrc": "mtamarapalli:37:f68ef4", "marker": { "color": "rgb(225, 145, 65)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:4ffdbf", "sizemode": "area" }, "textsrc": "mtamarapalli:37:d1ad38" }, { "mode": "markers", "name": "Oceania", "xsrc": "mtamarapalli:37:50caef", "ysrc": "mtamarapalli:37:c77696", "marker": { "color": "rgb(128, 0, 128)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:cc5ca6", "sizemode": "area" }, "textsrc": "mtamarapalli:37:53b087" }, { "mode": "markers", "name": "South America", "xsrc": "mtamarapalli:37:5f61f3", "ysrc": "mtamarapalli:37:b851e4", "marker": { "color": "rgb(49, 55, 255)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:18f7c3", "sizemode": "area" }, "textsrc": "mtamarapalli:37:8d2052" } ], "name": "1995" }, { "data": [ { "mode": "markers", "name": "Africa", "xsrc": "mtamarapalli:37:8903dd", "ysrc": "mtamarapalli:37:2056ff", "marker": { "color": "rgb(100, 150, 225)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:7bedfc", "sizemode": "area" }, "textsrc": "mtamarapalli:37:409ba1" }, { "mode": "markers", "name": "Asia", "xsrc": "mtamarapalli:37:42fe96", "ysrc": "mtamarapalli:37:bb2221", "marker": { "color": "rgb(225, 35, 14)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:d34dd2", "sizemode": "area" }, "textsrc": "mtamarapalli:37:82a243" }, { "mode": "markers", "name": "Europe", "xsrc": "mtamarapalli:37:c08815", "ysrc": "mtamarapalli:37:a7ac04", "marker": { "color": "rgb(225, 200, 162)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:babb34", "sizemode": "area" }, "textsrc": "mtamarapalli:37:3de15d" }, { "mode": "markers", "name": "North America", "xsrc": "mtamarapalli:37:9b6d50", "ysrc": "mtamarapalli:37:15e1c0", "marker": { "color": "rgb(225, 145, 65)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:b79c4e", "sizemode": "area" }, "textsrc": "mtamarapalli:37:842698" }, { "mode": "markers", "name": "Oceania", "xsrc": "mtamarapalli:37:55d300", "ysrc": "mtamarapalli:37:34d81b", "marker": { "color": "rgb(128, 0, 128)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:2400df", "sizemode": "area" }, "textsrc": "mtamarapalli:37:b80c35" }, { "mode": "markers", "name": "South America", "xsrc": "mtamarapalli:37:1e50b7", "ysrc": "mtamarapalli:37:c09962", "marker": { "color": "rgb(49, 55, 255)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:ac1a57", "sizemode": "area" }, "textsrc": "mtamarapalli:37:fc65d5" } ], "name": "1996" }, { "data": [ { "mode": "markers", "name": "Africa", "xsrc": "mtamarapalli:37:34d175", "ysrc": "mtamarapalli:37:d39275", "marker": { "color": "rgb(100, 150, 225)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:349abf", "sizemode": "area" }, "textsrc": "mtamarapalli:37:e1cab2" }, { "mode": "markers", "name": "Asia", "xsrc": "mtamarapalli:37:c61969", "ysrc": "mtamarapalli:37:b78226", "marker": { "color": "rgb(225, 35, 14)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:e7c21e", "sizemode": "area" }, "textsrc": "mtamarapalli:37:fa5c35" }, { "mode": "markers", "name": "Europe", "xsrc": "mtamarapalli:37:5ebb37", "ysrc": "mtamarapalli:37:b96168", "marker": { "color": "rgb(225, 200, 162)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:d00b94", "sizemode": "area" }, "textsrc": "mtamarapalli:37:3b278b" }, { "mode": "markers", "name": "North America", "xsrc": "mtamarapalli:37:17f276", "ysrc": "mtamarapalli:37:84d03f", "marker": { "color": "rgb(225, 145, 65)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:975e22", "sizemode": "area" }, "textsrc": "mtamarapalli:37:518d3a" }, { "mode": "markers", "name": "Oceania", "xsrc": "mtamarapalli:37:f866c7", "ysrc": "mtamarapalli:37:f34a06", "marker": { "color": "rgb(128, 0, 128)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:378715", "sizemode": "area" }, "textsrc": "mtamarapalli:37:59911c" }, { "mode": "markers", "name": "South America", "xsrc": "mtamarapalli:37:8b33ee", "ysrc": "mtamarapalli:37:2da9ce", "marker": { "color": "rgb(49, 55, 255)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:43734d", "sizemode": "area" }, "textsrc": "mtamarapalli:37:0d3676" } ], "name": "1997" }, { "data": [ { "mode": "markers", "name": "Africa", "xsrc": "mtamarapalli:37:f0d9d9", "ysrc": "mtamarapalli:37:3b97a7", "marker": { "color": "rgb(100, 150, 225)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:ad1e99", "sizemode": "area" }, "textsrc": "mtamarapalli:37:ef250f" }, { "mode": "markers", "name": "Asia", "xsrc": "mtamarapalli:37:3da0e7", "ysrc": "mtamarapalli:37:6c4c7b", "marker": { "color": "rgb(225, 35, 14)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:eeada6", "sizemode": "area" }, "textsrc": "mtamarapalli:37:77b53e" }, { "mode": "markers", "name": "Europe", "xsrc": "mtamarapalli:37:ed77c7", "ysrc": "mtamarapalli:37:0e9c77", "marker": { "color": "rgb(225, 200, 162)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:38beba", "sizemode": "area" }, "textsrc": "mtamarapalli:37:8291b7" }, { "mode": "markers", "name": "North America", "xsrc": "mtamarapalli:37:7802e3", "ysrc": "mtamarapalli:37:e77605", "marker": { "color": "rgb(225, 145, 65)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:d1357c", "sizemode": "area" }, "textsrc": "mtamarapalli:37:d5172f" }, { "mode": "markers", "name": "Oceania", "xsrc": "mtamarapalli:37:4cac52", "ysrc": "mtamarapalli:37:0938f1", "marker": { "color": "rgb(128, 0, 128)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:d2ae3c", "sizemode": "area" }, "textsrc": "mtamarapalli:37:49a310" }, { "mode": "markers", "name": "South America", "xsrc": "mtamarapalli:37:1e31e5", "ysrc": "mtamarapalli:37:4b2d5b", "marker": { "color": "rgb(49, 55, 255)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:7b8265", "sizemode": "area" }, "textsrc": "mtamarapalli:37:219630" } ], "name": "1998" }, { "data": [ { "mode": "markers", "name": "Africa", "xsrc": "mtamarapalli:37:daa815", "ysrc": "mtamarapalli:37:19e2c6", "marker": { "color": "rgb(100, 150, 225)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:659260", "sizemode": "area" }, "textsrc": "mtamarapalli:37:5c18ff" }, { "mode": "markers", "name": "Asia", "xsrc": "mtamarapalli:37:8dc8b0", "ysrc": "mtamarapalli:37:ca52c2", "marker": { "color": "rgb(225, 35, 14)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:374583", "sizemode": "area" }, "textsrc": "mtamarapalli:37:6ed8e3" }, { "mode": "markers", "name": "Europe", "xsrc": "mtamarapalli:37:9e58e2", "ysrc": "mtamarapalli:37:a27b2b", "marker": { "color": "rgb(225, 200, 162)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:e78fa2", "sizemode": "area" }, "textsrc": "mtamarapalli:37:11ad2c" }, { "mode": "markers", "name": "North America", "xsrc": "mtamarapalli:37:2054d1", "ysrc": "mtamarapalli:37:9a8c7a", "marker": { "color": "rgb(225, 145, 65)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:65a874", "sizemode": "area" }, "textsrc": "mtamarapalli:37:96da5d" }, { "mode": "markers", "name": "Oceania", "xsrc": "mtamarapalli:37:91b501", "ysrc": "mtamarapalli:37:46ad45", "marker": { "color": "rgb(128, 0, 128)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:6b67e8", "sizemode": "area" }, "textsrc": "mtamarapalli:37:7ab6e1" }, { "mode": "markers", "name": "South America", "xsrc": "mtamarapalli:37:0e67f2", "ysrc": "mtamarapalli:37:708e67", "marker": { "color": "rgb(49, 55, 255)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:51c815", "sizemode": "area" }, "textsrc": "mtamarapalli:37:bc3c2e" } ], "name": "1999" }, { "data": [ { "mode": "markers", "name": "Africa", "xsrc": "mtamarapalli:37:384f37", "ysrc": "mtamarapalli:37:49ff94", "marker": { "color": "rgb(100, 150, 225)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:df44e5", "sizemode": "area" }, "textsrc": "mtamarapalli:37:9eb9a9" }, { "mode": "markers", "name": "Asia", "xsrc": "mtamarapalli:37:8081e2", "ysrc": "mtamarapalli:37:81b1c5", "marker": { "color": "rgb(225, 35, 14)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:ab066e", "sizemode": "area" }, "textsrc": "mtamarapalli:37:597a52" }, { "mode": "markers", "name": "Europe", "xsrc": "mtamarapalli:37:94a91b", "ysrc": "mtamarapalli:37:758321", "marker": { "color": "rgb(225, 200, 162)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:ea9741", "sizemode": "area" }, "textsrc": "mtamarapalli:37:893869" }, { "mode": "markers", "name": "North America", "xsrc": "mtamarapalli:37:fa4b96", "ysrc": "mtamarapalli:37:a3b01a", "marker": { "color": "rgb(225, 145, 65)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:a76a0a", "sizemode": "area" }, "textsrc": "mtamarapalli:37:13770b" }, { "mode": "markers", "name": "Oceania", "xsrc": "mtamarapalli:37:05da78", "ysrc": "mtamarapalli:37:666cc3", "marker": { "color": "rgb(128, 0, 128)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:b83eee", "sizemode": "area" }, "textsrc": "mtamarapalli:37:f34235" }, { "mode": "markers", "name": "South America", "xsrc": "mtamarapalli:37:8d2e52", "ysrc": "mtamarapalli:37:c4cf32", "marker": { "color": "rgb(49, 55, 255)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:23e410", "sizemode": "area" }, "textsrc": "mtamarapalli:37:750fa7" } ], "name": "2000" }, { "data": [ { "mode": "markers", "name": "Africa", "xsrc": "mtamarapalli:37:48c81f", "ysrc": "mtamarapalli:37:b5196c", "marker": { "color": "rgb(100, 150, 225)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:5723a9", "sizemode": "area" }, "textsrc": "mtamarapalli:37:d66138" }, { "mode": "markers", "name": "Asia", "xsrc": "mtamarapalli:37:655106", "ysrc": "mtamarapalli:37:11e748", "marker": { "color": "rgb(225, 35, 14)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:44cec2", "sizemode": "area" }, "textsrc": "mtamarapalli:37:52371c" }, { "mode": "markers", "name": "Europe", "xsrc": "mtamarapalli:37:c07980", "ysrc": "mtamarapalli:37:d38b4a", "marker": { "color": "rgb(225, 200, 162)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:118a21", "sizemode": "area" }, "textsrc": "mtamarapalli:37:69134e" }, { "mode": "markers", "name": "North America", "xsrc": "mtamarapalli:37:385223", "ysrc": "mtamarapalli:37:e03210", "marker": { "color": "rgb(225, 145, 65)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:dffa56", "sizemode": "area" }, "textsrc": "mtamarapalli:37:418249" }, { "mode": "markers", "name": "Oceania", "xsrc": "mtamarapalli:37:5a8ee1", "ysrc": "mtamarapalli:37:976710", "marker": { "color": "rgb(128, 0, 128)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:3decc7", "sizemode": "area" }, "textsrc": "mtamarapalli:37:9a9e0a" }, { "mode": "markers", "name": "South America", "xsrc": "mtamarapalli:37:3e7680", "ysrc": "mtamarapalli:37:e515e4", "marker": { "color": "rgb(49, 55, 255)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:5d4813", "sizemode": "area" }, "textsrc": "mtamarapalli:37:dd59d7" } ], "name": "2001" }, { "data": [ { "mode": "markers", "name": "Africa", "xsrc": "mtamarapalli:37:961b44", "ysrc": "mtamarapalli:37:8ab529", "marker": { "color": "rgb(100, 150, 225)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:94279f", "sizemode": "area" }, "textsrc": "mtamarapalli:37:0706d6" }, { "mode": "markers", "name": "Asia", "xsrc": "mtamarapalli:37:f81f17", "ysrc": "mtamarapalli:37:d0a108", "marker": { "color": "rgb(225, 35, 14)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:cdb979", "sizemode": "area" }, "textsrc": "mtamarapalli:37:582216" }, { "mode": "markers", "name": "Europe", "xsrc": "mtamarapalli:37:b84ee3", "ysrc": "mtamarapalli:37:39f1a1", "marker": { "color": "rgb(225, 200, 162)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:caab2a", "sizemode": "area" }, "textsrc": "mtamarapalli:37:587a33" }, { "mode": "markers", "name": "North America", "xsrc": "mtamarapalli:37:c39e3d", "ysrc": "mtamarapalli:37:7e103a", "marker": { "color": "rgb(225, 145, 65)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:b7d9be", "sizemode": "area" }, "textsrc": "mtamarapalli:37:a5fa09" }, { "mode": "markers", "name": "Oceania", "xsrc": "mtamarapalli:37:0bc4e5", "ysrc": "mtamarapalli:37:fd7966", "marker": { "color": "rgb(128, 0, 128)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:4ea6f8", "sizemode": "area" }, "textsrc": "mtamarapalli:37:b22c72" }, { "mode": "markers", "name": "South America", "xsrc": "mtamarapalli:37:3dd593", "ysrc": "mtamarapalli:37:e7ff65", "marker": { "color": "rgb(49, 55, 255)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:1c9de0", "sizemode": "area" }, "textsrc": "mtamarapalli:37:6d0f46" } ], "name": "2002" }, { "data": [ { "mode": "markers", "name": "Africa", "xsrc": "mtamarapalli:37:cb4948", "ysrc": "mtamarapalli:37:d77819", "marker": { "color": "rgb(100, 150, 225)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:786c07", "sizemode": "area" }, "textsrc": "mtamarapalli:37:1621f2" }, { "mode": "markers", "name": "Asia", "xsrc": "mtamarapalli:37:3af748", "ysrc": "mtamarapalli:37:2e017a", "marker": { "color": "rgb(225, 35, 14)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:109eb5", "sizemode": "area" }, "textsrc": "mtamarapalli:37:16a6fd" }, { "mode": "markers", "name": "Europe", "xsrc": "mtamarapalli:37:32d814", "ysrc": "mtamarapalli:37:103c85", "marker": { "color": "rgb(225, 200, 162)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:56633f", "sizemode": "area" }, "textsrc": "mtamarapalli:37:baad8c" }, { "mode": "markers", "name": "North America", "xsrc": "mtamarapalli:37:140038", "ysrc": "mtamarapalli:37:fc7f0d", "marker": { "color": "rgb(225, 145, 65)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:79f602", "sizemode": "area" }, "textsrc": "mtamarapalli:37:d8968f" }, { "mode": "markers", "name": "Oceania", "xsrc": "mtamarapalli:37:c273a7", "ysrc": "mtamarapalli:37:7dd134", "marker": { "color": "rgb(128, 0, 128)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:2123c5", "sizemode": "area" }, "textsrc": "mtamarapalli:37:8e2c90" }, { "mode": "markers", "name": "South America", "xsrc": "mtamarapalli:37:d37c15", "ysrc": "mtamarapalli:37:c1f44b", "marker": { "color": "rgb(49, 55, 255)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:aec1a5", "sizemode": "area" }, "textsrc": "mtamarapalli:37:8e8d3b" } ], "name": "2003" }, { "data": [ { "mode": "markers", "name": "Africa", "xsrc": "mtamarapalli:37:797553", "ysrc": "mtamarapalli:37:6f8c49", "marker": { "color": "rgb(100, 150, 225)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:11f006", "sizemode": "area" }, "textsrc": "mtamarapalli:37:030eed" }, { "mode": "markers", "name": "Asia", "xsrc": "mtamarapalli:37:904c82", "ysrc": "mtamarapalli:37:2d3e7e", "marker": { "color": "rgb(225, 35, 14)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:0de830", "sizemode": "area" }, "textsrc": "mtamarapalli:37:816a92" }, { "mode": "markers", "name": "Europe", "xsrc": "mtamarapalli:37:9be238", "ysrc": "mtamarapalli:37:75aa47", "marker": { "color": "rgb(225, 200, 162)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:0d4eb8", "sizemode": "area" }, "textsrc": "mtamarapalli:37:744463" }, { "mode": "markers", "name": "North America", "xsrc": "mtamarapalli:37:143c05", "ysrc": "mtamarapalli:37:987d43", "marker": { "color": "rgb(225, 145, 65)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:7a1de9", "sizemode": "area" }, "textsrc": "mtamarapalli:37:7db595" }, { "mode": "markers", "name": "Oceania", "xsrc": "mtamarapalli:37:959d9b", "ysrc": "mtamarapalli:37:571f10", "marker": { "color": "rgb(128, 0, 128)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:20058f", "sizemode": "area" }, "textsrc": "mtamarapalli:37:423679" }, { "mode": "markers", "name": "South America", "xsrc": "mtamarapalli:37:093f8a", "ysrc": "mtamarapalli:37:c10b3a", "marker": { "color": "rgb(49, 55, 255)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:31fd9d", "sizemode": "area" }, "textsrc": "mtamarapalli:37:2cd08d" } ], "name": "2004" }, { "data": [ { "mode": "markers", "name": "Africa", "xsrc": "mtamarapalli:37:c39f88", "ysrc": "mtamarapalli:37:34bdad", "marker": { "color": "rgb(100, 150, 225)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:cb33e3", "sizemode": "area" }, "textsrc": "mtamarapalli:37:a7c5f6" }, { "mode": "markers", "name": "Asia", "xsrc": "mtamarapalli:37:5be26d", "ysrc": "mtamarapalli:37:be330d", "marker": { "color": "rgb(225, 35, 14)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:f13852", "sizemode": "area" }, "textsrc": "mtamarapalli:37:b3a071" }, { "mode": "markers", "name": "Europe", "xsrc": "mtamarapalli:37:780f74", "ysrc": "mtamarapalli:37:fc9dae", "marker": { "color": "rgb(225, 200, 162)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:22b688", "sizemode": "area" }, "textsrc": "mtamarapalli:37:101208" }, { "mode": "markers", "name": "North America", "xsrc": "mtamarapalli:37:99ff8f", "ysrc": "mtamarapalli:37:a40fb5", "marker": { "color": "rgb(225, 145, 65)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:14f0fe", "sizemode": "area" }, "textsrc": "mtamarapalli:37:13abf6" }, { "mode": "markers", "name": "Oceania", "xsrc": "mtamarapalli:37:faf1b2", "ysrc": "mtamarapalli:37:0a1e8d", "marker": { "color": "rgb(128, 0, 128)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:01d477", "sizemode": "area" }, "textsrc": "mtamarapalli:37:56646a" }, { "mode": "markers", "name": "South America", "xsrc": "mtamarapalli:37:58c81e", "ysrc": "mtamarapalli:37:57580e", "marker": { "color": "rgb(49, 55, 255)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:fb5820", "sizemode": "area" }, "textsrc": "mtamarapalli:37:0eaf8a" } ], "name": "2005" }, { "data": [ { "mode": "markers", "name": "Africa", "xsrc": "mtamarapalli:37:f063ea", "ysrc": "mtamarapalli:37:374602", "marker": { "color": "rgb(100, 150, 225)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:a8d1d5", "sizemode": "area" }, "textsrc": "mtamarapalli:37:f8fbc3" }, { "mode": "markers", "name": "Asia", "xsrc": "mtamarapalli:37:6afeb1", "ysrc": "mtamarapalli:37:5dbcb2", "marker": { "color": "rgb(225, 35, 14)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:5dd47f", "sizemode": "area" }, "textsrc": "mtamarapalli:37:ffa5ac" }, { "mode": "markers", "name": "Europe", "xsrc": "mtamarapalli:37:351796", "ysrc": "mtamarapalli:37:e3ee9d", "marker": { "color": "rgb(225, 200, 162)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:532c8f", "sizemode": "area" }, "textsrc": "mtamarapalli:37:81ece8" }, { "mode": "markers", "name": "North America", "xsrc": "mtamarapalli:37:9d7442", "ysrc": "mtamarapalli:37:0a21ac", "marker": { "color": "rgb(225, 145, 65)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:978ef1", "sizemode": "area" }, "textsrc": "mtamarapalli:37:4fd5a2" }, { "mode": "markers", "name": "Oceania", "xsrc": "mtamarapalli:37:a223f4", "ysrc": "mtamarapalli:37:17f484", "marker": { "color": "rgb(128, 0, 128)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:db2014", "sizemode": "area" }, "textsrc": "mtamarapalli:37:1a63bd" }, { "mode": "markers", "name": "South America", "xsrc": "mtamarapalli:37:c75c90", "ysrc": "mtamarapalli:37:500d06", "marker": { "color": "rgb(49, 55, 255)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:8f8896", "sizemode": "area" }, "textsrc": "mtamarapalli:37:540094" } ], "name": "2006" }, { "data": [ { "mode": "markers", "name": "Africa", "xsrc": "mtamarapalli:37:c25fd8", "ysrc": "mtamarapalli:37:81e997", "marker": { "color": "rgb(100, 150, 225)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:7ae333", "sizemode": "area" }, "textsrc": "mtamarapalli:37:da739e" }, { "mode": "markers", "name": "Asia", "xsrc": "mtamarapalli:37:4d1add", "ysrc": "mtamarapalli:37:5c5269", "marker": { "color": "rgb(225, 35, 14)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:95fc12", "sizemode": "area" }, "textsrc": "mtamarapalli:37:7ae7d6" }, { "mode": "markers", "name": "Europe", "xsrc": "mtamarapalli:37:6739bc", "ysrc": "mtamarapalli:37:55c1da", "marker": { "color": "rgb(225, 200, 162)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:3d622f", "sizemode": "area" }, "textsrc": "mtamarapalli:37:5b0c7e" }, { "mode": "markers", "name": "North America", "xsrc": "mtamarapalli:37:dc1936", "ysrc": "mtamarapalli:37:4b5914", "marker": { "color": "rgb(225, 145, 65)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:cc186c", "sizemode": "area" }, "textsrc": "mtamarapalli:37:ff6cf6" }, { "mode": "markers", "name": "Oceania", "xsrc": "mtamarapalli:37:069890", "ysrc": "mtamarapalli:37:6d9b88", "marker": { "color": "rgb(128, 0, 128)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:1ae6bc", "sizemode": "area" }, "textsrc": "mtamarapalli:37:9be7bf" }, { "mode": "markers", "name": "South America", "xsrc": "mtamarapalli:37:e93f1c", "ysrc": "mtamarapalli:37:7fb5d5", "marker": { "color": "rgb(49, 55, 255)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:bf9da5", "sizemode": "area" }, "textsrc": "mtamarapalli:37:f7eaad" } ], "name": "2007" }, { "data": [ { "mode": "markers", "name": "Africa", "xsrc": "mtamarapalli:37:da64ca", "ysrc": "mtamarapalli:37:6fd569", "marker": { "color": "rgb(100, 150, 225)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:6f24c0", "sizemode": "area" }, "textsrc": "mtamarapalli:37:c1ce37" }, { "mode": "markers", "name": "Asia", "xsrc": "mtamarapalli:37:91e355", "ysrc": "mtamarapalli:37:ed34ad", "marker": { "color": "rgb(225, 35, 14)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:90e77f", "sizemode": "area" }, "textsrc": "mtamarapalli:37:ac1f38" }, { "mode": "markers", "name": "Europe", "xsrc": "mtamarapalli:37:aa6bad", "ysrc": "mtamarapalli:37:2881f1", "marker": { "color": "rgb(225, 200, 162)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:e65941", "sizemode": "area" }, "textsrc": "mtamarapalli:37:ef9655" }, { "mode": "markers", "name": "North America", "xsrc": "mtamarapalli:37:d9b6e0", "ysrc": "mtamarapalli:37:ebcee8", "marker": { "color": "rgb(225, 145, 65)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:e4e43b", "sizemode": "area" }, "textsrc": "mtamarapalli:37:4d2b05" }, { "mode": "markers", "name": "Oceania", "xsrc": "mtamarapalli:37:b19e82", "ysrc": "mtamarapalli:37:9f24dc", "marker": { "color": "rgb(128, 0, 128)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:9d958e", "sizemode": "area" }, "textsrc": "mtamarapalli:37:92e2b4" }, { "mode": "markers", "name": "South America", "xsrc": "mtamarapalli:37:5486f4", "ysrc": "mtamarapalli:37:2eccad", "marker": { "color": "rgb(49, 55, 255)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:9e9bbe", "sizemode": "area" }, "textsrc": "mtamarapalli:37:10b6c2" } ], "name": "2008" }, { "data": [ { "mode": "markers", "name": "Africa", "xsrc": "mtamarapalli:37:130a8d", "ysrc": "mtamarapalli:37:bc9c4b", "marker": { "color": "rgb(100, 150, 225)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:a4aaf0", "sizemode": "area" }, "textsrc": "mtamarapalli:37:d35212" }, { "mode": "markers", "name": "Asia", "xsrc": "mtamarapalli:37:7e0349", "ysrc": "mtamarapalli:37:e21bf9", "marker": { "color": "rgb(225, 35, 14)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:6da915", "sizemode": "area" }, "textsrc": "mtamarapalli:37:175814" }, { "mode": "markers", "name": "Europe", "xsrc": "mtamarapalli:37:aa9a3a", "ysrc": "mtamarapalli:37:ce075e", "marker": { "color": "rgb(225, 200, 162)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:615231", "sizemode": "area" }, "textsrc": "mtamarapalli:37:423ef5" }, { "mode": "markers", "name": "North America", "xsrc": "mtamarapalli:37:93e5a2", "ysrc": "mtamarapalli:37:e63872", "marker": { "color": "rgb(225, 145, 65)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:9b821e", "sizemode": "area" }, "textsrc": "mtamarapalli:37:f90384" }, { "mode": "markers", "name": "Oceania", "xsrc": "mtamarapalli:37:c6d2a7", "ysrc": "mtamarapalli:37:246e05", "marker": { "color": "rgb(128, 0, 128)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:ad19b8", "sizemode": "area" }, "textsrc": "mtamarapalli:37:10328f" }, { "mode": "markers", "name": "South America", "xsrc": "mtamarapalli:37:b103d4", "ysrc": "mtamarapalli:37:bf6fb4", "marker": { "color": "rgb(49, 55, 255)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:3f9189", "sizemode": "area" }, "textsrc": "mtamarapalli:37:1337f7" } ], "name": "2009" }, { "data": [ { "mode": "markers", "name": "Africa", "xsrc": "mtamarapalli:37:912afa", "ysrc": "mtamarapalli:37:c3f635", "marker": { "color": "rgb(100, 150, 225)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:8417f6", "sizemode": "area" }, "textsrc": "mtamarapalli:37:d74442" }, { "mode": "markers", "name": "Asia", "xsrc": "mtamarapalli:37:8ce88a", "ysrc": "mtamarapalli:37:9de696", "marker": { "color": "rgb(225, 35, 14)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:04894e", "sizemode": "area" }, "textsrc": "mtamarapalli:37:74eab7" }, { "mode": "markers", "name": "Europe", "xsrc": "mtamarapalli:37:a8f3e4", "ysrc": "mtamarapalli:37:048197", "marker": { "color": "rgb(225, 200, 162)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:01833b", "sizemode": "area" }, "textsrc": "mtamarapalli:37:7f74d4" }, { "mode": "markers", "name": "North America", "xsrc": "mtamarapalli:37:81e895", "ysrc": "mtamarapalli:37:7998c3", "marker": { "color": "rgb(225, 145, 65)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:c03300", "sizemode": "area" }, "textsrc": "mtamarapalli:37:c40379" }, { "mode": "markers", "name": "Oceania", "xsrc": "mtamarapalli:37:c16326", "ysrc": "mtamarapalli:37:c89cf1", "marker": { "color": "rgb(128, 0, 128)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:d7e29f", "sizemode": "area" }, "textsrc": "mtamarapalli:37:6bdb43" }, { "mode": "markers", "name": "South America", "xsrc": "mtamarapalli:37:5fb471", "ysrc": "mtamarapalli:37:199516", "marker": { "color": "rgb(49, 55, 255)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:8d3f7a", "sizemode": "area" }, "textsrc": "mtamarapalli:37:97efaf" } ], "name": "2010" }, { "data": [ { "mode": "markers", "name": "Africa", "xsrc": "mtamarapalli:37:03c47f", "ysrc": "mtamarapalli:37:82bdd8", "marker": { "color": "rgb(100, 150, 225)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:e4dc9d", "sizemode": "area" }, "textsrc": "mtamarapalli:37:4f0efe" }, { "mode": "markers", "name": "Asia", "xsrc": "mtamarapalli:37:d20e64", "ysrc": "mtamarapalli:37:6f1611", "marker": { "color": "rgb(225, 35, 14)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:f4dc51", "sizemode": "area" }, "textsrc": "mtamarapalli:37:df50e8" }, { "mode": "markers", "name": "Europe", "xsrc": "mtamarapalli:37:8958b2", "ysrc": "mtamarapalli:37:6ae4e5", "marker": { "color": "rgb(225, 200, 162)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:8c0fa6", "sizemode": "area" }, "textsrc": "mtamarapalli:37:de70a4" }, { "mode": "markers", "name": "North America", "xsrc": "mtamarapalli:37:db9e3f", "ysrc": "mtamarapalli:37:6563b4", "marker": { "color": "rgb(225, 145, 65)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:6c94ea", "sizemode": "area" }, "textsrc": "mtamarapalli:37:34b43f" }, { "mode": "markers", "name": "Oceania", "xsrc": "mtamarapalli:37:0dc12a", "ysrc": "mtamarapalli:37:4509c5", "marker": { "color": "rgb(128, 0, 128)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:8fddf5", "sizemode": "area" }, "textsrc": "mtamarapalli:37:b38c56" }, { "mode": "markers", "name": "South America", "xsrc": "mtamarapalli:37:375c75", "ysrc": "mtamarapalli:37:e7bed2", "marker": { "color": "rgb(49, 55, 255)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:fb07d3", "sizemode": "area" }, "textsrc": "mtamarapalli:37:7072dc" } ], "name": "2011" }, { "data": [ { "mode": "markers", "name": "Africa", "xsrc": "mtamarapalli:37:61d97b", "ysrc": "mtamarapalli:37:e478fe", "marker": { "color": "rgb(100, 150, 225)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:16f5f7", "sizemode": "area" }, "textsrc": "mtamarapalli:37:85b561" }, { "mode": "markers", "name": "Asia", "xsrc": "mtamarapalli:37:19e9af", "ysrc": "mtamarapalli:37:03de0f", "marker": { "color": "rgb(225, 35, 14)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:3f9329", "sizemode": "area" }, "textsrc": "mtamarapalli:37:b4b8e1" }, { "mode": "markers", "name": "Europe", "xsrc": "mtamarapalli:37:13292d", "ysrc": "mtamarapalli:37:dd720f", "marker": { "color": "rgb(225, 200, 162)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:8e4a99", "sizemode": "area" }, "textsrc": "mtamarapalli:37:b18ee7" }, { "mode": "markers", "name": "North America", "xsrc": "mtamarapalli:37:5d0445", "ysrc": "mtamarapalli:37:1b733f", "marker": { "color": "rgb(225, 145, 65)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:3712b7", "sizemode": "area" }, "textsrc": "mtamarapalli:37:ceb094" }, { "mode": "markers", "name": "Oceania", "xsrc": "mtamarapalli:37:becf97", "ysrc": "mtamarapalli:37:bad60a", "marker": { "color": "rgb(128, 0, 128)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:2f4ac9", "sizemode": "area" }, "textsrc": "mtamarapalli:37:35b3e5" }, { "mode": "markers", "name": "South America", "xsrc": "mtamarapalli:37:4e1bda", "ysrc": "mtamarapalli:37:05b449", "marker": { "color": "rgb(49, 55, 255)", "sizeref": 1000000, "sizesrc": "mtamarapalli:37:51e9df", "sizemode": "area" }, "textsrc": "mtamarapalli:37:68847f" } ], "name": "2012" } ], "layout": { "xaxis": { "range": [ 0, 20000 ], "title": "Total CO2", "gridcolor": "#FFFFFF" }, "yaxis": { "type": "log", "title": "GDP USD", "gridcolor": "#FFFFFF" }, "sliders": [ { "x": 0.1, "y": 0, "len": 0.9, "pad": { "b": 10, "t": 50 }, "steps": [ { "args": [ [ "1971" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "1971", "method": "animate" }, { "args": [ [ "1972" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "1972", "method": "animate" }, { "args": [ [ "1973" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "1973", "method": "animate" }, { "args": [ [ "1974" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "1974", "method": "animate" }, { "args": [ [ "1975" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "1975", "method": "animate" }, { "args": [ [ "1976" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "1976", "method": "animate" }, { "args": [ [ "1977" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "1977", "method": "animate" }, { "args": [ [ "1978" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "1978", "method": "animate" }, { "args": [ [ "1979" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "1979", "method": "animate" }, { "args": [ [ "1980" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "1980", "method": "animate" }, { "args": [ [ "1981" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "1981", "method": "animate" }, { "args": [ [ "1982" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "1982", "method": "animate" }, { "args": [ [ "1983" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "1983", "method": "animate" }, { "args": [ [ "1984" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "1984", "method": "animate" }, { "args": [ [ "1985" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "1985", "method": "animate" }, { "args": [ [ "1986" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "1986", "method": "animate" }, { "args": [ [ "1987" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "1987", "method": "animate" }, { "args": [ [ "1988" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "1988", "method": "animate" }, { "args": [ [ "1989" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "1989", "method": "animate" }, { "args": [ [ "1990" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "1990", "method": "animate" }, { "args": [ [ "1991" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "1991", "method": "animate" }, { "args": [ [ "1992" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "1992", "method": "animate" }, { "args": [ [ "1993" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "1993", "method": "animate" }, { "args": [ [ "1994" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "1994", "method": "animate" }, { "args": [ [ "1995" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "1995", "method": "animate" }, { "args": [ [ "1996" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "1996", "method": "animate" }, { "args": [ [ "1997" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "1997", "method": "animate" }, { "args": [ [ "1998" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "1998", "method": "animate" }, { "args": [ [ "1999" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "1999", "method": "animate" }, { "args": [ [ "2000" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "2000", "method": "animate" }, { "args": [ [ "2001" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "2001", "method": "animate" }, { "args": [ [ "2002" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "2002", "method": "animate" }, { "args": [ [ "2003" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "2003", "method": "animate" }, { "args": [ [ "2004" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "2004", "method": "animate" }, { "args": [ [ "2005" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "2005", "method": "animate" }, { "args": [ [ "2006" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "2006", "method": "animate" }, { "args": [ [ "2007" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "2007", "method": "animate" }, { "args": [ [ "2008" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "2008", "method": "animate" }, { "args": [ [ "2009" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "2009", "method": "animate" }, { "args": [ [ "2010" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "2010", "method": "animate" }, { "args": [ [ "2011" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "2011", "method": "animate" }, { "args": [ [ "2012" ], { "mode": "immediate", "frame": { "redraw": false, "duration": 300 }, "transition": { "duration": 300 } } ], "label": "2012", "method": "animate" } ], "active": 0, "xanchor": "left", "yanchor": "top", "transition": { "easing": "cubic-in-out", "duration": 300 }, "currentvalue": { "font": { "size": 20 }, "prefix": "Year:", "visible": true, "xanchor": "right" } } ], "hovermode": "closest", "updatemenus": [ { "x": 0.1, "y": 0, "pad": { "r": 10, "t": 87 }, "type": "buttons", "buttons": [ { "args": [ null, { "frame": { "redraw": false, "duration": 500 }, "transition": { "easing": "quadratic-in-out", "duration": 300 }, "fromcurrent": true } ], "label": "Play", "method": "animate" }, { "args": [ [ null ], { "mode": "immediate", "frame": { "redraw": false, "duration": 0 }, "transition": { "duration": 0 } } ], "label": "Pause", "method": "animate" } ], "xanchor": "right", "yanchor": "top", "direction": "left", "showactive": false } ], "plot_bgcolor": "rgb(223, 232, 243)" } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~mtamarapalli", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/30.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-2.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-03-13 06:02:57", "mapbox_access_tokens": null, "has_password": null, "username": "mtamarapalli", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-03-20T19:50:03.179439Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~rixingprinxe/3.embed", "fid": "rixingprinxe:3", "filename": "Plot 3", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/rixingprinxe:3/image?image_name=list-thumb", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/rixingprinxe/3/2_W42Y8DNF6VW4OJCE3DZAOQGGO3DHKV.png", "block-thumb": "https://api.plotly.com/v2/files/rixingprinxe:3/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/rixingprinxe:3/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/rixingprinxe:3", "plots": "https://api.plotly.com/v2/plots/rixingprinxe:3", "parent": "https://api.plotly.com/v2/folders/home?user=rixingprinxe" }, "owner": "rixingprinxe", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~rixingprinxe/3/", "world_readable": true, "date_modified": "2019-03-20T19:50:03.196Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~rixingprinxe/3/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "mode": "lines", "rsrc": "rixingprinxe:2:d124de", "type": "scatterpolar", "xsrc": "rixingprinxe:2:d124de", "ysrc": "rixingprinxe:2:a7ba32" } ], "frames": [], "layout": { "polar": { "radialaxis": { "type": "linear", "range": [ 0, 1.44 ], "autorange": true }, "angularaxis": { "type": "linear" } }, "title": { "text": "Polar Diagram" }, "xaxis": { "type": "linear", "range": [ 0.3999999999999999, 2.4 ], "autorange": true }, "yaxis": { "type": "linear", "range": [ -19.14873546444534, 374.64356028490187 ], "autorange": true }, "autosize": true } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~rixingprinxe", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/21.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-6.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-03-20 16:22:38", "mapbox_access_tokens": null, "has_password": null, "username": "rixingprinxe", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } } ] }
