Plots
This endpoint handles manipulation of Plotly plot files.
Reference
Authorization
Any user with or without a Plotly account may view public plots. For private plots, see authentication.
Actions
list
Listing all public plots can be done via a GET request to this endpoint.
By default, plots will be listed in order of date created. The order_by
query parameter is accepted at this endpoint. Currently, only ordering by
views is supported. It is possible to filter the plots by quality
with min_quality or max_quality as query parameter.
Example:
// GET https://api.plotly.com/v2/plots/ ---> 200
// GET https://api.plotly.com/v2/plots/?order_by=-views ---> 200
// GET https://api.plotly.com/v2/plots/?min_quality=5 ---> 200
// GET https://api.plotly.com/v2/plots/?max_quality=5 ---> 200
feed
Listing all handpicked feed plots can be done via a GET request to this endpoint. By default, plots will be listed in a random order.
Example:
// GET https://api.plotly.com/v2/plots/feed ---> 200
create
You can create new plot resources here. The only required field is 'figure'. Currently, the figure is restricted to only contain references to grid data. That is, this will fail if raw data arrays are passed in. To create and manipulate underlying grids for plots, see the grids endpoint.
Example:
// This fails because a figure field is required.
// POST https://api.plotly.com/v2/plots ---> 400 Bad Request
{}
// This fails because the figure has raw data
//POST https://api.plotly.com/v2/plots ---> 400 Bad Request
{
"figure": {"data": [{"y": ['this', 'is', 'raw', 'data']}]}
}
// This succeeds because the figure has src keys, not raw data.
//POST https://api.plotly.com/v2/plots ---> 200 OK
{
"figure": {"data": [{"ysrc": "sven:88:u8nd62"}]}
}
When creating a grid, you can optionally specify a source_fid to specify where a plot has come from:
- source_fid: the fid of a plot that was copied (and presumably edited) to produce this one
detail
There is a lot of meta information stored about plot files including filename, title, share_url, and content_url to name a few.
This information can only be reached with a GET to this endpoint.
Example:
// GET https://api.plotly.com/v2/plots/iheartgraphs:90
content
The contents of a plot can be downloaded via the content resource. The plot
content contains referenced grid/column data by default. If you wish to
return the raw grid/column data, the inline_data=true query must be included
in the request url. The Content-Type header will be appropriately set for the
response body.
Alternatively, you can set ?map_data=unreadable to append a mapping of
sources to data that belongs to grids which are unreadable for the
requestor. This is useful when you have read access to another users plot,
but that plot contains grid references which you don't have access to.
Examples:
// Returns referenced grid/column data
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content ---> 200 OK
// Returns full grid/column data
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content?inline_data=true ---> 200 OK
// Returns full grid/column data when requestor doesn't have permission
// to read the referenced grid.
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content?map_data=unreadable ---> 200 OK
GET /v2/plots?cursor=cD0yMDE5LTA2LTE4KzAxJTNBNDAlM0EwMC4zNzc5NzQlMkIwMCUzQTAw&format=api

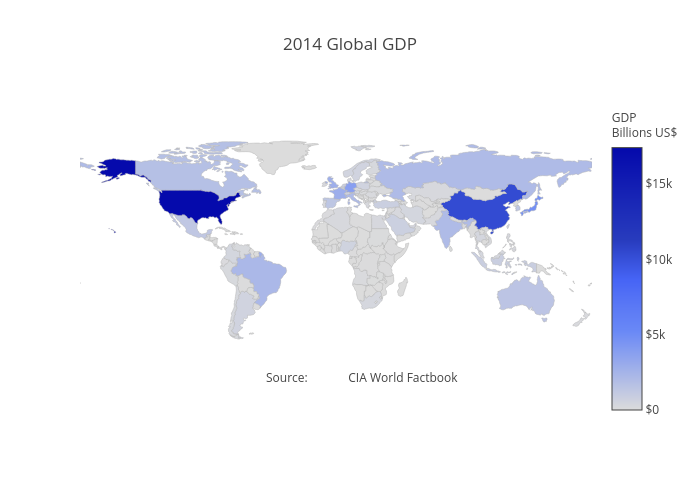

{ "next": "https://api.plot.ly/v2/plots?cursor=cD0yMDE5LTA2LTE4KzAxJTNBMjIlM0EyNS43Mzc0OTYlMkIwMCUzQTAw&format=api", "previous": "https://api.plot.ly/v2/plots?cursor=cj0xJnA9MjAxOS0wNi0xOCswMSUzQTM2JTNBMzUuMDA3OTgxJTJCMDAlM0EwMA%3D%3D&format=api", "results": [ { "creation_time": "2019-06-18T01:36:35.007981Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~dingqy/13.embed", "fid": "dingqy:13", "filename": "d3-world-map", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/dingqy:13/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/dingqy:13/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/dingqy:13/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/dingqy:13/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/dingqy:13", "plots": "https://api.plotly.com/v2/plots/dingqy:13", "parent": "https://api.plotly.com/v2/folders/home?user=dingqy" }, "owner": "dingqy", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "2014 Global GDP", "views": 0, "web_url": "https://chart-studio.plotly.com/~dingqy/13/_2014-global-gdp/", "world_readable": true, "date_modified": "2019-06-18T01:36:35.550Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~dingqy/13/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "fe432087-3486-4d01-927c-9981deafa41b", "type": "choropleth", "zsrc": "dingqy:14:dfe37b", "marker": { "line": { "color": "rgb(180,180,180)", "width": 0.5 } }, "textsrc": "dingqy:14:c1360b", "colorbar": { "title": { "text": "GDP<br>Billions US$" }, "tickprefix": "$" }, "colorscale": [ [ 0, "rgb(5, 10, 172)" ], [ 0.35, "rgb(40, 60, 190)" ], [ 0.5, "rgb(70, 100, 245)" ], [ 0.6, "rgb(90, 120, 245)" ], [ 0.7, "rgb(106, 137, 247)" ], [ 1, "rgb(220, 220, 220)" ] ], "locationssrc": "dingqy:14:854557", "reversescale": true, "autocolorscale": false } ], "layout": { "geo": { "showframe": false, "projection": { "type": "equirectangular" }, "showcoastlines": false }, "title": { "text": "2014 Global GDP" }, "annotations": [ { "x": 0.55, "y": 0.1, "text": "Source: <a href=\"https://www.cia.gov/library/publications/the-world-factbook/fields/2195.html\"> CIA World Factbook</a>", "xref": "paper", "yref": "paper", "showarrow": false } ] } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~dingqy", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/88.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-4.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-05-29 07:10:50", "mapbox_access_tokens": null, "has_password": null, "username": "dingqy", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-06-18T01:36:00.521321Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~iusami/10.embed", "fid": "iusami:10", "filename": "sparsegp", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/iusami:10/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/iusami:10/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/iusami:10/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/iusami:10/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/iusami:10", "plots": "https://api.plotly.com/v2/plots/iusami:10", "parent": "https://api.plotly.com/v2/folders/home?user=iusami" }, "owner": "iusami", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "Data, Mean, Confidence, Confidence", "views": 0, "web_url": "https://chart-studio.plotly.com/~iusami/10/data-mean-confidence-confidence/", "world_readable": true, "date_modified": "2019-06-18T01:36:01.034Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~iusami/10/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "57e2e290-c149-4c72-a23a-b9baab2c926a", "mode": "markers", "name": "Data", "type": "scatter", "xsrc": "iusami:11:303e6f", "ysrc": "iusami:11:55fed4", "xaxis": "x", "yaxis": "y", "marker": { "color": "black", "symbol": "x" }, "showlegend": true }, { "uid": "6df9d7b1-b30c-479e-a3bc-50b8b903c4e1", "line": { "color": "#3465a4", "width": 2 }, "mode": "lines", "name": "Mean", "type": "scatter", "xsrc": "iusami:11:6cdd05", "ysrc": "iusami:11:9bd20f", "xaxis": "x", "yaxis": "y", "showlegend": true }, { "uid": "8876c1a9-02a8-4801-946d-46a87496fe16", "line": { "color": "#204a87", "width": 0.4 }, "mode": "lines", "name": "Confidence", "type": "scatter", "xsrc": "iusami:11:6cdd05", "ysrc": "iusami:11:1f1930", "xaxis": "x", "yaxis": "y", "opacity": 0.3, "fillcolor": "rgba(114, 159, 207, 0.3)", "showlegend": false, "legendgroup": "Confidence_fill_(1,1)" }, { "uid": "7a48c6d7-2757-4164-8745-7101cb1380dd", "fill": "tonextx", "line": { "color": "#204a87", "width": 0.4 }, "mode": "lines", "name": "Confidence", "type": "scatter", "xsrc": "iusami:11:6cdd05", "ysrc": "iusami:11:b0b31c", "xaxis": "x", "yaxis": "y", "opacity": 0.3, "fillcolor": "rgba(114, 159, 207, 0.3)", "showlegend": true, "legendgroup": "Confidence_fill_(1,1)" } ], "layout": { "font": { "family": "Raleway, sans-serif" }, "xaxis": { "anchor": "y", "domain": [ 0.0, 1.0 ] }, "yaxis": { "anchor": "x", "domain": [ 0.0, 1.0 ] }, "showlegend": true } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~iusami", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/54.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-7.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-03-22 10:11:21", "mapbox_access_tokens": null, "has_password": null, "username": "iusami", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-06-18T01:33:01.218181Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~ellemorris/17.embed", "fid": "ellemorris:17", "filename": "plot from API", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/ellemorris:17/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/ellemorris:17/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/ellemorris:17/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/ellemorris:17/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/ellemorris:17", "plots": "https://api.plotly.com/v2/plots/ellemorris:17", "parent": "https://api.plotly.com/v2/folders/home?user=ellemorris" }, "owner": "ellemorris", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "Petal Width (cm)", "views": 0, "web_url": "https://chart-studio.plotly.com/~ellemorris/17/petal-width-cm/", "world_readable": true, "date_modified": "2019-06-20T16:08:18.724Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~ellemorris/17/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "78184c1c-e9a0-47a7-a1a7-7973884f9e98", "name": "petal width (cm)", "type": "histogram", "xsrc": "ellemorris:16:048b45", "xbins": { "end": 3, "size": 0.5, "start": 0 }, "marker": { "line": { "color": "#4D5663", "width": 0 } }, "nbinsx": 0, "opacity": 0.78, "histfunc": "count", "histnorm": "", "orientation": "v" } ], "layout": { "title": { "font": { "color": "#4D5663" }, "text": "Petal Width (cm)" }, "xaxis": { "type": "linear", "range": [ 0, 3 ], "title": { "font": { "color": "#4D5663" }, "text": "Standard Deviations from Mean" }, "showgrid": false, "showline": false, "tickfont": { "color": "#4D5663" }, "autorange": true, "gridcolor": "#E1E5ED", "showspikes": false, "zerolinecolor": "#E1E5ED" }, "yaxis": { "range": [ 0, 50.526315789473685 ], "title": { "font": { "color": "#4D5663" }, "text": "Petal Width (cm)" }, "showgrid": false, "tickfont": { "color": "#4D5663" }, "autorange": true, "gridcolor": "#E1E5ED", "showspikes": false, "zerolinecolor": "#E1E5ED" }, "bargap": 0, "legend": { "font": { "color": "#4D5663" }, "bgcolor": "#F5F6F9" }, "barmode": "overlay", "autosize": true, "bargroupgap": 0, "plot_bgcolor": "#F5F6F9", "paper_bgcolor": "#F5F6F9" } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~ellemorris", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/DVAHZ4A7OH3D79E2DX36KV1GCA6T9H.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-0.jpg", "bio": "", "nickname": "ellemorris", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2015-11-19 19:27:21", "mapbox_access_tokens": null, "has_password": null, "username": "ellemorris", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-06-18T01:32:56.002285Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~Magnet/4.embed", "fid": "Magnet:4", "filename": "basic_pie_chart", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/Magnet:4/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/Magnet:4/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/Magnet:4/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/Magnet:4/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/Magnet:4", "plots": "https://api.plotly.com/v2/plots/Magnet:4", "parent": "https://api.plotly.com/v2/folders/home?user=Magnet" }, "owner": "Magnet", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~Magnet/4/", "world_readable": true, "date_modified": "2019-06-18T01:32:56.456Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~Magnet/4/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "e2099554-a429-4f98-93d4-a0c641fb0715", "type": "pie", "labelssrc": "Magnet:5:d2bbf1", "valuessrc": "Magnet:5:f87958" } ], "layout": {} }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~Magnet", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/97.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-3.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-06-18 01:00:25", "mapbox_access_tokens": null, "has_password": null, "username": "Magnet", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-06-18T01:29:16.816449Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~Magnet/2.embed", "fid": "Magnet:2", "filename": "pandas-multiple-scatter", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/Magnet:2/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/Magnet:2/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/Magnet:2/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/Magnet:2/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/Magnet:2", "plots": "https://api.plotly.com/v2/plots/Magnet:2", "parent": "https://api.plotly.com/v2/folders/home?user=Magnet" }, "owner": "Magnet", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "Life Expectancy vs GDP per Capita", "views": 0, "web_url": "https://chart-studio.plotly.com/~Magnet/2/life-expectancy-vs-gdp-per-capita/", "world_readable": true, "date_modified": "2019-06-18T01:29:17.423Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~Magnet/2/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "82b4f1ca-69d7-42a2-8878-c358d54f7d8d", "mode": "markers", "name": "2007", "type": "scatter", "xsrc": "Magnet:3:1ce1d5", "ysrc": "Magnet:3:c0eed0", "textsrc": "Magnet:3:0d0422" } ], "layout": { "xaxis": { "type": "log", "title": { "text": "GDP per Capita" } }, "yaxis": { "title": { "text": "Life Expectancy" } } } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~Magnet", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/97.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-3.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-06-18 01:00:25", "mapbox_access_tokens": null, "has_password": null, "username": "Magnet", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-06-18T01:27:26.181974Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~matthewspaul/10.embed", "fid": "matthewspaul:10", "filename": "Plot 10", "filetype": "plot", "img_url": "https://storage.googleapis.com/plotly-prod-images/matthewspaul/10/9_CO9AVKN7NSXN4JIQ3GZIDZ2QBGG6TS.png", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/matthewspaul/10/2_VB44O04QCCGRTTREPY8X70YN0RXS9P.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/matthewspaul/10/8_UF9QZ4RFG3UW759A4YE5HU3MDJPFHD.png", "list-thumb": "https://storage.googleapis.com/plotly-prod-images/matthewspaul/10/9_CO9AVKN7NSXN4JIQ3GZIDZ2QBGG6TS.png" }, "api_urls": { "files": "https://api.plotly.com/v2/files/matthewspaul:10", "plots": "https://api.plotly.com/v2/plots/matthewspaul:10", "parent": "https://api.plotly.com/v2/folders/home?user=matthewspaul" }, "owner": "matthewspaul", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~matthewspaul/10/", "world_readable": true, "date_modified": "2019-06-18T04:32:10.894Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~matthewspaul/10/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "fill": "none", "mode": "markers+text", "rsrc": "matthewspaul:9:6ef0e3", "type": "scatterpolar", "marker": { "sizeref": 1, "sizesrc": "matthewspaul:9:2b2d91", "sizemode": "diameter" }, "textsrc": "matthewspaul:9:015c21", "textfont": { "family": "Droid Sans" }, "thetasrc": "matthewspaul:9:08e47f", "hoverinfo": "text", "cliponaxis": true, "textpositionsrc": "matthewspaul:9:40e7b2" }, { "fill": "toself", "mode": "lines", "rsrc": "matthewspaul:11:7fb2b9", "type": "scatterpolar", "subplot": "polar", "thetasrc": "matthewspaul:11:b7e362", "hoverinfo": "none", "cliponaxis": false, "showlegend": false, "connectgaps": false } ], "frames": [], "layout": { "polar": { "hole": 0.15, "domain": { "x": [ 0, 1 ], "y": [ 0, 1 ] }, "sector": [ 0, 180 ], "bgcolor": "rgba(210, 46, 46, 0.05)", "radialaxis": { "type": "linear", "range": [ 0, 4 ], "tickmode": "linear", "autorange": false }, "angularaxis": { "type": "linear" } }, "title": { "text": "Technology Roadmap - Radar" }, "xaxis": { "range": [ -1, 6 ], "autorange": true }, "yaxis": { "range": [ -1, 4 ], "autorange": true }, "images": [], "autosize": true, "template": { "data": { "bar": [ { "type": "bar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "white", "linecolor": "white", "endlinecolor": "#2a3f5f", "minorgridcolor": "white", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "white", "linecolor": "white", "endlinecolor": "#2a3f5f", "minorgridcolor": "white", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatter": [ { "type": "scatter", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "histogram": [ { "type": "histogram", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "#E5ECF6", "showlakes": true, "subunitcolor": "white" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "#E5ECF6", "radialaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "angularaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "white", "gridwidth": 2, "linecolor": "white", "zerolinecolor": "white", "showbackground": true, "backgroundcolor": "#E5ECF6" }, "yaxis": { "ticks": "", "gridcolor": "white", "gridwidth": 2, "linecolor": "white", "zerolinecolor": "white", "showbackground": true, "backgroundcolor": "#E5ECF6" }, "zaxis": { "ticks": "", "gridcolor": "white", "gridwidth": 2, "linecolor": "white", "zerolinecolor": "white", "showbackground": true, "backgroundcolor": "#E5ECF6" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white", "automargin": true, "zerolinecolor": "white", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white", "automargin": true, "zerolinecolor": "white", "zerolinewidth": 2 }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "baxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "caxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "bgcolor": "#E5ECF6" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#19d3f3", "#e763fa", "#fecb52", "#ffa15a", "#ff6692", "#b6e880" ], "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ], "sequentialminus": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ] }, "plot_bgcolor": "#E5ECF6", "paper_bgcolor": "white", "shapedefaults": { "line": { "width": 0 }, "opacity": 0.4, "fillcolor": "#506784" }, "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#506784", "arrowwidth": 1 } }, "themeRef": "PLOTLY_GRAY" } } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~matthewspaul", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/67.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-8.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-06-17 02:03:36", "mapbox_access_tokens": null, "has_password": null, "username": "matthewspaul", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-06-18T01:27:21.351181Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~weilsh/5.embed", "fid": "weilsh:5", "filename": "Plot 5", "filetype": "plot", "img_url": "https://storage.googleapis.com/plotly-prod-images/weilsh/5/9_7TONZQ3N7ZKYM1FKLC4FOV4IKZVTB8.png", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/weilsh/5/2_U1U7I97VHOVWJTSWBPOLVYF04SEMZT.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/weilsh/5/8_6JKZSVJKGBIWZUAGURYZDI552LDKQA.png", "list-thumb": "https://storage.googleapis.com/plotly-prod-images/weilsh/5/9_7TONZQ3N7ZKYM1FKLC4FOV4IKZVTB8.png" }, "api_urls": { "files": "https://api.plotly.com/v2/files/weilsh:5", "plots": "https://api.plotly.com/v2/plots/weilsh:5", "parent": "https://api.plotly.com/v2/folders/home?user=weilsh" }, "owner": "weilsh", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 11, "web_url": "https://chart-studio.plotly.com/~weilsh/5/", "world_readable": true, "date_modified": "2019-06-18T01:27:21.382Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~weilsh/5/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "b328cf", "line": { "dash": "solid", "color": "rgba(1,133,113,1)", "shape": "hv", "width": 1.88976377952756 }, "mode": "lines", "name": "high", "type": "scatter", "xsrc": "weilsh:4:41bbfb", "ysrc": "weilsh:4:6f773d", "frame": null, "xaxis": "x", "yaxis": "y", "hoveron": "points", "textsrc": "weilsh:4:80c511", "visible": true, "hoverinfo": "text", "showlegend": true, "legendgroup": "high" }, { "uid": "d9cbb7", "line": { "dash": "solid", "color": "rgba(166,97,26,1)", "shape": "hv", "width": 1.88976377952756 }, "mode": "lines", "name": "low", "type": "scatter", "xsrc": "weilsh:4:102aa4", "ysrc": "weilsh:4:7b7c56", "frame": null, "xaxis": "x", "yaxis": "y", "hoveron": "points", "textsrc": "weilsh:4:aeafb1", "hoverinfo": "text", "showlegend": true, "legendgroup": "low" }, { "uid": "46fc40", "mode": "markers", "name": "(high,1)", "type": "scatter", "xsrc": "weilsh:4:e5d38b", "ysrc": "weilsh:4:d1b9fc", "frame": null, "xaxis": "x", "yaxis": "y", "marker": { "line": { "color": "rgba(1,133,113,1)", "width": 1.88976377952756 }, "size": 7.55905511811024, "color": "rgba(1,133,113,1)", "symbol": "cross-thin-open", "opacity": 1, "autocolorscale": false }, "hoveron": "points", "textsrc": "weilsh:4:34b3ed", "hoverinfo": "text", "showlegend": true, "legendgroup": "(high,1)" }, { "uid": "698252", "mode": "markers", "name": "(low,1)", "type": "scatter", "xsrc": "weilsh:4:6749c6", "ysrc": "weilsh:4:1fc261", "frame": null, "xaxis": "x", "yaxis": "y", "marker": { "line": { "color": "rgba(166,97,26,1)", "width": 1.88976377952756 }, "size": 7.55905511811024, "color": "rgba(166,97,26,1)", "symbol": "cross-thin-open", "opacity": 1, "autocolorscale": false }, "hoveron": "points", "textsrc": "weilsh:4:333191", "hoverinfo": "text", "showlegend": true, "legendgroup": "(low,1)" }, { "uid": "2b5aeb", "mode": "text", "type": "scatter", "xsrc": "weilsh:4:b7e945", "ysrc": "weilsh:4:9a3e1b", "frame": null, "xaxis": "x", "yaxis": "y", "hoveron": "points", "textsrc": "weilsh:4:13bfc0", "textfont": { "size": 14.6645669291339, "color": "rgba(0, 0, 0, 1)" }, "hoverinfo": "text", "showlegend": false, "hovertextsrc": "weilsh:4:28259b" }, { "uid": "e36b81", "mode": "text", "type": "scatter", "xsrc": "weilsh:4:b7e945", "ysrc": "weilsh:4:10556e", "frame": null, "xaxis": "x", "yaxis": "y", "hoveron": "points", "textsrc": "weilsh:4:323221", "textfont": { "size": 14.6645669291339, "color": "rgba(0, 0, 0, 1)" }, "hoverinfo": "text", "showlegend": false, "hovertextsrc": "weilsh:4:fa2125" }, { "uid": "f3dfe3", "mode": "text", "type": "scatter", "xsrc": "weilsh:4:b7e945", "ysrc": "weilsh:4:e47da9", "frame": null, "xaxis": "x", "yaxis": "y", "hoveron": "points", "textsrc": "weilsh:4:7d1bf8", "textfont": { "size": 14.6645669291339, "color": "rgba(0, 0, 0, 1)" }, "hoverinfo": "text", "showlegend": false, "hovertextsrc": "weilsh:4:475f2c" }, { "uid": "75ac83", "mode": "text", "type": "scatter", "xsrc": "weilsh:4:b7e945", "ysrc": "weilsh:4:8aa186", "frame": null, "xaxis": "x", "yaxis": "y", "hoveron": "points", "textsrc": "weilsh:4:5d0db0", "textfont": { "size": 14.6645669291339, "color": "rgba(0, 0, 0, 1)" }, "hoverinfo": "text", "showlegend": false, "hovertextsrc": "weilsh:4:e165a6" }, { "uid": "9539d6", "mode": "text", "type": "scatter", "xsrc": "weilsh:4:22c56e", "ysrc": "weilsh:4:c3113d", "frame": null, "xaxis": "x", "yaxis": "y", "hoveron": "points", "textsrc": "weilsh:4:7f68bc", "textfont": { "size": 14.6645669291339, "color": "rgba(0, 0, 0, 1)" }, "hoverinfo": "text", "showlegend": false, "hovertextsrc": "weilsh:4:dd7aec" } ], "frames": [], "layout": { "font": { "size": 15.9402241594022, "color": "rgba(0, 0, 0, 1)", "family": "" }, "title": { "text": "Click to enter Plot title" }, "xaxis": { "type": "linear", "range": [ -4.56833333333334, 95.935 ], "ticks": "outside", "title": { "font": { "size": 15.9402241594022, "color": "rgba(0, 0, 0, 1)", "family": "" }, "text": "Time(months)" }, "anchor": "y", "domain": [ 0, 1 ], "nticks": null, "ticklen": 3.98505603985056, "showgrid": true, "showline": false, "tickfont": { "size": 12.7521793275218, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0", "25", "50", "75" ], "tickvals": [ 0, 25, 50, 75 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.724555643609193, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": "rgba(51,51,51,1)", "tickwidth": 0.724555643609193, "automargin": true, "hoverformat": ".2f", "categoryarray": [ "0", "25", "50", "75" ], "categoryorder": "array", "showticklabels": true }, "yaxis": { "type": "linear", "range": [ -0.05, 1.05 ], "ticks": "outside", "title": { "font": { "size": 15.9402241594022, "color": "rgba(0, 0, 0, 1)", "family": "" }, "text": "Percent Survival" }, "anchor": "x", "domain": [ 0, 1 ], "nticks": null, "ticklen": 3.98505603985056, "showgrid": true, "showline": false, "tickfont": { "size": 12.7521793275218, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0.00", "0.25", "0.50", "0.75", "1.00" ], "tickvals": [ 0, 0.25, 0.5, 0.75, 1 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.724555643609193, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": "rgba(51,51,51,1)", "tickwidth": 0.724555643609193, "automargin": true, "hoverformat": ".2f", "categoryarray": [ "0.00", "0.25", "0.50", "0.75", "1.00" ], "categoryorder": "array", "showticklabels": true }, "legend": { "x": 1.02, "y": 0.929133858267717, "font": { "size": 12.7521793275218, "color": "rgba(0, 0, 0, 1)", "family": "" }, "bgcolor": "rgba(255,255,255,1)", "bordercolor": "transparent", "borderwidth": 2.06156048675734 }, "margin": { "b": 43.3042756330428, "l": 53.3997509339975, "r": 7.97011207970112, "t": 26.6268161062682 }, "shapes": [ { "x0": 0, "x1": 1, "y0": 0, "y1": 1, "line": { "color": "rgba(51,51,51,1)", "width": 0.724555643609193, "linetype": "solid" }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": "transparent" } ], "barmode": "relative", "autosize": true, "hovermode": "closest", "showlegend": true, "annotations": [ { "x": 1.02, "y": 1, "ax": 0, "ay": 0, "font": { "size": 15.9402241594022, "color": "rgba(0, 0, 0, 1)", "family": "" }, "text": "group", "xref": "paper", "yref": "paper", "xanchor": "left", "yanchor": "bottom", "showarrow": false, "textangle": 0, "legendTitle": true } ], "plot_bgcolor": "rgba(255,255,255,1)", "paper_bgcolor": "rgba(255,255,255,1)" } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~weilsh", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/34.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-6.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-06-17 15:11:59", "mapbox_access_tokens": null, "has_password": null, "username": "weilsh", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-06-18T01:26:02.509231Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~mehdirifai/71.embed", "fid": "mehdirifai:71", "filename": "styled-line", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/mehdirifai:71/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/mehdirifai:71/image?image_name=default", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/mehdirifai/71/8_YU7EXOPPVGJR9996G50UV68HCN1PGN.png", "list-thumb": "https://api.plotly.com/v2/files/mehdirifai:71/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/mehdirifai:71", "plots": "https://api.plotly.com/v2/plots/mehdirifai:71", "parent": "https://api.plotly.com/v2/folders/home?user=mehdirifai" }, "owner": "mehdirifai", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "Cumulative performance Methys", "views": 65, "web_url": "https://chart-studio.plotly.com/~mehdirifai/71/cumulative-performance-methys/", "world_readable": true, "date_modified": "2019-09-12T19:51:08.529Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~mehdirifai/71/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "mode": "lines", "name": "Methys performance - Sharpe = -2.50", "type": "scatter", "xsrc": "mehdirifai:72:3fef82", "ysrc": "mehdirifai:72:912aae" }, { "mode": "lines", "name": "Model performance - Sharpe = -2.23", "type": "scatter", "xsrc": "mehdirifai:72:359c36", "ysrc": "mehdirifai:72:2f7e90" }, { "mode": "lines", "name": "Benchmark portfolio (volume weighted) - Sharpe = -0.77", "type": "scatter", "xsrc": "mehdirifai:72:359c36", "ysrc": "mehdirifai:72:ea2962" } ], "layout": { "title": "Cumulative performance Methys", "xaxis": { "title": "Date" }, "yaxis": { "title": "Performance Index" }, "legend": { "x": -0.1, "y": 1.1, "font": { "size": 12, "color": "#000", "family": "sans-serif" }, "bgcolor": "#E2E2E2", "traceorder": "normal", "bordercolor": "#FFFFFF", "borderwidth": 2 } } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~mehdirifai", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/71.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-12.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2015-02-09 00:26:28", "mapbox_access_tokens": null, "has_password": null, "username": "mehdirifai", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-06-18T01:25:03.331620Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~ChenS/3.embed", "fid": "ChenS:3", "filename": "high expression of LLGL2 in tumor", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/ChenS:3/image?image_name=list-thumb", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/ChenS/3/2_NLEVV2M504KT26FOMRNUVT243XEBIQ.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/ChenS/3/8_2211H9GOAYVG1CVWON3V09JMWVZ0IZ.png", "list-thumb": "https://api.plotly.com/v2/files/ChenS:3/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/ChenS:3", "plots": "https://api.plotly.com/v2/plots/ChenS:3", "parent": "https://api.plotly.com/v2/folders/home?user=ChenS" }, "owner": "ChenS", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~ChenS/3/", "world_readable": true, "date_modified": "2019-06-18T01:39:32.215Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~ChenS/3/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "cdc905", "name": "Tumor", "type": "bar", "xsrc": "ChenS:2:159795", "ysrc": "ChenS:2:203ab6", "marker": { "color": "#FF6666" } }, { "uid": "d5d00f", "name": "Normal", "type": "bar", "xsrc": "ChenS:2:159795", "ysrc": "ChenS:2:2e3cad", "marker": { "color": "#444444" } } ], "frames": [], "layout": { "xaxis": { "type": "category", "range": [ -0.5, 11.5 ], "title": { "text": "tumor" }, "tickfont": { "size": 14, "family": "Arial" }, "autorange": true, "tickangle": -45 }, "yaxis": { "type": "linear", "range": [ 0, 143.6 ], "title": { "text": "expression of certain" }, "autorange": true }, "barmode": "group", "autosize": true, "hovermode": "x" } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~ChenS", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/34.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-4.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-06-18 01:21:45", "mapbox_access_tokens": null, "has_password": null, "username": "ChenS", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-06-18T01:22:25.737496Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~ChenS/1.embed", "fid": "ChenS:1", "filename": "low expression data of LLGL2 in tumor", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/ChenS:1/image?image_name=list-thumb", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/ChenS/1/2_SHHGXMCAUWD09JFORDTHCYNOTZOQKC.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/ChenS/1/8_U3HN7KR1ICP54U13TZZ04J5TZLBYDN.png", "list-thumb": "https://api.plotly.com/v2/files/ChenS:1/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/ChenS:1", "plots": "https://api.plotly.com/v2/plots/ChenS:1", "parent": "https://api.plotly.com/v2/folders/home?user=ChenS" }, "owner": "ChenS", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~ChenS/1/", "world_readable": true, "date_modified": "2019-06-18T01:46:01.861Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~ChenS/1/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "cdc905", "name": "Tumor", "type": "bar", "xsrc": "ChenS:0:159795", "ysrc": "ChenS:0:203ab6", "marker": { "color": "#FF6666" } }, { "uid": "d5d00f", "name": "Normal", "type": "bar", "xsrc": "ChenS:0:159795", "ysrc": "ChenS:0:2e3cad", "marker": { "color": "#444444" } } ], "frames": [], "layout": { "xaxis": { "type": "category", "range": [ -0.5, 11.5 ], "title": { "text": "tumor" }, "tickfont": { "size": 14, "family": "Arial" }, "autorange": true, "tickangle": -45 }, "yaxis": { "type": "linear", "range": [ 0, 143.6 ], "title": { "text": "expression of certain" }, "autorange": true }, "barmode": "group", "autosize": true, "hovermode": "x" } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~ChenS", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/34.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-4.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-06-18 01:21:45", "mapbox_access_tokens": null, "has_password": null, "username": "ChenS", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } } ] }
