Plots


Jump to API response

This endpoint handles manipulation of Plotly plot files.

Reference

Authorization


Any user with or without a Plotly account may view public plots. For private plots, see authentication.

Actions


list

Listing all public plots can be done via a GET request to this endpoint. By default, plots will be listed in order of date created. The order_by query parameter is accepted at this endpoint. Currently, only ordering by views is supported. It is possible to filter the plots by quality with min_quality or max_quality as query parameter.

Example:

// GET https://api.plotly.com/v2/plots/ ---> 200

// GET https://api.plotly.com/v2/plots/?order_by=-views ---> 200

// GET https://api.plotly.com/v2/plots/?min_quality=5 ---> 200

// GET https://api.plotly.com/v2/plots/?max_quality=5 ---> 200

feed

Listing all handpicked feed plots can be done via a GET request to this endpoint. By default, plots will be listed in a random order.

Example:

// GET https://api.plotly.com/v2/plots/feed ---> 200

create

You can create new plot resources here. The only required field is 'figure'. Currently, the figure is restricted to only contain references to grid data. That is, this will fail if raw data arrays are passed in. To create and manipulate underlying grids for plots, see the grids endpoint.

Example:

// This fails because a figure field is required.
// POST https://api.plotly.com/v2/plots ---> 400 Bad Request
{}

// This fails because the figure has raw data
//POST https://api.plotly.com/v2/plots ---> 400 Bad Request
{
    "figure": {"data": [{"y": ['this', 'is', 'raw', 'data']}]}
}

// This succeeds because the figure has src keys, not raw data.
//POST https://api.plotly.com/v2/plots ---> 200 OK
{
    "figure": {"data": [{"ysrc": "sven:88:u8nd62"}]}
}

When creating a grid, you can optionally specify a source_fid to specify where a plot has come from:

  • source_fid: the fid of a plot that was copied (and presumably edited) to produce this one

detail

There is a lot of meta information stored about plot files including filename, title, share_url, and content_url to name a few.

This information can only be reached with a GET to this endpoint.

Example:

// GET https://api.plotly.com/v2/plots/iheartgraphs:90

content

The contents of a plot can be downloaded via the content resource. The plot content contains referenced grid/column data by default. If you wish to return the raw grid/column data, the inline_data=true query must be included in the request url. The Content-Type header will be appropriately set for the response body.

Alternatively, you can set ?map_data=unreadable to append a mapping of sources to data that belongs to grids which are unreadable for the requestor. This is useful when you have read access to another users plot, but that plot contains grid references which you don't have access to.

Examples:

// Returns referenced grid/column data
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content ---> 200 OK

// Returns full grid/column data
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content?inline_data=true ---> 200 OK

// Returns full grid/column data when requestor doesn't have permission
// to read the referenced grid.
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content?map_data=unreadable ---> 200 OK

GET /v2/plots?cursor=cD0yMDE5LTA2LTE3KzIxJTNBMzklM0E0MS40NjU1MzglMkIwMCUzQTAw&format=api
HTTP 200 OK
Allow: GET, POST, HEAD, OPTIONS
Content-Type: application/json
Vary: Accept

{
    "next": "https://api.plot.ly/v2/plots?cursor=cD0yMDE5LTA2LTE3KzIxJTNBMzUlM0EyOC44MTE5NDklMkIwMCUzQTAw&format=api",
    "previous": "https://api.plot.ly/v2/plots?cursor=cj0xJnA9MjAxOS0wNi0xNysyMSUzQTM5JTNBMTcuMzI4OTY4JTJCMDAlM0EwMA%3D%3D&format=api",
    "results": [
        {
            "creation_time": "2019-06-17T21:39:17.328968Z",
            "comments": {
                "results": [],
                "count": 0
            },
            "parented": true,

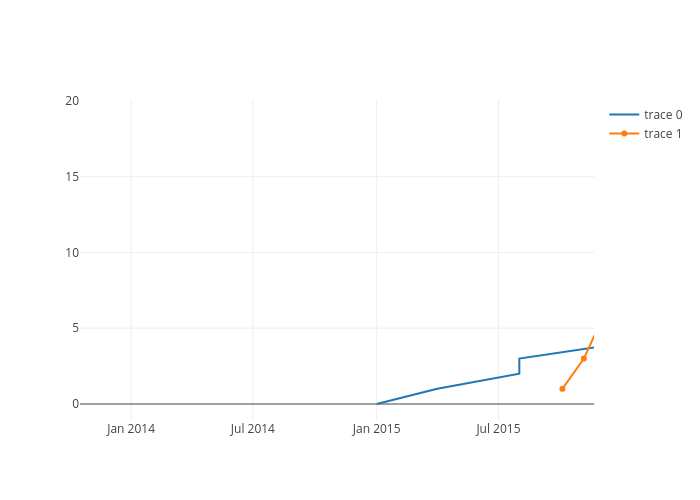

            "embed_url": "https://chart-studio.plotly.com/~gichoc/219.embed",
            "fid": "gichoc:219",
            "filename": "plot from API (4)",
            "filetype": "plot",
            "img_url": "https://api.plotly.com/v2/files/gichoc:219/image?image_name=list-thumb",
            "image_urls": {
                "default": "https://api.plotly.com/v2/files/gichoc:219/image?image_name=default",
                "block-thumb": "https://api.plotly.com/v2/files/gichoc:219/image?image_name=block-thumb",
                "list-thumb": "https://api.plotly.com/v2/files/gichoc:219/image?image_name=list-thumb"
            },
            "api_urls": {
                "files": "https://api.plotly.com/v2/files/gichoc:219",
                "plots": "https://api.plotly.com/v2/plots/gichoc:219",
                "parent": "https://api.plotly.com/v2/folders/home?user=gichoc"
            },
            "owner": "gichoc",
            "parent": -1,
            "preview": "",
            "referencers": [],
            "references": [],
            "title": "",
            "views": 0,
            "web_url": "https://chart-studio.plotly.com/~gichoc/219/",
            "world_readable": true,
            "date_modified": "2019-06-17T21:39:17.863Z",
            "stars": {
                "results": [],
                "count": 0
            },
            "collaborators": {
                "results": [],
                "count": 0
            },
            "subfolder_count": null,
            "refresh_interval": null,
            "organize_view_url": "https://chart-studio.plotly.com/~gichoc/219/",
            "current_user_permission": "read",
            "is_theme": null,
            "is_template": null,
            "autosize": true,
            "caption": "",
            "figure": {
                "data": [
                    {
                        "uid": "8a5b6421-bc93-4629-87d5-873bc20c18ee",
                        "type": "scatter",
                        "xsrc": "gichoc:220:bb2186",
                        "ysrc": "gichoc:220:cb7705"
                    },
                    {
                        "uid": "f782da5b-3a70-4ad9-b9df-6c9c715bf0d9",
                        "type": "scatter",
                        "xsrc": "gichoc:220:98269e",
                        "ysrc": "gichoc:220:b64cb0"
                    }
                ],
                "layout": {
                    "xaxis": {
                        "range": [
                            1381968000000.0,
                            1447977600000.0
                        ]
                    }
                }
            },
            "height": null,
            "width": null,
            "user": {
                "profile_url": "https://chart-studio.plotly.com/~gichoc",
                "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/65.jpg",
                "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-12.jpg",
                "bio": "",
                "nickname": "GiChoc",
                "website": "",
                "stream_tokens": null,
                "feature_set_id": null,
                "csrf_token": null,
                "date_joined": "2018-06-06 14:47:19",
                "mapbox_access_tokens": null,
                "has_password": null,
                "username": "gichoc",
                "email": null,
                "is_active": null,
                "readonly": null,
                "is_dash_creator": null,
                "dash_created_count": null,
                "is_chart_creator": null,
                "charts_created_count": null
            }
        },
        {
            "creation_time": "2019-06-17T21:39:06.557125Z",
            "comments": {
                "results": [],
                "count": 0
            },
            "parented": true,

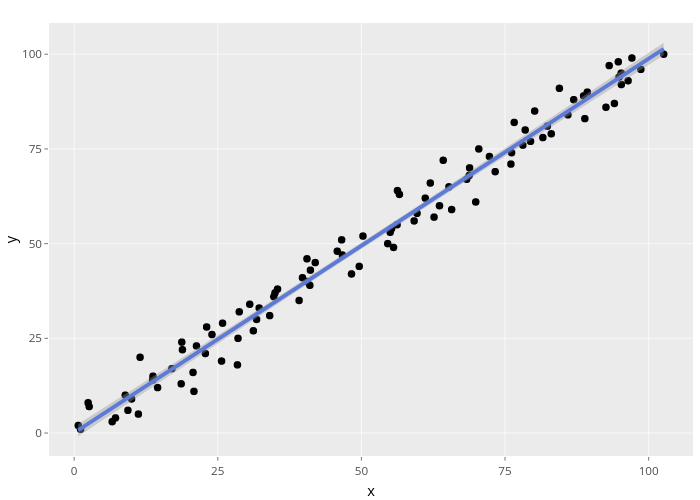

            "embed_url": "https://chart-studio.plotly.com/~edg1983/1.embed",
            "fid": "edg1983:1",
            "filename": "colab_ggplotly",
            "filetype": "plot",
            "img_url": "https://api.plotly.com/v2/files/edg1983:1/image?image_name=list-thumb",
            "image_urls": {
                "default": "https://api.plotly.com/v2/files/edg1983:1/image?image_name=default",
                "block-thumb": "https://storage.googleapis.com/plotly-prod-images/edg1983/1/8_X0W4W9Z080O7X5C4T9XHO6WUZ2NYOP.png",
                "list-thumb": "https://api.plotly.com/v2/files/edg1983:1/image?image_name=list-thumb"
            },
            "api_urls": {
                "files": "https://api.plotly.com/v2/files/edg1983:1",
                "plots": "https://api.plotly.com/v2/plots/edg1983:1",
                "parent": "https://api.plotly.com/v2/folders/home?user=edg1983"
            },
            "owner": "edg1983",
            "parent": -1,
            "preview": "",
            "referencers": [],
            "references": [],
            "title": "",
            "views": 0,
            "web_url": "https://chart-studio.plotly.com/~edg1983/1/",
            "world_readable": true,
            "date_modified": "2019-06-17T21:39:06.587Z",
            "stars": {
                "results": [],
                "count": 0
            },
            "collaborators": {
                "results": [],
                "count": 0
            },
            "subfolder_count": null,
            "refresh_interval": null,
            "organize_view_url": "https://chart-studio.plotly.com/~edg1983/1/",
            "current_user_permission": "read",
            "is_theme": null,
            "is_template": null,
            "autosize": true,
            "caption": "",
            "figure": {
                "data": [
                    {
                        "mode": "markers",
                        "type": "scatter",
                        "xsrc": "edg1983:0:050ccb",
                        "ysrc": "edg1983:0:96ea50",
                        "frame": null,
                        "xaxis": "x",
                        "yaxis": "y",
                        "marker": {
                            "line": {
                                "color": "rgba(0,0,0,1)",
                                "width": 1.88976377952756
                            },
                            "size": 5.66929133858268,
                            "color": "rgba(0,0,0,1)",
                            "symbol": "circle",
                            "opacity": 1,
                            "autocolorscale": false
                        },
                        "hoveron": "points",
                        "textsrc": "edg1983:0:fe6ef2",
                        "hoverinfo": "text",
                        "showlegend": false
                    },
                    {
                        "line": {
                            "dash": "solid",
                            "color": "rgba(51,102,255,1)",
                            "width": 3.77952755905512
                        },
                        "mode": "lines",
                        "name": "fitted values",
                        "type": "scatter",
                        "xsrc": "edg1983:0:0d27ef",
                        "ysrc": "edg1983:0:ddbc06",
                        "frame": null,
                        "xaxis": "x",
                        "yaxis": "y",
                        "hoveron": "points",
                        "textsrc": "edg1983:0:fe348f",
                        "hoverinfo": "text",
                        "showlegend": false
                    },
                    {
                        "fill": "toself",
                        "line": {
                            "dash": "solid",
                            "color": "transparent",
                            "width": 3.77952755905512
                        },
                        "mode": "lines",
                        "type": "scatter",
                        "xsrc": "edg1983:0:49b59c",
                        "ysrc": "edg1983:0:be1fa3",
                        "frame": null,
                        "xaxis": "x",
                        "yaxis": "y",
                        "hoveron": "points",
                        "textsrc": "edg1983:0:6cee3b",
                        "fillcolor": "rgba(153,153,153,0.4)",
                        "hoverinfo": "x+y",
                        "showlegend": false
                    },
                    {
                        "frame": null,
                        "xaxis": "x",
                        "yaxis": "y",
                        "hoverinfo": "text",
                        "showlegend": false
                    }
                ],
                "layout": {
                    "font": {
                        "size": 14.6118721461187,
                        "color": "rgba(0,0,0,1)",
                        "family": ""
                    },
                    "xaxis": {
                        "type": "linear",
                        "range": [
                            -4.3794426670177,
                            107.716699498983
                        ],
                        "ticks": "outside",
                        "title": {
                            "font": {
                                "size": 14.6118721461187,
                                "color": "rgba(0,0,0,1)",
                                "family": ""
                            },
                            "text": "x"
                        },
                        "anchor": "y",
                        "domain": [
                            0,
                            1
                        ],
                        "nticks": null,
                        "ticklen": 3.65296803652968,
                        "showgrid": true,
                        "showline": false,
                        "tickfont": {
                            "size": 11.689497716895,
                            "color": "rgba(77,77,77,1)",
                            "family": ""
                        },
                        "tickmode": "array",
                        "ticktext": [
                            "0",
                            "25",
                            "50",
                            "75",
                            "100"
                        ],
                        "tickvals": [
                            0,
                            25,
                            50,
                            75,
                            100
                        ],
                        "zeroline": false,
                        "autorange": false,
                        "gridcolor": "rgba(255,255,255,1)",
                        "gridwidth": 0.66417600664176,
                        "linecolor": null,
                        "linewidth": 0,
                        "tickangle": 0,
                        "tickcolor": "rgba(51,51,51,1)",
                        "tickwidth": 0.66417600664176,
                        "automargin": true,
                        "hoverformat": ".2f",
                        "categoryarray": [
                            "0",
                            "25",
                            "50",
                            "75",
                            "100"
                        ],
                        "categoryorder": "array",
                        "showticklabels": true
                    },
                    "yaxis": {
                        "type": "linear",
                        "range": [
                            -6.05678773326706,
                            108.244019768961
                        ],
                        "ticks": "outside",
                        "title": {
                            "font": {
                                "size": 14.6118721461187,
                                "color": "rgba(0,0,0,1)",
                                "family": ""
                            },
                            "text": "y"
                        },
                        "anchor": "x",
                        "domain": [
                            0,
                            1
                        ],
                        "nticks": null,
                        "ticklen": 3.65296803652968,
                        "showgrid": true,
                        "showline": false,
                        "tickfont": {
                            "size": 11.689497716895,
                            "color": "rgba(77,77,77,1)",
                            "family": ""
                        },
                        "tickmode": "array",
                        "ticktext": [
                            "0",
                            "25",
                            "50",
                            "75",
                            "100"
                        ],
                        "tickvals": [
                            0,
                            25,
                            50,
                            75,
                            100
                        ],
                        "zeroline": false,
                        "autorange": false,
                        "gridcolor": "rgba(255,255,255,1)",
                        "gridwidth": 0.66417600664176,
                        "linecolor": null,
                        "linewidth": 0,
                        "tickangle": 0,
                        "tickcolor": "rgba(51,51,51,1)",
                        "tickwidth": 0.66417600664176,
                        "automargin": true,
                        "hoverformat": ".2f",
                        "categoryarray": [
                            "0",
                            "25",
                            "50",
                            "75",
                            "100"
                        ],
                        "categoryorder": "array",
                        "showticklabels": true
                    },
                    "legend": {
                        "font": {
                            "size": 11.689497716895,
                            "color": "rgba(0,0,0,1)",
                            "family": ""
                        },
                        "bgcolor": "rgba(255,255,255,1)",
                        "bordercolor": "transparent",
                        "borderwidth": 1.88976377952756
                    },
                    "margin": {
                        "b": 37.2602739726027,
                        "l": 43.1050228310502,
                        "r": 7.30593607305936,
                        "t": 23.3059360730594
                    },
                    "shapes": [
                        {
                            "x0": 0,
                            "x1": 1,
                            "y0": 0,
                            "y1": 1,
                            "line": {
                                "color": null,
                                "width": 0,
                                "linetype": []
                            },
                            "type": "rect",
                            "xref": "paper",
                            "yref": "paper",
                            "fillcolor": null
                        }
                    ],
                    "barmode": "relative",
                    "hovermode": "closest",
                    "showlegend": false,
                    "plot_bgcolor": "rgba(235,235,235,1)",
                    "paper_bgcolor": "rgba(255,255,255,1)"
                }
            },
            "height": null,
            "width": null,
            "user": {
                "profile_url": "https://chart-studio.plotly.com/~edg1983",
                "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/69.jpg",
                "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-10.jpg",
                "bio": "",
                "nickname": "",
                "website": "",
                "stream_tokens": null,
                "feature_set_id": null,
                "csrf_token": null,
                "date_joined": "2019-06-17 21:33:14",
                "mapbox_access_tokens": null,
                "has_password": null,
                "username": "edg1983",
                "email": null,
                "is_active": null,
                "readonly": null,
                "is_dash_creator": null,
                "dash_created_count": null,
                "is_chart_creator": null,
                "charts_created_count": null
            }
        },
        {
            "creation_time": "2019-06-17T21:39:01.045774Z",
            "comments": {
                "results": [],
                "count": 0
            },
            "parented": true,
            "embed_url": "https://chart-studio.plotly.com/~MikeHedegard/4.embed",
            "fid": "MikeHedegard:4",
            "filename": "line-mode",
            "filetype": "plot",
            "img_url": "https://api.plotly.com/v2/files/MikeHedegard:4/image?image_name=list-thumb",
            "image_urls": {
                "default": "https://api.plotly.com/v2/files/MikeHedegard:4/image?image_name=default",
                "block-thumb": "https://storage.googleapis.com/plotly-prod-images/MikeHedegard/4/8_GAVJFR4HDXNV32CL99XFSQVZQNTNT4.png",
                "list-thumb": "https://api.plotly.com/v2/files/MikeHedegard:4/image?image_name=list-thumb"
            },
            "api_urls": {
                "files": "https://api.plotly.com/v2/files/MikeHedegard:4",
                "plots": "https://api.plotly.com/v2/plots/MikeHedegard:4",
                "parent": "https://api.plotly.com/v2/folders/home?user=MikeHedegard"
            },
            "owner": "MikeHedegard",
            "parent": -1,
            "preview": "",
            "referencers": [],
            "references": [],
            "title": "GOALS, FH_O/U, FT_O/U",
            "views": 0,
            "web_url": "https://chart-studio.plotly.com/~MikeHedegard/4/goals-fh-ou-ft-ou/",
            "world_readable": true,
            "date_modified": "2019-06-18T12:46:03.357Z",
            "stars": {
                "results": [],
                "count": 0
            },
            "collaborators": {
                "results": [],
                "count": 0
            },
            "subfolder_count": null,
            "refresh_interval": null,
            "organize_view_url": "https://chart-studio.plotly.com/~MikeHedegard/4/",
            "current_user_permission": "read",
            "is_theme": null,
            "is_template": null,
            "autosize": true,
            "caption": "",
            "figure": {
                "data": [
                    {
                        "name": "GOALS",
                        "type": "scatter",
                        "xsrc": "MikeHedegard:5:7a0f99",
                        "ysrc": "MikeHedegard:5:0a2eae"
                    },
                    {
                        "line": {
                            "dash": "dot",
                            "color": "rgb(205, 12, 24)",
                            "width": 1
                        },
                        "mode": "lines",
                        "name": "FH_O/U",
                        "type": "scatter",
                        "xsrc": "MikeHedegard:5:7a0f99",
                        "ysrc": "MikeHedegard:5:28fde9"
                    },
                    {
                        "line": {
                            "dash": "dot",
                            "width": 1
                        },
                        "mode": "lines",
                        "name": "FT_O/U",
                        "type": "scatter",
                        "xsrc": "MikeHedegard:5:7a0f99",
                        "ysrc": "MikeHedegard:5:e6c2f7"
                    }
                ],
                "layout": {}
            },
            "height": null,
            "width": null,
            "user": {
                "profile_url": "https://chart-studio.plotly.com/~MikeHedegard",
                "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/51.jpg",
                "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-9.jpg",
                "bio": "",
                "nickname": "",
                "website": "",
                "stream_tokens": null,
                "feature_set_id": null,
                "csrf_token": null,
                "date_joined": "2019-06-17 18:15:18",
                "mapbox_access_tokens": null,
                "has_password": null,
                "username": "MikeHedegard",
                "email": null,
                "is_active": null,
                "readonly": null,
                "is_dash_creator": null,
                "dash_created_count": null,
                "is_chart_creator": null,
                "charts_created_count": null
            }
        },
        {
            "creation_time": "2019-06-17T21:38:59.129234Z",
            "comments": {
                "results": [],
                "count": 0
            },
            "parented": true,
            "embed_url": "https://chart-studio.plotly.com/~gichoc/217.embed",
            "fid": "gichoc:217",
            "filename": "plot from API (3)",
            "filetype": "plot",
            "img_url": "https://api.plotly.com/v2/files/gichoc:217/image?image_name=list-thumb",
            "image_urls": {
                "default": "https://api.plotly.com/v2/files/gichoc:217/image?image_name=default",
                "block-thumb": "https://api.plotly.com/v2/files/gichoc:217/image?image_name=block-thumb",
                "list-thumb": "https://api.plotly.com/v2/files/gichoc:217/image?image_name=list-thumb"
            },
            "api_urls": {
                "files": "https://api.plotly.com/v2/files/gichoc:217",
                "plots": "https://api.plotly.com/v2/plots/gichoc:217",
                "parent": "https://api.plotly.com/v2/folders/home?user=gichoc"
            },
            "owner": "gichoc",
            "parent": -1,
            "preview": "",
            "referencers": [],
            "references": [],
            "title": "",
            "views": 0,
            "web_url": "https://chart-studio.plotly.com/~gichoc/217/",
            "world_readable": true,
            "date_modified": "2019-06-17T21:38:59.560Z",
            "stars": {
                "results": [],
                "count": 0
            },
            "collaborators": {
                "results": [],
                "count": 0
            },
            "subfolder_count": null,
            "refresh_interval": null,
            "organize_view_url": "https://chart-studio.plotly.com/~gichoc/217/",
            "current_user_permission": "read",
            "is_theme": null,
            "is_template": null,
            "autosize": true,
            "caption": "",
            "figure": {
                "data": [
                    {
                        "uid": "ad195ca4-cce2-4504-9f3e-37170e6ca484",
                        "type": "scatter",
                        "xsrc": "gichoc:218:8aaa63",
                        "ysrc": "gichoc:218:324770"
                    },
                    {
                        "uid": "9b4604ca-1c8b-427e-86c8-ed49ce13eca2",
                        "type": "scatter",
                        "xsrc": "gichoc:218:68dbaa",
                        "ysrc": "gichoc:218:d690c3"
                    }
                ],
                "layout": {
                    "xaxis": {
                        "range": [
                            1381968000000.0,
                            1447977600000.0
                        ]
                    }
                }
            },
            "height": null,
            "width": null,
            "user": {
                "profile_url": "https://chart-studio.plotly.com/~gichoc",
                "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/65.jpg",
                "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-12.jpg",
                "bio": "",
                "nickname": "GiChoc",
                "website": "",
                "stream_tokens": null,
                "feature_set_id": null,
                "csrf_token": null,
                "date_joined": "2018-06-06 14:47:19",
                "mapbox_access_tokens": null,
                "has_password": null,
                "username": "gichoc",
                "email": null,
                "is_active": null,
                "readonly": null,
                "is_dash_creator": null,
                "dash_created_count": null,
                "is_chart_creator": null,
                "charts_created_count": null
            }
        },
        {
            "creation_time": "2019-06-17T21:38:27.224403Z",
            "comments": {
                "results": [],
                "count": 0
            },
            "parented": true,
            "embed_url": "https://chart-studio.plotly.com/~gichoc/215.embed",
            "fid": "gichoc:215",
            "filename": "plot from API (2)",
            "filetype": "plot",
            "img_url": "https://api.plotly.com/v2/files/gichoc:215/image?image_name=list-thumb",
            "image_urls": {
                "default": "https://api.plotly.com/v2/files/gichoc:215/image?image_name=default",
                "block-thumb": "https://api.plotly.com/v2/files/gichoc:215/image?image_name=block-thumb",
                "list-thumb": "https://api.plotly.com/v2/files/gichoc:215/image?image_name=list-thumb"
            },
            "api_urls": {
                "files": "https://api.plotly.com/v2/files/gichoc:215",
                "plots": "https://api.plotly.com/v2/plots/gichoc:215",
                "parent": "https://api.plotly.com/v2/folders/home?user=gichoc"
            },
            "owner": "gichoc",
            "parent": -1,
            "preview": "",
            "referencers": [],
            "references": [],
            "title": "",
            "views": 0,
            "web_url": "https://chart-studio.plotly.com/~gichoc/215/",
            "world_readable": true,
            "date_modified": "2019-06-17T21:38:27.714Z",
            "stars": {
                "results": [],
                "count": 0
            },
            "collaborators": {
                "results": [],
                "count": 0
            },
            "subfolder_count": null,
            "refresh_interval": null,
            "organize_view_url": "https://chart-studio.plotly.com/~gichoc/215/",
            "current_user_permission": "read",
            "is_theme": null,
            "is_template": null,
            "autosize": true,
            "caption": "",
            "figure": {
                "data": [
                    {
                        "uid": "ea3b2deb-ce17-425f-a815-048c44226f61",
                        "type": "scatter",
                        "xsrc": "gichoc:216:0082f0",
                        "ysrc": "gichoc:216:e2c70d"
                    },
                    {
                        "uid": "72cb4b08-d195-441c-ad5b-92525d987c8b",
                        "type": "scatter",
                        "xsrc": "gichoc:216:675f9d",
                        "ysrc": "gichoc:216:83302f"
                    }
                ],
                "layout": {
                    "xaxis": {
                        "range": [
                            1381968000000.0,
                            1447977600000.0
                        ]
                    }
                }
            },
            "height": null,
            "width": null,
            "user": {
                "profile_url": "https://chart-studio.plotly.com/~gichoc",
                "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/65.jpg",
                "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-12.jpg",
                "bio": "",
                "nickname": "GiChoc",
                "website": "",
                "stream_tokens": null,
                "feature_set_id": null,
                "csrf_token": null,
                "date_joined": "2018-06-06 14:47:19",
                "mapbox_access_tokens": null,
                "has_password": null,
                "username": "gichoc",
                "email": null,
                "is_active": null,
                "readonly": null,
                "is_dash_creator": null,
                "dash_created_count": null,
                "is_chart_creator": null,
                "charts_created_count": null
            }
        },
        {
            "creation_time": "2019-06-17T21:38:04.778735Z",
            "comments": {
                "results": [],
                "count": 0
            },
            "parented": true,
            "embed_url": "https://chart-studio.plotly.com/~jbaniha/12.embed",
            "fid": "jbaniha:12",
            "filename": "plot from API (4)",
            "filetype": "plot",
            "img_url": "https://api.plotly.com/v2/files/jbaniha:12/image?image_name=list-thumb",
            "image_urls": {
                "default": "https://storage.googleapis.com/plotly-prod-images/jbaniha/12/2_1NUDLP87SEUOVGUYUR1W71TI9FYNKK.png",
                "block-thumb": "https://api.plotly.com/v2/files/jbaniha:12/image?image_name=block-thumb",
                "list-thumb": "https://api.plotly.com/v2/files/jbaniha:12/image?image_name=list-thumb"
            },
            "api_urls": {
                "files": "https://api.plotly.com/v2/files/jbaniha:12",
                "plots": "https://api.plotly.com/v2/plots/jbaniha:12",
                "parent": "https://api.plotly.com/v2/folders/home?user=jbaniha"
            },
            "owner": "jbaniha",
            "parent": -1,
            "preview": "",
            "referencers": [],
            "references": [],
            "title": "",
            "views": 1,
            "web_url": "https://chart-studio.plotly.com/~jbaniha/12/",
            "world_readable": true,
            "date_modified": "2019-06-17T21:38:05.233Z",
            "stars": {
                "results": [],
                "count": 0
            },
            "collaborators": {
                "results": [],
                "count": 0
            },
            "subfolder_count": null,
            "refresh_interval": null,
            "organize_view_url": "https://chart-studio.plotly.com/~jbaniha/12/",
            "current_user_permission": "read",
            "is_theme": null,
            "is_template": null,
            "autosize": true,
            "caption": "",
            "figure": {
                "data": [
                    {
                        "uid": "2fa19b58-9148-11e9-bb1e-b8ca3ad6c2d9",
                        "type": "box",
                        "ysrc": "jbaniha:13:263de8",
                        "jitter": 0.5,
                        "pointpos": -1.8,
                        "boxpoints": "all"
                    }
                ],
                "layout": {}
            },
            "height": null,
            "width": null,
            "user": {
                "profile_url": "https://chart-studio.plotly.com/~jbaniha",
                "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/43.jpg",
                "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-2.jpg",
                "bio": "",
                "nickname": "",
                "website": "",
                "stream_tokens": null,
                "feature_set_id": null,
                "csrf_token": null,
                "date_joined": "2019-01-18 18:40:48",
                "mapbox_access_tokens": null,
                "has_password": null,
                "username": "jbaniha",
                "email": null,
                "is_active": null,
                "readonly": null,
                "is_dash_creator": null,
                "dash_created_count": null,
                "is_chart_creator": null,
                "charts_created_count": null
            }
        },
        {
            "creation_time": "2019-06-17T21:37:45.699644Z",
            "comments": {
                "results": [],
                "count": 0
            },
            "parented": true,
            "embed_url": "https://chart-studio.plotly.com/~gichoc/213.embed",
            "fid": "gichoc:213",
            "filename": "plot from API (1)",
            "filetype": "plot",
            "img_url": "https://api.plotly.com/v2/files/gichoc:213/image?image_name=list-thumb",
            "image_urls": {
                "default": "https://api.plotly.com/v2/files/gichoc:213/image?image_name=default",
                "block-thumb": "https://api.plotly.com/v2/files/gichoc:213/image?image_name=block-thumb",
                "list-thumb": "https://api.plotly.com/v2/files/gichoc:213/image?image_name=list-thumb"
            },
            "api_urls": {
                "files": "https://api.plotly.com/v2/files/gichoc:213",
                "plots": "https://api.plotly.com/v2/plots/gichoc:213",
                "parent": "https://api.plotly.com/v2/folders/home?user=gichoc"
            },
            "owner": "gichoc",
            "parent": -1,
            "preview": "",
            "referencers": [],
            "references": [],
            "title": "",
            "views": 0,
            "web_url": "https://chart-studio.plotly.com/~gichoc/213/",
            "world_readable": true,
            "date_modified": "2019-06-17T21:37:46.199Z",
            "stars": {
                "results": [],
                "count": 0
            },
            "collaborators": {
                "results": [],
                "count": 0
            },
            "subfolder_count": null,
            "refresh_interval": null,
            "organize_view_url": "https://chart-studio.plotly.com/~gichoc/213/",
            "current_user_permission": "read",
            "is_theme": null,
            "is_template": null,
            "autosize": true,
            "caption": "",
            "figure": {
                "data": [
                    {
                        "uid": "41de1e0e-d1a2-4735-90bb-27e7b5abe249",
                        "type": "scatter",
                        "xsrc": "gichoc:214:a8ba20",
                        "ysrc": "gichoc:214:268b8c"
                    },
                    {
                        "uid": "bf3572da-1cc7-4b12-9cc4-74d7fd40c208",
                        "type": "scatter",
                        "xsrc": "gichoc:214:d2b282",
                        "ysrc": "gichoc:214:0c65b3"
                    }
                ],
                "layout": {
                    "xaxis": {
                        "range": [
                            1381968000000.0,
                            1447977600000.0
                        ]
                    }
                }
            },
            "height": null,
            "width": null,
            "user": {
                "profile_url": "https://chart-studio.plotly.com/~gichoc",
                "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/65.jpg",
                "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-12.jpg",
                "bio": "",
                "nickname": "GiChoc",
                "website": "",
                "stream_tokens": null,
                "feature_set_id": null,
                "csrf_token": null,
                "date_joined": "2018-06-06 14:47:19",
                "mapbox_access_tokens": null,
                "has_password": null,
                "username": "gichoc",
                "email": null,
                "is_active": null,
                "readonly": null,
                "is_dash_creator": null,
                "dash_created_count": null,
                "is_chart_creator": null,
                "charts_created_count": null
            }
        },
        {
            "creation_time": "2019-06-17T21:37:17.652180Z",
            "comments": {
                "results": [],
                "count": 0
            },
            "parented": true,
            "embed_url": "https://chart-studio.plotly.com/~ptbravo/2.embed",
            "fid": "ptbravo:2",
            "filename": "default",
            "filetype": "plot",
            "img_url": "https://api.plotly.com/v2/files/ptbravo:2/image?image_name=list-thumb",
            "image_urls": {
                "default": "https://api.plotly.com/v2/files/ptbravo:2/image?image_name=default",
                "block-thumb": "https://api.plotly.com/v2/files/ptbravo:2/image?image_name=block-thumb",
                "list-thumb": "https://api.plotly.com/v2/files/ptbravo:2/image?image_name=list-thumb"
            },
            "api_urls": {
                "files": "https://api.plotly.com/v2/files/ptbravo:2",
                "plots": "https://api.plotly.com/v2/plots/ptbravo:2",
                "parent": "https://api.plotly.com/v2/folders/home?user=ptbravo"
            },
            "owner": "ptbravo",
            "parent": -1,
            "preview": "",
            "referencers": [],
            "references": [],
            "title": "default",
            "views": 0,
            "web_url": "https://chart-studio.plotly.com/~ptbravo/2/default/",
            "world_readable": true,
            "date_modified": "2019-06-24T19:33:35.215Z",
            "stars": {
                "results": [],
                "count": 0
            },
            "collaborators": {
                "results": [],
                "count": 0
            },
            "subfolder_count": null,
            "refresh_interval": null,
            "organize_view_url": "https://chart-studio.plotly.com/~ptbravo/2/",
            "current_user_permission": "read",
            "is_theme": null,
            "is_template": null,
            "autosize": true,
            "caption": "",
            "figure": {
                "data": [
                    {
                        "uid": "c6a53fdf-8c81-488c-a8a6-375ff2c39f2e",
                        "type": "surface",
                        "xsrc": "ptbravo:3:e2fff3",
                        "ysrc": "ptbravo:3:95ffa4",
                        "zsrc": "ptbravo:3:-e2fff3,95ffa4"
                    }
                ],
                "layout": {
                    "scene": {
                        "xaxis": {
                            "title": {
                                "text": ""
                            },
                            "showgrid": false,
                            "showline": false,
                            "zeroline": false,
                            "showbackground": false,
                            "showticklabels": false
                        },
                        "yaxis": {
                            "title": {
                                "text": ""
                            },
                            "showgrid": false,
                            "showline": false,
                            "zeroline": false,
                            "showbackground": false,
                            "showticklabels": false
                        },
                        "zaxis": {
                            "range": [
                                0,
                                2550
                            ],
                            "title": {
                                "text": ""
                            },
                            "showgrid": false,
                            "showline": false,
                            "zeroline": false,
                            "showbackground": false,
                            "showticklabels": false
                        },
                        "camera": {
                            "up": {
                                "x": 0,
                                "y": 0,
                                "z": 1
                            },
                            "eye": {
                                "x": 0.8,
                                "y": 0.8,
                                "z": -0.4
                            },
                            "center": {
                                "x": 0,
                                "y": 0.0,
                                "z": 0.0
                            }
                        }
                    },
                    "title": {
                        "text": "default"
                    },
                    "showlegend": false
                }
            },
            "height": null,
            "width": null,
            "user": {
                "profile_url": "https://chart-studio.plotly.com/~ptbravo",
                "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/75.jpg",
                "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-3.jpg",
                "bio": "",
                "nickname": "",
                "website": "",
                "stream_tokens": null,
                "feature_set_id": null,
                "csrf_token": null,
                "date_joined": "2019-06-17 21:11:08",
                "mapbox_access_tokens": null,
                "has_password": null,
                "username": "ptbravo",
                "email": null,
                "is_active": null,
                "readonly": null,
                "is_dash_creator": null,
                "dash_created_count": null,
                "is_chart_creator": null,
                "charts_created_count": null
            }
        },
        {
            "creation_time": "2019-06-17T21:37:12.655729Z",
            "comments": {
                "results": [],
                "count": 0
            },
            "parented": true,
            "embed_url": "https://chart-studio.plotly.com/~jbaniha/10.embed",
            "fid": "jbaniha:10",
            "filename": "plot from API (3)",
            "filetype": "plot",
            "img_url": "https://api.plotly.com/v2/files/jbaniha:10/image?image_name=list-thumb",
            "image_urls": {
                "default": "https://api.plotly.com/v2/files/jbaniha:10/image?image_name=default",
                "block-thumb": "https://api.plotly.com/v2/files/jbaniha:10/image?image_name=block-thumb",
                "list-thumb": "https://api.plotly.com/v2/files/jbaniha:10/image?image_name=list-thumb"
            },
            "api_urls": {
                "files": "https://api.plotly.com/v2/files/jbaniha:10",
                "plots": "https://api.plotly.com/v2/plots/jbaniha:10",
                "parent": "https://api.plotly.com/v2/folders/home?user=jbaniha"
            },
            "owner": "jbaniha",
            "parent": -1,
            "preview": "",
            "referencers": [],
            "references": [],
            "title": "",
            "views": 1,
            "web_url": "https://chart-studio.plotly.com/~jbaniha/10/",
            "world_readable": true,
            "date_modified": "2019-06-17T21:37:13.143Z",
            "stars": {
                "results": [],
                "count": 0
            },
            "collaborators": {
                "results": [],
                "count": 0
            },
            "subfolder_count": null,
            "refresh_interval": null,
            "organize_view_url": "https://chart-studio.plotly.com/~jbaniha/10/",
            "current_user_permission": "read",
            "is_theme": null,
            "is_template": null,
            "autosize": true,
            "caption": "",
            "figure": {
                "data": [
                    {
                        "uid": "1051ab26-9148-11e9-8fcf-b8ca3ad6c2d9",
                        "type": "box",
                        "ysrc": "jbaniha:11:041a6a",
                        "jitter": 0.5,
                        "pointpos": -1.8,
                        "boxpoints": "all"
                    }
                ],
                "layout": {}
            },
            "height": null,
            "width": null,
            "user": {
                "profile_url": "https://chart-studio.plotly.com/~jbaniha",
                "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/43.jpg",
                "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-2.jpg",
                "bio": "",
                "nickname": "",
                "website": "",
                "stream_tokens": null,
                "feature_set_id": null,
                "csrf_token": null,
                "date_joined": "2019-01-18 18:40:48",
                "mapbox_access_tokens": null,
                "has_password": null,
                "username": "jbaniha",
                "email": null,
                "is_active": null,
                "readonly": null,
                "is_dash_creator": null,
                "dash_created_count": null,
                "is_chart_creator": null,
                "charts_created_count": null
            }
        },
        {
            "creation_time": "2019-06-17T21:35:28.811949Z",
            "comments": {
                "results": [],
                "count": 0
            },
            "parented": true,
            "embed_url": "https://chart-studio.plotly.com/~jon.mease/575.embed",
            "fid": "jon.mease:575",
            "filename": "From the API",
            "filetype": "plot",
            "img_url": "https://storage.googleapis.com/plotly-prod-images/jon.mease/575/9_2PD2T3X0W2LX19HP2T5ZCDU3LSBAU8.png",
            "image_urls": {
                "default": "https://storage.googleapis.com/plotly-prod-images/jon.mease/575/2_424XOE9ASWEXLJJ8128QZ8ZJWJ89LR.png",
                "block-thumb": "https://storage.googleapis.com/plotly-prod-images/jon.mease/575/8_A28K0NIYBK6IJR6M2PN84V55A67PH9.png",
                "list-thumb": "https://storage.googleapis.com/plotly-prod-images/jon.mease/575/9_2PD2T3X0W2LX19HP2T5ZCDU3LSBAU8.png"
            },
            "api_urls": {
                "files": "https://api.plotly.com/v2/files/jon.mease:575",
                "plots": "https://api.plotly.com/v2/plots/jon.mease:575",
                "parent": "https://api.plotly.com/v2/folders/home?user=jon.mease"
            },
            "owner": "jon.mease",
            "parent": -1,
            "preview": "",
            "referencers": [],
            "references": [],
            "title": "",
            "views": 20,
            "web_url": "https://chart-studio.plotly.com/~jon.mease/575/",
            "world_readable": true,
            "date_modified": "2019-06-17T21:35:57.413Z",
            "stars": {
                "results": [],
                "count": 0
            },
            "collaborators": {
                "results": [],
                "count": 0
            },
            "subfolder_count": null,
            "refresh_interval": null,
            "organize_view_url": "https://chart-studio.plotly.com/~jon.mease/575/",
            "current_user_permission": "read",
            "is_theme": null,
            "is_template": null,
            "autosize": true,
            "caption": "",
            "figure": {
                "data": [
                    {
                        "type": "scatter",
                        "ysrc": "jon.mease:574:1853da"
                    },
                    {
                        "type": "bar",
                        "ysrc": "jon.mease:574:9fa871"
                    }
                ],
                "layout": {
                    "template": {
                        "data": {
                            "bar": [
                                {
                                    "type": "bar",
                                    "marker": {
                                        "line": {
                                            "color": "#E5ECF6",
                                            "width": 0.5
                                        }
                                    }
                                }
                            ],
                            "table": [
                                {
                                    "type": "table",
                                    "cells": {
                                        "fill": {
                                            "color": "#EBF0F8"
                                        },
                                        "line": {
                                            "color": "white"
                                        }
                                    },
                                    "header": {
                                        "fill": {
                                            "color": "#C8D4E3"
                                        },
                                        "line": {
                                            "color": "white"
                                        }
                                    }
                                }
                            ],
                            "carpet": [
                                {
                                    "type": "carpet",
                                    "aaxis": {
                                        "gridcolor": "white",
                                        "linecolor": "white",
                                        "endlinecolor": "#2a3f5f",
                                        "minorgridcolor": "white",
                                        "startlinecolor": "#2a3f5f"
                                    },
                                    "baxis": {
                                        "gridcolor": "white",
                                        "linecolor": "white",
                                        "endlinecolor": "#2a3f5f",
                                        "minorgridcolor": "white",
                                        "startlinecolor": "#2a3f5f"
                                    }
                                }
                            ],
                            "mesh3d": [
                                {
                                    "type": "mesh3d",
                                    "colorbar": {
                                        "ticks": "",
                                        "outlinewidth": 0
                                    }
                                }
                            ],
                            "contour": [
                                {
                                    "type": "contour",
                                    "colorbar": {
                                        "ticks": "",
                                        "outlinewidth": 0
                                    },
                                    "colorscale": [
                                        [
                                            0.0,
                                            "#0d0887"
                                        ],
                                        [
                                            0.1111111111111111,
                                            "#46039f"
                                        ],
                                        [
                                            0.2222222222222222,
                                            "#7201a8"
                                        ],
                                        [
                                            0.3333333333333333,
                                            "#9c179e"
                                        ],
                                        [
                                            0.4444444444444444,
                                            "#bd3786"
                                        ],
                                        [
                                            0.5555555555555556,
                                            "#d8576b"
                                        ],
                                        [
                                            0.6666666666666666,
                                            "#ed7953"
                                        ],
                                        [
                                            0.7777777777777778,
                                            "#fb9f3a"
                                        ],
                                        [
                                            0.8888888888888888,
                                            "#fdca26"
                                        ],
                                        [
                                            1.0,
                                            "#f0f921"
                                        ]
                                    ]
                                }
                            ],
                            "heatmap": [
                                {
                                    "type": "heatmap",
                                    "colorbar": {
                                        "ticks": "",
                                        "outlinewidth": 0
                                    },
                                    "colorscale": [
                                        [
                                            0.0,
                                            "#0d0887"
                                        ],
                                        [
                                            0.1111111111111111,
                                            "#46039f"
                                        ],
                                        [
                                            0.2222222222222222,
                                            "#7201a8"
                                        ],
                                        [
                                            0.3333333333333333,
                                            "#9c179e"
                                        ],
                                        [
                                            0.4444444444444444,
                                            "#bd3786"
                                        ],
                                        [
                                            0.5555555555555556,
                                            "#d8576b"
                                        ],
                                        [
                                            0.6666666666666666,
                                            "#ed7953"
                                        ],
                                        [
                                            0.7777777777777778,
                                            "#fb9f3a"
                                        ],
                                        [
                                            0.8888888888888888,
                                            "#fdca26"
                                        ],
                                        [
                                            1.0,
                                            "#f0f921"
                                        ]
                                    ]
                                }
                            ],
                            "scatter": [
                                {
                                    "type": "scatter",
                                    "marker": {
                                        "colorbar": {
                                            "ticks": "",
                                            "outlinewidth": 0
                                        }
                                    }
                                }
                            ],
                            "surface": [
                                {
                                    "type": "surface",
                                    "colorbar": {
                                        "ticks": "",
                                        "outlinewidth": 0
                                    }
                                }
                            ],
                            "barpolar": [
                                {
                                    "type": "barpolar",
                                    "marker": {
                                        "line": {
                                            "color": "#E5ECF6",
                                            "width": 0.5
                                        }
                                    }
                                }
                            ],
                            "heatmapgl": [
                                {
                                    "type": "heatmapgl",
                                    "colorbar": {
                                        "ticks": "",
                                        "outlinewidth": 0
                                    }
                                }
                            ],
                            "histogram": [
                                {
                                    "type": "histogram",
                                    "marker": {
                                        "colorbar": {
                                            "ticks": "",
                                            "outlinewidth": 0
                                        }
                                    }
                                }
                            ],
                            "parcoords": [
                                {
                                    "line": {
                                        "colorbar": {
                                            "ticks": "",
                                            "outlinewidth": 0
                                        }
                                    },
                                    "type": "parcoords"
                                }
                            ],
                            "scatter3d": [
                                {
                                    "line": {
                                        "colorbar": {
                                            "ticks": "",
                                            "outlinewidth": 0
                                        }
                                    },
                                    "type": "scatter3d",
                                    "marker": {
                                        "colorbar": {
                                            "ticks": "",
                                            "outlinewidth": 0
                                        }
                                    }
                                }
                            ],
                            "scattergl": [
                                {
                                    "type": "scattergl",
                                    "marker": {
                                        "colorbar": {
                                            "ticks": "",
                                            "outlinewidth": 0
                                        }
                                    }
                                }
                            ],
                            "choropleth": [
                                {
                                    "type": "choropleth",
                                    "colorbar": {
                                        "ticks": "",
                                        "outlinewidth": 0
                                    }
                                }
                            ],
                            "scattergeo": [
                                {
                                    "type": "scattergeo",
                                    "marker": {
                                        "colorbar": {
                                            "ticks": "",
                                            "outlinewidth": 0
                                        }
                                    }
                                }
                            ],
                            "histogram2d": [
                                {
                                    "type": "histogram2d",
                                    "colorbar": {
                                        "ticks": "",
                                        "outlinewidth": 0
                                    },
                                    "colorscale": [
                                        [
                                            0.0,
                                            "#0d0887"
                                        ],
                                        [
                                            0.1111111111111111,
                                            "#46039f"
                                        ],
                                        [
                                            0.2222222222222222,
                                            "#7201a8"
                                        ],
                                        [
                                            0.3333333333333333,
                                            "#9c179e"
                                        ],
                                        [
                                            0.4444444444444444,
                                            "#bd3786"
                                        ],
                                        [
                                            0.5555555555555556,
                                            "#d8576b"
                                        ],
                                        [
                                            0.6666666666666666,
                                            "#ed7953"
                                        ],
                                        [
                                            0.7777777777777778,
                                            "#fb9f3a"
                                        ],
                                        [
                                            0.8888888888888888,
                                            "#fdca26"
                                        ],
                                        [
                                            1.0,
                                            "#f0f921"
                                        ]
                                    ]
                                }
                            ],
                            "scatterpolar": [
                                {
                                    "type": "scatterpolar",
                                    "marker": {
                                        "colorbar": {
                                            "ticks": "",
                                            "outlinewidth": 0
                                        }
                                    }
                                }
                            ],
                            "contourcarpet": [
                                {
                                    "type": "contourcarpet",
                                    "colorbar": {
                                        "ticks": "",
                                        "outlinewidth": 0
                                    }
                                }
                            ],
                            "scattercarpet": [
                                {
                                    "type": "scattercarpet",
                                    "marker": {
                                        "colorbar": {
                                            "ticks": "",
                                            "outlinewidth": 0
                                        }
                                    }
                                }
                            ],
                            "scattermapbox": [
                                {
                                    "type": "scattermapbox",
                                    "marker": {
                                        "colorbar": {
                                            "ticks": "",
                                            "outlinewidth": 0
                                        }
                                    }
                                }
                            ],
                            "scatterpolargl": [
                                {
                                    "type": "scatterpolargl",
                                    "marker": {
                                        "colorbar": {
                                            "ticks": "",
                                            "outlinewidth": 0
                                        }
                                    }
                                }
                            ],
                            "scatterternary": [
                                {
                                    "type": "scatterternary",
                                    "marker": {
                                        "colorbar": {
                                            "ticks": "",
                                            "outlinewidth": 0
                                        }
                                    }
                                }
                            ],
                            "histogram2dcontour": [
                                {
                                    "type": "histogram2dcontour",
                                    "colorbar": {
                                        "ticks": "",
                                        "outlinewidth": 0
                                    },
                                    "colorscale": [
                                        [
                                            0.0,
                                            "#0d0887"
                                        ],
                                        [
                                            0.1111111111111111,
                                            "#46039f"
                                        ],
                                        [
                                            0.2222222222222222,
                                            "#7201a8"
                                        ],
                                        [
                                            0.3333333333333333,
                                            "#9c179e"
                                        ],
                                        [
                                            0.4444444444444444,
                                            "#bd3786"
                                        ],
                                        [
                                            0.5555555555555556,
                                            "#d8576b"
                                        ],
                                        [
                                            0.6666666666666666,
                                            "#ed7953"
                                        ],
                                        [
                                            0.7777777777777778,
                                            "#fb9f3a"
                                        ],
                                        [
                                            0.8888888888888888,
                                            "#fdca26"
                                        ],
                                        [
                                            1.0,
                                            "#f0f921"
                                        ]
                                    ]
                                }
                            ]
                        },
                        "layout": {
                            "geo": {
                                "bgcolor": "white",
                                "showland": true,
                                "lakecolor": "white",
                                "landcolor": "#E5ECF6",
                                "showlakes": true,
                                "subunitcolor": "white"
                            },
                            "font": {
                                "color": "#2a3f5f"
                            },
                            "polar": {
                                "bgcolor": "#E5ECF6",
                                "radialaxis": {
                                    "ticks": "",
                                    "gridcolor": "white",
                                    "linecolor": "white"
                                },
                                "angularaxis": {
                                    "ticks": "",
                                    "gridcolor": "white",
                                    "linecolor": "white"
                                }
                            },
                            "scene": {
                                "xaxis": {
                                    "ticks": "",
                                    "gridcolor": "white",
                                    "gridwidth": 2,
                                    "linecolor": "white",
                                    "zerolinecolor": "white",
                                    "showbackground": true,
                                    "backgroundcolor": "#E5ECF6"
                                },
                                "yaxis": {
                                    "ticks": "",
                                    "gridcolor": "white",
                                    "gridwidth": 2,
                                    "linecolor": "white",
                                    "zerolinecolor": "white",
                                    "showbackground": true,
                                    "backgroundcolor": "#E5ECF6"
                                },
                                "zaxis": {
                                    "ticks": "",
                                    "gridcolor": "white",
                                    "gridwidth": 2,
                                    "linecolor": "white",
                                    "zerolinecolor": "white",
                                    "showbackground": true,
                                    "backgroundcolor": "#E5ECF6"
                                }
                            },
                            "title": {
                                "x": 0.05
                            },
                            "xaxis": {
                                "ticks": "",
                                "gridcolor": "white",
                                "linecolor": "white",
                                "automargin": true,
                                "zerolinecolor": "white",
                                "zerolinewidth": 2
                            },
                            "yaxis": {
                                "ticks": "",
                                "gridcolor": "white",
                                "linecolor": "white",
                                "automargin": true,
                                "zerolinecolor": "white",
                                "zerolinewidth": 2
                            },
                            "mapbox": {
                                "style": "light"
                            },
                            "ternary": {
                                "aaxis": {
                                    "ticks": "",
                                    "gridcolor": "white",
                                    "linecolor": "white"
                                },
                                "baxis": {
                                    "ticks": "",
                                    "gridcolor": "white",
                                    "linecolor": "white"
                                },
                                "caxis": {
                                    "ticks": "",
                                    "gridcolor": "white",
                                    "linecolor": "white"
                                },
                                "bgcolor": "#E5ECF6"
                            },
                            "colorway": [
                                "#636efa",
                                "#EF553B",
                                "#00cc96",
                                "#ab63fa",
                                "#FFA15A",
                                "#19d3f3",
                                "#FF6692",
                                "#B6E880",
                                "#FF97FF",
                                "#FECB52"
                            ],
                            "hovermode": "closest",
                            "colorscale": {
                                "diverging": [
                                    [
                                        0,
                                        "#8e0152"
                                    ],
                                    [
                                        0.1,
                                        "#c51b7d"
                                    ],
                                    [
                                        0.2,
                                        "#de77ae"
                                    ],
                                    [
                                        0.3,
                                        "#f1b6da"
                                    ],
                                    [
                                        0.4,
                                        "#fde0ef"
                                    ],
                                    [
                                        0.5,
                                        "#f7f7f7"
                                    ],
                                    [
                                        0.6,
                                        "#e6f5d0"
                                    ],
                                    [
                                        0.7,
                                        "#b8e186"
                                    ],
                                    [
                                        0.8,
                                        "#7fbc41"
                                    ],
                                    [
                                        0.9,
                                        "#4d9221"
                                    ],
                                    [
                                        1,
                                        "#276419"
                                    ]
                                ],
                                "sequential": [
                                    [
                                        0.0,
                                        "#0d0887"
                                    ],
                                    [
                                        0.1111111111111111,
                                        "#46039f"
                                    ],
                                    [
                                        0.2222222222222222,
                                        "#7201a8"
                                    ],
                                    [
                                        0.3333333333333333,
                                        "#9c179e"
                                    ],
                                    [
                                        0.4444444444444444,
                                        "#bd3786"
                                    ],
                                    [
                                        0.5555555555555556,
                                        "#d8576b"
                                    ],
                                    [
                                        0.6666666666666666,
                                        "#ed7953"
                                    ],
                                    [
                                        0.7777777777777778,
                                        "#fb9f3a"
                                    ],
                                    [
                                        0.8888888888888888,
                                        "#fdca26"
                                    ],
                                    [
                                        1.0,
                                        "#f0f921"
                                    ]
                                ],
                                "sequentialminus": [
                                    [
                                        0.0,
                                        "#0d0887"
                                    ],
                                    [
                                        0.1111111111111111,
                                        "#46039f"
                                    ],
                                    [
                                        0.2222222222222222,
                                        "#7201a8"
                                    ],
                                    [
                                        0.3333333333333333,
                                        "#9c179e"
                                    ],
                                    [
                                        0.4444444444444444,
                                        "#bd3786"
                                    ],
                                    [
                                        0.5555555555555556,
                                        "#d8576b"
                                    ],
                                    [
                                        0.6666666666666666,
                                        "#ed7953"
                                    ],
                                    [
                                        0.7777777777777778,
                                        "#fb9f3a"
                                    ],
                                    [
                                        0.8888888888888888,
                                        "#fdca26"
                                    ],
                                    [
                                        1.0,
                                        "#f0f921"
                                    ]
                                ]
                            },
                            "hoverlabel": {
                                "align": "left"
                            },
                            "plot_bgcolor": "#E5ECF6",
                            "paper_bgcolor": "white",
                            "shapedefaults": {
                                "line": {
                                    "width": 0
                                },
                                "opacity": 0.4,
                                "fillcolor": "#506784"
                            },
                            "annotationdefaults": {
                                "arrowhead": 0,
                                "arrowcolor": "#506784",
                                "arrowwidth": 1
                            }
                        }
                    }
                }
            },
            "height": null,
            "width": null,
            "user": {
                "profile_url": "https://chart-studio.plotly.com/~jon.mease",
                "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/55.jpg",
                "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-6.jpg",
                "bio": "",
                "nickname": "Jon Mease",
                "website": "",
                "stream_tokens": null,
                "feature_set_id": null,
                "csrf_token": null,
                "date_joined": "2016-02-18 14:24:28",
                "mapbox_access_tokens": null,
                "has_password": null,
                "username": "jon.mease",
                "email": null,
                "is_active": null,
                "readonly": null,
                "is_dash_creator": null,
                "dash_created_count": null,
                "is_chart_creator": null,
                "charts_created_count": null
            }
        }
    ]
}
