Plots List
Plots
This endpoint handles manipulation of Plotly plot files.
Reference
Authorization
Any user with or without a Plotly account may view public plots. For private plots, see authentication.
Actions
list
Listing all public plots can be done via a GET request to this endpoint.
By default, plots will be listed in order of date created. The order_by
query parameter is accepted at this endpoint. Currently, only ordering by
views is supported. It is possible to filter the plots by quality
with min_quality or max_quality as query parameter.
Example:
// GET https://api.plotly.com/v2/plots/ ---> 200
// GET https://api.plotly.com/v2/plots/?order_by=-views ---> 200
// GET https://api.plotly.com/v2/plots/?min_quality=5 ---> 200
// GET https://api.plotly.com/v2/plots/?max_quality=5 ---> 200
feed
Listing all handpicked feed plots can be done via a GET request to this endpoint. By default, plots will be listed in a random order.
Example:
// GET https://api.plotly.com/v2/plots/feed ---> 200
create
You can create new plot resources here. The only required field is 'figure'. Currently, the figure is restricted to only contain references to grid data. That is, this will fail if raw data arrays are passed in. To create and manipulate underlying grids for plots, see the grids endpoint.
Example:
// This fails because a figure field is required.
// POST https://api.plotly.com/v2/plots ---> 400 Bad Request
{}
// This fails because the figure has raw data
//POST https://api.plotly.com/v2/plots ---> 400 Bad Request
{
"figure": {"data": [{"y": ['this', 'is', 'raw', 'data']}]}
}
// This succeeds because the figure has src keys, not raw data.
//POST https://api.plotly.com/v2/plots ---> 200 OK
{
"figure": {"data": [{"ysrc": "sven:88:u8nd62"}]}
}
When creating a grid, you can optionally specify a source_fid to specify where a plot has come from:
- source_fid: the fid of a plot that was copied (and presumably edited) to produce this one
detail
There is a lot of meta information stored about plot files including filename, title, share_url, and content_url to name a few.
This information can only be reached with a GET to this endpoint.
Example:
// GET https://api.plotly.com/v2/plots/iheartgraphs:90
content
The contents of a plot can be downloaded via the content resource. The plot
content contains referenced grid/column data by default. If you wish to
return the raw grid/column data, the inline_data=true query must be included
in the request url. The Content-Type header will be appropriately set for the
response body.
Alternatively, you can set ?map_data=unreadable to append a mapping of
sources to data that belongs to grids which are unreadable for the
requestor. This is useful when you have read access to another users plot,
but that plot contains grid references which you don't have access to.
Examples:
// Returns referenced grid/column data
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content ---> 200 OK
// Returns full grid/column data
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content?inline_data=true ---> 200 OK
// Returns full grid/column data when requestor doesn't have permission
// to read the referenced grid.
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content?map_data=unreadable ---> 200 OK
GET /v2/plots?cursor=cD0yMDE5LTA2LTE3KzIwJTNBMzklM0E1My4wNDMwNjUlMkIwMCUzQTAw&format=api

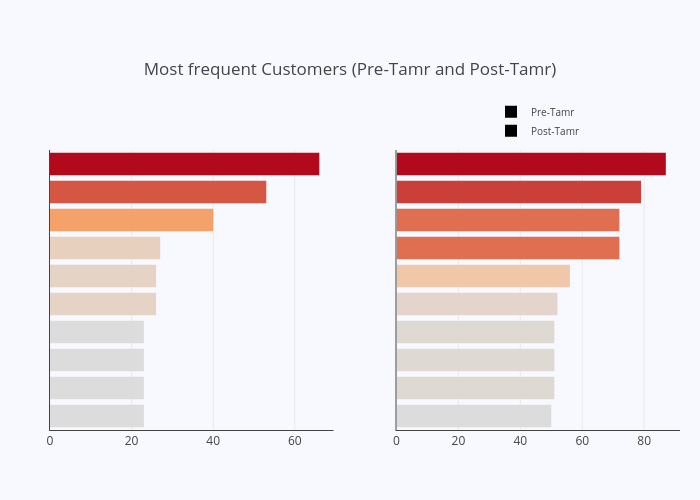

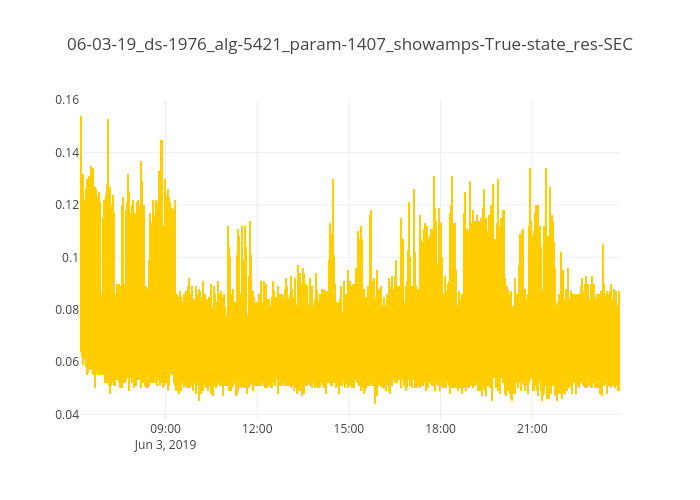

{ "next": "https://api.plot.ly/v2/plots?cursor=cD0yMDE5LTA2LTE3KzIwJTNBMzUlM0E1MC4xMTYyMjElMkIwMCUzQTAw&format=api", "previous": "https://api.plot.ly/v2/plots?cursor=cj0xJnA9MjAxOS0wNi0xNysyMCUzQTM5JTNBMTEuNzE2MDIxJTJCMDAlM0EwMA%3D%3D&format=api", "results": [ { "creation_time": "2019-06-17T20:39:11.716021Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~amper/67144.embed", "fid": "amper:67144", "filename": "05-29-19_ds-1976_alg-5421_param-1407_showamps-True-state_res-SEC", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/amper:67144/image?image_name=list-thumb", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/amper/67144/2_77QK7ULJ92C0LTDJ7H9FOI66BO28W9.png", "block-thumb": "https://api.plotly.com/v2/files/amper:67144/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/amper:67144/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/amper:67144", "plots": "https://api.plotly.com/v2/plots/amper:67144", "parent": "https://api.plotly.com/v2/folders/home?user=amper" }, "owner": "amper", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "05-29-19_ds-1976_alg-5421_param-1407_showamps-True-state_res-SEC", "views": 0, "web_url": "https://chart-studio.plotly.com/~amper/67144/_05-29-19-ds-1976-alg-5421-param-1407-showamps-true-state-res-sec/", "world_readable": true, "date_modified": "2019-06-17T20:39:12.969Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~amper/67144/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "dac974ef-ac60-423f-9c53-6a02ec58b7e7", "mode": "lines", "name": "Idle", "type": "scattergl", "xsrc": "amper:67145:555e60", "ysrc": "amper:67145:93ca40", "marker": { "line": { "color": "rgb(255, 205, 0)", "width": 1 }, "size": 1, "color": "rgb(255, 205, 0)" }, "connectgaps": false }, { "uid": "e46605a8-9eb9-44f0-b3d2-6e61ebd764ab", "mode": "lines", "name": "Production", "type": "scattergl", "xsrc": "amper:67145:555e60", "ysrc": "amper:67145:271069", "marker": { "line": { "color": "rgb(0, 166, 73)", "width": 1 }, "size": 1, "color": "rgb(0, 166, 73)" }, "connectgaps": false } ], "layout": { "title": "05-29-19_ds-1976_alg-5421_param-1407_showamps-True-state_res-SEC" } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~amper", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/99.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-1.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2017-03-17 16:47:16", "mapbox_access_tokens": null, "has_password": null, "username": "amper", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-06-17T20:39:01.125313Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~siboraseranaj/116.embed", "fid": "siboraseranaj:116", "filename": "plot from API (21)", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/siboraseranaj:116/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/siboraseranaj:116/image?image_name=default", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/siboraseranaj/116/8_ZTM2B4BK6FODTA5WQ9GIXE898JJUAH.png", "list-thumb": "https://api.plotly.com/v2/files/siboraseranaj:116/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/siboraseranaj:116", "plots": "https://api.plotly.com/v2/plots/siboraseranaj:116", "parent": "https://api.plotly.com/v2/folders/home?user=siboraseranaj" }, "owner": "siboraseranaj", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "Most frequent Customers (Pre-Tamr and Post-Tamr)", "views": 1, "web_url": "https://chart-studio.plotly.com/~siboraseranaj/116/most-frequent-customers-pre-tamr-and-post-tamr/", "world_readable": true, "date_modified": "2019-06-17T20:39:01.601Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~siboraseranaj/116/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "11b66d90-fd46-4309-b846-f86c19afdac0", "name": "Pre-Tamr", "type": "bar", "xsrc": "siboraseranaj:117:37a55d", "ysrc": "siboraseranaj:117:37ce68", "xaxis": "x", "yaxis": "y", "marker": { "colorsrc": "siboraseranaj:117:3fbca9" }, "orientation": "h" }, { "uid": "1407c867-b676-48ef-9f95-253b8aafc7cf", "name": "Post-Tamr", "type": "bar", "xsrc": "siboraseranaj:117:8f3ff4", "ysrc": "siboraseranaj:117:0af26e", "xaxis": "x2", "yaxis": "y2", "marker": { "colorsrc": "siboraseranaj:117:b4eac7" }, "orientation": "h" } ], "layout": { "title": { "text": "Most frequent Customers (Pre-Tamr and Post-Tamr)" }, "xaxis": { "anchor": "y", "domain": [ 0.0, 0.45 ], "showgrid": true, "showline": true, "zeroline": false, "showticklabels": true }, "yaxis": { "anchor": "x", "domain": [ 0.0, 1.0 ], "showgrid": false, "showline": true, "showticklabels": false }, "legend": { "x": 0.7, "y": 1.188, "font": { "size": 10 } }, "margin": { "b": 70, "l": 50, "r": 20, "t": 150 }, "xaxis2": { "anchor": "y2", "domain": [ 0.55, 1.0 ], "showgrid": true, "showline": true, "zeroline": false, "showticklabels": true }, "yaxis2": { "anchor": "x2", "domain": [ 0.0, 1.0 ], "showgrid": false, "showline": true, "showticklabels": false }, "annotations": [ { "x": -0.2, "y": -0.109, "xref": "paper", "yref": "paper", "align": "right", "borderpad": false, "showarrow": false } ], "plot_bgcolor": "rgb(248, 248, 255)", "paper_bgcolor": "rgb(248, 248, 255)" } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~siboraseranaj", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/10.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-3.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-06-16 00:20:40", "mapbox_access_tokens": null, "has_password": null, "username": "siboraseranaj", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-06-17T20:38:37.444441Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~siboraseranaj/114.embed", "fid": "siboraseranaj:114", "filename": "plot from API (20)", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/siboraseranaj:114/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/siboraseranaj:114/image?image_name=default", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/siboraseranaj/114/8_ANDB11HKOGANYA847W0ZMFHB6NIJ5H.png", "list-thumb": "https://api.plotly.com/v2/files/siboraseranaj:114/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/siboraseranaj:114", "plots": "https://api.plotly.com/v2/plots/siboraseranaj:114", "parent": "https://api.plotly.com/v2/folders/home?user=siboraseranaj" }, "owner": "siboraseranaj", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "Most frequent Customers (Pre-Tamr and Post-Tamr)", "views": 1, "web_url": "https://chart-studio.plotly.com/~siboraseranaj/114/most-frequent-customers-pre-tamr-and-post-tamr/", "world_readable": true, "date_modified": "2019-06-17T20:38:37.905Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~siboraseranaj/114/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "0eb4d067-63a1-4283-8917-f6acd39b3ee0", "name": "Pre-Tamr", "type": "bar", "xsrc": "siboraseranaj:115:00b7af", "ysrc": "siboraseranaj:115:f3222c", "xaxis": "x", "yaxis": "y", "marker": { "colorsrc": "siboraseranaj:115:f2565b" }, "orientation": "h" }, { "uid": "aa59f951-cd6f-49f6-a200-3be211808640", "name": "Post-Tamr", "type": "bar", "xsrc": "siboraseranaj:115:61a34f", "ysrc": "siboraseranaj:115:8dd96f", "xaxis": "x2", "yaxis": "y2", "marker": { "colorsrc": "siboraseranaj:115:e5ff59" }, "orientation": "h" } ], "layout": { "title": { "text": "Most frequent Customers (Pre-Tamr and Post-Tamr)" }, "xaxis": { "anchor": "y", "domain": [ 0.0, 0.45 ], "showgrid": true, "showline": true, "zeroline": false, "showticklabels": true }, "yaxis": { "anchor": "x", "domain": [ 0.0, 1.0 ], "showgrid": false, "showline": true, "showticklabels": false }, "legend": { "x": 0.7, "y": 1.188, "font": { "size": 10 } }, "margin": { "b": 70, "l": 50, "r": 20, "t": 150 }, "xaxis2": { "anchor": "y2", "domain": [ 0.55, 1.0 ], "showgrid": true, "showline": true, "zeroline": false, "showticklabels": true }, "yaxis2": { "anchor": "x2", "domain": [ 0.0, 1.0 ], "showgrid": false, "showline": true, "showticklabels": false }, "annotations": [ { "x": -0.2, "y": -0.109, "xref": "paper", "yref": "paper", "align": "right", "borderpad": true, "showarrow": false } ], "plot_bgcolor": "rgb(248, 248, 255)", "paper_bgcolor": "rgb(248, 248, 255)" } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~siboraseranaj", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/10.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-3.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-06-16 00:20:40", "mapbox_access_tokens": null, "has_password": null, "username": "siboraseranaj", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-06-17T20:38:18.809916Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~krox413/8.embed", "fid": "krox413:8", "filename": "plot from API (3)", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/krox413:8/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/krox413:8/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/krox413:8/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/krox413:8/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/krox413:8", "plots": "https://api.plotly.com/v2/plots/krox413:8", "parent": "https://api.plotly.com/v2/folders/home?user=krox413" }, "owner": "krox413", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "Gantt Chart", "views": 0, "web_url": "https://chart-studio.plotly.com/~krox413/8/gantt-chart/", "world_readable": true, "date_modified": "2019-06-17T20:38:19.295Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~krox413/8/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "151c4ed0-c644-4e27-be1e-d6f0e71be567", "name": "", "type": "scatter", "xsrc": "krox413:9:95177c", "ysrc": "krox413:9:1b84a4", "marker": { "color": "white" } }, { "uid": "7ff0c255-6509-440c-9138-dee6b774533f", "name": "", "type": "scatter", "xsrc": "krox413:9:9dd552", "ysrc": "krox413:9:bfdc9a", "marker": { "color": "white" } }, { "uid": "13c90db6-cf23-4bc3-bafe-d9cb3fa762b1", "name": "", "type": "scatter", "xsrc": "krox413:9:5538d7", "ysrc": "krox413:9:15356a", "marker": { "color": "white" } }, { "uid": "175f56dd-16e6-4451-8873-14f7d9d551b0", "name": "", "type": "scatter", "xsrc": "krox413:9:ed1b83", "ysrc": "krox413:9:8c55dc", "marker": { "color": "white" } }, { "uid": "5c466884-dcc0-4e45-b14e-bc4fc0dba988", "name": "", "type": "scatter", "xsrc": "krox413:9:433625", "ysrc": "krox413:9:369d5c", "marker": { "color": "white" } }, { "uid": "81f8622f-863a-4478-9b68-7e03d0ff94b4", "name": "", "type": "scatter", "xsrc": "krox413:9:3679da", "ysrc": "krox413:9:074381", "marker": { "color": "white" } }, { "uid": "6910f3fa-1347-49d7-85d6-41c21453b431", "name": "", "type": "scatter", "xsrc": "krox413:9:76d880", "ysrc": "krox413:9:bdf3be", "marker": { "color": "white" } }, { "uid": "3fa48059-270a-46cf-a140-68c15441abeb", "name": "", "type": "scatter", "xsrc": "krox413:9:cf6a44", "ysrc": "krox413:9:8dd2f7", "marker": { "color": "white" } }, { "uid": "ce12b2db-a9e3-46e8-8cc2-1688b1df6bd5", "name": "", "type": "scatter", "xsrc": "krox413:9:cf6a44", "ysrc": "krox413:9:281f8b", "marker": { "color": "white" } }, { "uid": "97918d9c-c359-4e1d-9a2f-12cd1488c252", "name": "", "type": "scatter", "xsrc": "krox413:9:fabf31", "ysrc": "krox413:9:cfb754", "marker": { "color": "white" } }, { "uid": "899a06c0-3e8d-46ec-82c1-806f0622a01e", "name": "", "type": "scatter", "xsrc": "krox413:9:2fa9c2", "ysrc": "krox413:9:10d8f0", "marker": { "color": "white" } }, { "uid": "1d742d61-eb6c-4bee-b67f-b1641ec6e2b0", "name": "", "type": "scatter", "xsrc": "krox413:9:1982e2", "ysrc": "krox413:9:e96668", "marker": { "color": "white" } }, { "uid": "a37c7e5f-e254-4974-863c-77623802cbc3", "name": "", "type": "scatter", "xsrc": "krox413:9:f57110", "ysrc": "krox413:9:cc6552", "marker": { "color": "white" } }, { "uid": "9b8d0f50-081f-4d6e-b55e-e463ce0d261c", "name": "", "type": "scatter", "xsrc": "krox413:9:24175b", "ysrc": "krox413:9:f97432", "marker": { "color": "white" } }, { "uid": "ca5b0899-2f14-4581-bf98-75dac6a8ba1f", "name": "", "type": "scatter", "xsrc": "krox413:9:7a4f56", "ysrc": "krox413:9:4b932e", "marker": { "color": "white" } }, { "uid": "e43c4352-50cc-4282-9bbc-fb6cf58d66bf", "name": "", "type": "scatter", "xsrc": "krox413:9:7f71c1", "ysrc": "krox413:9:24ccbf", "marker": { "color": "white" } }, { "uid": "7aca334b-8e06-4c5e-bace-c3f0fa1b7da0", "name": "", "type": "scatter", "xsrc": "krox413:9:208843", "ysrc": "krox413:9:ed4a99", "marker": { "color": "white" } }, { "uid": "55783a07-5d97-4657-9567-77b11ad1236c", "name": "", "type": "scatter", "xsrc": "krox413:9:7f3387", "ysrc": "krox413:9:56e183", "marker": { "color": "white" } }, { "uid": "4bf42e9b-15da-4d73-9265-c3f3eca7cbfa", "name": "", "type": "scatter", "xsrc": "krox413:9:d60f8d", "ysrc": "krox413:9:13eef9", "marker": { "color": "white" } }, { "uid": "2a783a21-e3b2-4503-a9ec-da6eeaa06021", "name": "", "type": "scatter", "xsrc": "krox413:9:0657f7", "ysrc": "krox413:9:d12275", "marker": { "color": "white" } }, { "uid": "e3f82137-94b0-4272-8c42-d4b8e7e3688b", "name": "", "type": "scatter", "xsrc": "krox413:9:67b523", "ysrc": "krox413:9:de7915", "marker": { "color": "white" } }, { "uid": "43274606-fb41-4933-814e-60b74016890a", "name": "", "type": "scatter", "xsrc": "krox413:9:ceef7f", "ysrc": "krox413:9:7d6b2a", "marker": { "color": "white" } }, { "uid": "b931eca7-f50a-4976-aba5-1f9f5af87e59", "name": "", "type": "scatter", "xsrc": "krox413:9:ceef7f", "ysrc": "krox413:9:8c0577", "marker": { "color": "white" } }, { "uid": "aa649005-0d56-454d-a738-589fd5cb7b91", "name": "", "type": "scatter", "xsrc": "krox413:9:d8ca68", "ysrc": "krox413:9:99ace3", "marker": { "color": "white" } }, { "uid": "cc642fb3-daa8-4f6e-ae69-364b0a3f8ca3", "name": "", "type": "scatter", "xsrc": "krox413:9:0153ce", "ysrc": "krox413:9:bb7bca", "marker": { "color": "white" } }, { "uid": "af45c1e5-40d8-491a-a5c0-a2291b665a0f", "name": "", "type": "scatter", "xsrc": "krox413:9:c4bac7", "ysrc": "krox413:9:6b5df8", "marker": { "color": "white" } }, { "uid": "0c693601-e459-4a80-a04a-ff0b0a744cdc", "name": "", "type": "scatter", "xsrc": "krox413:9:05c2db", "ysrc": "krox413:9:565320", "marker": { "color": "white" } }, { "uid": "0a896223-bc9f-4def-8418-362df1361f9f", "name": "", "type": "scatter", "xsrc": "krox413:9:1fa3d0", "ysrc": "krox413:9:bae6b9", "marker": { "color": "white" } }, { "uid": "adf28266-df74-42ec-81f8-dbd6ccfaaec6", "name": "", "type": "scatter", "xsrc": "krox413:9:1ac7f9", "ysrc": "krox413:9:d3f49a", "marker": { "color": "white" } }, { "uid": "7da289ee-f951-407f-b74d-c0c040160d15", "name": "", "type": "scatter", "xsrc": "krox413:9:8fc7ff", "ysrc": "krox413:9:fc4985", "marker": { "color": "white" } }, { "uid": "b8790cf2-23de-4d21-8241-82fb0acf25bd", "name": "", "type": "scatter", "xsrc": "krox413:9:8fc7ff", "ysrc": "krox413:9:da0744", "marker": { "color": "white" } }, { "uid": "abaec36a-e77d-4624-a521-039eebb28b8d", "name": "", "type": "scatter", "xsrc": "krox413:9:3ed19a", "ysrc": "krox413:9:e7e345", "marker": { "color": "white" } }, { "uid": "14a65650-8bad-455d-be28-0a11d6e90a1f", "name": "", "type": "scatter", "xsrc": "krox413:9:aed6e6", "ysrc": "krox413:9:a93ad7", "marker": { "color": "white" } }, { "uid": "a188778d-551b-466b-9d00-ea088e55d9ae", "name": "", "type": "scatter", "xsrc": "krox413:9:037353", "ysrc": "krox413:9:b364f7", "marker": { "color": "white" } }, { "uid": "eb154392-3e71-4c8b-bc0f-2d28122bb107", "name": "", "type": "scatter", "xsrc": "krox413:9:e38b94", "ysrc": "krox413:9:3d8342", "marker": { "color": "white" } }, { "uid": "3e40209d-9d2d-4d47-8621-03059ef6b422", "name": "", "type": "scatter", "xsrc": "krox413:9:490718", "ysrc": "krox413:9:bdd249", "marker": { "color": "white" } }, { "uid": "9d6fda63-dcbb-4599-9c98-d6bab23f7057", "name": "", "type": "scatter", "xsrc": "krox413:9:d185c6", "ysrc": "krox413:9:d479c7", "marker": { "color": "white" } }, { "uid": "e651ecae-c3c0-47ee-839a-c3fcfc4f4e6a", "name": "", "type": "scatter", "xsrc": "krox413:9:d0ae20", "ysrc": "krox413:9:0ca99b", "marker": { "color": "white" } }, { "uid": "54a9c4f7-38ec-41aa-bebb-a2f55f7b3ada", "name": "", "type": "scatter", "xsrc": "krox413:9:c46111", "ysrc": "krox413:9:5654c6", "marker": { "color": "white" } }, { "uid": "69f36d60-e0d7-4d28-965d-ffac6f096586", "name": "", "type": "scatter", "xsrc": "krox413:9:c46111", "ysrc": "krox413:9:b2dc7e", "marker": { "color": "white" } }, { "uid": "41ed9f8f-1de8-43fe-b261-d8e3c7a64551", "name": "", "type": "scatter", "xsrc": "krox413:9:4ceb92", "ysrc": "krox413:9:e7092f", "marker": { "color": "white" } }, { "uid": "e1730f32-e1f9-443b-9d70-95e0ef3b32c8", "name": "", "type": "scatter", "xsrc": "krox413:9:722735", "ysrc": "krox413:9:667388", "marker": { "color": "white" } }, { "uid": "2794a682-67b6-45f7-acf7-8ad17b12400b", "name": "", "type": "scatter", "xsrc": "krox413:9:742268", "ysrc": "krox413:9:3033b3", "marker": { "color": "white" } }, { "uid": "ef0aa912-bbaf-4e2d-a969-db4d4746c626", "name": "", "type": "scatter", "xsrc": "krox413:9:c51abb", "ysrc": "krox413:9:80301d", "marker": { "color": "white" } }, { "uid": "edbd1177-c34c-488f-9476-cb086f7251bc", "name": "", "type": "scatter", "xsrc": "krox413:9:c51abb", "ysrc": "krox413:9:b0fdd7", "marker": { "color": "white" } }, { "uid": "0bd7f87b-d98e-429c-bd88-b21fa91bdf65", "name": "", "type": "scatter", "xsrc": "krox413:9:f46075", "ysrc": "krox413:9:ae83c7", "marker": { "color": "white" } }, { "uid": "d531134d-8b5a-4c30-b0b4-02b8ffee2117", "name": "", "type": "scatter", "xsrc": "krox413:9:f46075", "ysrc": "krox413:9:b51232", "marker": { "color": "white" } }, { "uid": "b8e788b3-919a-43b7-8c05-e9bce517d284", "name": "", "type": "scatter", "xsrc": "krox413:9:df3e67", "ysrc": "krox413:9:549203", "marker": { "color": "white" } }, { "uid": "061b6078-cc3a-44c4-ab6d-fc2f72d7655f", "name": "", "type": "scatter", "xsrc": "krox413:9:132686", "ysrc": "krox413:9:133c4e", "marker": { "color": "white" } }, { "uid": "e6332831-f2b9-4507-8b1a-571677f90ca0", "name": "", "type": "scatter", "xsrc": "krox413:9:132686", "ysrc": "krox413:9:9bad2b", "marker": { "color": "white" } }, { "uid": "6ecf1d9b-7348-4611-8473-b8b8505178fb", "name": "", "type": "scatter", "xsrc": "krox413:9:152295", "ysrc": "krox413:9:78f5b6", "marker": { "color": "white" } }, { "uid": "14feb6a9-783d-496b-a3a6-ded990648cd7", "name": "", "type": "scatter", "xsrc": "krox413:9:4a0b6a", "ysrc": "krox413:9:d2c611", "marker": { "color": "white" } }, { "uid": "c85d1427-516e-45db-8ac4-432348e7c8d3", "name": "", "type": "scatter", "xsrc": "krox413:9:52023b", "ysrc": "krox413:9:f01794", "marker": { "color": "white" } }, { "uid": "45026393-104f-47dc-85ec-02f7f3432265", "name": "", "type": "scatter", "xsrc": "krox413:9:a4f58d", "ysrc": "krox413:9:0a51ae", "marker": { "color": "white" } }, { "uid": "7610f473-bfc2-4f90-b0f5-68fe62093c63", "name": "", "type": "scatter", "xsrc": "krox413:9:36110b", "ysrc": "krox413:9:cce392", "marker": { "color": "white" } }, { "uid": "40c70245-5cac-438f-a42f-b7330a31c07b", "name": "", "type": "scatter", "xsrc": "krox413:9:36110b", "ysrc": "krox413:9:55b72a", "marker": { "color": "white" } }, { "uid": "2e8a1de3-dd21-4bd9-a517-8049b6434ebf", "name": "", "type": "scatter", "xsrc": "krox413:9:449b81", "ysrc": "krox413:9:cf000c", "marker": { "color": "white" } }, { "uid": "ba0f925d-cead-4c37-8fdb-ee13a7a33c3a", "name": "", "type": "scatter", "xsrc": "krox413:9:8d1d05", "ysrc": "krox413:9:da2fae", "marker": { "color": "white" } }, { "uid": "a9f6dc6c-8e5f-4af5-adaa-a20ebb60a554", "name": "", "type": "scatter", "xsrc": "krox413:9:8d1d05", "ysrc": "krox413:9:6c4bef", "marker": { "color": "white" } }, { "uid": "c7343483-7d10-4bae-8aa6-642006834610", "name": "", "type": "scatter", "xsrc": "krox413:9:e8c94b", "ysrc": "krox413:9:931833", "marker": { "color": "white" } }, { "uid": "af89b117-0d4b-4a54-a8b5-5dd5dae8d36c", "name": "", "type": "scatter", "xsrc": "krox413:9:75c899", "ysrc": "krox413:9:86f782", "marker": { "color": "white" } }, { "uid": "7a99138e-54ce-499e-90ae-914f1075d507", "name": "", "type": "scatter", "xsrc": "krox413:9:75c899", "ysrc": "krox413:9:5f6506", "marker": { "color": "white" } }, { "uid": "99a9d5f0-9141-4fe8-ad87-804dba229897", "name": "", "type": "scatter", "xsrc": "krox413:9:485095", "ysrc": "krox413:9:2e8972", "marker": { "color": "white" } }, { "uid": "89625386-9eb5-4567-bc3c-870389c3a66c", "name": "", "type": "scatter", "xsrc": "krox413:9:642184", "ysrc": "krox413:9:a69624", "marker": { "color": "white" } }, { "uid": "e339ee49-5fd8-40f8-b663-2d1bcac51e25", "name": "", "type": "scatter", "xsrc": "krox413:9:55fcb6", "ysrc": "krox413:9:20acff", "marker": { "color": "white" } }, { "uid": "36831362-f83f-4ce8-9e99-268da05b91ee", "name": "", "type": "scatter", "xsrc": "krox413:9:12f38b", "ysrc": "krox413:9:f30de4", "marker": { "color": "white" } }, { "uid": "63215845-9878-4087-97f5-7c7c4e136603", "name": "", "type": "scatter", "xsrc": "krox413:9:8bae0c", "ysrc": "krox413:9:537d91", "marker": { "color": "white" } }, { "uid": "1df1d7b9-374d-419f-a000-50127581d390", "name": "", "type": "scatter", "xsrc": "krox413:9:c408fc", "ysrc": "krox413:9:770148", "marker": { "color": "white" } }, { "uid": "933b8a62-3f8e-404a-9e10-f51e068055ff", "name": "", "type": "scatter", "xsrc": "krox413:9:c408fc", "ysrc": "krox413:9:e70167", "marker": { "color": "white" } }, { "uid": "1a0a05f3-e106-4dba-b77e-8b3529a46ab8", "name": "", "type": "scatter", "xsrc": "krox413:9:0e481a", "ysrc": "krox413:9:433414", "marker": { "color": "white" } } ], "layout": { "title": { "text": "Gantt Chart" }, "width": 900, "xaxis": { "type": "date", "showgrid": false, "zeroline": false, "rangeselector": { "buttons": [ { "step": "day", "count": 7, "label": "1w", "stepmode": "backward" }, { "step": "month", "count": 1, "label": "1m", "stepmode": "backward" }, { "step": "month", "count": 6, "label": "6m", "stepmode": "backward" }, { "step": "year", "count": 1, "label": "YTD", "stepmode": "todate" }, { "step": "year", "count": 1, "label": "1y", "stepmode": "backward" }, { "step": "all" } ] } }, "yaxis": { "range": [ -1, 71 ], "showgrid": false, "ticktext": [ "Tesouro Prefixado", "Tesouro Prefixado", "Tesouro IPCA+", "Tesouro Prefixado", "Tesouro Selic", "Tesouro Prefixado", "Tesouro IGPM+ com Juros Semestrais", "Tesouro IGPM+ com Juros Semestrais", "Tesouro Prefixado", "Tesouro Prefixado", "Tesouro Prefixado", "Tesouro IPCA+ com Juros Semestrais", "Tesouro Prefixado", "Tesouro Prefixado", "Tesouro Selic", "Tesouro IPCA+ com Juros Semestrais", "Tesouro Prefixado", "Tesouro Selic", "Tesouro IGPM+ com Juros Semestrais", "Tesouro Prefixado", "Tesouro Prefixado", "Tesouro Prefixado", "Tesouro Prefixado com Juros Semestrais", "Tesouro Prefixado", "Tesouro Prefixado", "Tesouro IPCA+ com Juros Semestrais", "Tesouro Prefixado", "Tesouro Selic", "Tesouro Prefixado", "Tesouro Prefixado", "Tesouro IGPM+ com Juros Semestrais", "Tesouro IPCA+ com Juros Semestrais", "Tesouro Prefixado", "Tesouro Prefixado", "Tesouro Prefixado", "Tesouro Selic", "Tesouro Selic", "Tesouro Prefixado", "Tesouro Prefixado", "Tesouro Prefixado com Juros Semestrais", "Tesouro IGPM+ com Juros Semestrais", "Tesouro IPCA+ com Juros Semestrais", "Tesouro Selic", "Tesouro Prefixado", "Tesouro Prefixado com Juros Semestrais", "Tesouro Prefixado com Juros Semestrais", "Tesouro Prefixado", "Tesouro IPCA+ com Juros Semestrais", "Tesouro Prefixado com Juros Semestrais", "Tesouro Prefixado", "Tesouro Selic", "Tesouro Prefixado", "Tesouro IPCA+ com Juros Semestrais", "Tesouro Selic", "Tesouro Prefixado", "Tesouro Prefixado com Juros Semestrais", "Tesouro IPCA+ com Juros Semestrais", "Tesouro Prefixado", "Tesouro Prefixado com Juros Semestrais", "Tesouro Selic", "Tesouro IPCA+", "Tesouro IPCA+ com Juros Semestrais", "Tesouro Selic", "Tesouro Prefixado", "Tesouro Prefixado", "Tesouro IPCA+ com Juros Semestrais", "Tesouro Selic", "Tesouro Prefixado com Juros Semestrais", "Tesouro Prefixado", "Tesouro IGPM+ com Juros Semestrais" ], "tickvals": [ 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69 ], "zeroline": false, "autorange": false }, "height": 600, "shapes": [ { "x0": "2018-02-01", "x1": "2018-01-01", "y0": -0.2, "y1": 0.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(31, 119, 180)" }, { "x0": "2019-02-01", "x1": "2019-01-01", "y0": 0.8, "y1": 1.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(255, 127, 14)" }, { "x0": "2019-05-15", "x1": "2019-05-15", "y0": 1.8, "y1": 2.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(44, 160, 44)" }, { "x0": "2005-04-01", "x1": "2005-04-01", "y0": 2.8, "y1": 3.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(214, 39, 40)" }, { "x0": "2005-02-16", "x1": "2005-02-16", "y0": 3.8, "y1": 4.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(148, 103, 189)" }, { "x0": "2005-03-10", "x1": "2005-01-10", "y0": 4.8, "y1": 5.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(140, 86, 75)" }, { "x0": "2005-01-12", "x1": "2005-01-12", "y0": 5.8, "y1": 6.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(227, 119, 194)" }, { "x0": "2005-01-07", "x1": "2005-01-07", "y0": 6.8, "y1": 7.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(127, 127, 127)" }, { "x0": "2005-01-07", "x1": "2005-01-07", "y0": 7.8, "y1": 8.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(188, 189, 34)" }, { "x0": "2005-01-04", "x1": "2005-01-04", "y0": 8.8, "y1": 9.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(23, 190, 207)" }, { "x0": "2006-03-07", "x1": "2006-01-07", "y0": 9.8, "y1": 10.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(31, 119, 180)" }, { "x0": "2006-08-15", "x1": "2006-08-15", "y0": 10.8, "y1": 11.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(255, 127, 14)" }, { "x0": "2006-03-04", "x1": "2006-01-04", "y0": 11.8, "y1": 12.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(44, 160, 44)" }, { "x0": "2006-02-01", "x1": "2006-01-01", "y0": 12.8, "y1": 13.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(214, 39, 40)" }, { "x0": "2006-01-18", "x1": "2006-01-18", "y0": 13.8, "y1": 14.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(148, 103, 189)" }, { "x0": "2007-05-15", "x1": "2007-05-15", "y0": 14.8, "y1": 15.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(140, 86, 75)" }, { "x0": "2007-02-04", "x1": "2007-01-04", "y0": 15.8, "y1": 16.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(227, 119, 194)" }, { "x0": "2007-01-17", "x1": "2007-01-17", "y0": 16.8, "y1": 17.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(127, 127, 127)" }, { "x0": "2006-01-12", "x1": "2006-01-12", "y0": 17.8, "y1": 18.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(188, 189, 34)" }, { "x0": "2007-02-01", "x1": "2007-01-01", "y0": 18.8, "y1": 19.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(23, 190, 207)" }, { "x0": "2006-02-10", "x1": "2006-01-10", "y0": 19.8, "y1": 20.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(31, 119, 180)" }, { "x0": "2008-02-01", "x1": "2008-01-01", "y0": 20.8, "y1": 21.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(255, 127, 14)" }, { "x0": "2008-02-01", "x1": "2008-01-01", "y0": 21.8, "y1": 22.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(44, 160, 44)" }, { "x0": "2007-01-10", "x1": "2007-01-10", "y0": 22.8, "y1": 23.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(214, 39, 40)" }, { "x0": "2007-02-07", "x1": "2007-01-07", "y0": 23.8, "y1": 24.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(148, 103, 189)" }, { "x0": "2008-08-15", "x1": "2008-08-15", "y0": 24.8, "y1": 25.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(140, 86, 75)" }, { "x0": "2008-01-10", "x1": "2008-01-10", "y0": 25.8, "y1": 26.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(227, 119, 194)" }, { "x0": "2008-06-18", "x1": "2008-06-18", "y0": 26.8, "y1": 27.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(127, 127, 127)" }, { "x0": "2008-01-07", "x1": "2008-01-07", "y0": 27.8, "y1": 28.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(188, 189, 34)" }, { "x0": "2008-01-04", "x1": "2008-01-04", "y0": 28.8, "y1": 29.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(23, 190, 207)" }, { "x0": "2008-01-04", "x1": "2008-01-04", "y0": 29.8, "y1": 30.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(31, 119, 180)" }, { "x0": "2009-05-15", "x1": "2009-05-15", "y0": 30.8, "y1": 31.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(255, 127, 14)" }, { "x0": "2009-01-04", "x1": "2009-01-04", "y0": 31.8, "y1": 32.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(44, 160, 44)" }, { "x0": "2009-01-07", "x1": "2009-01-07", "y0": 32.8, "y1": 33.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(214, 39, 40)" }, { "x0": "2009-02-01", "x1": "2009-01-01", "y0": 33.8, "y1": 34.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(148, 103, 189)" }, { "x0": "2009-03-18", "x1": "2009-03-18", "y0": 34.8, "y1": 35.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(140, 86, 75)" }, { "x0": "2010-03-17", "x1": "2010-03-17", "y0": 35.8, "y1": 36.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(227, 119, 194)" }, { "x0": "2009-01-10", "x1": "2009-01-10", "y0": 36.8, "y1": 37.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(127, 127, 127)" }, { "x0": "2010-04-01", "x1": "2010-01-01", "y0": 37.8, "y1": 38.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(188, 189, 34)" }, { "x0": "2010-04-01", "x1": "2010-01-01", "y0": 38.8, "y1": 39.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(23, 190, 207)" }, { "x0": "2011-01-03", "x1": "2011-01-03", "y0": 39.8, "y1": 40.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(31, 119, 180)" }, { "x0": "2011-05-16", "x1": "2011-05-15", "y0": 40.8, "y1": 41.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(255, 127, 14)" }, { "x0": "2011-03-16", "x1": "2011-03-16", "y0": 41.8, "y1": 42.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(44, 160, 44)" }, { "x0": "2011-03-01", "x1": "2011-01-01", "y0": 42.8, "y1": 43.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(214, 39, 40)" }, { "x0": "2011-03-01", "x1": "2011-01-01", "y0": 43.8, "y1": 44.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(148, 103, 189)" }, { "x0": "2010-01-07", "x1": "2010-01-07", "y0": 44.8, "y1": 45.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(140, 86, 75)" }, { "x0": "2010-01-07", "x1": "2010-01-07", "y0": 45.8, "y1": 46.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(227, 119, 194)" }, { "x0": "2010-08-16", "x1": "2010-08-15", "y0": 46.8, "y1": 47.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(127, 127, 127)" }, { "x0": "2012-02-01", "x1": "2012-01-01", "y0": 47.8, "y1": 48.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(188, 189, 34)" }, { "x0": "2012-02-01", "x1": "2012-01-01", "y0": 48.8, "y1": 49.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(23, 190, 207)" }, { "x0": "2012-07-03", "x1": "2012-07-03", "y0": 49.8, "y1": 50.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(31, 119, 180)" }, { "x0": "2011-01-07", "x1": "2011-01-07", "y0": 50.8, "y1": 51.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(255, 127, 14)" }, { "x0": "2013-05-15", "x1": "2013-05-15", "y0": 51.8, "y1": 52.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(44, 160, 44)" }, { "x0": "2013-07-03", "x1": "2013-07-03", "y0": 52.8, "y1": 53.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(214, 39, 40)" }, { "x0": "2013-02-01", "x1": "2013-01-01", "y0": 53.8, "y1": 54.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(148, 103, 189)" }, { "x0": "2013-02-01", "x1": "2013-01-01", "y0": 54.8, "y1": 55.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(140, 86, 75)" }, { "x0": "2012-08-15", "x1": "2012-08-15", "y0": 55.8, "y1": 56.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(227, 119, 194)" }, { "x0": "2014-02-01", "x1": "2014-01-01", "y0": 56.8, "y1": 57.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(127, 127, 127)" }, { "x0": "2014-02-01", "x1": "2014-01-01", "y0": 57.8, "y1": 58.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(188, 189, 34)" }, { "x0": "2014-07-03", "x1": "2014-07-03", "y0": 58.8, "y1": 59.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(23, 190, 207)" }, { "x0": "2015-05-15", "x1": "2015-05-15", "y0": 59.8, "y1": 60.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(31, 119, 180)" }, { "x0": "2015-05-15", "x1": "2015-05-15", "y0": 60.8, "y1": 61.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(255, 127, 14)" }, { "x0": "2015-09-03", "x1": "2015-07-03", "y0": 61.8, "y1": 62.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(44, 160, 44)" }, { "x0": "2015-02-01", "x1": "2015-01-01", "y0": 62.8, "y1": 63.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(214, 39, 40)" }, { "x0": "2016-04-01", "x1": "2016-01-01", "y0": 63.8, "y1": 64.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(148, 103, 189)" }, { "x0": "2017-05-15", "x1": "2017-05-15", "y0": 64.8, "y1": 65.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(140, 86, 75)" }, { "x0": "2017-07-03", "x1": "2017-07-03", "y0": 65.8, "y1": 66.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(227, 119, 194)" }, { "x0": "2017-02-01", "x1": "2017-01-01", "y0": 66.8, "y1": 67.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(127, 127, 127)" }, { "x0": "2017-02-01", "x1": "2017-01-01", "y0": 67.8, "y1": 68.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(188, 189, 34)" }, { "x0": "2017-03-07", "x1": "2017-01-07", "y0": 68.8, "y1": 69.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(23, 190, 207)" } ], "hovermode": "closest", "showlegend": false } }, "height": 600, "width": 900, "user": { "profile_url": "https://chart-studio.plotly.com/~krox413", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/64.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-1.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-06-15 19:41:15", "mapbox_access_tokens": null, "has_password": null, "username": "krox413", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-06-17T20:38:08.152964Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~darren2340/0.embed", "fid": "darren2340:0", "filename": "basic-line", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/darren2340:0/image?image_name=list-thumb", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/darren2340/0/2_LX2CA0YSEISB94N5ZMJUD63A22ZRRQ.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/darren2340/0/8_NAOJMQLN91G14GIVMGXWLP848NVPBY.png", "list-thumb": "https://api.plotly.com/v2/files/darren2340:0/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/darren2340:0", "plots": "https://api.plotly.com/v2/plots/darren2340:0", "parent": "https://api.plotly.com/v2/folders/home?user=darren2340" }, "owner": "darren2340", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 3, "web_url": "https://chart-studio.plotly.com/~darren2340/0/", "world_readable": true, "date_modified": "2019-06-17T20:38:08.584Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~darren2340/0/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "0444565b-df08-4916-be5d-6dce440f3d26", "type": "scatter", "xsrc": "darren2340:1:e72e4a", "ysrc": "darren2340:1:486c14" } ], "layout": {} }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~darren2340", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/28.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-8.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-06-17 20:33:15", "mapbox_access_tokens": null, "has_password": null, "username": "darren2340", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-06-17T20:37:41.193675Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~siboraseranaj/112.embed", "fid": "siboraseranaj:112", "filename": "plot from API (19)", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/siboraseranaj:112/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/siboraseranaj:112/image?image_name=default", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/siboraseranaj/112/8_PP2VFS8GB34IGA7EQXYQGAYDACR05T.png", "list-thumb": "https://api.plotly.com/v2/files/siboraseranaj:112/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/siboraseranaj:112", "plots": "https://api.plotly.com/v2/plots/siboraseranaj:112", "parent": "https://api.plotly.com/v2/folders/home?user=siboraseranaj" }, "owner": "siboraseranaj", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "Most frequent Customers (Pre-Tamr and Post-Tamr)", "views": 1, "web_url": "https://chart-studio.plotly.com/~siboraseranaj/112/most-frequent-customers-pre-tamr-and-post-tamr/", "world_readable": true, "date_modified": "2019-06-17T20:37:41.658Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~siboraseranaj/112/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "e3fd3868-06d9-4641-945d-28537d20c44f", "name": "Pre-Tamr", "type": "bar", "xsrc": "siboraseranaj:113:14eb32", "ysrc": "siboraseranaj:113:db074f", "xaxis": "x", "yaxis": "y", "marker": { "colorsrc": "siboraseranaj:113:38df1a" }, "orientation": "h" }, { "uid": "e7c7857f-6aaf-4923-8021-2ab8b1c99f29", "name": "Post-Tamr", "type": "bar", "xsrc": "siboraseranaj:113:66d8ad", "ysrc": "siboraseranaj:113:c9ae4a", "xaxis": "x2", "yaxis": "y2", "marker": { "colorsrc": "siboraseranaj:113:a77ac7" }, "orientation": "h" } ], "layout": { "title": { "text": "Most frequent Customers (Pre-Tamr and Post-Tamr)" }, "xaxis": { "anchor": "y", "domain": [ 0.0, 0.45 ], "showgrid": true, "showline": true, "zeroline": false, "showticklabels": true }, "yaxis": { "anchor": "x", "domain": [ 0.0, 1.0 ], "showgrid": false, "showline": true, "showticklabels": false }, "legend": { "x": 0.7, "y": 1.188, "font": { "size": 10 } }, "margin": { "b": 70, "l": 50, "r": 20, "t": 150 }, "xaxis2": { "anchor": "y2", "domain": [ 0.55, 1.0 ], "showgrid": true, "showline": true, "zeroline": false, "showticklabels": true }, "yaxis2": { "anchor": "x2", "domain": [ 0.0, 1.0 ], "showgrid": false, "showline": true, "showticklabels": false }, "annotations": [ { "x": -0.2, "y": -0.109, "xref": "paper", "yref": "paper", "align": "right", "showarrow": false } ], "plot_bgcolor": "rgb(248, 248, 255)", "paper_bgcolor": "rgb(248, 248, 255)" } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~siboraseranaj", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/10.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-3.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-06-16 00:20:40", "mapbox_access_tokens": null, "has_password": null, "username": "siboraseranaj", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-06-17T20:37:11.143927Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~cooperyang/1.embed", "fid": "cooperyang:1", "filename": "BS,LA,Spin", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/cooperyang:1/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/cooperyang:1/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/cooperyang:1/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/cooperyang:1/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/cooperyang:1", "plots": "https://api.plotly.com/v2/plots/cooperyang:1", "parent": "https://api.plotly.com/v2/folders/home?user=cooperyang" }, "owner": "cooperyang", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~cooperyang/1/", "world_readable": true, "date_modified": "2019-06-21T20:59:49.595Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~cooperyang/1/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "meta": { "columnNames": { "x": "566 BS", "y": "566 LA", "z": "566 spin" } }, "mode": "markers", "name": "566", "type": "scatter3d", "xsrc": "cooperyang:0:8be8e0", "ysrc": "cooperyang:0:55f4de", "zsrc": "cooperyang:0:7ebc57", "marker": { "color": "#1f77b4" }, "error_x": { "type": "percent", "color": "#1f77b4", "value": 10, "width": 0, "visible": false, "symmetric": true, "thickness": 2 }, "error_y": { "type": "percent", "color": "#1f77b4", "value": 10, "width": 0, "visible": false, "symmetric": true, "thickness": 2 }, "error_z": { "type": "percent", "color": "#1f77b4", "value": 10, "width": 0, "visible": false, "symmetric": true, "thickness": 2 }, "visible": true }, { "meta": { "columnNames": { "x": "RBT BS", "y": "RBT LA", "z": "RBT spin" } }, "mode": "markers", "name": "RBT", "type": "scatter3d", "xsrc": "cooperyang:0:7a77b7", "ysrc": "cooperyang:0:d00037", "zsrc": "cooperyang:0:2fb1a8", "visible": true }, { "meta": { "columnNames": { "x": "RBTX BS", "y": "RBTX LA", "z": "RBTX spin" } }, "mode": "markers", "name": "RBTX", "type": "scatter3d", "xsrc": "cooperyang:0:2467da", "ysrc": "cooperyang:0:f8742b", "zsrc": "cooperyang:0:8c4427", "visible": true }, { "line": { "width": 6 }, "meta": { "columnNames": { "x": "TM 7i BS", "y": "TM 7i launch", "z": "TM 7i spin" } }, "mode": "markers+lines", "name": "TM 7i", "type": "scatter3d", "xsrc": "cooperyang:0:2fbb69", "ysrc": "cooperyang:0:638b91", "zsrc": "cooperyang:0:fe3f1d", "marker": { "line": { "width": 0 }, "size": 12 }, "opacity": 1, "connectgaps": false } ], "frames": [], "layout": { "scene": { "xaxis": { "type": "linear", "title": { "text": "Ballspeed" }, "showline": true, "showspikes": true }, "yaxis": { "type": "linear", "title": { "text": "Launch" }, "showline": true, "showspikes": true }, "zaxis": { "type": "linear", "title": { "text": "Spin" }, "showline": true, "showspikes": true }, "camera": { "up": { "x": 0, "y": 0, "z": 1 }, "eye": { "x": 0.3100359551005001, "y": -0.16544589236147678, "z": 0.21838931053219307 }, "center": { "x": 0, "y": 0, "z": 0 }, "projection": { "type": "perspective" } }, "dragmode": "turntable", "hovermode": "closest", "aspectmode": "auto", "aspectratio": { "x": 1, "y": 1, "z": 1 } }, "title": { "text": "3 balls, 2500 swings" }, "xaxis": { "domain": [ 0, 1 ] }, "yaxis": { "domain": [ 0, 1 ] }, "legend": { "x": 0.9887010954616589, "y": 0.9507692307692308 }, "margin": { "b": 40, "l": 60, "r": 10, "t": 25 }, "shapes": [], "autosize": true, "dragmode": "zoom", "showlegend": true } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~cooperyang", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/35.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-5.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-06-17 20:34:16", "mapbox_access_tokens": null, "has_password": null, "username": "cooperyang", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-06-17T20:36:47.023643Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~annacallahan/61.embed", "fid": "annacallahan:61", "filename": "Plot 61", "filetype": "plot", "img_url": "https://storage.googleapis.com/plotly-prod-images/annacallahan/61/9_PTN067IK85QTW7C7CMVNTKAHKJDVOA.png", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/annacallahan/61/2_KHM1GGW8TQO26WV6I0WCZUY0FW7UHP.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/annacallahan/61/8_QC1DVXVYD0VV1BPMI9OABG9S97P69S.png", "list-thumb": "https://storage.googleapis.com/plotly-prod-images/annacallahan/61/9_PTN067IK85QTW7C7CMVNTKAHKJDVOA.png" }, "api_urls": { "files": "https://api.plotly.com/v2/files/annacallahan:61", "plots": "https://api.plotly.com/v2/plots/annacallahan:61", "parent": "https://api.plotly.com/v2/folders/home?user=annacallahan" }, "owner": "annacallahan", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~annacallahan/61/", "world_readable": true, "date_modified": "2019-06-17T23:04:59.315Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~annacallahan/61/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "line": { "color": "rgb(250, 213, 99)" }, "mode": "lines", "name": "total cases", "type": "bar", "xsrc": "annacallahan:60:09fdb0", "ysrc": "annacallahan:60:fd0a3d", "marker": { "color": "rgb(169, 172, 255)" }, "orientation": "v" }, { "line": { "color": "rgb(59, 159, 239)" }, "mode": "lines", "name": "street/sidewalk <br>cleaning requests", "type": "bar", "xsrc": "annacallahan:60:09fdb0", "ysrc": "annacallahan:60:db9812", "marker": { "color": "rgb(74, 204, 198)" }, "orientation": "v" } ], "frames": [], "layout": { "title": { "text": "Total 311 Cases within 150m of the 16th/Mission Pit Stop" }, "xaxis": { "type": "date", "range": [ "2008-06-17", "2019-06-15" ], "autorange": true }, "yaxis": { "type": "linear", "range": [ -0.7589079130032392, 345.30310041647385 ], "autorange": true }, "bargap": 0, "legend": { "x": 1.02, "y": 0.881578947368421 }, "shapes": [ { "x0": "2015-07-01 18:00", "x1": "2015-07-01 06:00", "y0": 0, "y1": 300, "line": { "dash": "dot", "color": "rgb(255, 0, 0)", "width": 2 }, "type": "line", "opacity": 1, "fillcolor": "#7f7f7f" } ], "barmode": "overlay", "autosize": true, "template": { "data": { "bar": [ { "type": "bar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatter": [ { "type": "scatter", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "histogram": [ { "type": "histogram", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "white", "showlakes": true, "subunitcolor": "#C8D4E3" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "white", "radialaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" }, "angularaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "yaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "zaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "baxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "caxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "bgcolor": "white" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#19d3f3", "#e763fa", "#fecb52", "#ffa15a", "#ff6692", "#b6e880" ], "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ], "sequentialminus": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ] }, "plot_bgcolor": "white", "paper_bgcolor": "white", "shapedefaults": { "line": { "width": 0 }, "opacity": 0.4, "fillcolor": "#506784" }, "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#506784", "arrowwidth": 1 } }, "themeRef": "PLOTLY_WHITE" }, "annotations": [ { "x": "2015-05-10 00:59:54.3485", "y": 256.67783433595554, "ax": -58, "ay": -22, "text": "pit stop installed" } ], "bargroupgap": 0.33 } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~annacallahan", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/80.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-1.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-03-19 14:31:32", "mapbox_access_tokens": null, "has_password": null, "username": "annacallahan", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-06-17T20:36:38.585561Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~ghbellesis/2.embed", "fid": "ghbellesis:2", "filename": "styled-line-chart", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/ghbellesis:2/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/ghbellesis:2/image?image_name=default", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/ghbellesis/2/8_EKXW4Q31X2UAQR658J2NJRLZDSIXCA.png", "list-thumb": "https://api.plotly.com/v2/files/ghbellesis:2/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/ghbellesis:2", "plots": "https://api.plotly.com/v2/plots/ghbellesis:2", "parent": "https://api.plotly.com/v2/folders/home?user=ghbellesis" }, "owner": "ghbellesis", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "Double Line Chart", "views": 0, "web_url": "https://chart-studio.plotly.com/~ghbellesis/2/double-line-chart/", "world_readable": true, "date_modified": "2019-06-17T20:36:39.008Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~ghbellesis/2/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "d3bdf358-83cc-41e6-8ae0-d0ee07f186d9", "line": { "width": 5 }, "name": "List Object", "type": "scatter", "xsrc": "ghbellesis:3:d0c0dc", "ysrc": "ghbellesis:3:54bc8b" }, { "uid": "ef70d015-9304-4eac-a9f7-68ee3bf19bc6", "line": { "width": 10 }, "name": "List Object 2", "type": "scatter", "xsrc": "ghbellesis:3:d0c0dc", "ysrc": "ghbellesis:3:f3df44" } ], "layout": { "title": { "text": "Double Line Chart" }, "xaxis": { "title": { "text": "x-axis" } }, "yaxis": { "title": { "text": "y-axis" } } } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~ghbellesis", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/34.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-2.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-06-17 20:18:34", "mapbox_access_tokens": null, "has_password": null, "username": "ghbellesis", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-06-17T20:35:50.116221Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~amper/67142.embed", "fid": "amper:67142", "filename": "06-03-19_ds-1976_alg-5421_param-1407_showamps-True-state_res-SEC", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/amper:67142/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/amper:67142/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/amper:67142/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/amper:67142/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/amper:67142", "plots": "https://api.plotly.com/v2/plots/amper:67142", "parent": "https://api.plotly.com/v2/folders/home?user=amper" }, "owner": "amper", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "06-03-19_ds-1976_alg-5421_param-1407_showamps-True-state_res-SEC", "views": 0, "web_url": "https://chart-studio.plotly.com/~amper/67142/_06-03-19-ds-1976-alg-5421-param-1407-showamps-true-state-res-sec/", "world_readable": true, "date_modified": "2019-06-17T20:35:51.286Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~amper/67142/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "df4ea09c-2021-489b-8e6b-403b1ce258ed", "mode": "lines", "name": "Idle", "type": "scattergl", "xsrc": "amper:67143:87461f", "ysrc": "amper:67143:77c5b8", "marker": { "line": { "color": "rgb(255, 205, 0)", "width": 1 }, "size": 1, "color": "rgb(255, 205, 0)" }, "connectgaps": false } ], "layout": { "title": "06-03-19_ds-1976_alg-5421_param-1407_showamps-True-state_res-SEC" } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~amper", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/99.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-1.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2017-03-17 16:47:16", "mapbox_access_tokens": null, "has_password": null, "username": "amper", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } } ] }
