Plots List
Plots
This endpoint handles manipulation of Plotly plot files.
Reference
Authorization
Any user with or without a Plotly account may view public plots. For private plots, see authentication.
Actions
list
Listing all public plots can be done via a GET request to this endpoint.
By default, plots will be listed in order of date created. The order_by
query parameter is accepted at this endpoint. Currently, only ordering by
views is supported. It is possible to filter the plots by quality
with min_quality or max_quality as query parameter.
Example:
// GET https://api.plotly.com/v2/plots/ ---> 200
// GET https://api.plotly.com/v2/plots/?order_by=-views ---> 200
// GET https://api.plotly.com/v2/plots/?min_quality=5 ---> 200
// GET https://api.plotly.com/v2/plots/?max_quality=5 ---> 200
feed
Listing all handpicked feed plots can be done via a GET request to this endpoint. By default, plots will be listed in a random order.
Example:
// GET https://api.plotly.com/v2/plots/feed ---> 200
create
You can create new plot resources here. The only required field is 'figure'. Currently, the figure is restricted to only contain references to grid data. That is, this will fail if raw data arrays are passed in. To create and manipulate underlying grids for plots, see the grids endpoint.
Example:
// This fails because a figure field is required.
// POST https://api.plotly.com/v2/plots ---> 400 Bad Request
{}
// This fails because the figure has raw data
//POST https://api.plotly.com/v2/plots ---> 400 Bad Request
{
"figure": {"data": [{"y": ['this', 'is', 'raw', 'data']}]}
}
// This succeeds because the figure has src keys, not raw data.
//POST https://api.plotly.com/v2/plots ---> 200 OK
{
"figure": {"data": [{"ysrc": "sven:88:u8nd62"}]}
}
When creating a grid, you can optionally specify a source_fid to specify where a plot has come from:
- source_fid: the fid of a plot that was copied (and presumably edited) to produce this one
detail
There is a lot of meta information stored about plot files including filename, title, share_url, and content_url to name a few.
This information can only be reached with a GET to this endpoint.
Example:
// GET https://api.plotly.com/v2/plots/iheartgraphs:90
content
The contents of a plot can be downloaded via the content resource. The plot
content contains referenced grid/column data by default. If you wish to
return the raw grid/column data, the inline_data=true query must be included
in the request url. The Content-Type header will be appropriately set for the
response body.
Alternatively, you can set ?map_data=unreadable to append a mapping of
sources to data that belongs to grids which are unreadable for the
requestor. This is useful when you have read access to another users plot,
but that plot contains grid references which you don't have access to.
Examples:
// Returns referenced grid/column data
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content ---> 200 OK
// Returns full grid/column data
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content?inline_data=true ---> 200 OK
// Returns full grid/column data when requestor doesn't have permission
// to read the referenced grid.
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content?map_data=unreadable ---> 200 OK
GET /v2/plots?cursor=cD0yMDE5LTA2LTE3KzE3JTNBMTklM0EzMy43ODQxNDQlMkIwMCUzQTAw&format=api

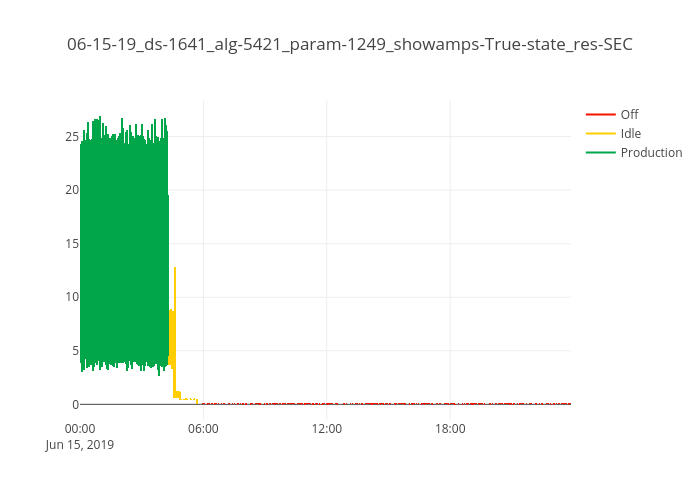

{ "next": "https://api.plot.ly/v2/plots?cursor=cD0yMDE5LTA2LTE3KzE3JTNBMTQlM0E0Ni4xMjAwMDQlMkIwMCUzQTAw&format=api", "previous": "https://api.plot.ly/v2/plots?cursor=cj0xJnA9MjAxOS0wNi0xNysxNyUzQTE4JTNBNDUuODQ1Mzg3JTJCMDAlM0EwMA%3D%3D&format=api", "results": [ { "creation_time": "2019-06-17T17:18:45.845387Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~amper/67104.embed", "fid": "amper:67104", "filename": "06-15-19_ds-1641_alg-5421_param-1249_showamps-True-state_res-SEC", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/amper:67104/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/amper:67104/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/amper:67104/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/amper:67104/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/amper:67104", "plots": "https://api.plotly.com/v2/plots/amper:67104", "parent": "https://api.plotly.com/v2/folders/home?user=amper" }, "owner": "amper", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "06-15-19_ds-1641_alg-5421_param-1249_showamps-True-state_res-SEC", "views": 0, "web_url": "https://chart-studio.plotly.com/~amper/67104/_06-15-19-ds-1641-alg-5421-param-1249-showamps-true-state-res-sec/", "world_readable": true, "date_modified": "2019-06-17T17:18:47.442Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~amper/67104/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "f7ffd644-5c4b-4c56-ad3b-183350c31ce5", "mode": "lines", "name": "Off", "type": "scattergl", "xsrc": "amper:67105:78b4f1", "ysrc": "amper:67105:3d09d2", "marker": { "line": { "color": "rgb(248, 19, 0)", "width": 1 }, "size": 1, "color": "rgb(248, 19, 0)" } }, { "uid": "8b9bf565-e99d-4fd6-822a-119175e871ef", "mode": "lines", "name": "Idle", "type": "scattergl", "xsrc": "amper:67105:78b4f1", "ysrc": "amper:67105:1476b5", "marker": { "line": { "color": "rgb(255, 205, 0)", "width": 1 }, "size": 1, "color": "rgb(255, 205, 0)" }, "connectgaps": false }, { "uid": "94411d3c-9211-43fc-830a-c302cae10ba5", "mode": "lines", "name": "Production", "type": "scattergl", "xsrc": "amper:67105:78b4f1", "ysrc": "amper:67105:34fc95", "marker": { "line": { "color": "rgb(0, 166, 73)", "width": 1 }, "size": 1, "color": "rgb(0, 166, 73)" }, "connectgaps": false } ], "layout": { "title": "06-15-19_ds-1641_alg-5421_param-1249_showamps-True-state_res-SEC" } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~amper", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/99.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-1.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2017-03-17 16:47:16", "mapbox_access_tokens": null, "has_password": null, "username": "amper", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-06-17T17:18:27.863295Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~wfpgprograms/6.embed", "fid": "wfpgprograms:6", "filename": "Heads of State", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/wfpgprograms:6/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/wfpgprograms:6/image?image_name=default", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/wfpgprograms/6/8_KP7DDLD4XXR3FX4G8SVVC3KCY2ACB8.png", "list-thumb": "https://api.plotly.com/v2/files/wfpgprograms:6/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/wfpgprograms:6", "plots": "https://api.plotly.com/v2/plots/wfpgprograms:6", "parent": "https://api.plotly.com/v2/folders/home?user=wfpgprograms" }, "owner": "wfpgprograms", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~wfpgprograms/6/", "world_readable": true, "date_modified": "2019-08-19T20:13:58.794Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~wfpgprograms/6/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "meta": { "columnNames": { "z": "FHoS", "locations": "Country" } }, "mode": "markers", "type": "choropleth", "zmax": 3, "zmin": 0, "zsrc": "wfpgprograms:5:f02577", "zauto": false, "colorbar": { "x": 0.9008093782224071, "y": 0.395043132959058, "len": 1, "ticks": "", "title": { "side": "top", "text": "<br>" }, "tickfont": { "family": "Droid Serif" }, "tickmode": "auto" }, "hoverinfo": "location+z", "showscale": true, "colorscale": [ [ 0, "#ffffd9" ], [ 0.125, "#edf8b1" ], [ 0.25, "#c7e9b4" ], [ 0.375, "#7fcdbb" ], [ 0.5, "#41b6c4" ], [ 0.625, "#1d91c0" ], [ 0.75, "#225ea8" ], [ 0.875, "#253494" ], [ 1, "#081d58" ] ], "locationmode": "country names", "locationssrc": "wfpgprograms:5:a528e2", "autocolorscale": false } ], "frames": [], "layout": { "geo": { "center": { "lat": 6.62518951969949, "lon": 8.134575803463463 }, "projection": { "scale": 0.8705505632961302, "rotation": { "lon": 8.134575803463463 } } }, "title": { "text": "Women as Elected and Non-Elected Heads of State and Vice Presidents" }, "xaxis": { "range": [ -1, 6 ], "autorange": true }, "yaxis": { "range": [ -1, 4 ], "autorange": true }, "autosize": true, "dragmode": "pan", "template": { "data": { "bar": [ { "type": "bar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatter": [ { "type": "scatter", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "histogram": [ { "type": "histogram", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "white", "showlakes": true, "subunitcolor": "#C8D4E3" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "white", "radialaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" }, "angularaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "yaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "zaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "baxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "caxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "bgcolor": "white" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#19d3f3", "#e763fa", "#fecb52", "#ffa15a", "#ff6692", "#b6e880" ], "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ], "sequentialminus": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ] }, "plot_bgcolor": "white", "paper_bgcolor": "white", "shapedefaults": { "line": { "width": 0 }, "opacity": 0.4, "fillcolor": "#506784" }, "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#506784", "arrowwidth": 1 } }, "themeRef": "PLOTLY_WHITE" } } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~wfpgprograms", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/78.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-14.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2018-07-26 18:05:53", "mapbox_access_tokens": null, "has_password": null, "username": "wfpgprograms", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-06-17T17:18:03.300835Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~jacobbettencourt/0.embed", "fid": "jacobbettencourt:0", "filename": "gantt-simple-gantt-chart", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/jacobbettencourt:0/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/jacobbettencourt:0/image?image_name=default", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/jacobbettencourt/0/8_PL7UJPOFKSKYYZ7EOMCVON7IXFMYX5.png", "list-thumb": "https://api.plotly.com/v2/files/jacobbettencourt:0/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/jacobbettencourt:0", "plots": "https://api.plotly.com/v2/plots/jacobbettencourt:0", "parent": "https://api.plotly.com/v2/folders/home?user=jacobbettencourt" }, "owner": "jacobbettencourt", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "Gantt Chart", "views": 0, "web_url": "https://chart-studio.plotly.com/~jacobbettencourt/0/gantt-chart/", "world_readable": true, "date_modified": "2019-06-17T17:18:03.797Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~jacobbettencourt/0/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "name": "", "type": "scatter", "xsrc": "jacobbettencourt:1:0fe84a", "ysrc": "jacobbettencourt:1:60d457", "marker": { "color": "white" } }, { "name": "", "type": "scatter", "xsrc": "jacobbettencourt:1:f6a80f", "ysrc": "jacobbettencourt:1:064c03", "marker": { "color": "white" } }, { "name": "", "type": "scatter", "xsrc": "jacobbettencourt:1:51fca7", "ysrc": "jacobbettencourt:1:691f29", "marker": { "color": "white" } }, { "name": "", "type": "scatter", "xsrc": "jacobbettencourt:1:b7868d", "ysrc": "jacobbettencourt:1:45f853", "marker": { "color": "white" } }, { "name": "", "type": "scatter", "xsrc": "jacobbettencourt:1:c10ad7", "ysrc": "jacobbettencourt:1:4eff3e", "marker": { "color": "white" } }, { "name": "", "type": "scatter", "xsrc": "jacobbettencourt:1:67929b", "ysrc": "jacobbettencourt:1:cf4ff5", "marker": { "color": "white" } }, { "name": "", "type": "scatter", "xsrc": "jacobbettencourt:1:c07a85", "ysrc": "jacobbettencourt:1:498ab9", "marker": { "color": "white" } }, { "name": "", "type": "scatter", "xsrc": "jacobbettencourt:1:7ae2d3", "ysrc": "jacobbettencourt:1:6c6b6a", "marker": { "color": "white" } }, { "name": "", "type": "scatter", "xsrc": "jacobbettencourt:1:e636b7", "ysrc": "jacobbettencourt:1:3678f0", "marker": { "color": "white" } }, { "name": "", "type": "scatter", "xsrc": "jacobbettencourt:1:d13a49", "ysrc": "jacobbettencourt:1:8a6e19", "marker": { "color": "white" } }, { "name": "", "type": "scatter", "xsrc": "jacobbettencourt:1:93399c", "ysrc": "jacobbettencourt:1:9ea189", "marker": { "color": "white" } }, { "name": "", "type": "scatter", "xsrc": "jacobbettencourt:1:be8e3d", "ysrc": "jacobbettencourt:1:05b5e6", "marker": { "color": "white" } }, { "name": "", "type": "scatter", "xsrc": "jacobbettencourt:1:bf3819", "ysrc": "jacobbettencourt:1:4504fb", "marker": { "color": "white" } }, { "name": "", "type": "scatter", "xsrc": "jacobbettencourt:1:a6e5e7", "ysrc": "jacobbettencourt:1:a9acd6", "marker": { "color": "white" } }, { "name": "", "type": "scatter", "xsrc": "jacobbettencourt:1:a6e5e7", "ysrc": "jacobbettencourt:1:764ed4", "marker": { "color": "white" } }, { "name": "", "type": "scatter", "xsrc": "jacobbettencourt:1:a6e5e7", "ysrc": "jacobbettencourt:1:493d03", "marker": { "color": "white" } }, { "name": "", "type": "scatter", "xsrc": "jacobbettencourt:1:d2b2af", "ysrc": "jacobbettencourt:1:042a6d", "marker": { "color": "white" } }, { "name": "", "type": "scatter", "xsrc": "jacobbettencourt:1:d2b2af", "ysrc": "jacobbettencourt:1:1f611c", "marker": { "color": "white" } }, { "name": "", "type": "scatter", "xsrc": "jacobbettencourt:1:d2b2af", "ysrc": "jacobbettencourt:1:2ddb20", "marker": { "color": "white" } }, { "name": "", "type": "scatter", "xsrc": "jacobbettencourt:1:f9f77f", "ysrc": "jacobbettencourt:1:676eda", "marker": { "color": "white" } }, { "name": "", "type": "scatter", "xsrc": "jacobbettencourt:1:ebd72f", "ysrc": "jacobbettencourt:1:c3a0be", "marker": { "color": "white" } }, { "name": "", "type": "scatter", "xsrc": "jacobbettencourt:1:082036", "ysrc": "jacobbettencourt:1:60d372", "marker": { "color": "white" } }, { "name": "", "type": "scatter", "xsrc": "jacobbettencourt:1:2f56c4", "ysrc": "jacobbettencourt:1:a1c9d4", "marker": { "color": "white" } }, { "name": "", "type": "scatter", "xsrc": "jacobbettencourt:1:119ebf", "ysrc": "jacobbettencourt:1:2d1f98", "marker": { "color": "white" } }, { "name": "", "type": "scatter", "xsrc": "jacobbettencourt:1:518600", "ysrc": "jacobbettencourt:1:2556ab", "marker": { "color": "white" } }, { "name": "", "type": "scatter", "xsrc": "jacobbettencourt:1:bc864f", "ysrc": "jacobbettencourt:1:7da843", "marker": { "color": "white" } }, { "name": "", "type": "scatter", "xsrc": "jacobbettencourt:1:a9df2d", "ysrc": "jacobbettencourt:1:c85386", "marker": { "color": "white" } }, { "name": "", "type": "scatter", "xsrc": "jacobbettencourt:1:460314", "ysrc": "jacobbettencourt:1:d0e932", "marker": { "color": "white" } }, { "name": "", "type": "scatter", "xsrc": "jacobbettencourt:1:d2b2af", "ysrc": "jacobbettencourt:1:c1c409", "marker": { "color": "white" } }, { "name": "", "type": "scatter", "xsrc": "jacobbettencourt:1:d2b2af", "ysrc": "jacobbettencourt:1:b8d8fb", "marker": { "color": "white" } } ], "layout": { "title": "Gantt Chart", "width": 900, "xaxis": { "type": "date", "showgrid": false, "zeroline": false, "rangeselector": { "buttons": [ { "step": "day", "count": 7, "label": "1w", "stepmode": "backward" }, { "step": "month", "count": 1, "label": "1m", "stepmode": "backward" }, { "step": "month", "count": 6, "label": "6m", "stepmode": "backward" }, { "step": "year", "count": 1, "label": "YTD", "stepmode": "todate" }, { "step": "year", "count": 1, "label": "1y", "stepmode": "backward" }, { "step": "all" } ] } }, "yaxis": { "range": [ -1, 31 ], "showgrid": false, "ticktext": [ "RPCK", "RPCK", "PICK", "RPCK", "PICK", "PSHP", "RDY", "PSHP", "RPCK", "RPCK", "PICK", "PACK", "PSHP", "SHIP", "SHIP", "SHIP", "SHIP", "SHIP", "SHIP", "RPCK", "RPCK", "PSHP", "RPCK", "RPCK", "RPCK", "PICK", "PSHP", "PICK", "SHIP", "SHIP" ], "tickvals": [ 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29 ], "zeroline": false, "autorange": false }, "height": 600, "shapes": [ { "x0": "2017-09-22 15:02:38", "x1": "2017-09-22 15:02:44", "y0": -0.2, "y1": 0.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(31, 119, 180)" }, { "x0": "2017-09-22 15:07:07", "x1": "2017-09-22 15:09:35", "y0": 0.8, "y1": 1.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(255, 127, 14)" }, { "x0": "2017-09-22 15:09:36", "x1": "2017-09-22 15:09:38", "y0": 1.8, "y1": 2.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(44, 160, 44)" }, { "x0": "2017-09-22 15:09:38", "x1": "2017-09-22 15:10:49", "y0": 2.8, "y1": 3.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(214, 39, 40)" }, { "x0": "2017-09-22 15:10:50", "x1": "2017-09-22 15:10:53", "y0": 3.8, "y1": 4.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(148, 103, 189)" }, { "x0": "2017-09-22 15:11:40", "x1": "2017-09-22 15:11:40", "y0": 4.8, "y1": 5.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(140, 86, 75)" }, { "x0": "2017-09-22 06:14:31", "x1": "2017-09-22 06:14:31", "y0": 5.8, "y1": 6.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(227, 119, 194)" }, { "x0": "2017-09-22 18:44:29", "x1": "2017-09-22 18:44:29", "y0": 6.8, "y1": 7.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(127, 127, 127)" }, { "x0": "2017-09-22 23:05:43", "x1": "2017-09-22 23:06:49", "y0": 7.8, "y1": 8.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(188, 189, 34)" }, { "x0": "2017-09-22 23:06:50", "x1": "2017-09-22 23:07:37", "y0": 8.8, "y1": 9.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(23, 190, 207)" }, { "x0": "2017-09-22 23:07:39", "x1": "2017-09-22 23:07:47", "y0": 9.8, "y1": 10.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(31, 119, 180)" }, { "x0": "2017-09-22 23:07:48", "x1": "2017-09-22 23:07:48", "y0": 10.8, "y1": 11.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(255, 127, 14)" }, { "x0": "2017-09-22 23:32:56", "x1": "2017-09-22 23:32:56", "y0": 11.8, "y1": 12.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(44, 160, 44)" }, { "x0": "2017-09-22 23:41:39", "x1": "2017-09-22 23:41:39", "y0": 12.8, "y1": 13.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(214, 39, 40)" }, { "x0": "2017-09-22 23:41:39", "x1": "2017-09-22 23:41:39", "y0": 13.8, "y1": 14.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(148, 103, 189)" }, { "x0": "2017-09-22 23:41:39", "x1": "2017-09-22 23:41:39", "y0": 14.8, "y1": 15.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(140, 86, 75)" }, { "x0": "2017-09-22 23:41:40", "x1": "2017-09-22 23:41:40", "y0": 15.8, "y1": 16.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(227, 119, 194)" }, { "x0": "2017-09-22 23:41:40", "x1": "2017-09-22 23:41:40", "y0": 16.8, "y1": 17.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(127, 127, 127)" }, { "x0": "2017-09-22 23:41:40", "x1": "2017-09-22 23:41:40", "y0": 17.8, "y1": 18.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(188, 189, 34)" }, { "x0": "2017-09-22 16:07:40", "x1": "2017-09-22 16:08:15", "y0": 18.8, "y1": 19.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(23, 190, 207)" }, { "x0": "2017-09-22 16:08:17", "x1": "2017-09-22 16:08:19", "y0": 19.8, "y1": 20.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(31, 119, 180)" }, { "x0": "2017-09-22 16:18:03", "x1": "2017-09-22 16:18:03", "y0": 20.8, "y1": 21.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(255, 127, 14)" }, { "x0": "2017-09-22 16:39:44", "x1": "2017-09-22 16:41:00", "y0": 21.8, "y1": 22.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(44, 160, 44)" }, { "x0": "2017-09-22 16:41:00", "x1": "2017-09-22 16:42:18", "y0": 22.8, "y1": 23.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(214, 39, 40)" }, { "x0": "2017-09-22 16:42:19", "x1": "2017-09-22 16:42:21", "y0": 23.8, "y1": 24.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(148, 103, 189)" }, { "x0": "2017-09-22 20:56:30", "x1": "2017-09-22 20:56:35", "y0": 24.8, "y1": 25.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(140, 86, 75)" }, { "x0": "2017-09-22 15:11:43", "x1": "2017-09-22 15:11:43", "y0": 25.8, "y1": 26.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(227, 119, 194)" }, { "x0": "2017-09-22 21:07:30", "x1": "2017-09-22 21:07:34", "y0": 26.8, "y1": 27.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(127, 127, 127)" }, { "x0": "2017-09-22 23:41:40", "x1": "2017-09-22 23:41:40", "y0": 27.8, "y1": 28.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(188, 189, 34)" }, { "x0": "2017-09-22 23:41:40", "x1": "2017-09-22 23:41:40", "y0": 28.8, "y1": 29.2, "line": { "width": 0 }, "type": "rect", "xref": "x", "yref": "y", "opacity": 1, "fillcolor": "rgb(23, 190, 207)" } ], "hovermode": "closest", "showlegend": false } }, "height": 600, "width": 900, "user": { "profile_url": "https://chart-studio.plotly.com/~jacobbettencourt", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/70.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-13.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-06-17 16:12:00", "mapbox_access_tokens": null, "has_password": null, "username": "jacobbettencourt", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-06-17T17:17:22.551041Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~Nsolier/6.embed", "fid": "Nsolier:6", "filename": "Plot 6", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/Nsolier:6/image?image_name=list-thumb", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/Nsolier/6/2_S54QMD9XI40LZCNTFUX1AWCMDI19XW.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/Nsolier/6/8_LOIQ648JQKW80LHVCYY8XNYQ22F621.png", "list-thumb": "https://api.plotly.com/v2/files/Nsolier:6/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/Nsolier:6", "plots": "https://api.plotly.com/v2/plots/Nsolier:6", "parent": "https://api.plotly.com/v2/folders/home?user=Nsolier" }, "owner": "Nsolier", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 40, "web_url": "https://chart-studio.plotly.com/~Nsolier/6/", "world_readable": true, "date_modified": "2019-06-17T17:17:22.563Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~Nsolier/6/", "current_user_permission": "read", "is_theme": null, "is_template": true, "autosize": true, "caption": "", "figure": { "data": [ { "line": { "color": "rgb(16, 120, 19)" }, "mode": "markers", "name": "Verde", "type": "box", "ysrc": "Nsolier:5:cf347c", "boxpoints": false, "fillcolor": "rgba(36, 214, 46, 0.5)" }, { "line": { "color": "rgb(112, 217, 44)" }, "name": "Verde Pintón", "type": "box", "ysrc": "Nsolier:5:8bee27", "boxpoints": false, "fillcolor": "rgba(23, 209, 15, 0.5)" }, { "line": { "color": "rgb(166, 43, 214)" }, "name": "Pintón 1-2", "type": "box", "ysrc": "Nsolier:5:3d6157", "boxpoints": false, "fillcolor": "rgba(14, 194, 61, 0.5)" }, { "line": { "color": "rgb(92, 20, 84)" }, "name": "Rosado-Guindo", "type": "box", "ysrc": "Nsolier:5:c42795", "boxpoints": false, "fillcolor": "rgba(191, 13, 147, 0.5)" }, { "line": { "color": "rgb(25, 54, 243)" }, "name": "Azul", "type": "box", "ysrc": "Nsolier:5:4db143", "boxpoints": false, "fillcolor": "rgba(10, 30, 166, 0.5)" } ], "frames": [], "layout": { "title": { "x": 0.5, "text": "Evolución de °Brix de fruta de arándano Var. Ventura" }, "xaxis": { "type": "category", "range": [ -0.5, 4.5 ], "title": { "text": "Estado Fenológico" }, "autorange": true }, "yaxis": { "type": "linear", "range": [ 4.511111111111111, 14.28888888888889 ], "title": { "text": "°Brix" }, "autorange": true }, "autosize": true, "template": { "data": { "bar": [ { "type": "bar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatter": [ { "type": "scatter", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "histogram": [ { "type": "histogram", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "white", "showlakes": true, "subunitcolor": "#C8D4E3" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "white", "radialaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" }, "angularaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "yaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "zaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "baxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "caxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "bgcolor": "white" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#19d3f3", "#e763fa", "#fecb52", "#ffa15a", "#ff6692", "#b6e880" ], "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ], "sequentialminus": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ] }, "plot_bgcolor": "white", "paper_bgcolor": "white", "shapedefaults": { "line": { "width": 0 }, "opacity": 0.4, "fillcolor": "#506784" }, "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#506784", "arrowwidth": 1 } }, "themeRef": "PLOTLY_WHITE" } } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~Nsolier", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/44.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-10.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-06-17 16:43:27", "mapbox_access_tokens": null, "has_password": null, "username": "Nsolier", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-06-17T17:17:18.155567Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~clkickEDHEC/2.embed", "fid": "clkickEDHEC:2", "filename": "plot from API (1)", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/clkickEDHEC:2/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/clkickEDHEC:2/image?image_name=default", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/clkickEDHEC/2/8_G2SD1YWDOQ9WEXH29MI4WA0NX6429P.png", "list-thumb": "https://api.plotly.com/v2/files/clkickEDHEC:2/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/clkickEDHEC:2", "plots": "https://api.plotly.com/v2/plots/clkickEDHEC:2", "parent": "https://api.plotly.com/v2/folders/home?user=clkickEDHEC" }, "owner": "clkickEDHEC", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "Refugee movement through Manus and Nauru, via <a href='http://www.bryanbrussee.com/sankey.html'>Bryan Brussee</a>", "views": 0, "web_url": "https://chart-studio.plotly.com/~clkickEDHEC/2/refugee-movement-through-manus-and-nauru-via-bryan-brussee/", "world_readable": true, "date_modified": "2019-06-17T17:17:18.691Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~clkickEDHEC/2/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "link": { "valuesrc": "clkickEDHEC:3:2c381f", "sourcesrc": "clkickEDHEC:3:d55945", "targetsrc": "clkickEDHEC:3:a21f18" }, "node": { "pad": 10, "line": { "color": "black", "width": 0.5 }, "colorsrc": "clkickEDHEC:3:a80f29", "labelsrc": "clkickEDHEC:3:3d6dd7", "thickness": 30 }, "type": "sankey", "domain": { "x": [ 0, 1 ], "y": [ 0, 1 ] }, "orientation": "h", "valueformat": ".0f" } ], "layout": { "font": { "size": 10 }, "title": "Refugee movement through Manus and Nauru, via <a href='http://www.bryanbrussee.com/sankey.html'>Bryan Brussee</a>", "width": 950, "height": 772 } }, "height": 772, "width": 950, "user": { "profile_url": "https://chart-studio.plotly.com/~clkickEDHEC", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/37.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-10.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-06-17 16:58:19", "mapbox_access_tokens": null, "has_password": null, "username": "clkickEDHEC", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-06-17T17:16:19.499835Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~dconner/0.embed", "fid": "dconner:0", "filename": "choropleth_florida", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/dconner:0/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/dconner:0/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/dconner:0/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/dconner:0/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/dconner:0", "plots": "https://api.plotly.com/v2/plots/dconner:0", "parent": "https://api.plotly.com/v2/folders/home?user=dconner" }, "owner": "dconner", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "< 1, 1 - 7, 7 - 13, 13 - 19, 19 - 25, > 25, US Counties", "views": 0, "web_url": "https://chart-studio.plotly.com/~dconner/0/_25-us-counties/", "world_readable": true, "date_modified": "2019-06-17T19:38:35.479Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~dconner/0/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "96bdd433-9bb5-427d-a15c-967f16ef0e10", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "< 1", "type": "scatter", "xsrc": "dconner:1:924ad9", "ysrc": "dconner:1:13be10", "fillcolor": "#edf8fb", "hoverinfo": "none" }, { "uid": "52bacf0d-a18f-4d24-be79-5fb72691762f", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "1 - 7", "type": "scatter", "xsrc": "dconner:1:97b605", "ysrc": "dconner:1:673279", "fillcolor": "#ccece6", "hoverinfo": "none" }, { "uid": "f006a6b2-ff5d-4266-83ce-58626bfb013d", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "7 - 13", "type": "scatter", "xsrc": "dconner:1:2aef0a", "ysrc": "dconner:1:71316d", "fillcolor": "#99d8c9", "hoverinfo": "none" }, { "uid": "ecee546b-1847-4ff9-a31a-8ac7c0b02759", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "13 - 19", "type": "scatter", "xsrc": "dconner:1:e6bd73", "ysrc": "dconner:1:0d5049", "fillcolor": "#66c2a4", "hoverinfo": "none" }, { "uid": "69f0ab66-e753-466b-8a38-ca2272407d3e", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "19 - 25", "type": "scatter", "xsrc": "dconner:1:268869", "ysrc": "dconner:1:1f6b2c", "fillcolor": "#2ca25f", "hoverinfo": "none" }, { "x": [], "y": [], "uid": "5918dcad-cba1-4a9d-9de9-92aa6fa8c1ea", "fill": "toself", "line": { "color": "rgb(255,255,255)", "width": 0.5 }, "mode": "lines", "name": "> 25", "type": "scatter", "fillcolor": "#006d2c", "hoverinfo": "none" }, { "uid": "69f2cf4e-b4db-4da4-9150-56aa6196d8d1", "mode": "markers", "name": "US Counties", "type": "scatter", "xsrc": "dconner:1:34e161", "ysrc": "dconner:1:0ab3dd", "marker": { "color": "white", "opacity": 0 }, "textsrc": "dconner:1:ac15e1", "selected": { "marker": { "size": 3, "color": "white", "opacity": 1 } }, "hoverinfo": "text", "showlegend": false, "unselected": { "marker": { "opacity": 0 } }, "legendgroup": "centroids" }, { "uid": "32cb7875-223c-48f4-bc8d-0910e1161be4", "line": { "color": "rgb(240, 240, 240)", "width": 1 }, "mode": "lines", "type": "scatter", "xsrc": "dconner:1:4b3ac2", "ysrc": "dconner:1:0b623e", "hoverinfo": "text", "showlegend": false, "legendgroup": "States" } ], "layout": { "width": 900, "xaxis": { "range": [ -91.9300843943933, -75.7361218943933 ], "showgrid": false, "zeroline": false, "autorange": false, "fixedrange": true, "showticklabels": false }, "yaxis": { "range": [ 24.523096, 31.000681 ], "showgrid": false, "zeroline": false, "autorange": false, "fixedrange": true, "showticklabels": false }, "height": 450, "legend": { "x": 1, "y": 1, "xanchor": "right", "yanchor": "top", "traceorder": "reversed" }, "margin": { "b": 20, "l": 20, "r": 20, "t": 40 }, "dragmode": "select", "hovermode": "closest", "annotations": [ { "x": 1, "y": 1.05, "text": "<b>Trials per county</b>", "xref": "paper", "yref": "paper", "xanchor": "right", "showarrow": false } ], "plot_bgcolor": "rgb(229,229,229)", "paper_bgcolor": "rgb(229,229,229)" } }, "height": 450, "width": 900, "user": { "profile_url": "https://chart-studio.plotly.com/~dconner", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/60.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-2.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-06-17 17:01:46", "mapbox_access_tokens": null, "has_password": null, "username": "dconner", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-06-17T17:16:18.252627Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~bounteous-ds-sm/54.embed", "fid": "bounteous-ds-sm:54", "filename": "plot from API (24)", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/bounteous-ds-sm:54/image?image_name=list-thumb", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/bounteous-ds-sm/54/2_NHNKWH9TB8K96J8414V0LFXVLWEATT.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/bounteous-ds-sm/54/8_TU1LR4UK8XPKB39Q1V60K14UAE1841.png", "list-thumb": "https://api.plotly.com/v2/files/bounteous-ds-sm:54/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/bounteous-ds-sm:54", "plots": "https://api.plotly.com/v2/plots/bounteous-ds-sm:54", "parent": "https://api.plotly.com/v2/folders/home?user=bounteous-ds-sm" }, "owner": "bounteous-ds-sm", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "Returning users who have not already completed SIF, starting home or go, 4-6 steps, 90+ users", "views": 6, "web_url": "https://chart-studio.plotly.com/~bounteous-ds-sm/54/returning-users-who-have-not-already-completed-sif-starting-home-or-go-4-6-steps/", "world_readable": true, "date_modified": "2019-06-17T17:16:18.780Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~bounteous-ds-sm/54/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "link": { "valuesrc": "bounteous-ds-sm:55:915012", "sourcesrc": "bounteous-ds-sm:55:588a3d", "targetsrc": "bounteous-ds-sm:55:e3df07" }, "node": { "pad": 10, "line": { "color": "black", "width": 0.5 }, "labelsrc": "bounteous-ds-sm:55:38e43d", "thickness": 30 }, "type": "sankey", "domain": { "x": [ 0, 1 ], "y": [ 0, 1 ] }, "orientation": "h", "valueformat": ".0f" } ], "layout": { "font": { "size": 10 }, "title": "Returning users who have not already completed SIF, starting home or go, 4-6 steps, 90+ users", "width": 950, "height": 772 } }, "height": 772, "width": 950, "user": { "profile_url": "https://chart-studio.plotly.com/~bounteous-ds-sm", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/26.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-7.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-06-07 22:33:44", "mapbox_access_tokens": null, "has_password": null, "username": "bounteous-ds-sm", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-06-17T17:16:03.686316Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~nonicked/2.embed", "fid": "nonicked:2", "filename": "donut", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/nonicked:2/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/nonicked:2/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/nonicked:2/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/nonicked:2/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/nonicked:2", "plots": "https://api.plotly.com/v2/plots/nonicked:2", "parent": "https://api.plotly.com/v2/folders/home?user=nonicked" }, "owner": "nonicked", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "Global Emissions 1990-2011", "views": 0, "web_url": "https://chart-studio.plotly.com/~nonicked/2/global-emissions-1990-2011/", "world_readable": true, "date_modified": "2019-06-17T17:16:05.146Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~nonicked/2/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "044aacde-e5ae-4119-a049-0e69e01280a3", "hole": 0.4, "name": "GHG Emissions", "type": "pie", "domain": { "column": 0 }, "hoverinfo": "label+percent+name", "labelssrc": "nonicked:3:63b57e", "valuessrc": "nonicked:3:4fb4fa" }, { "uid": "33b22c01-f1a7-469f-8b93-1a440bb8853a", "hole": 0.4, "name": "CO2 Emissions", "type": "pie", "domain": { "column": 1 }, "textsrc": "nonicked:3:4e0355", "hoverinfo": "label+percent+name", "labelssrc": "nonicked:3:63b57e", "valuessrc": "nonicked:3:89a3fe", "textposition": "inside" } ], "layout": { "grid": { "rows": 1, "columns": 2 }, "title": { "text": "Global Emissions 1990-2011" }, "annotations": [ { "x": 0.2, "y": 0.5, "font": { "size": 20 }, "text": "GHG", "showarrow": false }, { "x": 0.8, "y": 0.5, "font": { "size": 20 }, "text": "CO2", "showarrow": false } ] } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~nonicked", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/59.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-6.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-06-16 17:56:30", "mapbox_access_tokens": null, "has_password": null, "username": "nonicked", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-06-17T17:15:47.898807Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~remmelh/5.embed", "fid": "remmelh:5", "filename": "testp", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/remmelh:5/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/remmelh:5/image?image_name=default", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/remmelh/5/8_QGFRY0AYAEWARJRE18JE1P6WWIPAI5.png", "list-thumb": "https://api.plotly.com/v2/files/remmelh:5/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/remmelh:5", "plots": "https://api.plotly.com/v2/plots/remmelh:5", "parent": "https://api.plotly.com/v2/folders/home?user=remmelh" }, "owner": "remmelh", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~remmelh/5/", "world_readable": true, "date_modified": "2019-06-17T17:15:47.908Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~remmelh/5/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "type": "surface", "zsrc": "remmelh:4:272635", "frame": null, "colorbar": { "y": 1, "len": 0.5, "title": "", "lenmode": "fraction", "ticklen": 2, "yanchor": "top" }, "showscale": true, "colorscale": [ [ "0", "rgba(68,1,84,1)" ], [ "0.0416666666666666", "rgba(70,19,97,1)" ], [ "0.0833333333333334", "rgba(72,32,111,1)" ], [ "0.125", "rgba(71,45,122,1)" ], [ "0.166666666666667", "rgba(68,58,128,1)" ], [ "0.208333333333333", "rgba(64,70,135,1)" ], [ "0.25", "rgba(60,82,138,1)" ], [ "0.291666666666667", "rgba(56,93,140,1)" ], [ "0.333333333333333", "rgba(49,104,142,1)" ], [ "0.375", "rgba(46,114,142,1)" ], [ "0.416666666666667", "rgba(42,123,142,1)" ], [ "0.458333333333333", "rgba(38,133,141,1)" ], [ "0.5", "rgba(37,144,140,1)" ], [ "0.541666666666667", "rgba(33,154,138,1)" ], [ "0.583333333333333", "rgba(39,164,133,1)" ], [ "0.625", "rgba(47,174,127,1)" ], [ "0.666666666666667", "rgba(53,183,121,1)" ], [ "0.708333333333333", "rgba(79,191,110,1)" ], [ "0.75", "rgba(98,199,98,1)" ], [ "0.791666666666667", "rgba(119,207,85,1)" ], [ "0.833333333333333", "rgba(147,214,70,1)" ], [ "0.875", "rgba(172,220,52,1)" ], [ "0.916666666666667", "rgba(199,225,42,1)" ], [ "0.958333333333333", "rgba(226,228,40,1)" ], [ "1", "rgba(253,231,37,1)" ] ] } ], "layout": { "scene": { "zaxis": { "title": [] } }, "legend": { "y": 0.5, "yanchor": "top" }, "margin": { "b": 40, "l": 60, "r": 10, "t": 25 }, "hovermode": "closest", "showlegend": false } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~remmelh", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/90.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-10.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-06-17 16:56:11", "mapbox_access_tokens": null, "has_password": null, "username": "remmelh", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2019-06-17T17:14:46.120004Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~nehapspathak/8.embed", "fid": "nehapspathak:8", "filename": "phase4_cdf_mention_1800.html", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/nehapspathak:8/image?image_name=list-thumb", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/nehapspathak/8/2_KDEIU4YIG8XCVN6E1UIR75O8YKN1AA.png", "block-thumb": "https://api.plotly.com/v2/files/nehapspathak:8/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/nehapspathak:8/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/nehapspathak:8", "plots": "https://api.plotly.com/v2/plots/nehapspathak:8", "parent": "https://api.plotly.com/v2/folders/home?user=nehapspathak" }, "owner": "nehapspathak", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "Most Mentioned Users", "views": 15, "web_url": "https://chart-studio.plotly.com/~nehapspathak/8/most-mentioned-users/", "world_readable": true, "date_modified": "2019-06-17T18:28:29.174Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~nehapspathak/8/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "d33123cb-e666-446b-968b-6c7f90a664aa", "fill": "tozeroy", "name": "SwetaSinghAT", "type": "scatter", "xsrc": "nehapspathak:9:f621ab", "ysrc": "nehapspathak:9:2c630e" }, { "uid": "74ac7d31-dfeb-4bae-a2ab-c78904fc7018", "fill": "tozeroy", "name": "TheRealPCB", "type": "scatter", "xsrc": "nehapspathak:9:f621ab", "ysrc": "nehapspathak:9:71ab28" }, { "uid": "2be4f5a1-1d75-4b55-824e-97ef37b0127b", "fill": "tozeroy", "name": "Shahrcasm", "type": "scatter", "xsrc": "nehapspathak:9:f621ab", "ysrc": "nehapspathak:9:3a6883" }, { "uid": "42901743-8aae-4bf0-ae6d-4aed560f04a7", "fill": "tozeroy", "name": "ImranKhanPTI", "type": "scatter", "xsrc": "nehapspathak:9:f621ab", "ysrc": "nehapspathak:9:ba8b49" }, { "uid": "78e95989-758b-4ba5-83e1-8f6f6e723569", "fill": "tozeroy", "name": "iamsam_PTI", "type": "scatter", "xsrc": "nehapspathak:9:f621ab", "ysrc": "nehapspathak:9:b30cdb" }, { "uid": "2af73747-252a-4a27-976d-e58b0b0d0e60", "fill": "tozeroy", "name": "SAfridiOfficial", "type": "scatter", "xsrc": "nehapspathak:9:f621ab", "ysrc": "nehapspathak:9:b16cd6" }, { "uid": "33294b4e-9ceb-488f-be74-1b7faef1d462", "fill": "tozeroy", "name": "imVkohli", "type": "scatter", "xsrc": "nehapspathak:9:f621ab", "ysrc": "nehapspathak:9:9921c3" }, { "uid": "166b033a-7319-4c5a-8a2f-24881ce88522", "fill": "tozeroy", "name": "ShaneRWatson33", "type": "scatter", "xsrc": "nehapspathak:9:f621ab", "ysrc": "nehapspathak:9:9f0d24" }, { "uid": "317cc500-ec1e-42d5-9b07-b475d68dd692", "fill": "tozeroy", "name": "BCCI", "type": "scatter", "xsrc": "nehapspathak:9:f621ab", "ysrc": "nehapspathak:9:c489c9" }, { "uid": "cda4773f-29d0-4950-8713-5e290546bc25", "fill": "tozeroy", "name": "aleenarathore", "type": "scatter", "xsrc": "nehapspathak:9:f621ab", "ysrc": "nehapspathak:9:7e3ba9" } ], "layout": { "title": { "font": { "size": 18, "color": "#000000", "family": "Courier New, monospace" }, "text": "Most Mentioned Users", "xref": "paper" }, "xaxis": { "title": { "font": { "size": 14, "color": "#000000", "family": "Courier New, monospace" }, "text": "Time" }, "tickfont": { "size": 12, "color": "#000000", "family": "Courier New, monospace" }, "tickangle": 45, "automargin": true }, "yaxis": { "title": { "font": { "size": 14, "color": "#000000", "family": "Courier New, monospace" }, "text": "Total number of tweets" }, "tickfont": { "size": 12, "color": "#000000", "family": "Courier New, monospace" }, "automargin": true }, "legend": { "x": 0.5, "y": -0.25, "font": { "size": 12, "color": "#000", "family": "sans-serif" }, "bgcolor": "#E2E2E2", "traceorder": "normal", "bordercolor": "#FFFFFF", "borderwidth": 2, "orientation": "h" } } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~nehapspathak", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/8.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-11.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2019-05-22 16:32:31", "mapbox_access_tokens": null, "has_password": null, "username": "nehapspathak", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } } ] }
