Plots List
Plots
This endpoint handles manipulation of Plotly plot files.
Reference
Authorization
Any user with or without a Plotly account may view public plots. For private plots, see authentication.
Actions
list
Listing all public plots can be done via a GET request to this endpoint.
By default, plots will be listed in order of date created. The order_by
query parameter is accepted at this endpoint. Currently, only ordering by
views is supported. It is possible to filter the plots by quality
with min_quality or max_quality as query parameter.
Example:
// GET https://api.plotly.com/v2/plots/ ---> 200
// GET https://api.plotly.com/v2/plots/?order_by=-views ---> 200
// GET https://api.plotly.com/v2/plots/?min_quality=5 ---> 200
// GET https://api.plotly.com/v2/plots/?max_quality=5 ---> 200
feed
Listing all handpicked feed plots can be done via a GET request to this endpoint. By default, plots will be listed in a random order.
Example:
// GET https://api.plotly.com/v2/plots/feed ---> 200
create
You can create new plot resources here. The only required field is 'figure'. Currently, the figure is restricted to only contain references to grid data. That is, this will fail if raw data arrays are passed in. To create and manipulate underlying grids for plots, see the grids endpoint.
Example:
// This fails because a figure field is required.
// POST https://api.plotly.com/v2/plots ---> 400 Bad Request
{}
// This fails because the figure has raw data
//POST https://api.plotly.com/v2/plots ---> 400 Bad Request
{
"figure": {"data": [{"y": ['this', 'is', 'raw', 'data']}]}
}
// This succeeds because the figure has src keys, not raw data.
//POST https://api.plotly.com/v2/plots ---> 200 OK
{
"figure": {"data": [{"ysrc": "sven:88:u8nd62"}]}
}
When creating a grid, you can optionally specify a source_fid to specify where a plot has come from:
- source_fid: the fid of a plot that was copied (and presumably edited) to produce this one
detail
There is a lot of meta information stored about plot files including filename, title, share_url, and content_url to name a few.
This information can only be reached with a GET to this endpoint.
Example:
// GET https://api.plotly.com/v2/plots/iheartgraphs:90
content
The contents of a plot can be downloaded via the content resource. The plot
content contains referenced grid/column data by default. If you wish to
return the raw grid/column data, the inline_data=true query must be included
in the request url. The Content-Type header will be appropriately set for the
response body.
Alternatively, you can set ?map_data=unreadable to append a mapping of
sources to data that belongs to grids which are unreadable for the
requestor. This is useful when you have read access to another users plot,
but that plot contains grid references which you don't have access to.
Examples:
// Returns referenced grid/column data
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content ---> 200 OK
// Returns full grid/column data
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content?inline_data=true ---> 200 OK
// Returns full grid/column data when requestor doesn't have permission
// to read the referenced grid.
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content?map_data=unreadable ---> 200 OK
GET /v2/plots/?cursor=cD0yMDI1LTA2LTI5KzA1JTNBNDMlM0ExNS4wNzk5MjIlMkIwMCUzQTAw&format=api

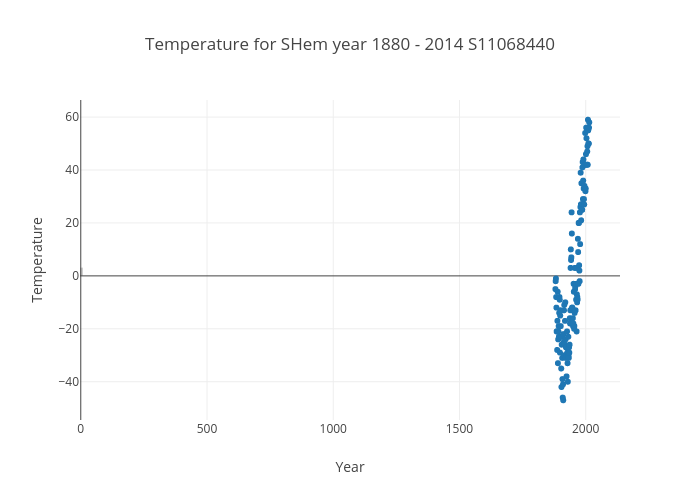

{ "next": "https://api.plot.ly/v2/plots/?cursor=cD0yMDI1LTA2LTI4KzIyJTNBMzklM0EzMi41MjA4NTUlMkIwMCUzQTAw&format=api", "previous": "https://api.plot.ly/v2/plots/?cursor=cj0xJnA9MjAyNS0wNi0yOSswMyUzQTU5JTNBMjAuNjUyMTgwJTJCMDAlM0EwMA%3D%3D&format=api", "results": [ { "creation_time": "2025-06-29T03:59:20.652180Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~joshrai/1.embed", "fid": "joshrai:1", "filename": "Plot 1", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/joshrai:1/image?image_name=list-thumb", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/joshrai/1/2_C7JQGDDGJM78EJ0SQ8FIEY86NL02L6.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/joshrai/1/8_PA2FZT7UVVV56W32QY98KCQC0POIXI.png", "list-thumb": "https://api.plotly.com/v2/files/joshrai:1/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/joshrai:1", "plots": "https://api.plotly.com/v2/plots/joshrai:1", "parent": "https://api.plotly.com/v2/folders/home?user=joshrai" }, "owner": "joshrai", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 2, "web_url": "https://chart-studio.plotly.com/~joshrai/1/", "world_readable": true, "date_modified": "2025-06-29T03:59:20.667Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~joshrai/1/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "meta": { "columnNames": { "x": "Year", "y": "SHem" } }, "mode": "markers", "type": "scatter", "xsrc": "joshrai:0:608b0c", "ysrc": "joshrai:0:12cfdb" } ], "frames": [], "layout": { "title": { "text": "Temperature for SHem year 1880 - 2014 S11068440" }, "xaxis": { "type": "linear", "range": [ -1.4291227162184676, 2129.2671768624527 ], "title": { "text": "Year" }, "autorange": true }, "yaxis": { "type": "linear", "range": [ -54.64362336114422, 66.64362336114422 ], "title": { "text": "Temperature" }, "autorange": true }, "shapes": [ { "x0": 0.8995071193866374, "x1": 4.249999999999999, "y0": 0.43356643356643376, "y1": 2.75, "line": { "color": "#444444" }, "opacity": 0.3, "fillcolor": "#7f7f7f" } ], "autosize": true, "dragmode": "zoom", "template": { "themeRef": "PLOTLY_CLASSIC" } } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~joshrai", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/39.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-8.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2025-06-29 03:24:06", "mapbox_access_tokens": null, "has_password": null, "username": "joshrai", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2025-06-29T01:52:46.882389Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~shibumathew2012/1.embed", "fid": "shibumathew2012:1", "filename": "QS_Uni_Rankings", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/shibumathew2012:1/image?image_name=list-thumb", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/shibumathew2012/1/2_WIHDBM48SG3F4FLDZ4SNTKO7ZPLU0A.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/shibumathew2012/1/8_4QAYC5Q76N8WHMFHWXKK5ZGHFAAXL0.png", "list-thumb": "https://api.plotly.com/v2/files/shibumathew2012:1/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/shibumathew2012:1", "plots": "https://api.plotly.com/v2/plots/shibumathew2012:1", "parent": "https://api.plotly.com/v2/folders/home?user=shibumathew2012" }, "owner": "shibumathew2012", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~shibumathew2012/1/", "world_readable": true, "date_modified": "2025-06-29T01:52:46.891Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~shibumathew2012/1/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "meta": { "columnNames": { "x": "Region", "y": "2026_Rank" } }, "mode": "markers", "type": "box", "xsrc": "shibumathew2012:0:bf18c4", "ysrc": "shibumathew2012:0:933609", "boxpoints": false } ], "frames": [], "layout": { "xaxis": { "type": "category", "range": [ -0.5, 4.5 ], "title": { "text": "Region" }, "autorange": true }, "yaxis": { "type": "linear", "range": [ -76.77777777777779, 1478.7777777777778 ], "title": { "text": "Rank 2026" }, "autorange": true }, "autosize": true, "template": { "data": { "bar": [ { "type": "bar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatter": [ { "type": "scatter", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "histogram": [ { "type": "histogram", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "white", "showlakes": true, "subunitcolor": "#C8D4E3" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "white", "radialaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" }, "angularaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "yaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "zaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "baxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "caxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "bgcolor": "white" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#19d3f3", "#e763fa", "#fecb52", "#ffa15a", "#ff6692", "#b6e880" ], "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ], "sequentialminus": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ] }, "plot_bgcolor": "white", "paper_bgcolor": "white", "shapedefaults": { "line": { "width": 0 }, "opacity": 0.4, "fillcolor": "#506784" }, "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#506784", "arrowwidth": 1 } }, "themeRef": "PLOTLY_WHITE" } } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~shibumathew2012", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/4.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-12.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2025-06-29 01:49:26", "mapbox_access_tokens": null, "has_password": null, "username": "shibumathew2012", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2025-06-29T00:06:55.708605Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~ruthjennings/18.embed", "fid": "ruthjennings:18", "filename": "Plot 18", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/ruthjennings:18/image?image_name=list-thumb", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/ruthjennings/18/2_4PZ8YDTMIVUKYVX1P80A7Y1Y6AGLUN.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/ruthjennings/18/8_GMIU2IVZ5KQEW36OZ2GPXWSPMR6E4D.png", "list-thumb": "https://api.plotly.com/v2/files/ruthjennings:18/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/ruthjennings:18", "plots": "https://api.plotly.com/v2/plots/ruthjennings:18", "parent": "https://api.plotly.com/v2/folders/home?user=ruthjennings" }, "owner": "ruthjennings", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 1, "web_url": "https://chart-studio.plotly.com/~ruthjennings/18/", "world_readable": true, "date_modified": "2025-06-29T00:06:55.720Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~ruthjennings/18/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "meta": { "columnNames": { "x": "A", "y": "B" } }, "mode": "markers", "type": "scatter", "xsrc": "ruthjennings:17:9b5f42", "ysrc": "ruthjennings:17:e206aa" } ], "frames": [], "layout": { "title": { "text": "Ice Water Temperature Change as Heated to Boiling Over Time" }, "xaxis": { "type": "linear", "range": [ -190.67321688500735, 3210.673216885007 ], "title": { "text": "Time (s)" }, "autorange": true }, "yaxis": { "type": "linear", "range": [ 263.8628672745694, 378.0371327254306 ], "title": { "text": "Temperature (K)" }, "autorange": true }, "shapes": [ { "x0": 0, "x1": 740, "y0": 273, "y1": 349.4935663627153, "line": { "color": "#444444" }, "type": "rect", "opacity": 0.3, "fillcolor": "rgb(62, 20, 117)" } ], "autosize": true, "template": { "data": { "bar": [ { "type": "bar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatter": [ { "type": "scatter", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "histogram": [ { "type": "histogram", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "white", "showlakes": true, "subunitcolor": "#C8D4E3" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "white", "radialaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" }, "angularaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "yaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "zaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "baxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "caxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "bgcolor": "white" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#19d3f3", "#e763fa", "#fecb52", "#ffa15a", "#ff6692", "#b6e880" ], "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ], "sequentialminus": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ] }, "plot_bgcolor": "white", "paper_bgcolor": "white", "shapedefaults": { "line": { "width": 0 }, "opacity": 0.4, "fillcolor": "#506784" }, "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#506784", "arrowwidth": 1 } }, "themeRef": "PLOTLY_WHITE" } } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~ruthjennings", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/95.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-13.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2025-03-05 05:07:00", "mapbox_access_tokens": null, "has_password": null, "username": "ruthjennings", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2025-06-28T23:14:26.549468Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~SaaFoster/1.embed", "fid": "SaaFoster:1", "filename": "Plot 1", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/SaaFoster:1/image?image_name=list-thumb", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/SaaFoster/1/2_3IWN4LMF6ULA7DG0SRKDGFD5CM0WKA.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/SaaFoster/1/8_SP201JJ9EPPNI0C0QJ64HHZIU3C2WG.png", "list-thumb": "https://api.plotly.com/v2/files/SaaFoster:1/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/SaaFoster:1", "plots": "https://api.plotly.com/v2/plots/SaaFoster:1", "parent": "https://api.plotly.com/v2/folders/home?user=SaaFoster" }, "owner": "SaaFoster", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 1, "web_url": "https://chart-studio.plotly.com/~SaaFoster/1/", "world_readable": true, "date_modified": "2025-06-28T23:14:26.559Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~SaaFoster/1/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "meta": { "columnNames": { "x": "Year", "y": "SHem" } }, "mode": "markers", "type": "scatter", "xsrc": "SaaFoster:0:72b3a6", "ysrc": "SaaFoster:0:fc259b" } ], "frames": [], "layout": { "title": { "text": "S11075576 x (1880-2014), Y (-47 to 59)" }, "xaxis": { "type": "linear", "range": [ 1871.7041781030803, 2022.2958218969197 ], "autorange": true }, "yaxis": { "type": "linear", "range": [ -55.44927536231884, 67.44927536231884 ], "autorange": true }, "autosize": true, "template": { "data": { "bar": [ { "type": "bar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatter": [ { "type": "scatter", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "histogram": [ { "type": "histogram", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "white", "showlakes": true, "subunitcolor": "#C8D4E3" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "white", "radialaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" }, "angularaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "yaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "zaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "baxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "caxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "bgcolor": "white" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#19d3f3", "#e763fa", "#fecb52", "#ffa15a", "#ff6692", "#b6e880" ], "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ], "sequentialminus": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ] }, "plot_bgcolor": "white", "paper_bgcolor": "white", "shapedefaults": { "line": { "width": 0 }, "opacity": 0.4, "fillcolor": "#506784" }, "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#506784", "arrowwidth": 1 } }, "themeRef": "PLOTLY_WHITE" } } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~SaaFoster", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/61.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-4.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2025-06-25 03:40:54", "mapbox_access_tokens": null, "has_password": null, "username": "SaaFoster", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2025-06-28T23:12:22.632758Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~luvvvvs/28.embed", "fid": "luvvvvs:28", "filename": "Plot 28", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/luvvvvs:28/image?image_name=list-thumb", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/luvvvvs/28/2_CVXJY8WRRUJF2HDARPT8H9779SRGH0.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/luvvvvs/28/8_WRBZR8STO7FPZIRCCNKPGWN7HHG0T8.png", "list-thumb": "https://api.plotly.com/v2/files/luvvvvs:28/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/luvvvvs:28", "plots": "https://api.plotly.com/v2/plots/luvvvvs:28", "parent": "https://api.plotly.com/v2/folders/home?user=luvvvvs" }, "owner": "luvvvvs", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 2, "web_url": "https://chart-studio.plotly.com/~luvvvvs/28/", "world_readable": true, "date_modified": "2025-06-28T23:12:23.731Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~luvvvvs/28/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "meta": { "columnNames": { "x": "x", "y": "y" } }, "mode": "lines+markers", "type": "scatter", "xsrc": "luvvvvs:27:4f2ba0", "ysrc": "luvvvvs:27:b57ba4" } ], "frames": [], "layout": { "title": { "text": "steel deflection By hand" }, "xaxis": { "type": "linear", "range": [ 0.9401603948180136, 2.0598396051819865 ], "autorange": true }, "yaxis": { "type": "linear", "range": [ -9.365360467633693, -7.047542758172771 ], "autorange": true }, "autosize": true } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~luvvvvs", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/35.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-13.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2025-04-22 07:31:14", "mapbox_access_tokens": null, "has_password": null, "username": "luvvvvs", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2025-06-28T23:08:47.111905Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~jfalcone8/27.embed", "fid": "jfalcone8:27", "filename": "The Monohybrid Cross for Corn - report 4", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/jfalcone8:27/image?image_name=list-thumb", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/jfalcone8/27/2_MJYSGTIK9YA3RDIHG5N52LMMXSZCDL.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/jfalcone8/27/8_AZK8DOKIJ3LITYJ2BCV98MQNWTSO6Y.png", "list-thumb": "https://api.plotly.com/v2/files/jfalcone8:27/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/jfalcone8:27", "plots": "https://api.plotly.com/v2/plots/jfalcone8:27", "parent": "https://api.plotly.com/v2/folders/home?user=jfalcone8" }, "owner": "jfalcone8", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~jfalcone8/27/", "world_readable": true, "date_modified": "2025-06-28T23:08:47.121Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~jfalcone8/27/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "meta": { "columnNames": { "x": "A - B", "y": "" } }, "mode": "markers", "type": "bar", "xsrc": "jfalcone8:26:1defaa,39ed9e*", "orientation": "v" } ], "frames": [], "layout": { "title": { "text": "The Monohybrid Cross for Corn" }, "xaxis": { "type": "multicategory", "range": [ -0.5, 11.5 ], "title": { "text": "Phenotypes" }, "autorange": true }, "yaxis": { "range": [ 0, 22.105263157894736 ], "title": { "text": "Kernel Count" }, "autorange": true }, "autosize": true, "template": { "data": { "bar": [ { "type": "bar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatter": [ { "type": "scatter", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "histogram": [ { "type": "histogram", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "white", "showlakes": true, "subunitcolor": "#C8D4E3" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "white", "radialaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" }, "angularaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "yaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "zaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "baxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "caxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "bgcolor": "white" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#19d3f3", "#e763fa", "#fecb52", "#ffa15a", "#ff6692", "#b6e880" ], "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ], "sequentialminus": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ] }, "plot_bgcolor": "white", "paper_bgcolor": "white", "shapedefaults": { "line": { "width": 0 }, "opacity": 0.4, "fillcolor": "#506784" }, "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#506784", "arrowwidth": 1 } }, "themeRef": "PLOTLY_WHITE" }, "showlegend": false, "annotations": [] } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~jfalcone8", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/67.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-3.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2025-06-11 03:09:32", "mapbox_access_tokens": null, "has_password": null, "username": "jfalcone8", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2025-06-28T23:04:27.583256Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~luvvvvs/26.embed", "fid": "luvvvvs:26", "filename": "steel deflection", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/luvvvvs:26/image?image_name=list-thumb", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/luvvvvs/26/2_LLQL9U6EDVD208KWXXKZS8FP5Y5FAP.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/luvvvvs/26/8_7S8LBX6B4LZHA15HWKMRICQHQ0XD0H.png", "list-thumb": "https://api.plotly.com/v2/files/luvvvvs:26/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/luvvvvs:26", "plots": "https://api.plotly.com/v2/plots/luvvvvs:26", "parent": "https://api.plotly.com/v2/folders/home?user=luvvvvs" }, "owner": "luvvvvs", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 1, "web_url": "https://chart-studio.plotly.com/~luvvvvs/26/", "world_readable": true, "date_modified": "2025-06-28T23:04:28.745Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~luvvvvs/26/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "meta": { "columnNames": { "x": "x", "y": "y" } }, "mode": "lines+markers", "type": "scatter", "xsrc": "luvvvvs:25:1f477a", "ysrc": "luvvvvs:25:e594ce" } ], "frames": [], "layout": { "xaxis": { "type": "linear", "range": [ 0.9401603948180136, 2.0598396051819865 ], "autorange": true }, "yaxis": { "type": "linear", "range": [ -10.869409576491387, -9.635633651174354 ], "autorange": true }, "autosize": true } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~luvvvvs", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/35.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-13.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2025-04-22 07:31:14", "mapbox_access_tokens": null, "has_password": null, "username": "luvvvvs", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2025-06-28T22:46:50.072146Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~zlo003/3.embed", "fid": "zlo003:3", "filename": "Plot 3", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/zlo003:3/image?image_name=list-thumb", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/zlo003/3/2_4NUI2O0Y0NAQ2VHKC64XPMO7XBTJU6.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/zlo003/3/8_1KSX6XC58J81S0U6FIRRCZJ4B8UQEH.png", "list-thumb": "https://api.plotly.com/v2/files/zlo003:3/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/zlo003:3", "plots": "https://api.plotly.com/v2/plots/zlo003:3", "parent": "https://api.plotly.com/v2/folders/home?user=zlo003" }, "owner": "zlo003", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 2, "web_url": "https://chart-studio.plotly.com/~zlo003/3/", "world_readable": true, "date_modified": "2025-06-28T22:46:50.084Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~zlo003/3/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "uid": "e200fb", "meta": { "columnNames": { "x": "x", "y": "y" } }, "mode": "lines", "type": "scatter", "xsrc": "zlo003:2:ccbcb2", "ysrc": "zlo003:2:37a805" }, { "uid": "299ac2", "transforms": [ { "rms": "", "type": "fit", "inputUid": "e200fb", "regressor": "x", "parameters": [ { "hold": false, "name": "a", "error": 2.7334855577781076e-09, "value": -4.861015887335495e-07 }, { "hold": false, "name": "b", "error": 1.0559434573324328e-06, "value": -0.00022886023644648707 }, { "hold": false, "name": "c", "error": 8.846481632685525e-05, "value": 193.08165255172872 } ], "regressand": "y", "correlation": "", "fitfunction": "a*x^2 + b*x + c", "inputxrange": [], "outputxrange": [], "interpolation": 50 } ] } ], "frames": [], "layout": { "xaxis": { "type": "linear", "range": [ 27.84503092323979, 347.56755752836955 ], "autorange": true }, "yaxis": { "type": "linear", "range": [ 192.93603988954484, 193.08221162114847 ], "autorange": true }, "autosize": true } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~zlo003", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/1.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-10.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2025-06-28 22:20:18", "mapbox_access_tokens": null, "has_password": null, "username": "zlo003", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2025-06-28T22:42:58.365707Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~ishtumpid/9.embed", "fid": "ishtumpid:9", "filename": "OCA_Monolayer", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/ishtumpid:9/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/ishtumpid:9/image?image_name=default", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/ishtumpid/9/8_NSW8C9233CBMEDJ7U8R6MKKKU74E1Y.png", "list-thumb": "https://api.plotly.com/v2/files/ishtumpid:9/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/ishtumpid:9", "plots": "https://api.plotly.com/v2/plots/ishtumpid:9", "parent": "https://api.plotly.com/v2/folders/home?user=ishtumpid" }, "owner": "ishtumpid", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 1, "web_url": "https://chart-studio.plotly.com/~ishtumpid/9/", "world_readable": true, "date_modified": "2025-07-03T14:06:29.788Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~ishtumpid/9/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "line": { "color": "rgb(214, 40, 40)", "shape": "spline", "smoothing": 1.3 }, "meta": { "columnNames": { "x": "A", "y": "B" } }, "mode": "markers+lines", "name": "<b>C</b><sub><b>octa</b></sub><b> = 0.25 mM</b>", "type": "scatter", "xsrc": "ishtumpid:8:5a9e7c", "ysrc": "ishtumpid:8:2b8eab", "marker": { "line": { "color": "rgb(0, 0, 0)", "width": 2 } } }, { "line": { "dash": "dot", "color": "rgb(6, 214, 160)", "shape": "spline", "smoothing": 1.3 }, "meta": { "columnNames": { "x": "A", "y": "C" } }, "mode": "markers+lines", "name": "<b>C</b><sub><b>octa</b></sub><b> = 2.27 mM</b>", "type": "scatter", "xsrc": "ishtumpid:8:5a9e7c", "ysrc": "ishtumpid:8:bda7b8", "marker": { "line": { "color": "rgb(0, 0, 0)", "width": 2 }, "symbol": "square" }, "stackgroup": null }, { "line": { "dash": "dash", "color": "rgb(255, 190, 11)", "shape": "spline", "smoothing": 1.3 }, "meta": { "columnNames": { "x": "A", "y": "D" } }, "mode": "markers+lines", "name": "<b>C</b><sub><b>octa</b></sub><b> = 12.50 mM</b>", "type": "scatter", "xsrc": "ishtumpid:8:5a9e7c", "ysrc": "ishtumpid:8:08c993", "marker": { "line": { "color": "rgb(0, 0, 0)", "width": 2 }, "symbol": "diamond" }, "stackgroup": null }, { "line": { "dash": "dashdot", "color": "rgb(112, 214, 255)", "shape": "spline", "smoothing": 1.3 }, "meta": { "columnNames": { "x": "A", "y": "E" } }, "mode": "markers+lines", "name": "<b>C</b><sub><b>octa</b></sub><b> = 22.73 mM</b>", "type": "scatter", "xsrc": "ishtumpid:8:5a9e7c", "ysrc": "ishtumpid:8:a6a9cd", "marker": { "line": { "color": "rgb(0, 0, 0)", "width": 2 }, "symbol": "x" }, "stackgroup": null }, { "line": { "color": "rgb(214, 40, 40)", "shape": "spline", "smoothing": 1.3 }, "meta": { "columnNames": { "x": "G", "y": "H" } }, "mode": "markers+lines", "type": "scatter", "xsrc": "ishtumpid:8:aecab4", "ysrc": "ishtumpid:8:f48894", "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "rgb(0, 0, 0)", "width": 2 } }, "showlegend": false, "stackgroup": null }, { "line": { "dash": "dot", "color": "rgb(6, 214, 160)", "shape": "spline", "smoothing": 1.3 }, "meta": { "columnNames": { "x": "G", "y": "I" } }, "mode": "markers+lines", "type": "scatter", "xsrc": "ishtumpid:8:aecab4", "ysrc": "ishtumpid:8:f6c5cf", "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "rgb(0, 0, 0)", "width": 2 }, "symbol": "square" }, "showlegend": false, "stackgroup": null }, { "line": { "dash": "dash", "color": "rgb(255, 190, 11)", "shape": "spline", "smoothing": 1.3 }, "meta": { "columnNames": { "x": "G", "y": "J" } }, "mode": "markers+lines", "type": "scatter", "xsrc": "ishtumpid:8:aecab4", "ysrc": "ishtumpid:8:98f39e", "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "rgb(0, 0, 0)", "width": 2 }, "symbol": "diamond" }, "showlegend": false, "stackgroup": null }, { "line": { "dash": "dashdot", "color": "rgb(112, 214, 255)", "shape": "spline", "smoothing": 1.3 }, "meta": { "columnNames": { "x": "G", "y": "K" } }, "mode": "markers+lines", "type": "scatter", "xsrc": "ishtumpid:8:aecab4", "ysrc": "ishtumpid:8:c1cc08", "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "rgb(0, 0, 0)", "width": 2 }, "symbol": "x" }, "showlegend": false, "stackgroup": null }, { "line": { "color": "rgb(214, 40, 40)", "shape": "spline", "smoothing": 1.3 }, "meta": { "columnNames": { "x": "M", "y": "N" } }, "mode": "markers+lines", "type": "scatter", "xsrc": "ishtumpid:8:865089", "ysrc": "ishtumpid:8:5c8f10", "xaxis": "x3", "yaxis": "y3", "marker": { "line": { "color": "rgb(0, 0, 0)", "width": 2 } }, "showlegend": false, "stackgroup": null }, { "line": { "dash": "dot", "color": "rgb(6, 214, 160)", "shape": "spline", "smoothing": 1.3 }, "meta": { "columnNames": { "x": "M", "y": "O" } }, "mode": "markers+lines", "type": "scatter", "xsrc": "ishtumpid:8:865089", "ysrc": "ishtumpid:8:32d56c", "xaxis": "x3", "yaxis": "y3", "marker": { "line": { "color": "rgb(0, 0, 0)", "width": 2 }, "symbol": "square" }, "showlegend": false, "stackgroup": null }, { "line": { "dash": "dash", "color": "rgb(255, 190, 11)", "shape": "spline", "smoothing": 1.3 }, "meta": { "columnNames": { "x": "M", "y": "P" } }, "mode": "markers+lines", "type": "scatter", "xsrc": "ishtumpid:8:865089", "ysrc": "ishtumpid:8:5c2dff", "xaxis": "x3", "yaxis": "y3", "marker": { "line": { "color": "rgb(0, 0, 0)", "width": 2 }, "symbol": "diamond" }, "showlegend": false, "stackgroup": null }, { "line": { "dash": "dashdot", "color": "rgb(112, 214, 255)", "shape": "spline", "smoothing": 1.3 }, "meta": { "columnNames": { "x": "M", "y": "Q" } }, "mode": "markers+lines", "type": "scatter", "xsrc": "ishtumpid:8:865089", "ysrc": "ishtumpid:8:4f32de", "xaxis": "x3", "yaxis": "y3", "marker": { "line": { "color": "rgb(0, 0, 0)", "width": 2 }, "symbol": "x" }, "showlegend": false, "stackgroup": null }, { "line": { "color": "rgb(214, 40, 40)", "shape": "spline", "smoothing": 1.3 }, "meta": { "columnNames": { "x": "S", "y": "T" } }, "mode": "markers+lines", "type": "scatter", "xsrc": "ishtumpid:8:7747fe", "ysrc": "ishtumpid:8:a2707e", "xaxis": "x4", "yaxis": "y4", "marker": { "line": { "color": "rgb(0, 0, 0)", "width": 2 } }, "showlegend": false, "stackgroup": null }, { "line": { "dash": "dot", "color": "rgb(6, 214, 160)", "shape": "spline", "smoothing": 1.3 }, "meta": { "columnNames": { "x": "S", "y": "U" } }, "mode": "markers+lines", "type": "scatter", "xsrc": "ishtumpid:8:7747fe", "ysrc": "ishtumpid:8:b99224", "xaxis": "x4", "yaxis": "y4", "marker": { "line": { "color": "rgb(0, 0, 0)", "width": 2 }, "symbol": "square" }, "showlegend": false, "stackgroup": null }, { "line": { "dash": "dash", "color": "rgb(255, 190, 11)", "shape": "spline", "smoothing": 1.3 }, "meta": { "columnNames": { "x": "S", "y": "V" } }, "mode": "markers+lines", "type": "scatter", "xsrc": "ishtumpid:8:7747fe", "ysrc": "ishtumpid:8:1332fb", "xaxis": "x4", "yaxis": "y4", "marker": { "line": { "color": "rgb(0, 0, 0)", "width": 2 }, "symbol": "diamond" }, "showlegend": false, "stackgroup": null }, { "line": { "dash": "dashdot", "color": "rgb(112, 214, 255)", "shape": "spline", "smoothing": 1.3 }, "meta": { "columnNames": { "x": "S", "y": "W" } }, "mode": "markers+lines", "type": "scatter", "xsrc": "ishtumpid:8:7747fe", "ysrc": "ishtumpid:8:234db9", "xaxis": "x4", "yaxis": "y4", "marker": { "line": { "color": "rgb(0, 0, 0)", "width": 2 }, "symbol": "x" }, "showlegend": false, "stackgroup": null } ], "frames": [], "layout": { "xaxis": { "side": "top", "type": "log", "range": [ 0.7302391383716684, 5.269760861628331 ], "ticks": "outside", "title": { "font": { "size": 18, "color": "rgb(0, 0, 0)", "family": "Arial" }, "text": "<b>Radius (nm)</b>" }, "domain": [ 0, 0.49 ], "mirror": "ticks", "ticklen": 6, "showgrid": false, "showline": true, "tickfont": { "size": 16, "color": "rgb(0, 0, 0)", "family": "Arial" }, "zeroline": false, "autorange": true, "linecolor": "rgb(0, 0, 0)", "tickcolor": "rgb(0, 0, 0)", "tickwidth": 2, "exponentformat": "power" }, "yaxis": { "type": "linear", "range": [ -0.07593770265193711, 1.076167652651937 ], "ticks": "outside", "title": { "font": { "size": 18, "color": "rgb(0, 0, 0)", "family": "Arial" }, "text": "<b>x</b><sub><b>2</b></sub><sup><b>S</b></sup>" }, "domain": [ 0.51, 1 ], "mirror": "ticks", "ticklen": 6, "showgrid": false, "showline": true, "tickfont": { "size": 16, "color": "rgb(0, 0, 0)", "family": "Arial" }, "zeroline": false, "autorange": true, "linecolor": "rgb(0, 0, 0)", "tickcolor": "rgb(0, 0, 0)", "tickwidth": 2 }, "legend": { "x": 0.011736347943244484, "y": 0.8869322425773972, "font": { "size": 16, "color": "rgb(0, 0, 0)", "family": "Arial" }, "orientation": "v" }, "xaxis2": { "side": "bottom", "type": "log", "range": [ 0.7302391383716684, 5.269760861628331 ], "ticks": "outside", "title": { "font": { "size": 18, "color": "rgb(0, 0, 0)", "family": "Arial" }, "text": "<b>Radius (nm)</b>" }, "anchor": "y2", "domain": [ 0, 0.49 ], "mirror": "ticks", "ticklen": 6, "showgrid": false, "showline": true, "tickfont": { "size": 16, "color": "rgb(0, 0, 0)", "family": "Arial" }, "zeroline": false, "autorange": true, "linecolor": "rgb(0, 0, 0)", "tickcolor": "rgb(0, 0, 0)", "tickwidth": 2, "overlaying": false, "exponentformat": "power" }, "xaxis3": { "side": "top", "type": "log", "range": [ 0.7302391383716684, 5.269760861628331 ], "ticks": "outside", "title": { "font": { "size": 18, "color": "rgb(0, 0, 0)", "family": "Arial" }, "text": "<b>Radius (nm)</b>" }, "anchor": "y3", "domain": [ 0.51, 1 ], "mirror": "ticks", "ticklen": 6, "showgrid": false, "showline": true, "tickfont": { "size": 16, "color": "rgb(0, 0, 0)", "family": "Arial" }, "zeroline": false, "autorange": true, "linecolor": "rgb(0, 0, 0)", "tickcolor": "rgb(0, 0, 0)", "tickwidth": 2, "overlaying": false, "exponentformat": "power" }, "xaxis4": { "side": "bottom", "type": "log", "range": [ 0.7302391383716684, 5.269760861628331 ], "ticks": "outside", "title": { "font": { "size": 18, "color": "rgb(0, 0, 0)", "family": "Arial" }, "text": "<b>Radius (nm)</b>" }, "anchor": "y4", "domain": [ 0.51, 1 ], "mirror": "ticks", "ticklen": 6, "showgrid": false, "showline": true, "tickfont": { "size": 16, "color": "rgb(0, 0, 0)", "family": "Arial" }, "zeroline": false, "autorange": true, "linecolor": "rgb(0, 0, 0)", "tickcolor": "rgb(0, 0, 0)", "tickwidth": 2, "overlaying": false, "exponentformat": "power" }, "yaxis2": { "side": "left", "type": "linear", "range": [ -0.00036798131699467755, 0.0005045013169946776 ], "ticks": "outside", "title": { "font": { "size": 18, "color": "rgb(0, 0, 0)", "family": "Arial" }, "text": "<b>x</b><sub><b>2</b></sub><sup><b>b</b></sup>" }, "anchor": "x2", "domain": [ 0, 0.49 ], "mirror": "ticks", "ticklen": 6, "showgrid": false, "showline": true, "tickfont": { "size": 16, "color": "rgb(0, 0, 0)", "family": "Arial" }, "zeroline": false, "autorange": true, "linecolor": "rgb(0, 0, 0)", "tickcolor": "rgb(0, 0, 0)", "tickwidth": 2, "overlaying": false, "exponentformat": "E" }, "yaxis3": { "side": "right", "type": "linear", "range": [ 0.35, 0.85 ], "ticks": "outside", "title": { "font": { "size": 18, "color": "rgb(0, 0, 0)", "family": "Arial" }, "text": "<b>δ (nm)</b>" }, "anchor": "x3", "domain": [ 0.51, 1 ], "mirror": "ticks", "ticklen": 6, "showgrid": false, "showline": true, "tickfont": { "size": 16, "color": "rgb(0, 0, 0)", "family": "Arial" }, "zeroline": false, "autorange": false, "linecolor": "rgb(0, 0, 0)", "tickcolor": "rgb(0, 0, 0)", "tickwidth": 2, "overlaying": false }, "yaxis4": { "side": "right", "type": "linear", "range": [ 20, 80 ], "ticks": "outside", "title": { "font": { "size": 18, "color": "rgb(0, 0, 0)", "family": "Arial" }, "text": "<b>σ (mN m</b><sup><b>-1</b></sup><b>)</b>" }, "anchor": "x4", "domain": [ 0, 0.49 ], "mirror": "ticks", "ticklen": 6, "showgrid": false, "showline": true, "tickfont": { "size": 16, "color": "rgb(0, 0, 0)", "family": "Arial" }, "zeroline": false, "autorange": false, "linecolor": "rgb(0, 0, 0)", "tickcolor": "rgb(0, 0, 0)", "tickwidth": 2, "overlaying": false }, "autosize": true, "template": { "data": { "bar": [ { "type": "bar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatter": [ { "type": "scatter", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "histogram": [ { "type": "histogram", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "white", "showlakes": true, "subunitcolor": "#C8D4E3" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "white", "radialaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" }, "angularaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "yaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "zaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "baxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "caxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "bgcolor": "white" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#19d3f3", "#e763fa", "#fecb52", "#ffa15a", "#ff6692", "#b6e880" ], "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ], "sequentialminus": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ] }, "plot_bgcolor": "white", "paper_bgcolor": "white", "shapedefaults": { "line": { "width": 0 }, "opacity": 0.4, "fillcolor": "#506784" }, "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#506784", "arrowwidth": 1 } }, "themeRef": "PLOTLY_WHITE" } } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~ishtumpid", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/44.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-11.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2025-04-17 18:18:45", "mapbox_access_tokens": null, "has_password": null, "username": "ishtumpid", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2025-06-28T22:39:32.520855Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~luvvvvs/24.embed", "fid": "luvvvvs:24", "filename": "Plot 24", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/luvvvvs:24/image?image_name=list-thumb", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/luvvvvs/24/2_7QF1CE0VEOOX8J5LH4X9CJ7FY05HTB.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/luvvvvs/24/8_QY78SO9B5L1ZBN7HP1Q74NR3K4H99C.png", "list-thumb": "https://api.plotly.com/v2/files/luvvvvs:24/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/luvvvvs:24", "plots": "https://api.plotly.com/v2/plots/luvvvvs:24", "parent": "https://api.plotly.com/v2/folders/home?user=luvvvvs" }, "owner": "luvvvvs", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 2, "web_url": "https://chart-studio.plotly.com/~luvvvvs/24/", "world_readable": true, "date_modified": "2025-06-28T22:39:32.535Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~luvvvvs/24/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "meta": { "columnNames": { "x": "x", "y": "y" } }, "mode": "lines+markers", "type": "scatter", "xsrc": "luvvvvs:23:ef07dd", "ysrc": "luvvvvs:23:9259f8" } ], "frames": [], "layout": { "title": { "text": "medum mass (plastic)" }, "xaxis": { "type": "linear", "range": [ 0.8803207896360271, 3.119679210363973 ], "autorange": true }, "yaxis": { "type": "linear", "range": [ 8.353460029075269, 10.289637614022435 ], "autorange": true }, "autosize": true } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~luvvvvs", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/35.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-13.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2025-04-22 07:31:14", "mapbox_access_tokens": null, "has_password": null, "username": "luvvvvs", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } } ] }
