Plots List
Plots
This endpoint handles manipulation of Plotly plot files.
Reference
Authorization
Any user with or without a Plotly account may view public plots. For private plots, see authentication.
Actions
list
Listing all public plots can be done via a GET request to this endpoint.
By default, plots will be listed in order of date created. The order_by
query parameter is accepted at this endpoint. Currently, only ordering by
views is supported. It is possible to filter the plots by quality
with min_quality or max_quality as query parameter.
Example:
// GET https://api.plotly.com/v2/plots/ ---> 200
// GET https://api.plotly.com/v2/plots/?order_by=-views ---> 200
// GET https://api.plotly.com/v2/plots/?min_quality=5 ---> 200
// GET https://api.plotly.com/v2/plots/?max_quality=5 ---> 200
feed
Listing all handpicked feed plots can be done via a GET request to this endpoint. By default, plots will be listed in a random order.
Example:
// GET https://api.plotly.com/v2/plots/feed ---> 200
create
You can create new plot resources here. The only required field is 'figure'. Currently, the figure is restricted to only contain references to grid data. That is, this will fail if raw data arrays are passed in. To create and manipulate underlying grids for plots, see the grids endpoint.
Example:
// This fails because a figure field is required.
// POST https://api.plotly.com/v2/plots ---> 400 Bad Request
{}
// This fails because the figure has raw data
//POST https://api.plotly.com/v2/plots ---> 400 Bad Request
{
"figure": {"data": [{"y": ['this', 'is', 'raw', 'data']}]}
}
// This succeeds because the figure has src keys, not raw data.
//POST https://api.plotly.com/v2/plots ---> 200 OK
{
"figure": {"data": [{"ysrc": "sven:88:u8nd62"}]}
}
When creating a grid, you can optionally specify a source_fid to specify where a plot has come from:
- source_fid: the fid of a plot that was copied (and presumably edited) to produce this one
detail
There is a lot of meta information stored about plot files including filename, title, share_url, and content_url to name a few.
This information can only be reached with a GET to this endpoint.
Example:
// GET https://api.plotly.com/v2/plots/iheartgraphs:90
content
The contents of a plot can be downloaded via the content resource. The plot
content contains referenced grid/column data by default. If you wish to
return the raw grid/column data, the inline_data=true query must be included
in the request url. The Content-Type header will be appropriately set for the
response body.
Alternatively, you can set ?map_data=unreadable to append a mapping of
sources to data that belongs to grids which are unreadable for the
requestor. This is useful when you have read access to another users plot,
but that plot contains grid references which you don't have access to.
Examples:
// Returns referenced grid/column data
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content ---> 200 OK
// Returns full grid/column data
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content?inline_data=true ---> 200 OK
// Returns full grid/column data when requestor doesn't have permission
// to read the referenced grid.
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content?map_data=unreadable ---> 200 OK
GET /v2/plots/?cursor=cD0yMDI1LTA2LTI3KzAyJTNBMjglM0EzMS4wNjYzODIlMkIwMCUzQTAw&format=api

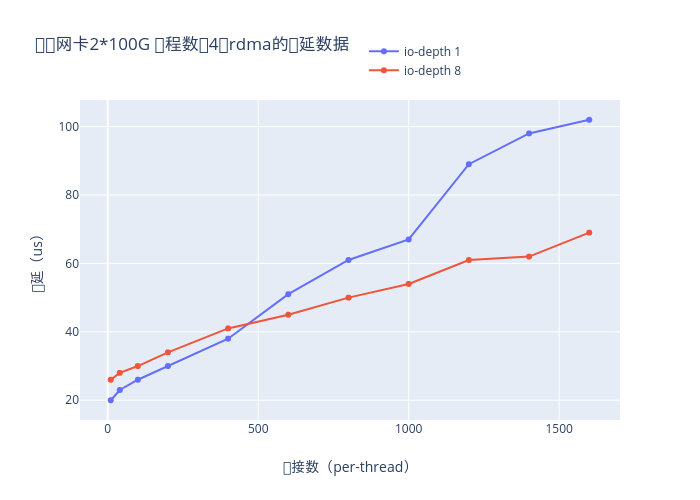

{ "next": "https://api.plot.ly/v2/plots/?cursor=cD0yMDI1LTA2LTI2KzIwJTNBNDclM0EwOC41MzYyODQlMkIwMCUzQTAw&format=api", "previous": "https://api.plot.ly/v2/plots/?cursor=cj0xJnA9MjAyNS0wNi0yNyswMiUzQTE4JTNBMDEuNTgwOTQxJTJCMDAlM0EwMA%3D%3D&format=api", "results": [ { "creation_time": "2025-06-27T02:18:01.580941Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~legend05070911/3.embed", "fid": "legend05070911:3", "filename": "华为网卡2*100G 线程数为4时rdma的时延数据plot", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/legend05070911:3/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/legend05070911:3/image?image_name=default", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/legend05070911/3/8_RCM0BWBZ84WY18HM6QLEYHXXDDAEVV.png", "list-thumb": "https://api.plotly.com/v2/files/legend05070911:3/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/legend05070911:3", "plots": "https://api.plotly.com/v2/plots/legend05070911:3", "parent": "https://api.plotly.com/v2/folders/home?user=legend05070911" }, "owner": "legend05070911", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~legend05070911/3/", "world_readable": true, "date_modified": "2025-06-27T04:56:00.063Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~legend05070911/3/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "meta": { "columnNames": { "x": "data.0.x", "y": "data.0.y" } }, "mode": "lines+markers", "name": "io-depth 1", "type": "scatter", "xsrc": "legend05070911:2:8cb16b", "ysrc": "legend05070911:2:b425c5" }, { "meta": { "columnNames": { "x": "data.1.x", "y": "data.1.y" } }, "mode": "lines+markers", "name": "io-depth 8", "type": "scatter", "xsrc": "legend05070911:2:54517a", "ysrc": "legend05070911:2:93ca71", "xaxis": "x" } ], "frames": [], "layout": { "title": { "text": "华为网卡2*100G 线程数为4时rdma的时延数据" }, "xaxis": { "type": "linear", "range": [ -84.832254267216, 1694.832254267216 ], "title": { "text": "连接数（per-thread）" }, "autorange": true, "showspikes": false }, "yaxis": { "type": "linear", "range": [ 13.684183410613088, 108.31581658938691 ], "title": { "text": "时延（us）" }, "autorange": true, "showspikes": false }, "legend": { "x": 0.5257591511327885, "y": 1.197547467487647 }, "autosize": true, "dragmode": "zoom", "template": { "data": { "bar": [ { "type": "bar", "marker": { "line": { "color": "#E5ECF6", "width": 0.5 } } } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "white", "linecolor": "white", "endlinecolor": "#2a3f5f", "minorgridcolor": "white", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "white", "linecolor": "white", "endlinecolor": "#2a3f5f", "minorgridcolor": "white", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1, "#f0f921" ] ] } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1, "#f0f921" ] ] } ], "scatter": [ { "type": "scatter", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "barpolar": [ { "type": "barpolar", "marker": { "line": { "color": "#E5ECF6", "width": 0.5 } } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "histogram": [ { "type": "histogram", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1, "#f0f921" ] ] } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1, "#f0f921" ] ] } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "#E5ECF6", "showlakes": true, "subunitcolor": "white" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "#E5ECF6", "radialaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "angularaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "white", "gridwidth": 2, "linecolor": "white", "zerolinecolor": "white", "showbackground": true, "backgroundcolor": "#E5ECF6" }, "yaxis": { "ticks": "", "gridcolor": "white", "gridwidth": 2, "linecolor": "white", "zerolinecolor": "white", "showbackground": true, "backgroundcolor": "#E5ECF6" }, "zaxis": { "ticks": "", "gridcolor": "white", "gridwidth": 2, "linecolor": "white", "zerolinecolor": "white", "showbackground": true, "backgroundcolor": "#E5ECF6" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white", "automargin": true, "zerolinecolor": "white", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white", "automargin": true, "zerolinecolor": "white", "zerolinewidth": 2 }, "mapbox": { "style": "light" }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "baxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "caxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "bgcolor": "#E5ECF6" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#FFA15A", "#19d3f3", "#FF6692", "#B6E880", "#FF97FF", "#FECB52" ], "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1, "#f0f921" ] ], "sequentialminus": [ [ 0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1, "#f0f921" ] ] }, "hoverlabel": { "align": "left" }, "plot_bgcolor": "#E5ECF6", "paper_bgcolor": "white", "shapedefaults": { "line": { "width": 0 }, "opacity": 0.4, "fillcolor": "#506784" }, "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#506784", "arrowwidth": 1 } } } } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~legend05070911", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/33.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-11.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2025-06-26 13:16:36", "mapbox_access_tokens": null, "has_password": null, "username": "legend05070911", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2025-06-27T02:04:40.883697Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~cjdeok/13.embed", "fid": "cjdeok:13", "filename": "Plot 13", "filetype": "plot", "img_url": "https://storage.googleapis.com/plotly-prod-images/cjdeok/13/9_O4C3CDHZJTGC1KVZ6HSBS3ADDF1NGB.png", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/cjdeok/13/2_GVSDI4306HMQYYCY9GEDXRK3HHAVVZ.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/cjdeok/13/8_L1O56MGUP40AX57PBFWORI7WBWC6IF.png", "list-thumb": "https://storage.googleapis.com/plotly-prod-images/cjdeok/13/9_O4C3CDHZJTGC1KVZ6HSBS3ADDF1NGB.png" }, "api_urls": { "files": "https://api.plotly.com/v2/files/cjdeok:13", "plots": "https://api.plotly.com/v2/plots/cjdeok:13", "parent": "https://api.plotly.com/v2/folders/home?user=cjdeok" }, "owner": "cjdeok", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~cjdeok/13/", "world_readable": true, "date_modified": "2025-06-27T02:04:40.898Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~cjdeok/13/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "meta": { "columnNames": { "x": "연도", "y": " 102㎡초과" } }, "mode": "lines", "type": "scatter", "xsrc": "cjdeok:8:f81f3e", "ysrc": "cjdeok:8:b30529", "orientation": "v" }, { "meta": { "columnNames": { "x": "연도", "y": " 60㎡이하" } }, "mode": "lines", "type": "scatter", "xsrc": "cjdeok:8:f81f3e", "ysrc": "cjdeok:8:eb3f80", "stackgroup": null }, { "meta": { "columnNames": { "x": "연도", "y": " 60㎡초과 85㎡이하" } }, "mode": "lines", "type": "scatter", "xsrc": "cjdeok:8:f81f3e", "ysrc": "cjdeok:8:0fbd6d", "stackgroup": null }, { "meta": { "columnNames": { "x": "연도", "y": " 85㎡초과 102㎡이하" } }, "mode": "lines", "type": "scatter", "xsrc": "cjdeok:8:f81f3e", "ysrc": "cjdeok:8:cdb65f", "stackgroup": null } ], "frames": [], "layout": { "xaxis": { "type": "linear", "range": [ 2015, 2020 ], "autorange": true }, "yaxis": { "type": "linear", "range": [ 2592.401111111111, 4634.178888888889 ], "autorange": true }, "autosize": true, "template": { "data": { "bar": [ { "type": "bar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatter": [ { "type": "scatter", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "histogram": [ { "type": "histogram", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "white", "showlakes": true, "subunitcolor": "#C8D4E3" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "white", "radialaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" }, "angularaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "yaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "zaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "baxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "caxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "bgcolor": "white" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#19d3f3", "#e763fa", "#fecb52", "#ffa15a", "#ff6692", "#b6e880" ], "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ], "sequentialminus": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ] }, "plot_bgcolor": "white", "paper_bgcolor": "white", "shapedefaults": { "line": { "width": 0 }, "opacity": 0.4, "fillcolor": "#506784" }, "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#506784", "arrowwidth": 1 } }, "themeRef": "PLOTLY_WHITE" } } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~cjdeok", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/79.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-5.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2025-06-27 01:02:42", "mapbox_access_tokens": null, "has_password": null, "username": "cjdeok", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2025-06-27T02:03:01.771003Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~vijay.karthik/3.embed", "fid": "vijay.karthik:3", "filename": "Plot 3", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/vijay.karthik:3/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/vijay.karthik:3/image?image_name=default", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/vijay.karthik/3/8_64SBF83ACD0GLR0A0FTK4451D3Z661.png", "list-thumb": "https://api.plotly.com/v2/files/vijay.karthik:3/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/vijay.karthik:3", "plots": "https://api.plotly.com/v2/plots/vijay.karthik:3", "parent": "https://api.plotly.com/v2/folders/home?user=vijay.karthik" }, "owner": "vijay.karthik", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 1, "web_url": "https://chart-studio.plotly.com/~vijay.karthik/3/", "world_readable": true, "date_modified": "2025-07-05T12:04:51.434Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~vijay.karthik/3/", "current_user_permission": "read", "is_theme": null, "is_template": true, "autosize": true, "caption": "", "figure": { "data": [ { "meta": { "columnNames": { "x": "Match Ball No", "y": "PitchLength", "z": "COF", "marker": { "color": "Paceorspin" } } }, "mode": "markers", "type": "scatter3d", "xsrc": "vijay.karthik:2:ec3234", "ysrc": "vijay.karthik:2:cc1e81", "zsrc": "vijay.karthik:2:d8da48", "marker": { "meta": { "columnNames": { "color": "Paceorspin" } }, "colorsrc": "vijay.karthik:2:0f4276" } } ], "frames": [], "layout": { "scene": { "xaxis": { "type": "linear", "title": { "text": "Ball No" } }, "yaxis": { "type": "linear", "title": { "text": "Pitch Length" } }, "zaxis": { "type": "linear", "title": { "text": "COR" } }, "camera": { "up": { "x": 0, "y": 0, "z": 1 }, "eye": { "x": -1.5127613750788849, "y": -1.2757509812169767, "z": -0.39037250739920987 }, "center": { "x": 0.10580642658373043, "y": 0.13439412071250442, "z": -0.10889593124168719 }, "projection": { "type": "orthographic" } }, "dragmode": "turntable", "aspectmode": "manual", "aspectratio": { "x": 2.3579476910000117, "y": 2.3579476910000117, "z": 2.3579476910000117 } }, "title": { "text": "Click to enter Plot title" }, "xaxis": { "range": [ -1, 6 ], "autorange": true }, "yaxis": { "range": [ -1, 4 ], "autorange": true }, "autosize": true, "dragmode": "zoom", "template": { "data": { "bar": [ { "type": "bar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatter": [ { "type": "scatter", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "histogram": [ { "type": "histogram", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "white", "showlakes": true, "subunitcolor": "#C8D4E3" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "white", "radialaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" }, "angularaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "yaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "zaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "baxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "caxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "bgcolor": "white" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#19d3f3", "#e763fa", "#fecb52", "#ffa15a", "#ff6692", "#b6e880" ], "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ], "sequentialminus": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ] }, "plot_bgcolor": "white", "paper_bgcolor": "white", "shapedefaults": { "line": { "width": 0 }, "opacity": 0.4, "fillcolor": "#506784" }, "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#506784", "arrowwidth": 1 } }, "themeRef": "PLOTLY_WHITE" } } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~vijay.karthik", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/24.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-4.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2025-06-26 12:55:29", "mapbox_access_tokens": null, "has_password": null, "username": "vijay.karthik", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2025-06-26T23:54:02.347726Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~wooeng/1.embed", "fid": "wooeng:1", "filename": "Plot 1", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/wooeng:1/image?image_name=list-thumb", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/wooeng/1/2_6Q1SJW2SW3NQ0C1ELKNZ5YMQF4SG4W.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/wooeng/1/8_6USKHYDIFKF2TO646H71KB5L55N35W.png", "list-thumb": "https://api.plotly.com/v2/files/wooeng:1/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/wooeng:1", "plots": "https://api.plotly.com/v2/plots/wooeng:1", "parent": "https://api.plotly.com/v2/folders/home?user=wooeng" }, "owner": "wooeng", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~wooeng/1/", "world_readable": true, "date_modified": "2025-06-26T23:54:02.357Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~wooeng/1/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "meta": { "columnNames": { "x": "ì ì", "y": "ì ë¥" } }, "mode": "markers", "type": "scatter", "xsrc": "wooeng:0:42a771", "ysrc": "wooeng:0:7b42cf" }, { "meta": { "columnNames": { "x": "ì ì", "y": "ì¶ë ¥" } }, "mode": "markers", "type": "scatter", "xsrc": "wooeng:0:42a771", "ysrc": "wooeng:0:d3d740", "stackgroup": null } ], "frames": [], "layout": { "xaxis": { "type": "linear", "range": [ -0.021180789232181106, 1.461180789232181 ], "autorange": true }, "yaxis": { "type": "linear", "range": [ -0.00010750968264276831, 0.003641865237942768 ], "autorange": true }, "autosize": true, "template": { "data": { "bar": [ { "type": "bar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatter": [ { "type": "scatter", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "histogram": [ { "type": "histogram", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "white", "showlakes": true, "subunitcolor": "#C8D4E3" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "white", "radialaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" }, "angularaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "yaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "zaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "baxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "caxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "bgcolor": "white" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#19d3f3", "#e763fa", "#fecb52", "#ffa15a", "#ff6692", "#b6e880" ], "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ], "sequentialminus": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ] }, "plot_bgcolor": "white", "paper_bgcolor": "white", "shapedefaults": { "line": { "width": 0 }, "opacity": 0.4, "fillcolor": "#506784" }, "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#506784", "arrowwidth": 1 } }, "themeRef": "PLOTLY_WHITE" } } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~wooeng", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/27.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-7.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2025-06-26 23:42:00", "mapbox_access_tokens": null, "has_password": null, "username": "wooeng", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2025-06-26T23:50:24.452624Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~gtchen/11.embed", "fid": "gtchen:11", "filename": "Plot 11", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/gtchen:11/image?image_name=list-thumb", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/gtchen/11/2_F32ZJSE3ZBG0O3VH0CKPXMZ35Q9259.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/gtchen/11/8_8RSMEIIE96RHB3SMAVCPLGIY12I6SE.png", "list-thumb": "https://api.plotly.com/v2/files/gtchen:11/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/gtchen:11", "plots": "https://api.plotly.com/v2/plots/gtchen:11", "parent": "https://api.plotly.com/v2/folders/home?user=gtchen" }, "owner": "gtchen", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~gtchen/11/", "world_readable": true, "date_modified": "2025-06-26T23:50:24.465Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~gtchen/11/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "meta": { "columnNames": { "x": "x", "y": "y" } }, "mode": "markers+lines", "name": "Baseline Kissat ", "type": "scatter", "xsrc": "gtchen:10:0709e1", "ysrc": "gtchen:10:5f1638", "marker": { "opacity": 0.6 } }, { "meta": { "columnNames": { "x": "C", "y": "D" } }, "mode": "markers+lines", "name": "ML-Kissat", "type": "scatter", "xsrc": "gtchen:10:91f7d0", "ysrc": "gtchen:10:6440f7", "marker": { "symbol": "diamond", "opacity": 0.6 } } ], "frames": [], "layout": { "font": { "size": 20 }, "title": { "text": "Figure 4: Baseline Kissat vs ML-Kissat" }, "xaxis": { "type": "linear", "range": [ -11.66453447050462, 219.66453447050463 ], "title": { "text": "Problems solved" }, "autorange": true }, "yaxis": { "type": "linear", "dtick": 1000, "range": [ -260.8206256109482, 4262.820625610948 ], "tick0": 0, "title": { "text": "Time" }, "tickmode": "linear", "autorange": true }, "images": [], "legend": { "x": 0.9585681914199025, "y": 1 }, "shapes": [], "autosize": true, "dragmode": "zoom", "annotations": [] } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~gtchen", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/73.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-4.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2025-03-16 01:32:56", "mapbox_access_tokens": null, "has_password": null, "username": "gtchen", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2025-06-26T23:47:18.037460Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~gtchen/9.embed", "fid": "gtchen:9", "filename": "Plot 9", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/gtchen:9/image?image_name=list-thumb", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/gtchen/9/2_00XC89VNS64C3XL3J46Q9YNN7EWTZ6.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/gtchen/9/8_Q1L94601QV9GWVFK7NAT5V6E4MEI7A.png", "list-thumb": "https://api.plotly.com/v2/files/gtchen:9/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/gtchen:9", "plots": "https://api.plotly.com/v2/plots/gtchen:9", "parent": "https://api.plotly.com/v2/folders/home?user=gtchen" }, "owner": "gtchen", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~gtchen/9/", "world_readable": true, "date_modified": "2025-06-26T23:47:18.049Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~gtchen/9/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "meta": { "columnNames": { "x": "x", "y": "y" } }, "mode": "markers+lines", "name": "Baseline Glucose ", "type": "scatter", "xsrc": "gtchen:8:de162c", "ysrc": "gtchen:8:28a9c6", "marker": { "size": 6, "opacity": 0.6 } }, { "meta": { "columnNames": { "x": "C", "y": "D" } }, "mode": "markers+lines", "name": "ML-Glucose", "type": "scatter", "xsrc": "gtchen:8:53f1e2", "ysrc": "gtchen:8:725147", "marker": { "size": 6, "color": "rgb(255, 180, 14)", "symbol": "diamond", "opacity": 0.6 } } ], "frames": [], "layout": { "font": { "size": 20 }, "title": { "text": "Figure 3: Baseline Glucose vs ML-Glucose" }, "xaxis": { "type": "linear", "dtick": 1000, "range": [ -10.218813905930473, 194.21881390593046 ], "tick0": 0, "title": { "text": "Problems solved" }, "tickmode": "auto", "autorange": true }, "yaxis": { "type": "linear", "dtick": 1000, "range": [ -258.6891495601173, 4262.689149560118 ], "title": { "text": "Time" }, "tickmode": "linear", "autorange": true }, "images": [], "legend": { "x": 0.9585681914199025, "y": 1 }, "shapes": [], "autosize": true, "dragmode": "zoom", "annotations": [] } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~gtchen", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/73.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-4.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2025-03-16 01:32:56", "mapbox_access_tokens": null, "has_password": null, "username": "gtchen", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2025-06-26T23:42:14.585192Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~gtchen/7.embed", "fid": "gtchen:7", "filename": "Plot 7", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/gtchen:7/image?image_name=list-thumb", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/gtchen/7/2_X3OEC8N8IA7PPRLKEXZK4QDP48ZXXV.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/gtchen/7/8_PN2A66FLLL9LSOA2VTO27F9VN66HS5.png", "list-thumb": "https://api.plotly.com/v2/files/gtchen:7/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/gtchen:7", "plots": "https://api.plotly.com/v2/plots/gtchen:7", "parent": "https://api.plotly.com/v2/folders/home?user=gtchen" }, "owner": "gtchen", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~gtchen/7/", "world_readable": true, "date_modified": "2025-06-26T23:42:14.597Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~gtchen/7/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "meta": { "columnNames": { "x": "x", "y": "y" } }, "mode": "markers+lines", "name": "Baseline Kissat ", "type": "scatter", "xsrc": "gtchen:6:d11c54", "ysrc": "gtchen:6:5406a9", "marker": { "opacity": 0.6 } }, { "meta": { "columnNames": { "x": "C", "y": "D" } }, "mode": "markers+lines", "name": "ML-Kissat", "type": "scatter", "xsrc": "gtchen:6:edc0de", "ysrc": "gtchen:6:c54207", "marker": { "symbol": "diamond", "opacity": 0.6 } } ], "frames": [], "layout": { "font": { "size": 20 }, "title": { "text": "Figure 4: Baseline Kissat vs ML-Kissat" }, "xaxis": { "side": "bottom", "type": "linear", "range": [ 0, 220 ], "ticks": "", "title": { "font": { "size": 20 }, "text": "Problems solved" }, "domain": [ 0, 1 ], "showline": true, "tickfont": { "size": 20 }, "autorange": false, "showspikes": false, "rangeslider": { "range": [ -11.578905630452024, 220 ], "yaxis": {}, "visible": false, "autorange": true, "thickness": 0 }, "spikethickness": 20 }, "yaxis": { "side": "left", "type": "linear", "dtick": 1000, "range": [ 0, 4000 ], "tick0": 0, "title": { "font": { "size": 20 }, "text": "Time" }, "domain": [ 0, 1 ], "showline": true, "tickfont": { "size": 20 }, "tickmode": "linear", "autorange": false, "tickangle": "auto", "automargin": false, "showspikes": false, "tickformat": "", "tickprefix": "", "showexponent": "all", "exponentformat": "none", "showticklabels": true, "separatethousands": false }, "images": [], "legend": { "x": 0.9585681914199025, "y": 1, "font": { "size": 20 }, "title": { "font": { "size": 10 }, "text": "<br>" }, "borderwidth": 0, "orientation": "v" }, "shapes": [], "autosize": true, "dragmode": "select", "annotations": [] } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~gtchen", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/73.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-4.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2025-03-16 01:32:56", "mapbox_access_tokens": null, "has_password": null, "username": "gtchen", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2025-06-26T22:57:49.513025Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~4e/452.embed", "fid": "4e:452", "filename": "Plot 452", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/4e:452/image?image_name=list-thumb", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/4e/452/2_37YVCT20QMNKGUOV7TEAEYIVAA6OL8.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/4e/452/8_24FF150M5CUMO2FS4D7VYEJFR6M0LJ.png", "list-thumb": "https://api.plotly.com/v2/files/4e:452/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/4e:452", "plots": "https://api.plotly.com/v2/plots/4e:452", "parent": "https://api.plotly.com/v2/folders/home?user=4e" }, "owner": "4e", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~4e/452/", "world_readable": true, "date_modified": "2025-06-27T00:38:33.431Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~4e/452/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "line": { "color": "rgb(99, 193, 250)" }, "meta": { "columnNames": { "x": "A", "y": "B" } }, "mode": "lines", "type": "scatter", "xsrc": "4e:450:b65197", "ysrc": "4e:450:8fbad5", "visible": true, "connectgaps": true }, { "meta": { "columnNames": { "x": "A", "y": "C" } }, "mode": "lines", "type": "scatter", "xsrc": "4e:450:b65197", "ysrc": "4e:450:040aa9", "visible": true, "stackgroup": null }, { "line": { "color": "rgb(231, 159, 23)" }, "meta": { "columnNames": { "x": "A", "y": "D" } }, "mode": "lines", "type": "scatter", "xsrc": "4e:450:b65197", "ysrc": "4e:450:d3ae8a", "yaxis": "y2", "stackgroup": null } ], "frames": [], "layout": { "title": { "text": "bonniebonniebonniebonnie (prev. bonnieuh, baddiebonnie, bonn_ie)" }, "xaxis": { "type": "category", "range": [ 0, 2800 ], "autorange": true }, "yaxis": { "type": "linear", "range": [ -1277777.7777777778, 24277777.777777776 ], "autorange": true }, "yaxis2": { "side": "right", "type": "linear", "range": [ 0.2777777777777778, 14.722222222222221 ], "autorange": true, "overlaying": "y" }, "autosize": true, "template": { "data": { "bar": [ { "type": "bar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatter": [ { "type": "scatter", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "histogram": [ { "type": "histogram", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "white", "showlakes": true, "subunitcolor": "#C8D4E3" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "white", "radialaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" }, "angularaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "yaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "zaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "baxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "caxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "bgcolor": "white" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#19d3f3", "#e763fa", "#fecb52", "#ffa15a", "#ff6692", "#b6e880" ], "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ], "sequentialminus": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ] }, "plot_bgcolor": "white", "paper_bgcolor": "white", "shapedefaults": { "line": { "width": 0 }, "opacity": 0.4, "fillcolor": "#506784" }, "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#506784", "arrowwidth": 1 } }, "themeRef": "PLOTLY_WHITE" }, "hovermode": "x" } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~4e", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/25.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-12.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2024-09-12 13:44:49", "mapbox_access_tokens": null, "has_password": null, "username": "4e", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2025-06-26T22:13:16.131169Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~Neharnia/1.embed", "fid": "Neharnia:1", "filename": "Plot 1", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/Neharnia:1/image?image_name=list-thumb", "image_urls": { "default": "https://storage.googleapis.com/plotly-prod-images/Neharnia/1/2_CERKLN2F44TM1ALR7VZVPLI9N16G63.png", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/Neharnia/1/8_M5MGOOSX9ZLX87FKGEOAYBHAJXE5RV.png", "list-thumb": "https://api.plotly.com/v2/files/Neharnia:1/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/Neharnia:1", "plots": "https://api.plotly.com/v2/plots/Neharnia:1", "parent": "https://api.plotly.com/v2/folders/home?user=Neharnia" }, "owner": "Neharnia", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~Neharnia/1/", "world_readable": true, "date_modified": "2025-06-26T22:13:16.142Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~Neharnia/1/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "meta": { "columnNames": { "x": "Year", "y": "SHem" } }, "mode": "markers", "type": "bar", "xsrc": "Neharnia:0:53f0c5", "ysrc": "Neharnia:0:fe1b84", "orientation": "v" } ], "frames": [], "layout": { "title": { "text": "Southern Hemisphere Temperatures 1880-2014" }, "xaxis": { "type": "linear", "range": [ 1879.5, 2014.5 ], "autorange": true }, "yaxis": { "type": "linear", "range": [ -52.888888888888886, 64.88888888888889 ], "autorange": true }, "autosize": true, "template": { "data": { "bar": [ { "type": "bar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatter": [ { "type": "scatter", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "histogram": [ { "type": "histogram", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "white", "showlakes": true, "subunitcolor": "#C8D4E3" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "white", "radialaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" }, "angularaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "yaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "zaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "baxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "caxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "bgcolor": "white" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#19d3f3", "#e763fa", "#fecb52", "#ffa15a", "#ff6692", "#b6e880" ], "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ], "sequentialminus": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ] }, "plot_bgcolor": "white", "paper_bgcolor": "white", "shapedefaults": { "line": { "width": 0 }, "opacity": 0.4, "fillcolor": "#506784" }, "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#506784", "arrowwidth": 1 } }, "themeRef": "PLOTLY_WHITE" } } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~Neharnia", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/17.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-7.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2025-06-26 21:10:46", "mapbox_access_tokens": null, "has_password": null, "username": "Neharnia", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2025-06-26T20:47:08.536284Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~benjaleivas/43.embed", "fid": "benjaleivas:43", "filename": "schoolai_bp1_fig_9", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/benjaleivas:43/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/benjaleivas:43/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/benjaleivas:43/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/benjaleivas:43/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/benjaleivas:43", "plots": "https://api.plotly.com/v2/plots/benjaleivas:43", "parent": "https://api.plotly.com/v2/folders/home?user=benjaleivas" }, "owner": "benjaleivas", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 281, "web_url": "https://chart-studio.plotly.com/~benjaleivas/43/", "world_readable": true, "date_modified": "2025-06-26T22:09:56.623Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~benjaleivas/43/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "mode": "markers", "name": "regular_hover", "type": "scatter", "xsrc": "benjaleivas:62:90f6f3", "ysrc": "benjaleivas:62:06ca1c", "xaxis": "x", "yaxis": "y", "marker": { "size": 0, "opacity": 0 }, "visible": true, "showlegend": false, "customdatasrc": "benjaleivas:62:8ca88e", "hovertemplate": "%{customdata}<extra></extra>" }, { "fill": "tozeroy", "line": { "color": "#8c1515", "width": 0 }, "mode": "none", "name": "Student Chatbots", "type": "scatter", "xsrc": "benjaleivas:62:cfe4b8", "ysrc": "benjaleivas:62:144fe6", "xaxis": "x", "yaxis": "y", "visible": true, "fillcolor": "#8c1515", "hoverinfo": "skip", "legendrank": 6, "stackgroup": "one_time_regular", "legendgroup": "category_legend" }, { "fill": "tonexty", "line": { "color": "#faa54a", "width": 0 }, "mode": "none", "name": "Teacher Productivity Tools", "type": "scatter", "xsrc": "benjaleivas:62:80697a", "ysrc": "benjaleivas:62:508bc2", "xaxis": "x", "yaxis": "y", "visible": true, "fillcolor": "#faa54a", "hoverinfo": "skip", "legendrank": 5, "stackgroup": "one_time_regular", "legendgroup": "category_legend" }, { "fill": "tonexty", "line": { "color": "#009ab4", "width": 0 }, "mode": "none", "name": "Teacher Chatbot Assistants", "type": "scatter", "xsrc": "benjaleivas:62:0889d2", "ysrc": "benjaleivas:62:ae10de", "xaxis": "x", "yaxis": "y", "visible": true, "fillcolor": "#009ab4", "hoverinfo": "skip", "legendrank": 4, "stackgroup": "one_time_regular", "legendgroup": "category_legend" }, { "fill": "tonexty", "line": { "color": "#2e5d54", "width": 0 }, "mode": "none", "name": "Reference Materials", "type": "scatter", "xsrc": "benjaleivas:62:9328cc", "ysrc": "benjaleivas:62:64cb8f", "xaxis": "x", "yaxis": "y", "visible": true, "fillcolor": "#2e5d54", "hoverinfo": "skip", "legendrank": 3, "stackgroup": "one_time_regular", "legendgroup": "category_legend" }, { "fill": "tonexty", "line": { "color": "#590c56", "width": 0 }, "mode": "none", "name": "Homepage/Auth", "type": "scatter", "xsrc": "benjaleivas:62:a19897", "ysrc": "benjaleivas:62:dd5674", "xaxis": "x", "yaxis": "y", "visible": true, "fillcolor": "#590c56", "hoverinfo": "skip", "legendrank": 2, "stackgroup": "one_time_regular", "legendgroup": "category_legend" }, { "fill": "tonexty", "line": { "color": "#005e87", "width": 0 }, "mode": "none", "name": "Other", "type": "scatter", "xsrc": "benjaleivas:62:12b985", "ysrc": "benjaleivas:62:83b91d", "xaxis": "x", "yaxis": "y", "visible": true, "fillcolor": "#005e87", "hoverinfo": "skip", "legendrank": 1, "stackgroup": "one_time_regular", "legendgroup": "category_legend" }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:bc108c", "ysrc": "benjaleivas:62:bf2ef8", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:2d4479", "ysrc": "benjaleivas:62:81ec8a", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:f5ffd4", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:f42e4d", "ysrc": "benjaleivas:62:ad4c76", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:c675cf", "ysrc": "benjaleivas:62:06ad2a", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:84522c", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:64cd5d", "ysrc": "benjaleivas:62:c27239", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:534a95", "ysrc": "benjaleivas:62:44900d", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:c838d1", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:f271d9", "ysrc": "benjaleivas:62:bd26a6", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:341907", "ysrc": "benjaleivas:62:92725e", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:0d8bf0", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:575ab7", "ysrc": "benjaleivas:62:0a74ca", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:249649", "ysrc": "benjaleivas:62:b59982", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:034169", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:ee9072", "ysrc": "benjaleivas:62:2e449f", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:908500", "ysrc": "benjaleivas:62:a3caf0", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:957baf", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:5296d8", "ysrc": "benjaleivas:62:c06b39", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:50f15d", "ysrc": "benjaleivas:62:8756fc", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:351224", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:39ecff", "ysrc": "benjaleivas:62:7a29cb", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:57da68", "ysrc": "benjaleivas:62:a22514", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:488cd2", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:5ce32e", "ysrc": "benjaleivas:62:28682c", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:6e749a", "ysrc": "benjaleivas:62:b95e7c", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:3f4e18", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:37d68f", "ysrc": "benjaleivas:62:805de8", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:e41e87", "ysrc": "benjaleivas:62:5fdeb5", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:02fa00", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:47f81b", "ysrc": "benjaleivas:62:f3ea53", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:698584", "ysrc": "benjaleivas:62:776c31", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:eba3f7", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:d64194", "ysrc": "benjaleivas:62:bbc8c5", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:ebc592", "ysrc": "benjaleivas:62:405d88", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:410bdf", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:5bd711", "ysrc": "benjaleivas:62:de3023", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:55c812", "ysrc": "benjaleivas:62:dc09c2", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:039851", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:4fdba8", "ysrc": "benjaleivas:62:fde4fa", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:5536bf", "ysrc": "benjaleivas:62:f1577d", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:5662d1", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:2d828e", "ysrc": "benjaleivas:62:1f7368", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:89cdd9", "ysrc": "benjaleivas:62:9c880f", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:465e28", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:833950", "ysrc": "benjaleivas:62:94ac88", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:69c1d4", "ysrc": "benjaleivas:62:c2ca16", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:51d23f", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:9301b4", "ysrc": "benjaleivas:62:63e150", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:194638", "ysrc": "benjaleivas:62:c7bd76", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:28bf6f", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:adf216", "ysrc": "benjaleivas:62:49ebbb", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:4d421f", "ysrc": "benjaleivas:62:e1dda2", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:8fe949", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:c3cabe", "ysrc": "benjaleivas:62:6e6ba5", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:9e807a", "ysrc": "benjaleivas:62:81df2c", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:13b4b9", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:475aea", "ysrc": "benjaleivas:62:9ba866", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:8c0586", "ysrc": "benjaleivas:62:572273", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:1fb942", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:454d7e", "ysrc": "benjaleivas:62:e05505", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:695a55", "ysrc": "benjaleivas:62:5a636d", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:3d5233", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:2c0182", "ysrc": "benjaleivas:62:393f55", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:643802", "ysrc": "benjaleivas:62:3c4ddd", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:6123ae", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:b29298", "ysrc": "benjaleivas:62:4fd585", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:f95576", "ysrc": "benjaleivas:62:4c7322", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:6d3fd6", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:d24ad6", "ysrc": "benjaleivas:62:9f37a8", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:e9518b", "ysrc": "benjaleivas:62:fe0288", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:846077", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:ea826e", "ysrc": "benjaleivas:62:42bcfe", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:421eff", "ysrc": "benjaleivas:62:820a46", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:87a06d", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:ebec31", "ysrc": "benjaleivas:62:9c6cd2", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:265354", "ysrc": "benjaleivas:62:667db2", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:95f5b1", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:bbcc86", "ysrc": "benjaleivas:62:320cb5", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:0fd1f8", "ysrc": "benjaleivas:62:37b63f", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:a61013", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:05ebca", "ysrc": "benjaleivas:62:934642", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:c04062", "ysrc": "benjaleivas:62:d179c5", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:26aacb", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:0431ef", "ysrc": "benjaleivas:62:a2827a", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:963684", "ysrc": "benjaleivas:62:55d441", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:a6aebf", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:fa536f", "ysrc": "benjaleivas:62:d2aa50", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:ff824d", "ysrc": "benjaleivas:62:b48eb5", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:a251ef", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:fcd0a7", "ysrc": "benjaleivas:62:ef3455", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:dbf1e4", "ysrc": "benjaleivas:62:ad58cf", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:1c4b96", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:462d12", "ysrc": "benjaleivas:62:aec66d", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:50087e", "ysrc": "benjaleivas:62:020d42", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:fd0db1", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:c411bd", "ysrc": "benjaleivas:62:a10f95", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:033469", "ysrc": "benjaleivas:62:75ff41", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:6c473d", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:d1b474", "ysrc": "benjaleivas:62:2ccadf", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:9898a2", "ysrc": "benjaleivas:62:501671", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:6ba8d6", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:6cb0b0", "ysrc": "benjaleivas:62:b061d0", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:d2740a", "ysrc": "benjaleivas:62:9e8e5c", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:f427c7", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:fdf90b", "ysrc": "benjaleivas:62:0202a0", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:b8985d", "ysrc": "benjaleivas:62:8154a6", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:75eb7f", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:86e00a", "ysrc": "benjaleivas:62:4cb5db", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:e621b5", "ysrc": "benjaleivas:62:4de723", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:23344d", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:08b817", "ysrc": "benjaleivas:62:b4aebb", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:c6c6e8", "ysrc": "benjaleivas:62:5d871e", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:9a7347", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:b8ec23", "ysrc": "benjaleivas:62:688ded", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:97afaf", "ysrc": "benjaleivas:62:ca152a", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:177f81", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:e2f0e9", "ysrc": "benjaleivas:62:054477", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:d7aacd", "ysrc": "benjaleivas:62:f80e35", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:bc488e", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:191158", "ysrc": "benjaleivas:62:de3fdd", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:1eeb7e", "ysrc": "benjaleivas:62:820927", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:efd6de", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:10599d", "ysrc": "benjaleivas:62:befc87", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:9ca205", "ysrc": "benjaleivas:62:e723e7", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:f3017b", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:f26995", "ysrc": "benjaleivas:62:d2c51d", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:78be8a", "ysrc": "benjaleivas:62:476f9e", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:25e05c", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:43504e", "ysrc": "benjaleivas:62:e9d56f", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:753166", "ysrc": "benjaleivas:62:0667b8", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:1dcc1a", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:153d96", "ysrc": "benjaleivas:62:e068a2", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:e059f0", "ysrc": "benjaleivas:62:e4d061", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:56c623", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:44676d", "ysrc": "benjaleivas:62:5a7fdc", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:86f852", "ysrc": "benjaleivas:62:5aae30", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:b07049", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:b31db0", "ysrc": "benjaleivas:62:38edc7", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:b9f7c8", "ysrc": "benjaleivas:62:573e84", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:fcf2a4", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:d36f45", "ysrc": "benjaleivas:62:0d1c97", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:9ec72f", "ysrc": "benjaleivas:62:8789fd", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:846a31", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_black", "type": "bar", "xsrc": "benjaleivas:62:0b6a0a", "ysrc": "benjaleivas:62:94fc3e", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_bar_red", "type": "bar", "xsrc": "benjaleivas:62:3b4560", "ysrc": "benjaleivas:62:5d6799", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:72b347", "visible": true, "hoverinfo": "skip", "showlegend": false }, { "name": "regular_hover_bar", "type": "bar", "xsrc": "benjaleivas:62:34b643", "ysrc": "benjaleivas:62:48a31e", "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "width": 0 }, "color": "rgba(0,0,0,0)" }, "visible": true, "showlegend": false, "customdatasrc": "benjaleivas:62:6b9580", "hovertemplate": "<b>Day %{x}</b><br>Total Regular Users: %{customdata[1]}<br>Tracked Regular Users: %{customdata[0]}<extra></extra>" }, { "mode": "markers", "name": "power_hover", "type": "scatter", "xsrc": "benjaleivas:62:ae46e4", "ysrc": "benjaleivas:62:fd597a", "xaxis": "x", "yaxis": "y", "marker": { "size": 0, "opacity": 0 }, "visible": false, "showlegend": false, "customdatasrc": "benjaleivas:62:329b54", "hovertemplate": "%{customdata}<extra></extra>" }, { "fill": "tozeroy", "line": { "color": "#8c1515", "width": 0 }, "mode": "none", "name": "Student Chatbots", "type": "scatter", "xsrc": "benjaleivas:62:59a162", "ysrc": "benjaleivas:62:15f813", "xaxis": "x", "yaxis": "y", "visible": false, "fillcolor": "#8c1515", "hoverinfo": "skip", "legendrank": 6, "showlegend": false, "stackgroup": "one_time_power", "legendgroup": "category_legend" }, { "fill": "tonexty", "line": { "color": "#faa54a", "width": 0 }, "mode": "none", "name": "Teacher Productivity Tools", "type": "scatter", "xsrc": "benjaleivas:62:6a5275", "ysrc": "benjaleivas:62:b92584", "xaxis": "x", "yaxis": "y", "visible": false, "fillcolor": "#faa54a", "hoverinfo": "skip", "legendrank": 5, "showlegend": false, "stackgroup": "one_time_power", "legendgroup": "category_legend" }, { "fill": "tonexty", "line": { "color": "#009ab4", "width": 0 }, "mode": "none", "name": "Teacher Chatbot Assistants", "type": "scatter", "xsrc": "benjaleivas:62:6a0106", "ysrc": "benjaleivas:62:d0e4fa", "xaxis": "x", "yaxis": "y", "visible": false, "fillcolor": "#009ab4", "hoverinfo": "skip", "legendrank": 4, "showlegend": false, "stackgroup": "one_time_power", "legendgroup": "category_legend" }, { "fill": "tonexty", "line": { "color": "#2e5d54", "width": 0 }, "mode": "none", "name": "Reference Materials", "type": "scatter", "xsrc": "benjaleivas:62:c70fd2", "ysrc": "benjaleivas:62:7bca43", "xaxis": "x", "yaxis": "y", "visible": false, "fillcolor": "#2e5d54", "hoverinfo": "skip", "legendrank": 3, "showlegend": false, "stackgroup": "one_time_power", "legendgroup": "category_legend" }, { "fill": "tonexty", "line": { "color": "#590c56", "width": 0 }, "mode": "none", "name": "Homepage/Auth", "type": "scatter", "xsrc": "benjaleivas:62:f4dc9c", "ysrc": "benjaleivas:62:18aff6", "xaxis": "x", "yaxis": "y", "visible": false, "fillcolor": "#590c56", "hoverinfo": "skip", "legendrank": 2, "showlegend": false, "stackgroup": "one_time_power", "legendgroup": "category_legend" }, { "fill": "tonexty", "line": { "color": "#005e87", "width": 0 }, "mode": "none", "name": "Other", "type": "scatter", "xsrc": "benjaleivas:62:20298b", "ysrc": "benjaleivas:62:66b9d3", "xaxis": "x", "yaxis": "y", "visible": false, "fillcolor": "#005e87", "hoverinfo": "skip", "legendrank": 1, "showlegend": false, "stackgroup": "one_time_power", "legendgroup": "category_legend" }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:dc7411", "ysrc": "benjaleivas:62:ae6043", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:98bd9f", "ysrc": "benjaleivas:62:0a4fb7", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:472ed3", "ysrc": "benjaleivas:62:d4b7f3", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:d38985", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:0bfcac", "ysrc": "benjaleivas:62:42fa5a", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:fe11fe", "ysrc": "benjaleivas:62:b82332", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:485627", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:721a52", "ysrc": "benjaleivas:62:30fa7f", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:a65e5d", "ysrc": "benjaleivas:62:d2dcf7", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:ba4938", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:b12f3a", "ysrc": "benjaleivas:62:5ed1df", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:14e8e5", "ysrc": "benjaleivas:62:c6e4f4", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:f943ad", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:9aba30", "ysrc": "benjaleivas:62:3282e6", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:c51644", "ysrc": "benjaleivas:62:bce07f", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:d9cce5", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:4f834c", "ysrc": "benjaleivas:62:0108ed", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:fbd48e", "ysrc": "benjaleivas:62:58db06", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:ab156b", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:a6a286", "ysrc": "benjaleivas:62:c0fe14", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:352124", "ysrc": "benjaleivas:62:5ec322", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:24e17e", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:2aee28", "ysrc": "benjaleivas:62:16c92e", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:eb5dd9", "ysrc": "benjaleivas:62:bacd46", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:2f1ddd", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:294271", "ysrc": "benjaleivas:62:35154f", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:241f93", "ysrc": "benjaleivas:62:883d1c", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:530df7", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:d08231", "ysrc": "benjaleivas:62:46720f", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:282ff3", "ysrc": "benjaleivas:62:84b845", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:788a9a", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:eb4ab3", "ysrc": "benjaleivas:62:bd123a", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:3fb096", "ysrc": "benjaleivas:62:dc1d21", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:983ca5", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:150b50", "ysrc": "benjaleivas:62:4d8ed0", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:b828f1", "ysrc": "benjaleivas:62:db38db", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:874abc", "ysrc": "benjaleivas:62:931c55", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:9cfc25", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:6505db", "ysrc": "benjaleivas:62:9eb561", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:fcedbc", "ysrc": "benjaleivas:62:7d1de7", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:6c49c6", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:41099f", "ysrc": "benjaleivas:62:4ade53", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:21e944", "ysrc": "benjaleivas:62:4af5ee", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:c28f99", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:57fa6a", "ysrc": "benjaleivas:62:57597b", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:adfb6f", "ysrc": "benjaleivas:62:4584c8", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:ab069d", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:6167e0", "ysrc": "benjaleivas:62:468bf6", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:87fe46", "ysrc": "benjaleivas:62:301211", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:aaed14", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:8f2ee8", "ysrc": "benjaleivas:62:3a14a1", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:8d6093", "ysrc": "benjaleivas:62:16db91", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:4ed2a2", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:8ac6d0", "ysrc": "benjaleivas:62:f45aaa", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:48e88d", "ysrc": "benjaleivas:62:ece510", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:ea9982", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:e5cc78", "ysrc": "benjaleivas:62:2d2b7d", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:f1c9c2", "ysrc": "benjaleivas:62:0e14be", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:40eb49", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:c473e4", "ysrc": "benjaleivas:62:731e3f", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:a97cdc", "ysrc": "benjaleivas:62:84557e", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:c9614e", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:0d105c", "ysrc": "benjaleivas:62:33cfb1", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:f5abf1", "ysrc": "benjaleivas:62:336452", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:d5732d", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:244278", "ysrc": "benjaleivas:62:ab6883", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:0b8643", "ysrc": "benjaleivas:62:27a11f", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:c98ca0", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:9b6d52", "ysrc": "benjaleivas:62:b57ba8", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:0d3bea", "ysrc": "benjaleivas:62:9f70ed", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:8359d0", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:b7f443", "ysrc": "benjaleivas:62:d98ff7", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:564b01", "ysrc": "benjaleivas:62:5c3a73", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:1ed3ba", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:ba025b", "ysrc": "benjaleivas:62:bfbb77", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:d79e10", "ysrc": "benjaleivas:62:44ea4a", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:aa1b30", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:be6896", "ysrc": "benjaleivas:62:9b527b", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:94150b", "ysrc": "benjaleivas:62:be3a97", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:06d0dd", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:f7a334", "ysrc": "benjaleivas:62:de2e81", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:d85f2f", "ysrc": "benjaleivas:62:8fd8c9", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:1824ce", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:dbbba9", "ysrc": "benjaleivas:62:0cf79f", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:d9d65b", "ysrc": "benjaleivas:62:58741f", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:a8e4ec", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:f027a7", "ysrc": "benjaleivas:62:7f9f7b", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:10d99c", "ysrc": "benjaleivas:62:82ae96", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:88e804", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:486510", "ysrc": "benjaleivas:62:ad20dd", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:105c01", "ysrc": "benjaleivas:62:45ca85", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:386ed4", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:3ee431", "ysrc": "benjaleivas:62:76d63c", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:427f80", "ysrc": "benjaleivas:62:3ce78c", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:50cef0", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:777c3f", "ysrc": "benjaleivas:62:4fbbce", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:8be25f", "ysrc": "benjaleivas:62:82f439", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:523016", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:ef09a9", "ysrc": "benjaleivas:62:ef12a0", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:2fbab2", "ysrc": "benjaleivas:62:b23bed", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:e05a94", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:846d41", "ysrc": "benjaleivas:62:e8a32d", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:5003a4", "ysrc": "benjaleivas:62:544e93", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:c49a33", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:aa09e5", "ysrc": "benjaleivas:62:16ad75", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:4ba25d", "ysrc": "benjaleivas:62:c142bd", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:0b8da9", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:3c662d", "ysrc": "benjaleivas:62:a7cb24", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:0abb78", "ysrc": "benjaleivas:62:8901e3", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:9d2a0b", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:e6f832", "ysrc": "benjaleivas:62:80cc08", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:988d8c", "ysrc": "benjaleivas:62:88427d", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:530ce7", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:14a6fc", "ysrc": "benjaleivas:62:981163", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:1cd9f7", "ysrc": "benjaleivas:62:3e544b", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:cecd2f", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:90c589", "ysrc": "benjaleivas:62:180fce", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:9228ed", "ysrc": "benjaleivas:62:087932", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:ac42b2", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:8f200f", "ysrc": "benjaleivas:62:6ca1c9", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:de78a7", "ysrc": "benjaleivas:62:a2d68e", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:395bb9", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:1abea4", "ysrc": "benjaleivas:62:9b3eb2", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:db0ec2", "ysrc": "benjaleivas:62:33a04a", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:6f8141", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:81f419", "ysrc": "benjaleivas:62:5e4b48", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:01d191", "ysrc": "benjaleivas:62:c8f779", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:12b8d0", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:af217b", "ysrc": "benjaleivas:62:ff292b", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:0d1967", "ysrc": "benjaleivas:62:9aef7a", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:d7c6ac", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:3f00e3", "ysrc": "benjaleivas:62:506283", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:e80db0", "ysrc": "benjaleivas:62:46a737", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:198be7", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:ba9d00", "ysrc": "benjaleivas:62:0f4d61", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:9f6ebd", "ysrc": "benjaleivas:62:7f3de2", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:333380", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:fff9b2", "ysrc": "benjaleivas:62:fbdf1e", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:b6a4c7", "ysrc": "benjaleivas:62:f44ef3", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:45d59c", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:0a1013", "ysrc": "benjaleivas:62:07039f", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:29652a", "ysrc": "benjaleivas:62:485813", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:cf56cf", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:e3edb0", "ysrc": "benjaleivas:62:a9b027", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:4173fa", "ysrc": "benjaleivas:62:e8df40", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:4fae4a", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:3c4e34", "ysrc": "benjaleivas:62:901931", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:c3c8b4", "ysrc": "benjaleivas:62:ec0393", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:3b9d58", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:4752a6", "ysrc": "benjaleivas:62:976152", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:ca0bd7", "ysrc": "benjaleivas:62:a109fc", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:ff8e3e", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:3878fd", "ysrc": "benjaleivas:62:c025ec", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:e8e39e", "ysrc": "benjaleivas:62:a2f245", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:027691", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:da1a8e", "ysrc": "benjaleivas:62:0cdc40", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:b9ddf6", "ysrc": "benjaleivas:62:385c92", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:664e41", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:1344bd", "ysrc": "benjaleivas:62:540c22", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:64c5ab", "ysrc": "benjaleivas:62:cb37c6", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:7dca5a", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:257ff5", "ysrc": "benjaleivas:62:8a4ef5", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:72457e", "ysrc": "benjaleivas:62:d78875", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:fab9dd", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:ffa3e7", "ysrc": "benjaleivas:62:299c4d", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:751a51", "ysrc": "benjaleivas:62:f84bfe", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:501775", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:253b69", "ysrc": "benjaleivas:62:5e55e8", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:a4f000", "ysrc": "benjaleivas:62:9863af", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:ee2913", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:846e59", "ysrc": "benjaleivas:62:81dcba", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:f4a629", "ysrc": "benjaleivas:62:ced4df", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:41a79f", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:1458c1", "ysrc": "benjaleivas:62:68136e", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:68e84a", "ysrc": "benjaleivas:62:c1235e", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:be291d", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:44fc92", "ysrc": "benjaleivas:62:411326", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:9ed7dd", "ysrc": "benjaleivas:62:2c4d89", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:14957c", "ysrc": "benjaleivas:62:ba5533", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:04d6d9", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:1a9da8", "ysrc": "benjaleivas:62:90a904", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:ad0cba", "ysrc": "benjaleivas:62:393269", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:1924f1", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:848cf0", "ysrc": "benjaleivas:62:50ec00", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:101cc7", "ysrc": "benjaleivas:62:0497a7", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:a747a4", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:b6b6f6", "ysrc": "benjaleivas:62:f913f9", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:d869db", "ysrc": "benjaleivas:62:d90785", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:7f850e", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:16492f", "ysrc": "benjaleivas:62:d622a9", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:4f7175", "ysrc": "benjaleivas:62:ac852a", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:116377", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:fcd301", "ysrc": "benjaleivas:62:fc90a6", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:f61762", "ysrc": "benjaleivas:62:6ec25a", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:78fe10", "ysrc": "benjaleivas:62:597e11", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:a39133", "ysrc": "benjaleivas:62:3a3542", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:c2adb4", "ysrc": "benjaleivas:62:ddce0b", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:8285b1", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:0e8d84", "ysrc": "benjaleivas:62:316e4c", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:2bfdc4", "ysrc": "benjaleivas:62:3a49a2", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:7a6aea", "ysrc": "benjaleivas:62:432494", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:a4d9fc", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:4f854e", "ysrc": "benjaleivas:62:fb4164", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:2b455d", "ysrc": "benjaleivas:62:6492f1", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:974814", "ysrc": "benjaleivas:62:7a44bb", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:efe315", "ysrc": "benjaleivas:62:11cee0", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:1f7b82", "ysrc": "benjaleivas:62:fa395b", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:1601f3", "ysrc": "benjaleivas:62:e51169", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_red", "type": "bar", "xsrc": "benjaleivas:62:ce1c6a", "ysrc": "benjaleivas:62:9767e7", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "red", "width": 1 }, "color": "white" }, "basesrc": "benjaleivas:62:f84d07", "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:dafad1", "ysrc": "benjaleivas:62:a4797a", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:0f2311", "ysrc": "benjaleivas:62:1bae11", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:9f2f30", "ysrc": "benjaleivas:62:ccfa92", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:551c97", "ysrc": "benjaleivas:62:a3e7f7", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:61272c", "ysrc": "benjaleivas:62:8af3b7", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:325d2b", "ysrc": "benjaleivas:62:73e541", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:98162e", "ysrc": "benjaleivas:62:fd7080", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_bar_black", "type": "bar", "xsrc": "benjaleivas:62:960fa0", "ysrc": "benjaleivas:62:2ed44e", "width": 0.8, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "black", "width": 1 }, "color": "white" }, "visible": false, "hoverinfo": "skip", "showlegend": false }, { "name": "power_hover_bar", "type": "bar", "xsrc": "benjaleivas:62:e54f7a", "ysrc": "benjaleivas:62:7270b2", "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "width": 0 }, "color": "rgba(0,0,0,0)" }, "visible": false, "showlegend": false, "customdatasrc": "benjaleivas:62:4cff60", "hovertemplate": "<b>Day %{x}</b><br>Total Power Users: %{customdata[1]}<br>Tracked Power Users: %{customdata[0]}<extra></extra>" }, { "mode": "markers", "name": "Tracked", "type": "scatter", "xsrc": "benjaleivas:62:8632f7", "ysrc": "benjaleivas:62:1b9d4c", "legend": "legend2", "marker": { "line": { "color": "black", "width": 2 }, "size": 12, "color": "white", "symbol": "square" }, "showlegend": true }, { "mode": "markers", "name": "Untracked", "type": "scatter", "xsrc": "benjaleivas:62:7f7c79", "ysrc": "benjaleivas:62:eadca4", "legend": "legend2", "marker": { "line": { "color": "red", "width": 2 }, "size": 12, "color": "white", "symbol": "square" }, "showlegend": true } ], "layout": { "width": 1000, "xaxis": { "anchor": "y", "domain": [ 0.0, 1.0 ], "matches": "x2", "showticklabels": false }, "yaxis": { "range": [ 0, 100 ], "title": { "text": "Share of Time (%)" }, "anchor": "x", "domain": [ 0.33499999999999996, 0.9999999999999999 ] }, "height": 700, "legend": { "x": 1.02, "y": 1.015, "xanchor": "left", "yanchor": "top", "traceorder": "reversed+grouped", "orientation": "v" }, "margin": { "b": 50, "l": 50, "r": 50, "t": 50 }, "shapes": [ { "x0": 0, "x1": 1, "y0": 0, "y1": 0.3, "line": { "width": 0 }, "type": "rect", "xref": "paper", "yref": "paper", "layer": "below", "fillcolor": "white" } ], "xaxis2": { "range": [ 1, 49 ], "title": { "text": "Days Using Platform" }, "anchor": "y2", "domain": [ 0.0, 1.0 ], "showgrid": false }, "yaxis2": { "range": [ 0, 4041.4000000000005 ], "title": { "text": "Active Users" }, "anchor": "x2", "domain": [ 0.0, 0.285 ], "showgrid": false, "showline": true, "linecolor": "black", "linewidth": 1 }, "legend2": { "x": 1.02, "y": 0.1, "xanchor": "left", "orientation": "v" }, "template": { "data": { "bar": [ { "type": "bar", "marker": { "line": { "color": "#E5ECF6", "width": 0.5 }, "pattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } }, "error_x": { "color": "#2a3f5f" }, "error_y": { "color": "#2a3f5f" } } ], "pie": [ { "type": "pie", "automargin": true } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "white", "linecolor": "white", "endlinecolor": "#2a3f5f", "minorgridcolor": "white", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "white", "linecolor": "white", "endlinecolor": "#2a3f5f", "minorgridcolor": "white", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "scatter": [ { "type": "scatter", "fillpattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "barpolar": [ { "type": "barpolar", "marker": { "line": { "color": "#E5ECF6", "width": 0.5 }, "pattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "histogram": [ { "type": "histogram", "marker": { "pattern": { "size": 10, "fillmode": "overlay", "solidity": 0.2 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "colorscale": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "#E5ECF6", "showlakes": true, "subunitcolor": "white" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "#E5ECF6", "radialaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "angularaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "white", "gridwidth": 2, "linecolor": "white", "zerolinecolor": "white", "showbackground": true, "backgroundcolor": "#E5ECF6" }, "yaxis": { "ticks": "", "gridcolor": "white", "gridwidth": 2, "linecolor": "white", "zerolinecolor": "white", "showbackground": true, "backgroundcolor": "#E5ECF6" }, "zaxis": { "ticks": "", "gridcolor": "white", "gridwidth": 2, "linecolor": "white", "zerolinecolor": "white", "showbackground": true, "backgroundcolor": "#E5ECF6" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "title": { "standoff": 15 }, "gridcolor": "white", "linecolor": "white", "automargin": true, "zerolinecolor": "white", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "title": { "standoff": 15 }, "gridcolor": "white", "linecolor": "white", "automargin": true, "zerolinecolor": "white", "zerolinewidth": 2 }, "mapbox": { "style": "light" }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "baxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "caxis": { "ticks": "", "gridcolor": "white", "linecolor": "white" }, "bgcolor": "#E5ECF6" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#FFA15A", "#19d3f3", "#FF6692", "#B6E880", "#FF97FF", "#FECB52" ], "coloraxis": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ], "sequentialminus": [ [ 0.0, "#0d0887" ], [ 0.1111111111111111, "#46039f" ], [ 0.2222222222222222, "#7201a8" ], [ 0.3333333333333333, "#9c179e" ], [ 0.4444444444444444, "#bd3786" ], [ 0.5555555555555556, "#d8576b" ], [ 0.6666666666666666, "#ed7953" ], [ 0.7777777777777778, "#fb9f3a" ], [ 0.8888888888888888, "#fdca26" ], [ 1.0, "#f0f921" ] ] }, "hoverlabel": { "align": "left" }, "plot_bgcolor": "#E5ECF6", "paper_bgcolor": "white", "shapedefaults": { "line": { "color": "#2a3f5f" } }, "autotypenumbers": "strict", "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#2a3f5f", "arrowwidth": 1 } } }, "hovermode": "x unified", "updatemenus": [ { "x": 0.08, "y": 1.15, "pad": { "r": 10, "t": 10 }, "type": "buttons", "buttons": [ { "args": [ { "visible": [ true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, false, true, true, true, true, true, true, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, true, true ] }, { "xaxis2.range": [ 1, 49 ], "yaxis2.range": [ 0, 4041.4000000000005 ] } ], "label": "Regular Users", "method": "update" }, { "args": [ { "visible": [ false, true, true, true, true, true, true, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, false, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true, true ] }, { "xaxis2.range": [ 1, 86 ], "yaxis2.range": [ 0, 96.80000000000001 ] } ], "label": "Power Users", "method": "update" } ], "xanchor": "center", "yanchor": "top", "direction": "left", "showactive": true } ] } }, "height": 700, "width": 1000, "user": { "profile_url": "https://chart-studio.plotly.com/~benjaleivas", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/48.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-8.jpg", "bio": "Data Scientist", "nickname": "Benjamin Leiva", "website": "https://github.com/benjaleivas", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2025-06-26 18:59:03", "mapbox_access_tokens": null, "has_password": null, "username": "benjaleivas", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } } ] }
