Plots List
Plots
This endpoint handles manipulation of Plotly plot files.
Reference
Authorization
Any user with or without a Plotly account may view public plots. For private plots, see authentication.
Actions
list
Listing all public plots can be done via a GET request to this endpoint.
By default, plots will be listed in order of date created. The order_by
query parameter is accepted at this endpoint. Currently, only ordering by
views is supported. It is possible to filter the plots by quality
with min_quality or max_quality as query parameter.
Example:
// GET https://api.plotly.com/v2/plots/ ---> 200
// GET https://api.plotly.com/v2/plots/?order_by=-views ---> 200
// GET https://api.plotly.com/v2/plots/?min_quality=5 ---> 200
// GET https://api.plotly.com/v2/plots/?max_quality=5 ---> 200
feed
Listing all handpicked feed plots can be done via a GET request to this endpoint. By default, plots will be listed in a random order.
Example:
// GET https://api.plotly.com/v2/plots/feed ---> 200
create
You can create new plot resources here. The only required field is 'figure'. Currently, the figure is restricted to only contain references to grid data. That is, this will fail if raw data arrays are passed in. To create and manipulate underlying grids for plots, see the grids endpoint.
Example:
// This fails because a figure field is required.
// POST https://api.plotly.com/v2/plots ---> 400 Bad Request
{}
// This fails because the figure has raw data
//POST https://api.plotly.com/v2/plots ---> 400 Bad Request
{
"figure": {"data": [{"y": ['this', 'is', 'raw', 'data']}]}
}
// This succeeds because the figure has src keys, not raw data.
//POST https://api.plotly.com/v2/plots ---> 200 OK
{
"figure": {"data": [{"ysrc": "sven:88:u8nd62"}]}
}
When creating a grid, you can optionally specify a source_fid to specify where a plot has come from:
- source_fid: the fid of a plot that was copied (and presumably edited) to produce this one
detail
There is a lot of meta information stored about plot files including filename, title, share_url, and content_url to name a few.
This information can only be reached with a GET to this endpoint.
Example:
// GET https://api.plotly.com/v2/plots/iheartgraphs:90
content
The contents of a plot can be downloaded via the content resource. The plot
content contains referenced grid/column data by default. If you wish to
return the raw grid/column data, the inline_data=true query must be included
in the request url. The Content-Type header will be appropriately set for the
response body.
Alternatively, you can set ?map_data=unreadable to append a mapping of
sources to data that belongs to grids which are unreadable for the
requestor. This is useful when you have read access to another users plot,
but that plot contains grid references which you don't have access to.
Examples:
// Returns referenced grid/column data
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content ---> 200 OK
// Returns full grid/column data
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content?inline_data=true ---> 200 OK
// Returns full grid/column data when requestor doesn't have permission
// to read the referenced grid.
// GET https://api.plotly.com/v2/plots/iheartgraphs:90/content?map_data=unreadable ---> 200 OK
GET /v2/plots/?cursor=cD0yMDI1LTA2LTI1KzE3JTNBMTglM0ExMS4wNjU1OTIlMkIwMCUzQTAw&format=api

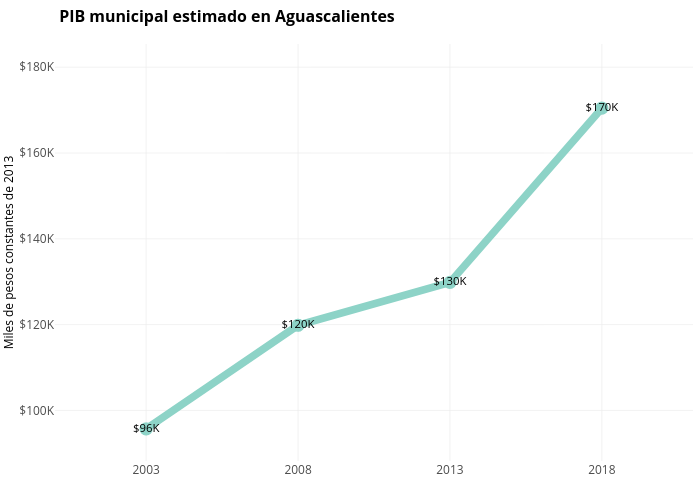

{ "next": "https://api.plot.ly/v2/plots/?cursor=cD0yMDI1LTA2LTI1KzE3JTNBMDklM0EyMS45ODAxNTMlMkIwMCUzQTAw&format=api", "previous": "https://api.plot.ly/v2/plots/?cursor=cj0xJnA9MjAyNS0wNi0yNSsxNyUzQTE4JTNBMDcuNzcwMzY3JTJCMDAlM0EwMA%3D%3D&format=api", "results": [ { "creation_time": "2025-06-25T17:18:07.770367Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~iguzmanvt/298.embed", "fid": "iguzmanvt:298", "filename": "grafica_pib_municipal_Aguascalientes", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/iguzmanvt:298/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/iguzmanvt:298/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/iguzmanvt:298/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/iguzmanvt:298/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/iguzmanvt:298", "plots": "https://api.plotly.com/v2/plots/iguzmanvt:298", "parent": "https://api.plotly.com/v2/folders/home?user=iguzmanvt" }, "owner": "iguzmanvt", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~iguzmanvt/298/", "world_readable": true, "date_modified": "2025-07-17T16:59:47.721Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~iguzmanvt/298/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "line": { "dash": "solid", "color": "rgba(141,211,199,1)", "width": 7.559055118110237 }, "mode": "lines+markers", "type": "scatter", "xsrc": "iguzmanvt:297:6a593f", "ysrc": "iguzmanvt:297:60edb3", "frame": null, "xaxis": "x", "yaxis": "y", "marker": { "line": { "color": "rgba(141,211,199,1)", "width": 1.8897637795275593 }, "size": 11.338582677165356, "color": "rgba(141,211,199,1)", "symbol": "circle", "opacity": 1, "autocolorscale": false }, "hoveron": "points", "textsrc": "iguzmanvt:297:0b11fb", "hoverinfo": "text", "showlegend": false }, { "mode": "text", "type": "scatter", "xsrc": "iguzmanvt:297:e8f432", "ysrc": "iguzmanvt:297:f73937", "frame": null, "xaxis": "x", "yaxis": "y", "hoveron": "points", "textsrc": "iguzmanvt:297:f9f20d", "textfont": { "size": 11.338582677165356, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "hovertextsrc": "iguzmanvt:297:5f50a2" } ], "layout": { "font": { "size": 14.611872146118724, "color": "rgba(0,0,0,1)", "family": "" }, "title": { "x": 0, "font": { "size": 15.940224159402243, "color": "rgba(0,0,0,1)", "family": "" }, "text": "<b> PIB municipal estimado en Aguascalientes </b>", "xref": "paper" }, "xaxis": { "type": "linear", "range": [ 0.4, 4.6 ], "ticks": "", "title": { "font": { "size": 14.611872146118724, "color": "rgba(0,0,0,1)", "family": "" }, "text": "" }, "anchor": "y", "domain": [ 0, 1 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 11.955168119551683, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "2003", "2008", "2013", "2018" ], "tickvals": [ 1, 2, 3, 4 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "automargin": true, "hoverformat": ".2f", "categoryarray": [ "2003", "2008", "2013", "2018" ], "categoryorder": "array", "showticklabels": true }, "yaxis": { "type": "linear", "range": [ 88211.49972460432, 185410.59587448547 ], "ticks": "", "title": { "font": { "size": 11.955168119551683, "color": "rgba(0,0,0,1)", "family": "" }, "text": "Miles de pesos constantes de 2013" }, "anchor": "x", "domain": [ 0, 1 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 11.955168119551683, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "$100K", "$120K", "$140K", "$160K", "$180K" ], "tickvals": [ 100000, 120000, 140000, 160000, 180000 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "automargin": true, "hoverformat": ".2f", "categoryarray": [ "$100K", "$120K", "$140K", "$160K", "$180K" ], "categoryorder": "array", "showticklabels": true }, "legend": { "font": { "size": 11.68949771689498, "color": "rgba(0,0,0,1)", "family": "" }, "bgcolor": null, "bordercolor": null, "borderwidth": 0 }, "margin": { "b": 27.44645849668681, "l": 52.80199252801994, "r": 7.305936073059362, "t": 43.77854650000769 }, "shapes": [ { "x0": 0, "x1": 1, "y0": 0, "y1": 1, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null } ], "barmode": "relative", "hovermode": "closest", "showlegend": false } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~iguzmanvt", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/13.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-4.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2021-07-14 18:52:29", "mapbox_access_tokens": null, "has_password": null, "username": "iguzmanvt", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2025-06-25T17:17:39.467558Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~iguzmanvt/296.embed", "fid": "iguzmanvt:296", "filename": "grafica_pbt_relativo_sector_Aguascalientes", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/iguzmanvt:296/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/iguzmanvt:296/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/iguzmanvt:296/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/iguzmanvt:296/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/iguzmanvt:296", "plots": "https://api.plotly.com/v2/plots/iguzmanvt:296", "parent": "https://api.plotly.com/v2/folders/home?user=iguzmanvt" }, "owner": "iguzmanvt", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~iguzmanvt/296/", "world_readable": true, "date_modified": "2025-06-25T17:17:39.481Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~iguzmanvt/296/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "name": "Aguascalientes", "type": "bar", "xsrc": "iguzmanvt:295:b930a2", "ysrc": "iguzmanvt:295:f538ba", "frame": null, "xaxis": "x", "yaxis": "y", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(141,211,199,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:295:771666", "textsrc": "iguzmanvt:295:0b7811", "widthsrc": "iguzmanvt:295:8b8998", "hoverinfo": "text", "showlegend": true, "legendgroup": "Aguascalientes", "orientation": "v", "textposition": "none" }, { "name": "Aguascalientes", "type": "bar", "xsrc": "iguzmanvt:295:530016", "ysrc": "iguzmanvt:295:bbf4f5", "frame": null, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(141,211,199,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:295:7b5af5", "textsrc": "iguzmanvt:295:ab898c", "widthsrc": "iguzmanvt:295:2fa4e8", "hoverinfo": "text", "showlegend": false, "legendgroup": "Aguascalientes", "orientation": "v", "textposition": "none" }, { "name": "Aguascalientes", "type": "bar", "xsrc": "iguzmanvt:295:440075", "ysrc": "iguzmanvt:295:2acda6", "frame": null, "xaxis": "x3", "yaxis": "y3", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(141,211,199,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:295:350d6b", "textsrc": "iguzmanvt:295:71f891", "widthsrc": "iguzmanvt:295:707bb5", "hoverinfo": "text", "showlegend": false, "legendgroup": "Aguascalientes", "orientation": "v", "textposition": "none" }, { "name": "Aguascalientes", "type": "bar", "xsrc": "iguzmanvt:295:d4e740", "ysrc": "iguzmanvt:295:fb657c", "frame": null, "xaxis": "x4", "yaxis": "y4", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(141,211,199,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:295:f082d0", "textsrc": "iguzmanvt:295:756c97", "widthsrc": "iguzmanvt:295:2025a4", "hoverinfo": "text", "showlegend": false, "legendgroup": "Aguascalientes", "orientation": "v", "textposition": "none" }, { "base": 0, "name": "Aguascalientes", "text": "factor(anio): 2003<br />pbt_prop: 0.0000000000<br />nuevo_municipio: Aguascalientes", "type": "bar", "xsrc": "iguzmanvt:295:ddf68a", "ysrc": "iguzmanvt:295:1e1dfd", "frame": null, "width": 0.8999999999999999, "xaxis": "x5", "yaxis": "y5", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(141,211,199,1)", "autocolorscale": false }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Aguascalientes", "orientation": "v", "textposition": "none" }, { "name": "Aguascalientes", "type": "bar", "xsrc": "iguzmanvt:295:f604bd", "ysrc": "iguzmanvt:295:b5c2cf", "frame": null, "xaxis": "x", "yaxis": "y6", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(141,211,199,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:295:ea8b58", "textsrc": "iguzmanvt:295:6af233", "widthsrc": "iguzmanvt:295:936a4c", "hoverinfo": "text", "showlegend": false, "legendgroup": "Aguascalientes", "orientation": "v", "textposition": "none" }, { "name": "Aguascalientes", "type": "bar", "xsrc": "iguzmanvt:295:592797", "ysrc": "iguzmanvt:295:53ab37", "frame": null, "xaxis": "x2", "yaxis": "y7", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(141,211,199,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:295:590a77", "textsrc": "iguzmanvt:295:5678bb", "widthsrc": "iguzmanvt:295:84bbc9", "hoverinfo": "text", "showlegend": false, "legendgroup": "Aguascalientes", "orientation": "v", "textposition": "none" }, { "name": "Aguascalientes", "type": "bar", "xsrc": "iguzmanvt:295:bdb271", "ysrc": "iguzmanvt:295:2c17f6", "frame": null, "xaxis": "x3", "yaxis": "y8", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(141,211,199,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:295:a3f8a5", "textsrc": "iguzmanvt:295:77f675", "widthsrc": "iguzmanvt:295:967c60", "hoverinfo": "text", "showlegend": false, "legendgroup": "Aguascalientes", "orientation": "v", "textposition": "none" }, { "name": "Aguascalientes", "type": "bar", "xsrc": "iguzmanvt:295:b42b9e", "ysrc": "iguzmanvt:295:def99d", "frame": null, "xaxis": "x4", "yaxis": "y9", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(141,211,199,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:295:c86cba", "textsrc": "iguzmanvt:295:03bc04", "widthsrc": "iguzmanvt:295:71845c", "hoverinfo": "text", "showlegend": false, "legendgroup": "Aguascalientes", "orientation": "v", "textposition": "none" }, { "name": "Aguascalientes", "type": "bar", "xsrc": "iguzmanvt:295:8892f4", "ysrc": "iguzmanvt:295:622a3c", "frame": null, "xaxis": "x5", "yaxis": "y10", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(141,211,199,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:295:5ff6a5", "textsrc": "iguzmanvt:295:fddd5b", "widthsrc": "iguzmanvt:295:2e235b", "hoverinfo": "text", "showlegend": false, "legendgroup": "Aguascalientes", "orientation": "v", "textposition": "none" }, { "name": "Aguascalientes", "type": "bar", "xsrc": "iguzmanvt:295:8e8fb3", "ysrc": "iguzmanvt:295:d0cd0f", "frame": null, "xaxis": "x", "yaxis": "y11", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(141,211,199,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:295:05b8db", "textsrc": "iguzmanvt:295:0b1b0b", "widthsrc": "iguzmanvt:295:48de9e", "hoverinfo": "text", "showlegend": false, "legendgroup": "Aguascalientes", "orientation": "v", "textposition": "none" }, { "name": "Aguascalientes", "type": "bar", "xsrc": "iguzmanvt:295:50363f", "ysrc": "iguzmanvt:295:2a0797", "frame": null, "xaxis": "x2", "yaxis": "y12", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(141,211,199,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:295:3dec3b", "textsrc": "iguzmanvt:295:2519a7", "widthsrc": "iguzmanvt:295:2506e4", "hoverinfo": "text", "showlegend": false, "legendgroup": "Aguascalientes", "orientation": "v", "textposition": "none" }, { "name": "Aguascalientes", "type": "bar", "xsrc": "iguzmanvt:295:1aa12d", "ysrc": "iguzmanvt:295:5b6eeb", "frame": null, "xaxis": "x3", "yaxis": "y13", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(141,211,199,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:295:f9ed06", "textsrc": "iguzmanvt:295:3fb830", "widthsrc": "iguzmanvt:295:81924e", "hoverinfo": "text", "showlegend": false, "legendgroup": "Aguascalientes", "orientation": "v", "textposition": "none" }, { "name": "Aguascalientes", "type": "bar", "xsrc": "iguzmanvt:295:43dc92", "ysrc": "iguzmanvt:295:70ea37", "frame": null, "xaxis": "x4", "yaxis": "y14", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(141,211,199,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:295:12f13f", "textsrc": "iguzmanvt:295:2d0a6f", "widthsrc": "iguzmanvt:295:6aa15f", "hoverinfo": "text", "showlegend": false, "legendgroup": "Aguascalientes", "orientation": "v", "textposition": "none" }, { "name": "Aguascalientes", "type": "bar", "xsrc": "iguzmanvt:295:d5d7d5", "ysrc": "iguzmanvt:295:6db403", "frame": null, "xaxis": "x5", "yaxis": "y15", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(141,211,199,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:295:0b4273", "textsrc": "iguzmanvt:295:a54fcd", "widthsrc": "iguzmanvt:295:7a068c", "hoverinfo": "text", "showlegend": false, "legendgroup": "Aguascalientes", "orientation": "v", "textposition": "none" }, { "name": "Aguascalientes", "type": "bar", "xsrc": "iguzmanvt:295:b741f3", "ysrc": "iguzmanvt:295:8e6d45", "frame": null, "xaxis": "x", "yaxis": "y16", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(141,211,199,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:295:b566b5", "textsrc": "iguzmanvt:295:8e1c9e", "widthsrc": "iguzmanvt:295:db0f49", "hoverinfo": "text", "showlegend": false, "legendgroup": "Aguascalientes", "orientation": "v", "textposition": "none" }, { "name": "Aguascalientes", "type": "bar", "xsrc": "iguzmanvt:295:9bce51", "ysrc": "iguzmanvt:295:53ea57", "frame": null, "xaxis": "x2", "yaxis": "y17", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(141,211,199,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:295:02d4f2", "textsrc": "iguzmanvt:295:b6d5ab", "widthsrc": "iguzmanvt:295:8a4f1a", "hoverinfo": "text", "showlegend": false, "legendgroup": "Aguascalientes", "orientation": "v", "textposition": "none" }, { "name": "Aguascalientes", "type": "bar", "xsrc": "iguzmanvt:295:6dde0a", "ysrc": "iguzmanvt:295:6ee8bb", "frame": null, "xaxis": "x3", "yaxis": "y18", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(141,211,199,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:295:c411d2", "textsrc": "iguzmanvt:295:920103", "widthsrc": "iguzmanvt:295:35c2af", "hoverinfo": "text", "showlegend": false, "legendgroup": "Aguascalientes", "orientation": "v", "textposition": "none" }, { "name": "Aguascalientes", "type": "bar", "xsrc": "iguzmanvt:295:0fd101", "ysrc": "iguzmanvt:295:537f12", "frame": null, "xaxis": "x4", "yaxis": "y19", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(141,211,199,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:295:46a962", "textsrc": "iguzmanvt:295:552b9b", "widthsrc": "iguzmanvt:295:08bca3", "hoverinfo": "text", "showlegend": false, "legendgroup": "Aguascalientes", "orientation": "v", "textposition": "none" }, { "name": "Resto de Aguascalientes", "type": "bar", "xsrc": "iguzmanvt:295:48513a", "ysrc": "iguzmanvt:295:e9f89b", "frame": null, "xaxis": "x", "yaxis": "y", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(204,204,204,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:295:61515b", "textsrc": "iguzmanvt:295:a19b27", "widthsrc": "iguzmanvt:295:d1b1c5", "hoverinfo": "text", "showlegend": true, "legendgroup": "Resto de Aguascalientes", "orientation": "v", "textposition": "none" }, { "name": "Resto de Aguascalientes", "type": "bar", "xsrc": "iguzmanvt:295:dabc4d", "ysrc": "iguzmanvt:295:f37a15", "frame": null, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(204,204,204,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:295:1f16d1", "textsrc": "iguzmanvt:295:6d3691", "widthsrc": "iguzmanvt:295:ad7bf0", "hoverinfo": "text", "showlegend": false, "legendgroup": "Resto de Aguascalientes", "orientation": "v", "textposition": "none" }, { "name": "Resto de Aguascalientes", "type": "bar", "xsrc": "iguzmanvt:295:189401", "ysrc": "iguzmanvt:295:8af588", "frame": null, "xaxis": "x3", "yaxis": "y3", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(204,204,204,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:295:91b0fd", "textsrc": "iguzmanvt:295:ed1025", "widthsrc": "iguzmanvt:295:4bc293", "hoverinfo": "text", "showlegend": false, "legendgroup": "Resto de Aguascalientes", "orientation": "v", "textposition": "none" }, { "name": "Resto de Aguascalientes", "type": "bar", "xsrc": "iguzmanvt:295:7cd561", "ysrc": "iguzmanvt:295:1bdb43", "frame": null, "xaxis": "x4", "yaxis": "y4", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(204,204,204,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:295:efe922", "textsrc": "iguzmanvt:295:0edb11", "widthsrc": "iguzmanvt:295:f88305", "hoverinfo": "text", "showlegend": false, "legendgroup": "Resto de Aguascalientes", "orientation": "v", "textposition": "none" }, { "base": 0, "name": "Resto de Aguascalientes", "text": "factor(anio): 2018<br />pbt_prop: 0.0000000000<br />nuevo_municipio: Resto de Aguascalientes", "type": "bar", "xsrc": "iguzmanvt:295:88fd44", "ysrc": "iguzmanvt:295:2e6fe3", "frame": null, "width": 0.9000000000000004, "xaxis": "x5", "yaxis": "y5", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(204,204,204,1)", "autocolorscale": false }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Resto de Aguascalientes", "orientation": "v", "textposition": "none" }, { "name": "Resto de Aguascalientes", "type": "bar", "xsrc": "iguzmanvt:295:ce032a", "ysrc": "iguzmanvt:295:94a4ba", "frame": null, "xaxis": "x", "yaxis": "y6", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(204,204,204,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:295:869d25", "textsrc": "iguzmanvt:295:5be6a4", "widthsrc": "iguzmanvt:295:138f74", "hoverinfo": "text", "showlegend": false, "legendgroup": "Resto de Aguascalientes", "orientation": "v", "textposition": "none" }, { "name": "Resto de Aguascalientes", "type": "bar", "xsrc": "iguzmanvt:295:7c60f4", "ysrc": "iguzmanvt:295:36e538", "frame": null, "xaxis": "x2", "yaxis": "y7", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(204,204,204,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:295:b141ab", "textsrc": "iguzmanvt:295:e32c1c", "widthsrc": "iguzmanvt:295:b10e60", "hoverinfo": "text", "showlegend": false, "legendgroup": "Resto de Aguascalientes", "orientation": "v", "textposition": "none" }, { "name": "Resto de Aguascalientes", "type": "bar", "xsrc": "iguzmanvt:295:b7c4ec", "ysrc": "iguzmanvt:295:2e80c7", "frame": null, "xaxis": "x3", "yaxis": "y8", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(204,204,204,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:295:af0c79", "textsrc": "iguzmanvt:295:9b5768", "widthsrc": "iguzmanvt:295:83409a", "hoverinfo": "text", "showlegend": false, "legendgroup": "Resto de Aguascalientes", "orientation": "v", "textposition": "none" }, { "name": "Resto de Aguascalientes", "type": "bar", "xsrc": "iguzmanvt:295:b94702", "ysrc": "iguzmanvt:295:412bd9", "frame": null, "xaxis": "x4", "yaxis": "y9", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(204,204,204,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:295:700f1d", "textsrc": "iguzmanvt:295:001fa1", "widthsrc": "iguzmanvt:295:95d0b3", "hoverinfo": "text", "showlegend": false, "legendgroup": "Resto de Aguascalientes", "orientation": "v", "textposition": "none" }, { "name": "Resto de Aguascalientes", "type": "bar", "xsrc": "iguzmanvt:295:57ed1f", "ysrc": "iguzmanvt:295:da8e81", "frame": null, "xaxis": "x5", "yaxis": "y10", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(204,204,204,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:295:7e04b9", "textsrc": "iguzmanvt:295:1f3348", "widthsrc": "iguzmanvt:295:4fecff", "hoverinfo": "text", "showlegend": false, "legendgroup": "Resto de Aguascalientes", "orientation": "v", "textposition": "none" }, { "name": "Resto de Aguascalientes", "type": "bar", "xsrc": "iguzmanvt:295:a52786", "ysrc": "iguzmanvt:295:90e5f3", "frame": null, "xaxis": "x", "yaxis": "y11", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(204,204,204,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:295:2a465c", "textsrc": "iguzmanvt:295:18d202", "widthsrc": "iguzmanvt:295:3890b9", "hoverinfo": "text", "showlegend": false, "legendgroup": "Resto de Aguascalientes", "orientation": "v", "textposition": "none" }, { "name": "Resto de Aguascalientes", "type": "bar", "xsrc": "iguzmanvt:295:8209e7", "ysrc": "iguzmanvt:295:612814", "frame": null, "xaxis": "x2", "yaxis": "y12", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(204,204,204,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:295:6bb140", "textsrc": "iguzmanvt:295:60004b", "widthsrc": "iguzmanvt:295:16a12c", "hoverinfo": "text", "showlegend": false, "legendgroup": "Resto de Aguascalientes", "orientation": "v", "textposition": "none" }, { "name": "Resto de Aguascalientes", "type": "bar", "xsrc": "iguzmanvt:295:8e5b6d", "ysrc": "iguzmanvt:295:4b00ba", "frame": null, "xaxis": "x3", "yaxis": "y13", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(204,204,204,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:295:c6dfe5", "textsrc": "iguzmanvt:295:11d9b7", "widthsrc": "iguzmanvt:295:f579b3", "hoverinfo": "text", "showlegend": false, "legendgroup": "Resto de Aguascalientes", "orientation": "v", "textposition": "none" }, { "name": "Resto de Aguascalientes", "type": "bar", "xsrc": "iguzmanvt:295:6fdb1a", "ysrc": "iguzmanvt:295:3fa511", "frame": null, "xaxis": "x4", "yaxis": "y14", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(204,204,204,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:295:e17188", "textsrc": "iguzmanvt:295:36e95c", "widthsrc": "iguzmanvt:295:fd0ba5", "hoverinfo": "text", "showlegend": false, "legendgroup": "Resto de Aguascalientes", "orientation": "v", "textposition": "none" }, { "name": "Resto de Aguascalientes", "type": "bar", "xsrc": "iguzmanvt:295:bd50e1", "ysrc": "iguzmanvt:295:3b6c9f", "frame": null, "xaxis": "x5", "yaxis": "y15", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(204,204,204,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:295:a97007", "textsrc": "iguzmanvt:295:90b25f", "widthsrc": "iguzmanvt:295:6392ae", "hoverinfo": "text", "showlegend": false, "legendgroup": "Resto de Aguascalientes", "orientation": "v", "textposition": "none" }, { "name": "Resto de Aguascalientes", "type": "bar", "xsrc": "iguzmanvt:295:62b8c7", "ysrc": "iguzmanvt:295:4885e5", "frame": null, "xaxis": "x", "yaxis": "y16", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(204,204,204,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:295:2e68da", "textsrc": "iguzmanvt:295:a1b250", "widthsrc": "iguzmanvt:295:a239a4", "hoverinfo": "text", "showlegend": false, "legendgroup": "Resto de Aguascalientes", "orientation": "v", "textposition": "none" }, { "name": "Resto de Aguascalientes", "type": "bar", "xsrc": "iguzmanvt:295:36c767", "ysrc": "iguzmanvt:295:529594", "frame": null, "xaxis": "x2", "yaxis": "y17", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(204,204,204,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:295:fbbbf4", "textsrc": "iguzmanvt:295:fa0cb5", "widthsrc": "iguzmanvt:295:73f412", "hoverinfo": "text", "showlegend": false, "legendgroup": "Resto de Aguascalientes", "orientation": "v", "textposition": "none" }, { "name": "Resto de Aguascalientes", "type": "bar", "xsrc": "iguzmanvt:295:8b1b3f", "ysrc": "iguzmanvt:295:5ea185", "frame": null, "xaxis": "x3", "yaxis": "y18", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(204,204,204,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:295:108c48", "textsrc": "iguzmanvt:295:03fcca", "widthsrc": "iguzmanvt:295:1d092c", "hoverinfo": "text", "showlegend": false, "legendgroup": "Resto de Aguascalientes", "orientation": "v", "textposition": "none" }, { "name": "Resto de Aguascalientes", "type": "bar", "xsrc": "iguzmanvt:295:586b10", "ysrc": "iguzmanvt:295:eab3b3", "frame": null, "xaxis": "x4", "yaxis": "y19", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(204,204,204,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:295:db48d9", "textsrc": "iguzmanvt:295:94199c", "widthsrc": "iguzmanvt:295:d0e554", "hoverinfo": "text", "showlegend": false, "legendgroup": "Resto de Aguascalientes", "orientation": "v", "textposition": "none" }, { "mode": "text", "name": "Aguascalientes", "type": "scatter", "xsrc": "iguzmanvt:295:7f8e22", "ysrc": "iguzmanvt:295:fed746", "frame": null, "xaxis": "x", "yaxis": "y", "hoveron": "points", "textsrc": "iguzmanvt:295:781c76", "textfont": { "size": 9.448818897637796, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Aguascalientes", "hovertextsrc": "iguzmanvt:295:3df282" }, { "mode": "text", "name": "Aguascalientes", "type": "scatter", "xsrc": "iguzmanvt:295:a8bd4a", "ysrc": "iguzmanvt:295:6d94aa", "frame": null, "xaxis": "x2", "yaxis": "y2", "hoveron": "points", "textsrc": "iguzmanvt:295:a1b9d2", "textfont": { "size": 9.448818897637796, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Aguascalientes", "hovertextsrc": "iguzmanvt:295:5d2c17" }, { "mode": "text", "name": "Aguascalientes", "type": "scatter", "xsrc": "iguzmanvt:295:9a257a", "ysrc": "iguzmanvt:295:c1b492", "frame": null, "xaxis": "x3", "yaxis": "y3", "hoveron": "points", "textsrc": "iguzmanvt:295:e5de2a", "textfont": { "size": 9.448818897637796, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Aguascalientes", "hovertextsrc": "iguzmanvt:295:66a93a" }, { "mode": "text", "name": "Aguascalientes", "type": "scatter", "xsrc": "iguzmanvt:295:32edf3", "ysrc": "iguzmanvt:295:03e3d1", "frame": null, "xaxis": "x4", "yaxis": "y4", "hoveron": "points", "textsrc": "iguzmanvt:295:77f873", "textfont": { "size": 9.448818897637796, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Aguascalientes", "hovertextsrc": "iguzmanvt:295:3f67c0" }, { "mode": "text", "name": "Aguascalientes", "text": "", "type": "scatter", "xsrc": "iguzmanvt:295:9447a3", "ysrc": "iguzmanvt:295:184823", "frame": null, "xaxis": "x5", "yaxis": "y5", "hoveron": "points", "textfont": { "size": 9.448818897637796, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "hovertext": "factor(anio): 2003<br />pbt_prop: 0.0000000000<br />nuevo_municipio: Aguascalientes<br />ifelse(nuevo_municipio == municipio_seleccionado & pbt_prop > ...: ", "showlegend": false, "legendgroup": "Aguascalientes" }, { "mode": "text", "name": "Aguascalientes", "type": "scatter", "xsrc": "iguzmanvt:295:b0bb7c", "ysrc": "iguzmanvt:295:32b25a", "frame": null, "xaxis": "x", "yaxis": "y6", "hoveron": "points", "textsrc": "iguzmanvt:295:b2526a", "textfont": { "size": 9.448818897637796, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Aguascalientes", "hovertextsrc": "iguzmanvt:295:c6222e" }, { "mode": "text", "name": "Aguascalientes", "type": "scatter", "xsrc": "iguzmanvt:295:d4efe7", "ysrc": "iguzmanvt:295:116312", "frame": null, "xaxis": "x2", "yaxis": "y7", "hoveron": "points", "textsrc": "iguzmanvt:295:e549e8", "textfont": { "size": 9.448818897637796, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Aguascalientes", "hovertextsrc": "iguzmanvt:295:29f3f7" }, { "mode": "text", "name": "Aguascalientes", "type": "scatter", "xsrc": "iguzmanvt:295:70e743", "ysrc": "iguzmanvt:295:6ecaae", "frame": null, "xaxis": "x3", "yaxis": "y8", "hoveron": "points", "textsrc": "iguzmanvt:295:5a9070", "textfont": { "size": 9.448818897637796, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Aguascalientes", "hovertextsrc": "iguzmanvt:295:301e1a" }, { "mode": "text", "name": "Aguascalientes", "type": "scatter", "xsrc": "iguzmanvt:295:1a229c", "ysrc": "iguzmanvt:295:a68fe9", "frame": null, "xaxis": "x4", "yaxis": "y9", "hoveron": "points", "textsrc": "iguzmanvt:295:2c931a", "textfont": { "size": 9.448818897637796, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Aguascalientes", "hovertextsrc": "iguzmanvt:295:ab8325" }, { "mode": "text", "name": "Aguascalientes", "type": "scatter", "xsrc": "iguzmanvt:295:9efd98", "ysrc": "iguzmanvt:295:818814", "frame": null, "xaxis": "x5", "yaxis": "y10", "hoveron": "points", "textsrc": "iguzmanvt:295:db0ad3", "textfont": { "size": 9.448818897637796, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Aguascalientes", "hovertextsrc": "iguzmanvt:295:ec4d4e" }, { "mode": "text", "name": "Aguascalientes", "type": "scatter", "xsrc": "iguzmanvt:295:469392", "ysrc": "iguzmanvt:295:947483", "frame": null, "xaxis": "x", "yaxis": "y11", "hoveron": "points", "textsrc": "iguzmanvt:295:b39c2a", "textfont": { "size": 9.448818897637796, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Aguascalientes", "hovertextsrc": "iguzmanvt:295:81406c" }, { "mode": "text", "name": "Aguascalientes", "type": "scatter", "xsrc": "iguzmanvt:295:11daf0", "ysrc": "iguzmanvt:295:c1ff71", "frame": null, "xaxis": "x2", "yaxis": "y12", "hoveron": "points", "textsrc": "iguzmanvt:295:812dea", "textfont": { "size": 9.448818897637796, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Aguascalientes", "hovertextsrc": "iguzmanvt:295:478114" }, { "mode": "text", "name": "Aguascalientes", "type": "scatter", "xsrc": "iguzmanvt:295:5f8fa3", "ysrc": "iguzmanvt:295:da5084", "frame": null, "xaxis": "x3", "yaxis": "y13", "hoveron": "points", "textsrc": "iguzmanvt:295:c93075", "textfont": { "size": 9.448818897637796, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Aguascalientes", "hovertextsrc": "iguzmanvt:295:6f72ae" }, { "mode": "text", "name": "Aguascalientes", "type": "scatter", "xsrc": "iguzmanvt:295:845aa1", "ysrc": "iguzmanvt:295:5919c3", "frame": null, "xaxis": "x4", "yaxis": "y14", "hoveron": "points", "textsrc": "iguzmanvt:295:32ef68", "textfont": { "size": 9.448818897637796, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Aguascalientes", "hovertextsrc": "iguzmanvt:295:7ac614" }, { "mode": "text", "name": "Aguascalientes", "type": "scatter", "xsrc": "iguzmanvt:295:0d0079", "ysrc": "iguzmanvt:295:658ac5", "frame": null, "xaxis": "x5", "yaxis": "y15", "hoveron": "points", "textsrc": "iguzmanvt:295:63afa1", "textfont": { "size": 9.448818897637796, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Aguascalientes", "hovertextsrc": "iguzmanvt:295:26f3d2" }, { "mode": "text", "name": "Aguascalientes", "type": "scatter", "xsrc": "iguzmanvt:295:6f9fb6", "ysrc": "iguzmanvt:295:8910f8", "frame": null, "xaxis": "x", "yaxis": "y16", "hoveron": "points", "textsrc": "iguzmanvt:295:e58a65", "textfont": { "size": 9.448818897637796, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Aguascalientes", "hovertextsrc": "iguzmanvt:295:77225d" }, { "mode": "text", "name": "Aguascalientes", "type": "scatter", "xsrc": "iguzmanvt:295:cbbe9f", "ysrc": "iguzmanvt:295:d0a02c", "frame": null, "xaxis": "x2", "yaxis": "y17", "hoveron": "points", "textsrc": "iguzmanvt:295:68bed9", "textfont": { "size": 9.448818897637796, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Aguascalientes", "hovertextsrc": "iguzmanvt:295:a28c37" }, { "mode": "text", "name": "Aguascalientes", "type": "scatter", "xsrc": "iguzmanvt:295:c24b6e", "ysrc": "iguzmanvt:295:25bb26", "frame": null, "xaxis": "x3", "yaxis": "y18", "hoveron": "points", "textsrc": "iguzmanvt:295:76918b", "textfont": { "size": 9.448818897637796, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Aguascalientes", "hovertextsrc": "iguzmanvt:295:18b1c9" }, { "mode": "text", "name": "Aguascalientes", "type": "scatter", "xsrc": "iguzmanvt:295:45fe79", "ysrc": "iguzmanvt:295:a4090b", "frame": null, "xaxis": "x4", "yaxis": "y19", "hoveron": "points", "textsrc": "iguzmanvt:295:494985", "textfont": { "size": 9.448818897637796, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Aguascalientes", "hovertextsrc": "iguzmanvt:295:fbadb5" }, { "mode": "text", "name": "Resto de Aguascalientes", "type": "scatter", "xsrc": "iguzmanvt:295:cf4c5b", "ysrc": "iguzmanvt:295:eb990f", "frame": null, "xaxis": "x", "yaxis": "y", "hoveron": "points", "textsrc": "iguzmanvt:295:2ec769", "textfont": { "size": 9.448818897637796, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Resto de Aguascalientes", "hovertextsrc": "iguzmanvt:295:2fb7f2" }, { "mode": "text", "name": "Resto de Aguascalientes", "type": "scatter", "xsrc": "iguzmanvt:295:465639", "ysrc": "iguzmanvt:295:9f1bd8", "frame": null, "xaxis": "x2", "yaxis": "y2", "hoveron": "points", "textsrc": "iguzmanvt:295:e47210", "textfont": { "size": 9.448818897637796, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Resto de Aguascalientes", "hovertextsrc": "iguzmanvt:295:54d9d0" }, { "mode": "text", "name": "Resto de Aguascalientes", "type": "scatter", "xsrc": "iguzmanvt:295:81db67", "ysrc": "iguzmanvt:295:b2101e", "frame": null, "xaxis": "x3", "yaxis": "y3", "hoveron": "points", "textsrc": "iguzmanvt:295:02afbd", "textfont": { "size": 9.448818897637796, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Resto de Aguascalientes", "hovertextsrc": "iguzmanvt:295:a2d815" }, { "mode": "text", "name": "Resto de Aguascalientes", "type": "scatter", "xsrc": "iguzmanvt:295:c66148", "ysrc": "iguzmanvt:295:e40af7", "frame": null, "xaxis": "x4", "yaxis": "y4", "hoveron": "points", "textsrc": "iguzmanvt:295:bdb9d0", "textfont": { "size": 9.448818897637796, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Resto de Aguascalientes", "hovertextsrc": "iguzmanvt:295:d28450" }, { "mode": "text", "name": "Resto de Aguascalientes", "text": "", "type": "scatter", "xsrc": "iguzmanvt:295:a2933c", "ysrc": "iguzmanvt:295:b2e9d0", "frame": null, "xaxis": "x5", "yaxis": "y5", "hoveron": "points", "textfont": { "size": 9.448818897637796, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "hovertext": "factor(anio): 2018<br />pbt_prop: 0.0000000000<br />nuevo_municipio: Resto de Aguascalientes<br />ifelse(nuevo_municipio == municipio_seleccionado & pbt_prop > ...: ", "showlegend": false, "legendgroup": "Resto de Aguascalientes" }, { "mode": "text", "name": "Resto de Aguascalientes", "type": "scatter", "xsrc": "iguzmanvt:295:9815bd", "ysrc": "iguzmanvt:295:6b3a0b", "frame": null, "xaxis": "x", "yaxis": "y6", "hoveron": "points", "textsrc": "iguzmanvt:295:f41caf", "textfont": { "size": 9.448818897637796, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Resto de Aguascalientes", "hovertextsrc": "iguzmanvt:295:157b61" }, { "mode": "text", "name": "Resto de Aguascalientes", "type": "scatter", "xsrc": "iguzmanvt:295:0d330d", "ysrc": "iguzmanvt:295:b9357e", "frame": null, "xaxis": "x2", "yaxis": "y7", "hoveron": "points", "textsrc": "iguzmanvt:295:b2c57f", "textfont": { "size": 9.448818897637796, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Resto de Aguascalientes", "hovertextsrc": "iguzmanvt:295:a75983" }, { "mode": "text", "name": "Resto de Aguascalientes", "type": "scatter", "xsrc": "iguzmanvt:295:4f0273", "ysrc": "iguzmanvt:295:fba253", "frame": null, "xaxis": "x3", "yaxis": "y8", "hoveron": "points", "textsrc": "iguzmanvt:295:ff6144", "textfont": { "size": 9.448818897637796, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Resto de Aguascalientes", "hovertextsrc": "iguzmanvt:295:3b3b71" }, { "mode": "text", "name": "Resto de Aguascalientes", "type": "scatter", "xsrc": "iguzmanvt:295:02688c", "ysrc": "iguzmanvt:295:400a8d", "frame": null, "xaxis": "x4", "yaxis": "y9", "hoveron": "points", "textsrc": "iguzmanvt:295:a9f9d1", "textfont": { "size": 9.448818897637796, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Resto de Aguascalientes", "hovertextsrc": "iguzmanvt:295:0ee085" }, { "mode": "text", "name": "Resto de Aguascalientes", "type": "scatter", "xsrc": "iguzmanvt:295:44453b", "ysrc": "iguzmanvt:295:f6b740", "frame": null, "xaxis": "x5", "yaxis": "y10", "hoveron": "points", "textsrc": "iguzmanvt:295:76568a", "textfont": { "size": 9.448818897637796, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Resto de Aguascalientes", "hovertextsrc": "iguzmanvt:295:2d6f03" }, { "mode": "text", "name": "Resto de Aguascalientes", "type": "scatter", "xsrc": "iguzmanvt:295:a066e7", "ysrc": "iguzmanvt:295:f6ec06", "frame": null, "xaxis": "x", "yaxis": "y11", "hoveron": "points", "textsrc": "iguzmanvt:295:df1c45", "textfont": { "size": 9.448818897637796, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Resto de Aguascalientes", "hovertextsrc": "iguzmanvt:295:b84a64" }, { "mode": "text", "name": "Resto de Aguascalientes", "type": "scatter", "xsrc": "iguzmanvt:295:25591a", "ysrc": "iguzmanvt:295:af7edd", "frame": null, "xaxis": "x2", "yaxis": "y12", "hoveron": "points", "textsrc": "iguzmanvt:295:91d2b5", "textfont": { "size": 9.448818897637796, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Resto de Aguascalientes", "hovertextsrc": "iguzmanvt:295:9083cd" }, { "mode": "text", "name": "Resto de Aguascalientes", "type": "scatter", "xsrc": "iguzmanvt:295:7408c1", "ysrc": "iguzmanvt:295:e82b61", "frame": null, "xaxis": "x3", "yaxis": "y13", "hoveron": "points", "textsrc": "iguzmanvt:295:8044d4", "textfont": { "size": 9.448818897637796, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Resto de Aguascalientes", "hovertextsrc": "iguzmanvt:295:ebb8d1" }, { "mode": "text", "name": "Resto de Aguascalientes", "type": "scatter", "xsrc": "iguzmanvt:295:d49fff", "ysrc": "iguzmanvt:295:d1a3c4", "frame": null, "xaxis": "x4", "yaxis": "y14", "hoveron": "points", "textsrc": "iguzmanvt:295:03ae47", "textfont": { "size": 9.448818897637796, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Resto de Aguascalientes", "hovertextsrc": "iguzmanvt:295:c75814" }, { "mode": "text", "name": "Resto de Aguascalientes", "type": "scatter", "xsrc": "iguzmanvt:295:2fa2f4", "ysrc": "iguzmanvt:295:e470b8", "frame": null, "xaxis": "x5", "yaxis": "y15", "hoveron": "points", "textsrc": "iguzmanvt:295:474d9e", "textfont": { "size": 9.448818897637796, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Resto de Aguascalientes", "hovertextsrc": "iguzmanvt:295:ec6097" }, { "mode": "text", "name": "Resto de Aguascalientes", "type": "scatter", "xsrc": "iguzmanvt:295:8cb4d2", "ysrc": "iguzmanvt:295:91c24d", "frame": null, "xaxis": "x", "yaxis": "y16", "hoveron": "points", "textsrc": "iguzmanvt:295:e9525d", "textfont": { "size": 9.448818897637796, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Resto de Aguascalientes", "hovertextsrc": "iguzmanvt:295:ca1410" }, { "mode": "text", "name": "Resto de Aguascalientes", "type": "scatter", "xsrc": "iguzmanvt:295:ff6366", "ysrc": "iguzmanvt:295:e5a144", "frame": null, "xaxis": "x2", "yaxis": "y17", "hoveron": "points", "textsrc": "iguzmanvt:295:c1737c", "textfont": { "size": 9.448818897637796, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Resto de Aguascalientes", "hovertextsrc": "iguzmanvt:295:c1c469" }, { "mode": "text", "name": "Resto de Aguascalientes", "type": "scatter", "xsrc": "iguzmanvt:295:46f77e", "ysrc": "iguzmanvt:295:761d57", "frame": null, "xaxis": "x3", "yaxis": "y18", "hoveron": "points", "textsrc": "iguzmanvt:295:b8c6b4", "textfont": { "size": 9.448818897637796, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Resto de Aguascalientes", "hovertextsrc": "iguzmanvt:295:fba40f" }, { "mode": "text", "name": "Resto de Aguascalientes", "type": "scatter", "xsrc": "iguzmanvt:295:a6c920", "ysrc": "iguzmanvt:295:c2cca0", "frame": null, "xaxis": "x4", "yaxis": "y19", "hoveron": "points", "textsrc": "iguzmanvt:295:158d05", "textfont": { "size": 9.448818897637796, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Resto de Aguascalientes", "hovertextsrc": "iguzmanvt:295:8e5d74" } ], "layout": { "font": { "size": 14.611872146118724, "color": "rgba(0,0,0,1)", "family": "" }, "title": { "x": 0, "font": { "size": 15.940224159402243, "color": "rgba(0,0,0,1)", "family": "" }, "text": "Peso de la PBT de Aguascalientes en la PBT de Aguascalientes", "xref": "paper" }, "xaxis": { "type": "linear", "range": [ 0.4, 4.6 ], "ticks": "", "title": "", "anchor": "y16", "domain": [ 0, 0.16361757694360435 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 9.298464092984643, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "2003", "2008", "2013", "2018" ], "tickvals": [ 1, 2, 3, 4 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": -45, "tickcolor": null, "tickwidth": 0, "automargin": true, "hoverformat": ".2f", "categoryarray": [ "2003", "2008", "2013", "2018" ], "categoryorder": "array", "showticklabels": true }, "yaxis": { "type": "linear", "range": [ -0.05, 1.05 ], "ticks": "", "title": "", "anchor": "x", "domain": [ 0.791426133480928, 1 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 9.298464092984643, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0%", "25%", "50%", "75%", "100%" ], "tickvals": [ 0, 0.25, 0.5, 0.75, 1 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "automargin": true, "hoverformat": ".2f", "categoryarray": [ "0%", "25%", "50%", "75%", "100%" ], "categoryorder": "array", "showticklabels": true }, "legend": { "font": { "size": 10.62681610626816, "color": "rgba(0,0,0,1)", "family": "" }, "title": { "font": { "size": 14.611872146118724, "color": "rgba(0,0,0,1)", "family": "" }, "text": "" }, "bgcolor": null, "bordercolor": null, "borderwidth": 0 }, "margin": { "b": 26.413784012008083, "l": 44.16770444167705, "r": 7.305936073059362, "t": 54.40536260627585 }, "shapes": [ { "x0": 0, "x1": 0.16361757694360435, "y0": 0.791426133480928, "y1": 1, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0, "x1": 0.16361757694360435, "y0": 0, "y1": 22.316313823163142, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 1, "fillcolor": null, "ysizemode": "pixel" }, { "x0": 0.23638242305639567, "x1": 0.36361757694360436, "y0": 0.791426133480928, "y1": 1, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0.23638242305639567, "x1": 0.36361757694360436, "y0": 0, "y1": 22.316313823163142, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 1, "fillcolor": null, "ysizemode": "pixel" }, { "x0": 0.4363824230563957, "x1": 0.5636175769436045, "y0": 0.791426133480928, "y1": 1, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0.4363824230563957, "x1": 0.5636175769436045, "y0": 0, "y1": 22.316313823163142, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 1, "fillcolor": null, "ysizemode": "pixel" }, { "x0": 0.6363824230563957, "x1": 0.7636175769436044, "y0": 0.791426133480928, "y1": 1, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0.6363824230563957, "x1": 0.7636175769436044, "y0": 0, "y1": 22.316313823163142, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 1, "fillcolor": null, "ysizemode": "pixel" }, { "x0": 0.8363824230563957, "x1": 1, "y0": 0.791426133480928, "y1": 1, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0.8363824230563957, "x1": 1, "y0": 0, "y1": 22.316313823163142, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 1, "fillcolor": null, "ysizemode": "pixel" }, { "x0": 0, "x1": 0.16361757694360435, "y0": 0.541426133480928, "y1": 0.708573866519072, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0, "x1": 0.16361757694360435, "y0": 0, "y1": 22.316313823163142, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 0.708573866519072, "fillcolor": null, "ysizemode": "pixel" }, { "x0": 0.23638242305639567, "x1": 0.36361757694360436, "y0": 0.541426133480928, "y1": 0.708573866519072, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0.23638242305639567, "x1": 0.36361757694360436, "y0": 0, "y1": 22.316313823163142, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 0.708573866519072, "fillcolor": null, "ysizemode": "pixel" }, { "x0": 0.4363824230563957, "x1": 0.5636175769436045, "y0": 0.541426133480928, "y1": 0.708573866519072, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0.4363824230563957, "x1": 0.5636175769436045, "y0": 0, "y1": 22.316313823163142, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 0.708573866519072, "fillcolor": null, "ysizemode": "pixel" }, { "x0": 0.6363824230563957, "x1": 0.7636175769436044, "y0": 0.541426133480928, "y1": 0.708573866519072, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0.6363824230563957, "x1": 0.7636175769436044, "y0": 0, "y1": 22.316313823163142, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 0.708573866519072, "fillcolor": null, "ysizemode": "pixel" }, { "x0": 0.8363824230563957, "x1": 1, "y0": 0.541426133480928, "y1": 0.708573866519072, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0.8363824230563957, "x1": 1, "y0": 0, "y1": 22.316313823163142, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 0.708573866519072, "fillcolor": null, "ysizemode": "pixel" }, { "x0": 0, "x1": 0.16361757694360435, "y0": 0.291426133480928, "y1": 0.458573866519072, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0, "x1": 0.16361757694360435, "y0": 0, "y1": 22.316313823163142, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 0.458573866519072, "fillcolor": null, "ysizemode": "pixel" }, { "x0": 0.23638242305639567, "x1": 0.36361757694360436, "y0": 0.291426133480928, "y1": 0.458573866519072, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0.23638242305639567, "x1": 0.36361757694360436, "y0": 0, "y1": 22.316313823163142, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 0.458573866519072, "fillcolor": null, "ysizemode": "pixel" }, { "x0": 0.4363824230563957, "x1": 0.5636175769436045, "y0": 0.291426133480928, "y1": 0.458573866519072, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0.4363824230563957, "x1": 0.5636175769436045, "y0": 0, "y1": 22.316313823163142, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 0.458573866519072, "fillcolor": null, "ysizemode": "pixel" }, { "x0": 0.6363824230563957, "x1": 0.7636175769436044, "y0": 0.291426133480928, "y1": 0.458573866519072, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0.6363824230563957, "x1": 0.7636175769436044, "y0": 0, "y1": 22.316313823163142, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 0.458573866519072, "fillcolor": null, "ysizemode": "pixel" }, { "x0": 0.8363824230563957, "x1": 1, "y0": 0.291426133480928, "y1": 0.458573866519072, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0.8363824230563957, "x1": 1, "y0": 0, "y1": 22.316313823163142, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 0.458573866519072, "fillcolor": null, "ysizemode": "pixel" }, { "x0": 0, "x1": 0.16361757694360435, "y0": 0, "y1": 0.208573866519072, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0, "x1": 0.16361757694360435, "y0": 0, "y1": 22.316313823163142, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 0.208573866519072, "fillcolor": null, "ysizemode": "pixel" }, { "x0": 0.23638242305639567, "x1": 0.36361757694360436, "y0": 0, "y1": 0.208573866519072, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0.23638242305639567, "x1": 0.36361757694360436, "y0": 0, "y1": 22.316313823163142, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 0.208573866519072, "fillcolor": null, "ysizemode": "pixel" }, { "x0": 0.4363824230563957, "x1": 0.5636175769436045, "y0": 0, "y1": 0.208573866519072, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0.4363824230563957, "x1": 0.5636175769436045, "y0": 0, "y1": 22.316313823163142, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 0.208573866519072, "fillcolor": null, "ysizemode": "pixel" }, { "x0": 0.6363824230563957, "x1": 0.7636175769436044, "y0": 0, "y1": 0.208573866519072, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0.6363824230563957, "x1": 0.7636175769436044, "y0": 0, "y1": 22.316313823163142, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 0.208573866519072, "fillcolor": null, "ysizemode": "pixel" } ], "xaxis2": { "type": "linear", "range": [ 0.4, 4.6 ], "ticks": "", "title": "", "anchor": "y17", "domain": [ 0.23638242305639567, 0.36361757694360436 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 9.298464092984643, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "2003", "2008", "2013", "2018" ], "tickvals": [ 1, 2, 3, 4 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": -45, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "2003", "2008", "2013", "2018" ], "categoryorder": "array", "showticklabels": true }, "xaxis3": { "type": "linear", "range": [ 0.4, 4.6 ], "ticks": "", "title": "", "anchor": "y18", "domain": [ 0.4363824230563957, 0.5636175769436045 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 9.298464092984643, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "2003", "2008", "2013", "2018" ], "tickvals": [ 1, 2, 3, 4 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": -45, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "2003", "2008", "2013", "2018" ], "categoryorder": "array", "showticklabels": true }, "xaxis4": { "type": "linear", "range": [ 0.4, 4.6 ], "ticks": "", "title": "", "anchor": "y19", "domain": [ 0.6363824230563957, 0.7636175769436044 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 9.298464092984643, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "2003", "2008", "2013", "2018" ], "tickvals": [ 1, 2, 3, 4 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": -45, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "2003", "2008", "2013", "2018" ], "categoryorder": "array", "showticklabels": true }, "xaxis5": { "type": "linear", "range": [ 0.4, 4.6 ], "ticks": "", "title": "", "anchor": "y15", "domain": [ 0.8363824230563957, 1 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 9.298464092984643, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "2003", "2008", "2013", "2018" ], "tickvals": [ 1, 2, 3, 4 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": -45, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "2003", "2008", "2013", "2018" ], "categoryorder": "array", "showticklabels": true }, "yaxis2": { "type": "linear", "range": [ -0.05, 1.05 ], "ticks": "", "title": "", "anchor": "x2", "domain": [ 0.791426133480928, 1 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 9.298464092984643, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0%", "25%", "50%", "75%", "100%" ], "tickvals": [ 0, 0.25, 0.5, 0.75, 1 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0%", "25%", "50%", "75%", "100%" ], "categoryorder": "array", "showticklabels": true }, "yaxis3": { "type": "linear", "range": [ -0.05, 1.05 ], "ticks": "", "title": "", "anchor": "x3", "domain": [ 0.791426133480928, 1 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 9.298464092984643, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0%", "25%", "50%", "75%", "100%" ], "tickvals": [ 0, 0.25, 0.5, 0.75, 1 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0%", "25%", "50%", "75%", "100%" ], "categoryorder": "array", "showticklabels": true }, "yaxis4": { "type": "linear", "range": [ -0.05, 1.05 ], "ticks": "", "title": "", "anchor": "x4", "domain": [ 0.791426133480928, 1 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 9.298464092984643, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0%", "25%", "50%", "75%", "100%" ], "tickvals": [ 0, 0.25, 0.5, 0.75, 1 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0%", "25%", "50%", "75%", "100%" ], "categoryorder": "array", "showticklabels": true }, "yaxis5": { "type": "linear", "range": [ -0.05, 0.05 ], "ticks": "", "title": "", "anchor": "x5", "domain": [ 0.791426133480928, 1 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 9.298464092984643, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "-5.0%", "-2.5%", "0.0%", "2.5%", "5.0%" ], "tickvals": [ -0.05, -0.025, 0, 0.02500000000000001, 0.05 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "-5.0%", "-2.5%", "0.0%", "2.5%", "5.0%" ], "categoryorder": "array", "showticklabels": true }, "yaxis6": { "type": "linear", "range": [ -0.05, 1.05 ], "ticks": "", "title": "", "anchor": "x", "domain": [ 0.541426133480928, 0.708573866519072 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 9.298464092984643, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0%", "25%", "50%", "75%", "100%" ], "tickvals": [ 0, 0.25, 0.5, 0.75, 1 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0%", "25%", "50%", "75%", "100%" ], "categoryorder": "array", "showticklabels": true }, "yaxis7": { "type": "linear", "range": [ -0.05000000000000002, 1.0500000000000003 ], "ticks": "", "title": "", "anchor": "x2", "domain": [ 0.541426133480928, 0.708573866519072 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 9.298464092984643, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0%", "25%", "50%", "75%", "100%" ], "tickvals": [ 0, 0.25, 0.5, 0.75, 1 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0%", "25%", "50%", "75%", "100%" ], "categoryorder": "array", "showticklabels": true }, "yaxis8": { "type": "linear", "range": [ -0.05, 1.05 ], "ticks": "", "title": "", "anchor": "x3", "domain": [ 0.541426133480928, 0.708573866519072 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 9.298464092984643, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0%", "25%", "50%", "75%", "100%" ], "tickvals": [ 0, 0.25, 0.5, 0.75, 1 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0%", "25%", "50%", "75%", "100%" ], "categoryorder": "array", "showticklabels": true }, "yaxis9": { "type": "linear", "range": [ -0.0506506715911878, 1.0506506715911879 ], "ticks": "", "title": "", "anchor": "x4", "domain": [ 0.541426133480928, 0.708573866519072 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 9.298464092984643, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0%", "25%", "50%", "75%", "100%" ], "tickvals": [ 0, 0.25, 0.5, 0.75, 1 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0%", "25%", "50%", "75%", "100%" ], "categoryorder": "array", "showticklabels": true }, "barmode": "relative", "yaxis10": { "type": "linear", "range": [ -0.05, 1.05 ], "ticks": "", "title": "", "anchor": "x5", "domain": [ 0.541426133480928, 0.708573866519072 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 9.298464092984643, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0%", "25%", "50%", "75%", "100%" ], "tickvals": [ 0, 0.25, 0.5, 0.75, 1 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0%", "25%", "50%", "75%", "100%" ], "categoryorder": "array", "showticklabels": true }, "yaxis11": { "type": "linear", "range": [ -0.05, 1.05 ], "ticks": "", "title": "", "anchor": "x", "domain": [ 0.291426133480928, 0.458573866519072 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 9.298464092984643, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0%", "25%", "50%", "75%", "100%" ], "tickvals": [ 0, 0.25, 0.5, 0.75, 1 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0%", "25%", "50%", "75%", "100%" ], "categoryorder": "array", "showticklabels": true }, "yaxis12": { "type": "linear", "range": [ -0.05, 1.05 ], "ticks": "", "title": "", "anchor": "x2", "domain": [ 0.291426133480928, 0.458573866519072 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 9.298464092984643, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0%", "25%", "50%", "75%", "100%" ], "tickvals": [ 0, 0.25, 0.5, 0.75, 1 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0%", "25%", "50%", "75%", "100%" ], "categoryorder": "array", "showticklabels": true }, "yaxis13": { "type": "linear", "range": [ -0.05, 1.05 ], "ticks": "", "title": "", "anchor": "x3", "domain": [ 0.291426133480928, 0.458573866519072 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 9.298464092984643, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0%", "25%", "50%", "75%", "100%" ], "tickvals": [ 0, 0.25, 0.5, 0.75, 1 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0%", "25%", "50%", "75%", "100%" ], "categoryorder": "array", "showticklabels": true }, "yaxis14": { "type": "linear", "range": [ -0.05, 1.05 ], "ticks": "", "title": "", "anchor": "x4", "domain": [ 0.291426133480928, 0.458573866519072 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 9.298464092984643, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0%", "25%", "50%", "75%", "100%" ], "tickvals": [ 0, 0.25, 0.5, 0.75, 1 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0%", "25%", "50%", "75%", "100%" ], "categoryorder": "array", "showticklabels": true }, "yaxis15": { "type": "linear", "range": [ -0.05, 1.05 ], "ticks": "", "title": "", "anchor": "x5", "domain": [ 0.291426133480928, 0.458573866519072 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 9.298464092984643, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0%", "25%", "50%", "75%", "100%" ], "tickvals": [ 0, 0.25, 0.5, 0.75, 1 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0%", "25%", "50%", "75%", "100%" ], "categoryorder": "array", "showticklabels": true }, "yaxis16": { "type": "linear", "range": [ -0.05, 1.05 ], "ticks": "", "title": "", "anchor": "x", "domain": [ 0, 0.208573866519072 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 9.298464092984643, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0%", "25%", "50%", "75%", "100%" ], "tickvals": [ 0, 0.25, 0.5, 0.75, 1 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0%", "25%", "50%", "75%", "100%" ], "categoryorder": "array", "showticklabels": true }, "yaxis17": { "type": "linear", "range": [ -0.05, 1.05 ], "ticks": "", "title": "", "anchor": "x2", "domain": [ 0, 0.208573866519072 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 9.298464092984643, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0%", "25%", "50%", "75%", "100%" ], "tickvals": [ 0, 0.25, 0.5, 0.75, 1 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0%", "25%", "50%", "75%", "100%" ], "categoryorder": "array", "showticklabels": true }, "yaxis18": { "type": "linear", "range": [ -0.05, 1.05 ], "ticks": "", "title": "", "anchor": "x3", "domain": [ 0, 0.208573866519072 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 9.298464092984643, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0%", "25%", "50%", "75%", "100%" ], "tickvals": [ 0, 0.25, 0.5, 0.75, 1 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0%", "25%", "50%", "75%", "100%" ], "categoryorder": "array", "showticklabels": true }, "yaxis19": { "type": "linear", "range": [ -0.05, 1.05 ], "ticks": "", "title": "", "anchor": "x4", "domain": [ 0, 0.208573866519072 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 9.298464092984643, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0%", "25%", "50%", "75%", "100%" ], "tickvals": [ 0, 0.25, 0.5, 0.75, 1 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0%", "25%", "50%", "75%", "100%" ], "categoryorder": "array", "showticklabels": true }, "hovermode": "closest", "showlegend": true, "annotations": [ { "x": 0, "y": 0.5, "ax": 0, "ay": 0, "font": { "size": 14.611872146118724, "color": "rgba(0,0,0,1)", "family": "" }, "text": "Porcentaje de la PBT de Aguascalientes", "xref": "paper", "yref": "paper", "xshift": -28.825238688252387, "xanchor": "right", "yanchor": "center", "showarrow": false, "textangle": -90, "annotationType": "axis" }, { "x": 0.08180878847180217, "y": 1, "ax": 0, "ay": 0, "font": { "size": 10.62681610626816, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Agricultura, ganadería,<br />pesca", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.30000000000000004, "y": 1, "ax": 0, "ay": 0, "font": { "size": 10.62681610626816, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Comercio al por mayor", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.5000000000000001, "y": 1, "ax": 0, "ay": 0, "font": { "size": 10.62681610626816, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Comercio al por menor", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.7000000000000001, "y": 1, "ax": 0, "ay": 0, "font": { "size": 10.62681610626816, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Construcción", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.9181912115281978, "y": 1, "ax": 0, "ay": 0, "font": { "size": 10.62681610626816, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Corporativos", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.08180878847180217, "y": 0.708573866519072, "ax": 0, "ay": 0, "font": { "size": 10.62681610626816, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Energía eléctrica,<br />suministro de agua y gas<br />natural", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.30000000000000004, "y": 0.708573866519072, "ax": 0, "ay": 0, "font": { "size": 10.62681610626816, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Industrias<br />manufactureras", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.5000000000000001, "y": 0.708573866519072, "ax": 0, "ay": 0, "font": { "size": 10.62681610626816, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Información en medios<br />masivos", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.7000000000000001, "y": 0.708573866519072, "ax": 0, "ay": 0, "font": { "size": 10.62681610626816, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Minería", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.9181912115281978, "y": 0.708573866519072, "ax": 0, "ay": 0, "font": { "size": 10.62681610626816, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Otros servicios no<br />gubernamentales", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.08180878847180217, "y": 0.458573866519072, "ax": 0, "ay": 0, "font": { "size": 10.62681610626816, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Servicios de alojamiento<br />temporal y restaurantes", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.30000000000000004, "y": 0.458573866519072, "ax": 0, "ay": 0, "font": { "size": 10.62681610626816, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Servicios de apoyo a los<br />negocios", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.5000000000000001, "y": 0.458573866519072, "ax": 0, "ay": 0, "font": { "size": 10.62681610626816, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Servicios de<br />esparcimiento,<br />culturales y deportivos", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.7000000000000001, "y": 0.458573866519072, "ax": 0, "ay": 0, "font": { "size": 10.62681610626816, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Servicios de salud y de<br />asistencia social", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.9181912115281978, "y": 0.458573866519072, "ax": 0, "ay": 0, "font": { "size": 10.62681610626816, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Servicios educativos", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.08180878847180217, "y": 0.208573866519072, "ax": 0, "ay": 0, "font": { "size": 10.62681610626816, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Servicios financieros y<br />de seguros", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.30000000000000004, "y": 0.208573866519072, "ax": 0, "ay": 0, "font": { "size": 10.62681610626816, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Servicios inmobiliarios", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.5000000000000001, "y": 0.208573866519072, "ax": 0, "ay": 0, "font": { "size": 10.62681610626816, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Servicios profesionales,<br />científicos y técnicos", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.7000000000000001, "y": 0.208573866519072, "ax": 0, "ay": 0, "font": { "size": 10.62681610626816, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Transportes y<br />almacenamiento", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 } ] } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~iguzmanvt", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/13.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-4.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2021-07-14 18:52:29", "mapbox_access_tokens": null, "has_password": null, "username": "iguzmanvt", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2025-06-25T17:16:14.075907Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~iguzmanvt/294.embed", "fid": "iguzmanvt:294", "filename": "grafica_pbt_sector_tipo_Aguascalientes", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/iguzmanvt:294/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/iguzmanvt:294/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/iguzmanvt:294/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/iguzmanvt:294/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/iguzmanvt:294", "plots": "https://api.plotly.com/v2/plots/iguzmanvt:294", "parent": "https://api.plotly.com/v2/folders/home?user=iguzmanvt" }, "owner": "iguzmanvt", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~iguzmanvt/294/", "world_readable": true, "date_modified": "2025-06-25T17:16:14.092Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~iguzmanvt/294/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "base": 0.55, "name": "Actividades primarias", "text": "pbt_prop: 0.000000000<br />reorder(sector, pbt_prop): Agricultura, ganadería, pesca<br />tipo_actividad: Actividades primarias", "type": "bar", "xsrc": "iguzmanvt:293:c06fba", "ysrc": "iguzmanvt:293:1e7880", "frame": null, "width": 0, "xaxis": "x", "yaxis": "y", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(141,211,199,1)", "autocolorscale": false }, "hoverinfo": "text", "showlegend": true, "legendgroup": "Actividades primarias", "orientation": "v", "textposition": "none" }, { "name": "Actividades secundarias", "type": "bar", "xsrc": "iguzmanvt:293:adcdd3", "ysrc": "iguzmanvt:293:321441", "frame": null, "xaxis": "x", "yaxis": "y", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(255,255,179,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:293:9f76ff", "textsrc": "iguzmanvt:293:256426", "widthsrc": "iguzmanvt:293:9be0df", "hoverinfo": "text", "showlegend": true, "legendgroup": "Actividades secundarias", "orientation": "v", "textposition": "none" }, { "name": "Actividades terciarias", "type": "bar", "xsrc": "iguzmanvt:293:7c4cd8", "ysrc": "iguzmanvt:293:10c19f", "frame": null, "xaxis": "x", "yaxis": "y", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(190,186,218,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:293:0c8bb5", "textsrc": "iguzmanvt:293:c24bb7", "widthsrc": "iguzmanvt:293:d4017b", "hoverinfo": "text", "showlegend": true, "legendgroup": "Actividades terciarias", "orientation": "v", "textposition": "none" }, { "mode": "text", "name": "Actividades primarias", "text": "", "type": "scatter", "xsrc": "iguzmanvt:293:e19eeb", "ysrc": "iguzmanvt:293:e50fc8", "frame": null, "xaxis": "x", "yaxis": "y", "hoveron": "points", "textfont": { "size": 13.228346456692915, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "hovertext": "pbt_prop: 0.000000000<br />reorder(sector, pbt_prop): Agricultura, ganadería, pesca<br />tipo_actividad: Actividades primarias<br />ifelse(pbt_prop > 0.001, scales::percent(pbt_prop, accuracy = 0.1), ...: ", "showlegend": false, "legendgroup": "Actividades primarias" }, { "mode": "text", "name": "Actividades secundarias", "type": "scatter", "xsrc": "iguzmanvt:293:16d3be", "ysrc": "iguzmanvt:293:a2bf14", "frame": null, "xaxis": "x", "yaxis": "y", "hoveron": "points", "textsrc": "iguzmanvt:293:b7538b", "textfont": { "size": 13.228346456692915, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Actividades secundarias", "hovertextsrc": "iguzmanvt:293:3e1b2c" }, { "mode": "text", "name": "Actividades terciarias", "type": "scatter", "xsrc": "iguzmanvt:293:aa104b", "ysrc": "iguzmanvt:293:80b09a", "frame": null, "xaxis": "x", "yaxis": "y", "hoveron": "points", "textsrc": "iguzmanvt:293:5fdab7", "textfont": { "size": 13.228346456692915, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Actividades terciarias", "hovertextsrc": "iguzmanvt:293:b97812" } ], "layout": { "font": { "size": 14.611872146118724, "color": "rgba(0,0,0,1)", "family": "" }, "title": { "x": 0, "font": { "size": 18.596928185969286, "color": "rgba(0,0,0,1)", "family": "" }, "text": "<b> Distribución de la Producción Bruta Total en Aguascalientes </b>", "xref": "paper" }, "xaxis": { "type": "linear", "range": [ -0.04506571358934526, 0.9463799853762505 ], "ticks": "", "title": { "font": { "size": 14.611872146118724, "color": "rgba(0,0,0,1)", "family": "" }, "text": "Porcentaje de la PBT en Aguascalientes" }, "anchor": "y", "domain": [ 0, 1 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 11.955168119551683, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0%", "25%", "50%", "75%" ], "tickvals": [ 0, 0.25, 0.5, 0.75 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "automargin": true, "hoverformat": ".2f", "categoryarray": [ "0%", "25%", "50%", "75%" ], "categoryorder": "array", "showticklabels": true }, "yaxis": { "type": "linear", "range": [ 0.4, 18.6 ], "ticks": "", "title": { "font": { "size": 14.611872146118724, "color": "rgba(0,0,0,1)", "family": "" }, "text": "" }, "anchor": "x", "domain": [ 0, 1 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": false, "showline": false, "tickfont": { "size": 13.283520132835198, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "Agricultura, ganadería, pesca", "Energía eléctrica, suministro de<br />agua y gas natural", "Minería", "Información en medios masivos", "Servicios de esparcimiento,<br />culturales y deportivos", "Servicios financieros y de seguros", "Servicios inmobiliarios", "Servicios educativos", "Servicios de salud y de asistencia<br />social", "Servicios profesionales,<br />científicos y técnicos", "Otros servicios no gubernamentales", "Transportes y almacenamiento", "Servicios de alojamiento temporal<br />y restaurantes", "Servicios de apoyo a los negocios", "Construcción", "Comercio al por mayor", "Comercio al por menor", "Industrias manufactureras" ], "tickvals": [ 1, 2, 3, 4, 5, 5.999999999999999, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18 ], "zeroline": false, "autorange": false, "gridcolor": null, "gridwidth": 0, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "automargin": true, "hoverformat": ".2f", "categoryarray": [ "Agricultura, ganadería, pesca", "Energía eléctrica, suministro de<br />agua y gas natural", "Minería", "Información en medios masivos", "Servicios de esparcimiento,<br />culturales y deportivos", "Servicios financieros y de seguros", "Servicios inmobiliarios", "Servicios educativos", "Servicios de salud y de asistencia<br />social", "Servicios profesionales,<br />científicos y técnicos", "Otros servicios no gubernamentales", "Transportes y almacenamiento", "Servicios de alojamiento temporal<br />y restaurantes", "Servicios de apoyo a los negocios", "Construcción", "Comercio al por mayor", "Comercio al por menor", "Industrias manufactureras" ], "categoryorder": "array", "showticklabels": true }, "legend": { "font": { "size": 11.955168119551683, "color": "rgba(0,0,0,1)", "family": "" }, "title": { "font": { "size": 14.611872146118724, "color": "rgba(0,0,0,1)", "family": "" }, "text": "Tipo de actividad" }, "bgcolor": null, "bordercolor": null, "borderwidth": 0 }, "margin": { "b": 42.05833064280553, "l": 236.77874636778742, "r": 7.305936073059362, "t": 46.435250526574734 }, "shapes": [ { "x0": 0, "x1": 1, "y0": 0, "y1": 1, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null } ], "barmode": "relative", "hovermode": "closest", "showlegend": true } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~iguzmanvt", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/13.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-4.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2021-07-14 18:52:29", "mapbox_access_tokens": null, "has_password": null, "username": "iguzmanvt", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2025-06-25T17:15:37.109675Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~iguzmanvt/292.embed", "fid": "iguzmanvt:292", "filename": "grafica_pbt_relativa_sectores_Aguascalientes", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/iguzmanvt:292/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/iguzmanvt:292/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/iguzmanvt:292/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/iguzmanvt:292/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/iguzmanvt:292", "plots": "https://api.plotly.com/v2/plots/iguzmanvt:292", "parent": "https://api.plotly.com/v2/folders/home?user=iguzmanvt" }, "owner": "iguzmanvt", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~iguzmanvt/292/", "world_readable": true, "date_modified": "2025-07-17T16:59:15.330Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~iguzmanvt/292/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "name": "Industrias manufactureras", "type": "bar", "xsrc": "iguzmanvt:291:a1cbaf", "ysrc": "iguzmanvt:291:4dc38e", "frame": null, "xaxis": "x", "yaxis": "y", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(141,211,199,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:291:980c4a", "textsrc": "iguzmanvt:291:0e9af8", "widthsrc": "iguzmanvt:291:d95ef3", "hoverinfo": "text", "showlegend": true, "legendgroup": "Industrias manufactureras", "orientation": "v", "textposition": "none" }, { "name": "Otros sectores", "type": "bar", "xsrc": "iguzmanvt:291:1510f0", "ysrc": "iguzmanvt:291:2652f2", "frame": null, "xaxis": "x", "yaxis": "y", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(255,255,179,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:291:cc8300", "textsrc": "iguzmanvt:291:7b9eee", "widthsrc": "iguzmanvt:291:469f15", "hoverinfo": "text", "showlegend": true, "legendgroup": "Otros sectores", "orientation": "v", "textposition": "none" }, { "name": "Comercio al por menor", "type": "bar", "xsrc": "iguzmanvt:291:efebcd", "ysrc": "iguzmanvt:291:7806c0", "frame": null, "xaxis": "x", "yaxis": "y", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(190,186,218,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:291:d11186", "textsrc": "iguzmanvt:291:12dd93", "widthsrc": "iguzmanvt:291:55d3e0", "hoverinfo": "text", "showlegend": true, "legendgroup": "Comercio al por menor", "orientation": "v", "textposition": "none" }, { "name": "Construcción", "type": "bar", "xsrc": "iguzmanvt:291:182546", "ysrc": "iguzmanvt:291:e9c213", "frame": null, "xaxis": "x", "yaxis": "y", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(251,128,114,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:291:e1b791", "textsrc": "iguzmanvt:291:d87053", "widthsrc": "iguzmanvt:291:442fce", "hoverinfo": "text", "showlegend": true, "legendgroup": "Construcción", "orientation": "v", "textposition": "none" }, { "name": "Comercio al por mayor", "type": "bar", "xsrc": "iguzmanvt:291:96d537", "ysrc": "iguzmanvt:291:fd60b2", "frame": null, "xaxis": "x", "yaxis": "y", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(128,177,211,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:291:1aa890", "textsrc": "iguzmanvt:291:d5d8ba", "widthsrc": "iguzmanvt:291:37027f", "hoverinfo": "text", "showlegend": true, "legendgroup": "Comercio al por mayor", "orientation": "v", "textposition": "none" }, { "name": "Servicios de apoyo a los negocios", "type": "bar", "xsrc": "iguzmanvt:291:d5d419", "ysrc": "iguzmanvt:291:1d179f", "frame": null, "xaxis": "x", "yaxis": "y", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(253,180,98,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:291:48f221", "textsrc": "iguzmanvt:291:fb4119", "widthsrc": "iguzmanvt:291:ebb977", "hoverinfo": "text", "showlegend": true, "legendgroup": "Servicios de apoyo a los negocios", "orientation": "v", "textposition": "none" }, { "mode": "text", "name": "Industrias manufactureras", "type": "scatter", "xsrc": "iguzmanvt:291:479a6e", "ysrc": "iguzmanvt:291:cab144", "frame": null, "xaxis": "x", "yaxis": "y", "hoveron": "points", "textsrc": "iguzmanvt:291:01a011", "textfont": { "size": 13.228346456692915, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Industrias manufactureras", "hovertextsrc": "iguzmanvt:291:65ad97" }, { "mode": "text", "name": "Otros sectores", "type": "scatter", "xsrc": "iguzmanvt:291:7a493b", "ysrc": "iguzmanvt:291:452932", "frame": null, "xaxis": "x", "yaxis": "y", "hoveron": "points", "textsrc": "iguzmanvt:291:d7d960", "textfont": { "size": 13.228346456692915, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Otros sectores", "hovertextsrc": "iguzmanvt:291:63ef32" }, { "mode": "text", "name": "Comercio al por menor", "type": "scatter", "xsrc": "iguzmanvt:291:899d38", "ysrc": "iguzmanvt:291:2997c8", "frame": null, "xaxis": "x", "yaxis": "y", "hoveron": "points", "textsrc": "iguzmanvt:291:c65e47", "textfont": { "size": 13.228346456692915, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Comercio al por menor", "hovertextsrc": "iguzmanvt:291:cb6bb7" }, { "mode": "text", "name": "Construcción", "type": "scatter", "xsrc": "iguzmanvt:291:364cf4", "ysrc": "iguzmanvt:291:43d25a", "frame": null, "xaxis": "x", "yaxis": "y", "hoveron": "points", "textsrc": "iguzmanvt:291:f012c8", "textfont": { "size": 13.228346456692915, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Construcción", "hovertextsrc": "iguzmanvt:291:db9a58" }, { "mode": "text", "name": "Comercio al por mayor", "type": "scatter", "xsrc": "iguzmanvt:291:210c5a", "ysrc": "iguzmanvt:291:5d9fa4", "frame": null, "xaxis": "x", "yaxis": "y", "hoveron": "points", "textsrc": "iguzmanvt:291:ddd897", "textfont": { "size": 13.228346456692915, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Comercio al por mayor", "hovertextsrc": "iguzmanvt:291:7ef29a" }, { "mode": "text", "name": "Servicios de apoyo a los negocios", "type": "scatter", "xsrc": "iguzmanvt:291:e89e43", "ysrc": "iguzmanvt:291:12616a", "frame": null, "xaxis": "x", "yaxis": "y", "hoveron": "points", "textsrc": "iguzmanvt:291:f060c5", "textfont": { "size": 13.228346456692915, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Servicios de apoyo a los negocios", "hovertextsrc": "iguzmanvt:291:7235ee" } ], "layout": { "font": { "size": 14.611872146118724, "color": "rgba(0,0,0,1)", "family": "" }, "title": { "x": 0, "font": { "size": 18.596928185969286, "color": "rgba(0,0,0,1)", "family": "" }, "text": "<b> Distribución de la Producción Bruta Total (PBT) de Aguascalientes </b>", "xref": "paper" }, "xaxis": { "type": "linear", "range": [ 0.4, 4.6 ], "ticks": "", "title": { "font": { "size": 14.611872146118724, "color": "rgba(0,0,0,1)", "family": "" }, "text": "" }, "anchor": "y", "domain": [ 0, 1 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 13.283520132835205, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "2003", "2008", "2013", "2018" ], "tickvals": [ 1, 2, 3, 4 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "automargin": true, "hoverformat": ".2f", "categoryarray": [ "2003", "2008", "2013", "2018" ], "categoryorder": "array", "showticklabels": true }, "yaxis": { "type": "linear", "range": [ -0.05, 1.05 ], "ticks": "", "title": { "font": { "size": 14.611872146118724, "color": "rgba(0,0,0,1)", "family": "" }, "text": "Porcentaje de la PBT de Aguascalientes" }, "anchor": "x", "domain": [ 0, 1 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 13.283520132835198, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0%", "25%", "50%", "75%", "100%" ], "tickvals": [ 0, 0.25, 0.5, 0.75, 1 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "automargin": true, "hoverformat": ".2f", "categoryarray": [ "0%", "25%", "50%", "75%", "100%" ], "categoryorder": "array", "showticklabels": true }, "legend": { "font": { "size": 10.62681610626816, "color": "rgba(0,0,0,1)", "family": "" }, "title": { "font": { "size": 14.611872146118724, "color": "rgba(0,0,0,1)", "family": "" }, "text": "Sectores" }, "bgcolor": null, "bordercolor": null, "borderwidth": 0 }, "margin": { "b": 28.77481050997033, "l": 52.13781652137817, "r": 7.305936073059362, "t": 46.435250526574734 }, "shapes": [ { "x0": 0, "x1": 1, "y0": 0, "y1": 1, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null } ], "barmode": "relative", "hovermode": "closest", "showlegend": true } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~iguzmanvt", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/13.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-4.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2021-07-14 18:52:29", "mapbox_access_tokens": null, "has_password": null, "username": "iguzmanvt", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2025-06-25T17:15:10.791112Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~iguzmanvt/290.embed", "fid": "iguzmanvt:290", "filename": "grafica_pbt_sectores_Aguascalientes", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/iguzmanvt:290/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/iguzmanvt:290/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/iguzmanvt:290/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/iguzmanvt:290/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/iguzmanvt:290", "plots": "https://api.plotly.com/v2/plots/iguzmanvt:290", "parent": "https://api.plotly.com/v2/folders/home?user=iguzmanvt" }, "owner": "iguzmanvt", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~iguzmanvt/290/", "world_readable": true, "date_modified": "2025-07-17T16:58:54.493Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~iguzmanvt/290/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "type": "bar", "xsrc": "iguzmanvt:289:ef73c6", "ysrc": "iguzmanvt:289:16ab21", "frame": null, "xaxis": "x", "yaxis": "y", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(141,211,199,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:289:8b523c", "textsrc": "iguzmanvt:289:e5b113", "widthsrc": "iguzmanvt:289:9cc64f", "hoverinfo": "text", "showlegend": false, "orientation": "v", "textposition": "none" }, { "type": "bar", "xsrc": "iguzmanvt:289:92dac5", "ysrc": "iguzmanvt:289:d0c8e3", "frame": null, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(141,211,199,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:289:e56557", "textsrc": "iguzmanvt:289:033a8d", "widthsrc": "iguzmanvt:289:1fd192", "hoverinfo": "text", "showlegend": false, "orientation": "v", "textposition": "none" }, { "type": "bar", "xsrc": "iguzmanvt:289:61cdb0", "ysrc": "iguzmanvt:289:20351e", "frame": null, "xaxis": "x3", "yaxis": "y3", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(141,211,199,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:289:97b045", "textsrc": "iguzmanvt:289:f3309d", "widthsrc": "iguzmanvt:289:e07f36", "hoverinfo": "text", "showlegend": false, "orientation": "v", "textposition": "none" }, { "type": "bar", "xsrc": "iguzmanvt:289:64df72", "ysrc": "iguzmanvt:289:e0bb9b", "frame": null, "xaxis": "x4", "yaxis": "y4", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(141,211,199,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:289:a21b93", "textsrc": "iguzmanvt:289:46530d", "widthsrc": "iguzmanvt:289:694bde", "hoverinfo": "text", "showlegend": false, "orientation": "v", "textposition": "none" }, { "base": null, "text": "factor(anio): 2003<br />pbt: NA", "type": "bar", "xsrc": "iguzmanvt:289:2f45c2", "ysrc": "iguzmanvt:289:8fd3b7", "frame": null, "width": null, "xaxis": "x5", "yaxis": "y5", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(141,211,199,1)", "autocolorscale": false }, "hoverinfo": "text", "showlegend": false, "orientation": "v", "textposition": "none" }, { "type": "bar", "xsrc": "iguzmanvt:289:5c100f", "ysrc": "iguzmanvt:289:b445cf", "frame": null, "xaxis": "x", "yaxis": "y6", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(141,211,199,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:289:eff127", "textsrc": "iguzmanvt:289:6b88df", "widthsrc": "iguzmanvt:289:dd87f7", "hoverinfo": "text", "showlegend": false, "orientation": "v", "textposition": "none" }, { "type": "bar", "xsrc": "iguzmanvt:289:4944d6", "ysrc": "iguzmanvt:289:9a2890", "frame": null, "xaxis": "x2", "yaxis": "y7", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(141,211,199,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:289:4e72ef", "textsrc": "iguzmanvt:289:8cb8a0", "widthsrc": "iguzmanvt:289:5dab49", "hoverinfo": "text", "showlegend": false, "orientation": "v", "textposition": "none" }, { "type": "bar", "xsrc": "iguzmanvt:289:3cc01c", "ysrc": "iguzmanvt:289:0db9a0", "frame": null, "xaxis": "x3", "yaxis": "y8", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(141,211,199,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:289:50c656", "textsrc": "iguzmanvt:289:d7d02e", "widthsrc": "iguzmanvt:289:b45239", "hoverinfo": "text", "showlegend": false, "orientation": "v", "textposition": "none" }, { "type": "bar", "xsrc": "iguzmanvt:289:616f51", "ysrc": "iguzmanvt:289:f214b9", "frame": null, "xaxis": "x4", "yaxis": "y9", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(141,211,199,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:289:11b1d3", "textsrc": "iguzmanvt:289:cf5af7", "widthsrc": "iguzmanvt:289:66ba9b", "hoverinfo": "text", "showlegend": false, "orientation": "v", "textposition": "none" }, { "type": "bar", "xsrc": "iguzmanvt:289:c26ae1", "ysrc": "iguzmanvt:289:414411", "frame": null, "xaxis": "x5", "yaxis": "y10", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(141,211,199,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:289:699510", "textsrc": "iguzmanvt:289:1bfe0b", "widthsrc": "iguzmanvt:289:60b0fc", "hoverinfo": "text", "showlegend": false, "orientation": "v", "textposition": "none" }, { "type": "bar", "xsrc": "iguzmanvt:289:024248", "ysrc": "iguzmanvt:289:05ea3c", "frame": null, "xaxis": "x", "yaxis": "y11", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(141,211,199,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:289:a1a838", "textsrc": "iguzmanvt:289:0d5da9", "widthsrc": "iguzmanvt:289:e22385", "hoverinfo": "text", "showlegend": false, "orientation": "v", "textposition": "none" }, { "type": "bar", "xsrc": "iguzmanvt:289:6767cb", "ysrc": "iguzmanvt:289:39b247", "frame": null, "xaxis": "x2", "yaxis": "y12", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(141,211,199,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:289:9b362f", "textsrc": "iguzmanvt:289:8bf19c", "widthsrc": "iguzmanvt:289:6a2b1a", "hoverinfo": "text", "showlegend": false, "orientation": "v", "textposition": "none" }, { "type": "bar", "xsrc": "iguzmanvt:289:f14528", "ysrc": "iguzmanvt:289:e8d350", "frame": null, "xaxis": "x3", "yaxis": "y13", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(141,211,199,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:289:e7d48d", "textsrc": "iguzmanvt:289:f5fd9e", "widthsrc": "iguzmanvt:289:634bfd", "hoverinfo": "text", "showlegend": false, "orientation": "v", "textposition": "none" }, { "type": "bar", "xsrc": "iguzmanvt:289:243990", "ysrc": "iguzmanvt:289:92af18", "frame": null, "xaxis": "x4", "yaxis": "y14", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(141,211,199,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:289:c404b2", "textsrc": "iguzmanvt:289:8ae774", "widthsrc": "iguzmanvt:289:cc9e56", "hoverinfo": "text", "showlegend": false, "orientation": "v", "textposition": "none" }, { "type": "bar", "xsrc": "iguzmanvt:289:eff982", "ysrc": "iguzmanvt:289:e9d1a2", "frame": null, "xaxis": "x5", "yaxis": "y15", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(141,211,199,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:289:e73f10", "textsrc": "iguzmanvt:289:39f4e0", "widthsrc": "iguzmanvt:289:f73324", "hoverinfo": "text", "showlegend": false, "orientation": "v", "textposition": "none" }, { "type": "bar", "xsrc": "iguzmanvt:289:54e5d6", "ysrc": "iguzmanvt:289:a0d0fb", "frame": null, "xaxis": "x", "yaxis": "y16", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(141,211,199,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:289:99ac0e", "textsrc": "iguzmanvt:289:d004e0", "widthsrc": "iguzmanvt:289:24e65d", "hoverinfo": "text", "showlegend": false, "orientation": "v", "textposition": "none" }, { "type": "bar", "xsrc": "iguzmanvt:289:986d2f", "ysrc": "iguzmanvt:289:82e6cf", "frame": null, "xaxis": "x2", "yaxis": "y17", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(141,211,199,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:289:9b0568", "textsrc": "iguzmanvt:289:05b62b", "widthsrc": "iguzmanvt:289:6fc9af", "hoverinfo": "text", "showlegend": false, "orientation": "v", "textposition": "none" }, { "type": "bar", "xsrc": "iguzmanvt:289:ccfcf6", "ysrc": "iguzmanvt:289:c6a539", "frame": null, "xaxis": "x3", "yaxis": "y18", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(141,211,199,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:289:c6119b", "textsrc": "iguzmanvt:289:28e167", "widthsrc": "iguzmanvt:289:e70dfa", "hoverinfo": "text", "showlegend": false, "orientation": "v", "textposition": "none" }, { "type": "bar", "xsrc": "iguzmanvt:289:ac61a2", "ysrc": "iguzmanvt:289:289ec6", "frame": null, "xaxis": "x4", "yaxis": "y19", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(141,211,199,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:289:1df2c9", "textsrc": "iguzmanvt:289:14a26f", "widthsrc": "iguzmanvt:289:4f72e2", "hoverinfo": "text", "showlegend": false, "orientation": "v", "textposition": "none" }, { "mode": "text", "type": "scatter", "xsrc": "iguzmanvt:289:e0076a", "ysrc": "iguzmanvt:289:0d37d4", "frame": null, "xaxis": "x", "yaxis": "y", "hoveron": "points", "textsrc": "iguzmanvt:289:935632", "textfont": { "size": 11.338582677165356, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "hovertextsrc": "iguzmanvt:289:3bf856" }, { "mode": "text", "type": "scatter", "xsrc": "iguzmanvt:289:3d0950", "ysrc": "iguzmanvt:289:ace3b8", "frame": null, "xaxis": "x2", "yaxis": "y2", "hoveron": "points", "textsrc": "iguzmanvt:289:44a726", "textfont": { "size": 11.338582677165356, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "hovertextsrc": "iguzmanvt:289:d57272" }, { "mode": "text", "type": "scatter", "xsrc": "iguzmanvt:289:8b3686", "ysrc": "iguzmanvt:289:3db1ae", "frame": null, "xaxis": "x3", "yaxis": "y3", "hoveron": "points", "textsrc": "iguzmanvt:289:d344aa", "textfont": { "size": 11.338582677165356, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "hovertextsrc": "iguzmanvt:289:ebab03" }, { "mode": "text", "type": "scatter", "xsrc": "iguzmanvt:289:0e7923", "ysrc": "iguzmanvt:289:a6fb70", "frame": null, "xaxis": "x4", "yaxis": "y4", "hoveron": "points", "textsrc": "iguzmanvt:289:9e501b", "textfont": { "size": 11.338582677165356, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "hovertextsrc": "iguzmanvt:289:ec020f" }, { "mode": "text", "text": null, "type": "scatter", "xsrc": "iguzmanvt:289:314a3e", "ysrc": "iguzmanvt:289:c4872a", "frame": null, "xaxis": "x5", "yaxis": "y5", "hoveron": "points", "textfont": { "size": 11.338582677165356, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "hovertext": "factor(anio): 2003<br />pbt: NA<br />ifelse(pbt > 1, scales::comma(pbt, accuracy = 1, scale = 1/1e+06), ...: NA", "showlegend": false }, { "mode": "text", "type": "scatter", "xsrc": "iguzmanvt:289:3362e1", "ysrc": "iguzmanvt:289:544e50", "frame": null, "xaxis": "x", "yaxis": "y6", "hoveron": "points", "textsrc": "iguzmanvt:289:082951", "textfont": { "size": 11.338582677165356, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "hovertextsrc": "iguzmanvt:289:0e2dfd" }, { "mode": "text", "type": "scatter", "xsrc": "iguzmanvt:289:e27631", "ysrc": "iguzmanvt:289:3dd8f0", "frame": null, "xaxis": "x2", "yaxis": "y7", "hoveron": "points", "textsrc": "iguzmanvt:289:785993", "textfont": { "size": 11.338582677165356, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "hovertextsrc": "iguzmanvt:289:65ac70" }, { "mode": "text", "type": "scatter", "xsrc": "iguzmanvt:289:05226e", "ysrc": "iguzmanvt:289:5dfedf", "frame": null, "xaxis": "x3", "yaxis": "y8", "hoveron": "points", "textsrc": "iguzmanvt:289:c01863", "textfont": { "size": 11.338582677165356, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "hovertextsrc": "iguzmanvt:289:efa35c" }, { "mode": "text", "type": "scatter", "xsrc": "iguzmanvt:289:2ce930", "ysrc": "iguzmanvt:289:773ac0", "frame": null, "xaxis": "x4", "yaxis": "y9", "hoveron": "points", "textsrc": "iguzmanvt:289:99a8f2", "textfont": { "size": 11.338582677165356, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "hovertextsrc": "iguzmanvt:289:d19a5b" }, { "mode": "text", "type": "scatter", "xsrc": "iguzmanvt:289:1f18de", "ysrc": "iguzmanvt:289:7f7fe5", "frame": null, "xaxis": "x5", "yaxis": "y10", "hoveron": "points", "textsrc": "iguzmanvt:289:f4d304", "textfont": { "size": 11.338582677165356, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "hovertextsrc": "iguzmanvt:289:a53c42" }, { "mode": "text", "type": "scatter", "xsrc": "iguzmanvt:289:3fa4a9", "ysrc": "iguzmanvt:289:522e37", "frame": null, "xaxis": "x", "yaxis": "y11", "hoveron": "points", "textsrc": "iguzmanvt:289:a9bea8", "textfont": { "size": 11.338582677165356, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "hovertextsrc": "iguzmanvt:289:9bef0a" }, { "mode": "text", "type": "scatter", "xsrc": "iguzmanvt:289:4bb6b4", "ysrc": "iguzmanvt:289:a12ace", "frame": null, "xaxis": "x2", "yaxis": "y12", "hoveron": "points", "textsrc": "iguzmanvt:289:e0628d", "textfont": { "size": 11.338582677165356, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "hovertextsrc": "iguzmanvt:289:175ba6" }, { "mode": "text", "type": "scatter", "xsrc": "iguzmanvt:289:051c89", "ysrc": "iguzmanvt:289:c4cf5b", "frame": null, "xaxis": "x3", "yaxis": "y13", "hoveron": "points", "textsrc": "iguzmanvt:289:e1ddc0", "textfont": { "size": 11.338582677165356, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "hovertextsrc": "iguzmanvt:289:5c5130" }, { "mode": "text", "type": "scatter", "xsrc": "iguzmanvt:289:9454bc", "ysrc": "iguzmanvt:289:b2e4f6", "frame": null, "xaxis": "x4", "yaxis": "y14", "hoveron": "points", "textsrc": "iguzmanvt:289:af7d88", "textfont": { "size": 11.338582677165356, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "hovertextsrc": "iguzmanvt:289:ffd218" }, { "mode": "text", "type": "scatter", "xsrc": "iguzmanvt:289:a7a50c", "ysrc": "iguzmanvt:289:085a3a", "frame": null, "xaxis": "x5", "yaxis": "y15", "hoveron": "points", "textsrc": "iguzmanvt:289:08f156", "textfont": { "size": 11.338582677165356, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "hovertextsrc": "iguzmanvt:289:633846" }, { "mode": "text", "type": "scatter", "xsrc": "iguzmanvt:289:b9520f", "ysrc": "iguzmanvt:289:53795a", "frame": null, "xaxis": "x", "yaxis": "y16", "hoveron": "points", "textsrc": "iguzmanvt:289:28d29c", "textfont": { "size": 11.338582677165356, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "hovertextsrc": "iguzmanvt:289:ed174c" }, { "mode": "text", "type": "scatter", "xsrc": "iguzmanvt:289:636d54", "ysrc": "iguzmanvt:289:ea8eba", "frame": null, "xaxis": "x2", "yaxis": "y17", "hoveron": "points", "textsrc": "iguzmanvt:289:c98af8", "textfont": { "size": 11.338582677165356, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "hovertextsrc": "iguzmanvt:289:af427e" }, { "mode": "text", "type": "scatter", "xsrc": "iguzmanvt:289:5e68ca", "ysrc": "iguzmanvt:289:00752f", "frame": null, "xaxis": "x3", "yaxis": "y18", "hoveron": "points", "textsrc": "iguzmanvt:289:563213", "textfont": { "size": 11.338582677165356, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "hovertextsrc": "iguzmanvt:289:e267a4" }, { "mode": "text", "type": "scatter", "xsrc": "iguzmanvt:289:ca6a9b", "ysrc": "iguzmanvt:289:2bea5f", "frame": null, "xaxis": "x4", "yaxis": "y19", "hoveron": "points", "textsrc": "iguzmanvt:289:9d1a8e", "textfont": { "size": 11.338582677165356, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "hovertextsrc": "iguzmanvt:289:2cc231" } ], "layout": { "font": { "size": 14.611872146118724, "color": "rgba(0,0,0,1)", "family": "" }, "title": { "x": 0, "font": { "size": 18.596928185969286, "color": "rgba(0,0,0,1)", "family": "" }, "text": "<b> Producción Bruta Total (PBT) en Aguascalientes </b>", "xref": "paper" }, "xaxis": { "type": "linear", "range": [ 0.4, 4.6 ], "ticks": "", "title": "", "anchor": "y16", "domain": [ 0, 0.15166240882405266 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 10.62681610626816, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "2003", "2008", "2013", "2018" ], "tickvals": [ 1, 2, 3, 4 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": -45, "tickcolor": null, "tickwidth": 0, "automargin": true, "hoverformat": ".2f", "categoryarray": [ "2003", "2008", "2013", "2018" ], "categoryorder": "array", "showticklabels": true }, "yaxis": { "type": "linear", "range": [ -0.10352369380315918, 2.1739975698663425 ], "ticks": "", "title": "", "anchor": "x", "domain": [ 0.791426133480928, 1 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 10.62681610626816, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0.0", "0.5", "1.0", "1.5", "2.0" ], "tickvals": [ 0, 0.5, 1, 1.5, 1.9999999999999998 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "automargin": true, "hoverformat": ".2f", "categoryarray": [ "0.0", "0.5", "1.0", "1.5", "2.0" ], "categoryorder": "array", "showticklabels": true }, "legend": { "font": { "size": 11.68949771689498, "color": "rgba(0,0,0,1)", "family": "" }, "bgcolor": null, "bordercolor": null, "borderwidth": 0 }, "margin": { "b": 27.974140245561358, "l": 41.511000415110004, "r": 7.305936073059362, "t": 57.06206663284289 }, "shapes": [ { "x0": 0, "x1": 0.15166240882405266, "y0": 0.791426133480928, "y1": 1, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0, "x1": 0.15166240882405266, "y0": 0, "y1": 22.316313823163142, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 1, "fillcolor": null, "ysizemode": "pixel" }, { "x0": 0.24833759117594736, "x1": 0.3516624088240527, "y0": 0.791426133480928, "y1": 1, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0.24833759117594736, "x1": 0.3516624088240527, "y0": 0, "y1": 22.316313823163142, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 1, "fillcolor": null, "ysizemode": "pixel" }, { "x0": 0.44833759117594735, "x1": 0.5516624088240527, "y0": 0.791426133480928, "y1": 1, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0.44833759117594735, "x1": 0.5516624088240527, "y0": 0, "y1": 22.316313823163142, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 1, "fillcolor": null, "ysizemode": "pixel" }, { "x0": 0.6483375911759475, "x1": 0.7516624088240527, "y0": 0.791426133480928, "y1": 1, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0.6483375911759475, "x1": 0.7516624088240527, "y0": 0, "y1": 22.316313823163142, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 1, "fillcolor": null, "ysizemode": "pixel" }, { "x0": 0.8483375911759474, "x1": 1, "y0": 0.791426133480928, "y1": 1, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0.8483375911759474, "x1": 1, "y0": 0, "y1": 22.316313823163142, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 1, "fillcolor": null, "ysizemode": "pixel" }, { "x0": 0, "x1": 0.15166240882405266, "y0": 0.541426133480928, "y1": 0.708573866519072, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0, "x1": 0.15166240882405266, "y0": 0, "y1": 22.316313823163142, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 0.708573866519072, "fillcolor": null, "ysizemode": "pixel" }, { "x0": 0.24833759117594736, "x1": 0.3516624088240527, "y0": 0.541426133480928, "y1": 0.708573866519072, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0.24833759117594736, "x1": 0.3516624088240527, "y0": 0, "y1": 22.316313823163142, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 0.708573866519072, "fillcolor": null, "ysizemode": "pixel" }, { "x0": 0.44833759117594735, "x1": 0.5516624088240527, "y0": 0.541426133480928, "y1": 0.708573866519072, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0.44833759117594735, "x1": 0.5516624088240527, "y0": 0, "y1": 22.316313823163142, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 0.708573866519072, "fillcolor": null, "ysizemode": "pixel" }, { "x0": 0.6483375911759475, "x1": 0.7516624088240527, "y0": 0.541426133480928, "y1": 0.708573866519072, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0.6483375911759475, "x1": 0.7516624088240527, "y0": 0, "y1": 22.316313823163142, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 0.708573866519072, "fillcolor": null, "ysizemode": "pixel" }, { "x0": 0.8483375911759474, "x1": 1, "y0": 0.541426133480928, "y1": 0.708573866519072, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0.8483375911759474, "x1": 1, "y0": 0, "y1": 22.316313823163142, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 0.708573866519072, "fillcolor": null, "ysizemode": "pixel" }, { "x0": 0, "x1": 0.15166240882405266, "y0": 0.291426133480928, "y1": 0.458573866519072, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0, "x1": 0.15166240882405266, "y0": 0, "y1": 22.316313823163142, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 0.458573866519072, "fillcolor": null, "ysizemode": "pixel" }, { "x0": 0.24833759117594736, "x1": 0.3516624088240527, "y0": 0.291426133480928, "y1": 0.458573866519072, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0.24833759117594736, "x1": 0.3516624088240527, "y0": 0, "y1": 22.316313823163142, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 0.458573866519072, "fillcolor": null, "ysizemode": "pixel" }, { "x0": 0.44833759117594735, "x1": 0.5516624088240527, "y0": 0.291426133480928, "y1": 0.458573866519072, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0.44833759117594735, "x1": 0.5516624088240527, "y0": 0, "y1": 22.316313823163142, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 0.458573866519072, "fillcolor": null, "ysizemode": "pixel" }, { "x0": 0.6483375911759475, "x1": 0.7516624088240527, "y0": 0.291426133480928, "y1": 0.458573866519072, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0.6483375911759475, "x1": 0.7516624088240527, "y0": 0, "y1": 22.316313823163142, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 0.458573866519072, "fillcolor": null, "ysizemode": "pixel" }, { "x0": 0.8483375911759474, "x1": 1, "y0": 0.291426133480928, "y1": 0.458573866519072, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0.8483375911759474, "x1": 1, "y0": 0, "y1": 22.316313823163142, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 0.458573866519072, "fillcolor": null, "ysizemode": "pixel" }, { "x0": 0, "x1": 0.15166240882405266, "y0": 0, "y1": 0.208573866519072, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0, "x1": 0.15166240882405266, "y0": 0, "y1": 22.316313823163142, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 0.208573866519072, "fillcolor": null, "ysizemode": "pixel" }, { "x0": 0.24833759117594736, "x1": 0.3516624088240527, "y0": 0, "y1": 0.208573866519072, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0.24833759117594736, "x1": 0.3516624088240527, "y0": 0, "y1": 22.316313823163142, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 0.208573866519072, "fillcolor": null, "ysizemode": "pixel" }, { "x0": 0.44833759117594735, "x1": 0.5516624088240527, "y0": 0, "y1": 0.208573866519072, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0.44833759117594735, "x1": 0.5516624088240527, "y0": 0, "y1": 22.316313823163142, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 0.208573866519072, "fillcolor": null, "ysizemode": "pixel" }, { "x0": 0.6483375911759475, "x1": 0.7516624088240527, "y0": 0, "y1": 0.208573866519072, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0.6483375911759475, "x1": 0.7516624088240527, "y0": 0, "y1": 22.316313823163142, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 0.208573866519072, "fillcolor": null, "ysizemode": "pixel" } ], "xaxis2": { "type": "linear", "range": [ 0.4, 4.6 ], "ticks": "", "title": "", "anchor": "y17", "domain": [ 0.24833759117594736, 0.3516624088240527 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 10.62681610626816, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "2003", "2008", "2013", "2018" ], "tickvals": [ 1, 2, 3, 4 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": -45, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "2003", "2008", "2013", "2018" ], "categoryorder": "array", "showticklabels": true }, "xaxis3": { "type": "linear", "range": [ 0.4, 4.6 ], "ticks": "", "title": "", "anchor": "y18", "domain": [ 0.44833759117594735, 0.5516624088240527 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 10.62681610626816, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "2003", "2008", "2013", "2018" ], "tickvals": [ 1, 2, 3, 4 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": -45, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "2003", "2008", "2013", "2018" ], "categoryorder": "array", "showticklabels": true }, "xaxis4": { "type": "linear", "range": [ 0.4, 4.6 ], "ticks": "", "title": "", "anchor": "y19", "domain": [ 0.6483375911759475, 0.7516624088240527 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 10.62681610626816, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "2003", "2008", "2013", "2018" ], "tickvals": [ 1, 2, 3, 4 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": -45, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "2003", "2008", "2013", "2018" ], "categoryorder": "array", "showticklabels": true }, "xaxis5": { "type": "linear", "range": [ 0.4, 4.6 ], "ticks": "", "title": "", "anchor": "y15", "domain": [ 0.8483375911759474, 1 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 10.62681610626816, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "2003", "2008", "2013", "2018" ], "tickvals": [ 1, 2, 3, 4 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": -45, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "2003", "2008", "2013", "2018" ], "categoryorder": "array", "showticklabels": true }, "yaxis2": { "type": "linear", "range": [ -508.0584251968504, 10669.226929133858 ], "ticks": "", "title": "", "anchor": "x2", "domain": [ 0.791426133480928, 1 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 10.62681610626816, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0", "2,500", "5,000", "7,500", "10,000" ], "tickvals": [ 0, 2500, 5000, 7499.999999999999, 10000 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0", "2,500", "5,000", "7,500", "10,000" ], "categoryorder": "array", "showticklabels": true }, "yaxis3": { "type": "linear", "range": [ -718.0509055118109, 15079.06901574803 ], "ticks": "", "title": "", "anchor": "x3", "domain": [ 0.791426133480928, 1 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 10.62681610626816, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0", "5,000", "10,000", "15,000" ], "tickvals": [ 0, 5000, 10000, 15000 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0", "5,000", "10,000", "15,000" ], "categoryorder": "array", "showticklabels": true }, "yaxis4": { "type": "linear", "range": [ -275.47405511811024, 5784.955157480315 ], "ticks": "", "title": "", "anchor": "x4", "domain": [ 0.791426133480928, 1 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 10.62681610626816, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0", "2,000", "4,000" ], "tickvals": [ 0, 2000, 4000 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0", "2,000", "4,000" ], "categoryorder": "array", "showticklabels": true }, "yaxis5": { "type": "linear", "range": [ -0.05, 0.05 ], "ticks": "", "title": "", "anchor": "x5", "domain": [ 0.791426133480928, 1 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 10.62681610626816, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "-0.050", "-0.025", "0.000", "0.025", "0.050" ], "tickvals": [ -0.05, -0.025, 0, 0.02500000000000001, 0.05 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "-0.050", "-0.025", "0.000", "0.025", "0.050" ], "categoryorder": "array", "showticklabels": true }, "yaxis6": { "type": "linear", "range": [ -313.82162818955044, 6590.254191980559 ], "ticks": "", "title": "", "anchor": "x", "domain": [ 0.541426133480928, 0.708573866519072 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 10.62681610626816, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0", "2,000", "4,000", "6,000" ], "tickvals": [ 0, 1999.9999999999998, 4000, 6000 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0", "2,000", "4,000", "6,000" ], "categoryorder": "array", "showticklabels": true }, "yaxis7": { "type": "linear", "range": [ -9921.721811023623, 208356.15803149607 ], "ticks": "", "title": "", "anchor": "x2", "domain": [ 0.541426133480928, 0.708573866519072 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 10.62681610626816, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0", "50,000", "100,000", "150,000", "200,000" ], "tickvals": [ 0, 50000.00000000001, 100000.00000000001, 150000, 200000 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0", "50,000", "100,000", "150,000", "200,000" ], "categoryorder": "array", "showticklabels": true }, "yaxis8": { "type": "linear", "range": [ -199.57958687727825, 4191.171324422843 ], "ticks": "", "title": "", "anchor": "x3", "domain": [ 0.541426133480928, 0.708573866519072 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 10.62681610626816, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0", "1,000", "2,000", "3,000", "4,000" ], "tickvals": [ 0, 1000, 2000.0000000000002, 3000, 4000 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0", "1,000", "2,000", "3,000", "4,000" ], "categoryorder": "array", "showticklabels": true }, "yaxis9": { "type": "linear", "range": [ -16.853948967193197, 353.93292831105714 ], "ticks": "", "title": "", "anchor": "x4", "domain": [ 0.541426133480928, 0.708573866519072 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 10.62681610626816, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0", "100", "200", "300" ], "tickvals": [ 0, 100, 200, 300 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0", "100", "200", "300" ], "categoryorder": "array", "showticklabels": true }, "barmode": "relative", "yaxis10": { "type": "linear", "range": [ -118.19244094488191, 2482.04125984252 ], "ticks": "", "title": "", "anchor": "x5", "domain": [ 0.541426133480928, 0.708573866519072 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 10.62681610626816, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0", "500", "1,000", "1,500", "2,000" ], "tickvals": [ 1.4210854715202004e-14, 500, 999.9999999999999, 1500, 2000.0000000000002 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0", "500", "1,000", "1,500", "2,000" ], "categoryorder": "array", "showticklabels": true }, "yaxis11": { "type": "linear", "range": [ -230.28968503937008, 4836.0833858267715 ], "ticks": "", "title": "", "anchor": "x", "domain": [ 0.291426133480928, 0.458573866519072 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 10.62681610626816, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0", "1,000", "2,000", "3,000", "4,000" ], "tickvals": [ 0, 1000.0000000000001, 1999.9999999999998, 3000, 4000 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0", "1,000", "2,000", "3,000", "4,000" ], "categoryorder": "array", "showticklabels": true }, "yaxis12": { "type": "linear", "range": [ -231.4296062992126, 4860.021732283464 ], "ticks": "", "title": "", "anchor": "x2", "domain": [ 0.291426133480928, 0.458573866519072 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 10.62681610626816, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0", "1,000", "2,000", "3,000", "4,000" ], "tickvals": [ 0, 1000, 2000, 3000, 4000 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0", "1,000", "2,000", "3,000", "4,000" ], "categoryorder": "array", "showticklabels": true }, "yaxis13": { "type": "linear", "range": [ -43.16023622047245, 906.3649606299214 ], "ticks": "", "title": "", "anchor": "x3", "domain": [ 0.291426133480928, 0.458573866519072 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 10.62681610626816, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0", "250", "500", "750" ], "tickvals": [ 0, 249.99999999999997, 500.00000000000006, 750 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0", "250", "500", "750" ], "categoryorder": "array", "showticklabels": true }, "yaxis14": { "type": "linear", "range": [ -95.17649606299214, 1998.7064173228348 ], "ticks": "", "title": "", "anchor": "x4", "domain": [ 0.291426133480928, 0.458573866519072 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 10.62681610626816, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0", "500", "1,000", "1,500" ], "tickvals": [ 0, 499.99999999999994, 1000, 1500 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0", "500", "1,000", "1,500" ], "categoryorder": "array", "showticklabels": true }, "yaxis15": { "type": "linear", "range": [ -94.93366141732285, 1993.6068897637797 ], "ticks": "", "title": "", "anchor": "x5", "domain": [ 0.291426133480928, 0.458573866519072 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 10.62681610626816, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0", "500", "1,000", "1,500" ], "tickvals": [ 0, 499.99999999999994, 1000, 1500 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0", "500", "1,000", "1,500" ], "categoryorder": "array", "showticklabels": true }, "yaxis16": { "type": "linear", "range": [ -45.39803149606299, 953.3586614173228 ], "ticks": "", "title": "", "anchor": "x", "domain": [ 0, 0.208573866519072 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 10.62681610626816, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0", "250", "500", "750" ], "tickvals": [ 0, 249.99999999999997, 500.00000000000006, 750 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0", "250", "500", "750" ], "categoryorder": "array", "showticklabels": true }, "yaxis17": { "type": "linear", "range": [ -77.25921259842521, 1622.4434645669292 ], "ticks": "", "title": "", "anchor": "x2", "domain": [ 0, 0.208573866519072 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 10.62681610626816, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0", "500", "1,000", "1,500" ], "tickvals": [ 0, 499.99999999999994, 1000, 1500 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0", "500", "1,000", "1,500" ], "categoryorder": "array", "showticklabels": true }, "yaxis18": { "type": "linear", "range": [ -114.93885826771655, 2413.7160236220475 ], "ticks": "", "title": "", "anchor": "x3", "domain": [ 0, 0.208573866519072 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 10.62681610626816, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0", "500", "1,000", "1,500", "2,000" ], "tickvals": [ 0, 500, 1000, 1500, 2000 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0", "500", "1,000", "1,500", "2,000" ], "categoryorder": "array", "showticklabels": true }, "yaxis19": { "type": "linear", "range": [ -182.63795681063118, 3835.397093023255 ], "ticks": "", "title": "", "anchor": "x4", "domain": [ 0, 0.208573866519072 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 10.62681610626816, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0", "1,000", "2,000", "3,000" ], "tickvals": [ 0, 1000.0000000000001, 2000, 3000 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0", "1,000", "2,000", "3,000" ], "categoryorder": "array", "showticklabels": true }, "hovermode": "closest", "showlegend": false, "annotations": [ { "x": 0, "y": 0.5, "ax": 0, "ay": 0, "font": { "size": 14.611872146118724, "color": "rgba(0,0,0,1)", "family": "" }, "text": "Millones de pesos constantes de 2013", "xref": "paper", "yref": "paper", "xshift": -26.168534661685367, "xanchor": "right", "yanchor": "center", "showarrow": false, "textangle": -90, "annotationType": "axis" }, { "x": 0.07583120441202633, "y": 1, "ax": 0, "ay": 0, "font": { "size": 10.62681610626816, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Agricultura, ganadería, pesca", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.30000000000000004, "y": 1, "ax": 0, "ay": 0, "font": { "size": 10.62681610626816, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Comercio al por mayor", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.5, "y": 1, "ax": 0, "ay": 0, "font": { "size": 10.62681610626816, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Comercio al por menor", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.7000000000000001, "y": 1, "ax": 0, "ay": 0, "font": { "size": 10.62681610626816, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Construcción", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.9241687955879737, "y": 1, "ax": 0, "ay": 0, "font": { "size": 10.62681610626816, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Corporativos", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.07583120441202633, "y": 0.708573866519072, "ax": 0, "ay": 0, "font": { "size": 10.62681610626816, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Energía eléctrica, suministro<br />de agua y gas natural", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.30000000000000004, "y": 0.708573866519072, "ax": 0, "ay": 0, "font": { "size": 10.62681610626816, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Industrias manufactureras", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.5, "y": 0.708573866519072, "ax": 0, "ay": 0, "font": { "size": 10.62681610626816, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Información en medios masivos", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.7000000000000001, "y": 0.708573866519072, "ax": 0, "ay": 0, "font": { "size": 10.62681610626816, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Minería", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.9241687955879737, "y": 0.708573866519072, "ax": 0, "ay": 0, "font": { "size": 10.62681610626816, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Otros servicios no<br />gubernamentales", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.07583120441202633, "y": 0.458573866519072, "ax": 0, "ay": 0, "font": { "size": 10.62681610626816, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Servicios de alojamiento<br />temporal y restaurantes", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.30000000000000004, "y": 0.458573866519072, "ax": 0, "ay": 0, "font": { "size": 10.62681610626816, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Servicios de apoyo a los<br />negocios", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.5, "y": 0.458573866519072, "ax": 0, "ay": 0, "font": { "size": 10.62681610626816, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Servicios de esparcimiento,<br />culturales y deportivos", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.7000000000000001, "y": 0.458573866519072, "ax": 0, "ay": 0, "font": { "size": 10.62681610626816, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Servicios de salud y de<br />asistencia social", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.9241687955879737, "y": 0.458573866519072, "ax": 0, "ay": 0, "font": { "size": 10.62681610626816, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Servicios educativos", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.07583120441202633, "y": 0.208573866519072, "ax": 0, "ay": 0, "font": { "size": 10.62681610626816, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Servicios financieros y de<br />seguros", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.30000000000000004, "y": 0.208573866519072, "ax": 0, "ay": 0, "font": { "size": 10.62681610626816, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Servicios inmobiliarios", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.5, "y": 0.208573866519072, "ax": 0, "ay": 0, "font": { "size": 10.62681610626816, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Servicios profesionales,<br />científicos y técnicos", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.7000000000000001, "y": 0.208573866519072, "ax": 0, "ay": 0, "font": { "size": 10.62681610626816, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Transportes y almacenamiento", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 } ] } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~iguzmanvt", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/13.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-4.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2021-07-14 18:52:29", "mapbox_access_tokens": null, "has_password": null, "username": "iguzmanvt", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2025-06-25T17:14:50.798390Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~iguzmanvt/288.embed", "fid": "iguzmanvt:288", "filename": "grafica_pbt_relativa_Aguascalientes", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/iguzmanvt:288/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/iguzmanvt:288/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/iguzmanvt:288/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/iguzmanvt:288/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/iguzmanvt:288", "plots": "https://api.plotly.com/v2/plots/iguzmanvt:288", "parent": "https://api.plotly.com/v2/folders/home?user=iguzmanvt" }, "owner": "iguzmanvt", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~iguzmanvt/288/", "world_readable": true, "date_modified": "2025-07-17T16:58:33.578Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~iguzmanvt/288/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "name": "Aguascalientes", "type": "bar", "xsrc": "iguzmanvt:287:e80192", "ysrc": "iguzmanvt:287:016f59", "frame": null, "xaxis": "x", "yaxis": "y", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(141,211,199,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:287:559cae", "textsrc": "iguzmanvt:287:471c67", "widthsrc": "iguzmanvt:287:f38459", "hoverinfo": "text", "showlegend": true, "legendgroup": "Aguascalientes", "orientation": "v", "textposition": "none" }, { "name": "Resto de Aguascalientes", "type": "bar", "xsrc": "iguzmanvt:287:3704f5", "ysrc": "iguzmanvt:287:1e5dcd", "frame": null, "xaxis": "x", "yaxis": "y", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(255,255,179,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:287:cb8c9a", "textsrc": "iguzmanvt:287:a74a05", "widthsrc": "iguzmanvt:287:ffaedc", "hoverinfo": "text", "showlegend": true, "legendgroup": "Resto de Aguascalientes", "orientation": "v", "textposition": "none" }, { "mode": "text", "name": "Aguascalientes", "type": "scatter", "xsrc": "iguzmanvt:287:e233ed", "ysrc": "iguzmanvt:287:daa00a", "frame": null, "xaxis": "x", "yaxis": "y", "hoveron": "points", "textsrc": "iguzmanvt:287:766f4b", "textfont": { "size": 18.897637795275593, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Aguascalientes", "hovertextsrc": "iguzmanvt:287:6f158c" }, { "mode": "text", "name": "Resto de Aguascalientes", "type": "scatter", "xsrc": "iguzmanvt:287:24df09", "ysrc": "iguzmanvt:287:12e3bf", "frame": null, "xaxis": "x", "yaxis": "y", "hoveron": "points", "textsrc": "iguzmanvt:287:91eb7a", "textfont": { "size": 18.897637795275593, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Resto de Aguascalientes", "hovertextsrc": "iguzmanvt:287:452b75" } ], "layout": { "font": { "size": 14.611872146118724, "color": "rgba(0,0,0,1)", "family": "" }, "title": { "x": 0, "font": { "size": 18.596928185969286, "color": "rgba(0,0,0,1)", "family": "" }, "text": "<b> Peso de la PBT de Aguascalientes en la PBT estatal </b>", "xref": "paper" }, "xaxis": { "type": "linear", "range": [ 0.4, 4.6 ], "ticks": "", "title": { "font": { "size": 14.611872146118724, "color": "rgba(0,0,0,1)", "family": "" }, "text": "" }, "anchor": "y", "domain": [ 0, 1 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 13.283520132835205, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "2003", "2008", "2013", "2018" ], "tickvals": [ 1, 2, 3, 4 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "automargin": true, "hoverformat": ".2f", "categoryarray": [ "2003", "2008", "2013", "2018" ], "categoryorder": "array", "showticklabels": true }, "yaxis": { "type": "linear", "range": [ -0.05, 1.05 ], "ticks": "", "title": { "font": { "size": 14.611872146118724, "color": "rgba(0,0,0,1)", "family": "" }, "text": "Porcentaje del PBT de Aguascalientes" }, "anchor": "x", "domain": [ 0, 1 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 13.283520132835198, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0%", "25%", "50%", "75%", "100%" ], "tickvals": [ 0, 0.25, 0.5, 0.75, 1 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "automargin": true, "hoverformat": ".2f", "categoryarray": [ "0%", "25%", "50%", "75%", "100%" ], "categoryorder": "array", "showticklabels": true }, "legend": { "font": { "size": 15.940224159402243, "color": "rgba(0,0,0,1)", "family": "" }, "title": { "font": { "size": 0, "color": null, "family": null }, "text": "" }, "bgcolor": null, "bordercolor": null, "borderwidth": 0 }, "margin": { "b": 28.77481050997033, "l": 52.13781652137817, "r": 7.305936073059362, "t": 46.435250526574734 }, "shapes": [ { "x0": 0, "x1": 1, "y0": 0, "y1": 1, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null } ], "barmode": "relative", "hovermode": "closest", "showlegend": true } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~iguzmanvt", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/13.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-4.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2021-07-14 18:52:29", "mapbox_access_tokens": null, "has_password": null, "username": "iguzmanvt", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2025-06-25T17:14:22.103204Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~iguzmanvt/286.embed", "fid": "iguzmanvt:286", "filename": "grafica_pbt_Nuevo Laredo", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/iguzmanvt:286/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/iguzmanvt:286/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/iguzmanvt:286/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/iguzmanvt:286/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/iguzmanvt:286", "plots": "https://api.plotly.com/v2/plots/iguzmanvt:286", "parent": "https://api.plotly.com/v2/folders/home?user=iguzmanvt" }, "owner": "iguzmanvt", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~iguzmanvt/286/", "world_readable": true, "date_modified": "2025-07-17T16:58:06.971Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~iguzmanvt/286/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "type": "bar", "xsrc": "iguzmanvt:285:47ea79", "ysrc": "iguzmanvt:285:c0b267", "frame": null, "xaxis": "x", "yaxis": "y", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(141,211,199,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:285:477b2b", "textsrc": "iguzmanvt:285:37535e", "widthsrc": "iguzmanvt:285:203b12", "hoverinfo": "text", "showlegend": false, "orientation": "v", "textposition": "none" }, { "mode": "text", "type": "scatter", "xsrc": "iguzmanvt:285:15a565", "ysrc": "iguzmanvt:285:6b1c1f", "frame": null, "xaxis": "x", "yaxis": "y", "hoveron": "points", "textsrc": "iguzmanvt:285:6b85e4", "textfont": { "size": 18.897637795275593, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "hovertextsrc": "iguzmanvt:285:a8868b" } ], "layout": { "font": { "size": 14.611872146118724, "color": "rgba(0,0,0,1)", "family": "" }, "title": { "x": 0, "font": { "size": 18.596928185969286, "color": "rgba(0,0,0,1)", "family": "" }, "text": "<b> Producción Bruta Total (PBT) de Nuevo Laredo </b>", "xref": "paper" }, "xaxis": { "type": "linear", "range": [ 0.4, 4.6 ], "ticks": "", "title": { "font": { "size": 14.611872146118724, "color": "rgba(0,0,0,1)", "family": "" }, "text": "" }, "anchor": "y", "domain": [ 0, 1 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 11.68949771689498, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "2003", "2008", "2013", "2018" ], "tickvals": [ 1, 2, 3, 4 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "automargin": true, "hoverformat": ".2f", "categoryarray": [ "2003", "2008", "2013", "2018" ], "categoryorder": "array", "showticklabels": true }, "yaxis": { "type": "linear", "range": [ -1905.1461417322837, 40008.06897637796 ], "ticks": "", "title": { "font": { "size": 14.611872146118724, "color": "rgba(0,0,0,1)", "family": "" }, "text": "Millones de pesos constantes de 2013" }, "anchor": "x", "domain": [ 0, 1 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 11.68949771689498, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0", "10,000", "20,000", "30,000", "40,000" ], "tickvals": [ 0, 10000, 19999.999999999996, 30000.000000000004, 40000 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "automargin": true, "hoverformat": ".2f", "categoryarray": [ "0", "10,000", "20,000", "30,000", "40,000" ], "categoryorder": "array", "showticklabels": true }, "legend": { "font": { "size": 11.68949771689498, "color": "rgba(0,0,0,1)", "family": "" }, "bgcolor": null, "bordercolor": null, "borderwidth": 0 }, "margin": { "b": 27.180788094030106, "l": 60.639269406392714, "r": 7.305936073059362, "t": 46.435250526574734 }, "shapes": [ { "x0": 0, "x1": 1, "y0": 0, "y1": 1, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null } ], "barmode": "relative", "hovermode": "closest", "showlegend": false } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~iguzmanvt", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/13.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-4.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2021-07-14 18:52:29", "mapbox_access_tokens": null, "has_password": null, "username": "iguzmanvt", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2025-06-25T17:13:49.094653Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~iguzmanvt/284.embed", "fid": "iguzmanvt:284", "filename": "Distribucion_unidades_economicas_Aguascalientes", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/iguzmanvt:284/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/iguzmanvt:284/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/iguzmanvt:284/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/iguzmanvt:284/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/iguzmanvt:284", "plots": "https://api.plotly.com/v2/plots/iguzmanvt:284", "parent": "https://api.plotly.com/v2/folders/home?user=iguzmanvt" }, "owner": "iguzmanvt", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~iguzmanvt/284/", "world_readable": true, "date_modified": "2025-07-17T16:57:30.503Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~iguzmanvt/284/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "name": "0 a 10", "type": "bar", "xsrc": "iguzmanvt:283:88eb8c", "ysrc": "iguzmanvt:283:b767fa", "frame": null, "xaxis": "x", "yaxis": "y", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(44,62,80,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:55f0f8", "textsrc": "iguzmanvt:283:358313", "widthsrc": "iguzmanvt:283:42b912", "hoverinfo": "text", "showlegend": true, "legendgroup": "0 a 10", "orientation": "v", "textposition": "none" }, { "name": "0 a 10", "type": "bar", "xsrc": "iguzmanvt:283:165cd7", "ysrc": "iguzmanvt:283:2bd04b", "frame": null, "xaxis": "x4", "yaxis": "y4", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(44,62,80,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:cda127", "textsrc": "iguzmanvt:283:62f3f2", "widthsrc": "iguzmanvt:283:40488f", "hoverinfo": "text", "showlegend": false, "legendgroup": "0 a 10", "orientation": "v", "textposition": "none" }, { "name": "0 a 10", "type": "bar", "xsrc": "iguzmanvt:283:9a3c89", "ysrc": "iguzmanvt:283:0390db", "frame": null, "xaxis": "x5", "yaxis": "y5", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(44,62,80,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:e503fe", "textsrc": "iguzmanvt:283:ea5c74", "widthsrc": "iguzmanvt:283:9392fa", "hoverinfo": "text", "showlegend": false, "legendgroup": "0 a 10", "orientation": "v", "textposition": "none" }, { "name": "0 a 10", "type": "bar", "xsrc": "iguzmanvt:283:4e6b81", "ysrc": "iguzmanvt:283:7529b8", "frame": null, "xaxis": "x", "yaxis": "y6", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(44,62,80,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:2a5734", "textsrc": "iguzmanvt:283:1088a7", "widthsrc": "iguzmanvt:283:d0ccd0", "hoverinfo": "text", "showlegend": false, "legendgroup": "0 a 10", "orientation": "v", "textposition": "none" }, { "base": 0.026256186561530073, "name": "0 a 10", "text": "anio: 2003<br />prop: 0.9737438134<br />estrato: 0 a 10", "type": "bar", "xsrc": "iguzmanvt:283:14494e", "ysrc": "iguzmanvt:283:a917cc", "frame": null, "width": 0.9500000000000001, "xaxis": "x2", "yaxis": "y7", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(44,62,80,1)", "autocolorscale": false }, "hoverinfo": "text", "showlegend": false, "legendgroup": "0 a 10", "orientation": "v", "textposition": "none" }, { "name": "0 a 10", "type": "bar", "xsrc": "iguzmanvt:283:70508e", "ysrc": "iguzmanvt:283:ed91c0", "frame": null, "xaxis": "x3", "yaxis": "y8", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(44,62,80,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:446afb", "textsrc": "iguzmanvt:283:94351a", "widthsrc": "iguzmanvt:283:5816d1", "hoverinfo": "text", "showlegend": false, "legendgroup": "0 a 10", "orientation": "v", "textposition": "none" }, { "name": "0 a 10", "type": "bar", "xsrc": "iguzmanvt:283:b2a8fe", "ysrc": "iguzmanvt:283:abda24", "frame": null, "xaxis": "x4", "yaxis": "y9", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(44,62,80,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:6c1979", "textsrc": "iguzmanvt:283:243b80", "widthsrc": "iguzmanvt:283:9539d7", "hoverinfo": "text", "showlegend": false, "legendgroup": "0 a 10", "orientation": "v", "textposition": "none" }, { "name": "0 a 10", "type": "bar", "xsrc": "iguzmanvt:283:71d7bd", "ysrc": "iguzmanvt:283:45bf06", "frame": null, "xaxis": "x5", "yaxis": "y10", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(44,62,80,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:783d9c", "textsrc": "iguzmanvt:283:248bb0", "widthsrc": "iguzmanvt:283:ca9f52", "hoverinfo": "text", "showlegend": false, "legendgroup": "0 a 10", "orientation": "v", "textposition": "none" }, { "name": "0 a 10", "type": "bar", "xsrc": "iguzmanvt:283:e024f0", "ysrc": "iguzmanvt:283:595a9c", "frame": null, "xaxis": "x", "yaxis": "y11", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(44,62,80,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:38cf9a", "textsrc": "iguzmanvt:283:6c9f73", "widthsrc": "iguzmanvt:283:69248e", "hoverinfo": "text", "showlegend": false, "legendgroup": "0 a 10", "orientation": "v", "textposition": "none" }, { "name": "0 a 10", "type": "bar", "xsrc": "iguzmanvt:283:a19899", "ysrc": "iguzmanvt:283:daa71c", "frame": null, "xaxis": "x2", "yaxis": "y12", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(44,62,80,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:ef34b8", "textsrc": "iguzmanvt:283:828181", "widthsrc": "iguzmanvt:283:97047f", "hoverinfo": "text", "showlegend": false, "legendgroup": "0 a 10", "orientation": "v", "textposition": "none" }, { "name": "0 a 10", "type": "bar", "xsrc": "iguzmanvt:283:5e945c", "ysrc": "iguzmanvt:283:a6bb96", "frame": null, "xaxis": "x4", "yaxis": "y14", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(44,62,80,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:02b4ae", "textsrc": "iguzmanvt:283:9dc9ed", "widthsrc": "iguzmanvt:283:c33ef4", "hoverinfo": "text", "showlegend": false, "legendgroup": "0 a 10", "orientation": "v", "textposition": "none" }, { "name": "0 a 10", "type": "bar", "xsrc": "iguzmanvt:283:2d6229", "ysrc": "iguzmanvt:283:893c83", "frame": null, "xaxis": "x5", "yaxis": "y15", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(44,62,80,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:5f2f7f", "textsrc": "iguzmanvt:283:01fadf", "widthsrc": "iguzmanvt:283:2d95bb", "hoverinfo": "text", "showlegend": false, "legendgroup": "0 a 10", "orientation": "v", "textposition": "none" }, { "base": 0.05419489317352788, "name": "0 a 10", "text": "anio: 2008<br />prop: 0.9458051068<br />estrato: 0 a 10", "type": "bar", "xsrc": "iguzmanvt:283:6227b5", "ysrc": "iguzmanvt:283:f4d8da", "frame": null, "width": 0.9500000000000002, "xaxis": "x3", "yaxis": "y18", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(44,62,80,1)", "autocolorscale": false }, "hoverinfo": "text", "showlegend": false, "legendgroup": "0 a 10", "orientation": "v", "textposition": "none" }, { "name": "0 a 10", "type": "bar", "xsrc": "iguzmanvt:283:ee42fb", "ysrc": "iguzmanvt:283:8446db", "frame": null, "xaxis": "x4", "yaxis": "y19", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(44,62,80,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:c9d77b", "textsrc": "iguzmanvt:283:2d674c", "widthsrc": "iguzmanvt:283:4e0ff7", "hoverinfo": "text", "showlegend": false, "legendgroup": "0 a 10", "orientation": "v", "textposition": "none" }, { "name": "11 a 50", "type": "bar", "xsrc": "iguzmanvt:283:26aa5d", "ysrc": "iguzmanvt:283:780cbe", "frame": null, "xaxis": "x4", "yaxis": "y4", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(231,76,60,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:f7445c", "textsrc": "iguzmanvt:283:944636", "widthsrc": "iguzmanvt:283:65275a", "hoverinfo": "text", "showlegend": true, "legendgroup": "11 a 50", "orientation": "v", "textposition": "none" }, { "name": "11 a 50", "type": "bar", "xsrc": "iguzmanvt:283:222039", "ysrc": "iguzmanvt:283:7d662f", "frame": null, "xaxis": "x5", "yaxis": "y5", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(231,76,60,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:60ca55", "textsrc": "iguzmanvt:283:e1d81c", "widthsrc": "iguzmanvt:283:3d1704", "hoverinfo": "text", "showlegend": false, "legendgroup": "11 a 50", "orientation": "v", "textposition": "none" }, { "name": "11 a 50", "type": "bar", "xsrc": "iguzmanvt:283:516c81", "ysrc": "iguzmanvt:283:162c02", "frame": null, "xaxis": "x", "yaxis": "y6", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(231,76,60,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:ead14b", "textsrc": "iguzmanvt:283:f37acf", "widthsrc": "iguzmanvt:283:bb831c", "hoverinfo": "text", "showlegend": false, "legendgroup": "11 a 50", "orientation": "v", "textposition": "none" }, { "base": 0.004194279003439308, "name": "11 a 50", "text": "anio: 2003<br />prop: 0.0220619076<br />estrato: 11 a 50", "type": "bar", "xsrc": "iguzmanvt:283:b7a061", "ysrc": "iguzmanvt:283:4d3ebf", "frame": null, "width": 0.9500000000000001, "xaxis": "x2", "yaxis": "y7", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(231,76,60,1)", "autocolorscale": false }, "hoverinfo": "text", "showlegend": false, "legendgroup": "11 a 50", "orientation": "v", "textposition": "none" }, { "name": "11 a 50", "type": "bar", "xsrc": "iguzmanvt:283:5eb1d6", "ysrc": "iguzmanvt:283:2d62fa", "frame": null, "xaxis": "x3", "yaxis": "y8", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(231,76,60,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:39eb57", "textsrc": "iguzmanvt:283:c74ca6", "widthsrc": "iguzmanvt:283:5c2073", "hoverinfo": "text", "showlegend": false, "legendgroup": "11 a 50", "orientation": "v", "textposition": "none" }, { "name": "11 a 50", "type": "bar", "xsrc": "iguzmanvt:283:768613", "ysrc": "iguzmanvt:283:680ff0", "frame": null, "xaxis": "x4", "yaxis": "y9", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(231,76,60,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:0d440c", "textsrc": "iguzmanvt:283:0d4e52", "widthsrc": "iguzmanvt:283:e966c1", "hoverinfo": "text", "showlegend": false, "legendgroup": "11 a 50", "orientation": "v", "textposition": "none" }, { "name": "11 a 50", "type": "bar", "xsrc": "iguzmanvt:283:420d49", "ysrc": "iguzmanvt:283:69dd6b", "frame": null, "xaxis": "x5", "yaxis": "y10", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(231,76,60,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:0b6fe2", "textsrc": "iguzmanvt:283:32c580", "widthsrc": "iguzmanvt:283:0438fe", "hoverinfo": "text", "showlegend": false, "legendgroup": "11 a 50", "orientation": "v", "textposition": "none" }, { "name": "11 a 50", "type": "bar", "xsrc": "iguzmanvt:283:b5e538", "ysrc": "iguzmanvt:283:9bde54", "frame": null, "xaxis": "x", "yaxis": "y11", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(231,76,60,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:c939f9", "textsrc": "iguzmanvt:283:606b4d", "widthsrc": "iguzmanvt:283:f1ac43", "hoverinfo": "text", "showlegend": false, "legendgroup": "11 a 50", "orientation": "v", "textposition": "none" }, { "name": "11 a 50", "type": "bar", "xsrc": "iguzmanvt:283:d38586", "ysrc": "iguzmanvt:283:c5118c", "frame": null, "xaxis": "x2", "yaxis": "y12", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(231,76,60,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:dab365", "textsrc": "iguzmanvt:283:75a323", "widthsrc": "iguzmanvt:283:5507ae", "hoverinfo": "text", "showlegend": false, "legendgroup": "11 a 50", "orientation": "v", "textposition": "none" }, { "name": "11 a 50", "type": "bar", "xsrc": "iguzmanvt:283:bd5fde", "ysrc": "iguzmanvt:283:04db13", "frame": null, "xaxis": "x4", "yaxis": "y14", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(231,76,60,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:bcc5fc", "textsrc": "iguzmanvt:283:51c2f6", "widthsrc": "iguzmanvt:283:c0aef6", "hoverinfo": "text", "showlegend": false, "legendgroup": "11 a 50", "orientation": "v", "textposition": "none" }, { "name": "11 a 50", "type": "bar", "xsrc": "iguzmanvt:283:4ea696", "ysrc": "iguzmanvt:283:e4c34f", "frame": null, "xaxis": "x5", "yaxis": "y15", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(231,76,60,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:ee55e3", "textsrc": "iguzmanvt:283:51dfeb", "widthsrc": "iguzmanvt:283:5fc1ff", "hoverinfo": "text", "showlegend": false, "legendgroup": "11 a 50", "orientation": "v", "textposition": "none" }, { "base": 0.0070349140177175615, "name": "11 a 50", "text": "anio: 2008<br />prop: 0.0471599792<br />estrato: 11 a 50", "type": "bar", "xsrc": "iguzmanvt:283:aa6570", "ysrc": "iguzmanvt:283:c96e59", "frame": null, "width": 0.9500000000000002, "xaxis": "x3", "yaxis": "y18", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(231,76,60,1)", "autocolorscale": false }, "hoverinfo": "text", "showlegend": false, "legendgroup": "11 a 50", "orientation": "v", "textposition": "none" }, { "name": "11 a 50", "type": "bar", "xsrc": "iguzmanvt:283:ca8e8e", "ysrc": "iguzmanvt:283:646be0", "frame": null, "xaxis": "x4", "yaxis": "y19", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(231,76,60,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:36d9e6", "textsrc": "iguzmanvt:283:4b655b", "widthsrc": "iguzmanvt:283:edf018", "hoverinfo": "text", "showlegend": false, "legendgroup": "11 a 50", "orientation": "v", "textposition": "none" }, { "name": "51 a 250", "type": "bar", "xsrc": "iguzmanvt:283:414d75", "ysrc": "iguzmanvt:283:dd3b9f", "frame": null, "xaxis": "x4", "yaxis": "y4", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(52,152,219,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:38da09", "textsrc": "iguzmanvt:283:002681", "widthsrc": "iguzmanvt:283:f30600", "hoverinfo": "text", "showlegend": true, "legendgroup": "51 a 250", "orientation": "v", "textposition": "none" }, { "name": "51 a 250", "type": "bar", "xsrc": "iguzmanvt:283:f32cc2", "ysrc": "iguzmanvt:283:d18666", "frame": null, "xaxis": "x5", "yaxis": "y5", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(52,152,219,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:31acf0", "textsrc": "iguzmanvt:283:e3e4e1", "widthsrc": "iguzmanvt:283:ec93b9", "hoverinfo": "text", "showlegend": false, "legendgroup": "51 a 250", "orientation": "v", "textposition": "none" }, { "name": "51 a 250", "type": "bar", "xsrc": "iguzmanvt:283:599bda", "ysrc": "iguzmanvt:283:bd8622", "frame": null, "xaxis": "x", "yaxis": "y6", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(52,152,219,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:6a6745", "textsrc": "iguzmanvt:283:2642ad", "widthsrc": "iguzmanvt:283:7c2c5b", "hoverinfo": "text", "showlegend": false, "legendgroup": "51 a 250", "orientation": "v", "textposition": "none" }, { "base": 0.0009227413807566479, "name": "51 a 250", "text": "anio: 2003<br />prop: 0.0032715376<br />estrato: 51 a 250", "type": "bar", "xsrc": "iguzmanvt:283:1225a8", "ysrc": "iguzmanvt:283:d41db2", "frame": null, "width": 0.9500000000000001, "xaxis": "x2", "yaxis": "y7", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(52,152,219,1)", "autocolorscale": false }, "hoverinfo": "text", "showlegend": false, "legendgroup": "51 a 250", "orientation": "v", "textposition": "none" }, { "name": "51 a 250", "type": "bar", "xsrc": "iguzmanvt:283:6c8652", "ysrc": "iguzmanvt:283:d4c2cf", "frame": null, "xaxis": "x3", "yaxis": "y8", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(52,152,219,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:38f1ea", "textsrc": "iguzmanvt:283:1622d0", "widthsrc": "iguzmanvt:283:480d04", "hoverinfo": "text", "showlegend": false, "legendgroup": "51 a 250", "orientation": "v", "textposition": "none" }, { "name": "51 a 250", "type": "bar", "xsrc": "iguzmanvt:283:7fc6cb", "ysrc": "iguzmanvt:283:605cf6", "frame": null, "xaxis": "x4", "yaxis": "y9", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(52,152,219,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:512d04", "textsrc": "iguzmanvt:283:0e1a9e", "widthsrc": "iguzmanvt:283:ae5fb7", "hoverinfo": "text", "showlegend": false, "legendgroup": "51 a 250", "orientation": "v", "textposition": "none" }, { "base": 0, "name": "51 a 250", "text": "anio: 2018<br />prop: 0.0147601476<br />estrato: 51 a 250", "type": "bar", "xsrc": "iguzmanvt:283:36f15a", "ysrc": "iguzmanvt:283:4aecdf", "frame": null, "width": 0.9499999999999997, "xaxis": "x5", "yaxis": "y10", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(52,152,219,1)", "autocolorscale": false }, "hoverinfo": "text", "showlegend": false, "legendgroup": "51 a 250", "orientation": "v", "textposition": "none" }, { "name": "51 a 250", "type": "bar", "xsrc": "iguzmanvt:283:f6c928", "ysrc": "iguzmanvt:283:375240", "frame": null, "xaxis": "x", "yaxis": "y11", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(52,152,219,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:5db441", "textsrc": "iguzmanvt:283:487b37", "widthsrc": "iguzmanvt:283:bf4fb9", "hoverinfo": "text", "showlegend": false, "legendgroup": "51 a 250", "orientation": "v", "textposition": "none" }, { "name": "51 a 250", "type": "bar", "xsrc": "iguzmanvt:283:ae94e4", "ysrc": "iguzmanvt:283:0bea58", "frame": null, "xaxis": "x2", "yaxis": "y12", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(52,152,219,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:564292", "textsrc": "iguzmanvt:283:2c16e8", "widthsrc": "iguzmanvt:283:b11947", "hoverinfo": "text", "showlegend": false, "legendgroup": "51 a 250", "orientation": "v", "textposition": "none" }, { "name": "51 a 250", "type": "bar", "xsrc": "iguzmanvt:283:de5626", "ysrc": "iguzmanvt:283:dd6617", "frame": null, "xaxis": "x4", "yaxis": "y14", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(52,152,219,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:e388b3", "textsrc": "iguzmanvt:283:1f5fae", "widthsrc": "iguzmanvt:283:d1352b", "hoverinfo": "text", "showlegend": false, "legendgroup": "51 a 250", "orientation": "v", "textposition": "none" }, { "name": "51 a 250", "type": "bar", "xsrc": "iguzmanvt:283:3c4d2c", "ysrc": "iguzmanvt:283:acdcfd", "frame": null, "xaxis": "x5", "yaxis": "y15", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(52,152,219,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:8e8373", "textsrc": "iguzmanvt:283:13112b", "widthsrc": "iguzmanvt:283:ba89ba", "hoverinfo": "text", "showlegend": false, "legendgroup": "51 a 250", "orientation": "v", "textposition": "none" }, { "base": 0, "name": "51 a 250", "text": "anio: 2008<br />prop: 0.0070349140<br />estrato: 51 a 250", "type": "bar", "xsrc": "iguzmanvt:283:5da293", "ysrc": "iguzmanvt:283:4337ad", "frame": null, "width": 0.9500000000000002, "xaxis": "x3", "yaxis": "y18", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(52,152,219,1)", "autocolorscale": false }, "hoverinfo": "text", "showlegend": false, "legendgroup": "51 a 250", "orientation": "v", "textposition": "none" }, { "name": "51 a 250", "type": "bar", "xsrc": "iguzmanvt:283:109766", "ysrc": "iguzmanvt:283:5c59d6", "frame": null, "xaxis": "x4", "yaxis": "y19", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(52,152,219,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:25d0d4", "textsrc": "iguzmanvt:283:c8bac7", "widthsrc": "iguzmanvt:283:b6488e", "hoverinfo": "text", "showlegend": false, "legendgroup": "51 a 250", "orientation": "v", "textposition": "none" }, { "name": "251 y más", "type": "bar", "xsrc": "iguzmanvt:283:42ca2f", "ysrc": "iguzmanvt:283:e8c89f", "frame": null, "xaxis": "x4", "yaxis": "y4", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(46,204,113,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:e2da80", "textsrc": "iguzmanvt:283:8f4c14", "widthsrc": "iguzmanvt:283:376afc", "hoverinfo": "text", "showlegend": true, "legendgroup": "251 y más", "orientation": "v", "textposition": "none" }, { "name": "251 y más", "type": "bar", "xsrc": "iguzmanvt:283:4354cc", "ysrc": "iguzmanvt:283:9b0d70", "frame": null, "xaxis": "x5", "yaxis": "y5", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(46,204,113,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:87de20", "textsrc": "iguzmanvt:283:0b9bbc", "widthsrc": "iguzmanvt:283:72348c", "hoverinfo": "text", "showlegend": false, "legendgroup": "251 y más", "orientation": "v", "textposition": "none" }, { "base": 0, "name": "251 y más", "text": "anio: 2018<br />prop: 0.0018371096<br />estrato: 251 y más", "type": "bar", "xsrc": "iguzmanvt:283:47b021", "ysrc": "iguzmanvt:283:f95ef7", "frame": null, "width": 0.9499999999999997, "xaxis": "x", "yaxis": "y6", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(46,204,113,1)", "autocolorscale": false }, "hoverinfo": "text", "showlegend": false, "legendgroup": "251 y más", "orientation": "v", "textposition": "none" }, { "base": 0, "name": "251 y más", "text": "anio: 2003<br />prop: 0.0009227414<br />estrato: 251 y más", "type": "bar", "xsrc": "iguzmanvt:283:eecbb1", "ysrc": "iguzmanvt:283:f9e4d3", "frame": null, "width": 0.9500000000000001, "xaxis": "x2", "yaxis": "y7", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(46,204,113,1)", "autocolorscale": false }, "hoverinfo": "text", "showlegend": false, "legendgroup": "251 y más", "orientation": "v", "textposition": "none" }, { "name": "251 y más", "type": "bar", "xsrc": "iguzmanvt:283:687fe4", "ysrc": "iguzmanvt:283:bdb890", "frame": null, "xaxis": "x3", "yaxis": "y8", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(46,204,113,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:97168f", "textsrc": "iguzmanvt:283:7b8309", "widthsrc": "iguzmanvt:283:e71116", "hoverinfo": "text", "showlegend": false, "legendgroup": "251 y más", "orientation": "v", "textposition": "none" }, { "base": 0, "name": "251 y más", "text": "anio: 2018<br />prop: 0.0035997120<br />estrato: 251 y más", "type": "bar", "xsrc": "iguzmanvt:283:765278", "ysrc": "iguzmanvt:283:7d5218", "frame": null, "width": 0.9499999999999997, "xaxis": "x2", "yaxis": "y12", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(46,204,113,1)", "autocolorscale": false }, "hoverinfo": "text", "showlegend": false, "legendgroup": "251 y más", "orientation": "v", "textposition": "none" }, { "name": "251 y más", "type": "bar", "xsrc": "iguzmanvt:283:8b0e98", "ysrc": "iguzmanvt:283:583ea6", "frame": null, "xaxis": "x4", "yaxis": "y14", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(46,204,113,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:7558e1", "textsrc": "iguzmanvt:283:829462", "widthsrc": "iguzmanvt:283:814bc0", "hoverinfo": "text", "showlegend": false, "legendgroup": "251 y más", "orientation": "v", "textposition": "none" }, { "name": "251 y más", "type": "bar", "xsrc": "iguzmanvt:283:1be614", "ysrc": "iguzmanvt:283:2d0500", "frame": null, "xaxis": "x5", "yaxis": "y15", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(46,204,113,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:d431ef", "textsrc": "iguzmanvt:283:293100", "widthsrc": "iguzmanvt:283:790b7d", "hoverinfo": "text", "showlegend": false, "legendgroup": "251 y más", "orientation": "v", "textposition": "none" }, { "name": "Sin info.", "type": "bar", "xsrc": "iguzmanvt:283:9174dc", "ysrc": "iguzmanvt:283:3dcad9", "frame": null, "xaxis": "x", "yaxis": "y", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(241,196,15,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:b8b78a", "textsrc": "iguzmanvt:283:345ac3", "widthsrc": "iguzmanvt:283:5c85a5", "hoverinfo": "text", "showlegend": true, "legendgroup": "Sin info.", "orientation": "v", "textposition": "none" }, { "name": "Sin info.", "type": "bar", "xsrc": "iguzmanvt:283:446ce9", "ysrc": "iguzmanvt:283:9c6aa0", "frame": null, "xaxis": "x2", "yaxis": "y2", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(241,196,15,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:f0193b", "textsrc": "iguzmanvt:283:09dcdb", "widthsrc": "iguzmanvt:283:d56686", "hoverinfo": "text", "showlegend": false, "legendgroup": "Sin info.", "orientation": "v", "textposition": "none" }, { "name": "Sin info.", "type": "bar", "xsrc": "iguzmanvt:283:8bacb7", "ysrc": "iguzmanvt:283:a7a470", "frame": null, "xaxis": "x3", "yaxis": "y3", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(241,196,15,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:19ae3d", "textsrc": "iguzmanvt:283:43cc61", "widthsrc": "iguzmanvt:283:c5b597", "hoverinfo": "text", "showlegend": false, "legendgroup": "Sin info.", "orientation": "v", "textposition": "none" }, { "name": "Sin info.", "type": "bar", "xsrc": "iguzmanvt:283:5ef997", "ysrc": "iguzmanvt:283:c749bb", "frame": null, "xaxis": "x4", "yaxis": "y4", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(241,196,15,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:840d9f", "textsrc": "iguzmanvt:283:188e27", "widthsrc": "iguzmanvt:283:bf57f0", "hoverinfo": "text", "showlegend": false, "legendgroup": "Sin info.", "orientation": "v", "textposition": "none" }, { "name": "Sin info.", "type": "bar", "xsrc": "iguzmanvt:283:48b14a", "ysrc": "iguzmanvt:283:b614a7", "frame": null, "xaxis": "x", "yaxis": "y6", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(241,196,15,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:cca377", "textsrc": "iguzmanvt:283:b31cda", "widthsrc": "iguzmanvt:283:eef361", "hoverinfo": "text", "showlegend": false, "legendgroup": "Sin info.", "orientation": "v", "textposition": "none" }, { "name": "Sin info.", "type": "bar", "xsrc": "iguzmanvt:283:ec5116", "ysrc": "iguzmanvt:283:704d23", "frame": null, "xaxis": "x2", "yaxis": "y7", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(241,196,15,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:a8a15e", "textsrc": "iguzmanvt:283:4c3ad6", "widthsrc": "iguzmanvt:283:4b8481", "hoverinfo": "text", "showlegend": false, "legendgroup": "Sin info.", "orientation": "v", "textposition": "none" }, { "name": "Sin info.", "type": "bar", "xsrc": "iguzmanvt:283:429392", "ysrc": "iguzmanvt:283:d51ad1", "frame": null, "xaxis": "x3", "yaxis": "y8", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(241,196,15,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:b497b6", "textsrc": "iguzmanvt:283:2fb976", "widthsrc": "iguzmanvt:283:cb25ce", "hoverinfo": "text", "showlegend": false, "legendgroup": "Sin info.", "orientation": "v", "textposition": "none" }, { "name": "Sin info.", "type": "bar", "xsrc": "iguzmanvt:283:6ee183", "ysrc": "iguzmanvt:283:e3c15f", "frame": null, "xaxis": "x4", "yaxis": "y9", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(241,196,15,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:80a1f0", "textsrc": "iguzmanvt:283:46046d", "widthsrc": "iguzmanvt:283:95ac76", "hoverinfo": "text", "showlegend": false, "legendgroup": "Sin info.", "orientation": "v", "textposition": "none" }, { "base": 0, "name": "Sin info.", "text": "anio: 2008<br />prop: 1.0000000000<br />estrato: Sin info.", "type": "bar", "xsrc": "iguzmanvt:283:895ca1", "ysrc": "iguzmanvt:283:bf653e", "frame": null, "width": 0.9500000000000002, "xaxis": "x5", "yaxis": "y10", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(241,196,15,1)", "autocolorscale": false }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Sin info.", "orientation": "v", "textposition": "none" }, { "name": "Sin info.", "type": "bar", "xsrc": "iguzmanvt:283:69136b", "ysrc": "iguzmanvt:283:abbebe", "frame": null, "xaxis": "x", "yaxis": "y11", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(241,196,15,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:aaf457", "textsrc": "iguzmanvt:283:cf49db", "widthsrc": "iguzmanvt:283:fbb109", "hoverinfo": "text", "showlegend": false, "legendgroup": "Sin info.", "orientation": "v", "textposition": "none" }, { "name": "Sin info.", "type": "bar", "xsrc": "iguzmanvt:283:2f8ae8", "ysrc": "iguzmanvt:283:ed1623", "frame": null, "xaxis": "x2", "yaxis": "y12", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(241,196,15,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:4d3b41", "textsrc": "iguzmanvt:283:f3aace", "widthsrc": "iguzmanvt:283:1dc8ff", "hoverinfo": "text", "showlegend": false, "legendgroup": "Sin info.", "orientation": "v", "textposition": "none" }, { "base": 0, "name": "Sin info.", "text": "anio: 2003<br />prop: 1.0000000000<br />estrato: Sin info.", "type": "bar", "xsrc": "iguzmanvt:283:1b73e9", "ysrc": "iguzmanvt:283:ab935f", "frame": null, "width": 0.9500000000000001, "xaxis": "x3", "yaxis": "y13", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(241,196,15,1)", "autocolorscale": false }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Sin info.", "orientation": "v", "textposition": "none" }, { "base": 0, "name": "Sin info.", "text": "anio: 2008<br />prop: 1.0000000000<br />estrato: Sin info.", "type": "bar", "xsrc": "iguzmanvt:283:699548", "ysrc": "iguzmanvt:283:99022c", "frame": null, "width": 0.9500000000000002, "xaxis": "x4", "yaxis": "y14", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(241,196,15,1)", "autocolorscale": false }, "hoverinfo": "text", "showlegend": false, "legendgroup": "Sin info.", "orientation": "v", "textposition": "none" }, { "name": "Sin info.", "type": "bar", "xsrc": "iguzmanvt:283:78c346", "ysrc": "iguzmanvt:283:efc7be", "frame": null, "xaxis": "x5", "yaxis": "y15", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(241,196,15,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:5d24a9", "textsrc": "iguzmanvt:283:a18b96", "widthsrc": "iguzmanvt:283:bbbe27", "hoverinfo": "text", "showlegend": false, "legendgroup": "Sin info.", "orientation": "v", "textposition": "none" }, { "name": "Sin info.", "type": "bar", "xsrc": "iguzmanvt:283:53add6", "ysrc": "iguzmanvt:283:cca028", "frame": null, "xaxis": "x", "yaxis": "y16", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(241,196,15,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:6928e7", "textsrc": "iguzmanvt:283:c04361", "widthsrc": "iguzmanvt:283:814f67", "hoverinfo": "text", "showlegend": false, "legendgroup": "Sin info.", "orientation": "v", "textposition": "none" }, { "name": "Sin info.", "type": "bar", "xsrc": "iguzmanvt:283:fa4992", "ysrc": "iguzmanvt:283:ebe721", "frame": null, "xaxis": "x2", "yaxis": "y17", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(241,196,15,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:2b8f4d", "textsrc": "iguzmanvt:283:a81261", "widthsrc": "iguzmanvt:283:de4588", "hoverinfo": "text", "showlegend": false, "legendgroup": "Sin info.", "orientation": "v", "textposition": "none" }, { "name": "Sin info.", "type": "bar", "xsrc": "iguzmanvt:283:55ae1a", "ysrc": "iguzmanvt:283:aa7326", "frame": null, "xaxis": "x3", "yaxis": "y18", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(241,196,15,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:f0758c", "textsrc": "iguzmanvt:283:71ea97", "widthsrc": "iguzmanvt:283:8459d1", "hoverinfo": "text", "showlegend": false, "legendgroup": "Sin info.", "orientation": "v", "textposition": "none" }, { "name": "Sin info.", "type": "bar", "xsrc": "iguzmanvt:283:c8805f", "ysrc": "iguzmanvt:283:42bd67", "frame": null, "xaxis": "x4", "yaxis": "y19", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(241,196,15,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:283:f3881d", "textsrc": "iguzmanvt:283:f54c0a", "widthsrc": "iguzmanvt:283:bb3998", "hoverinfo": "text", "showlegend": false, "legendgroup": "Sin info.", "orientation": "v", "textposition": "none" } ], "layout": { "font": { "size": 14.611872146118724, "color": "rgba(0,0,0,1)", "family": "" }, "title": { "x": 0.5, "font": { "size": 18.596928185969286, "color": "rgba(0,0,0,1)", "family": "" }, "text": "<b> Distribución de Unidades Económicas en Aguascalientes </b>", "xref": "paper" }, "xaxis": { "type": "linear", "range": [ 0.4, 4.6 ], "ticks": "", "title": "", "anchor": "y16", "domain": [ 0, 0.1630482832236257 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 11.955168119551683, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "2003", "2008", "2013", "2018" ], "tickvals": [ 1, 2, 3, 4 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(229,229,229,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "automargin": true, "hoverformat": ".2f", "categoryarray": [ "2003", "2008", "2013", "2018" ], "categoryorder": "array", "showticklabels": true }, "yaxis": { "type": "linear", "range": [ -0.05, 1.05 ], "ticks": "", "title": "", "anchor": "x", "domain": [ 0.7932710668327106, 1 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 11.955168119551683, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0%", "20%", "40%", "60%", "80%", "100%" ], "tickvals": [ 0, 0.2, 0.4, 0.6000000000000001, 0.8, 1 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(229,229,229,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "automargin": true, "hoverformat": ".2f", "categoryarray": [ "0%", "20%", "40%", "60%", "80%", "100%" ], "categoryorder": "array", "showticklabels": true }, "legend": { "x": 0.5, "y": 1.1, "font": { "size": 13.283520132835205, "color": "rgba(0,0,0,1)", "family": "" }, "title": { "font": { "size": 14.611872146118724, "color": "rgba(0,0,0,1)", "family": "" }, "text": "Personas empleadas" }, "bgcolor": null, "xanchor": "center", "bordercolor": null, "borderwidth": 0, "orientation": "h" }, "margin": { "b": 51.744230739664545, "l": 55.458696554586965, "r": 13.283520132835198, "t": 100 }, "shapes": [ { "x0": 0, "x1": 0.1630482832236257, "y0": 0.7932710668327106, "y1": 1, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0, "x1": 0.1630482832236257, "y0": 0, "y1": 23.644665836446663, "line": { "color": "rgba(204,204,204,1)", "width": 0.66417600664176, "linetype": "solid" }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 1, "fillcolor": "rgba(242,242,242,1)", "ysizemode": "pixel" }, { "x0": 0.23695171677637433, "x1": 0.3630482832236257, "y0": 0.7932710668327106, "y1": 1, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0.23695171677637433, "x1": 0.3630482832236257, "y0": 0, "y1": 23.644665836446663, "line": { "color": "rgba(204,204,204,1)", "width": 0.66417600664176, "linetype": "solid" }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 1, "fillcolor": "rgba(242,242,242,1)", "ysizemode": "pixel" }, { "x0": 0.43695171677637434, "x1": 0.5630482832236258, "y0": 0.7932710668327106, "y1": 1, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0.43695171677637434, "x1": 0.5630482832236258, "y0": 0, "y1": 23.644665836446663, "line": { "color": "rgba(204,204,204,1)", "width": 0.66417600664176, "linetype": "solid" }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 1, "fillcolor": "rgba(242,242,242,1)", "ysizemode": "pixel" }, { "x0": 0.6369517167763744, "x1": 0.7630482832236257, "y0": 0.7932710668327106, "y1": 1, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0.6369517167763744, "x1": 0.7630482832236257, "y0": 0, "y1": 23.644665836446663, "line": { "color": "rgba(204,204,204,1)", "width": 0.66417600664176, "linetype": "solid" }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 1, "fillcolor": "rgba(242,242,242,1)", "ysizemode": "pixel" }, { "x0": 0.8369517167763744, "x1": 1, "y0": 0.7932710668327106, "y1": 1, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0.8369517167763744, "x1": 1, "y0": 0, "y1": 23.644665836446663, "line": { "color": "rgba(204,204,204,1)", "width": 0.66417600664176, "linetype": "solid" }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 1, "fillcolor": "rgba(242,242,242,1)", "ysizemode": "pixel" }, { "x0": 0, "x1": 0.1630482832236257, "y0": 0.5432710668327106, "y1": 0.7067289331672894, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0, "x1": 0.1630482832236257, "y0": 0, "y1": 23.644665836446663, "line": { "color": "rgba(204,204,204,1)", "width": 0.66417600664176, "linetype": "solid" }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 0.7067289331672894, "fillcolor": "rgba(242,242,242,1)", "ysizemode": "pixel" }, { "x0": 0.23695171677637433, "x1": 0.3630482832236257, "y0": 0.5432710668327106, "y1": 0.7067289331672894, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0.23695171677637433, "x1": 0.3630482832236257, "y0": 0, "y1": 23.644665836446663, "line": { "color": "rgba(204,204,204,1)", "width": 0.66417600664176, "linetype": "solid" }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 0.7067289331672894, "fillcolor": "rgba(242,242,242,1)", "ysizemode": "pixel" }, { "x0": 0.43695171677637434, "x1": 0.5630482832236258, "y0": 0.5432710668327106, "y1": 0.7067289331672894, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0.43695171677637434, "x1": 0.5630482832236258, "y0": 0, "y1": 23.644665836446663, "line": { "color": "rgba(204,204,204,1)", "width": 0.66417600664176, "linetype": "solid" }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 0.7067289331672894, "fillcolor": "rgba(242,242,242,1)", "ysizemode": "pixel" }, { "x0": 0.6369517167763744, "x1": 0.7630482832236257, "y0": 0.5432710668327106, "y1": 0.7067289331672894, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0.6369517167763744, "x1": 0.7630482832236257, "y0": 0, "y1": 23.644665836446663, "line": { "color": "rgba(204,204,204,1)", "width": 0.66417600664176, "linetype": "solid" }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 0.7067289331672894, "fillcolor": "rgba(242,242,242,1)", "ysizemode": "pixel" }, { "x0": 0.8369517167763744, "x1": 1, "y0": 0.5432710668327106, "y1": 0.7067289331672894, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0.8369517167763744, "x1": 1, "y0": 0, "y1": 23.644665836446663, "line": { "color": "rgba(204,204,204,1)", "width": 0.66417600664176, "linetype": "solid" }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 0.7067289331672894, "fillcolor": "rgba(242,242,242,1)", "ysizemode": "pixel" }, { "x0": 0, "x1": 0.1630482832236257, "y0": 0.29327106683271065, "y1": 0.45672893316728935, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0, "x1": 0.1630482832236257, "y0": 0, "y1": 23.644665836446663, "line": { "color": "rgba(204,204,204,1)", "width": 0.66417600664176, "linetype": "solid" }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 0.45672893316728935, "fillcolor": "rgba(242,242,242,1)", "ysizemode": "pixel" }, { "x0": 0.23695171677637433, "x1": 0.3630482832236257, "y0": 0.29327106683271065, "y1": 0.45672893316728935, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0.23695171677637433, "x1": 0.3630482832236257, "y0": 0, "y1": 23.644665836446663, "line": { "color": "rgba(204,204,204,1)", "width": 0.66417600664176, "linetype": "solid" }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 0.45672893316728935, "fillcolor": "rgba(242,242,242,1)", "ysizemode": "pixel" }, { "x0": 0.43695171677637434, "x1": 0.5630482832236258, "y0": 0.29327106683271065, "y1": 0.45672893316728935, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0.43695171677637434, "x1": 0.5630482832236258, "y0": 0, "y1": 23.644665836446663, "line": { "color": "rgba(204,204,204,1)", "width": 0.66417600664176, "linetype": "solid" }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 0.45672893316728935, "fillcolor": "rgba(242,242,242,1)", "ysizemode": "pixel" }, { "x0": 0.6369517167763744, "x1": 0.7630482832236257, "y0": 0.29327106683271065, "y1": 0.45672893316728935, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0.6369517167763744, "x1": 0.7630482832236257, "y0": 0, "y1": 23.644665836446663, "line": { "color": "rgba(204,204,204,1)", "width": 0.66417600664176, "linetype": "solid" }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 0.45672893316728935, "fillcolor": "rgba(242,242,242,1)", "ysizemode": "pixel" }, { "x0": 0.8369517167763744, "x1": 1, "y0": 0.29327106683271065, "y1": 0.45672893316728935, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0.8369517167763744, "x1": 1, "y0": 0, "y1": 23.644665836446663, "line": { "color": "rgba(204,204,204,1)", "width": 0.66417600664176, "linetype": "solid" }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 0.45672893316728935, "fillcolor": "rgba(242,242,242,1)", "ysizemode": "pixel" }, { "x0": 0, "x1": 0.1630482832236257, "y0": 0, "y1": 0.20672893316728932, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0, "x1": 0.1630482832236257, "y0": 0, "y1": 23.644665836446663, "line": { "color": "rgba(204,204,204,1)", "width": 0.66417600664176, "linetype": "solid" }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 0.20672893316728932, "fillcolor": "rgba(242,242,242,1)", "ysizemode": "pixel" }, { "x0": 0.23695171677637433, "x1": 0.3630482832236257, "y0": 0, "y1": 0.20672893316728932, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0.23695171677637433, "x1": 0.3630482832236257, "y0": 0, "y1": 23.644665836446663, "line": { "color": "rgba(204,204,204,1)", "width": 0.66417600664176, "linetype": "solid" }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 0.20672893316728932, "fillcolor": "rgba(242,242,242,1)", "ysizemode": "pixel" }, { "x0": 0.43695171677637434, "x1": 0.5630482832236258, "y0": 0, "y1": 0.20672893316728932, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0.43695171677637434, "x1": 0.5630482832236258, "y0": 0, "y1": 23.644665836446663, "line": { "color": "rgba(204,204,204,1)", "width": 0.66417600664176, "linetype": "solid" }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 0.20672893316728932, "fillcolor": "rgba(242,242,242,1)", "ysizemode": "pixel" }, { "x0": 0.6369517167763744, "x1": 0.7630482832236257, "y0": 0, "y1": 0.20672893316728932, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null }, { "x0": 0.6369517167763744, "x1": 0.7630482832236257, "y0": 0, "y1": 23.644665836446663, "line": { "color": "rgba(204,204,204,1)", "width": 0.66417600664176, "linetype": "solid" }, "type": "rect", "xref": "paper", "yref": "paper", "yanchor": 0.20672893316728932, "fillcolor": "rgba(242,242,242,1)", "ysizemode": "pixel" } ], "xaxis2": { "type": "linear", "range": [ 0.4, 4.6 ], "ticks": "", "title": "", "anchor": "y17", "domain": [ 0.23695171677637433, 0.3630482832236257 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 11.955168119551683, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "2003", "2008", "2013", "2018" ], "tickvals": [ 1, 2, 3, 4 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(229,229,229,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "2003", "2008", "2013", "2018" ], "categoryorder": "array", "showticklabels": true }, "xaxis3": { "type": "linear", "range": [ 0.4, 4.6 ], "ticks": "", "title": "", "anchor": "y18", "domain": [ 0.43695171677637434, 0.5630482832236258 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 11.955168119551683, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "2003", "2008", "2013", "2018" ], "tickvals": [ 1, 2, 3, 4 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(229,229,229,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "2003", "2008", "2013", "2018" ], "categoryorder": "array", "showticklabels": true }, "xaxis4": { "type": "linear", "range": [ 0.4, 4.6 ], "ticks": "", "title": "", "anchor": "y19", "domain": [ 0.6369517167763744, 0.7630482832236257 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 11.955168119551683, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "2003", "2008", "2013", "2018" ], "tickvals": [ 1, 2, 3, 4 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(229,229,229,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "2003", "2008", "2013", "2018" ], "categoryorder": "array", "showticklabels": true }, "xaxis5": { "type": "linear", "range": [ 0.4, 4.6 ], "ticks": "", "title": "", "anchor": "y15", "domain": [ 0.8369517167763744, 1 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 11.955168119551683, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "2003", "2008", "2013", "2018" ], "tickvals": [ 1, 2, 3, 4 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(229,229,229,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "2003", "2008", "2013", "2018" ], "categoryorder": "array", "showticklabels": true }, "yaxis2": { "type": "linear", "range": [ -0.05, 1.05 ], "ticks": "", "title": "", "anchor": "x2", "domain": [ 0.7932710668327106, 1 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 11.955168119551683, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0%", "20%", "40%", "60%", "80%", "100%" ], "tickvals": [ 0, 0.2, 0.4, 0.6000000000000001, 0.8, 1 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(229,229,229,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0%", "20%", "40%", "60%", "80%", "100%" ], "categoryorder": "array", "showticklabels": true }, "yaxis3": { "type": "linear", "range": [ -0.05, 1.05 ], "ticks": "", "title": "", "anchor": "x3", "domain": [ 0.7932710668327106, 1 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 11.955168119551683, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0%", "20%", "40%", "60%", "80%", "100%" ], "tickvals": [ 0, 0.2, 0.4, 0.6000000000000001, 0.8, 1 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(229,229,229,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0%", "20%", "40%", "60%", "80%", "100%" ], "categoryorder": "array", "showticklabels": true }, "yaxis4": { "type": "linear", "range": [ -0.05, 1.05 ], "ticks": "", "title": "", "anchor": "x4", "domain": [ 0.7932710668327106, 1 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 11.955168119551683, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0%", "20%", "40%", "60%", "80%", "100%" ], "tickvals": [ 0, 0.2, 0.4, 0.6000000000000001, 0.8, 1 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(229,229,229,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0%", "20%", "40%", "60%", "80%", "100%" ], "categoryorder": "array", "showticklabels": true }, "yaxis5": { "type": "linear", "range": [ -0.05, 1.05 ], "ticks": "", "title": "", "anchor": "x5", "domain": [ 0.7932710668327106, 1 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 11.955168119551683, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0%", "20%", "40%", "60%", "80%", "100%" ], "tickvals": [ 0, 0.2, 0.4, 0.6000000000000001, 0.8, 1 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(229,229,229,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0%", "20%", "40%", "60%", "80%", "100%" ], "categoryorder": "array", "showticklabels": true }, "yaxis6": { "type": "linear", "range": [ -0.05, 1.05 ], "ticks": "", "title": "", "anchor": "x", "domain": [ 0.5432710668327106, 0.7067289331672894 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 11.955168119551683, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0%", "20%", "40%", "60%", "80%", "100%" ], "tickvals": [ 0, 0.2, 0.4, 0.6000000000000001, 0.8, 1 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(229,229,229,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0%", "20%", "40%", "60%", "80%", "100%" ], "categoryorder": "array", "showticklabels": true }, "yaxis7": { "type": "linear", "range": [ -0.05, 1.05 ], "ticks": "", "title": "", "anchor": "x2", "domain": [ 0.5432710668327106, 0.7067289331672894 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 11.955168119551683, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0%", "20%", "40%", "60%", "80%", "100%" ], "tickvals": [ 0, 0.2, 0.4, 0.6000000000000001, 0.8, 1 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(229,229,229,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0%", "20%", "40%", "60%", "80%", "100%" ], "categoryorder": "array", "showticklabels": true }, "yaxis8": { "type": "linear", "range": [ -0.05, 1.05 ], "ticks": "", "title": "", "anchor": "x3", "domain": [ 0.5432710668327106, 0.7067289331672894 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 11.955168119551683, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0%", "20%", "40%", "60%", "80%", "100%" ], "tickvals": [ 0, 0.2, 0.4, 0.6000000000000001, 0.8, 1 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(229,229,229,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0%", "20%", "40%", "60%", "80%", "100%" ], "categoryorder": "array", "showticklabels": true }, "yaxis9": { "type": "linear", "range": [ -0.05, 1.05 ], "ticks": "", "title": "", "anchor": "x4", "domain": [ 0.5432710668327106, 0.7067289331672894 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 11.955168119551683, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0%", "20%", "40%", "60%", "80%", "100%" ], "tickvals": [ 0, 0.2, 0.4, 0.6000000000000001, 0.8, 1 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(229,229,229,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0%", "20%", "40%", "60%", "80%", "100%" ], "categoryorder": "array", "showticklabels": true }, "barmode": "relative", "yaxis10": { "type": "linear", "range": [ -0.05, 1.05 ], "ticks": "", "title": "", "anchor": "x5", "domain": [ 0.5432710668327106, 0.7067289331672894 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 11.955168119551683, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0%", "20%", "40%", "60%", "80%", "100%" ], "tickvals": [ 0, 0.2, 0.4, 0.6000000000000001, 0.8, 1 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(229,229,229,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0%", "20%", "40%", "60%", "80%", "100%" ], "categoryorder": "array", "showticklabels": true }, "yaxis11": { "type": "linear", "range": [ -0.05, 1.05 ], "ticks": "", "title": "", "anchor": "x", "domain": [ 0.29327106683271065, 0.45672893316728935 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 11.955168119551683, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0%", "20%", "40%", "60%", "80%", "100%" ], "tickvals": [ 0, 0.2, 0.4, 0.6000000000000001, 0.8, 1 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(229,229,229,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0%", "20%", "40%", "60%", "80%", "100%" ], "categoryorder": "array", "showticklabels": true }, "yaxis12": { "type": "linear", "range": [ -0.05, 1.05 ], "ticks": "", "title": "", "anchor": "x2", "domain": [ 0.29327106683271065, 0.45672893316728935 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 11.955168119551683, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0%", "20%", "40%", "60%", "80%", "100%" ], "tickvals": [ 0, 0.2, 0.4, 0.6000000000000001, 0.8, 1 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(229,229,229,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0%", "20%", "40%", "60%", "80%", "100%" ], "categoryorder": "array", "showticklabels": true }, "yaxis13": { "type": "linear", "range": [ -0.05, 1.05 ], "ticks": "", "title": "", "anchor": "x3", "domain": [ 0.29327106683271065, 0.45672893316728935 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 11.955168119551683, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0%", "20%", "40%", "60%", "80%", "100%" ], "tickvals": [ 0, 0.2, 0.4, 0.6000000000000001, 0.8, 1 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(229,229,229,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0%", "20%", "40%", "60%", "80%", "100%" ], "categoryorder": "array", "showticklabels": true }, "yaxis14": { "type": "linear", "range": [ -0.05, 1.05 ], "ticks": "", "title": "", "anchor": "x4", "domain": [ 0.29327106683271065, 0.45672893316728935 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 11.955168119551683, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0%", "20%", "40%", "60%", "80%", "100%" ], "tickvals": [ 0, 0.2, 0.4, 0.6000000000000001, 0.8, 1 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(229,229,229,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0%", "20%", "40%", "60%", "80%", "100%" ], "categoryorder": "array", "showticklabels": true }, "yaxis15": { "type": "linear", "range": [ -0.05, 1.05 ], "ticks": "", "title": "", "anchor": "x5", "domain": [ 0.29327106683271065, 0.45672893316728935 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 11.955168119551683, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0%", "20%", "40%", "60%", "80%", "100%" ], "tickvals": [ 0, 0.2, 0.4, 0.6000000000000001, 0.8, 1 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(229,229,229,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0%", "20%", "40%", "60%", "80%", "100%" ], "categoryorder": "array", "showticklabels": true }, "yaxis16": { "type": "linear", "range": [ -0.05, 1.05 ], "ticks": "", "title": "", "anchor": "x", "domain": [ 0, 0.20672893316728932 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 11.955168119551683, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0%", "20%", "40%", "60%", "80%", "100%" ], "tickvals": [ 0, 0.2, 0.4, 0.6000000000000001, 0.8, 1 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(229,229,229,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0%", "20%", "40%", "60%", "80%", "100%" ], "categoryorder": "array", "showticklabels": true }, "yaxis17": { "type": "linear", "range": [ -0.05, 1.05 ], "ticks": "", "title": "", "anchor": "x2", "domain": [ 0, 0.20672893316728932 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 11.955168119551683, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0%", "20%", "40%", "60%", "80%", "100%" ], "tickvals": [ 0, 0.2, 0.4, 0.6000000000000001, 0.8, 1 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(229,229,229,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0%", "20%", "40%", "60%", "80%", "100%" ], "categoryorder": "array", "showticklabels": true }, "yaxis18": { "type": "linear", "range": [ -0.05, 1.05 ], "ticks": "", "title": "", "anchor": "x3", "domain": [ 0, 0.20672893316728932 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 11.955168119551683, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0%", "20%", "40%", "60%", "80%", "100%" ], "tickvals": [ 0, 0.2, 0.4, 0.6000000000000001, 0.8, 1 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(229,229,229,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0%", "20%", "40%", "60%", "80%", "100%" ], "categoryorder": "array", "showticklabels": true }, "yaxis19": { "type": "linear", "range": [ -0.05, 1.05 ], "ticks": "", "title": "", "anchor": "x4", "domain": [ 0, 0.20672893316728932 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 11.955168119551683, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0%", "20%", "40%", "60%", "80%", "100%" ], "tickvals": [ 0, 0.2, 0.4, 0.6000000000000001, 0.8, 1 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(229,229,229,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "hoverformat": ".2f", "categoryarray": [ "0%", "20%", "40%", "60%", "80%", "100%" ], "categoryorder": "array", "showticklabels": true }, "hovermode": "closest", "showlegend": true, "annotations": [ { "x": 0.5, "y": 0, "ax": 0, "ay": 0, "font": { "size": 14.611872146118724, "color": "rgba(0,0,0,1)", "family": "" }, "text": "Año", "xref": "paper", "yref": "paper", "yshift": -22.183478621834787, "xanchor": "center", "yanchor": "top", "showarrow": false, "textangle": 0, "annotationType": "axis" }, { "x": 0, "y": 0.5, "ax": 0, "ay": 0, "font": { "size": 14.611872146118724, "color": "rgba(0,0,0,1)", "family": "" }, "text": "Proporción", "xref": "paper", "yref": "paper", "xshift": -34.138646741386474, "xanchor": "right", "yanchor": "center", "showarrow": false, "textangle": -90, "annotationType": "axis" }, { "x": 0.08152414161181284, "y": 1, "ax": 0, "ay": 0, "font": { "size": 11.955168119551683, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Agricultura,<br />ganadería,<br />pesca", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.30000000000000004, "y": 1, "ax": 0, "ay": 0, "font": { "size": 11.955168119551683, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Minería", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.5, "y": 1, "ax": 0, "ay": 0, "font": { "size": 11.955168119551683, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Energía<br />eléctrica,<br />suministro de<br />agua y gas<br />natural", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.7000000000000001, "y": 1, "ax": 0, "ay": 0, "font": { "size": 11.955168119551683, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Construcción", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.9184758583881871, "y": 1, "ax": 0, "ay": 0, "font": { "size": 11.955168119551683, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Industrias<br />manufactureras", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.08152414161181284, "y": 0.7067289331672894, "ax": 0, "ay": 0, "font": { "size": 11.955168119551683, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Comercio al<br />por mayor", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.30000000000000004, "y": 0.7067289331672894, "ax": 0, "ay": 0, "font": { "size": 11.955168119551683, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Comercio al<br />por menor", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.5, "y": 0.7067289331672894, "ax": 0, "ay": 0, "font": { "size": 11.955168119551683, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Transportes y<br />almacenamiento", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.7000000000000001, "y": 0.7067289331672894, "ax": 0, "ay": 0, "font": { "size": 11.955168119551683, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Información en<br />medios masivos", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.9184758583881871, "y": 0.7067289331672894, "ax": 0, "ay": 0, "font": { "size": 11.955168119551683, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Servicios<br />financieros y<br />de seguros", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.08152414161181284, "y": 0.45672893316728935, "ax": 0, "ay": 0, "font": { "size": 11.955168119551683, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Servicios<br />inmobiliarios", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.30000000000000004, "y": 0.45672893316728935, "ax": 0, "ay": 0, "font": { "size": 11.955168119551683, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Servicios<br />profesionales,<br />científicos y<br />técnicos", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.5, "y": 0.45672893316728935, "ax": 0, "ay": 0, "font": { "size": 11.955168119551683, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Corporativos", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.7000000000000001, "y": 0.45672893316728935, "ax": 0, "ay": 0, "font": { "size": 11.955168119551683, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Servicios de<br />apoyo a los<br />negocios", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.9184758583881871, "y": 0.45672893316728935, "ax": 0, "ay": 0, "font": { "size": 11.955168119551683, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Servicios<br />educativos", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.08152414161181284, "y": 0.20672893316728932, "ax": 0, "ay": 0, "font": { "size": 11.955168119551683, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Servicios de<br />salud y de<br />asistencia<br />social", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.30000000000000004, "y": 0.20672893316728932, "ax": 0, "ay": 0, "font": { "size": 11.955168119551683, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Servicios de<br />esparcimiento,<br />culturales y<br />deportivos", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.5, "y": 0.20672893316728932, "ax": 0, "ay": 0, "font": { "size": 11.955168119551683, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Servicios de<br />alojamiento<br />temporal y<br />restaurantes", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 }, { "x": 0.7000000000000001, "y": 0.20672893316728932, "ax": 0, "ay": 0, "font": { "size": 11.955168119551683, "color": "rgba(26,26,26,1)", "family": "" }, "text": "Otros<br />servicios no<br />gubernamentales", "xref": "paper", "yref": "paper", "xanchor": "center", "yanchor": "bottom", "showarrow": false, "textangle": 0 } ], "plot_bgcolor": "rgba(255,255,255,1)" } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~iguzmanvt", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/13.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-4.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2021-07-14 18:52:29", "mapbox_access_tokens": null, "has_password": null, "username": "iguzmanvt", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2025-06-25T17:11:56.031948Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~collinssjrs/1.embed", "fid": "collinssjrs:1", "filename": "Crepidula fornicata", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/collinssjrs:1/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/collinssjrs:1/image?image_name=default", "block-thumb": "https://storage.googleapis.com/plotly-prod-images/collinssjrs/1/8_JL924ZIXHFRANFOLMHTDVSL9KNL6VC.png", "list-thumb": "https://api.plotly.com/v2/files/collinssjrs:1/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/collinssjrs:1", "plots": "https://api.plotly.com/v2/plots/collinssjrs:1", "parent": "https://api.plotly.com/v2/folders/home?user=collinssjrs" }, "owner": "collinssjrs", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~collinssjrs/1/", "world_readable": true, "date_modified": "2025-06-25T17:26:13.592Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~collinssjrs/1/", "current_user_permission": "read", "is_theme": null, "is_template": false, "autosize": true, "caption": "", "figure": { "data": [ { "meta": { "columnNames": { "x": "Level", "y": "Count" } }, "mode": "lines", "type": "histogram", "xsrc": "collinssjrs:0:ac0733", "ysrc": "collinssjrs:0:a289f4", "orientation": "v" } ], "frames": [], "layout": { "xaxis": { "type": "linear", "range": [ 8.5, 13.5 ], "autorange": true }, "yaxis": { "type": "linear", "range": [ 0, 8.421052631578947 ], "autorange": true }, "autosize": true, "template": { "data": { "bar": [ { "type": "bar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "table": [ { "type": "table", "cells": { "fill": { "color": "#EBF0F8" }, "line": { "color": "white" } }, "header": { "fill": { "color": "#C8D4E3" }, "line": { "color": "white" } } } ], "carpet": [ { "type": "carpet", "aaxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" }, "baxis": { "gridcolor": "#C8D4E3", "linecolor": "#C8D4E3", "endlinecolor": "#2a3f5f", "minorgridcolor": "#C8D4E3", "startlinecolor": "#2a3f5f" } } ], "mesh3d": [ { "type": "mesh3d", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "contour": [ { "type": "contour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "heatmap": [ { "type": "heatmap", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatter": [ { "type": "scatter", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "surface": [ { "type": "surface", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "heatmapgl": [ { "type": "heatmapgl", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "histogram": [ { "type": "histogram", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "parcoords": [ { "line": { "colorbar": { "ticks": "", "outlinewidth": 0 } }, "type": "parcoords" } ], "scatter3d": [ { "type": "scatter3d", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattergl": [ { "type": "scattergl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "choropleth": [ { "type": "choropleth", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattergeo": [ { "type": "scattergeo", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2d": [ { "type": "histogram2d", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ], "scatterpolar": [ { "type": "scatterpolar", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "contourcarpet": [ { "type": "contourcarpet", "colorbar": { "ticks": "", "outlinewidth": 0 } } ], "scattercarpet": [ { "type": "scattercarpet", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scattermapbox": [ { "type": "scattermapbox", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterpolargl": [ { "type": "scatterpolargl", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "scatterternary": [ { "type": "scatterternary", "marker": { "colorbar": { "ticks": "", "outlinewidth": 0 } } } ], "histogram2dcontour": [ { "type": "histogram2dcontour", "colorbar": { "ticks": "", "outlinewidth": 0 }, "autocolorscale": true } ] }, "layout": { "geo": { "bgcolor": "white", "showland": true, "lakecolor": "white", "landcolor": "white", "showlakes": true, "subunitcolor": "#C8D4E3" }, "font": { "color": "#2a3f5f" }, "polar": { "bgcolor": "white", "radialaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" }, "angularaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8" } }, "scene": { "xaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "yaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" }, "zaxis": { "ticks": "", "gridcolor": "#DFE8F3", "gridwidth": 2, "linecolor": "#EBF0F8", "zerolinecolor": "#EBF0F8", "showbackground": true, "backgroundcolor": "white" } }, "title": { "x": 0.05 }, "xaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "yaxis": { "ticks": "", "gridcolor": "#EBF0F8", "linecolor": "#EBF0F8", "automargin": true, "zerolinecolor": "#EBF0F8", "zerolinewidth": 2 }, "ternary": { "aaxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "baxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "caxis": { "ticks": "", "gridcolor": "#DFE8F3", "linecolor": "#A2B1C6" }, "bgcolor": "white" }, "colorway": [ "#636efa", "#EF553B", "#00cc96", "#ab63fa", "#19d3f3", "#e763fa", "#fecb52", "#ffa15a", "#ff6692", "#b6e880" ], "hovermode": "closest", "colorscale": { "diverging": [ [ 0, "#8e0152" ], [ 0.1, "#c51b7d" ], [ 0.2, "#de77ae" ], [ 0.3, "#f1b6da" ], [ 0.4, "#fde0ef" ], [ 0.5, "#f7f7f7" ], [ 0.6, "#e6f5d0" ], [ 0.7, "#b8e186" ], [ 0.8, "#7fbc41" ], [ 0.9, "#4d9221" ], [ 1, "#276419" ] ], "sequential": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ], "sequentialminus": [ [ 0, "#0508b8" ], [ 0.0893854748603352, "#1910d8" ], [ 0.1787709497206704, "#3c19f0" ], [ 0.2681564245810056, "#6b1cfb" ], [ 0.3575418994413408, "#981cfd" ], [ 0.44692737430167595, "#bf1cfd" ], [ 0.5363128491620112, "#dd2bfd" ], [ 0.6256983240223464, "#f246fe" ], [ 0.7150837988826816, "#fc67fd" ], [ 0.8044692737430168, "#fe88fc" ], [ 0.8938547486033519, "#fea5fd" ], [ 0.9832402234636871, "#febefe" ], [ 1, "#fec3fe" ] ] }, "plot_bgcolor": "white", "paper_bgcolor": "white", "shapedefaults": { "line": { "width": 0 }, "opacity": 0.4, "fillcolor": "#506784" }, "annotationdefaults": { "arrowhead": 0, "arrowcolor": "#506784", "arrowwidth": 1 } }, "themeRef": "PLOTLY_WHITE" } } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~collinssjrs", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/76.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-8.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2025-06-25 16:46:46", "mapbox_access_tokens": null, "has_password": null, "username": "collinssjrs", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } }, { "creation_time": "2025-06-25T17:09:21.980153Z", "comments": { "results": [], "count": 0 }, "parented": true, "embed_url": "https://chart-studio.plotly.com/~iguzmanvt/282.embed", "fid": "iguzmanvt:282", "filename": "grafica_Aguascalientes", "filetype": "plot", "img_url": "https://api.plotly.com/v2/files/iguzmanvt:282/image?image_name=list-thumb", "image_urls": { "default": "https://api.plotly.com/v2/files/iguzmanvt:282/image?image_name=default", "block-thumb": "https://api.plotly.com/v2/files/iguzmanvt:282/image?image_name=block-thumb", "list-thumb": "https://api.plotly.com/v2/files/iguzmanvt:282/image?image_name=list-thumb" }, "api_urls": { "files": "https://api.plotly.com/v2/files/iguzmanvt:282", "plots": "https://api.plotly.com/v2/plots/iguzmanvt:282", "parent": "https://api.plotly.com/v2/folders/home?user=iguzmanvt" }, "owner": "iguzmanvt", "parent": -1, "preview": "", "referencers": [], "references": [], "title": "", "views": 0, "web_url": "https://chart-studio.plotly.com/~iguzmanvt/282/", "world_readable": true, "date_modified": "2025-07-17T16:56:57.244Z", "stars": { "results": [], "count": 0 }, "collaborators": { "results": [], "count": 0 }, "subfolder_count": null, "refresh_interval": null, "organize_view_url": "https://chart-studio.plotly.com/~iguzmanvt/282/", "current_user_permission": "read", "is_theme": null, "is_template": null, "autosize": true, "caption": "", "figure": { "data": [ { "name": "0 a 10", "type": "bar", "xsrc": "iguzmanvt:281:5655d6", "ysrc": "iguzmanvt:281:cd5fa4", "frame": null, "xaxis": "x", "yaxis": "y", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(141,211,199,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:281:ccea20", "textsrc": "iguzmanvt:281:8dacdb", "widthsrc": "iguzmanvt:281:2ada28", "hoverinfo": "text", "showlegend": true, "legendgroup": "0 a 10", "orientation": "v", "textposition": "none" }, { "name": "11 a 50", "type": "bar", "xsrc": "iguzmanvt:281:05fc6f", "ysrc": "iguzmanvt:281:4134f3", "frame": null, "xaxis": "x", "yaxis": "y", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(255,255,179,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:281:e0951b", "textsrc": "iguzmanvt:281:d1eaae", "widthsrc": "iguzmanvt:281:588d76", "hoverinfo": "text", "showlegend": true, "legendgroup": "11 a 50", "orientation": "v", "textposition": "none" }, { "name": "51 a 250", "type": "bar", "xsrc": "iguzmanvt:281:a7cad7", "ysrc": "iguzmanvt:281:dcce5e", "frame": null, "xaxis": "x", "yaxis": "y", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(190,186,218,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:281:6ab377", "textsrc": "iguzmanvt:281:16d671", "widthsrc": "iguzmanvt:281:5a0538", "hoverinfo": "text", "showlegend": true, "legendgroup": "51 a 250", "orientation": "v", "textposition": "none" }, { "name": "251 y más", "type": "bar", "xsrc": "iguzmanvt:281:d1e114", "ysrc": "iguzmanvt:281:3b77d1", "frame": null, "xaxis": "x", "yaxis": "y", "marker": { "line": { "color": "transparent", "width": 1.8897637795275593 }, "color": "rgba(251,128,114,1)", "autocolorscale": false }, "basesrc": "iguzmanvt:281:73e1c5", "textsrc": "iguzmanvt:281:0eb85e", "widthsrc": "iguzmanvt:281:99f45b", "hoverinfo": "text", "showlegend": true, "legendgroup": "251 y más", "orientation": "v", "textposition": "none" }, { "mode": "text", "name": "0 a 10", "type": "scatter", "xsrc": "iguzmanvt:281:8fd04b", "ysrc": "iguzmanvt:281:7f300b", "frame": null, "xaxis": "x", "yaxis": "y", "hoveron": "points", "textsrc": "iguzmanvt:281:4fbb2f", "textfont": { "size": 18.897637795275593, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "0 a 10", "hovertextsrc": "iguzmanvt:281:4f0b03" }, { "mode": "text", "name": "11 a 50", "type": "scatter", "xsrc": "iguzmanvt:281:ad5321", "ysrc": "iguzmanvt:281:f8e1d9", "frame": null, "xaxis": "x", "yaxis": "y", "hoveron": "points", "textsrc": "iguzmanvt:281:82c2a3", "textfont": { "size": 18.897637795275593, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "11 a 50", "hovertextsrc": "iguzmanvt:281:addbdb" }, { "mode": "text", "name": "51 a 250", "type": "scatter", "xsrc": "iguzmanvt:281:ce543f", "ysrc": "iguzmanvt:281:6cc703", "frame": null, "xaxis": "x", "yaxis": "y", "hoveron": "points", "textsrc": "iguzmanvt:281:7d67ba", "textfont": { "size": 18.897637795275593, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "51 a 250", "hovertextsrc": "iguzmanvt:281:da183c" }, { "mode": "text", "name": "251 y más", "type": "scatter", "xsrc": "iguzmanvt:281:1fb2a1", "ysrc": "iguzmanvt:281:bf60b7", "frame": null, "xaxis": "x", "yaxis": "y", "hoveron": "points", "textsrc": "iguzmanvt:281:47e83e", "textfont": { "size": 18.897637795275593, "color": "rgba(0,0,0,1)" }, "hoverinfo": "text", "showlegend": false, "legendgroup": "251 y más", "hovertextsrc": "iguzmanvt:281:0412b6" } ], "layout": { "font": { "size": 14.611872146118724, "color": "rgba(0,0,0,1)", "family": "" }, "title": { "x": 0, "font": { "size": 17.53424657534247, "color": "rgba(0,0,0,1)", "family": "" }, "text": "Distribución de las unidades económicas en Aguascalientes", "xref": "paper" }, "xaxis": { "type": "linear", "range": [ 0.4, 4.6 ], "ticks": "", "title": { "font": { "size": 14.611872146118724, "color": "rgba(0,0,0,1)", "family": "" }, "text": "" }, "anchor": "y", "domain": [ 0, 1 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 11.68949771689498, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "2003", "2008", "2013", "2018" ], "tickvals": [ 1, 2, 3, 4 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "automargin": true, "hoverformat": ".2f", "categoryarray": [ "2003", "2008", "2013", "2018" ], "categoryorder": "array", "showticklabels": true }, "yaxis": { "type": "linear", "range": [ -0.05, 1.05 ], "ticks": "", "title": { "font": { "size": 14.611872146118724, "color": "rgba(0,0,0,1)", "family": "" }, "text": "" }, "anchor": "x", "domain": [ 0, 1 ], "nticks": null, "ticklen": 3.652968036529681, "showgrid": true, "showline": false, "tickfont": { "size": 11.68949771689498, "color": "rgba(77,77,77,1)", "family": "" }, "tickmode": "array", "ticktext": [ "0%", "25%", "50%", "75%", "100%" ], "tickvals": [ 0, 0.25, 0.5, 0.75, 1 ], "zeroline": false, "autorange": false, "gridcolor": "rgba(235,235,235,1)", "gridwidth": 0.66417600664176, "linecolor": null, "linewidth": 0, "tickangle": 0, "tickcolor": null, "tickwidth": 0, "automargin": true, "hoverformat": ".2f", "categoryarray": [ "0%", "25%", "50%", "75%", "100%" ], "categoryorder": "array", "showticklabels": true }, "legend": { "font": { "size": 11.68949771689498, "color": "rgba(0,0,0,1)", "family": "" }, "title": { "font": { "size": 19.925280199252807, "color": "rgba(0,0,0,1)", "family": "" }, "text": "Personas empleadas" }, "bgcolor": null, "bordercolor": null, "borderwidth": 0 }, "margin": { "b": 27.180788094030106, "l": 34.337899543379, "r": 7.305936073059362, "t": 45.372568915947916 }, "shapes": [ { "x0": 0, "x1": 1, "y0": 0, "y1": 1, "line": { "color": null, "width": 0, "linetype": [] }, "type": "rect", "xref": "paper", "yref": "paper", "fillcolor": null } ], "barmode": "relative", "hovermode": "closest", "showlegend": true } }, "height": null, "width": null, "user": { "profile_url": "https://chart-studio.plotly.com/~iguzmanvt", "avatar_url": "https://storage.googleapis.com/plotly-prod-profiles/13.jpg", "background_url": "https://storage.googleapis.com/plotly-prod-profiles/bg-4.jpg", "bio": "", "nickname": "", "website": "", "stream_tokens": null, "feature_set_id": null, "csrf_token": null, "date_joined": "2021-07-14 18:52:29", "mapbox_access_tokens": null, "has_password": null, "username": "iguzmanvt", "email": null, "is_active": null, "readonly": null, "is_dash_creator": null, "dash_created_count": null, "is_chart_creator": null, "charts_created_count": null } } ] }
